When picking between 253MA vs 310S stainless steel, knowing their differences is important. Each type has special benefits based on its makeup and use. For example:
- 253MA has 0.09% carbon, 21% chromium, 11% nickel, and 1.6% silicon.
- 310S has 0.05% carbon, 25% chromium, and 20% nickel.
These differences change how they work. 253MA handles higher heat, over 1650°F, while 310S works up to 1500°F. Additionally, 253MA is stronger under pressure, making it better for tough conditions. Comparing 253MA vs 310S stainless steel helps you choose the best one for your needs.
Key Takeaways
- Pick 253MA for very high heat use. It handles heat up to 2000°F, great for ovens and kilns.
- Use 310S for medium heat and rust protection. It works well up to 1900°F and is simpler to weld.
- Think about cost and performance. 253MA costs more but lasts longer in tough spots. 310S is cheaper for easier jobs.
- Match the material to your project. Check heat, pressure, and rust needs to choose wisely.
- Use charts and expert help to decide the best stainless steel for your project.
Chemical Composition of 253MA vs 310S Stainless Steel

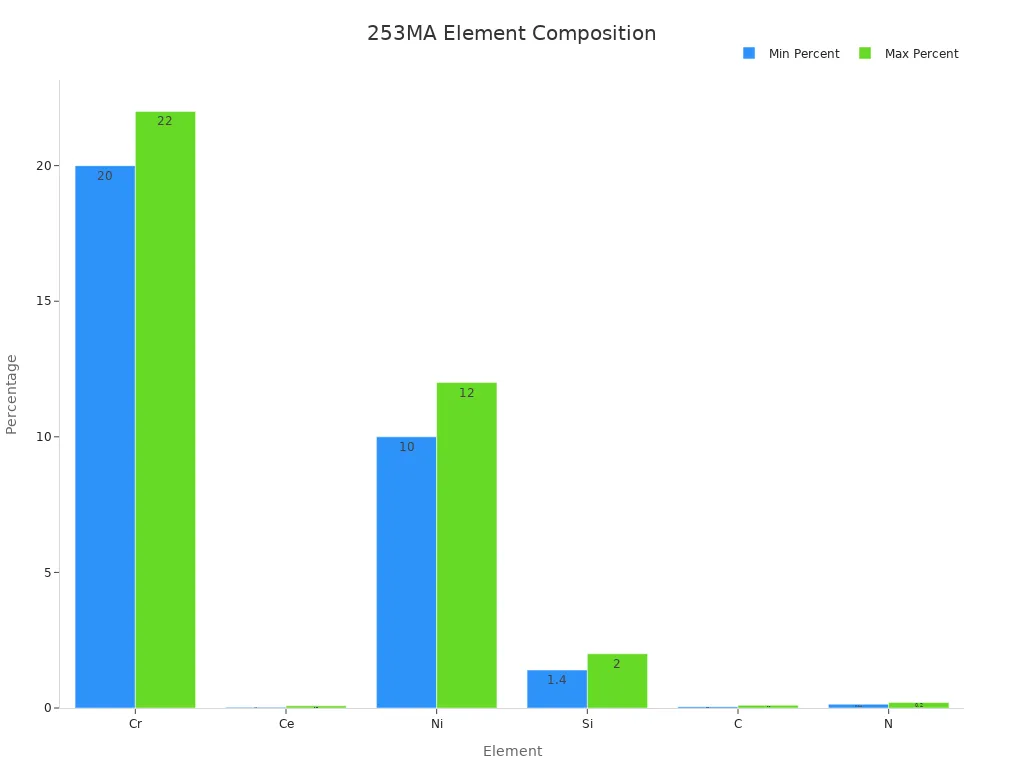

Main Elements in 253MA (S30815 Stainless Steel)
253MA, also called S30815 stainless steel, is special because of its chemical makeup. It has a mix of elements that help it handle high heat and stay strong. The table below shows the key elements and their percentage ranges:
| Element | Min % | Max % |
|---|---|---|
| Cr | 20 | 22 |
| Mn | – | 0.80 |
| Ce | 0.03 | 0.08 |
| Fe | Balance | – |
| Ni | 10 | 12 |
| Si | 1.40 | 2 |
| P | – | 0.04 |
| C | 0.05 | 0.10 |
| N | 0.14 | 0.20 |
| S | – | 0.03 |
Cerium (Ce) in 253MA is a rare but important element. It helps the steel resist damage from heat. Silicon (Si) also helps protect it from scaling in very high temperatures.
Main Elements in AISI 310S Stainless Steel
AISI 310S stainless steel is a low-carbon version of 310 stainless steel. It is made to resist rust and stay strong in high heat. Its chemical makeup includes these elements:
| Element | Content (%) |
|---|---|
| Iron, Fe | 54 |
| Chromium, Cr | 24-26 |
| Nickel, Ni | 19-22 |
| Manganese, Mn | 2 |
| Silicon, Si | 1.50 |
| Carbon, C | 0.080 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.030 |
The high amounts of chromium (Cr) and nickel (Ni) in AISI 310S make it great at resisting rust and heat damage. Its low carbon (C) content makes it easier to weld and reduces the chance of damage over time.
How Composition Affects Performance
The elements in 253MA and AISI 310S stainless steel affect how they work. 253MA is best for very high heat and tough conditions above 1650°F. Its cerium and silicon content make it perfect for extreme heat. AISI 310S, however, is better at resisting rust and works well in heat up to 1500°F. Its low carbon content makes it good for welding and long-term use.
When choosing between 253MA and 310S, think about your needs. If you need strength and heat resistance, pick 253MA. If you need rust resistance and moderate heat handling, go with AISI 310S.
Mechanical Properties of 253MA vs 310S Stainless Steel
Strength and Stretchability Comparison
253MA is stronger than 310S stainless steel. It has higher proof and tensile strength. Proof strength for 253MA is at least 310 MPa (45 ksi). Its tensile strength ranges from 650 to 850 MPa (94-123 ksi). This means 253MA can handle more weight before bending or breaking. 310S is weaker, so it’s not good for heavy-duty tasks.
Stretchability shows how much a material can stretch without breaking. 253MA can stretch at least 40%, making it flexible under pressure. This is useful in places where materials move or bend a lot. 310S stretches less, so it’s not as good in these situations.
Hardness and Wear Resistance
Hardness shows how well a material resists dents or scratches. 253MA has a hardness of about 190 Vickers. This gives it decent resistance to wear and tear. It works well in places with friction or rough surfaces. 310S is also hard but not as tough as 253MA for long-term wear.
The silicon and cerium in 253MA help its surface stay strong. These elements keep it hard and protect it from damage, even in high heat.
Best for High-Stress Jobs
253MA is better for jobs with high stress. Its strength, stretchability, and hardness make it great for heavy loads. Industries like power plants and furnace building use 253MA because it lasts in tough conditions.
310S works for medium stress but isn’t as strong as 253MA. It’s not the best for high heat or heavy loads.
Thermal Properties and High-Temperature Performance
Maximum Operating Temperatures
Materials must stay strong in high heat. 253MA works very well in extreme heat. It can handle up to 2000°F (1093°C). This makes it great for furnaces and heat exchangers. 310S stainless steel can only handle up to 1900°F (1038°C). While good, it’s not as strong as 253MA. For temperatures over 1900°F, 253MA is the better pick.
Oxidation Resistance in High-Temperature Environments
High heat can cause materials to break down. 253MA resists this because of its special makeup. Cerium and silicon in 253MA form a protective layer. This layer stops damage and scaling in extreme heat. 310S stainless steel also resists heat damage but not as well. It struggles in temperatures over 1500°F. For long-lasting use in high heat, 253MA is the stronger choice.
Thermal Conductivity and Expansion Rates
Heat affects how materials expand and spread warmth. 253MA spreads heat evenly and doesn’t expand much. This keeps it stable during quick temperature changes. It’s great for jobs needing precision. 310S stainless steel spreads heat similarly but expands more. This can cause bending or warping. If you need a material that stays steady under heat, 253MA is more reliable.
Tip: Think about the heat and stress levels of your project when picking between 253MA and 310S stainless steel.
Corrosion Resistance of 253MA vs 310S Stainless Steel
Resistance to Oxidation and Scaling
High heat can cause materials to weaken or form scales. 253MA resists this damage very well. Its cerium and silicon create a protective layer. This layer stops heat from harming the material. 253MA works best in temperatures over 1500°F.
310S stainless steel also resists heat damage but handles less heat. Its chromium and nickel help protect it in moderate heat. However, it struggles in very high temperatures. For long-term use in extreme heat, 253MA is the better choice.
Performance in Sulfur-Containing and Nitriding Environments
Sulfur and nitriding environments can harm many materials. 253MA stays strong in these tough conditions. Its silicon and cerium make it resist chemical attacks. This makes it great for industries like power plants and petrochemicals.
310S stainless steel can handle some chemicals but isn’t as tough. It wears down faster in sulfur-rich or nitriding environments. If your project faces these conditions, 253MA lasts longer and works better.
Long-Term Durability in Harsh Conditions
Durability matters for tough jobs. 253MA stainless steel stays strong and resists damage over time. It works well in furnaces, kilns, and heat exchangers. Its makeup keeps it reliable in harsh places.
310S stainless steel is durable but less so in extreme heat. It works fine in easier conditions but doesn’t last as long under stress. For jobs needing long-term strength, 253MA is the best option.
Cost and Uses of 253MA vs 310S Stainless Steel
Price Comparison
253MA costs more than 310 stainless steel. This is because it has special elements like cerium and more silicon. These make it work better in high heat and tough places. Making 253MA plates also costs more. But the higher price means it lasts longer and works better in hard conditions.
310 stainless steel is cheaper. Its simpler mix of elements and easier production lower its cost. It’s a good choice for projects with moderate heat and less stress. If you need to save money, 310 stainless steel is a smart pick.
Where 253MA Stainless Steel is Used
253MA is used where high heat and strength are needed. It’s found in furnaces, kilns, and heat exchangers. It can handle heat up to 2000°F, making it perfect for these uses. Power plants and chemical factories also use 253MA because it stays strong in sulfur-rich and tough conditions.
It’s also used in rotary kilns and incinerators. Its ability to resist damage from heat and chemicals makes it last a long time. If your project faces extreme heat or chemicals, 253MA is a dependable choice.
Where AISI 310S Stainless Steel is Used
310 stainless steel is used in less harsh places. It works well in medium heat, like in food equipment and heat trays. Its rust resistance makes it good for marine and chemical uses.
You’ll also see 310 stainless in furnace parts and boilers. It doesn’t handle heat as well as 253MA but costs less. For projects needing moderate heat resistance and lower costs, 310 stainless is a good option.
Picking the Best Material for Your Needs
Choosing the right stainless steel depends on what your project needs. Both 253MA and 310S stainless steel have special benefits. Knowing their features helps you pick the best one.
Important Factors to Consider
When deciding, think about strength, ease of machining, rust resistance, and cost. The table below compares two similar steels, 416 and 416R, to show how these factors help in choosing:
| Factor | 416 Stainless Steel | 416R Stainless Steel |
|---|---|---|
| Strength and Durability | Good for general use | Better for tough jobs |
| Machinability | Easier to work with | Best for precise machining |
| Corrosion Resistance | Works in many environments | Better due to extra elements |
| Material Costs | Cheaper | Costs more but offers better performance |
| Processing Costs | Lower because it’s easier to machine | Higher but worth it for quality |
| Temperature Extremes | Not great in very cold conditions | Stays strong down to -40°F |
| Corrosive Environments | Handles some corrosion | Resists corrosion better |
This table shows how materials match different needs. For example, if your project needs high performance, 416R might be worth the extra cost.
Tools to Help You Decide
There are tools to make picking materials easier:
- Project Needs Chart: Ranks materials based on your project’s needs.
- Stress Testing Software: Shows how materials handle pressure or heat.
- Cost Planning: Calculates total costs, including material and processing.
- Expert Advice: Helps you understand materials better.
Using these tools, you can find a material that works well, lasts long, and fits your budget.
Tip: Think about long-term benefits. Spending more now can save money later with better performance and less upkeep.
253MA vs 310S Stainless Steel: High Temperature Resistance
When using materials in very high heat, pick one that won’t fail. Both 253MA and 310S stainless steel work well in heat, but they are different.
253MA is great for extreme heat. It works up to 2000°F (1093°C) without losing strength. This makes it perfect for furnaces, kilns, and heat exchangers. Cerium and silicon in 253MA help stop scaling and damage from heat. If your project needs constant high heat, 253MA is very reliable.
310S stainless steel works best up to 1900°F (1038°C). It resists heat damage but isn’t as strong as 253MA above 1500°F. Its lower chromium and silicon levels limit its use in extreme heat. But 310S is cheaper and good for medium heat jobs like heat trays and furnace parts.
Heat expansion is also important. 253MA expands less, staying strong during quick heat changes. This makes it better for precise tasks. 310S expands more, which can cause bending over time.
For tough heat and long-lasting use, 253MA is the best choice. It lasts longer and works better than 310S in extreme heat.
Tip: Check your project’s heat and stability needs before choosing a material.
253MA vs 310S Stainless Steel: Which is Better?
When picking between 253MA and 310S stainless steel, think about your project’s needs. Each type has special features that make it good for different uses. Here’s a simple comparison to help you decide.
Strength and Heat Resistance
For very high heat or heavy tasks, 253MA is the best choice. It handles heat up to 2000°F (1093°C) and is very strong. Its cerium and silicon help stop damage from heat and scaling. This makes it great for furnaces, kilns, and other hot places.
310S works well in medium heat, up to 1900°F (1038°C). It resists rust and is easier to weld because of its low carbon. But it’s not as strong or heat-resistant as 253MA in tough conditions.
Cost and Applications
253MA costs more than 310S because of its special materials and production. Even though it’s pricier, it lasts longer in hard conditions. Industries like power plants and chemical factories often pick 253MA for its strength and reliability.
310S is cheaper and good for easier jobs. It’s used in food equipment, heat trays, and marine areas. If your project doesn’t need high heat resistance, 310S is a smart, budget-friendly option.
Tip: Think about your project’s heat, stress, and cost needs before choosing.
Picking between 253MA and 310S stainless steel depends on your project. The table below shows their main differences:
| Grade | Cr (%) | Ni (%) | Si (%) | Mn (%) | N (%) | C (%) | Ce (%) | Fe (%) |
|---|---|---|---|---|---|---|---|---|
| 253MA UNS S30815 | 21.0 | 11.0 | 1.7 | 0.6 | 0.17 | 0.07 | 0.04 | Bal |
| 310S UNS S31008 | 25.0 | 20.0 | 0.5 | 1.6 | – | 0.05 | – | Bal |
- 253MA works best in very hot places with sulfur gases.
- 310S is better in low-oxygen or nitriding environments.
The nitrogen and carbon in 253MA make it stronger under heat. This allows thinner designs without losing strength. For the best choice, ask experts about your project’s heat, corrosion, and budget needs.
FAQ
1. Why is 253MA good for high heat?
253MA has cerium and silicon that protect it from scaling. It can handle heat up to 2000°F. Its nitrogen and carbon make it strong. This makes it great for furnaces and kilns.
2. Can 310S stainless steel be welded easily?
Yes, 310S is great for welding. Its low carbon stops welds from weakening. This makes it a good pick for medium heat jobs needing strong welds.
3. Does 253MA resist sulfur-rich corrosion?
Yes! Cerium and silicon in 253MA help it fight sulfur damage. It works well in power plants and petrochemical places with tough conditions.
4. Why is 310S cheaper than 253MA?
310S has fewer special elements like cerium, so it costs less. Its simpler mix makes it cheaper to produce. It’s good for medium heat and easier tasks.
5. How do I pick between 253MA and 310S?
Think about your project’s heat, stress, and rust needs. Use 253MA for very high heat and tough jobs. Pick 310S for medium heat and lower costs. Ask an expert for advice.
Tip: Think about how long the material will last and its upkeep costs.
