310 vs. 310s stainless steel: key differences explained centers on carbon content. Higher carbon in 310 increases strength but also raises the risk of corrosion, especially after welding. Lower carbon in 310S reduces the chance of corrosion, making it more suitable for welded structures. Corrosion resistance remains critical in both grades, particularly in high-temperature environments. Corrosion can compromise structural integrity over time. Corrosion also affects equipment longevity and safety. In industrial settings, corrosion leads to maintenance challenges. Both grades resist corrosion, but 310S offers better protection. 310 vs. 310s stainless steel: key differences explained highlights why corrosion performance impacts material selection.
Key Takeaways
- 310 stainless steel has higher carbon content, which gives it more strength but makes it less resistant to corrosion after welding.
- 310S stainless steel has lower carbon, making it easier to weld and better at resisting corrosion, especially in welded parts.
- Both grades resist high temperatures well, but 310 is better for very hot environments, while 310S is best for welded or corrosive conditions.
- Choosing between 310 and 310S depends on your needs for strength, weldability, and corrosion resistance in your specific application.
- 310S may cost slightly more upfront but can save money over time by reducing maintenance and improving durability in harsh environments.
310 vs. 310S Stainless Steel: Key Differences
Main Distinction
310 vs. 310s stainless steel: key differences explained centers on carbon content. Stainless steel 310 contains up to 0.25% carbon, while stainless steel 310s limits carbon to a maximum of 0.08%. This difference in carbon content shapes the performance, weldability, and corrosion resistance of each grade. The higher carbon in stainless steel 310 increases strength and hardness, especially at elevated temperatures. However, it also raises the risk of carbide precipitation during welding, which can reduce corrosion resistance. Stainless steel 310s, with its lower carbon, minimizes carbide formation and offers better weldability and improved corrosion resistance after welding.
Note: The main distinction between these two grades lies in their carbon content, which directly impacts their suitability for different industrial applications.
The table below summarizes the primary differences:
| Aspect | Stainless Steel 310 | Stainless Steel 310S |
|---|---|---|
| Carbon Content | Up to 0.25% | Up to 0.08% |
| Strength & Hardness | Higher due to more carbon | Slightly lower |
| Weldability | Prone to carbide precipitation | Better, less carbide precipitation |
| Corrosion Resistance | More risk after welding | Improved, especially post-weld |
| High-Temperature Use | Up to 2100°F (1149°C) | Up to 2000°F (1093°C) |
| Typical Applications | Furnace parts, heat treatment | Welded structures, corrosive areas |
Impact of Carbon Content
The carbon content in stainless steel 310 and stainless steel 310s influences their microstructure and performance. In stainless steel 310, higher carbon promotes the formation of MC-type carbides during welding. These carbides increase strength but can also lead to intergranular corrosion if not managed properly. Stainless steel 310s, with its reduced carbon, forms fewer carbides, which enhances corrosion resistance and makes it ideal for welded assemblies.
- Stainless steel 310 maintains its integrity at higher temperatures, making it suitable for furnace components and heat treatment equipment.
- Stainless steel 310s provides better corrosion resistance in welded structures, reducing the risk of intergranular corrosion and the need for post-weld heat treatment.
- Both grades offer similar levels of chromium and nickel, which contribute to their oxidation resistance and overall corrosion resistance.
Technical studies show that increasing carbon from 0.05% to 0.20% in Fe-24%Cr-26%Ni alloys, which represent stainless steel 310 and stainless steel 310s, accelerates MC carbide formation. This process reduces weld solidification cracking susceptibility but increases the risk of corrosion if carbides remain at grain boundaries. Titanium and niobium additions can further influence cracking and carbide formation, but the main factor remains the carbon content.
310 vs. 310s stainless steel: key differences explained also extends to application suitability. Stainless steel 310 excels in high-temperature, high-strength environments, while stainless steel 310s is preferred for projects requiring extensive welding and maximum corrosion resistance. Both grades resist oxidation, but stainless steel 310s stands out for its superior corrosion resistance in welded conditions.
Tip: When selecting between these grades, consider the operating temperature, need for welding, and the importance of corrosion resistance in your application.
310 vs. 310s stainless steel: key differences explained provides a foundation for understanding which grade best fits specific industrial needs. The next sections will explore their chemical composition, properties, and real-world applications in greater detail.
What is 310 Stainless Steel?
Stainless steel 310 stands out as a highly alloyed austenitic material designed for service in demanding high-temperature environments. Engineers and manufacturers often select stainless steel 310 for its excellent resistance to oxidation and scaling, even when exposed to temperatures up to 2100°F (1149°C). This grade contains a high percentage of chromium and nickel, which provides superior corrosion resistance and mechanical strength under thermal stress.
The chemical composition of stainless steel 310 follows strict industry standards. According to ASTM A167 and related specifications, the alloy includes significant amounts of chromium (24.0–26.0%) and nickel (19.0–22.0%), with a maximum carbon content of 0.25%. The table below summarizes the typical composition and key properties:
| Element/Property | Value/Range |
|---|---|
| Carbon (C) | Max 0.25% |
| Chromium (Cr) | 24.0–26.0% |
| Nickel (Ni) | 19.0–22.0% |
| Manganese (Mn) | Max 2.00% |
| Silicon (Si) | Max 1.50% |
| Phosphorus (P) | Max 0.045% |
| Sulfur (S) | Max 0.030% |
| Density | 0.285–0.290 lb/in³ |
| Tensile Strength | Min 75 ksi (520 MPa) |
| Yield Strength | Min 30 ksi (205 MPa) |
| Elongation | Min 40% |
| Hardness | Max 95 Rb / 225 HV |
| Melting Point | 2470–2555°F (1354–1401°C) |
AISI 310 stainless steel maintains its structure and strength at elevated temperatures. Metallurgical studies highlight the stability of the sigma phase in stainless steel 310, which helps preserve mechanical properties during prolonged heat exposure. Researchers have also found that advanced processing methods, such as selective laser melting, can further enhance the yield strength and ductility of aisi 310 stainless steel by refining its grain structure.
Grade 310 offers reliable performance in furnace parts, heat exchangers, and other thermal processing equipment. The alloy’s high chromium and nickel content ensures that stainless steel 310 resists oxidation, carburization, and thermal fatigue. Aisi 310 stainless steel remains a preferred choice for industries that demand durability and corrosion resistance in extreme conditions.
Note: Stainless steel 310 provides a balance of strength, ductility, and corrosion resistance, making it suitable for both static and cyclic high-temperature applications.
What is 310S Stainless Steel?
Stainless steel 310s represents a low carbon version of the classic 310 alloy. Manufacturers designed this material to improve weldability and reduce the risk of carbide precipitation during fabrication. Stainless steel 310s meets rigorous standards, including ASTM A240 and ASME SA240, which ensures consistent quality and performance in demanding environments.
The chemical composition of stainless steel 310s features high levels of chromium and nickel, similar to its parent alloy. However, the carbon content remains strictly limited to a maximum of 0.08%. This adjustment enhances corrosion resistance, especially after welding, and makes stainless steel 310s a preferred choice for applications that require frequent or complex fabrication.
| Property/Element | Value/Range |
|---|---|
| Standard | ASTM A240, ASME SA240 |
| Carbon (C) | Max 0.08% |
| Chromium (Cr) | 24–26% |
| Nickel (Ni) | 19–22% |
| Yield Strength | Min 245 MPa |
| Tensile Strength | Min 550 MPa |
| Elongation | 45% |
Aisi 310s stainless steel delivers excellent oxidation resistance at high temperatures. The high chromium and silicon content protect surfaces from scaling, even when exposed to temperatures above 2000°F (1093°C). Stainless steel 310s also maintains good mechanical strength and ductility, which allows it to perform reliably in thermal cycling and high-stress environments.
Fabricators value stainless steel 310s for its compatibility with standard welding processes. The low carbon content reduces the risk of intergranular corrosion, so post-weld heat treatment is often unnecessary. Stainless steel 310s also supports both hot and cold forming, which increases its versatility in manufacturing.
Stainless steel 310s finds use in furnace linings, heat exchangers, and chemical processing equipment. Its resistance to oxidation and thermal fatigue makes it suitable for industries that demand durability under extreme conditions. Aisi 310s stainless steel also appears in gas turbines and exhaust systems, where exposure to high temperatures and corrosive gases is common.
Note: Grade 310s offers a balance of high-temperature strength, corrosion resistance, and ease of fabrication. This combination makes stainless steel 310s a reliable solution for welded structures and components exposed to harsh environments.
310 vs. 310S Stainless Steel Chemical Composition
AISI 310 stainless steel
AISI 310 stainless steel stands out for its high resistance to heat and corrosion. This grade contains a unique blend of elements that give it strength and durability in extreme environments. The chemical composition of stainless steel 310 includes:
- Carbon: up to 0.25%
- Chromium: 24–26%
- Nickel: 19–22%
- Manganese: up to 2%
- Silicon: up to 1.5%
- Phosphorus: up to 0.045%
- Sulfur: up to 0.03%
- Iron: balance
Stainless steel 310 uses a higher carbon content to increase strength at elevated temperatures. The high chromium and nickel levels provide excellent oxidation resistance. Stainless steel 310 also maintains its structure during thermal cycling, making it a reliable choice for furnace parts and heat exchangers.
AISI 310S stainless steel
AISI 310S stainless steel is a low-carbon version of the 310 grade. This adjustment improves weldability and reduces the risk of carbide precipitation. The chemical composition of stainless steel 310s is as follows:
- Carbon: up to 0.08%
- Chromium: 24–26%
- Nickel: 19–22%
- Manganese: around 2%
- Silicon: about 1.5%
- Phosphorus: up to 0.045%
- Sulfur: up to 0.03%
- Iron: approximately 54%
Stainless steel 310s offers similar corrosion and oxidation resistance as stainless steel 310. The lower carbon content makes stainless steel 310s ideal for welded structures and applications where intergranular corrosion is a concern. Stainless steel 310s also performs well in chemical processing and high-temperature environments.
Comparison Table
The table below highlights the main differences in chemical composition between stainless steel 310 and stainless steel 310s:
| Element | Stainless Steel 310 | Stainless Steel 310S |
|---|---|---|
| Carbon (C) | Up to 0.25% | Up to 0.08% |
| Chromium (Cr) | 24–26% | 24–26% |
| Nickel (Ni) | 19–22% | 19–22% |
| Manganese (Mn) | Up to 2% | Up to 2% |
| Silicon (Si) | Up to 1.5% | Up to 1.5% |
| Phosphorus (P) | Up to 0.045% | Up to 0.045% |
| Sulfur (S) | Up to 0.03% | Up to 0.03% |
| Iron (Fe) | Balance | Balance |
Note: The main difference between stainless steel 310 and stainless steel 310s lies in the carbon content. Stainless steel 310 contains more carbon, which increases strength but can reduce weldability. Stainless steel 310s, with less carbon, offers better weldability and resistance to intergranular corrosion.
Stainless steel 310 and stainless steel 310s both rely on high chromium and nickel content for their performance. Stainless steel 310s provides a safer option for welded assemblies, while stainless steel 310 remains the preferred choice for applications demanding higher strength at elevated temperatures. Stainless steel 310s and stainless steel 310 both serve critical roles in industries that require durability and resistance to harsh conditions.
310 vs. 310S Stainless Steel Properties Comparison
Mechanical
Stainless steel 310 demonstrates impressive high-temperature strength, making it a top choice for high-temperature applications. This grade offers an ultimate tensile strength of 92.7 ksi and a yield tensile strength of 43.5 ksi. The higher carbon content in stainless steel 310 increases its strength and hardness, especially when exposed to elevated temperatures. Stainless steel 310s, with its lower carbon content, provides slightly less high-temperature strength but gains improved ductility and weldability. Both grades maintain good elongation and toughness, even after repeated thermal cycling. Engineers often select stainless steel 310 for components that must withstand mechanical stress and high-temperature environments. Stainless steel 310s remains popular for welded structures where corrosion resistance is critical.
| Property | Stainless Steel 310 | Stainless Steel 310S |
|---|---|---|
| Ultimate Tensile Strength | 92.7 ksi | ~80-85 ksi |
| Yield Tensile Strength | 43.5 ksi | ~35-40 ksi |
| Elongation | 40% | 45% |
| Hardness | 225 HV | 217 HV |
Note: Stainless steel 310 delivers higher high-temperature strength, while stainless steel 310s excels in weldability and ductility.
Physical

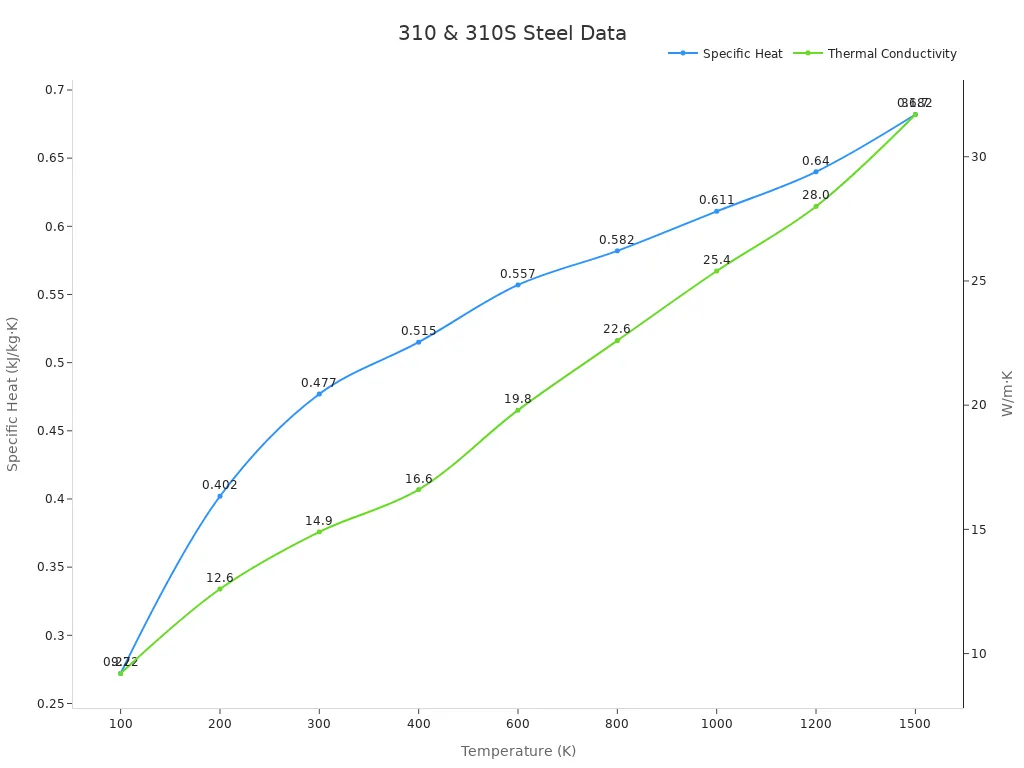

Both stainless steel 310 and stainless steel 310s share similar physical and thermal properties. Their density measures 0.289 lb/in³, which supports structural stability in high-temperature applications. The thermal conductivity of these alloys increases with temperature, reaching 31.7 W/m·K at 1500 K. Specific heat also rises as temperature climbs, which helps these materials absorb and dissipate heat efficiently. These thermal properties allow stainless steel 310 and stainless steel 310s to perform reliably in environments with rapid temperature changes.
| Temperature (K) | Specific Heat (kJ/kg·K) | Thermal Conductivity (W/m·K) |
|---|---|---|
| 100 | 0.272 | 9.2 |
| 300 | 0.477 | 14.9 |
| 600 | 0.557 | 19.8 |
| 1000 | 0.611 | 25.4 |
| 1500 | 0.682 | 31.7 |
Engineers value the stable thermal properties of stainless steel 310 and stainless steel 310s for high-temperature applications.
High-Temperature
Stainless steel 310 stands out for its high-temperature strength and resistance to deformation. This grade maintains its structure and mechanical properties up to 2100°F (1149°C), making it ideal for furnace parts and other high-temperature applications. Stainless steel 310s, while slightly less strong at extreme temperatures, still offers excellent high-temperature strength and resistance to oxidation. Both grades resist scaling and maintain their integrity during prolonged exposure to heat. Their high chromium and nickel content ensures strong resistance to corrosion, even in harsh, high-temperature environments. Stainless steel 310 and stainless steel 310s both provide reliable performance in thermal cycling, where repeated heating and cooling can challenge material properties.
Stainless steel 310 and stainless steel 310s deliver the high-temperature strength and corrosion resistance required for demanding industrial applications.
310 vs. 310S Stainless Steel Weldability & Corrosion
Weldability
Stainless steel 310 and 310S both offer strong weldability and corrosion resistance, but their performance differs due to carbon content. Stainless steel 310 contains more carbon, which increases the risk of carbide formation during welding. These carbides can cause weld cracking and reduce corrosion resistance. Technical journals show that impurities like sulfur, phosphorus, and silicon also affect weldability. In stainless steel 310, delta ferrite and carbide phases contribute to crack propagation in welds. Stainless steel 310S, with its lower carbon, forms fewer carbides. This property improves weldability and corrosion resistance after welding. Fabricators often choose stainless steel 310S for welded structures because it reduces the risk of weld-related failures.
Sensitization
Sensitization occurs when chromium carbides form at grain boundaries during heating, especially in stainless steel 310. This process depletes chromium near the grain boundaries, lowering corrosion resistance. Stainless steel 310 is more prone to sensitization because of its higher carbon content. The formation of brittle sigma phase during heat treatment or service between 450–850 °C can also lead to early failures in stainless steel 310. Stainless steel 310S, with less carbon, resists sensitization better. This resistance helps maintain weldability and corrosion resistance in demanding environments. Stainless steel 310S remains stable during welding and thermal cycling, making it a preferred choice for applications where corrosion resistance is critical.
Corrosion Resistance
Stainless steel 310 and 310S both provide excellent corrosion resistance in high-temperature environments. Stainless steel 310, however, can suffer from high temperature sulfidation corrosion, especially in gas flare systems. Surface treatments, such as thermal barrier coatings, can improve corrosion resistance by suppressing harmful phase transformations. Stainless steel 310S offers better weldability and corrosion resistance after welding, but it can still face stress corrosion cracking in hydrogenated hot water. Both grades rely on high chromium and nickel content for their corrosion resistance. Stainless steel 310S stands out for its superior weldability and corrosion resistance in welded assemblies, while stainless steel 310 remains strong in extreme heat. Engineers must consider the specific environment to select the right grade for optimal weldability and corrosion resistance.
310 vs. 310S Stainless Steel Applications
Stainless steel 310 uses
Stainless steel 310 serves as a reliable material in high-temperature applications that demand both high-temperature strength and corrosion resistance. Engineers often select stainless steel 310 for furnace parts, heat exchangers, and kilns. Its high chromium and nickel content provide excellent resistance to oxidation and corrosion, even when exposed to temperatures up to 2100°F (1149°C). The thermal conductivity of stainless steel 310 measures about 12.3 W/(m·K) at 20°C, which supports efficient heat transfer in energy production and oil refining. Architectural projects use stainless steel 310 for exposed structural steel, while the maritime industry values its resistance to harsh environments. Refrigeration systems also benefit from its durability and corrosion resistance. Factors such as cold-working and thermal history can affect the performance of stainless steel 310, but its high-temperature strength remains a key advantage.
AISI 310S stainless steel uses
AISI 310S stainless steel excels in high-temperature applications that require frequent welding or complex fabrication. Its lower carbon content improves weldability and reduces the risk of sensitization, making it ideal for welded furnace tubes, conveyor belts, and reaction furnaces. AISI 310S stainless steel maintains stability at temperatures above 1035°C, offering high-temperature strength and excellent corrosion resistance against acids, alkalis, and oxidizing atmospheres. Industries such as chemical processing, power engineering, and food processing rely on AISI 310S for its durability and resistance to thermal fatigue. The material’s low thermal expansion coefficient helps minimize deformation during temperature fluctuations, while its high nickel content ensures long-term performance in high-temperature environments.
Industry Examples
The difference between 310 and 310s becomes clear when examining real-world industry examples. Stainless steel 310 provides superior high-temperature strength for static components in furnaces and heat exchangers, where sustained high temperatures and oxidation resistance are critical. In contrast, AISI 310S stainless steel offers better corrosion resistance and weldability, making it suitable for components exposed to cyclic heating and frequent fabrication. A study on thermally fatigued phase transformation and bending fracture mechanisms of 310S stainless steel highlights its use in furnace tubes and conveyor belts, withstanding repeated thermal cycling at 900°C. Another case study compared AISI 310S stainless steel with Inconel 625 in industrial recuperators, showing that while 310S offers good high-temperature strength and resistance, it has a shorter service life under extreme creep conditions compared to nickel-based superalloys. Technical evaluations also show that machining AISI 310S stainless steel can be optimized using advanced lubrication techniques, improving surface quality and reducing emissions in manufacturing.
Tip: When choosing between stainless steel 310 and AISI 310S stainless steel, consider the specific demands of high-temperature applications, fabrication needs, and the required balance of high-temperature strength, corrosion resistance, and weldability.
310 vs. 310S Stainless Steel Cost Comparison
When comparing the cost of 310 and 310S stainless steel, buyers often notice only a slight difference in price per pound. Both grades contain high levels of chromium and nickel, which drive up the base material cost. However, the lower carbon content in 310S stainless steel can influence the final price, especially when manufacturers focus on applications that demand superior corrosion resistance.
Material suppliers often set prices based on the alloy’s ability to deliver long-term corrosion protection and resistance to harsh environments. Stainless steel 310, with its higher carbon content, offers strong performance at elevated temperatures. However, it may require additional treatments or coatings to maintain corrosion resistance after welding. These extra steps can increase the total project cost.
Stainless steel 310S, designed for improved weldability and corrosion resistance, often reduces the need for post-weld treatments. This advantage can lower fabrication costs in industries where corrosion is a primary concern. Many engineers choose 310S stainless steel for welded structures because it maintains resistance to corrosion without extra processing.
Note: The initial price difference between 310 and 310S stainless steel remains small, but long-term savings often come from reduced maintenance and better corrosion resistance in 310S.
The table below summarizes key cost factors:
| Factor | Stainless Steel 310 | Stainless Steel 310S |
|---|---|---|
| Base Material Cost | High | High |
| Corrosion Resistance | Good | Excellent |
| Weldability | Moderate | Superior |
| Post-Weld Treatment Needed | Sometimes | Rarely |
| Maintenance Costs | Higher | Lower |
| Typical Price Difference | Slight | Slight |
Engineers must consider not just the upfront price but also the long-term value. Projects that face frequent corrosion challenges or require high resistance to chemical attack often benefit from the enhanced resistance of 310S stainless steel. Over time, the improved corrosion resistance of 310S can lead to fewer repairs and longer equipment life, making it a cost-effective choice for many industries.
Selecting between stainless steel 310 and 310S depends on carbon content and corrosion performance. Stainless steel 310 contains more carbon, which increases strength but raises the risk of corrosion after welding. Stainless steel 310S, with lower carbon, offers better weldability and superior corrosion resistance. The table below highlights key differences:
| Property | Stainless Steel 310 | Stainless Steel 310S |
|---|---|---|
| Carbon Content | Up to 0.25% | Up to 0.08% |
| Corrosion | Good | Excellent |
| Weldability | Moderate | Superior |
Stainless steel 310 fits short-term, high-temperature uses. Stainless steel 310S excels in continuous, corrosive, or welded environments. Users should match stainless steel 310 or 310S to their corrosion and fabrication needs for optimal results.
FAQ
What is the main difference between 310 and 310S stainless steel?
The main difference lies in carbon content. Stainless steel 310 contains up to 0.25% carbon, while 310S limits carbon to 0.08%. This change improves weldability and corrosion resistance in 310S, especially after welding.
Can 310S stainless steel replace 310 in all applications?
310S can replace 310 in most welded or corrosive environments. However, 310 offers higher strength at extreme temperatures. Engineers should review application requirements before making substitutions.
Is 310S stainless steel more expensive than 310?
The price difference between 310 and 310S remains small. 310S may offer long-term savings due to reduced maintenance and better corrosion resistance, especially in welded assemblies.
Which grade is better for welding projects?
310S stainless steel works better for welding. Its lower carbon content reduces carbide precipitation, which helps prevent intergranular corrosion and maintains structural integrity after welding.
