Stainless steel 310S and stainless steel 314 are used in hot places, but they are not the same. Stainless steel 310S has less silicon and carbon than stainless steel 314. This makes stainless steel 310S better for things that are welded or heated and cooled a lot. Stainless steel 314 protects better from rusting in air, so it is good for furnace parts that do not move and get very hot. If you need metal for welded or made parts in hot or harsh places, use stainless steel 310S. If you need metal for equipment that stays still and gets very hot, use stainless steel 314.
Key Takeaways
- Stainless steel 310S has less carbon and silicon. This makes it easier to weld. It is better for parts that heat up and cool down a lot.
- Stainless steel 314 has more silicon and carbon. This gives it stronger protection from rust and scaling. It works well in very hot places where things do not move.
- Both steels can handle heat and corrosion. 310S is good for welded or moving parts. 314 is best for parts that stay still in high heat.
- You should pick the right steel for your job. Think about how hot it gets, if rust is a problem, and if parts move or not.
- Good welding and making methods are important. They help both steels stay strong and last long in high heat.
What is 310S Stainless Steel?
Stainless steel 310S is a strong metal for tough jobs. It works well in places with very high heat. Many companies use sus 310s because it does not rust easily. It has 24–26% chromium and 19–22% nickel. These help it make a layer that stops rust and scaling.
Sus 310s, also called aisi 310s, has little carbon, less than 0.08%. This makes it easier to weld. It also helps stop carbide precipitation. Engineers pick sus 310s for parts that get hot and cool over and over. The metal stays strong even up to 1100°C.
Aisi 310s does not break down from oxidation or sulfidation. Factories use sus 310s in furnace parts, heat exchangers, and rotary kilns. It is easy to bend, cut, and weld. Workers can shape sus 310s without losing its strength or rust protection.
Here are some main features of stainless steel 310:
- High chromium and nickel help stop rust
- Low carbon makes welding easier
- Stays strong when it gets hot
- Good for parts that move or stay still
Note: Sus 310s meets rules like JIS G4303 and ASTM 310S. People also call it aisi 310s in other countries.
Engineers use stainless steel 310 for hard, hot, or rusty places. Sus 310s is strong, bends well, and does not rust easily. This makes it great for tough factory jobs.
What is 314 Stainless Steel?
Stainless steel 314 is a strong metal for very hot places. It is part of the austenitic family, so it has lots of chromium and nickel. This metal also has more silicon, between 1.5% and 3.0%. The silicon helps stop oxidation and scaling up to 1150°C. Many companies use stainless steel 314 because it works well in tough air.
AISI 314 is what people call this alloy in the United States. Engineers pick aisi 314 for furnace parts, kiln linings, and heat baskets. The high carbon, up to 0.25%, makes it stronger when hot. Stainless steel 314 forms a hard oxide layer that protects it from air, steam, and some chemicals.
Note: Stainless steel 314 works best when parts do not move or bend in heat.
Key features of 314 stainless steel are:
- Great at stopping oxidation and carburization
- Stays strong when it gets very hot
- Protects well from sulfidation and thermal cycling
- Works well in glass, ceramics, and steel factories
Aisi 314 needs special care when welding. The higher carbon and silicon can cause carbide precipitation if not careful. Preheating and heating after welding help keep it strong. Stainless steel 314 also fights rust in many factories, so it is good for furnace parts that do not move.
Stainless steel 314 is tough, resists heat, and does not rust easily. Many factories use this metal for equipment that gets very hot every day.
Key Differences in Chemical Composition
Stainless Steel 310S Composition
Stainless steel 310S is also called sus 310s or 310 stainless steel. It has a mix of elements that work well together. This alloy has a lot of chromium and nickel. These help it fight rust and scaling when it gets hot. The carbon is kept low. This makes sus 310s easier to weld. It also stops unwanted carbides from forming when heated.

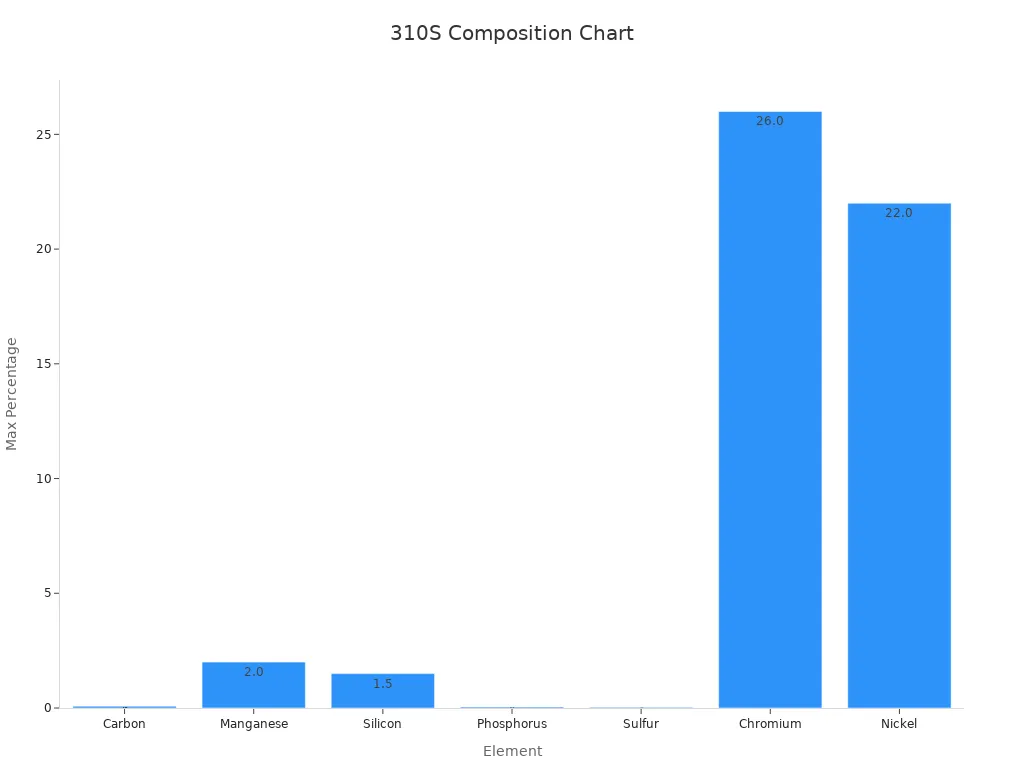

The table below shows what is in stainless steel 310S:
| Element | Percentage (%) |
|---|---|
| Carbon (C) | ≤ 0.08 |
| Chromium (Cr) | 24.00 – 26.00 |
| Nickel (Ni) | 19.00 – 22.00 |
| Manganese(Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.50 |
| Phosphorus(P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Iron (Fe) | Balance |
Sus 310s uses its chromium and nickel to make a strong oxide layer. This layer keeps the metal safe from rust and heat. The low carbon helps stop cracks when welding. Factories pick sus 310s for parts that need shaping, welding, or face changing heat.
Stainless Steel 314 Composition
Stainless steel 314 is also called aisi 314. It is made for very hot jobs. This alloy has more silicon and carbon than sus 310s. The extra silicon helps aisi 314 fight oxidation and scaling, even up to 1150°C. The higher carbon makes it stronger when hot.
Here is what is in stainless steel 314:
| Element | Percentage (%) |
|---|---|
| Chromium (Cr) | 23.00 – 26.00 |
| Nickel (Ni) | 19.00 – 22.00 |
| Silicon (Si) | 1.50 – 3.00 |
| Carbon (C) | ≤ 0.25 |
| Manganese(Mn) | ≤ 2.00 |
| Phosphorus(P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Iron (Fe) | Balance |
Aisi 314 uses its high silicon to make a tough oxide scale. This scale keeps the metal safe from air, steam, and chemicals at high heat. The higher carbon makes aisi 314 stronger when hot. But welders must be careful to avoid cracks.
Main Alloying Differences and Their Effects
The main differences between stainless steel 310S and stainless steel 314 are in silicon and carbon. Sus 310s has less silicon (up to 1.5%) and less carbon (up to 0.08%). Aisi 314 has more silicon (1.5–3.0%) and more carbon (up to 0.25%). Both have about the same chromium and nickel. But the small changes in silicon and carbon change how each alloy works.
- Chromium and Nickel: Both sus 310s and aisi 314 have a lot of chromium (about 24–26%) and nickel (about 19–22%). These help both alloys fight rust and scaling. A study found that the higher chromium and nickel in 310 stainless steel help it resist corrosion at high heat, especially near 650°C.
- Silicon: Aisi 314 has more silicon. This extra silicon helps aisi 314 make a strong oxide layer. The layer protects against oxidation, carburization, and cracking. The study showed that silicon above 1.8% really helps the oxide scale form and stay strong.
- Carbon: Sus 310s keeps carbon low. This helps stop carbide from forming when welding. It makes sus 310s better for welded parts or parts that face changing heat. Aisi 314 has more carbon, so it is stronger at high heat. But welding needs care to stop problems.
Note: The main differences between sus 310s and aisi 314 change how each alloy handles heat, welding, and rust. Sus 310s is best for welded or shaped parts in hot, changing places. Aisi 314 is good for parts that stay still and get very hot and need strong protection from oxidation.
Mechanical and Thermal Properties of Stainless Steel 310S and 314
Strength and Hardness Comparison
Stainless steel 310 and sus 310s are strong metals. They keep their strength even when very hot. Stainless steel 310 has a special structure called austenitic. This structure helps the metal bend without breaking. Sus 310s is hard, so it does not change shape easily. Stainless steel 314 is also strong. It has more silicon and carbon, which makes it harder when hot. Both stainless steel 310 and sus 310s stay strong better than many other steels. Stainless steel 314 is great at staying strong and keeping its shape when hot. These qualities make both metals good for tough jobs that need heat resistance and bending.
| Property | Stainless Steel 310 / SUS 310S | Stainless Steel 314 |
|---|---|---|
| Yield Strength (MPa) | 205 | 210 |
| Tensile Strength (MPa) | 520 | 540 |
| Hardness (HB) | 217 | 220 |
Both stainless steel 310 and sus 310s keep their strength at many temperatures.
High Temperature Performance
Stainless steel 310 and sus 310s work well in hot places. These metals do not rust or break down when heated. Stainless steel 310 can handle heat up to 1100°C. Sus 310s stays strong even after being heated and cooled many times. Stainless steel 314 can take even more heat, up to 1150°C. Its extra silicon makes a shield that protects it from damage.
Tests show both stainless steel 310 and sus 310s make a safe layer in tough places. In wet, hot air, sus 310s forms a chromium oxide film. This film helps stop the metal from losing mass and rusting. Stainless steel 314 acts the same way, and both lose less mass than regular steels like 304L. Stainless steel 310 and sus 310s also do not crack easily and stay strong when hot. Stainless steel 314 is best for furnace parts that do not move.
Both metals have good thermal properties, so they are used in places that need heat resistance. Stainless steel 310 and sus 310s are strong and handle heat well, so they are great for hot jobs.
Corrosion and Oxidation Resistance: Stainless Steel 310S vs 314
Corrosion Resistance in Industrial Environments
Stainless steel 310 and sus 310s do not rust easily in factories. They have lots of chromium and nickel. These make a layer that stops rust and chemical damage. Stainless steel 314 and aisi 314 also work well in tough places. Stainless steel 314 has more silicon. This helps it fight rust even better, especially when it is very hot.
Factories pick sus 310s for parts that get welded or face changing heat. Its low carbon helps stop a type of rust called intergranular corrosion. Stainless steel 314 and aisi 314 are best for parts that do not move and face strong gases. In places with lots of CO, stainless steel 314 fights carburization about 30% better than sus 310s. In gases with H2S, aisi 314 lasts about 25% longer because of its silicon-rich layer.

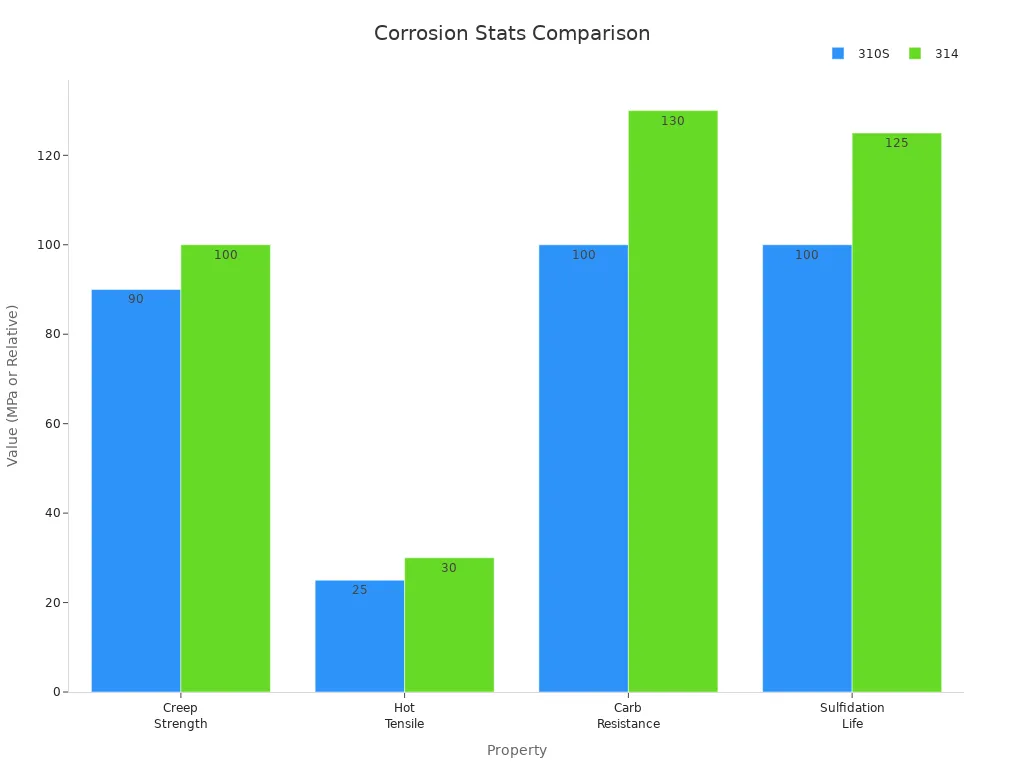

| Property/Condition | Stainless Steel 310S | Stainless Steel 314 |
|---|---|---|
| Chromium (Cr) | 24.0–26.0% | 23.0–26.0% |
| Nickel (Ni) | 19.0–22.0% | 19.0–22.0% |
| Silicon (Si) | ≤1.50% | 1.50–3.00% |
| Carburization Resistance | Moderate | ~30% better in CO-rich atmospheres |
| Sulfidation Resistance | Baseline | 25% longer service life in H2S gases |
Oxidation Resistance at Elevated Temperatures
Stainless steel 310 and sus 310s can stop oxidation up to 1100°C. Their chromium and nickel make a strong layer. This layer keeps air and steam from hurting the metal. Stainless steel 314 and aisi 314 protect even better from oxidation. The extra silicon in stainless steel 314 makes a hard SiO2 scale. This scale helps it stay safe in high heat and tough air.
Aisi 314 works best when parts do not move and get very hot. It keeps its shape and strength up to 1150°C. Both types stop scaling, but stainless steel 314 and aisi 314 last longer in harsh air. The chart below shows how these metals compare in rust and strength.
Stainless steel 310, sus 310s, stainless steel 314, and aisi 314 all fight oxidation well. Factories use them for furnace parts, kilns, and other hot equipment. Their strong oxidation resistance makes them good for long use in heat.
Weldability and Fabrication of Stainless Steel 310S and 314
Welding Characteristics and Challenges
How well sus 310s and stainless steel 314 can be welded is important. Both metals can be welded, but each has its own problems. Sus 310s has less carbon, so it helps stop carbide from forming when welded. This makes sus 310s a good pick for things that need to be welded and used in hot places.
Welding stainless steel 314 needs careful heat control. It has more silicon and carbon, which can cause cracks when hot. Experts have some tips for welding sus 310s and 314:
- Hydrostatic pressure testing checks if welds are strong in high pressure.
- Using Flux Cored Arc Welding with the right wire helps mix the metals well.
- Keeping the temperature below 250°F and using stringer beads helps stop cracks.
- Managing heat is important because these metals do not move heat fast.
- Cleaning the metal before welding helps stop bad welds.
- Watching for stress near welds helps stop early breaks.
Studies show these problems are real. In 2022, a study on sus 310s found that sulfur, phosphorus, and silicon can cause cracks when the metal cools. The study used special tests to look for cracks. Another study on stainless steel 314 showed that how you weld changes the chance of cracks. These studies show that good weld design and welding steps are important for both sus 310s and 314.
Forming, Machining, and Fabrication Considerations
Sus 310s and stainless steel 314 are tough and can take heat when shaped. Sus 310s bends and shapes easily because it is ductile. Its work hardening is fair, so it can be machined and made into parts. Stainless steel 314 also stays tough and bends well, even when hot. Both metals weld well and do not rust easily, so they are used in hard factory jobs.
| Stainless Steel Grade | Forming and Fabrication Properties |
|---|---|
| sus 310s | Great at taking heat and staying tough; Does not rust and bends well; Fair at getting harder and easy to weld |
| 314 | Handles heat and stays tough; Welds well, does not rust, and bends well; Fair at getting harder |
Sus 310s is a top pick for jobs that need lots of welding and shaping. Its good welding and making qualities help it work in hard jobs and hot places.
Typical Applications for Stainless Steel 310S and 314
Common Uses for Stainless Steel 310S
Stainless steel 310 is used in many hot places. It does not rust easily and can handle heating and cooling. Factories pick stainless steel 310 for heat exchangers. These parts do not change shape or rust under stress. Stainless steel 310 is also used in reforming furnaces and radiant tubes. Superheater tubes use it too because it works well in high heat.
Engineers use stainless steel 310 in rotary kilns and heat shields. These are found in cement and ceramics plants. The metal is easy to weld and shape. This helps it work in exchangers and other equipment. Waste incineration systems use stainless steel 310 because it can take heat and does not rust. In making tools, this metal stands up to heating and cooling again and again.
The table below shows how stainless steel 310 does in hot jobs:
| Application Area | Key Benefit of 310S Stainless Steel |
|---|---|
| Heat exchangers | Does not rust, stays strong in heat |
| Reforming furnaces | Handles high heat, easy to weld |
| Rotary kilns | Stops rust, stays tough |
| Boiler components | Good for heating and cooling, no rust |
| Fabrication tooling | Welds easily, keeps strength when hot |
Common Uses for Stainless Steel 314
Stainless steel 314 is used in very hot and tough jobs. It has more silicon, so it fights rust and oxidation above 1100°C. Factories use stainless steel 314 for furnace doors and radiant panels. Heating element supports also use this metal. These parts must not break or rust in high heat.
Glass and ceramics plants pick stainless steel 314 for its strength and heat resistance. Steel factories and thermal equipment use it too. It does not rust and works well in harsh places. In chemical and energy plants, stainless steel 314 is used in coal gas and syngas reactors. These jobs need strong metal that does not break down in bad gases.
Stainless steel 314 is also found in exhaust and emission systems. It keeps its strength and does not rust, even when hot. This makes it good for exchangers and other important parts. Many factories show that stainless steel 314 stays strong and works well after long use in hard places.
Tip: When picking between stainless steel 310 and 314, think about what your job needs. Look at rust resistance, welding, and strength for your factory work.
Why are 310S and 314 Stainless Steel Used in High-Temperature Rotary Kilns?
Rotary kilns work in very tough conditions. They deal with extreme heat, quick temperature changes, and harmful gases. Stainless steel 310S and 314 are popular for these kilns because they perform well in such harsh environments.
Here’s why these metals are great for rotary kilns:
- Both stainless steel 310S and 314 resist oxidation very well. This helps kiln parts last longer, even in hot air and bad gases.
- Their high chromium and nickel content creates a strong oxide layer. This layer protects the metal from damage and scaling in high heat.
- Stainless steel 314 has more silicon, which improves its oxidation resistance. It works best in kilns that reach up to 1150°C.
- Stainless steel 310S has low carbon, making it easier to weld. It also reduces cracking during heating and cooling cycles, common in kilns.
Engineers choose these metals because they stay strong and durable. Rotary kilns need materials that handle heat changes without breaking or rusting.
Industries like cement, metal processing, and waste management rely on these alloys. They use them for kiln linings, supports, and heat shields. These metals resist oxidation and stay strong, leading to fewer repairs and lower costs. Stainless steel 310S and 314 are trusted for their reliability in high-heat jobs.
Advantages and Disadvantages: Stainless Steel 310S vs 314
Stainless Steel 310S Pros and Cons
Stainless steel 310S works well in hot places. It has lots of chromium and nickel. These help stop rust and scaling. 310S keeps its strength even after being hot for a long time. This makes it good for places with steady heat. The low carbon in 310S helps with welding. It also lowers the chance of carbide forming. Many engineers pick 310S for welded parts that get hot and cool often.
A study on AISI 310 shows some things:
- Cr23C6 carbides form early and make the metal harder and stronger after short time at 675°C.
- If tested longer at 700°C, more Cr23C6 and sigma phase show up. This makes the metal harder at first.
- If left hot for a long time, like 1231 hours at 650°C, these parts get bigger and join together. This makes the metal softer and not as strong.
- The sigma phase grows over time and can change how the metal works.
| Stainless Steel Type | Chromium (Cr) % | Nickel (Ni) % | Silicon (Si) % | Key Property Effects |
|---|---|---|---|---|
| 310S | 25 | 20.5 | N/A | High Cr and Ni help stop rust and scaling; low carbon helps welding |
Stainless steel 310S is great at stopping rust and is easy to weld. But after a long time in heat, it can lose some strength because of changes inside.
Stainless Steel 314 Pros and Cons
AISI 314 is very good in really hot places. It has more silicon, up to 3%. This makes a strong layer that stops rust and scaling up to 1150°C. That is why aisi 314 is used for furnace parts, panels, and kiln linings that do not move. The high carbon and silicon make it strong when hot. It also helps fight carburization and sulfidation. Many factories use aisi 314 for equipment in tough, hot air.
Aisi 314 has some good points:
- It stops scaling very well in hot air and gas.
- It protects against carburization and sulfidation.
- It stays strong and keeps its shape when hot for a long time.
- It works well in glass, ceramics, and steel factories.
| Stainless Steel Type | Chromium (Cr) % | Nickel (Ni) % | Silicon (Si) % | Key Property Effects |
|---|---|---|---|---|
| 314 | 24.5 | 20.5 | 2.75 | High Si helps stop scaling in heat |
Aisi 314 is best for parts that stay still in high heat. Its extra silicon keeps it safe from rust for a long time, so it is a good pick for hard, hot jobs.
Summary Comparison Table: Key Differences and Applications
You need to know the differences before picking a stainless steel grade. Stainless steel 310S and 314 both work well in hot places. But each one has its own special strengths. The table below shows how their chemical parts and strength are not the same.

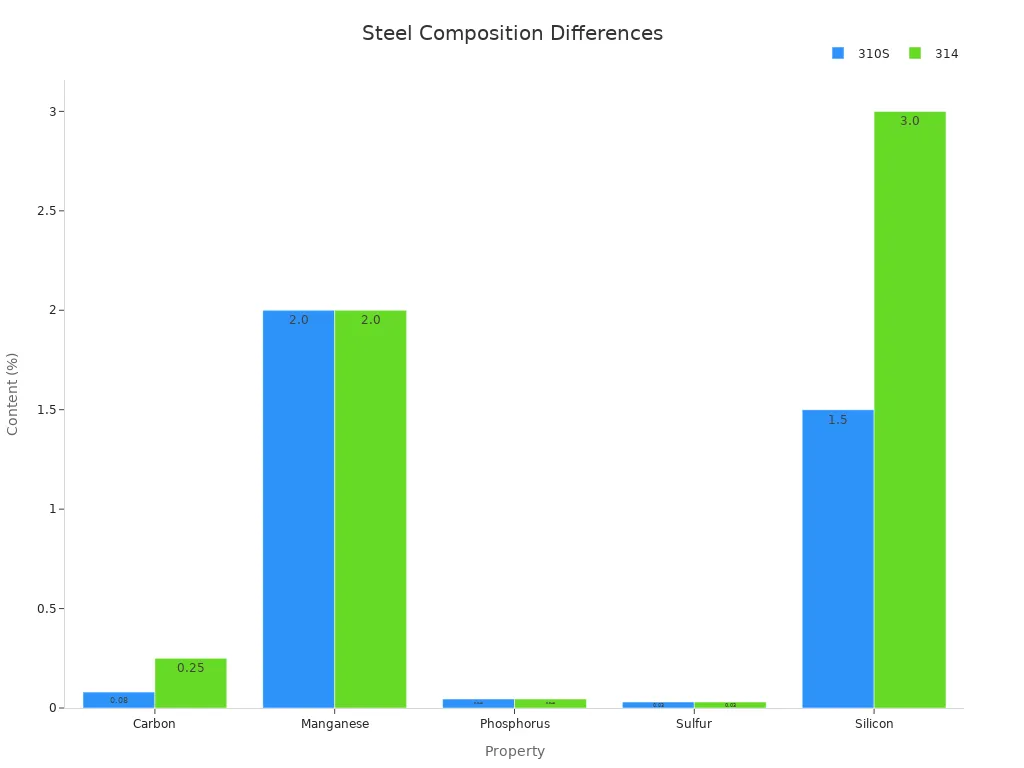

| Property | 310S (Max or Range) | 314 (Max or Range) |
|---|---|---|
| Carbon (C) | 0.08% (max) | 0.25% (max) |
| Manganese (Mn) | 2.00% (max) | 2.00% (max) |
| Phosphorus (P) | 0.045% (max) | 0.045% (max) |
| Sulfur (S) | 0.030% (max) | 0.030% (max) |
| Silicon (Si) | 1.50% (max) | 3.00% (max) |
| Chromium (Cr) | 24.00% – 26.00% | 23.00% – 26.00% |
| Nickel (Ni) | 19.00% – 22.00% | 19.00% – 22.00% |
| Mechanical Property | 310S | 314 |
|---|---|---|
| Tensile Strength | 95 ksi (655 MPa) | Not specified |
| Yield Strength | 45 ksi (310 MPa) | Not specified |
| Elongation (%) | 50% | Not specified |
| Reduction in Area (%) | 60% | Not specified |
314 has more silicon and carbon. This helps it fight rust and stay strong when super hot. Stainless steel 310S has less carbon. This makes it easier to weld and lowers the chance of carbide forming. Both have about the same chromium and nickel. These stop rust and scaling.
Tip: Use stainless steel 310S for welded parts, heat exchangers, and rotary kilns that heat up and cool down a lot. Pick stainless steel 314 for furnace parts that do not move, radiant panels, and equipment that stays hot all the time.
Key Application Areas:
- 310S: Welded furnace parts, superheater tubes, rotary kilns, fabrication tooling.
- 314: Furnace doors, radiant panels, glass and ceramics processing, static heat shields.
Picking the right grade helps you get the best mix of strength, easy welding, and heat resistance for your job.
Selection Guidance: How to Choose Between Stainless Steel 310S and 314
Key Factors to Consider for Your Application
Picking the right stainless steel means looking at a few big things. Engineers check sus 310s and aisi 314 by looking at what they are made of and how strong they are. Each one is good for different jobs.
First, think about how hot your job gets. Sus 310s works well up to 2000°F (1093°C). Aisi 314 is best above 1000°F (538°C) and can go up to 1150°C (2102°F). This makes aisi 314 better for parts that do not move in very hot places.
How well the metal fights rust is also important. Sus 310s protects against oxidation, sulfidation, and carburization. Its low carbon (≤0.08%) helps stop a kind of rust called intergranular corrosion. This makes it good for welded parts. Aisi 314 has more silicon, so it makes a strong oxide layer. This helps it fight oxidation. But it can have problems with chloride stress corrosion and intergranular corrosion after getting too hot.
You also need to look at how tough the metal is. Sus 310s is tough and does not break from heating and cooling. This makes it good for parts that get hot and cold a lot. Aisi 314 is stronger (about 753 MPa) and does not stretch much at 900°C. This is important for parts that stay still in high heat.
How easy it is to weld and shape the metal matters too. Sus 310s is easy to weld because it has low carbon. This stops cracks and makes it simple to work with. Aisi 314 has more carbon and silicon, so welding needs more care. You have to heat it before and after welding to keep it from breaking.
The table below shows the main things to think about:
| Selection Factor | sus 310s | aisi 314 |
|---|---|---|
| High-Temperature Limit | Up to ~900°F (482°C); oxidation resistance up to 2000°F (1093°C) | Suitable for >1000°F (538°C) up to 1150°C (2102°F) |
| Corrosion Resistance | Excellent oxidation, sulfidation, and carburization resistance; less susceptible to intergranular corrosion | Good oxidation resistance enhanced by higher silicon; may be prone to chloride-induced stress corrosion cracking |
| Mechanical Properties | Toughness and resistance to thermal fatigue; suitable for furnace parts and heat exchangers | Higher tensile strength (~753 MPa), creep resistance; may become brittle between 649-816°C |
| Thermal Properties | Good thermal fatigue resistance; suitable for thermal cycling | Thermal conductivity ~15 W/(m*K); expands with temperature; requires controlled welding |
| Weldability | Excellent (low carbon) | Fair (higher carbon, risk of hot cracking) |
| Application Suitability | Ideal for high-temperature environments with moderate carburizing atmospheres; chemical processing, furnace manufacturing | Preferred for very high-temperature applications like gas turbines, furnace linings, and power generation components |
Tip: Always pick the metal that matches the heat and chemicals in your job.
Practical Selection Scenarios
Engineers often have to pick between sus 310s and aisi 314 for real jobs. The choice depends on where the part will be used, how it is made, and how long it should last.
Scenario 1: Welded Furnace Components
A chemical plant needs tubes that get welded and face lots of heating and cooling. Sus 310s is best because it welds well and does not get intergranular corrosion. It is easy to shape and bend (elongation ≥40%). The plant likes sus 310s because it stays strong after many hot and cold cycles.
Scenario 2: Static Furnace Linings in Glass Manufacturing
A glass factory runs furnaces hotter than 1100°C. The lining must not rust and must stay strong for a long time. Aisi 314, with more silicon (1.5–2.0%), makes a tough oxide layer. It can handle the heat and does not break down. Its creep rupture strength (~35 MPa at 900°C for 10,000 hours) keeps the lining safe and steady.
Scenario 3: Power Generation Equipment
A power plant needs parts for gas turbines that get very hot. Aisi 314 gives the needed strength and does not stretch much in heat. The plant picks aisi 314 for parts that must not bend or break after long use.
Scenario 4: Fabrication Tooling for Cyclic Thermal Loads
A shop makes tools for rotary kilns that heat up and cool down a lot. Sus 310s is great because it does not break from thermal cycling and is easy to machine (turning speed 50–70 m/min). The shop saves time and gets tools that last longer.
The table below shows numbers for each job:
| Factor | sus 310s | aisi 314 | Explanation |
|---|---|---|---|
| Carbon Content | ≤0.08% | ≤0.25% | Less carbon in sus 310s makes welding easier and lowers the risk of sensitization; more carbon in aisi 314 makes it stronger but harder to weld |
| Silicon Content | ≤1.5% | 1.5–2.0% | More silicon in aisi 314 helps it fight oxidation and keeps the oxide layer strong in heat |
| Elongation (Annealed) | ≥40% | ≥35% | sus 310s bends better, so it is easier to shape and make parts |
| Machining Speed (Turning) | 50–70 m/min | 40–60 m/min | sus 310s can be machined faster because it has less silicon and carbon |
| Forging Temperature Range | 1100–1200°C | 1150–1250°C | aisi 314 needs hotter forging because it is harder from the silicon |
| Creep Rupture Strength (900°C, 10k h) | ~30 MPa | ~35 MPa | aisi 314 is better at not stretching in heat for a long time |
| Weldability | Excellent (low carbon) | Fair (higher carbon, risk of hot cracking) | sus 310s is better for welding; aisi 314 needs special steps |
| Application Suitability | Cyclic thermal conditions, welded components | Static, prolonged high-temperature environments | sus 310s is best for parts that heat and cool a lot; aisi 314 is best for parts that stay hot and do not move |
Note: If you need to weld, shape, or use the metal in changing heat, sus 310s is the best choice. If you need a part that stays still in very high heat, aisi 314 is better.
Engineers should always look at what their project needs. By thinking about heat, rust, strength, and how easy it is to make, they can pick the right stainless steel for a safe and strong job.
Stainless steel 310S and 314 are both good for hot places, but they help in different ways. 310S is easy to weld and does not get weak when heated and cooled many times. 314 is better at stopping rust when things get super hot.
- Engineers need to pick the metal that fits what the job needs.
- If a project is hard or very important, it is smart to ask a materials expert for help.
Picking the right stainless steel keeps people safe, helps machines work better, and makes equipment last longer.
FAQ
What makes aisi 314 different from other high-temperature stainless steels?
Aisi 314 has more silicon and carbon than most other grades. This mix helps it fight oxidation and stay strong up to 1150°C. Many companies pick aisi 314 for furnace parts that do not move and get very hot.
Can aisi 314 be used for welded structures?
You can weld aisi 314, but you must be careful. The extra carbon and silicon make it easier for cracks to form when hot. Heating before and after welding helps keep the weld strong and stops carbides from forming in aisi 314.
Which industries commonly use aisi 314 stainless steel?
Aisi 314 is used in many places like glass factories, ceramics plants, steel mills, and power plants. These jobs need metal that does not rust and stays strong in hot, still places.
How does aisi 314 perform in corrosive environments?
Aisi 314 fights oxidation, carburization, and sulfidation very well. Its silicon-rich layer keeps it safe from bad gases and chemicals. But in places with chlorides or quick heat changes, aisi 314 may need extra care.
Is aisi 314 suitable for rotary kiln applications?
Aisi 314 is good for rotary kilns, especially for parts that do not move and get hot all the time. Its strong oxidation resistance and creep strength make it a good pick for kiln linings, supports, and heat shields.
