You will find that the main differences between 316, 316L, 316H, and 316Ti stainless steel grades center on carbon content, titanium addition, and their intended uses. Higher carbon content improves high-temperature strength, while titanium boosts both yield and tensile strength—Ti-modified 316L shows an 11.56% increase in yield strength and a 15.77% rise in tensile strength compared to regular 316L. When you choose a grade, consider corrosion resistance, weldability, and the specific environment where you plan to use 316 Stainless Steel.
Key Takeaways
- Choose 316L for welding and medical applications due to its low carbon content, which enhances corrosion resistance.
- Select 316Ti for high-temperature environments, as it offers superior strength and stability under heat.
- Use 316H when you need extra strength at elevated temperatures, especially in pressure vessels and reactors.
- Consider the specific application and environment when selecting a grade to ensure optimal performance and durability.
- Always check availability and cost, as 316 and 316L are typically easier to find and more affordable than 316H and 316Ti.
Overview
Key Features
When you compare 316, 316L, 316H, and 316Ti stainless steel, you notice that each grade has a unique set of features. You can quickly spot the differences by looking at their chemical composition, mechanical properties, and typical uses. The table below helps you see these distinctions at a glance:
| Grade | Carbon Content | Key Properties | Applications |
|---|---|---|---|
| 316 | Max 0.08% | Good corrosion resistance, general purpose | Chemical, marine, architectural |
| 316L | Max 0.03% | More weldable, lower intergranular corrosion | Petrochemical, food processing, medical |
| 316H | Max 0.04% | Higher temperature resistance, better corrosion | Petrochemical, food processing, medical |
| 316Ti | Contains 0.5% Ti | Stable at high temperatures, prevents precipitation | High temperature applications |
You see that 316L stands out for its low carbon content. This feature makes it more resistant to intergranular corrosion after welding. You often choose 316L for medical devices, food processing equipment, and petrochemical plants. 316H contains more carbon than 316L. This grade gives you better strength at high temperatures. You find it useful in heat exchangers and boilers.
316Ti includes titanium. Titanium stabilizes the alloy and prevents carbide precipitation at high temperatures. You select 316Ti when you need stainless steel that stays strong and resists corrosion in extreme heat. Standard 316 offers a balance of corrosion resistance and strength. You use it for marine fittings, chemical tanks, and architectural structures.
Tip: If you need stainless steel for welding or medical use, pick 316L. For high-temperature environments, 316H or 316Ti will serve you better.
You should always match the grade to your application. Consider the environment, temperature, and exposure to chemicals. Each grade gives you a different combination of corrosion resistance, mechanical strength, and weldability. By understanding these key features, you make smarter choices for your projects.
316 Stainless Steel
Chemical Composition
You will find that 316 stainless steel contains a mix of elements that give it strength and durability. The main elements include iron, chromium, nickel, and molybdenum. This combination helps the alloy resist corrosion and makes it a top choice for chemical processing. Here is a table showing the typical chemical composition:
| Element | Percentage |
|---|---|
| Iron (Fe) | Balance |
| Chromium (Cr) | 16.0 – 18.0% |
| Nickel (Ni) | 10.0 – 14.0% |
| Molybdenum (Mo) | 2.0 – 3.0% |
| Carbon (C) | ≤ 0.08% |
| Manganese (Mn) | ≤ 2.0% |
| Silicon (Si) | ≤ 0.75% |
| Phosphorus (P) | ≤ 0.045% |
| Sulfur (S) | ≤ 0.03% |
This blend of elements gives 316 stainless steel its excellent durability and resistance to harsh chemicals.
Properties
When you choose 316 stainless steel, you get a material with high durability and strong resistance to corrosion. This grade stands out in chemical processing because it can handle acids and chlorides. The addition of molybdenum increases its durability, especially in tough environments. You also benefit from good weldability, which makes it easy to join pieces together for tanks or piping.
Here are some key mechanical properties:
| Property | Metric | English |
|---|---|---|
| Tensile Strength, Ultimate | 620 – 795 MPa | 90 – 115 ksi |
| Tensile Strength, Yield | 206 MPa | 30,000 psi |
| Elongation at Break | 30% | 30% |
You can rely on 316 stainless steel for both strength and flexibility. Its durability means it lasts longer in demanding settings, such as chemical processing plants or marine applications.
Note: 316 stainless steel offers better durability than 304 grades, especially when exposed to chemicals or saltwater.
Uses
You will see 316 stainless steel used in many industries because of its durability and resistance to corrosion. It is a top choice for chemical processing, where equipment must withstand harsh chemicals every day. You also find it in marine applications, such as boat fittings and dock hardware, because it resists saltwater corrosion.
Here are some common uses:
- Chemical processing: storage tanks, valves, and piping
- Food and beverage: prep tables, sanitary tanks, and dishwashers
- Marine applications: boat railings, ladders, and fasteners
- Medical: surgical instruments and orthopedic implants
- Architectural: handrails, trim, and exterior elements
- Water treatment: filtration housings and wastewater components
- Industrial machinery: conveyor parts and high-temperature fixtures
You can trust 316 stainless steel to deliver durability and performance in each of these settings. Its combination of strength, weldability, and corrosion resistance makes it a reliable choice for your toughest jobs. If you need even more resistance to corrosion after welding, you might consider 316l stainless steel.
316L Stainless Steel
Chemical Composition
You will notice that 316L stainless steel stands out because of its low carbon content. This feature makes it different from standard 316 stainless steel. The lower carbon level helps prevent carbide precipitation, which improves corrosion resistance after welding. Here is a quick comparison:
| Alloy | Maximum Carbon Content (%) |
|---|---|
| 316 | 0.08 |
| 316L | 0.03 |
The main elements in 316L stainless steel include iron, chromium, nickel, and molybdenum. The reduced carbon content means you get better performance in welded structures and less risk of corrosion at grain boundaries.
- 316 stainless steel has a maximum carbon content of 0.08%.
- 316L stainless steel has a maximum carbon content of 0.03%.
- The lower carbon content in 316L reduces the risk of carbon precipitation, enhancing its corrosion resistance.
Properties
When you choose 316L stainless steel, you benefit from excellent corrosion resistance, especially in harsh environments. This grade resists pitting and crevice corrosion in chloride-rich settings. You will find it ideal for marine applications and chemical processing equipment. The material also resists acids like sulfuric, hydrochloric, and acetic acids.
Key mechanical properties include:
- Tensile strength: about 515 MPa (75 ksi)
- Yield strength: around 205 MPa (30 ksi)
- Elongation at break: about 40% in 50 mm
- Hardness: usually between 79 and 95 on the Rockwell B scale
You will appreciate the weldability of 316L stainless steel. The low carbon content allows you to weld without worrying about losing corrosion resistance. This makes it a top choice for food processing equipment and medical applications.
Tip: 316L stainless steel offers exceptional performance where you need both corrosion resistance and clean, strong welds.
Uses
You will see 316L stainless steel used in many industries that demand high purity and durability. The table below shows where you often find this alloy and why it is preferred:
| Industry/Environment | Reason for Preference |
|---|---|
| Marine Engineering | High corrosion resistance in saline and brackish water environments due to molybdenum content. |
| Chemical Processing | Maintains structural integrity under extreme temperatures and reactive conditions. |
| Pharmaceutical Manufacturing | Prevents contamination and ensures safety in drug production. |
| Food and Beverage Production | Necessary for hygiene and corrosion resistance in food processing environments. |
| Medical Devices | Critical for biocompatibility and resistance to corrosion in medical applications. |
| Offshore Oil Exploration | Durable in harsh marine conditions, enhancing longevity of equipment. |
| Wastewater Treatment | Effective in corrosive environments, ensuring long service life of components. |
| Renewable Energy (Offshore) | Increasing demand for corrosion-resistant materials in offshore wind farms and related infrastructure. |
You will often select 316L stainless steel for food processing equipment, medical applications, and pharmaceutical applications. The alloy’s resistance to corrosion and ease of cleaning make it a reliable choice for environments where hygiene and safety matter most.
316H Stainless Steel
Chemical Composition
You will notice that 316H stainless steel stands out because of its higher carbon content. This feature gives the alloy better strength at elevated temperatures. The table below shows the typical chemical composition for this grade:
| Element | Percentage |
|---|---|
| Carbon (C) | 0.04 – 0.10% |
| Chromium (Cr) | 16 – 18% |
| Nickel (Ni) | 10 – 14% |
| Molybdenum (Mo) | 2.0% |
| Manganese (Mn) | 2.0% |
| Silicon (Si) | 0.75% |
| Phosphorous (P) | 0.045% |
| Sulphur (S) | 0.030% |
You get a material that combines the corrosion resistance of 316 stainless steel with improved high temperature resistance. The higher carbon content is the main difference from 316L stainless steel.
Properties
When you choose 316H stainless steel, you benefit from excellent mechanical strength at high temperatures. This grade keeps its strength and toughness even when exposed to heat above 425 °C. You will see that its tensile strength and yield strength match or exceed those of other 316 grades. The table below compares the mechanical properties:

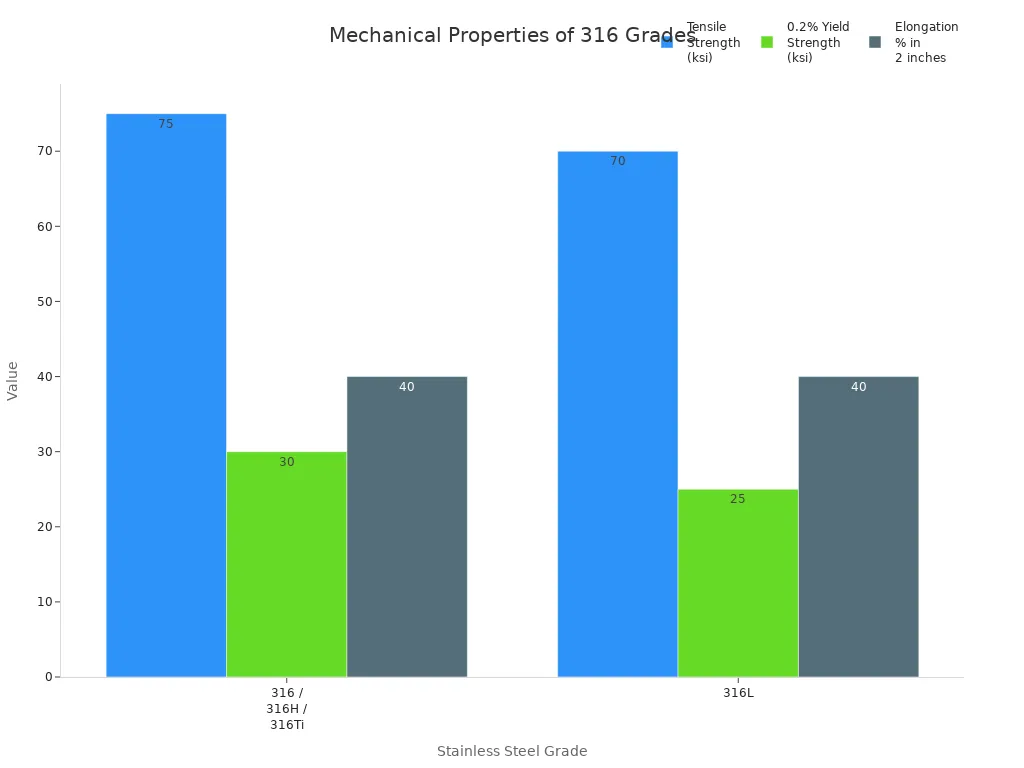

| Grade | Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation (%) |
|---|---|---|---|
| 316 / 316H / 316Ti | 75 | 30 | 40 |
| 316L | 70 | 25 | 40 |
You will also appreciate the weldability of 316H stainless steel. It performs well in fabrication, but you should control the heat input during welding to avoid grain growth. The alloy resists corrosion in many harsh environments, making it a reliable choice for demanding applications.
Note: 316H stainless steel gives you the best combination of high temperature resistance and corrosion protection among the 316 family.
Uses
You will find 316H stainless steel in industries that demand both strength and corrosion resistance at high temperatures. Here are some common applications:
- Molten salt reactors (MSRs), where you need superior corrosion resistance compared to 316L stainless steel.
- Construction of reactors and boilers that operate above 425 °C.
- Heat exchangers and pressure vessels in power plants.
- Petrochemical and chemical processing equipment.
- Piping systems for high-temperature service.
- Marine applications that require both strength and durability.
You can rely on 316H stainless steel for critical components in energy, chemical, and marine industries. Its unique blend of properties ensures long service life and safety in extreme environments.
316Ti Stainless Steel
Chemical Composition
When you look at 316Ti stainless steel, you see a unique addition—titanium. This element sets it apart from other grades like 316 stainless steel and 316l stainless steel. The titanium content usually sits around 0.5%. Titanium binds with carbon, forming titanium carbides. This process prevents chromium carbides from forming, which helps the steel resist sensitization and intergranular corrosion. You get a material that stays stable and strong, even at high temperatures.
Here is a table showing how titanium changes the alloy:
| Effect of Titanium Addition | Description |
|---|---|
| Mechanical Properties | Improves strength and durability |
| Corrosion Resistance | Reduces electrochemical corrosion rate |
| Stabilization | Forms titanium carbides, preventing sensitization |
| Sensitization Prevention | Titanium binds carbon, protecting against localized corrosion |
Properties
You benefit from several important properties when you choose 316ti stainless steel. This alloy offers very good corrosion resistance, especially in environments with acids like sulfuric, hydrochloric, and acetic acids. You also get enhanced resistance to pitting in chloride-rich settings, making it suitable for marine and chemical industries. The material can handle temperatures up to 500 °C, so you can use it in high-heat applications.
You will notice that 316ti stainless steel has similar mechanical properties to 316l stainless steel, but it performs better at elevated temperatures. The alloy is hardly magnetic, and its weldability is excellent. You do not need extra heat treatment after welding, which saves you time and effort. However, machinability can be challenging because titanium carbides can cause tool wear. Using carbide or high-speed steel tools helps you get better results.
Tip: 316ti stainless steel gives you reliable performance in harsh environments where both corrosion resistance and high-temperature strength matter.
Uses
You find 316ti stainless steel in many demanding industries. Its unique properties make it a top choice for chemical processing, marine environments, and pump shafts. You can buy it in many forms, such as pipes, tubes, rods, bars, plates, sheets, strips, and foils.
Here is a table showing common uses:
| Industry/Application | Description |
|---|---|
| Chemical Industries | Used for corrosion resistance in chemical processing plants |
| Pump Shafts | Chosen for strength and durability in pumps |
| Marine Industries | Preferred for resistance to seawater and marine conditions |
| Forms Available | Pipes, tubes, round rod, bar, plate, sheet, strips, and foils |
You will also see 316ti stainless steel in desalination plants and environments with high chloride levels. Its microstructure helps it resist pitting and corrosion, even in tough conditions.
- Enhanced pitting resistance in acidic or chloride-rich environments
- Suitable for use in seawater and desalination plants
- Effective in chemical production settings
You can rely on 316ti stainless steel when you need a material that stands up to both heat and corrosion.
Alloy Chemistry & Stabilization Strategies
When you look at stainless steel grades like 316, 316L, 316H, and 316Ti, you see that small changes in chemistry make a big difference in performance. The main elements—carbon, manganese, and titanium—shape how each grade behaves in tough environments.

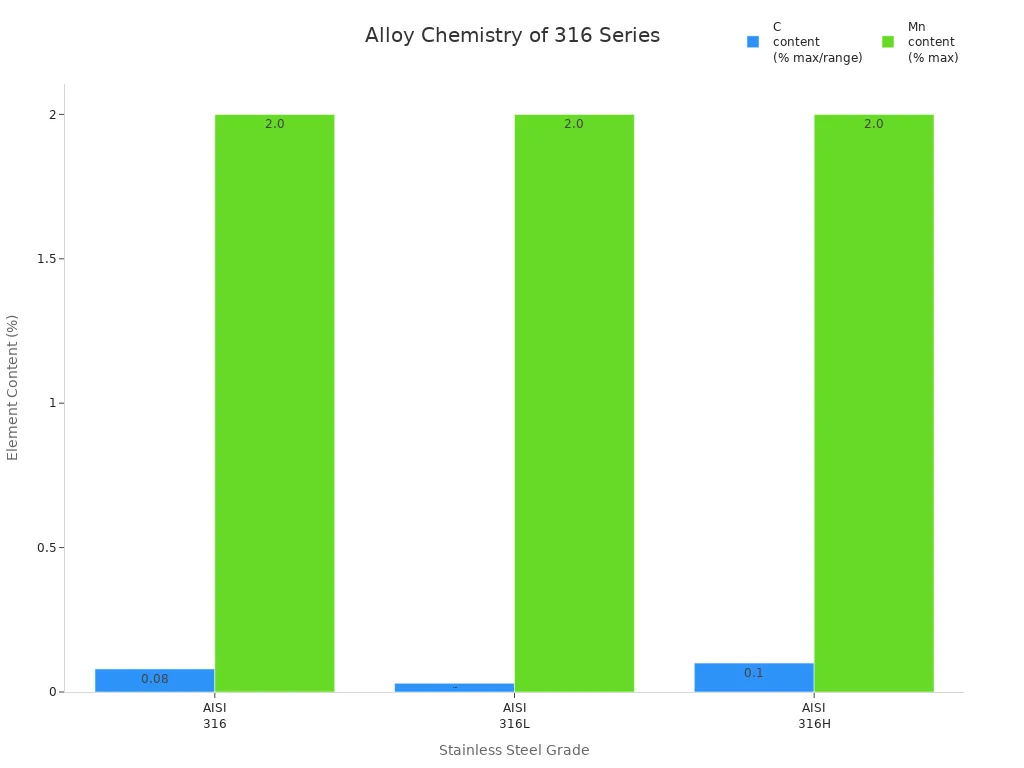

Here is a table that shows the key differences in alloy chemistry:
| Element | AISI 316 | AISI 316L | AISI 316H |
|---|---|---|---|
| C | 0.08% max | 0.03% max | 0.04–0.10% |
| Mn | 2.0% max | 2.0% max | 2.0% max |
You can see that 316L has the lowest carbon content. This feature helps you avoid problems during welding, such as sensitization. Sensitization happens when chromium carbides form at grain boundaries, which can weaken corrosion resistance. Lower carbon means fewer carbides, so the steel stays strong and resists rust.
If you need stainless steel for high-temperature jobs, 316H gives you more carbon. This extra carbon boosts hardness and tensile strength. You get better performance in places where heat and pressure are high, like boilers or reactors.
316Ti takes a different approach. Instead of just lowering carbon, it adds titanium. Titanium forms titanium carbides, which block chromium from forming unwanted carbides. This keeps chromium in the steel, so you get strong corrosion resistance even after welding or heating.
Here is a quick summary of stabilization strategies:
- 316L: Low carbon content resists sensitization during welding.
- 316H: Higher carbon content improves strength and creep resistance for high-temperature use.
- 316Ti: Titanium addition stabilizes the alloy, preventing sensitization at elevated temperatures.
Tip: If you want to avoid corrosion after welding, pick 316L or 316Ti. For high strength at high temperatures, 316H is your best choice.
You can match the right grade to your needs by understanding these chemistry and stabilization strategies. This knowledge helps you choose stainless steel that lasts longer and performs better in your projects.
Corrosion Resistance
When you select stainless steel for demanding environments, you want to know how each grade stands up to corrosion. The corrosion resistance properties of 316, 316L, 316H, and 316Ti stainless steel depend on their chemical makeup, especially carbon and titanium content. These differences affect how well each grade resists localized corrosion, such as pitting and crevice attack, in harsh settings.
Comparing Corrosion Resistance Across Grades
You will notice that all four grades—316, 316L, 316H, and 316Ti—offer strong corrosion resistance. This comes from their high chromium and molybdenum content. Molybdenum, in particular, boosts their ability to resist pitting and crevice corrosion, which are common forms of localized corrosion in chloride-rich environments.
Here is a table that shows how these grades compare in terms of pitting resistance and chloride concentration tolerance:
| Stainless Steel Grade | Pitting Resistance Index (PRE) | Chloride Concentration Resistance (ppm) |
|---|---|---|
| 316Ti | 23.0 | Up to 2000 |
| 316, 316L | 22.6 – 27.9 | N/A |
| 304 | 19.0 | Up to 100 |
You can see that 316Ti stainless steel stands out for its ability to handle higher chloride concentrations. This makes it a better choice for environments with aggressive salts, such as seawater or chemical processing plants.
The Role of Carbon and Titanium
Carbon content plays a big part in how each grade resists intergranular corrosion, a type of localized corrosion that attacks the grain boundaries of the steel. When you weld or heat stainless steel, carbon can combine with chromium to form chromium carbides. This process removes chromium from the steel’s surface, making it more likely to corrode.
- 316L stainless steel has low carbon content. This means you get excellent resistance to intergranular corrosion, especially after welding. You do not have to worry about losing corrosion resistance at the welds.
- 316H stainless steel contains more carbon. This gives you better strength at high temperatures, but it can make the steel more sensitive to intergranular corrosion if not properly heat-treated.
- 316Ti stainless steel uses titanium to bind with carbon. Titanium forms stable carbides, which stop chromium from forming carbides. This keeps the chromium available to protect the steel, even after welding or exposure to high heat.
Here is a table that shows how carbon content affects intergranular corrosion sensitivity:
| Carbon Content | Aging Temperature | Intergranular Corrosion Sensitivity |
|---|---|---|
| High | 550 °C | Higher sensitivity due to δ ferrite transformation |
| Low | 550 °C | Lower sensitivity due to less δ ferrite transformation |
| High | 600 °C | Initial transformation leads to desensitization over time |
| Low | 600 °C | Improved resistance due to desensitization process |
Note: If you plan to weld or use the steel at high temperatures, you should choose 316L or 316Ti for the best corrosion resistance.
Pitting Resistance and Harsh Environments
Pitting resistance is a key factor when you use stainless steel in environments with chlorides, such as seawater or swimming pools. Pitting is a form of localized corrosion that creates small holes in the metal. You want a high pitting resistance index (PRE) to avoid this problem.
- 316, 316L, and 316Ti all contain molybdenum, which increases their pitting resistance compared to 304 stainless steel.
- 316Ti can handle higher chloride concentrations than 316 and 316L, making it more suitable for extreme conditions.
- 316L is known for its excellent weldability and resistance to intergranular corrosion, so you often use it in welded structures exposed to chlorides.
Here is a summary of the pitting resistance equivalent number (PREN) for these grades:
| Grade | PREN Range |
|---|---|
| 316, 316L | 22.6 – 27.9 |
| 316L (2.5% Mo) | 25.3 – 30.7 |
| 316Ti | 23.0 |
You can see that all these grades offer good pitting resistance, but 316Ti and high-molybdenum 316L provide the best protection in harsh, chloride-rich environments.
Suitability for Stress Corrosion Cracking and Localized Corrosion
Stress corrosion cracking is another concern in aggressive environments. All 316 series grades resist this type of attack better than 304 stainless steel, thanks to their molybdenum content. However, you should still avoid using them in environments with very high chloride levels and high temperatures unless you choose 316Ti or high-molybdenum 316L.
You will find that 316 stainless steel gives you reliable corrosion resistance in most marine and chemical settings. 316L stainless steel is your best choice for welded structures or when you need to avoid intergranular corrosion. 316H works well at high temperatures but needs careful handling to prevent localized corrosion. 316Ti is ideal for the harshest environments, where both high temperature and high chloride levels are present.
Tip: Always match the grade to your environment. For the best corrosion resistance in welded or high-chloride settings, pick 316L or 316Ti.
Summary Table: Corrosion Resistance Properties
| Grade | Best For | Corrosion Resistance Highlights |
|---|---|---|
| 316 | General marine, chemical, architectural | Good overall resistance, strong against localized corrosion |
| 316L | Welded structures, food, medical | Excellent intergranular corrosion resistance, high pitting resistance |
| 316H | High-temperature, pressure vessels | Good resistance, but higher risk of localized corrosion if not treated |
| 316Ti | High-chloride, high-temperature, welded | Superior resistance to localized corrosion, best for harshest environments |
You can trust these grades to protect your equipment from localized corrosion, pitting, and stress corrosion cracking. By understanding the strengths of each, you make the right choice for your project.
Mechanical Strength
When you select a stainless steel grade, you want to know how much strength it can deliver. The 316 stainless steel family gives you a range of options, each with its own mechanical strength profile. You can rely on these grades for both everyday and demanding applications.
High-Temperature Performance
You need to consider how each grade performs when exposed to heat. High-temperature strength matters in industries like power generation, chemical processing, and marine engineering. The table below shows how the different grades compare in terms of creep and rupture strength across a wide temperature range:
| Stainless Steel Variant | Creep Strength | Rupture Strength | Temperature Range (°C) |
|---|---|---|---|
| 316 | High | High | 425 – 815 |
| 316L | High | High | 425 – 815 |
| 316H | Higher | Higher | 425 – 815 |
| 316Ti | High | High | 425 – 815 |
You see that all four grades maintain high strength at elevated temperatures. 316H stands out with even higher creep and rupture strength because of its increased carbon content. This makes it a top choice for boilers, heat exchangers, and pressure vessels.
- 316L gives you high strength and excellent resistance to pitting and crevice corrosion.
- 316H offers the highest strength in the group, especially when you need to resist deformation over time.
- 316Ti uses titanium to stabilize the alloy, so you get reliable strength and protection against sensitization.
All these grades show high tensile and stress-rupture strength when exposed to heat. You can use them in environments with acids and aggressive chemicals, and they will keep their strength. If you need a balance of corrosion resistance and mechanical strength, 316 stainless steel is a dependable choice.
Tip: For the best high-temperature strength, pick 316H. For welded structures or where corrosion is a concern, 316L and 316Ti give you both strength and durability.
Fabrication, Forming & Machinability
When you work with stainless steel, you want materials that shape easily and keep their strength. The 316 family gives you flexibility in fabrication and forming. You can cut, bend, and weld these alloys using standard shop tools. Each grade responds well to cold and hot working, but you should know how different techniques affect the final product.
You can use several advanced methods to improve the properties of these steels. Severe plastic deformation, for example, shrinks the grain size. This process makes the metal stronger and more resistant to corrosion. Nanostructuring creates tiny sites on the surface. These sites help form a uniform protective layer, which boosts corrosion resistance, especially in salty environments. If you need a special surface, ultrafast laser techniques can change the top layer at the micro and nano level. This method improves both biocompatibility and corrosion resistance.

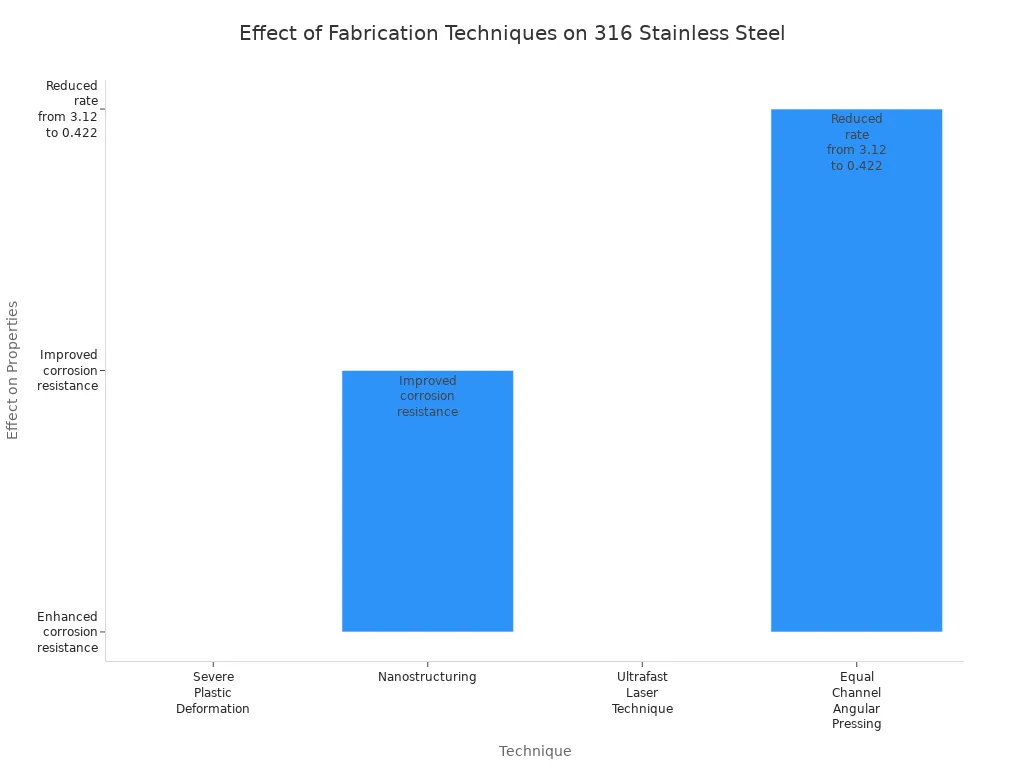

Here is a table that shows how different fabrication techniques affect the properties of these alloys:
| Technique | Effect on Properties |
|---|---|
| Severe Plastic Deformation | Significantly reduces grain size, enhancing mechanical properties and corrosion resistance. |
| Nanostructuring | Develops nucleation sites for uniform passive film, improving corrosion resistance in sodium chloride. |
| Ultrafast Laser Technique | Modifies surface topography at micro- and nanoscale, enhancing biocompatibility and corrosion resistance. |
| Equal Channel Angular Pressing | Produces well-grained 316L stainless steel, reducing corrosion rate from 3.12 to 0.422. |
You will find that 316 stainless steel machines well, but you may notice some tool wear if you use high speeds. Using sharp tools and proper cooling helps you get a smooth finish. For forming, you can use both cold and hot methods. Cold working increases strength and hardness, while hot working allows you to shape larger pieces with less force.
Tip: Always clean the surface after fabrication. This step removes any particles that could cause corrosion later.
You can trust these grades to deliver reliable results in fabrication, forming, and machining. With the right technique, you get strong, corrosion-resistant parts for many industries.
Weldability
When you work with stainless steel, you want to know how each grade performs during welding. The 316 family gives you excellent weldability across all grades. You can join these materials using common welding methods like TIG, MIG, and manual arc welding. You do not need special equipment or advanced skills to achieve strong, clean welds.
You will notice that 316, 316L, 316H, and 316Ti all share similar weldability ratings. The table below shows how each grade compares and which filler materials you should use:
| Stainless Steel Grade | Weldability Rating | Recommended Filler Material |
|---|---|---|
| 316 | Similar to 316Ti | 316L filler for corrosion resistance |
| 316L | Similar to 316 | 316L filler for corrosion resistance |
| 316H | Similar to 316 | 316L filler recommended |
| 316Ti | Similar to 316 | Niobium stabilized fillers for elevated temperature strength |
You get excellent weldability with 316 and 316L stainless steel. These grades resist cracking and maintain their corrosion resistance after welding. You often choose 316L filler material because it helps prevent carbide precipitation, which can weaken the weld zone. If you weld 316H, you should also use 316L filler to keep the joint strong and corrosion-resistant.
316Ti offers excellent weldability, especially for high-temperature applications. You should select niobium-stabilized fillers when you need extra strength at elevated temperatures. This choice helps you avoid problems like sensitization, which can lead to corrosion at the weld.
Here are some tips for achieving the best results:
- Clean the surfaces before welding to remove contaminants.
- Use low heat input to minimize distortion and preserve corrosion resistance.
- Pick the right filler material for your application.
Tip: You can trust the 316 family for excellent weldability, whether you need to fabricate tanks, piping, or medical devices.
You will find that these grades make welding easy and reliable. You get strong joints, smooth finishes, and lasting corrosion protection. If you want stainless steel that delivers excellent weldability every time, the 316 series is a smart choice.
Surface Finish & Polishing Behavior
When you choose stainless steel for your project, you want a surface that looks good and performs well. The 316 family—including 316, 316L, 316H, and 316Ti—offers many options for surface finish and polishing. You can select a finish that matches your needs, whether you want a shiny look or a surface that resists corrosion.
You have several techniques available for finishing stainless steel. Each method changes how the metal looks and behaves. Here are some common options:
- Mechanical finishes: You can use grinding or polishing to create smooth or textured surfaces. These finishes range from a dull matte to a bright mirror shine.
- Chemical processes: Passivation and electropolishing help you improve corrosion resistance. Passivation uses acid solutions to clean the steel and build a protective oxide layer. Electropolishing smooths the surface without contact, making it shinier and less rough.
- Coatings: You can apply powder coating or PVD (Physical Vapor Deposition) to add color or extra protection.
Tip: Electropolishing gives you a surface that is easier to clean and less likely to trap bacteria. This finish works well for medical devices and food processing equipment.
You may wonder how these grades respond to polishing. All four—316, 316L, 316H, and 316Ti—polish well. You get a bright, reflective surface if you use fine abrasives and proper techniques. The low carbon content in 316L helps you avoid discoloration after polishing. Titanium in 316Ti keeps the surface stable, even at high temperatures.
Here is a table showing how different finishes affect performance:
| Finish Type | Appearance | Corrosion Resistance | Typical Use |
|---|---|---|---|
| Brushed | Satin/matte | Good | Architectural, marine |
| Mirror Polish | Highly shiny | Excellent | Medical, food, decorative |
| Electropolished | Smooth, bright | Superior | Pharmaceutical, biotech |
| Powder Coated | Colored | Varies | Outdoor, industrial |
You can select the finish that fits your project. If you want the best corrosion resistance, choose electropolishing or passivation. For a decorative look, mirror polish works well. You control the final appearance and performance by picking the right surface treatment.
Cost Considerations & Availability
When you plan a project, you need to think about both cost and availability. The price of stainless steel can change quickly. You see these changes because of market demand, raw material costs, and where your supplier is located. Each grade—316, 316L, 316H, and 316Ti—comes with its own price tag and supply challenges.
You notice that 316 and 316L are the most common grades. These alloys are usually easier to find and often cost less than 316H and 316Ti. If you choose 316H or 316Ti, you may pay more. These grades use special elements like extra carbon or titanium, which can raise the price. You also need to check if your supplier stocks these grades. Sometimes, you wait longer for delivery or pay extra for shipping.
Here is a table that shows what affects the cost:
| Cost Factors | Impact |
|---|---|
| Market Demand | Prices change when global demand for stainless steel rises. |
| Raw Material Costs | Nickel and molybdenum prices make stainless steel more expensive. |
| Supplier Location | Shipping and logistics add to your total cost. |
Tip: If you want to save money, choose grades that are widely available in your region. Ask your supplier about lead times and shipping fees before you order.
You should also think about your project’s needs. If you need high corrosion resistance or strength at high temperatures, you may need to invest in 316H or 316Ti. For general use, 316 or 316L often give you the best balance of cost and performance.
You make smarter choices when you compare prices, check availability, and match the grade to your application. This approach helps you stay on budget and finish your project on time.
Recommendations
Application Guide
Choosing the right stainless steel grade can make your project last longer and perform better. You need to think about where and how you will use the material. Each grade in the 316 family fits different needs. You should look at the service conditions, the type of environment, and the way you plan to fabricate or weld the steel.
Here is a table to help you match the grade to your application:
| Service Condition | Preferred Grade | Rationale |
|---|---|---|
| Room-temperature, welded structures | 316L | Superior intergranular corrosion resistance, toughness, and easy fabrication |
| Continuous 600–800 °C exposure | 316Ti | Enhanced yield strength and longer creep life |
| Pharmaceutical & food processing | 316L | Smooth mirror finishes and low-leachable surface |
| Deep-drawn or spun parts | 316L | Higher ductility and less work hardening |
| High-chloride offshore components | 316L | Better pitting and stress corrosion cracking thresholds |
| Pressure vessels with cyclic heat loads | 316Ti | Stabilized microstructure and reduced sensitization risk |
You will find that 316L works best for most welded structures, food processing, and pharmaceutical equipment. Its low carbon content helps prevent corrosion at welds and keeps the surface clean. If you need to shape the steel into deep or complex forms, 316L gives you better ductility and less work hardening.
For high-temperature jobs, such as parts exposed to 600–800 °C or pressure vessels that heat and cool often, 316Ti stands out. Titanium in this grade keeps the steel strong and stable, even after long periods of heat. You get better yield strength and longer life in these tough conditions.
If you work in offshore or marine environments with lots of chlorides, 316L offers better resistance to pitting and stress corrosion cracking. This makes it a smart choice for pumps, valves, and other parts that face salty water.
Tip: Always check the cost and availability before you decide. 316 and 316L are usually easier to find and cost less. 316Ti and 316H may cost more and take longer to get, but they give you special benefits for high-heat or high-stress jobs.
You should also think about your fabrication process. If you plan to weld, 316L gives you the best protection against weld decay. For projects that need extra strength at high temperatures, 316H or 316Ti may be worth the extra investment.
Quick Guide for Choosing Your Grade:
- Pick 316L for most welded, food, or medical applications.
- Choose 316Ti for high-temperature or cyclic heat environments.
- Use 316H when you need extra strength at elevated temperatures.
- Select 316 for general use where cost and availability matter most.
By matching the grade to your application, you get the best mix of performance, durability, and value. Always talk to your supplier or engineer if you have special requirements or need help making the final choice.
You now see that 316, 316L, and 316Ti stainless steels each serve a unique purpose. 316L gives you the best weldability and corrosion resistance after welding. 316Ti stands out for high-temperature strength and stability. 316 works well for general use. You can use this quick guide:
- Choose 316L for welded or marine projects.
- Pick 316Ti for high-heat or pressure equipment.
- Select 316 for everyday industrial needs.
For special requirements, always consult your supplier or engineer to ensure the best fit.
FAQ
What is the main difference between 316 and 316L stainless steel?
You will find that 316L has a lower carbon content than 316. This difference gives you better resistance to corrosion after welding. You should choose 316L for welded structures or environments where corrosion is a concern.
Can you weld 316H stainless steel easily?
You can weld 316H using standard methods. You should control heat input to avoid grain growth. Using 316L filler material helps you maintain corrosion resistance at the welds.
When should you use 316Ti instead of 316L?
You should use 316Ti when your project faces high temperatures or repeated heating and cooling. Titanium in 316Ti prevents sensitization, so you get better corrosion resistance in these tough conditions.
Is 316 stainless steel safe for food and medical use?
You can safely use 316 and 316L stainless steel for food and medical applications. These grades resist corrosion and do not leach harmful substances. Many industries trust them for hygiene and safety.
How do you choose between 316, 316L, 316H, and 316Ti?
Tip: Match the grade to your needs.
- Pick 316L for welding and corrosion resistance.
- Choose 316H for high-temperature strength.
- Select 316Ti for stability at high heat.
- Use 316 for general applications.
