You need materials that guarantee safety and long-term reliability for medical devices. 316LVM Materials stand out because they use a vacuum melting process. This method creates stainless steel with high purity and antimagnetic properties. You benefit from excellent biocompatibility, which reduces risks during medical procedures. Vacuum melting also limits impurities, so you can trust the performance of your device.
Key Takeaways
- 316LVM stainless steel offers high purity and biocompatibility, making it ideal for medical implants.
- The vacuum melting process enhances corrosion resistance and reduces impurities, ensuring reliable performance.
- Choosing 316LVM over standard stainless steel minimizes risks of allergic reactions and device failure.
- 316LVM’s antimagnetic properties make it safe for use in MRI environments, protecting patient safety.
- Investing in 316LVM materials leads to better patient outcomes and fewer complications in medical procedures.
- Strict standards like ASTM F138 ensure that 316LVM meets safety and performance requirements for medical devices.
- Regular checks and surface treatments can extend the life of medical devices made from 316LVM stainless steel.
- Sourcing from reputable suppliers guarantees quality and traceability, essential for medical applications.
What is 316LVM and Why is it Important in the Medical Industry?
You may wonder what sets 316LVM apart from other materials used in medical devices. 316LVM stainless steel is a special type of stainless steel designed for critical medical applications. The “L” stands for low carbon, and “VM” means vacuum melted. This process removes unwanted impurities and creates a cleaner, more reliable material.
Here is a breakdown of the typical chemical composition for 316LVM:
| Element | Composition Range |
|---|---|
| Fe | balance |
| Cr | 17-19% |
| Ni | 13-15% |
| Mo | 2.25-3.5% |
| Mn | 2% |
| Si | 1% |
| Cu | 0.5% |
| N | 0.1% |
| C | 0.03% |
| S | 0.01% |
| P | 0.025% |
| Residuals | 0.4% |
The vacuum arc melting process plays a key role in the quality of 316lvm materials. You benefit from this process because it:
- Enhances the purity of the alloy by removing impurities.
- Helps form a more effective chromium oxide layer, which improves corrosion resistance.
- Ensures a more uniform microstructure, leading to consistent performance.
When you choose 316LVM stainless steel, you get a material that meets the ASTM F138 standard. This standard sets strict requirements for chemical composition, mechanical properties, and cleanliness. ASTM F138 ensures that the steel is suitable for surgical implants and other demanding medical uses.
How does 316LVM compare to other stainless steels? Standard grades like 304 or 316L do not go through the vacuum melting process. As a result, they may contain more impurities and have less predictable performance. 316LVM offers higher purity, better corrosion resistance, and improved biocompatibility. These features make it ideal for use in devices that stay inside the body for long periods.
Note: The vacuum melting process also minimizes carbide precipitation during welding. This means you get better corrosion resistance and longer-lasting materials.
You can trust 316lvm materials for medical devices because they combine high purity, strength, and safety. The unique manufacturing process and strict standards ensure that your devices meet the highest expectations for performance and biocompatibility.
What does Vacuum Melted Stand For?
When you see the term “vacuum melted,” you might wonder what it really means. In simple terms, vacuum melting is a special process used to make metals, including 316LVM stainless steel, much cleaner and more reliable. You can think of it as making steel in a super-clean environment where air and other gases cannot mix with the metal.
During vacuum melting, manufacturers use advanced equipment to melt the metal inside a sealed chamber. They remove almost all the air from this chamber. This step is important because it stops unwanted gases, like oxygen and nitrogen, from getting into the metal. When you keep these gases out, you get a purer and stronger material.
There are two main types of vacuum melting used for 316LVM:
- Vacuum Induction Melting (VIM): You heat the metal using electromagnetic coils while it sits in a vacuum. This method helps control the chemical makeup of the steel.
- Vacuum Arc Remelting (VAR): You remelt the metal using an electric arc in a vacuum. This step makes the structure of the steel even more uniform and removes more impurities.
Tip: Vacuum melting is not just for medical devices. You also find it in industries like aerospace and semiconductor manufacturing, where purity and performance matter most.
Vacuum melting gives you several key benefits:
- Higher Purity: The process removes impurity elements that can weaken the steel or cause it to corrode. You get a material with fewer unwanted elements.
- Better Corrosion Resistance: By reducing impurities and controlling the chemical composition, vacuum melting helps the steel resist rust and other forms of corrosion. This is critical for implants that stay inside the body.
- Improved Performance: The steel becomes more uniform, so you can trust it to perform the same way every time. This consistency is vital for medical devices that must not fail.
You might ask how vacuum melting compares to regular melting methods. Conventional melting happens in open air, so more impurities and gases can enter the metal. This can lead to weak spots or areas that corrode faster. Vacuum melting, on the other hand, creates a cleaner and more reliable product.
When you choose 316LVM stainless steel made with vacuum melting, you ensure that your medical devices meet the highest standards for safety and durability. You can trust that the material will perform well, even in the most demanding situations.
316LVM vs. 316L Stainless Steel
Chemical Contents
When you compare 316LVM stainless steel to standard 316L, you notice important differences in their chemical makeup. Both alloys contain chromium, nickel, and molybdenum, which help protect against rust and wear. However, 316LVM materials include extra elements like vanadium and nitrogen. These additions improve purity and strength.
The table below shows the main differences:
| Alloy Type | Key Elements | Additional Features |
|---|---|---|
| 316L | Chromium, Nickel, Molybdenum | Low carbon content (max 0.03%) to minimize carbide precipitation during welding |
| 316LVM | Chromium, Nickel, Molybdenum, Vanadium, Nitrogen | Produced through vacuum melting for enhanced purity and mechanical strength, better resistance to pitting and crevice corrosion |
You get a cleaner alloy with 316LVM because manufacturers use vacuum melting. This process removes unwanted impurities and gives you a more reliable medical stainless steel. The extra nitrogen and vanadium also help the alloy resist damage in tough environments.
Mechanical Properties
You need strong and flexible materials for medical devices. 316LVM stainless steel gives you better mechanical properties than standard 316L. You see higher strength and ductility, which means the material can bend and stretch without breaking. This is important for implants and surgical tools that must handle stress inside the body.
316LVM materials also resist cracking and fatigue. You can trust them to last longer, even when exposed to repeated movements or pressure. The vacuum melting process makes the steel more uniform, so you get consistent performance in every device.
Tip: If you want your medical device to stay strong and safe for years, choose 316LVM stainless steel for its superior mechanical properties.
Corrosion Resistance
You want your medical devices to stay safe and clean inside the body. Corrosion resistance is a key factor. 316LVM stainless steel offers better protection against rust and chemical damage than standard 316L. When you use surface coatings like passive carbon or TiO2, you boost this protection even more.
- 316LVM stainless steel shows high resistance to pitting and crevice corrosion, especially with surface modifications.
- TiO2 coatings on 316LVM stents improve stability and performance in phosphate buffered solutions.
- Even with high chromium content, 316LVM can still face pitting corrosion in salty environments, so you must consider the application.
You get reliable performance from 316LVM materials in most medical settings. The improved corrosion resistance helps prevent device failure and keeps patients safe.
Cost
You want to make smart choices when selecting materials for medical devices. Cost plays a big role in your decision. You notice that 316LVM stainless steel usually costs more than standard 316L. The higher price comes from the special vacuum melting process. This process needs advanced equipment and extra steps to remove impurities. You pay for the extra purity and reliability.
Here is a simple comparison:
| Material | Typical Cost | Reason for Price Difference |
|---|---|---|
| 316L | Lower | Standard production, more impurities |
| 316LVM | Higher | Vacuum melting, higher purity |
You might ask if the extra cost is worth it. For many medical applications, you need materials that stay safe inside the body for years. The higher purity of 316LVM means fewer risks for patients. You avoid problems like corrosion, allergic reactions, or device failure. You also meet strict standards set by organizations like ASTM and ISO.
Tip: If you use 316LVM for implants or surgical tools, you invest in patient safety and long-term performance. The upfront cost often saves you money by reducing complications and replacements.
You see that hospitals and device makers often choose 316LVM for critical parts. They know that the extra expense leads to better outcomes. You may use standard 316L for less demanding applications, like external parts or temporary devices. For permanent implants, you want the best quality, even if it costs more.
Why standard 316L can not be used for implants?
You might wonder why you cannot use regular 316L stainless steel for implants. The answer comes down to purity, safety, and performance. Standard 316L does not go through the vacuum melting process. This means it contains more impurities, like sulfur, phosphorus, and unwanted gases. These impurities can cause problems inside the human body.
Here are the main reasons:
- Impurities: You find more unwanted elements in standard 316L. These can lead to corrosion or release metal ions into the body.
- Biocompatibility: You need materials that do not cause allergic reactions or inflammation. 316LVM offers higher biocompatibility because it is cleaner.
- Corrosion Resistance: Implants stay inside the body for years. You want materials that resist rust and breakdown. 316LVM performs better because of its purity.
- Regulatory Standards: You must follow strict rules for medical implants. Organizations like ASTM and ISO require vacuum melted materials for permanent implants.
Note: Using standard 316L for implants can lead to device failure, patient discomfort, or even serious health risks.
You see that 316LVM meets all the requirements for safety and reliability. You protect patients and meet legal standards when you choose this material. For implants, you should always pick 316LVM over standard 316L. Your choice makes a difference in patient health and device success.
316LVM Stainless Steel Key Properties & Benefits
Corrosion Resistance
You want your medical devices to last inside the body without breaking down. Corrosion resistance is one of the most important features of 316lvm materials. The high purity of 316lvm stainless steel comes from the vacuum melting process. This process removes unwanted elements and makes the steel cleaner. You get a material that forms a strong chromium oxide layer on its surface. This layer protects your device from rust and chemical attack.
You see better performance in wet and salty environments. The steel resists pitting and crevice corrosion, which are common problems for implants. You can trust your device to stay safe and reliable for years. The high purity also means fewer metal ions get released into the body. This reduces the risk of allergic reactions and inflammation.
Tip: Always choose materials with high purity for implants. You protect patients and improve device performance.
Mechanical Strength
You need strong materials for medical implants and surgical tools. 316lvm stainless steel gives you reliable mechanical properties because of its high purity and uniform structure. The vacuum melting process creates a steel that can handle stress and pressure without cracking. You get a material that bends and stretches but does not break easily.
You may wonder how 316lvm compares to other implant-grade materials like titanium alloys. The table below helps you see the differences:
| Material | Fatigue Strength | Fracture Toughness | Corrosion Resistance | Cost |
|---|---|---|---|---|
| 316LVM | Lower | Lower | Good | Lower |
| Titanium Alloys | Higher | Higher | Moderate | Higher |
You notice that titanium alloys have higher fatigue strength and fracture toughness. However, 316lvm stainless steel offers good corrosion resistance and costs less. You can use 316lvm for many medical applications where strength and purity matter most.
Note: The high purity of 316lvm materials gives you consistent mechanical properties. You get predictable performance in every device.
Fatigue and Wear Resistance
You want your implants to last for many years without failing. High fatigue resistance is important for devices that move or bear weight inside the body. 316lvm stainless steel shows good performance in many medical uses. The high purity helps reduce weak spots that can lead to cracks or breaks.
However, you should know that 316lvm materials face challenges in long-term implant applications. Studies show that more than 90% of steel implant failures come from pitting and crevice corrosion. These problems can cause fatigue failure over time. You also see increased wear when PMMA bone cement particles are present. Abrasive wear combined with corrosion can lower the performance of the material, especially in wet environments.
You must consider these factors when choosing materials for implants. The high purity of 316lvm stainless steel helps, but you need to monitor for signs of wear and corrosion. You can improve performance by using surface coatings or combining with other materials.
Tip: Regular checks and surface treatments help extend the life of your medical devices made from 316lvm stainless steel.
Antimagnetic Features
You want your medical devices to work safely around strong magnetic fields. 316LVM stainless steel gives you antimagnetic properties that protect both patients and equipment. You see this benefit most clearly in hospitals where doctors use MRI machines. These machines create powerful magnetic fields. If your implant or device reacts to these fields, it can move, heat up, or cause image distortion.
316LVM stainless steel contains low amounts of magnetic elements. The vacuum melting process removes impurities that can increase magnetism. You get a material with very low magnetic permeability. This means your device does not interfere with MRI scans or other sensitive equipment.
Note: MRI compatibility is critical for implants like bone screws, stents, and pacemaker parts. You help doctors get clear images and keep patients safe when you choose antimagnetic materials.
Here are the main advantages you gain from antimagnetic features in 316LVM stainless steel:
- Safe for MRI Procedures: Your device does not move or heat up during scans. You avoid risks for patients who need regular imaging.
- No Image Distortion: You get clear and accurate MRI results. Doctors can diagnose and treat patients more effectively.
- Reduced Risk of Device Failure: Magnetic fields do not affect the structure or function of your implant. You improve long-term reliability.
The table below shows how 316LVM compares to other common stainless steels:
| Material | Magnetic Permeability | MRI Compatibility |
|---|---|---|
| 304 Stainless | Moderate | Poor |
| 316L Stainless | Low | Good |
| 316LVM | Very Low | Excellent |
You see that 316LVM offers the best antimagnetic performance. You make a smart choice for patient safety and device quality when you select this material.
Tip: Always check the magnetic properties of your implant materials before use in MRI environments. You protect patients and improve medical outcomes with antimagnetic 316LVM stainless steel.
Governing Standards: ASTM F138 / F139 and ISO 5832-1
When you choose materials for medical implants, you must follow strict standards. ASTM F138, ASTM F139, and ISO 5832-1 set the rules for 316LVM stainless steel. These standards help you make sure your devices stay safe and work well inside the human body.
You see that ASTM F138 and F139 focus on stainless steel for surgical implants. ASTM F138 covers bars and wires, while ASTM F139 applies to plates and sheets. ISO 5832-1 is an international standard that matches many of the same requirements. These standards tell you what chemical elements can be in the steel and how much of each is allowed.
Here is a table showing the maximum limits for key elements in 316LVM stainless steel:
| Element | Maximum Limit |
|---|---|
| Carbon (C) | ≤0.020 |
| Silicon (Si) | ≤0.80 |
| Manganese (Mn) | ≤1.00 |
| Phosphorus (P) | ≤0.030 |
| Sulfur (S) | ≤0.010 |
| Chromium (Cr) | 20 |
| Nickel (Ni) | 18 |
| Molybdenum (Mo) | 6.1 |
| Nitrogen (N) | 0.20 |
| Copper (Cu) | 0.7 |

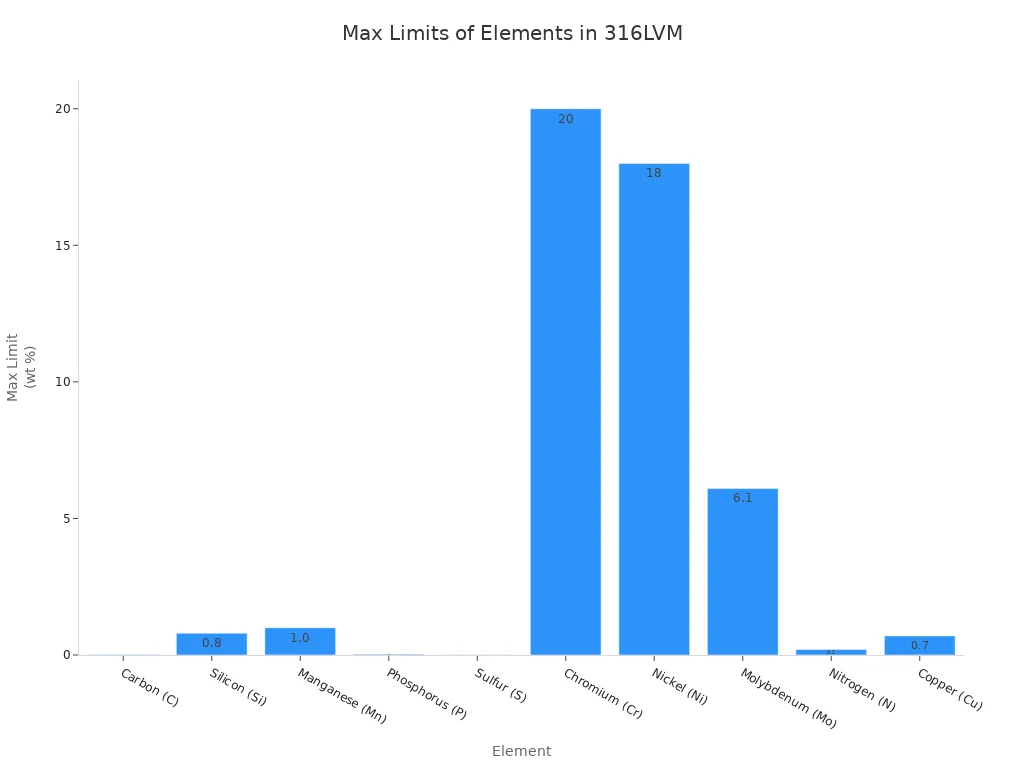

You can also see these limits in the chart below. The chart helps you compare the amounts of each element quickly.
Meeting these standards is not just about following rules. You protect patients by making sure your implants do not release harmful substances or break down inside the body. The standards require you to test the steel for strength, purity, and biocompatibility. You must check that the material does not cause allergic reactions or fail under stress.
Following ASTM F138 and ISO 5832-1 helps you create implants that last longer and keep patients safe. You lower the risk of device failure and improve health outcomes.
Sometimes, you find differences in steel that meet the same standard. For example, one type of steel with higher phosphorus and sulfur may be easier to machine and less likely to corrode between grains. Another type with lower levels may have different safety features. You need to look beyond the numbers and test each batch carefully.
You see that strict standards guide you to choose the best materials for medical devices. By following ASTM F138, ASTM F139, and ISO 5832-1, you make sure your implants meet the highest expectations for safety and performance. You give patients peace of mind and help doctors trust the devices they use every day.
Biocompatibility in Medical Devices
Biocompatibility of 316LVM
You want your medical implants to work safely inside the body. 316lvm materials offer excellent biocompatibility, which means they do not harm living tissue or cause unwanted reactions. You see this benefit in clinical studies. For example, researchers implanted 316L stainless steel in rabbit tissues and checked the results after eight weeks. The tissue showed positive reactions, which supports the use of 316LVM stainless steel in human implants.
You can trust 316LVM for surgical use because it meets strict standards for biocompatibility and safety. The material does not break down or release harmful substances. You protect patients from allergic reactions and inflammation. You also help doctors avoid complications during and after surgery.
You improve patient outcomes when you choose materials with excellent biocompatibility for medical devices.
Low Carbon and High Nickel Benefits
You need to understand how the chemical makeup of 316LVM helps keep patients safe. The low carbon and high nickel content in 316LVM play a big role in reducing allergic reactions and metal ion release.
- 316LVM is designed to minimize nickel leaching, making it ideal for sensitive skin.
- The low carbon content increases durability and resistance to tarnish, ensuring longevity and safety.
- The low carbon level (about 0.03%) helps form a protective chromium oxide layer.
- This layer stops nickel ions from escaping and contacting the skin, lowering the risk of allergic reactions.
- The high nickel content stays locked inside the alloy, so very little gets released into the body.
You see that these features make 316LVM a top choice for implants and surgical tools. You avoid problems like skin irritation, allergic responses, and metal ion buildup. You give patients peace of mind and help them heal faster.
Cleanliness and Purity
You want your medical devices to be as clean and pure as possible. 316LVM stands out because manufacturers use advanced melting processes like Vacuum Induction Melting (VIM) and Vacuum Arc Remelting (VAR). These methods remove inclusions and boost cleanliness.
- Vacuum melting techniques create a high level of purity with very few impurities.
- You get a material that is perfect for medical applications such as implants and surgical instruments.
- 316LVM meets tough medical standards, including ASTM F138, which proves its safety and effectiveness.
You lower the risk of complications when you use pure materials. You also make sure your devices last longer and perform better inside the body. You help doctors and patients by choosing materials that meet the highest standards for cleanliness and purity.
Cleanliness and purity are key to excellent biocompatibility in medical devices. You protect patients and improve device performance by selecting 316LVM stainless steel.
316LVM in Common Medical Devices Applications
Orthopedic Implants
You rely on orthopedic implants to restore movement and stability after injuries or bone diseases. 316lvm materials play a vital role in these medical devices because they combine strength, durability, and biocompatibility. You see 316lvm stainless steel used in screws, plates, and rods for bone implants. These components must withstand repeated stress and movement inside the body.
The table below shows common medical applications for 316lvm stainless steel:
| Medical Device Type | Specific Applications |
|---|---|
| Orthopedic Implants | Screws, plates, and rods for bone implants |
| Dental Implants | Internal structures for crowns and bridges |
| Cardiovascular Devices | Stents and sutures |
You benefit from 316lvm stainless steel because it costs less than ceramics and other alloys. You also get superior mechanical properties, which means the implants are less brittle and less likely to fail. Advancements in coatings further improve corrosion resistance and help bone tissue grow around the implant. You notice better patient outcomes, fewer complications, and longer-lasting devices.
- You experience good tribological and anti-wear properties, which are crucial for hip joint replacements.
- You see reduced wear debris and ion release, lowering the risk of adverse reactions and revision surgeries.
- You trust the biocompatibility and chemical inertness of 316lvm materials to keep patients safe.
Tip: Choosing 316lvm stainless steel for orthopedic implants helps you achieve reliable results and improve patient recovery.
Cardiovascular Devices
You depend on cardiovascular devices to treat heart and blood vessel conditions. 316lvm materials offer the right balance of strength and corrosion resistance for these critical medical applications. You find 316lvm stainless steel in stents and sutures, which must remain stable and safe inside the bloodstream.
Stents made from 316lvm stainless steel resist corrosion and maintain their shape, even in challenging environments. You avoid complications like device breakdown or metal ion release. The material’s antimagnetic properties also make it suitable for patients who need MRI scans after implantation.
You choose 316lvm stainless steel for cardiovascular devices because it supports long-term use and patient safety. You help doctors perform life-saving procedures with confidence.
Dental Applications
You want dental implants that last and feel comfortable. 316lvm materials provide the internal structures for crowns and bridges. You benefit from the material’s high purity and corrosion resistance, which prevent breakdown and allergic reactions in the mouth.
316lvm stainless steel supports dental implants that integrate well with bone and gum tissue. You see fewer complications and better healing. The material’s cleanliness and biocompatibility make it a top choice for dental professionals.
Note: You improve patient satisfaction and oral health by selecting 316lvm stainless steel for dental implants.
Surgical Instruments
You depend on surgical instruments every day in hospitals and clinics. These tools must perform with precision and reliability. 316LVM stainless steel gives you the confidence to use instruments that meet the highest standards. You find this material in scalpels, forceps, scissors, retractors, and clamps. Each tool must stay sharp, resist corrosion, and remain safe for repeated use.
You want your instruments to last through many sterilization cycles. 316LVM stainless steel stands up to harsh cleaning methods, including autoclaving and chemical disinfection. The vacuum melting process removes impurities, so your tools do not rust or pit easily. You see fewer stains and less wear, even after years of use.
You also need instruments that do not interfere with sensitive equipment. 316LVM stainless steel has antimagnetic properties. This means you can use these tools during MRI procedures without worrying about image distortion or patient safety. You help doctors and nurses work confidently in any environment.
Here are some reasons why you choose 316LVM stainless steel for surgical instruments:
- High corrosion resistance: Your tools stay clean and safe, even after contact with blood, saline, or disinfectants.
- Excellent mechanical strength: You can apply force without bending or breaking the instrument.
- Biocompatibility: You reduce the risk of allergic reactions or tissue irritation during surgery.
- Antimagnetic properties: You use instruments safely around MRI machines and other sensitive devices.
Tip: Always inspect your surgical instruments for signs of wear or corrosion. Replace any tool that shows damage to maintain patient safety.
You may notice that some surgical instruments use other materials, such as titanium or ceramics. However, 316LVM stainless steel offers a balance of strength, cost, and performance. You get reliable results in both routine and complex procedures.
The table below shows common surgical instruments made from 316LVM stainless steel:
| Instrument Type | Common Uses |
|---|---|
| Scalpels | Cutting tissue |
| Forceps | Grasping or holding items |
| Scissors | Cutting sutures or tissue |
| Retractors | Holding back organs/tissue |
| Clamps | Controlling blood flow |
You trust 316LVM stainless steel to deliver the quality you need in medical settings. Your choice helps ensure the success of every procedure and the safety of every patient.
Machining & Fabrication: Key Points and Challenges in Machining 316LVM Materials
When you work with 316LVM stainless steel, you face unique machining and fabrication challenges. This material offers high purity and strength, but you must pay close attention to every step in the process to keep these qualities intact.
You often need to achieve very tight tolerances, especially for components like volumetric pumps. These parts must fit together perfectly to prevent leaks and contamination. Even a small error in size can cause big problems in medical devices. You also need to focus on surface roughness. Smoother surfaces make cleaning easier and help keep devices sterile. In pharmaceutical and surgical applications, a rough surface can trap bacteria or particles, increasing the risk of infection.
Tip: Always check the surface finish after machining. A smoother finish means better sterility and easier cleaning.
Additive manufacturing, such as 3D printing, brings new options for making 316LVM parts. However, you should know that the corrosion resistance of these parts can change depending on the machine and settings you use. Surface roughness and the angle at which you build the part can affect how well it resists corrosion. You must test each batch to ensure consistent quality.
When you machine 316LVM, you can use several best practices to get the best results:
- Choose abrasive particles with a rod shape. These particles create a smoother surface than spherical ones.
- Increase machining time to reduce surface roughness. More time spent on finishing leads to a cleaner, purer surface.
- Use higher machining speeds to improve surface quality. However, watch for the point where abrasive particles may separate from the magnet, which can lower the quality.
Here is a quick reference table for best practices:
| Best Practice | Benefit |
|---|---|
| Rod-shaped abrasives | Smoother surface finish |
| Longer machining time | Lower surface roughness |
| Higher machining speed | Improved surface quality |
You must also consider the tools and coolants you use. Select tools made from hard materials, such as carbide, to handle the toughness of 316LVM. Use coolants to keep the temperature low and prevent work hardening, which can make the steel even harder to cut.
Note: Consistent quality control is essential. Always inspect your finished parts for size, surface finish, and purity.
Machining 316LVM stainless steel takes skill and careful planning. By following these tips and best practices, you can produce medical components that meet strict standards for safety and performance. You help ensure that every device works as intended and keeps patients safe.
How to Source High Quality 316LVM?
You want to make sure your medical devices use the best 316LVM stainless steel. Sourcing high-quality material starts with choosing the right supplier. You need to look for companies that understand the strict demands of medical device manufacturing.
Start by checking the supplier’s reputation. Reliable suppliers have a history of delivering consistent and pure 316LVM. You should ask for references from other medical device manufacturers. This helps you avoid suppliers who cut corners or lack experience.
Next, focus on the supplier’s quality control. You need materials with steady mechanical properties and clean surfaces. Suppliers must inspect every batch and keep their processes under control. You can use the table below to guide your evaluation:
| Criteria | Description |
|---|---|
| Mechanical Properties | Consistent and undeviating mechanical properties are essential for processing medical wire. |
| Surface Cleanliness | Ensuring materials are as particulate-free as possible is critical for safety in medical applications. |
| Quality Control Processes | Continuous inspection and attention to detail are vital for maintaining quality throughout the supply chain. |
| Compliance with Certifications | Suppliers should comply with the latest ISO certifications and have a culture of quality assurance. |
| Commitment to Quality | The supplier’s organizational commitment to quality must align with the expectations of medical device customers. |
You should always ask about certifications. Look for ISO 9001:2015 certification. This shows the supplier follows strict quality management rules. Suppliers who meet these standards care about safety and reliability.
Traceability is another key factor. You need to know where your material comes from and how it was made. Leading suppliers provide mill test reports (MTRs). These reports show the chemical composition of each batch of 316LVM. You can see if the material meets ASTM F138 and ISO 5832-1 standards.
| Aspect | Description |
|---|---|
| Material Quality | Suppliers provide transparency and validation of their materials. |
| ISO Certification | Look for ISO 9001:2015 certification, indicating a commitment to quality management. |
| Material Traceability | Suppliers should provide mill test reports (MTRs) detailing the chemical composition of 316L. |
Tip: Always request documentation before you buy. This includes certifications, test reports, and details about the supplier’s inspection process.
You should visit the supplier’s facility if possible. You can see their equipment and meet their team. This helps you judge their commitment to quality. Suppliers who invest in advanced melting and inspection technology usually deliver better products.
You need to compare prices, but do not choose based on cost alone. High-quality 316LVM costs more because it requires special processes and strict controls. You protect patients and improve device performance when you invest in the best material.
You can source high-quality 316LVM by following these steps. Choose suppliers with strong quality control, proper certifications, and full traceability. You ensure your medical devices meet the highest standards for safety and reliability.
Medical Implant Manufacturing
Manufacturing Techniques
You have several options when you create medical implants from 316LVM stainless steel. Each method offers unique benefits and challenges. The most common techniques include machining and additive processing. You can compare these methods using the table below:
| Manufacturing Technique | Description | Advantages | Disadvantages |
|---|---|---|---|
| Machining | You remove material to shape the implant and achieve a smooth surface. | You get high precision and excellent surface quality. | The process takes time, uses a lot of energy, and can waste up to half of the material. |
| Additive Processing | You build the implant layer by layer using laser sintering. | You can create complex shapes efficiently and produce strong parts. | You need special equipment and materials, which can increase costs. |
Vacuum arc melting also plays a key role in medical implant manufacturing. This process helps you achieve high purity and a uniform structure in the stainless steel. You often use precision machining after melting to create the final shape and surface finish. Additive manufacturing, such as 3D printing, lets you design implants with intricate features that traditional methods cannot match.
Tip: Choose the technique that best fits your design needs and quality requirements. Complex shapes often work better with additive processing, while simple parts may benefit from machining.
Quality Control
You must follow strict quality control steps to ensure your implants meet safety standards. These steps help you avoid defects and keep patients safe. Here are some important measures:
- You conduct regular audits and inspections to check every stage of production.
- You follow ISO 13485 standards to guarantee reliability, biocompatibility, and performance.
- You select suppliers with ISO 13485 certification and FDA registration to show their commitment to quality.
You need to document every step and test each batch for purity, strength, and cleanliness. Quality control helps you catch problems early and maintain high standards for every implant.
Note: Consistent quality checks protect patients and help you meet regulatory requirements.
Regulatory Standards
You must comply with strict rules when you manufacture medical implants. The FDA and international organizations set these standards to protect patient health. You need to follow guidelines for material purity, mechanical strength, and biocompatibility. ISO 13485 certification proves that your processes meet global expectations for medical devices.
You also need FDA registration if you sell implants in the United States. This registration shows that your products meet safety and performance standards. You must keep detailed records and test results to prove compliance during inspections.
You improve patient safety and build trust when you follow regulatory standards. These rules guide you to create reliable implants that perform well inside the body.
Innovations and Trends
Surface Modifications
You see new surface modification techniques improving the performance of 316LVM stainless steel in medical devices. These innovations help your implants interact better with the body and reduce risks. Titanium dioxide (TiO₂) coatings stand out as a major advancement. You benefit from enhanced biocompatibility, especially in cardiovascular implants. The surface microstructure grows layer by layer, creating an amorphous finish. This structure helps cells respond better during in vitro tests.
You also notice improvements in blood compatibility. Devices with TiO₂ coatings show a lower hemolysis index, which means they cause less damage to blood cells. These coatings can inhibit inflammatory reactions by lowering cytokine levels. You reduce the risk of thrombosis and improve patient safety.
| Surface Modification | Benefit |
|---|---|
| Titanium dioxide (TiO₂) | Boosts biocompatibility and device performance |
| Layer-by-layer microstructure | Improves cell response in laboratory conditions |
| Lower hemolysis index | Enhances blood compatibility |
| Reduced cytokine levels | Minimizes inflammation and thrombosis risk |
Tip: Surface modifications like TiO₂ coatings help your devices last longer and work better inside the body.
Sustainability
You play a key role in supporting sustainability when you choose 316LVM stainless steel for medical devices. The industry now focuses on eco-friendly practices and recycling. You see a growing demand for materials that can be reused and have less impact on the environment. 316L stainless steel is durable and resists corrosion, which fits well with sustainability goals.
- You help reduce waste by recycling stainless steel and using circular economy principles.
- You support green manufacturing processes that lower carbon emissions during production.
- You choose materials that last longer, so fewer devices end up in landfills.
- You encourage suppliers to adopt eco-friendly methods and reduce their environmental footprint.
Note: Sustainable practices in stainless steel production help you protect the planet while maintaining high standards for medical safety.
Future Developments
You can expect more exciting changes in the future of 316LVM stainless steel for medical devices. Researchers continue to develop new surface treatments that improve biocompatibility and reduce complications. You may see coatings that release drugs or promote faster healing. The industry also explores advanced manufacturing methods, such as 3D printing, to create custom implants with complex shapes.
You will likely see stricter regulations and higher standards for purity and sustainability. Manufacturers may use more recycled materials and cleaner energy sources. You can look forward to safer, longer-lasting devices that meet both medical and environmental needs.
Callout: Stay informed about new trends in medical materials. You help shape the future of healthcare by choosing innovative and sustainable solutions.
Why Choose Seather Technology as your 316LVM supplier?
When you look for a reliable 316LVM supplier, you want more than just raw material. You need a partner who understands the strict demands of the medical device industry. Seather Technology stands out as a top choice for many reasons.
1. Proven Quality and Purity
You expect your 316LVM stainless steel to meet the highest standards. Seather Technology uses advanced vacuum melting processes. This ensures you get steel with exceptional purity and consistency. Every batch meets ASTM F138 and ISO 5832-1 requirements. You can trust the material for critical medical applications.
2. Full Certification and Traceability
You need confidence in your supply chain. Seather Technology provides complete documentation for every order. You receive mill test reports, certificates of analysis, and compliance documents. These records prove the chemical composition and mechanical properties of your material. You can trace every batch from production to delivery.
3. Technical Support and Expertise
You may face challenges in machining or designing with 316LVM. Seather Technology offers expert technical support. Their team helps you select the right grade, solve fabrication issues, and optimize your processes. You save time and avoid costly mistakes.
4. Customization and Flexibility
You might need special sizes, shapes, or surface finishes. Seather Technology offers custom solutions to fit your project. You can request bars, wires, or sheets in the exact dimensions you need. The company adapts to your requirements, not the other way around.
5. Fast and Reliable Delivery
You cannot afford delays in your production schedule. Seather Technology maintains strong inventory and efficient logistics. You get your materials on time, every time.
Tip: Always ask your supplier about lead times and stock availability. Seather Technology provides clear answers and honest timelines.
6. Commitment to Customer Satisfaction
You deserve responsive service. Seather Technology values your feedback and works to resolve any issues quickly. You get a dedicated contact who understands your needs.
Here is a quick comparison table to help you see the benefits:
| Feature | Seather Technology | Typical Supplier |
|---|---|---|
| Vacuum Melting Process | ✅ | ❌ / Limited |
| Full Certification | ✅ | ❌ / Partial |
| Customization Options | ✅ | ❌ / Limited |
| Technical Support | ✅ | ❌ |
| Fast Delivery | ✅ | ❌ / Variable |
When you choose Seather Technology, you gain a partner who supports your success. You get high-quality 316LVM, expert guidance, and reliable service. Your medical devices deserve the best materials. Seather Technology delivers them every time.
You see how 316LVM stainless steel helps you improve safety and performance in medical devices. You choose this material for its purity, biocompatibility, and strength.
- You protect patients with reliable implants.
- You support innovation by following new manufacturing techniques.Stay informed about technology and standards. You make better choices for every medical application.
FAQ
What makes 316LVM stainless steel different from regular stainless steel?
You get higher purity with 316LVM because manufacturers use vacuum melting. This process removes more impurities. You benefit from better corrosion resistance and improved biocompatibility, which makes it safer for medical implants.
Can you use 316LVM stainless steel for MRI-safe implants?
Yes, you can. 316LVM stainless steel has antimagnetic properties. Your implants will not interfere with MRI scans. You help doctors get clear images and keep patients safe during procedures.
How do you know if your 316LVM supplier meets medical standards?
You should ask for certifications like ISO 9001:2015 and ASTM F138 compliance. You need mill test reports for traceability. Reliable suppliers provide full documentation and follow strict quality control.
Is 316LVM stainless steel safe for people with metal allergies?
You get reduced risk of allergic reactions with 316LVM. The low carbon and high nickel content help prevent nickel ion release. You protect sensitive patients by choosing this material for implants and surgical tools.
What are the main uses of 316LVM in medical devices?
You find 316LVM in orthopedic implants, dental implants, cardiovascular stents, and surgical instruments. You rely on its strength, purity, and corrosion resistance for devices that stay inside the body or need repeated sterilization.
Does 316LVM cost more than other stainless steels?
Yes, you pay more for 316LVM. The vacuum melting process increases purity and safety, which raises the price. You invest in better patient outcomes and longer-lasting devices.
Can you machine 316LVM stainless steel easily?
You need special tools and careful techniques to machine 316LVM. The material is tough and pure. You should use carbide tools and coolants to prevent work hardening and achieve a smooth finish.
How does surface modification improve 316LVM implants?
You can add coatings like titanium dioxide to 316LVM implants. These coatings boost biocompatibility, reduce inflammation, and help your device last longer inside the body.
