When you pick a material for 3D printing, you choose how strong your project will be, while also considering 3D printing material compatibility to ensure safety and functionality. Some materials, like plastics, are good because they are light, tough, and last long. Acrylonitrile butadiene styrene and polylactic acid are popular choices due to their ease of printing and environmental benefits. It is essential to know which materials work with the process, as not every material is right for 3D printing. Some do not meet the needed standards for 3D printing material compatibility.
Key Takeaways
- Pick the best material for 3D printing. This helps your print stay strong and work well. PLA and ABS are common choices. They are simple to use and safe.
- Learn about the different 3D printing methods. Each method, like FDM or SLA, uses certain materials best.
- Always make sure your material works with your printer. This stops printing problems and keeps your prints strong and safe.
- Know which materials do not work for 3D printing. Do not use metals that melt at high heat. Stay away from chemicals that react easily. This keeps your workspace safe.
- Follow safety rules when you print. Make sure your room has fresh air. Some plastics can give off bad fumes. Check for these before you start.
What is 3D Printing and How Does it Work?
Have you ever wondered how a 3D printer makes things? 3D printing is also called additive manufacturing. It uses machines to build objects one layer at a time. You start with a digital design. The printer reads instructions and makes a real object. Many industries use this process, like engineering, medicine, and art.
First, you design your object using CAD software. This software helps you change the shape and size. When your design is done, you change the file to a format the printer can read, usually STL. You check the STL file for mistakes or make changes. Next, you get the 3D printer ready. You load the material and set the temperature. The printer adds material layer by layer to build the object. When it is done, you clean or cure the item. You might need to remove supports. Last, you look at the object and test it to see if it works.
Tip: Always look for mistakes in your design before printing. Even small errors can cause big problems when you print.
Here are the main steps you follow in most 3D printing jobs:
- Make a CAD file
- Change the CAD file
- Check the STL file
- Get the printer ready
- Build the object
- Clean or finish the object
- Check and test the object
Different 3D printing types use these steps. Fused Deposition Modeling melts plastic and pushes it out of a nozzle. Stereolithography uses light to harden liquid resin. Selective Laser Sintering uses a laser to fuse powder. All methods use the same basic steps, but the machines and materials are different.
You choose the design, printer, and material to control your results. Knowing these steps helps you avoid mistakes and get better prints.
3D Printing Material Compatibility
When you pick a material for additive manufacturing, you decide how your object will work and last. 3d printing material compatibility means the material fits with the printer and your project’s needs. You need to think about how the material melts, cures, or sticks together. You also need to know how it works with other layers. If you choose the right material, your object gets stronger, safer, and looks better.
Note: Material compatibility changes how well your part prints and how strong it is. For example, mixing PETG and PLA can make it stretch more. Using PLA on the outside helps it handle pressure. Good layer bonding is important for strong additive manufacturing results.
You can sort good materials for additive manufacturing into four main groups:
Thermoplastics

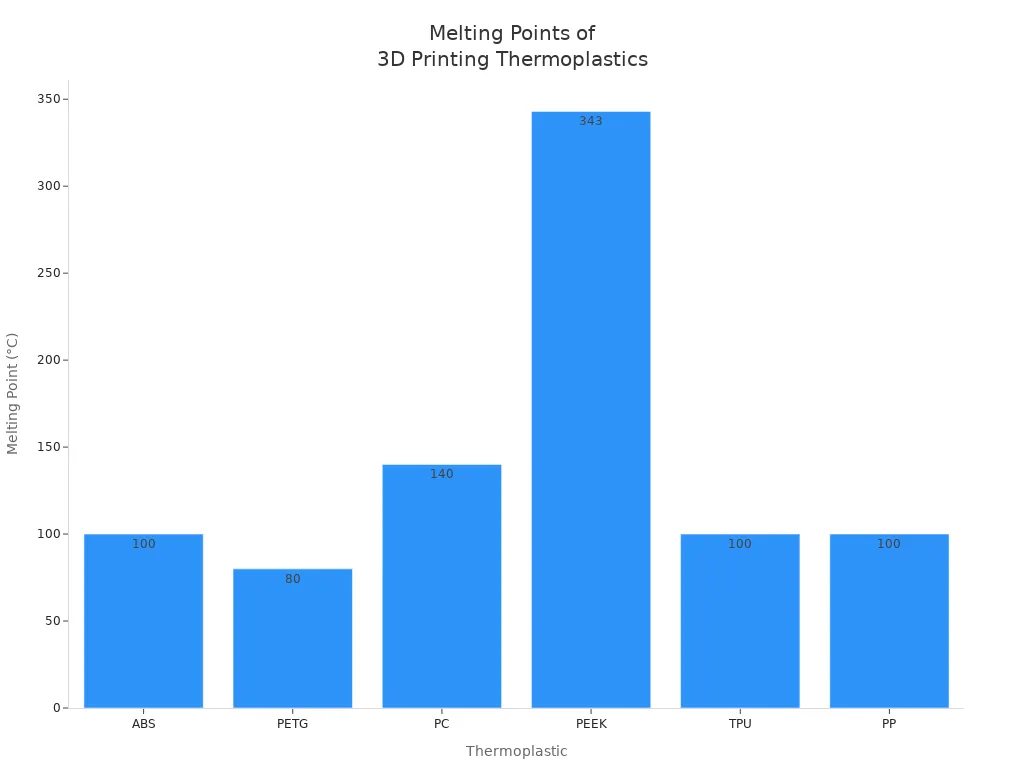

Thermoplastics are the most used materials in additive manufacturing. You can melt and shape them again and again. This makes them great for additive manufacturing. Some popular thermoplastics are ABS, PETG, PC, PEEK, TPU, and PP. Each one melts at a different temperature and has its own use.
| Thermoplastic | Melting Point (°C) | Common Uses |
|---|---|---|
| ABS | Up to 100 | Car parts, test models |
| PETG | 70-80 | Food containers, safe items |
| PC | 140+ | Helmets, car lights |
| PEEK | 343 | Planes, medical parts |
| TPU | 80-100 | Soft parts, phone cases |
| PP | Up to 100 | Food boxes, chemical parts |
You use thermoplastics in additive manufacturing because they last long, bend easily, and resist chemicals. You can print test models, medical tools, and car parts. Picking the right thermoplastic helps with 3d printing material compatibility and makes sure your object does its job.
Resins
Resins are liquids that get hard when light hits them. You use them in SLA and DLP printers for additive manufacturing. Each resin type has special features for different jobs:
- Standard resins give smooth surfaces and balance strength with bending. You use them for models and test pieces.
- Tough resins are stronger and handle hits better. You pick them for working parts and test models.
- Castable resins burn away cleanly and show tiny details for jewelry and teeth molds.
- Flexible resins act like rubber and stretch well. You use them for seals and things you wear.
- High-temperature resins can take heat, so you use them for tools and plane parts.
Each resin helps with certain additive manufacturing goals. You pick the resin based on what your project needs to look and feel like.
Metals and Composites
You can use metals and composites in additive manufacturing to make strong, light, and tough parts. Metal printing uses powders like stainless steel, titanium, and aluminum. Composites mix plastics with fibers to make them stronger.
- Carbon fiber composites are used in planes, cars, and medical tools. You pick them because they are strong but not heavy.
- Glass fiber composites last long and cost less for many uses.
- Chopped composites have short fibers mixed with plastic. You use them for medium strength and easy making.
- Continuous fiber composites have long strands of carbon fiber, fiberglass, or Kevlar. You pick these for the best strength and performance.
You use metals and composites in additive manufacturing when you need parts that can handle stress, heat, or hits. These materials help with more 3d printing material compatibility options.
Flexible Materials
Flexible materials let you print things that bend, stretch, or take hits. You use them in additive manufacturing for phone covers, seals, and shock stoppers. Some flexible materials are thermoplastic polyurethane (TPU), thermoplastic copolyester (TPC), and thermoplastic elastomers (TPEs).
| Pros | Cons |
|---|---|
| Bendable and soft | Hard to print |
| Great at stopping vibrations | Not good at making bridges |
| Lasts a long time | Can make blobs and strings |
| Handles hits well | May not work in some printers |
You may have problems printing flexible materials. They can be hard to move through some printers, and you might see blobs or strings. Even with these problems, flexible materials are still important for additive manufacturing projects that need to handle hits and stop vibrations.
Tip: Always check if your printer can use the flexible material you want. Some printers work better with certain types, which helps with 3d printing material compatibility.
You need to match your material to your printer and project. When you know about material compatibility, you make your additive manufacturing projects safer, stronger, and more successful.
What Materials Cannot Be Used in 3D Printing?
It is important to know which materials do not work for 3D printing. Some materials need very high heat to melt. Others can be dangerous or do not flow right. Some break down or burn instead of melting. Knowing these limits helps you stay safe and avoid bad prints.
High-Melting-Point Metals
Most 3D printers cannot use metals that melt at very high temperatures. These metals need more heat than most machines can give. If you try to print with them, the printer cannot get hot enough. The metal will not melt or stick together.
Some metals that do not work are:
- Tungsten
- Tantalum
- Molybdenum
These metals melt above 3,000°C. Most printers cannot get this hot. If you try, you might break your printer or get a bad print.
Note: Some special industrial printers can use these metals. Most home and office printers cannot handle them.
Reactive Chemicals
Some chemicals react too fast or make dangerous fumes. You should not use these because they can be unsafe. Printing with them can cause fires, explosions, or health problems.
Types of risky chemicals include:
- Volatile Organic Compounds (VOCs): These can hurt your lungs or skin.
- Ultrafine Particles (UFPs): Breathing these can cause serious sickness.
- Corrosive Chemicals: These can break your printer and hurt you.
You also need to be careful with reactive metal powders and strong cleaning baths. These can catch fire or burn your skin if you are not careful.
Non-Thermoplastics
Non-thermoplastic materials do not work in most 3D printers. These do not melt or flow when heated. They burn, break down, or stay hard. You cannot shape them with heat, so they do not form layers.
Examples of non-thermoplastics to avoid:
- Polyester: Burns or breaks down, not melts.
- Epoxy: Does not melt or flow for printing.
Non-thermoplastics like polyester, epoxy, or silicone do not get soft with heat. They burn or lose their shape, so your print will not work.
Soft Materials
Very soft materials can be hard to print. They may not keep their shape or can clog the printer. These materials can sag, ooze, or stick in the wrong spots.
Problems with soft materials:
| Issue | Result |
|---|---|
| Sagging | Loss of shape and detail |
| Clogging | Printer jams and failures |
| Oozing | Messy prints and strings |
You need materials that hold their shape while printing. If a material is too soft, it will not support itself and your print will fail.
Problematic Plastics
Not all plastics are good for 3D printing. Some do not melt at the right temperature. Others make bad fumes or do not stick well between layers. These can be unsafe or make weak prints.
Plastics to avoid include:
- Plastics that burn or break down, not melt
- Plastics that make toxic fumes
- Plastics that do not stick well, making weak layers
You should pick plastics that melt and stick well. If you use the wrong ones, your print can fail or be unsafe.
Tip: Always check the melting point, safety, and flow of a material before printing.
When you know which materials do not work, you make better choices. You keep your workspace safe and your prints strong.
Why High-Temperature Metals Are Unprintable?
You might ask why you cannot use metals like tungsten or molybdenum in most 3D printers. The main reason is heat. These metals melt at over 3,000°C. Most 3D printers cannot get this hot. Regular printers only reach about 300°C. This is enough for plastics and some easy-to-melt metals. Industrial printers can get hotter, but even they have trouble with these metals.
If you try to print with these metals, you run into problems:
- Insufficient Heat: Your printer cannot melt the metal powder or wire. The metal stays solid and does not stick together.
- Equipment Damage: Very high heat can break printer parts. Nozzles, heaters, and chambers can bend or stop working.
- Safety Risks: High heat can cause burns, fires, or explosions. You need special safety tools to handle these dangers.
| Metal | Melting Point (°C) | Typical Printer Max Temp (°C) |
|---|---|---|
| Tungsten | 3,422 | 300–1,600 (industrial) |
| Molybdenum | 2,623 | 300–1,600 (industrial) |
| Tantalum | 3,017 | 300–1,600 (industrial) |
A group at the Massachusetts Institute of Technology made a new heat treatment. It changes the inside of high-temperature alloys after they are made. This process is called directional recrystallization. It makes the grains bigger and the material much stronger. The material can resist bending much better than before.
New technology is getting better, but most 3D printers cannot use these metals yet. If you need parts from high-temperature metals, you usually use old methods or special industrial printers. Always check what your printer can do before picking a metal.
What Plastics Are Unsuitable for 3D Printing?
It is important to know which plastics are not good for 3D printing. Some plastics can make you sick or mess up your print. When you heat some plastics, they let out bad chemicals. For example, ABS filament gives off styrene. Styrene is linked to cancer. PLA filament releases methyl methacrylate. This chemical can bother your skin and lungs. These problems make some plastics unsafe for homes or schools.
You also need to think about how plastics act when printing. Some do not melt the same way or stick well. This can make weak prints or cause your project to fail. Other plastics might clog your printer or make rough surfaces.
Here is a table that lists common plastics, what they give off, and health risks:
| Plastic Type | Harmful Emissions | Health Risks |
|---|---|---|
| ABS | Styrene, Formaldehyde | Suspected human carcinogen, known carcinogen |
| Nylon | Caprolactam | Respiratory irritant |
| PLA | Methyl methacrylate | Mild skin irritant |
| All types | Ultrafine particles | Respiratory and cardiovascular diseases |
Tip: Always use your 3D printer where air can move. You can wear a mask and open windows to stay safe.
Try not to use plastics that make strong fumes or do not stick well. Picking safer materials helps keep you healthy and makes better prints. Always look at safety data before you print with any plastic. This helps you choose smart and keeps your space safe.
Printer Type Influence
The kind of 3D printer you pick changes what you can print with. Each printer works best with certain materials. You need to know what your printer can handle before you start.
FDM Printers
FDM printers use thermoplastic filaments. The printer melts the filament and builds layers. You can make parts that are strong or bendy. These printers are good for test models and medical items.
- ABS, PLA, PETG, TPU, and PP are used a lot.
- You can also use filaments with carbon for more strength.
- FDM printers make working parts that turn out well.
Tip: Always check the filament size and melting heat first. This helps stop jams and weak prints.
SLA Printers
SLA printers use liquid resins that harden with light. The printer shines light to make each layer solid. You get smooth and detailed prints. SLA printers are best for models and dental items.
- You can use photopolymers, true silicone, and ceramic-like resins.
- Some printers let you use nylon, PEI, and ASA for special jobs.
- SLA printers help you make parts with fine details.
SLS Printers
SLS printers use powder thermoplastics. A laser melts the powder to build up layers. You do not need extra supports. SLS printers are good for tricky shapes and real parts.
- PA12 and TPU powders are popular choices.
- You can print parts that are strong, bendy, and detailed.
- SLS printers are great for making working samples and products.
Note: Wear safety gear when using powders. Breathing in fine dust can hurt your lungs.
Multimaterial Printers
Multimaterial printers let you use more than one material at once. You can mix hard and soft stuff in one print. This gives you more ways to design things.
- You can mix ABS, PLA, TPU, and photopolymers.
- Some printers let you use carbon fiber or glass-filled materials too.
- Multimaterial printers help you make parts with different feels and strengths.
| Printing Technology | Suitable Materials |
|---|---|
| FDM | ABS, PLA, PETG, TPU, PP, carbon-filled materials |
| SLA | Thermoplastic-like photopolymers, True Silicone, |
| Ceramic-like PerFORM MicroFine, Nylon, PEI, ASA | |
| SLS | PA12, TPU |
| Multimaterial | ABS, PLA, TPU, photopolymers, carbon/glass-filled |
You should always match your printer and material to your project. This helps you get prints that are strong, safe, and look good.
Applications and Materials for Everyday 3D Printing
Alternative Methods
Some materials do not work with 3D printing. You can use other ways to make parts from these materials. Many companies use different methods to make strong and exact objects. You pick the best way based on what your project needs.
| Manufacturing Method | Description | Best Use Case |
|---|---|---|
| Injection Molding | Makes many plastic parts cheaply, but setup costs are high. | Making lots of plastic parts |
| CNC Machining | Good for small batches, but only works with hard materials. | Small batch production |
| Vacuum Casting | Works with soft materials, but not good for tricky shapes. | Making soft parts in small batches |
CNC machining is used for metals that need lots of heat. Injection molding is good for making many plastic parts. Vacuum casting helps you make soft items when 3D printing cannot be used. These methods give you more choices for special jobs and custom drug delivery.
Practical Uses
You can use 3D printing for many things every day. Picking the right material makes your objects last longer and work better. You need to think about how strong, heat-proof, and chemical-proof your material is. Each material, like resin, nylon plastic, or stainless steel, has special features that change how your object works.
- You can make a drug delivery system that gives medicine slowly.
- You can design a drug device made just for one person.
- You can use 3D printed drug systems to help make new medicines.
- You can create a drug implant for a patient’s needs.
- You can build a drug system for targeted treatments.
- You can make a drug patch for skin care.
You can also use 3D printing for test models, spare parts, and school projects. Picking the right material helps your project last and work well. You can use 3D printing to fix problems in health, engineering, and learning. You can help make new medicines and create custom drug solutions for people.
Tip: Always pick a material that fits your project. This helps your objects last longer and stay safe and strong.
You get better 3D prints when you know about material compatibility. It is important to pick the right material, printer, and use for your project. This helps you stop mistakes and reach your goals.
- The material you pick changes how strong or bendy your print is.
- Different printing methods make materials act in new ways.
- You need to be careful and follow safety rules to avoid breathing in bad fumes or dust.
| Material | Safety Tip |
|---|---|
| ABS | Keep air moving |
| ASA | Watch out for fumes |
| PC | Stay away from BPA |
Always think about your project and look at the material rules. Use good sources to learn more and keep up to date. Doing this helps you make prints that are safe, strong, and work well.
FAQ
What is the safest material for beginners in 3D printing?
PLA is a good choice for new users. It prints easily and does not make strong fumes. You get steady results and fewer problems. PLA helps you learn without worrying about safety.
Can you use recycled materials in 3D printing?
You can use recycled filaments like rPLA or rPETG. These help you make less trash and are better for the planet. Always check if your printer works with these before you start.
Why does my print fail with flexible materials?
Flexible filaments can jam or make strings if settings are wrong. Try slowing down the print speed and check your extruder type. TPU and TPE need special care for good prints.
How do you know if a material is compatible with your printer?
Read your printer’s manual to see what materials work. Look at the right temperature and filament size. You can ask the maker or look online for charts about compatibility.
