If you need stainless steel that does not rust easily, pick 316 stainless steel. This type is very good at fighting corrosion. It works well in places with lots of water or acid. But if you want steel that is easy to shape and costs less, choose 416 stainless steel. The table below shows the main differences between them:
| Parameter | 416 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Corrosion Resistance | Moderate | Excellent |
| Machinability Rating | ~85% | ~50% |
| Hardness | ~200 HB Aged | ~70,000 psi |
Key Takeaways
- Pick 316 stainless steel for strong corrosion resistance. It works well in wet or tough places. Use it for marine, medical, and food jobs.
- Pick 416 stainless steel if you want to save money. It is easy to machine. It is good for dry areas where rust is not a big problem.
- Think about how easy each type is to shape. 416 stainless steel is easier to cut and form. 316 stainless steel needs more work and special tools.
- Welding 316 stainless steel is usually simpler than welding 416. You need the right methods for 416 to stop cracks.
- Always look at your project’s needs and environment first. This helps you pick the best steel for strength and use.
What is 416 Stainless Steel?
You might wonder what makes 416 stainless steel special. This type of steel belongs to the martensitic family, which means it can be hardened by heat treatment. You often see it used when you need metal that is easy to machine. Many manufacturers choose it for making parts like screws, gears, and 416 stainless steel rods.
416 stainless steel stands out because of its unique mix of elements. The table below shows the main ingredients and their typical percentages:
| Element | Percentage Range (%) |
|---|---|
| Carbon (C) | Max 0.15 |
| Chromium (Cr) | 12 – 14 |
| Manganese (Mn) | Max 1.25 |
| Silicon (Si) | Min 1 |
| Sulfur (S) | Max 0.15 |
| Phosphorus (P) | Max 0.06 |
| Molybdenum (Mo) | Max 0.6 |
Tip: The high sulfur content helps you machine this steel more easily. You get smoother finishes and faster production times.
When you look at how 416 stainless steel is made, you see several important steps. First, workers extract raw materials like iron ore and chromium. Next, they melt and refine these materials in large furnaces. After melting, the steel gets cast into shapes such as slabs or billets. Hot rolling turns these into thinner forms like bars and coils. Annealing helps relieve stress and improves machinability. Sometimes, cold working makes the steel even stronger. Cutting and machining shape the steel into final products. Heat treatment changes the steel’s structure to boost its hardness. Finally, testing and quality control make sure the steel meets standards like ASTM A582.
If you need steel that machines well and can be hardened, 416 stainless steel gives you a reliable choice. You can use it for parts that need precise shapes and smooth surfaces.
What is 316 Stainless Steel?
You often see 316 stainless steel in places where strength and corrosion resistance matter most. This steel belongs to the austenitic family, which means it stays tough and does not rust easily. You can use it in marine settings, chemical plants, and kitchens. The secret to its power lies in its mix of elements.
Here is a table showing the typical alloying elements in 316 stainless steel:
| Element | Typical Percentage (%) |
|---|---|
| C (Carbon) | ≤ 0.030 |
| Si (Silicon) | ≤ 0.75 |
| Mn (Manganese) | ≤ 2.00 |
| P (Phosphorus) | ≤ 0.045 |
| S (Sulfur) | ≤ 0.015 |
| Cr (Chromium) | 16.00 – 18.00 |
| Ni (Nickel) | 10.00 – 14.00 |
| Mo (Molybdenum) | 2.00 – 3.00 |
Chromium and nickel help this steel fight rust. Molybdenum gives extra protection against acids and saltwater. You get a material that lasts longer, even in tough spots.
When you want to shape 316 stainless steel, you have many options. Here are some common ways to work with it:
- Milling uses fast-spinning tools to cut the steel.
- Turning spins the steel while a tool shapes it.
- Drilling makes holes for bolts or pipes.
- Threading lets you add screws or fasteners.
- Laser cutting slices thin sheets with light.
- Grinding smooths the surface for a shiny finish.
- EDM melts metal with electric sparks.
- Waterjet cutting uses high-pressure water to cut thick pieces.
Note: Each process helps you get the right shape and finish for your project. Some methods, like waterjet cutting, may change how well the steel resists rust.
You can trust 316 stainless steel for jobs that need both strength and resistance to harsh chemicals or salty water. This makes it a top choice for many industries.
Quick Comparison
Main Differences
You might want to know how these two steels are different. The table below shows how they are not the same in what they are made of and how they act:
| Feature | 416 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Composition | Lower nickel and molybdenum content | Higher nickel and molybdenum content |
| Corrosion Resistance | Lower corrosion resistance | Higher corrosion resistance |
| Machinability | Easier to machine and weld | More difficult to machine and weld |
| Cost | More affordable | More expensive |
| Applications | Suitable for applications with less corrosion risk | Ideal for applications requiring high corrosion resistance |
416 stainless steel has less nickel and molybdenum. This makes it easier to cut and costs less money. But it does not stop rust or chemicals as well. 316 stainless steel has more nickel and molybdenum. This helps it fight rust, even in wet or salty places.
The next table shows how each type does in tests for rust:
| Stainless Steel Type | Corrosion Resistance |
|---|---|
| 416 Stainless Steel | Moderate – suitable for dry environments |
| 316 Stainless Steel | Excellent – resistant to chlorides & acids |
If you need to make things like 416 stainless steel rods for dry places, 416 stainless steel is a good choice. If you need metal for wet or harsh places, 316 stainless steel is better.
Choosing the Right Grade
Think about where and how you will use the steel. Here are some tips to help you pick:
- Use 316 stainless steel if you need strong rust protection. This type works best where there is water, salt, or chemicals.
- Pick 416 stainless steel if you want steel that is easy to cut and costs less. This type is good for dry places or where rust is not a big problem.
- For places near the ocean, you need at least 316L stainless steel. This type can handle saltwater and stays strong.
- If you need to make lots of parts fast, 416 stainless steel saves time and money because it is easy to machine.
Tip: Always choose the steel that fits your environment. Wet, salty, or acidic places need steel that fights rust well. Dry, indoor places can use steel that is easier to cut.
You can pick the right stainless steel by thinking about what you need. If you want to save money and work quickly, 416 stainless steel is a smart choice. If you need your parts to last in tough spots, 316 stainless steel gives better protection.
Chemical Composition
aisi 416 stainless steel
You might wonder what makes aisi 416 stainless steel different from other types. The answer lies in its chemical makeup. This steel contains several elements that work together to give it special properties. You see high levels of chromium, which helps protect against rust. Sulfur appears in larger amounts, making the steel easier for you to machine. Some versions even include selenium for better cutting performance.
Here is a table showing the typical chemical composition for two types of aisi 416 stainless steel:
| Element | Alloy 416 Type 1 | Alloy 416 Type 2 |
|---|---|---|
| C | 0.15 max | 0.15 max |
| P | 0.060 max | 0.060 max |
| Si | 1 max | 1 max |
| Mn | 1.25 max | 2.50 max |
| S | 0.40 max | 0.40 max |
| Cr | 11.50-13.50 | 11.50-13.50 |
| Fe | bal | bal |
| Se | 0.18-0.35 | – |
Tip: The high sulfur content makes aisi 416 stainless steel much easier for you to cut and shape. If you need to make many parts quickly, this steel helps you save time.
Chromium gives the steel its shine and helps fight rust. Manganese and silicon improve strength and stability. Carbon keeps the steel hard. You get a material that works well for machining and shaping.
aisi 316 stainless steel
When you look at aisi 316 stainless steel, you notice a different mix of elements. This steel contains more chromium and nickel than aisi 416 stainless steel. You also find molybdenum, which helps the steel resist acids and saltwater. These elements make the steel strong and very good at fighting corrosion.
Here is a simple list of the main elements you find in aisi 316 stainless steel:
- Chromium (16.00 – 18.00%)
- Nickel (10.00 – 14.00%)
- Molybdenum (2.00 – 3.00%)
- Carbon (≤ 0.030%)
- Silicon (≤ 0.75%)
- Manganese (≤ 2.00%)
- Phosphorus (≤ 0.045%)
- Sulfur (≤ 0.015%)
Note: Molybdenum helps aisi 316 stainless steel stand up to harsh chemicals and salty water. You can use this steel in places where rust is a big problem.
You get a steel that lasts longer in tough environments. The extra nickel and molybdenum make it a top choice for marine and chemical uses. If you need strong protection against rust, this steel gives you peace of mind.
Corrosion Resistance
416 stainless steel
You might pick 416 stainless steel because it is easy to machine. But you should know it does not stop rust very well. This steel only gives you moderate protection from corrosion. If you use it in wet or salty places, you may see rust or stains. The high sulfur helps you cut and shape the metal. But it also makes the steel rust more easily.
- 416 stainless steel is not good for marine places or areas with lots of corrosion.
- You should not use it near saltwater or where there are many chemicals.
- Chlorides can cause pitting and crevice corrosion fast.
If you need metal for dry indoor spaces, 416 stainless steel works well. For outdoor or wet places, you should choose a steel that resists corrosion better.
aisi 316 stainless steel
If you need strong protection from rust, aisi 316 stainless steel is a great choice. This steel fights rust even in hard conditions. It has more nickel and molybdenum. These elements help protect against acids and saltwater.
- 316 stainless steel is very good at stopping corrosion, especially from chlorides.
- You can use it in marine places, near the coast, or in chemical plants.
- Salt spray tests show 316 stainless steel, especially when electropolished or passivated, almost never rusts.
- Pitting and crevice corrosion do not happen often, even in tough spots.
If you want your parts to last in harsh places, aisi 316 stainless steel is a smart pick. You can trust it for jobs that need strong corrosion resistance and long life.
Mechanical Properties
Strength and Hardness
When you choose stainless steel, you often look for high hardness and strength. These qualities help your parts last longer and handle more stress. 416 stainless steel gives you good strength, especially after heat treatment. You can see this in the numbers below:
| Condition | Tensile Strength (psi) | Brinell Hardness Max. |
|---|---|---|
| Annealed & Cold Finished | 85,000 – 120,000 | 241 |
416 stainless steel can reach even higher strength if you use special heat treatments. This makes it a popular choice for gears, shafts, and fasteners that need to stay strong under pressure.
316 stainless steel also offers solid strength, but it focuses more on resisting corrosion. Here is a table to help you compare:
| Condition | Tensile Strength (ksi) | Yield Strength (ksi) | Elongation (%) | Hardness (BHN/HRB) |
|---|---|---|---|---|
| Annealed (A) | ~70 | ~40 | ≥20 | ≤223 |
| Heat-Treated (T) | ~120 | ~100 | ≥17 | 255–302 HRB |
You notice that 416 stainless steel can be harder than 316 stainless steel. If you need a material that keeps its shape and resists wear, 416 is a strong option.
Ductility and Toughness
Ductility tells you how much a metal can stretch before it breaks. Toughness shows how well it can absorb energy without cracking. 316 stainless steel gives you better ductility and toughness than 416. You can bend or form 316 into many shapes without it snapping. This makes it useful for parts that need to flex or handle impacts.
416 stainless steel, while strong, is not as ductile. The extra sulfur that helps you machine it also makes it more brittle. If you try to bend or shape it too much, it may crack. You should use 416 for parts that do not need to flex or take heavy hits.
Note: If you want a stainless steel that bends and absorbs shocks, 316 stainless steel is the better choice. For parts that need high hardness and strength but do not need to bend, 416 stainless steel works well.
Machinability & Hardenability
416 stainless steel machinability
You will find that 416 stainless steel stands out as a free-machining grade. This means you can cut, drill, and shape it with less effort than most other stainless steels. The high sulfur content in this alloy helps you get smooth finishes and fast production speeds. If you need to make many parts quickly, this steel saves you both time and money.
Here is a table showing machinability ratings:
| Stainless Steel Grade | Machinability Rating |
|---|---|
| 416 | 85% |
| 316 | Not specified |
You can see that 416 stainless steel has a machinability rating of 85%. This is much higher than most stainless steels. You will notice less tool wear and fewer problems during machining and fabrication. Many shops choose this steel for screws, gears, and shafts because it is easy to work with.
When you want to harden 416 stainless steel, you can use heat treatment. You can anneal, harden, and temper this steel to improve its strength. The maximum Brinell hardness for 416 stainless steel is about 400. This makes it a good choice for parts that need to stay strong and wear-resistant.
Tip: If you need easy machinability and high hardness, 416 stainless steel gives you both.
aisi 316 stainless steel machinability
You may notice that 316 stainless steel does not machine as easily as 416. This alloy belongs to the austenitic family, so it does not have the same free-machining properties. You will need to use slower speeds and sharper tools to avoid work hardening. The machinability and fabrication of 316 stainless steel can be more challenging, but you get excellent corrosion resistance in return.
Unlike 416, you cannot harden 316 stainless steel by heat treatment. Its austenitic structure keeps it tough but limits its maximum hardness. The highest Brinell hardness you can reach is about 220. If you need more hardness, you must use special alloying or cold working methods.
- 416 stainless steel can be hardened through heat treatment.
- 316 stainless steel cannot be hardened by heat treatment.
Note: Choose 316 stainless steel when you need strong corrosion resistance, even if it is harder to machine.
Weldability & Fabrication
Welding 416 stainless steel
You may find welding 416 stainless steel tricky. This steel contains more sulfur, which helps you machine it easily. The same sulfur can cause problems when you weld. Cracking often happens if you do not prepare the metal well. You should always preheat the steel before welding. Preheating lowers the risk of cracks. After welding, you need to treat the metal with post-weld heat. This step helps the weld stay strong and reduces brittleness.
If you skip these steps, the weld may break or lose strength. You should also use filler materials that match the steel. Some welders use low-hydrogen electrodes to help prevent cracking. Always clean the surface before you start. Dirt and oil can make welding harder.
Tip: If you want the best results, keep the heat steady and avoid quick cooling. This helps the weld stay tough.
Here is a table showing common challenges you may face:
| Stainless Steel Type | Machinability Challenges | Weldability Challenges |
|---|---|---|
| 416 | Easy to machine due to sulfur; chips break well | Prone to cracking; needs preheating and post-weld treatment |
Welding aisi 316 stainless steel
You will notice that aisi 316 stainless steel welds more easily than 416. This steel does not have as much sulfur, so it does not crack as much. You can use most welding methods, like TIG, MIG, or stick welding. You should still watch out for heat buildup. Too much heat can cause warping or change the metal’s structure.
When you weld 316 stainless steel, you should use filler rods that match the alloy. This keeps the weld strong and helps fight corrosion. Clean the metal before welding to avoid contamination. If you work in a place with lots of moisture or chemicals, 316 stainless steel gives you a reliable weld.
Note: You may need special tools to machine 316 stainless steel, but welding usually goes smoothly if you follow good practices.
Here is a table for comparison:
| Stainless Steel Type | Machinability Challenges | Weldability Challenges |
|---|---|---|
| 316 | Harder to machine; needs special tools | Welds well; watch for heat effects |
You can see that both types have their own challenges. You need careful planning for successful fabrication.
Thermal & Magnetic Properties
Heat Resistance
You need to know how stainless steel handles heat before you choose it for your project. 416 stainless steel and 316 stainless steel act differently when exposed to high temperatures. 416 stainless steel can work at high heat, but it does not match the performance of 316 stainless steel. If you use 416 stainless steel, you can expect it to handle up to 760°C for short bursts and 675°C for long periods. 316 stainless steel gives you even better heat resistance. It can take up to 870°C for short times and 925°C for continuous use.

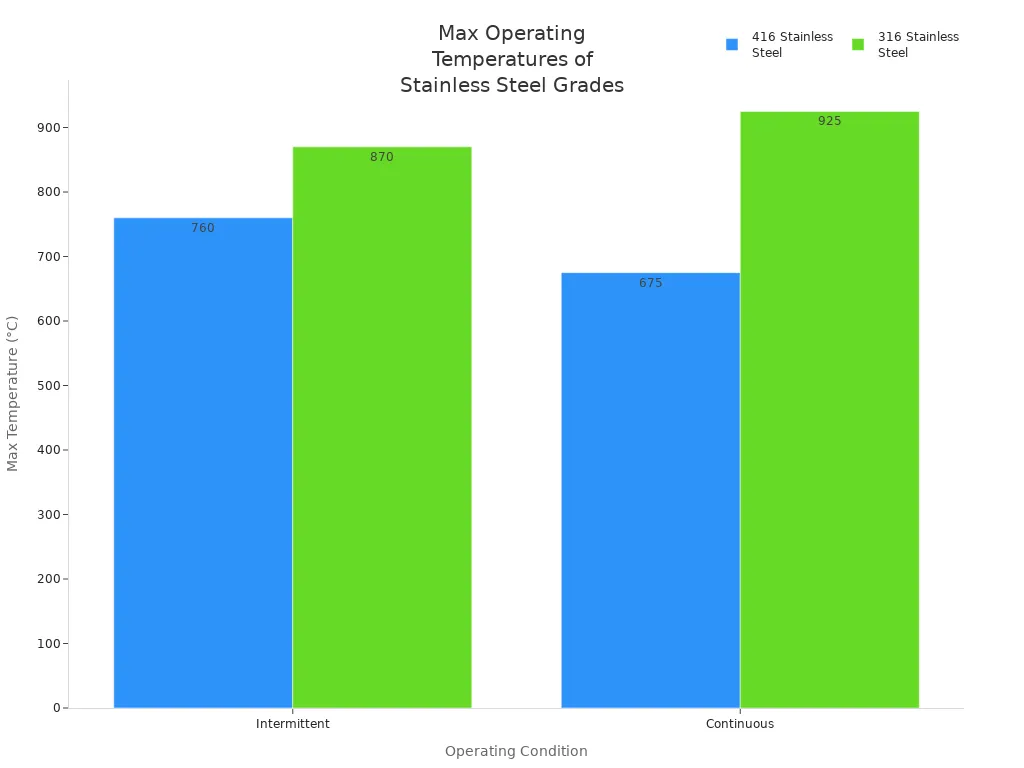

Here is a table that shows the maximum operating temperatures for both grades:
| Grade | Intermittent (°C) | Continuous (°C) |
|---|---|---|
| 416 | 760 | 675 |
| 316 | 870 | 925 |
If you plan to use stainless steel in ovens, engines, or other hot places, 316 stainless steel gives you more safety and longer life. You also get better results in fabrication when you pick a grade that resists heat well.
Tip: Always check the temperature limits before you use stainless steel in high-heat jobs. This helps you avoid damage and keeps your equipment working longer.
Magnetic Behavior
You may wonder if stainless steel sticks to magnets. 416 stainless steel is magnetic. You will notice that it attracts magnets because it has a martensitic structure. This makes it useful for parts that need to respond to magnetic fields. 316 stainless steel is different. It belongs to the austenitic family, so it does not attract magnets in most cases. If you need a non-magnetic material, 316 stainless steel is the better choice.
- 416 stainless steel: Magnetic
- 316 stainless steel: Usually non-magnetic
If you bend or cold work 316 stainless steel, it may become slightly magnetic. For most uses, though, it stays non-magnetic. You should always test your material if magnetism matters for your project.
Cost & Availability
Price Comparison
You want to know how much you will spend on stainless steel. Price matters when you choose between 416 and 316 grades. 416 stainless steel usually costs less than 316 stainless steel. This happens because 416 has fewer expensive elements like nickel and molybdenum. You save money if you pick 416 for projects that do not need high corrosion resistance.
Here is a simple table to help you compare the average market prices for stainless steel scrap:
| Stainless Steel Type | Average Scrap Price (USD/LB) |
|---|---|
| 316 Stainless Steel | 1.06 |
| 316 Secondary Scrap | 0.50 |
| 316 Irony Scrap | 0.30 |
You see that 316 stainless steel scrap costs more than other types. The price for 416 stainless steel scrap is usually lower, but exact numbers change with the market. If you need to buy large amounts, you should check current prices with your supplier.
Tip: If your project does not need strong corrosion resistance, you can save money by choosing 416 stainless steel.
Market Access
You need to know if you can get the stainless steel you want. Both 416 and 316 stainless steel are easy to find in the market. Most suppliers keep these grades in stock because many industries use them. You can order sheets, rods, bars, or custom shapes.
- You find 316 stainless steel in marine, chemical, and food industries.
- You see 416 stainless steel in machine shops and factories that make fasteners and gears.
You can buy these grades from local metal suppliers or online stores. Many companies offer quick delivery. If you need special sizes or finishes, you can ask for custom orders. You get good access to both grades, so you can choose the one that fits your needs and budget.
Note: Always check with your supplier for the latest prices and availability. Market conditions can change, so plan your purchase early.
Applications
416 stainless steel uses
416 stainless steel is used in many industries. It is good for making strong parts that are easy to shape. This steel helps you save money and work fast. It is best when you do not need the highest rust protection.
Here is a table showing where 416 stainless steel is used:
| Application Area | Description |
|---|---|
| Oil and Gas Sector | You use it for valve and pump parts. It stands up to sour gas and gives some rust protection. |
| Firearms and Defense | You find it in hammers and triggers. It is strong and easy to machine, so it works well for these. |
| Food Processing Equipment | You pick it for clean parts that touch food. It helps keep food safe by fighting rust. |
| Fluid Handling and Instrumentation | You use it for fittings and valve stems. It lets you make tight threads and smooth seals. |
| General Machinery and Manufacturing | You choose it for connectors and strong parts. It gives a good mix of strength and rust protection. |
416 stainless steel rods are often used for machine parts. These rods help make gears, connectors, and fasteners. The steel is easy to cut, so you get smooth and exact pieces.
In oil and gas work, you use aisi 416 stainless steel for pump shafts and valve stems. It is also used in fluid systems that need tight threads. You see it in food equipment, but you must check if it keeps things clean enough.
Tip: Pick 416 stainless steel if you want to machine parts quickly and need some rust protection. It is best for dry places and where there are not many chemicals.
aisi 316 stainless steel uses
316 stainless steel is picked when you need strong rust protection and tough parts. It works well in hard places with water, salt, or chemicals. Many industries use it for jobs that need parts to last a long time.
Here is a table showing where 316 stainless steel is used:
| Industry | Applications |
|---|---|
| Aerospace | You use it for fasteners and landing gear. It is strong and fights rust. |
| Medical | You pick it for surgical tools and implants. It is safe for the body and does not rust. |
| Food Processing | You use it for machines that touch food. It is clean and stands up to harsh cleaners. |
| Building & Construction | You use it for roofs and building parts. It is strong and lasts a long time. |
| Automotive & Transportation | You pick it for car and truck parts. It is strong and does not rust easily. |
| Heavy Industries | You use it for chemical tanks and pipes. It stands up to heat and chemicals. |
| Consumer Goods | You find it in kitchen tools and cookware. It is tough and looks nice. |
You see aisi 316 stainless steel in boat parts and hardware. It does not rust in saltwater and keeps its shape. It is used for boat fittings, dock parts, and underwater tools.
In hospitals, you pick 316 stainless steel for surgical tools and implants. It is safe for people and does not rust. It is also used in food machines. It meets safety rules and stands up to cleaning.
Note: Pick 316 stainless steel if you need strong rust protection from water, acids, or salt. It is best for boats, medical tools, and chemical plants.
Which grade fits your needs?
You should choose the right steel for your job. If you want easy machining and some rust protection, use 416 stainless steel. It is good for machine parts, connectors, and dry places. If you need strong rust protection and tough parts, use 316 stainless steel. It is best for boat parts, medical tools, and chemical tanks.
- Use 416 stainless steel to make parts fast and save money.
- Use 316 stainless steel for tough jobs and long-lasting parts.
Tip: Always think about where you will use the steel. Wet, salty, or acidic places need strong rust protection. Dry, indoor places can use steel that is easy to machine.
What Can Seather Supply 316 and 416 do for You?
When you need stainless steel, Seather Supply can help. They give you more than just metal. You get many services to help finish your project faster. Seather Supply works with both 316 and 416 stainless steel. You can pick the type that fits your job.
If you want advice, they have experts to help you. You can ask questions about your design or how to make things. If you want your steel to look special or last longer, you can choose from different surface treatments. These treatments help your steel stay strong and look nice.
Heat treatment can make your steel harder or stronger. You can also make it easier to cut. If you have a special idea, Seather Supply can help you design it. They use CAD and 3D modeling so you can see your idea before it is made.
Here is a table with the main services you can use:
| Service Type | Description |
|---|---|
| Engineering Consulting Services | Expert guidance on engineering projects. |
| Surface Treatment Services | Various finishing options for stainless steel. |
| Metal Heat Treatment Services | Heat treatment processes to enhance material properties. |
| CAD Design & 3D Modeling Services | Design services for custom projects. |
| Sourcing & Supply Services | Assistance in sourcing materials. |
| Custom Packaging Services | Tailored packaging solutions for products. |
| Assembly & Test Services | Assembly and testing of components. |
You do not need to worry about finding the right steel. Seather Supply helps you get what you need. They also pack your products safely so nothing breaks. If you want to check your parts, they can put them together and test them.
Tip: Working with Seather Supply saves you time and helps you avoid mistakes. You get help from start to finish, from planning to delivery.
Seather Supply makes your project easier. You get the right steel, expert help, and good service all in one place.
When you pick between 416 stainless steel and 316 stainless steel, think about what you need for your project. The table below shows some key things to look at:
| Factor | 416 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Corrosion Resistance | Lower | Higher |
| Machinability | High | Low |
| Weldability | Poor | Good |
| Cost | Less expensive | More expensive |
Choose 416 stainless steel if you want to cut and shape metal easily and spend less money. Go with 316 stainless steel if you need metal that does not rust in hard places. Make sure your choice fits your project and how much you want to spend.
FAQ
What is the main difference between 416 and 316 stainless steel?
You will notice that 416 stainless steel is easier to machine. 316 stainless steel resists rust much better. If you need strong corrosion resistance, pick 316. If you want easy cutting and shaping, choose 416.
Can you weld both 416 and 316 stainless steel?
You can weld both types, but 316 stainless steel welds more easily. 416 stainless steel needs careful preheating and post-weld treatment. If you skip these steps, you may see cracks.
Is 416 stainless steel magnetic?
Yes, you will find that 416 stainless steel is magnetic. It attracts magnets because of its martensitic structure. 316 stainless steel is usually not magnetic.
Which grade costs more, 416 or 316 stainless steel?
You will pay more for 316 stainless steel. It contains more nickel and molybdenum, which increases the price. 416 stainless steel costs less and helps you save money on projects.
Where should you use 316 stainless steel instead of 416?
You should use 316 stainless steel in places with water, salt, or chemicals. It works well for marine parts, medical tools, and food equipment. 416 stainless steel fits dry, indoor, or low-corrosion jobs.
