You have many options when using 6061 aluminum temper grades. Your choice changes how strong and easy to shape your item is. The right temper grade affects tensile strength and ductility.
| Temper Grade | Tensile Strength (psi) | Ductility |
|---|---|---|
| Untreated | 18,000 | Low |
| T6 | 42,000 | Moderate |
| O | Lower than T6 | High |
- T6 tempering makes the metal stronger, so it works for hard jobs.
- O temper is soft and bends easily, but it is not as strong.
- T6 helps you shape parts more easily because machinability is better.
Key Takeaways
- 6061 aluminum has different temper grades. Each grade changes how strong and bendy it is. Pick the right grade for your project.
- T6 temper is the strongest grade. It works well for tough jobs like truck frames and bridges. T6 gives high strength and hardness.
- O temper is the softest and bends the most. It is good for parts that need to bend, like car body panels and boat hulls.
- T4 and T5 tempers are in the middle. They have both strength and are easy to shape. These grades fit things like aircraft panels and welded frames.
- Knowing what each temper does helps you choose the best aluminum. This makes sure your project lasts long and works well.
6061 Aluminum Overview
What is 6061 Aluminum Alloy?
You can find 6061 aluminum in lots of things. This alloy is mostly aluminum. It also has magnesium and silicon. These elements make the alloy strong and help stop rust. There are also small amounts of chromium and copper in it. These extra elements help make it stronger. They also make it easier to shape and machine. This special mix lets you heat treat, weld, and form the alloy into many shapes. Because of these features, people use 6061 aluminum in cars, airplanes, bikes, and furniture.
Tip: Magnesium and silicon join together to form Mg2Si. This phase makes 6061 aluminum stronger and helps it resist rust. That is why people use it for tough jobs.
Key Properties
6061 aluminum is special because it is strong and flexible. You can use it for projects that need both strength and easy shaping. Here are some important properties you should know:
| Property | Value |
|---|---|
| Density | 0.0975 lb/in³ |
| Melting Point | 1,080–1,205 °F |
| Ultimate Tensile Strength | 45,000 psi |
| Yield Strength | 40,000 psi |
| Shear Strength | 30,000 psi |
| Brinell Hardness | 95 |
| Modulus of Elasticity | 10,000 ksi |
| Poisson’s Ratio | 0.33 |
6061 aluminum has high tensile and yield strength. This means it can hold heavy loads. The alloy does not rust easily because it forms a protective layer. You can weld and machine it without much trouble. That is why it works for many manufacturing jobs.
Why Temper Grades Matter
When you pick 6061 aluminum, you need to choose a temper grade. Each temper grade changes how the metal acts. The temper tells you about the heat treatment used on the alloy. This process changes strength, hardness, and how easy it is to work with.
- Temper grades change things like strength, hardness, and machinability.
- Each grade uses a different heat treatment to control these things.
- For example, the T6 temper gives higher surface hardness and better machinability because of precipitation hardening.
If you want a strong part, you might pick T6. If you need to bend or shape the metal, you might pick a softer temper. Knowing about temper grades helps you make sure your project works well and lasts a long time.
6061 Aluminum Temper Grades
6061 aluminum temper grades let you pick what works best. Each temper changes how strong and useful the metal is. You should learn how each temper grade affects the alloy before you decide. This part talks about the most common 6061 aluminum temper grades. It shows what they are like and where you can use them.
6061-O (Annealed)
6061-O is the softest temper in 6061 aluminum temper grades. You get this temper by heating the alloy and cooling it slowly. This step takes away stress inside the metal. It makes the metal easy to bend and shape.
| Temper Grade | Definition | Mechanical Properties |
|---|---|---|
| 6061-O | Softest and most malleable form, achieved through annealing to relieve internal stresses. | High formability, low strength. |
| Property | Value |
|---|---|
| Yield Strength | 76 MPa (11,000 psi) |
| Elongation at Break | 20% |
Key characteristics:
- Very easy to bend and shape
- Not as strong as other tempers
- Good for forming
Typical uses:
- Airplane wings and body parts
- Car wheels and engine blocks
- Building roofs and bridges
- Boat hulls and decks
- Surgical tools and implants
Note: If you need to bend or shape 6061 aluminum without cracks, use O temper. This temper is best when you want flexibility more than strength.
6061-T4 (Solution Heat-Treated and Naturally Aged)
6061-T4 gives you a mix of strength and easy shaping. You get this temper by heating, cooling fast, and letting it age at room temperature. This makes the metal stronger but still easy to work with.
| Property | Value Range | Unit |
|---|---|---|
| Tensile Strength | 206 – 240 | MPa |
| Hardness – Vickers | 74 – 87 | HV |
| Hardness – Brinell | 62 – 68 | HB |
| Property | Value | Unit |
|---|---|---|
| Tensile Strength (UTS) | 230 | MPa |
| Tensile Strength (Yield) | 130 | MPa |
| Brinell Hardness | 63 | HB |
Key characteristics:
- Medium strength
- Easy to shape
- Good for welding and machining
| Industry | Products/Applications |
|---|---|
| Aircraft | Aircraft panels, aircraft fittings |
| Automotive | Automotive panels, ambulance bodies, truck frames |
| Marine | Ships and watercraft |
| Construction | Bridges, pylons, stairs, mezzanines, railings |
| Electrical | Electrical fittings, heat sinks |
| Heavy Machinery | Heavy-duty machinery, ramps, base plates |
| Fasteners | Various fasteners |
| Packaging | Packaging materials |
| Bicycles | Bicycle frames |
| Heat Exchangers | Heat exchangers |
Tip: If you want both strength and easy forming, pick 6061-T4. It works for panels, frames, and parts that need to bend a little.
6061-T5 (Solution Heat-Treated and Cooled to Stabilize Microstructure)
6061-T5 is stronger than T4 but still easy to machine and weld. You get this temper by heating, cooling fast, and then cooling again to make the metal stable.
| Temper Grade | Definition | Mechanical Properties |
|---|---|---|
| 6061-T5 | Solution heat-treated and cooled to stabilize microstructure. | Tensile strength: 240–270 MPa, Yield strength: 160–210 MPa. |

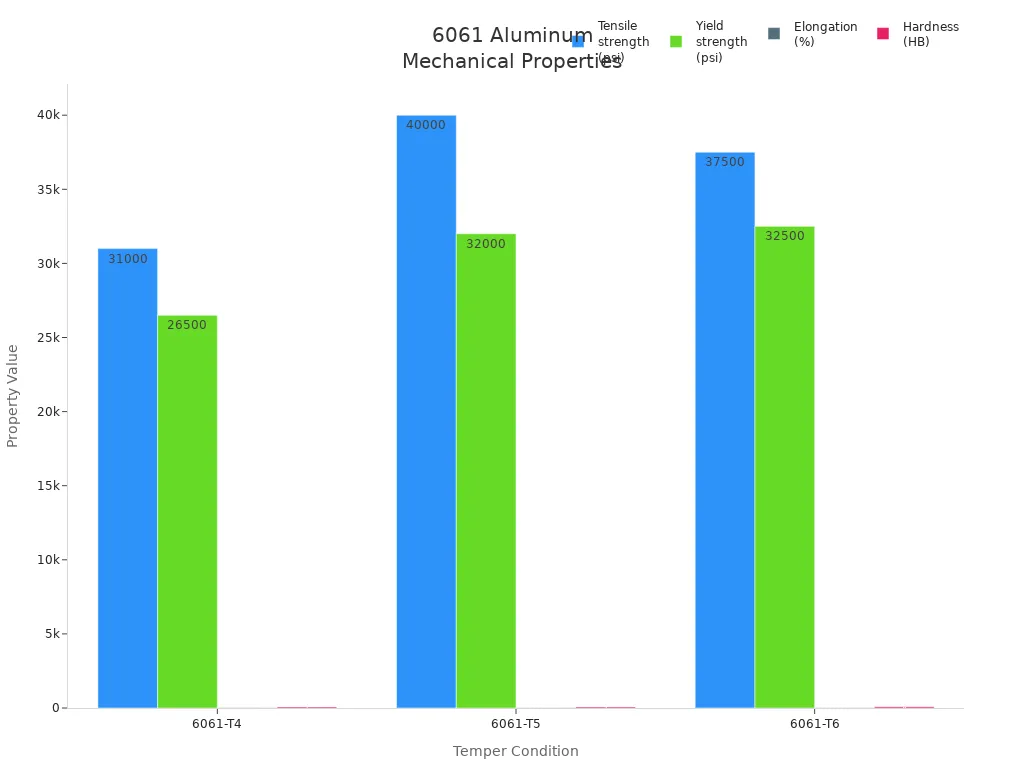

| Property | 6061-T4 | 6061-T5 | 6061-T6 |
|---|---|---|---|
| Tensile strength (psi) | 29,000–33,000 | 40,000 | 35,000–40,000 |
| Yield strength (psi) | 25,000–28,000 | 32,000 | 30,000–35,000 |
| Elongation (%) | 18–25 | 22 | 12–18 |
| Hardness | 65–85 | HB 75 | 80–95 |
| Machinability | Medium | Excellent | High |
| Weldability | Medium | Excellent | High |
Key characteristics:
- High strength
- Great for machining and welding
- Good for forming
Typical uses:
- Welded parts and frames
- Ship frames and boat building
- Airplane and truck frames
- Chemical equipment
- Electronic parts like heat sinks
- Furniture
- Bolts and screws
- Heat exchangers
Note: If you want high strength and easy machining, 6061-T5 is a good pick. Use it for welded parts and things that need to last.
6061-T6 (Solution Heat-Treated and Artificially Aged)
6061-T6 is the most used temper in 6061 aluminum temper grades. You get this temper by heating, cooling fast, and aging at a higher temperature. This makes the metal very strong and great for tough jobs.
| Property | Value |
|---|---|
| Ultimate Tensile Strength | 310 MPa (45,000 psi) |
| Tensile Yield Strength | 276 MPa (40,000 psi) |
| Brinell Hardness | 93–95 |
Key characteristics:
- Very strong
- Works well for hard jobs
- High hardness
- Good for machining and welding
| Application Type | Examples |
|---|---|
| Heavy Duty Structural Applications | Truck frames, Rail coaches, Military bridges |
| Marine Applications | Ship building operations, Motorboats |
| Aerospace Applications | Helicopter rotor skins |
| Other Applications | Bicycle frames, Fire rescue ladders |
- Truck frames
- Rail coaches
- Military and commercial bridges
- Ship building operations
- Towers and pylons
- Aerospace applications (helicopter rotor skins)
- Rivets
- Transport operations
- Motorboats
- Tube exercise equipment
- Boilermaking
- Watercraft components
- Air and hydraulic piping
- Bicycle frames
- Fly fishing reels
- Firearms
- Radio and remote-controlled items
- Fire rescue ladders
Tip: If you want the strongest and best performing 6061 aluminum temper grades, choose 6061 aluminum t6. It is great for heavy-duty jobs and parts that need to last.
6061-T651 (Solution Heat-Treated, Stress-Relieved, and Artificially Aged)
6061-T651 is a special temper in 6061 aluminum temper grades. You get this temper by heat-treating, aging, and stress-relieving the alloy. This step takes away stress and helps the metal keep its shape.
| Property | 6061-T651 | 6061-T6 |
|---|---|---|
| Tensile Strength | 310 MPa (45 ksi) | 310 MPa (45 ksi) |
| Yield Strength | 276 MPa (40 ksi) | 276 MPa (40 ksi) |
| Improved Dimensional Stability | Yes, due to stress-relief process | No |
| Higher Machinability | Yes, due to reduced internal stresses | No |
| Tighter Tolerances | Yes, preferred for precision applications | No |
Key characteristics:
- Same strength as 6061 aluminum t6
- Keeps its shape better
- Easier to machine
- Good for precise work
| Application Area | Benefits of 6061-T651 Aluminum |
|---|---|
| Aerospace | High dimensional stability and precision in parts |
| Mold Manufacturing | Maintains shape after machining for detailed cavities |
| Automation | High toughness and corrosion resistance for reliability |
Note: If you need a temper for parts that must stay the same shape, pick 6061-T651. It gives you the strength of 6061 aluminum t6 and extra stability.
Comparing 6061 Temper Grades
Mechanical Properties
When you look at 6061 aluminum temper grades, you notice big changes in mechanical properties. Each temper grade makes the metal stronger, harder, or more flexible. You should check these properties before picking a grade for your project.
Here is a table that shows mechanical properties for common temper grades:
| Temper Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Brinell Hardness | Elongation at Break (%) |
|---|---|---|---|---|
| 6061-O | 55–110 | 24–55 | 30–40 | 18–25 |
| 6061-T4 | 170–240 | 110–160 | 62–68 | 16–20 |
| 6061-T5 | 240–270 | 160–210 | 75 | 12–18 |
| 6061-T6 | 276–310 | 230–270 | 95–125 | 8–10 |
| 6061-T651 | 276–310 | 230–270 | 95–125 | 8–10 |
6061-O is the weakest but bends the most. 6061-T6 and 6061-T651 are the strongest and hardest. These grades are good for building things that need to be tough. 6061-T4 and 6061-T5 are in the middle. They are strong but still bend well. You can use them when you need both shaping and strength.
If you want the strongest metal for building, pick 6061-T6 or 6061-T651. These grades give you high strength and hardness.
Key Differences
You should know the main differences between temper grades before you choose one. Each grade changes how you can bend, cut, and use the metal.
- 6061-O: This grade is soft and bends easily. You can shape it into many forms. It is not very strong, so use it when you need flexibility.
- 6061-T4: This grade is medium strong and bends well. You can weld and machine it easily. It works for jobs that need both shaping and strength.
- 6061-T5: This grade is stronger than T4. It is easy to cut and weld. Use it when you need strong metal and easy machining.
- 6061-T6: This grade is very strong and hard. It does not bend much because it is stiff. Use it for building things that need to be strong.
- 6061-T651: This grade is as strong as T6. It keeps its shape better because of stress relief. You can machine it with tight measurements. It is best for jobs that need precision.
Here is a table that compares how easy it is to bend and machine these grades:
| Temper Grade | Formability | Machinability | Notes |
|---|---|---|---|
| 6061-O | Excellent | Poor | Best for deep drawing and bending |
| 6061-T4 | Good | Medium | Good for welding and forming |
| 6061-T5 | Medium | Excellent | Good for machining and welding |
| 6061-T6 | Lower due to high residual stresses | Good cutting speeds but prone to distortion | Best for smaller parts requiring high strength |
| 6061-T651 | Enhanced due to stress relief | Superior stability, ideal for tight tolerances | Lower rejection rates due to reduced distortion |
6061-T651 is best for tight machining and keeping shape. Use it when you need exact sizes and less bending. 6061-O is best for bending and shaping. 6061-T6 is best for strong building jobs.
Applications
You should match the temper grade to your project. Each grade works best for different jobs.
- 6061-O: Use this grade when you need easy bending. It works for deep drawing, bending, and parts that need to stretch. You see it in car body panels, boat hulls, and some medical tools.
- 6061-T4: Use this grade when you need both strength and bending. It works for airplane panels, truck frames, and bike frames. You can weld and machine it well.
- 6061-T5: Use this grade when you need strong metal and easy cutting. It works for welded frames, boat parts, and electronic pieces.
- 6061-T6: Use this grade for heavy-duty building jobs. It works for truck frames, train cars, bridges, and airplane parts. You get high strength and hardness.
- 6061-T651: Use this grade for jobs that need exact sizes. It works for airplane parts, molds, and machines. You get high strength and tight measurements.
Here are some places you see these temper grades used:
- Aerospace: Airplane parts, fittings, and exact pieces
- Automotive: Truck bodies, bus bodies, wheels, brake pistons
- Marine: Sailboats, yachts, boat parts and hardware
- Construction: Bridges, pylons, stairs, and railings
- Heavy machinery: Ramps, base plates, and fasteners
6061 aluminum alloy gives you great strength, easy bending, welding, and rust resistance. You see it used in many building jobs because it is tough. You should pick the right temper grade to get the best results for your project.
Tip: Always choose the temper grade that matches your project needs. This helps you get the best performance for your job.
Selecting the Right 6061 Aluminum Temper
Selection Criteria
When you pick a temper for your project, you need to think about a few things. You want the aluminum grade to be strong enough. It should also bend and cut easily. You should check if it resists rust. Knowing about the different grades helps you choose the best one.
- The tempering process changes how easy it is to cut and bend. Each grade acts differently when you weld, bend, or cut it.
- T temper grades use special heat treatments and stress relief. These steps change how the aluminum works in real jobs.
- Some grades are better for bending. Others are better for making strong parts.
Here is a table that shows which aluminum grades work for different jobs:
| Temper Grade | Mechanical Properties | Application Suitability |
|---|---|---|
| T4 | Lower strength, good corrosion resistance | General applications |
| T6 | Higher strength, less corrosion resistance | Aerospace, automotive |
If you need strong metal for cars or planes, pick T6. If you want metal that does not rust easily, T4 is a good choice. Picking the right temper helps your project turn out well.
Engineering and Manufacturing Uses
You have many choices when you pick aluminum grades for building things. You need to match the grade to your job. Choosing between T6 and T651 is important for factories. Each grade has special benefits for different jobs.
- T temper grades have different names. Each one changes how the aluminum works in factories.
- Airplanes need parts that are strong but not heavy.
- Cars use light aluminum to save gas and go faster.
- Boats need aluminum that does not rust for a long time.
6061 aluminum is used in places where weight matters. You get strong parts without making them heavy. This helps you build better cars, planes, and boats. Picking the right temper helps your parts last longer and work better.
Tip: Always pick the aluminum grade that fits your project. This makes building easier and your products stronger.
You can notice big changes in strength and hardness. Ductility also changes between 6061-O, T4, T6, and T651 tempers. The table below shows these differences:

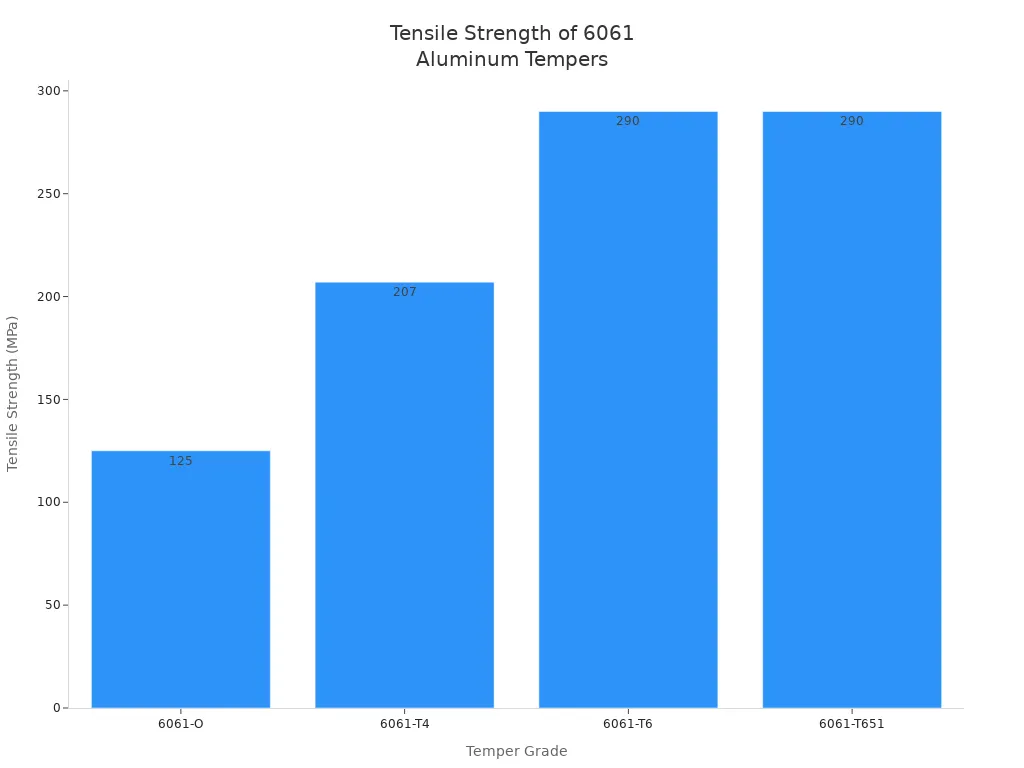

| Temper | Heat Treatment | Strength |
|---|---|---|
| 6061-O | Full annealing; softest, most ductile | Low: Tensile ~125 MPa |
| 6061-T4 | Solution treated, naturally aged | Moderate: ~207 MPa |
| 6061-T6 | Solution treated, artificially aged | High: ~290 MPa |
| 6061-T651 | T6 + stress relief | High: ~290 MPa |
Picking the right temper gives you the best results. You can get more strength, easier cutting, or better bending. Always choose the temper that fits your project. This helps your product last longer and work better. Use the tables and charts above to help you decide.
FAQ
What makes 6061 a popular aluminum alloy for projects?
6061 is used a lot because it is strong and easy to work with. This alloy does not rust easily. You can weld, cut, and shape it for many things. Heat treatment lets you pick how strong or bendy you want it.
How does the t6 temper differ from t651 in 6061 aluminum?
T6 is made by heating and aging the metal. T651 has an extra step to remove stress. This helps t651 keep its shape better after cutting. Both are strong, but t651 stays more stable.
Why should you care about corrosion resistance in 6061 aluminum?
Corrosion can hurt your parts over time. 6061 aluminum does not rust much because it has magnesium and silicon. This helps your projects last longer, even outside or in water. You get better results and less fixing.
Can you weld 6061 aluminum t6511 and 6061 aluminum t651 easily?
You can weld both 6061 aluminum t6511 and t651. They keep their strength after welding. You might need a special filler for best welds. Always clean the metal first to stop weak spots.
What is the main benefit of heat treatment for 6061 aluminum?
Heat treatment changes how the metal acts. You can make it stronger or easier to bend. This helps you pick what works best for your project. You can choose tempers like t6, t651, or t6511.
