625 alloy for marine and offshore environments stands out due to its exceptional corrosion resistance and mechanical strength. Inconel 625 consistently outperforms standard stainless steel in salt spray tests, showing negligible weight loss and no visible corrosion after 200 hours in 5% NaCl at 35°C. Inconel’s ability to maintain tensile strength and hardness from -50°C to 600°C ensures reliability in fluctuating marine environments. These properties make Inconel a trusted material where durability and performance matter most.
Key Takeaways
- Alloy 625 offers outstanding resistance to seawater corrosion, outperforming stainless steel and many other alloys in harsh marine environments.
- This alloy maintains strong mechanical properties across a wide temperature range, ensuring durability under fluctuating offshore conditions.
- Alloy 625 welds easily without losing strength or corrosion resistance, making it ideal for fabricating and repairing marine structures.
- Its proven performance in splash zones, subsea piping, and offshore hardware reduces maintenance needs and extends service life.
- Choosing Alloy 625 lowers long-term costs by minimizing repairs and downtime, delivering reliable and cost-effective solutions for marine projects.
Marine and Offshore Challenges
Marine and offshore environments present some of the harshest conditions for materials and structures. Constant exposure to seawater, high mechanical loads, and demanding maintenance schedules test the limits of engineering solutions. These challenges drive the need for advanced materials like Alloy 625.
Corrosive Seawater
Seawater acts as a highly aggressive agent, attacking metals and causing rapid degradation. Corrosion rates in marine zones can be several times higher than onshore environments. For example, the splash zone experiences corrosion rates 8 to 10 times greater than those found on land, while the immersion zone faces rates 4 to 5 times higher. The following table highlights how corrosion rates vary by marine zone:
| Marine Zone / Condition | Corrosion Rate Description | Relative Corrosion Rate Compared to Onshore |
|---|---|---|
| Surface water (Indian Ocean) | Mild steel corrosion rate 4 times higher than deep water | 4x |
| Splash zone | Corrosion rate 8-10 times higher than onshore | 8-10x |
| Immersion zone | Corrosion rate 4-5 times higher than onshore | 4-5x |
| Atmospheric zone (above water) | Corrosion rate 3-4 times higher than onshore | 3-4x |

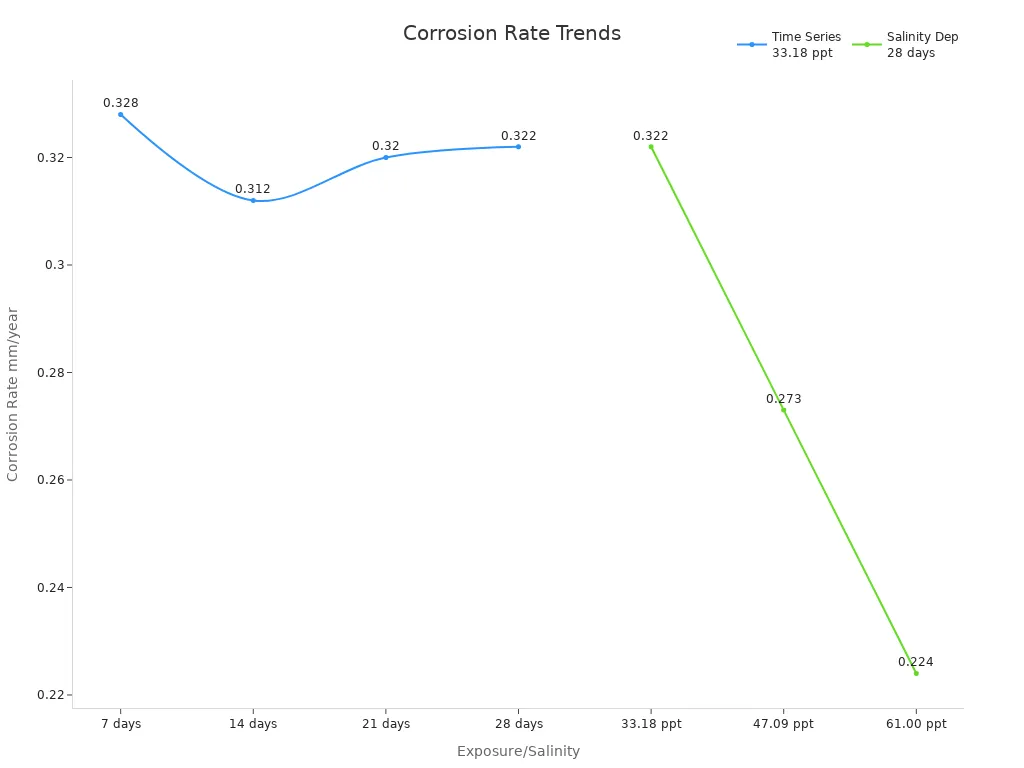

Note: Corrosion rates remain relatively stable over time but can decrease with higher salinity. For instance, after 28 days, the corrosion rate drops from 0.322 mm/year at 33.18 ppt salinity to 0.224 mm/year at 61.00 ppt salinity.
Mechanical Stress
Offshore structures endure intense mechanical stress from waves, wind, and operational loads. These forces can cause significant reductions in failure load and energy absorption. The table below demonstrates the quantitative impact of harsh conditions on different specimen types:
| Parameter | Indenter Type | Specimen Type | Quantitative Impact (Reduction) |
|---|---|---|---|
| Failure Load Decrease | Conical | GSP | 48.9% |
| Failure Load Decrease | Conical | GSV | 51.5% |
| Failure Load Decrease | Conical | GSH | 34.1% |
| Energy Absorption Decrease | Conical | GSP | 66.9% |
| Energy Absorption Decrease | Conical | GSV | 65.2% |
| Damage Onset Time Decrease (Top Face Sheet) | Conical | GSP | 80% |
Mechanical stress also accelerates localized corrosion, especially in the plastic deformation region. Numerical models show that stress concentration points often become sites for fatigue crack initiation, reducing the lifespan of marine components.
Maintenance Demands
Maintenance in marine installations remains both frequent and costly. Maintenance costs make up a significant portion of total operating expenses for ships and offshore platforms. According to industry analysis, 20% of failures account for 80% of the risk over a two-year period, emphasizing the need for targeted maintenance strategies. Human error contributes to up to 80% of marine accident cases, further highlighting the importance of reliable materials and systems. Regulatory codes, such as the ISM Code, dedicate entire sections to maintenance, underlining its critical role in safety and cost management.
Advanced alloys like Alloy 625 help reduce maintenance frequency and costs by resisting the damaging effects of seawater and other corrosive environments.
What is Inconel 625 Alloy?
Inconel 625 stands as one of the most advanced nickel alloys used in demanding industries. Engineers rely on this material for its outstanding combination of strength, corrosion resistance, and versatility. Inconel 625 belongs to a family of nickel alloys known for their ability to withstand extreme environments. This alloy finds frequent use in marine, offshore, aerospace, and chemical processing applications.
At its core, Inconel 625 is a nickel-based superalloy. The high nickel content forms a stable matrix that resists corrosion and maintains mechanical properties under stress. The addition of chromium and molybdenum further boosts its resistance to oxidation, pitting, and crevice corrosion. Niobium and tantalum strengthen the alloy by forming stable carbides, which help the material retain its structure even at elevated temperatures.
Inconel 625’s unique composition allows it to perform reliably in environments where other materials fail. Its resistance to stress corrosion cracking and its ability to maintain integrity in both high and low temperatures make it a top choice for critical components.
The table below shows the typical composition of Inconel 625:
| Element | Approximate Percentage Range |
|---|---|
| Nickel (Ni) | Minimum 58% |
| Chromium (Cr) | 20.0% to 23.0% |
| Molybdenum (Mo) | 8.0% to 10.0% |
| Iron (Fe) | Up to 5.0% |
| Niobium (Nb) + Tantalum (Ta) | 3.15% to 4.15% |
| Carbon (C) | Up to 0.10% |
| Manganese (Mn) | Up to 0.50% |
| Silicon (Si) | Up to 0.50% |
| Phosphorus (P) | Up to 0.015% |
| Sulfur (S) | Up to 0.015% |
| Aluminum (Al) | Up to 0.40% |
| Titanium (Ti) | Up to 0.40% |
| Cobalt (Co) | Up to 1.0% |
Manufacturers select Inconel 625 when they need a material that can handle aggressive chemicals, saltwater, and high mechanical loads. This alloy’s performance in marine and offshore environments demonstrates the value of advanced nickel alloys in modern engineering.
What Makes Alloy 625 a Seawater-Resistant Alloy?
Alloy 625 stands out in marine environments because it offers exceptional resistance to seawater attack. Engineers select this alloy for critical offshore structures due to its unique blend of chemical composition and microstructural stability. The high nickel content forms a stable matrix that shields the alloy from aggressive chloride ions found in seawater. Chromium and molybdenum further enhance its anti-corrosion properties, making it a top performer in harsh marine conditions.
Researchers have tested Alloy 625 in simulated seawater environments to measure its performance. Electrochemical experiments reveal several important findings:
- Arc thermal sprayed Alloy 625 coatings, when sealed with inorganic ceramic, provide the best protection against seawater corrosion. The ceramic layer blocks coating defects and reduces surface damage.
- Zinc powder sealing offers stable cathodic protection but can suffer from local corrosion due to weak bonding.
- Hybrid ceramic sealing improves protection but still shows some surface corrosion from micro-cracks.
- Properly sealed Alloy 625 coatings display porosity levels of 6–8% and microhardness around 420 HV. Chromium depletion areas, linked to oxide formation, remain minimal with effective sealing.
- Tests in 3.5 wt% NaCl solution confirm that Alloy 625 outperforms other alloys and coatings in seawater resistance.
Another study used laser-assisted deposition to refine the microstructure of Alloy 625. By increasing current intensity and movement speed, researchers achieved higher microhardness and improved corrosion resistance. The refined structure suppressed element segregation and prevented the formation of harmful phases. As a result, the alloy maintained its integrity even after prolonged exposure to simulated seawater.
These results demonstrate why Alloy 625 remains the preferred choice for marine and offshore applications. Its corrosion resistance and robust anti-corrosion properties ensure long-term durability in the most demanding environments.
Key Properties of 625 Alloy
Corrosion Resistance
Alloy 625 sets the standard for corrosion resistance among nickel alloys in marine and offshore environments. Engineers value its ability to withstand pitting, crevice corrosion, and chloride-ion stress-corrosion cracking. The alloy forms a compact, highly adherent nickel oxide layer that protects the surface from aggressive seawater and chemical attack. In tests, Alloy 625 shows lower corrosion rates than Alloy 800H under all tested conditions. No pitting, stress corrosion cracking, or crevice corrosion appears during these trials. The following table compares the corrosion performance of Alloy 625 and Alloy 800H:
| Alloy | Corrosion Rate Comparison | Localized Corrosion Observed | Oxide Layer Characteristics |
|---|---|---|---|
| Alloy 625 | Lower corrosion rates than Alloy 800H | None detected | Compact, highly adherent nickel oxide layer |
| Alloy 800H | Higher corrosion rates compared to 625 | None detected | Duplex oxide: iron oxides outside, chromium oxide inside |
Alloy 625 resists pitting corrosion at temperatures between 130°C and 215°C in chloride-rich environments. Its corrosion rates drop significantly in neutral or alkaline solutions and in deaerated hydrochloric acid. This performance demonstrates strong resistance to localized corrosion and chloride-ion stress corrosion cracking, even under severe marine conditions. The alloy also resists intergranular corrosion, which helps maintain structural integrity over long service periods.
Marine engineers often select Alloy 625 for critical components exposed to splash zones and immersion, where other nickel alloys may fail.
Strength and Fatigue
Alloy 625 delivers outstanding mechanical strength and fatigue resistance, making it a top performer in demanding offshore applications. The alloy maintains high tensile strength across a wide temperature range, from subzero conditions to elevated temperatures. This high-temperature resistance ensures reliable performance in both arctic and tropical marine environments.
Fatigue testing reveals that Alloy 625 can withstand up to 10 million cycles under fully reversed loading at room temperature. Post-build processing, such as hot isostatic pressing and machining, further improves fatigue strength, bringing it close to that of wrought nickel alloys. The table below summarizes key fatigue test results:
| Test Condition | Specimen Type | Temperature | Fatigue Cycle Count | Fatigue Strength (MPa) | Notes |
|---|---|---|---|---|---|
| High Cycle Fatigue (HCF) | Round tensile & dog-bone | Room temperature | 1 × 10^7 | ~300-400 | Build orientation affects fatigue life |
| Post-build processing (HIP + machining) | Same as above | Room temperature | 1 × 10^7 | >300 | Fatigue strength close to wrought alloy |
| Build orientation effect | Hourglass specimen | Room temperature | 1 × 10^7 | ~400 | XY-direction specimens outperform Z-direction specimens |
Low cycle fatigue tests at both room temperature and 600°C show that Alloy 625 maintains high fatigue performance due to its heterogeneous grain structure and back stress hardening. The alloy’s resistance to corrosion fatigue ensures long service life for marine hardware, subsea piping, and offshore platform components.
Weldability
Alloy 625 offers excellent weldability, which simplifies fabrication and repair of complex marine structures. Engineers can join this alloy using standard welding techniques without the risk of hot cracking or loss of mechanical properties. The alloy’s stable microstructure prevents the formation of harmful phases during welding, ensuring consistent resistance and strength throughout the joint.
Shipbuilders and offshore platform designers rely on Alloy 625 for welded assemblies that must endure harsh environments and mechanical stress.
The combination of corrosion resistance, mechanical strength, and weldability makes Alloy 625 one of the most versatile nickel alloys for marine and offshore use. Its performance in real-world conditions continues to set the benchmark for reliability and durability.
625 Alloy for Marine and Offshore Environments
Real-World Applications
Engineers rely on 625 alloy for marine and offshore environments because it delivers proven results in the field. This alloy appears in a wide range of critical components, including subsea piping, propeller blades, drive shafts, thrusters, and offshore platform hardware. These parts must withstand constant exposure to seawater, high mechanical loads, and fluctuating temperatures.
The following table highlights key applications, mechanical properties, and fabrication standards for Alloy 625 in marine environments:
| Application Area | Example Components | Mechanical Properties (MPa) | Relevant ASTM Standards |
|---|---|---|---|
| Subsea Piping | Flowlines, risers, manifolds | Tensile: 827–965 | B444, B829 |
| Propulsion Systems | Propeller blades, drive shafts | Yield: 414–517 | B446, B564 |
| Offshore Platforms | Fasteners, hardware, supports | B443, B366 | |
| Marine Exhaust Systems | Exhaust manifolds, piping | B705, B775 |
Alloy 625’s high tensile and yield strength allow these components to resist deformation and failure under heavy loads. The alloy’s passive oxide film protects against pitting and crevice corrosion, even in chloride-rich seawater. Manufacturers follow strict ASTM standards to ensure quality and reliability in every product form, from seamless pipes to welded plates.
Shipbuilders and offshore operators select 625 alloy for marine and offshore environments when they need long service life and minimal maintenance in aggressive conditions.
Performance in Splash Zones
The splash zone presents one of the most challenging areas for any material. Constant wetting and drying cycles, combined with high oxygen and salt concentrations, accelerate corrosion and fatigue. Alloy 625 stands out in these turbulent conditions. Its robust passive oxide layer shields the surface from rapid attack, while its mechanical strength prevents cracking and deformation.
Offshore platforms often use Alloy 625 for hardware and structural supports located in splash zones. These components face relentless wave impact and salt spray. The alloy’s resistance to pitting and crevice corrosion ensures that critical structures remain safe and operational for years. Maintenance crews report fewer interventions and longer inspection intervals when using Alloy 625 in these areas.
Subsea and Surface Uses
Subsea installations demand materials that can maintain integrity under high pressure, low temperature, and corrosive seawater. 625 alloy for marine and offshore environments meets these requirements with ease. In subsea piping, the alloy’s strength and corrosion resistance prevent leaks and failures, even after mechanical damage.
A fitness-for-service analysis on a 20-inch Alloy 625 clad subsea pipeline demonstrated the alloy’s durability. After a pigging incident caused surface gouges, engineers assessed the pipeline for crack growth and fracture risk. The results showed that flaws up to 2.9 mm in height would not grow beyond 3.0 mm during the pipeline’s design life. Girth weld flaws up to 2.5 mm were also acceptable. The maximum gouge depth measured only 1.8 mm, well below critical limits. This analysis confirmed that Alloy 625 maintains pipeline integrity under real-world subsea conditions.
Surface marine hardware, such as fasteners and supports, also benefit from the alloy’s properties. The same standards that apply to subsea piping—such as ASTM B444 for seamless pipe and B443 for plate—ensure consistent quality across all applications. Offshore applications, including marine exhaust systems, rely on Alloy 625 for its ability to resist both high temperatures and corrosive attack.
The durability of 625 alloy for marine and offshore environments makes it the preferred choice for engineers who demand reliability in both turbulent splash zones and deep subsea installations.
Alloy 625 vs Other Offshore Alloys
625 vs. Incoloy 825
Alloy 625 and Incoloy 825 both serve in marine and offshore environments, but Alloy 625 offers superior mechanical strength and corrosion resistance. Engineers often select Alloy 625 for critical applications where high strength and durability are essential. The following table highlights key mechanical properties:
| Property | Alloy 625 Grade 1 (Solution Annealed) | Alloy 625 Grade 2 (Higher Temp Heat Treated) |
|---|---|---|
| Tensile Strength | ~120 ksi (minimum) | ~100 ksi (minimum) |
| Yield Strength | ~60 ksi (minimum) | ~40 ksi (minimum) |
| Elongation | 30% (minimum) | 30% (minimum) |
Alloy 625 Grade 2 withstands extreme temperatures up to 1000°C and resists hydrogen embrittlement, a common failure in offshore alloys. Inconel alloys, including Alloy 625, meet strict industry standards for sour service and show excellent performance in aggressive environments. Incoloy 825, while corrosion-resistant, does not match the strength or temperature tolerance of Alloy 625.
625 vs. Inconel 718
Inconel 718 and Alloy 625 both belong to the inconel family, but their performance in seawater and sour environments differs. The table below compares their properties:
| Metric / Property | Alloy 625 (NA625) | Inconel 718 (NA718) |
|---|---|---|
| Strengthening Phases | γ′ and γ″ phases | Ordered γ″ and γ′ phases |
| Corrosion Resistance in Seawater | Service up to 30°C (ISO 21457) | Susceptible to pitting and crevice corrosion |
| Resistance to Sour Environments | Excellent (NA725 derivatives) | Good, but δ-phase reduces resistance |
| Hydrogen Embrittlement Susceptibility | Immune in age-hardened conditions | Prone to sudden cleavage failures |
Alloy 625 resists hydrogen embrittlement and maintains integrity in harsh offshore conditions. Inconel 718, while strong, can suffer from sudden failures due to δ-phase formation, especially in sour and halide-rich environments.
Cost and Lifecycle
Alloy 625 delivers long-term value through reduced maintenance and reliable performance. Operators benefit from lower lifecycle costs, as shown by industry analyses:
- Maintenance programs for inconel alloys, such as those by Rolls-Royce, reveal lower long-term costs due to durability.
- Economic metrics like Net Present Value and Internal Rate of Return favor Alloy 625, thanks to its machinability and long service life.
- Sensitivity studies show that Alloy 625’s reduced maintenance intervals and superior corrosion resistance lower total operating expenses.
- Annual material and machining costs for Alloy 625 remain lower than for advanced composites, balancing upfront investment with ongoing savings.
Alloy 625 stands out as the preferred inconel alloy for offshore environments, offering unmatched reliability, reduced downtime, and strong economic performance.
625 alloy for marine and offshore environments stands out for its unmatched corrosion resistance, mechanical strength, and weldability.
- In a systematic study, Alloy 625 scored 9.4/10, outperforming other materials in offshore flare piping due to its superior resistance and reliability.
Nickel-based alloys like Inconel 625 resist pitting and crevice corrosion in seawater, making them ideal for critical marine systems. Multi-year testing confirms Alloy 625’s long-term durability, even in high-temperature and corrosive conditions. Engineers trust this alloy to prevent failures and reduce maintenance, ensuring safe and cost-effective operations.
FAQ
What makes Alloy 625 superior to stainless steel in marine environments?
Alloy 625 resists pitting, crevice corrosion, and chloride-ion stress-corrosion cracking. Stainless steel often fails in seawater due to rapid corrosion. Alloy 625 maintains strength and integrity, even after years of exposure.
Can engineers weld Alloy 625 without losing its properties?
Yes. Alloy 625 offers excellent weldability. Welded joints retain high strength and corrosion resistance. Shipyards and offshore platforms use standard welding methods for repairs and fabrication.
How does Alloy 625 perform in high-temperature marine applications?
Alloy 625 maintains mechanical strength from subzero temperatures up to 600°C. This stability allows it to perform reliably in exhaust systems, flare stacks, and heated piping exposed to harsh marine conditions.
Is Alloy 625 cost-effective for long-term offshore projects?
Operators report lower maintenance costs and fewer replacements with Alloy 625. The initial investment pays off through extended service life and reduced downtime, making it a cost-effective choice for critical offshore systems.
