What is Aluminum Sheet Gauge?
You often see the term “gauge” when you work with aluminum sheets. Gauge tells you how thick the sheet is. You use the sheet metal gauge system to measure this thickness. The system uses numbers to show how thick or thin the aluminum sheet is. When you look at a sheet metal gauge, you notice that a higher number means a thinner sheet. A lower number means a thicker sheet. For example, a sheet metal gauge of 8 is much thicker than a gauge of 30.
Tip: Always check the gauge number before you start your project. This helps you pick the right thickness for your needs.
The sheet metal gauge system for aluminum usually ranges from 8 to 30. You may also see thickness shown in inches or millimeters. Many manufacturers and engineers use the aluminum gauge chart to compare thicknesses quickly. This chart helps you match the right sheet metal gauge to your project requirements.
Here is a simple breakdown of what gauge means for aluminum sheets:
- Gauge refers to the thickness of the aluminum sheet.
- You measure gauge using a numerical system.
- Higher gauge numbers mean thinner sheets.
- Lower gauge numbers mean thicker sheets.
- The typical range for aluminum sheet metal gauge is 8 to 30.
- You can also find thickness listed in inches or millimeters.
You use the sheet metal gauge system to make sure you get the right material for your job. If you choose the wrong gauge, your sheet may not work for your project. You may find that the sheet is too thin to support weight or too thick to bend easily. The aluminum gauge chart gives you a fast way to check and compare thicknesses. This saves you time and helps you avoid mistakes.
How to use the Sheet Metal Gauge System on Aluminum Sheet
You can use the sheet metal gauge system to make sure you pick the right aluminum sheet for your project. This system helps you find the exact thickness you need. When you follow the right steps, you avoid mistakes and save time.
Here is a simple way to use the gauge system for aluminum sheets:
- Identify Your Needs
Start by deciding how thick the aluminum sheet should be for your project. Think about what the sheet must support or how it will be used. - Match Specifications
Use the aluminum gauge thickness chart to find the gauge number that matches your required thickness. The chart shows you the thickness in both inches and millimeters. - Compare Materials
Look at the chart to see how aluminum compares to standard steel and galvanized steel. This helps you choose the best material for your job. - Double-Check Measurements
Always check your measurements against the chart. This step helps you avoid picking the wrong gauge. - Consider the Application
Think about how you will use the aluminum sheet. Some projects need thicker sheets for strength. Others need thinner sheets for bending or shaping. - Consult with Suppliers
Talk to your supplier and use the chart to make sure you get the right material. Suppliers can help you confirm that the aluminum matches your needs.
Tip: Always keep a printed or digital copy of the gauge chart nearby. This makes it easy to check thicknesses during planning and purchasing.
When you use these steps, you make better choices for your project. You also reduce waste and avoid costly errors. The gauge system gives you confidence that your aluminum sheet will work as expected.
Aluminum Thickness-based International Standards
You should know about aluminum thickness standards before picking materials. These standards help you follow quality rules in many countries. Standards are used a lot in manufacturing. They guide you when you buy, sell, or use aluminum.
The American Society for Testing and Materials (ASTM) sets rules in the United States. ASTM standards tell you how thick aluminum sheets should be. They also show what tolerances you need to follow. You use these rules to check if your material is right. The International Organization for Standardization (ISO) makes rules for many countries. ISO standards help you match your aluminum sheets with global needs. You use ISO standards if you want to sell products in other countries.
Japan uses Japanese Industrial Standards (JIS). JIS standards help you sell in Japan. You follow JIS rules to meet local needs. Each place has its own standards. You must check which rules fit your project.
Here is a table with the main standards for aluminum thickness:
| Standard | Region | Description |
|---|---|---|
| ASTM | USA | Gives rules for flat-rolled stainless and heat-resisting steel, including thickness changes. |
| JIS | Japan | Lists sizes and tolerances for cold-rolled stainless steel plates, needed for selling in Japan. |
| ISO | International | Sets world rules, including quality checks and hot-rolled steel details. |
Standards get updated every year. The 2024 ANSI H35 standards have new tolerance tables and clearer rules. You use these standards to check aluminum alloy names, chemical makeup, and size limits. Standards also help you learn about aluminum hardener names and metal matrix composite materials.
- ASTM standards focus on material rules and tolerances.
- JIS standards matter for Japanese makers.
- ISO standards help keep quality the same in global trade.
- ANSI H35 standards guide you on aluminum alloy and tolerance rules.
You need standards to avoid mistakes. Standards help you make sure your aluminum sheets are safe and good quality. You use standards to compare products from different suppliers. Standards make your job easier and safer.
Tip: Always check the newest standards before starting your project. Standards change often, so you need to stay updated.
How to check the gauge of an Aluminum Sheet
You must know the thickness before you start work. Measuring the aluminum sheet helps you pick the right material. This stops you from making expensive mistakes. There are different tools you can use to check the gauge.
- Calipers: Calipers give very exact measurements. They can measure tiny amounts, even thousandths of an inch. Many experts use calipers because they always give good results.
- Gauge Wheel: A gauge wheel is quick and easy to use. You can carry it anywhere. It gives fast readings, but it is not as exact as calipers.
- Tape Measure: Do not use a tape measure for gauge checks. Tape measures are not precise enough for engineering or factory work.
Tip: Clean the aluminum sheet before you measure it. Dirt or dust can change your results.
In 2025, new tools make checking aluminum gauge easier. These devices have strong aluminum-bronze cases. They work well in rough places. You do not need to change settings for different alloys. Coolant, steam, or dirt will not mess up your readings. Some tools can measure without anything blocking the sheet as it moves.
Here is a table with features of new measurement tools:
| Feature | Description |
|---|---|
| Robust Design | Aluminum-bronze case protects in tough places |
| Gapless Measurement | Nothing blocks the strip as it passes through |
| Alloy Independence | Measures thickness without changing for alloy type |
| Environmental Insensitivity | Works fine even with coolant, steam, or dirt |
| Accuracy | Measures with +1.5 μm ±0.05 percent accuracy in mills |
| Safety | Uses safe technology, no radiation problems |
| Calibration | Needs calibration every six months, takes only 20 minutes |
| Maintenance | Needs little care because it has no weak parts |
| Production Efficiency | Less downtime, more time for making products |
| Cost-Effectiveness | Saves money and pays off quickly |
These new tools give you quick and safe results. Using the right tool helps you make sure your aluminum sheet is perfect for your project.
Aluminum Gauge Thickness Chart
Definition and Purpose
You use an aluminum gauge thickness chart to find out how thick a sheet is. The chart shows you gauge numbers and their thickness in inches and millimeters. Each gauge number matches a certain thickness. This makes it easy to compare and stops mistakes when you plan or build.
The chart helps you do many things:
- Check if your aluminum sheet follows the rules.
- Pick the right gauge for your project.
- Make your work better by using the right material.
- Figure out how much the material will cost.
- Make sure your product is good by checking thickness first.
- Match what your supplier offers when you buy aluminum.
- Help you cut, shape, and put together aluminum parts.
You can look at the table to see common gauge numbers and their thickness. The table helps you find the thickness you need fast.
| Gauge | Thickness (inches) | Thickness (mm) |
|---|---|---|
| 30 | 0.0100 | 0.25 |
| 28 | 0.0126 | 0.32 |
| 26 | 0.0159 | 0.40 |
| 24 | 0.0201 | 0.51 |
| 22 | 0.0253 | 0.64 |
| 20 | 0.0320 | 0.81 |
| 18 | 0.0403 | 1.02 |
| 16 | 0.0508 | 1.29 |
| 14 | 0.0641 | 1.63 |
| 12 | 0.0808 | 2.05 |
| 10 | 0.1019 | 2.59 |
| 7 | 0.1443 | 3.67 |

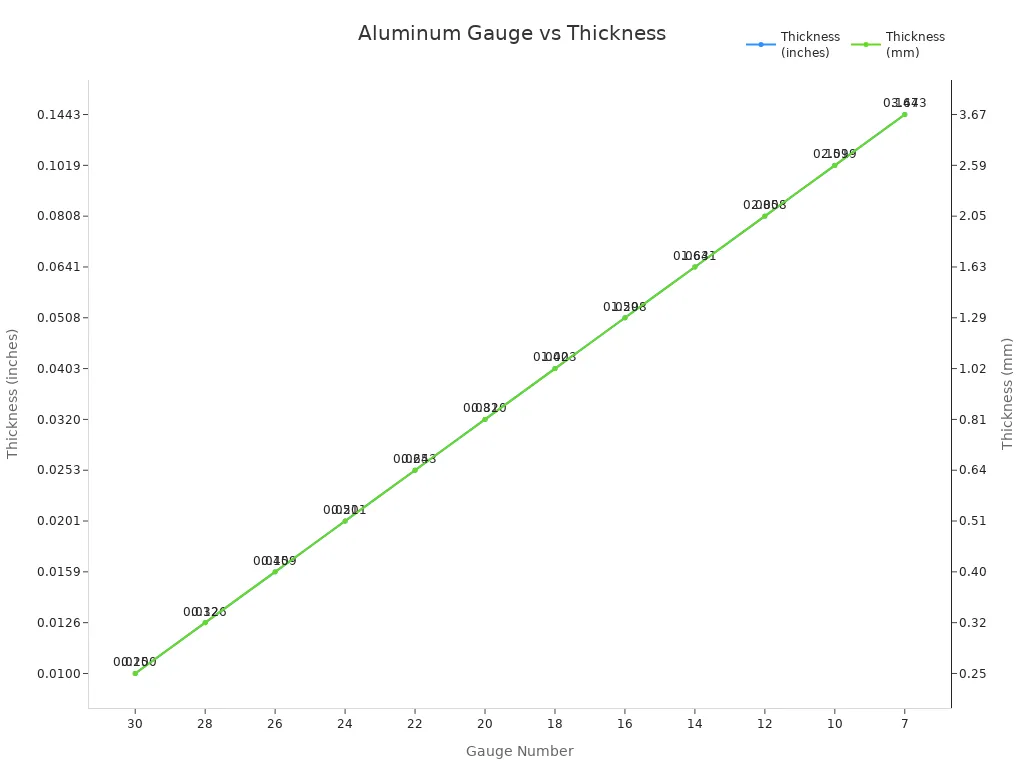

You can also see how gauge numbers and thickness go together in this chart:
Tip: Always check the chart before you order or cut aluminum. This helps you avoid mistakes that cost money.
Importance for Professionals
If you work in engineering or manufacturing, you use the gauge thickness chart a lot. The chart helps you pick the right aluminum sheet for your job. You can use gauge numbers or decimal thickness to choose the best material.
Professionals use the chart in these ways:
- Check the chart to pick the right thickness for cutting or bending.
- Use decimal thickness for drawings and computer models.
- Measure the sheet with calipers to make sure it matches the chart.
- Compare aluminum gauge numbers with steel, since the same number means different thickness for each metal.
The chart also shows how thickness changes what aluminum can do. Thin sheets bend easier. Thick sheets are stronger. Different alloys, like 6061 or 7075, have special uses even if they are the same thickness.
| Alloy | Strength Characteristics | Applications |
|---|---|---|
| 6061 | Good strength-to-weight ratio even at thinner gauges | General structural applications, aerospace |
| 7075 | Higher strength, especially in thinner gauges | Aerospace, military applications |
| 5083 | High strength and corrosion resistance | Armor plates, industrial equipment |
When you use the chart, you can:
- Pick the thickness that gives you the right strength and flexibility.
- Use the thinnest sheet that still works, so you waste less.
- Save money on making and shipping by not picking too thick.
- Make sure what you buy matches your design.
Note: Always think about how you will use the aluminum, like bending or welding, because this can change what thickness you need.
The aluminum gauge thickness chart is a helpful tool. It helps you choose the right material and get good results every time.
Gauge Thickness Chart Comparison
Aluminum vs. Steel Gauge Thickness
You often need to compare aluminum and steel gauge thickness when you choose materials for your project. The same gauge number does not mean the same thickness for every metal. Aluminum and steel gauge thickness can differ a lot. You must check the chart before you decide which sheet to use.
Here is a table that shows the difference between aluminum and steel gauge thickness for a common gauge number:
| Gauge | Steel Thickness (inches) | Aluminum Thickness (inches) |
|---|---|---|
| 10 | 0.135 | 0.102 |
| Difference | 0.033 |
Steel gauge thickness is usually greater than aluminum for the same gauge number. You see that steel gauge thickness at 10 gauge is 0.135 inches, while aluminum is only 0.102 inches. This means steel gauge thickness gives you a thicker and heavier sheet. You must know this difference when you plan your project. If you use steel gauge thickness for a design that needs aluminum, your part may be too heavy or strong for what you want.
Steel gauge thickness charts help you pick the right material. You use steel gauge thickness to check if your sheet will work for your job. You also compare steel gauge thickness with aluminum to see which one fits your needs. Steel gauge thickness is important in building, car making, and aerospace work. You use steel gauge thickness to make sure your parts are safe and strong.
How to Read the Chart
You must know how to read a gauge thickness chart to pick the right material. Gauge numbers show you the thickness of the sheet. Steel gauge thickness charts and aluminum charts look similar, but the numbers mean different things.
Follow these steps to read the chart:
- Find the material type. Make sure you use the right chart for steel gauge thickness or aluminum.
- Look for the gauge number you need. Each gauge number matches a thickness.
- Check the thickness value. You see the thickness in inches or millimeters.
- Compare the chart with standards in your area. Steel gauge thickness can change by region.
- Make sure the material fits your project. Steel gauge thickness must match your needs for strength and weight.
Steel gauge thickness charts help you avoid mistakes. You use steel gauge thickness to make sure your sheet is not too thin or thick. You also use steel gauge thickness to check if your part will bend or hold weight. Steel gauge thickness is key in many jobs. You use steel gauge thickness to get the best results.
Gauge measurements help you work faster and safer. You use steel gauge thickness to plan, buy, and build. You must understand steel gauge thickness to make smart choices.
Tip: Always double-check steel gauge thickness before you order or cut your sheet. This saves you time and money.
Manufacturing Uses and Benefits
Industry Standards and Compliance
You have to follow important rules in manufacturing. These rules help you make sure your products are safe and good quality. When you use aluminum gauge thickness charts, you check if your work matches what the industry wants. You see these rules at every step, from picking materials to checking the finished product.
- You must follow ASTM B209 for aluminum sheet and plate.
- The gauge thickness chart helps you meet these rules.
- You check your work often to make sure you follow the rules.
Following these rules keeps your work safe and trusted. You do not make big mistakes or have delays. Your customers trust you because you follow the right rules.
Process Optimization and Cost Control
You want your work to be fast and not waste money. Picking the right aluminum gauge thickness helps you do this. You use the chart to pick the best thickness for each job. This choice changes how you cut, shape, and ship the aluminum.
Here is a table that shows how different gauge thicknesses are used in manufacturing:
| Gauge Thickness | Common Uses | Benefits |
|---|---|---|
| 10-16 Gauge | Aerospace, building structures, shipbuilding | High strength, corrosion resistance |
| 18-22 Gauge | Electrical housings, automotive interiors, roof panels | Reduces weight while ensuring strength |
| 24-30 Gauge | Food packaging, aluminum foil containers | Thin and light, suitable for disposable items |
When you pick the right gauge, you work faster and waste less. You also save money by making fewer mistakes. The right tools help you keep your measurements close to what you need. You spend less on fixing tools and avoid extra costs. If you pick the wrong gauges, your costs can go up a lot, even by half. You should think about how often you check your tools and how this changes your budget.
Tip: Always look at your process and gauge choices. This helps you save money and keep your work good.
Every step in manufacturing needs the right gauge. You make better products, save money, and keep your work going well.
Gauge Selection Guide
Project Requirements
You begin by thinking about what your project needs. Every project is different. You need to know what the aluminum sheet will do. Will it hold weight, bend, or resist rust? You also look at cost and how easy it is to use.
- Strength: Your project needs enough support. Thicker sheets are stronger.
- Density: You want a light sheet for easy moving.
- Corrosion resistance: Aluminum works well in wet or outdoor places.
- Cost: You save money by picking the thinnest sheet that works.
- Malleability: The sheet should bend without breaking.
- Conductivity: Aluminum is good for electrical jobs.
You follow these steps to pick the right sheet:
- Application needs: Check what the sheet must do and where you use it.
- Material type: Pick aluminum for light weight and rust resistance.
- Weight: Balance how heavy the sheet is with how easy it is to move.
- Cost: Compare price and how well it works.
- Standards: Make sure your choice meets thickness rules.
Tip: Write down your project needs before you choose. This helps you avoid mistakes.
Matching Specifications
You need to match your choice with your project plans. Use decimal thickness to order the right sheet. Decimal thickness gives exact numbers. Use calipers or gauge tools to check the sheet before cutting or welding. This makes sure your parts fit and work well.
- Use the sheet metal gauge chart to help you choose.
- Check the chart for decimal thickness.
- Measure the sheet with calipers.
- Use the chart to save time and avoid mistakes.
- Make sure your choice matches your drawings and plans.
You must understand the gauge system to pick well. Use the chart to choose the right material, guess costs, and plan your work. Check the chart often to keep your choice correct.
Note: Always double-check your measurements before you order. This keeps your choice safe and reliable.
Comparing Materials
You compare different materials when you choose. Look at aluminum, steel, and other metals. Check which one fits your project best. Use the gauge thickness chart to see differences.
- Environmental conditions: See if the material lasts in your weather.
- Project budget: Compare costs for each choice.
- Building structure: Check how the gauge changes strength.
- Aesthetic needs: Pick a gauge that lets you shape your project.
Block Quote: It can be hard to compare metals with different gauge standards. The same gauge number means different thickness for aluminum, steel, or zinc. Many people use decimal thickness to save time and avoid mistakes.
Use the right chart for each material. Do not use only gauge numbers. Check the real thickness for every choice. Think about how thickness changes weight and design.
| Material | 10 Gauge Thickness (inches) | Common Use |
|---|---|---|
| Stainless Steel | 0.135 | Heavy structures |
| Aluminum | 0.102 | Lightweight panels |
You avoid mistakes by checking the chart and using decimal thickness for every choice.
Supplier Consultation
Talk to your supplier when you choose your sheet. Ask about what gauges they have before you design your part. Check if your supplier has the thickness you need. Avoid problems by confirming the material early.
- Ask your supplier about gauges in stock.
- Check if your choice is available.
- Change your design if the thickness is not listed.
- Prevent delays and extra costs by asking early.
Tip: Always check with your supplier before you finish your choice. This helps you avoid changes and keeps your project on track.
If you cannot find the thickness you need in the chart, you have options:
- Ask your supplier if they can order a custom gauge.
- Change your design to fit the gauges they have.
- Use decimal thickness to ask for special sheets.
You make a smart choice by working with your supplier. You keep your project smooth and avoid costly mistakes.
Step-by-Step Tips for Gauge Selection
Follow these steps to pick the best sheet:
- List your project needs and requirements.
- Use the gauge chart to find the right thickness.
- Measure your sheet with calipers for accuracy.
- Compare materials using decimal thickness.
- Ask your supplier about available gauges.
- Change your design if the thickness is not listed.
- Double-check all measurements before ordering.
Note: You avoid mistakes by following these steps every time you choose.
What to Do If the Required Thickness Is Not Listed
You may not find your needed thickness in the chart. Do not stop your selection. Talk to your supplier. Ask if they can get a custom gauge. Change your design to fit the thickness they have. Use decimal thickness to order special sheets. Stay flexible and practical when you choose.
Tip: Always stay flexible when you pick your sheet. You find answers by working with your supplier and changing your design.
Applications
Aluminum sheets are used in many ways. The right gauge thickness helps you get good results. Different jobs need different gauge thicknesses. You see these in making, buying, and checking quality. Each job has its own rules and needs. You should know how gauge thickness changes each use. This helps you make smart choices.
Fabrication
You use aluminum sheets for many jobs in fabrication. The gauge thickness you pick changes how you cut or bend the sheet. Some jobs need thick sheets. Other jobs need thin sheets. Here is a table that shows common uses for each gauge thickness:
| Gauge Thickness | Thickness (mm) | Common Applications |
|---|---|---|
| 12 GA | 2.053 | Heavy-duty applications, structures, and frames |
| 14 GA | 1.628 | Medium-duty applications, enclosures, housings |
| 16 GA | 1.291 | Light-duty applications, cabinets, covers |
You use 12 gauge thickness for strong frames. You pick 14 gauge thickness for housings or enclosures. You choose 16 gauge thickness for light covers or cabinets. Each gauge thickness works best for certain jobs. You need to match the gauge thickness to your project. This gives you the best quality.
Procurement
You make choices when you buy aluminum sheets. Gauge thickness is important when you order. You should think about how gauge thickness changes your job and cost. Here are some things to remember:
- Gauge thickness changes how thick the aluminum is. This can be different for each material.
- A small change in gauge thickness can cause big problems in your design.
- Picking a special gauge thickness can cost more money and slow down your job.
- Thick gauge thickness is best for strong jobs. Thin gauge thickness is good for light jobs.
- The gauge thickness you pick changes how well your job works.
You should check the gauge thickness before you order. This helps you avoid problems and keeps your job running well.
Quality Control
You want your work to be high quality. You check gauge thickness to make sure your aluminum is right. You use different steps to keep your work safe and strong. Here is a table with important checks:
| Inspection Aspect | Key Criteria |
|---|---|
| Alloy Verification | Compliance with specifications |
| Surface Condition | Free from cracks and corrosion |
| Chemical Composition Tests | Consistent alloy formulation |
You also use these steps to check quality:
- Look at the surface for problems
- Measure roughness with a profilometer
- Check coating with film thickness gauges
You keep your work safe by checking gauge thickness and quality. You make sure your job meets all rules and works as planned.
Tip: Always check gauge thickness and quality before you start. This helps you avoid mistakes and keeps your work strong.
You get lots of benefits from using the aluminum gauge thickness chart. The chart helps you pick the right material for your project. It also helps you avoid expensive mistakes. When you compare gauges, you can find the best one for your needs. If you use the chart often and talk to your supplier, you get better results.
- Using decimal thickness for orders helps you get the exact material you want.
- Checking thickness with calipers or gauge tools helps you make sure the parts fit and work well.
Keep the chart close and ask your supplier if you have special needs.
FAQ
What is a sheet metal gauge and why does it matter in construction?
You use sheet metal gauge to check thickness. In building, this helps you pick strong and safe materials. The gauge makes sure your parts meet rules and pass quality checks.
How does sheet metal gauge affect strength in automotive projects?
Strength changes with different gauge numbers. Thicker gauges make car frames stronger. Thinner gauges make cars lighter but less strong. Always look at the chart before you pick materials for cars.
Why do construction and automotive industries use different sheet metal gauge charts?
Construction and car jobs need different strengths. Builders use thicker gauges for strong buildings. Car makers use thinner gauges for lighter cars. Each job uses a chart to match what it needs.
How do you check if your sheet metal gauge meets strength requirements?
You measure the gauge with calipers. Then, you check the thickness on the chart. This shows if the material is strong enough for your job. Always follow safety and quality rules.
What should you do if your required sheet metal gauge is not listed?
Talk to your supplier about special choices. You might change your design or use decimal thickness. This helps you keep your project strong and safe. Always use the sheet metal gauge FAQs for help when picking materials.
