Aluminum stamping shapes aluminum sheets with stamping dies and strong pressure. You should know how alloy choice, stamping methods, and surface finishing change the final parts. Picking an aluminum alloy can affect how tough, expensive, and nice-looking the stamped items are. The table below shows how different things change how well parts work and how much they cost:
| Factor | Impact on Performance and Cost |
|---|---|
| Machinability | Changes how fast you make parts and the price |
| Strength | Decides how long the parts last |
| Corrosion Resistance | Changes how often you need to fix parts |
| Tooling Wear | Affects how long tools last and their cost |
| Production Efficiency | Changes how quickly you stamp parts |
Aluminum stamping is used in many places. The market is getting bigger because more industries use this guide to learn about aluminum stamping.
Key Takeaways
- Aluminum stamping saves money and makes strong, light parts. This is good for car and airplane companies.
- Picking the best aluminum alloy is very important. You should think about how strong it is, if it rusts, and how easy it is to shape. This helps the part work well.
- Quality control checks help find mistakes early. This makes sure the parts are made right and cuts down on waste.
- New machines and tools, like CNC machines and simulation tools, help make stamping more exact and faster.
- Surface finishing treatments, such as anodizing and coating, make aluminum stamped parts look better and last longer. These treatments also help stop rust.
Aluminum Stamping Overview
What Is Aluminum Stamping
Aluminum stamping shapes flat aluminum sheets into many parts. Many industries use this process. Stamping dies and strong pressure help cut, bend, and form the metal. You can make simple or hard shapes with good accuracy. Aluminum stamping is cheaper and good for making lots of parts fast. The parts come out the same size and have smooth surfaces.
Aluminum stamping is not the same as other metal stamping. Aluminum is easy to shape and does not rust. This lets you make tricky shapes that last a long time. You see aluminum stamping in cars, planes, electronics, and things people use every day.
Tip: Pick aluminum if you want strong, flexible parts that do not rust.
Here are the main steps in aluminum stamping:
- Blanking: Cut the aluminum sheet into the shape you want.
- Piercing: Punch holes or openings in the sheet.
- Bending: Make angles or curves in the aluminum.
- Coining: Press designs or logos onto the surface.
- Deep Drawing: Stretch the sheet into deep or tricky shapes.
- Embossing: Add patterns or textures to big areas.
- Flanging: Bend the edge to make a flange.
When you know these steps, you understand how aluminum stamping works in many jobs.
Key Principles
You must follow some rules to get the best results from aluminum stamping. These rules help you stop mistakes and work faster. Aluminum stamping works well if you handle the metal carefully and use good machines.
| Principle | Description |
|---|---|
| Careful Handling | Handle aluminum gently to stop dents, scratches, and dirt. Store it right for better stamping and less waste. |
| Use of Modern Equipment | CNC or servo machines give you better control and accuracy. This means parts are always good and made faster. |
| Surface Protection | Use coatings or lubricants to lower friction and tool wear. Finishes like anodizing make parts stronger and look better. |
| Quality Control | Check sizes and surfaces to make sure parts are right. Look often to find problems early. |
| Tool Path Optimization | Use software to plan tool paths. This helps you see how the metal moves, stop mistakes, and make parts more exact. |
Aluminum stamping works best when you use careful handling, new machines, and strong checks. You get better parts if you follow these rules every time you stamp aluminum.
Aluminum Stamping Processes
Aluminum stamping processes turn flat sheet metal into useful parts. There are different types of aluminum metal stamping. Each type has its own steps and good points. The process you pick depends on your part’s shape, size, and job. Here are the main steps for aluminum metal stamping:
Progressive Die
Progressive die stamping shapes aluminum sheet at many stations. The sheet moves through the die and changes at each stop. Each station does a job like cutting, bending, or punching. This method is great for making lots of parts fast. It gives quick, accurate, and low-cost results. But you need to spend more on special dies and setup.
| Advantages | Limitations |
|---|---|
| Cost-effective production | High initial costs |
| Efficient use of materials | Complexity in setup |
| High accuracy | Potential waste |
| Versatility in part production | Limited operations for some projects |
Tip: Pick progressive die stamping if you need many of the same aluminum parts quickly.
Deep Drawing
Deep drawing makes aluminum sheet into deep or hollow shapes. You use a punch to pull the sheet into a die. This process changes how strong the aluminum is. Corners can crack if you do not control the strain. You must watch friction and use forming-limit diagrams to stop problems.
- Box-shaped parts can crack at the corners from high stress.
- Good lubrication helps the sheet move and stops wrinkles.
Blanking & Piercing
Blanking cuts the aluminum sheet into flat shapes. Piercing makes holes or slots in the sheet. These aluminum stamping processes give tight tolerances, usually between ±0.0003–0.002 inches. You can use sheets from 0.5 mm to 13 mm thick.
| Tolerance Range | Measurement Units |
|---|---|
| ±0.0003–0.002 | in (0.0076–0.0508 mm) |
| Material Thickness | 0.5–13 mm (0.020–0.512 in) |
| Max Part Thickness | 19 mm (0.75 in) |
Coining & Embossing
Coining and embossing add small details or textures to aluminum parts. Coining presses the sheet to make sharp features and less springback. Embossing raises or sinks areas for logos or patterns. These aluminum metal stamping types help with looks and accuracy.
- Coining makes detailed, high surfaces.
- You get better size accuracy and less springback.
- Embossing adds patterns for style or function.
Essential Equipment and Tooling
You need the right tools for each stamping process. Here is a quick guide:
| Tooling/Equipment Type | Description |
|---|---|
| Dies | Shape the aluminum sheet |
| Hold-Downs | Keep the sheet in place |
| Knockouts | Make holes in the sheet |
| Punches | Cut or form the sheet |
| Sleeves/Pressure Pads | Press down during stamping |
| Mechanical, Hydraulic, Pneumatic, and Servo Presses | Give force and control for all steps to aluminum metal stamping |
Note: Picking the right equipment helps you get the best results from aluminum stamping processes.
Aluminum Stamping Techniques
Material Flow Control
You must control how aluminum moves during stamping. This helps stop problems. If you press harder on the blank, you can stop wrinkles. Draw beads in the die help guide the metal. They let you make hard shapes. Less lubrication makes more friction. This helps you control how the metal moves. You can change the blanking force. This helps stop wrinkles and cracks. Mold design is important too. If you change the shape and radius, you keep the part strong. This also lowers problems. Changing pressure during stamping helps control flow. It helps you avoid defects.
| Method | Description |
|---|---|
| Increase blank holding pressure | Controls compressive forces, reduces wrinkling |
| Use draw beads in the die | Adjusts material flow, prevents wrinkling |
| Reduce lubrication | Increases friction, helps control flow |
| Adjust blanking force | Balances wrinkle elimination and cracking prevention |
| Optimize mold design | Maintains structure, reduces defects |
| Apply variable pressure | Controls flow, lowers risk of defects |
Tip: Try different aluminum stamping techniques. This helps you find what works best for your part shape.
Dimensional Accuracy
You want every aluminum part to match your plan. The material you pick changes accuracy. If the aluminum sheet is harder or thicker, the size may change. Die quality matters a lot. Bad dies can make burrs or warped parts. The press machine must be exact. If settings change, parts may not fit. Springback happens after bending. Aluminum tries to go back to its old shape. This can change the size. Friction between the sheet and die can make wrinkles or tears. You must line up the sheet and die well. This helps you get the right size.
- Hardness and thickness change accuracy.
- Die quality stops burrs and warping.
- Press machine keeps sizes correct.
- Springback can change the shape.
- Friction may cause wrinkles or tears.
- Good alignment stops uneven cutting.
Note: Use key aluminum stamping techniques. Check alignment and die quality to improve accuracy.
Surface Finishing
Surface treatments make aluminum stamping parts look better. They also help parts last longer. Electropolishing cleans and shines the surface. Deburring takes off extra material. This helps parts fit together. Heat treating makes aluminum stronger and tougher. Coating protects against rust and makes parts look nice. Plating adds shine and helps with conductivity. You can also use degreasing, passivation, and sterilization. These give extra cleaning and protection.
| Technique | Benefits |
|---|---|
| Electropolishing | Makes parts look better, stops rust, cleans surface |
| Deburring | Removes extra material, helps fit, can use bulk or electropolishing |
| Heat Treating | Makes aluminum stronger, harder, and stops rust |
| Coating | Adds rust resistance, looks better, acts as primer, helps parts last longer |
| Plating | Makes parts shiny, stops rust, helps conductivity, helps parts last longer |
Tip: Pick the right surface treatments for aluminum stamping parts. This helps you get the strength, look, and durability you need.
Aluminum Alloys
Common Alloys
There are many aluminum alloys you can use for stamping. Each alloy has special features that help make different parts. Here are some common alloys you might see in aluminum stamping:
- 1100: This alloy bends easily and is simple to work with. People use it for flatware and detailed designs.
- 3003: This alloy is stronger than 1100 and does not rust easily. You find it in cooking tools and kitchen gear.
- 5052: This alloy is the strongest of the non-heat-treatable types. It works well for airplane parts and home appliances.
- 6061: This alloy can be heat treated and is very useful. People use it for car parts that need to be strong.
| Aluminum Alloy | Alloying Elements | Characteristics | Common Applications |
|---|---|---|---|
| 1100 | Commercially pure aluminum | Soft, bends easily, does not rust | Kitchenware, decorative trim |
| 3003 | Aluminum with manganese | Stronger, easy to shape | Cooking utensils, chemical equipment |
| 5052 | Alloyed with magnesium | Very strong, does not wear out quickly | Aircraft parts, tough cooking tools |
Alloy Selection
You must pick the right aluminum alloy for your stamping job. Think about these things:
- Workability: Some alloys bend and shape more easily.
- Corrosion resistance: Alloys that resist rust last longer.
- Strength: Strong alloys do not break under pressure.
- Weldability: Some alloys are easier to weld or machine.
- Heat treatment: Some alloys get stronger with heat.
- Applications: Match the alloy to what your part will do.
Tip: Always choose aluminum metal that fits your stamping needs. This helps you get the best results.
Alloy Comparison

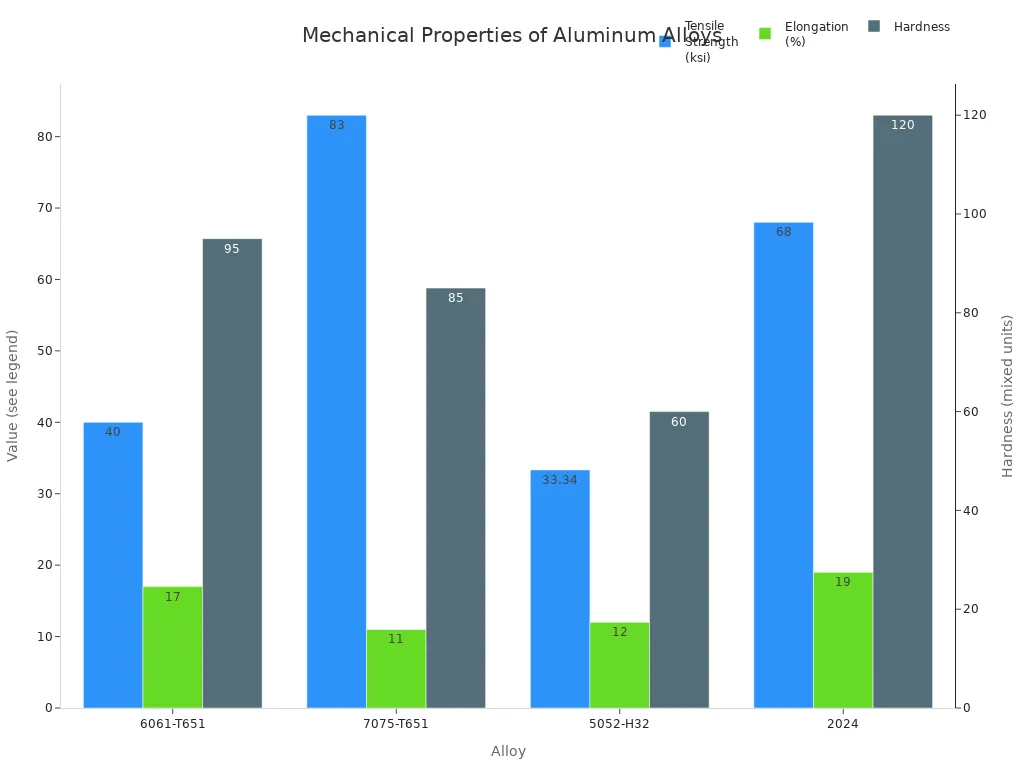

You can look at the mechanical properties of popular aluminum alloys to find the best one. Check tensile strength, elongation, and hardness. These numbers show how the alloy will work during stamping.
| Alloy | Tensile Strength | Elongation | Hardness |
|---|---|---|---|
| 6061-T651 | 40 ksi (276 MPa) | 17% | 95 HBW10/500 |
| 7075-T651 | 83 ksi (572 MPa) | 11% | 85 HBW10/500 |
| 5052-H32 | 33.34 ksi (228 MPa) | 12% | 60 HBW |
| 2024 | 68 ksi (469 MPa) | 19% | 120 HRB |
You should always check the properties of aluminum before stamping. This helps you avoid mistakes and make strong, safe parts.
Aluminum Stamped Parts
Aluminum stamped parts are used in many industries. You see these parts in cars, planes, electronics, and things people use every day. Using aluminum stamping helps make items strong, light, and tough. Let’s see how aluminum stamped parts are used in different areas.
Automotive
Aluminum stamped parts are found in many car parts. These parts make cars lighter. Lighter cars use less fuel. Stamping is used for body panels, brackets, heat shields, and trim. Making aluminum stamped car parts lets you shape hard designs fast. Aluminum metal stamping in cars includes:
- Body panels help lower weight and improve how cars run.
- Brackets and supports keep systems in place.
- Heat shields protect from engine heat.
- Trim pieces add style and help with function.
Car makers use stamping to make lots of parts that are always the same quality.
Aerospace
In aerospace, aluminum stamped parts help save weight but stay strong. Planes and spacecraft need light materials. Stamping lets you make special shapes for these needs. Here are some ways aluminum stamping is used in aerospace:
- Light parts help save a lot of weight.
- Stamped parts stay strong and last long, even in hard places.
- Hard shapes fit what aerospace needs.
Tip: Using aluminum stamped parts in aerospace helps planes go farther and use less fuel.
Electronics
Aluminum stamped parts are in many electronic things. Stamping helps make cases, heat sinks, and connectors. Aluminum stamping in electronics is used for:
- Cases for phones, tablets, and laptops.
- Heat sinks help keep things cool.
- Shields, terminals, and connectors help keep devices safe and working well.
Making aluminum stamped parts for electronics lets you make thin, exact pieces that protect and cool your devices.
Consumer Goods
Companies use aluminum stamped parts to make products that last and look nice. Using aluminum stamping in consumer goods gives you more ways to design and make things fast. You can add patterns, textures, and logos with stamping. Here is a table with the benefits:
| Benefit | Description |
|---|---|
| Cost-effectiveness | Aluminum stamping costs less than other ways. |
| Design flexibility | You can make many shapes and styles. |
| High production speed | You get products fast and they stay good quality. |
| Durability | Aluminum does not rust and stays strong without extra coatings. |
You see aluminum stamped parts in kitchen tools, appliances, and sports gear. Industries that use aluminum stamping get products that work well and look good.
Benefits of Aluminum Stamping
Lightweight & Strength
Aluminum stamping makes parts much lighter than steel. You can make your parts 25% to 50% lighter with aluminum. This is important for cars and planes. Lighter parts help them use less fuel and go faster. Aluminum has a high strength-to-weight ratio. Many car parts work better with aluminum than with stainless steel. Stamped aluminum parts are strong but do not weigh much. This is good for things that need to be light. Pick aluminum if you want parts that are light and resist rust.
Note: Lighter parts from stamping help things work better and use less energy.
Corrosion Resistance
Aluminum protects itself from rust and corrosion. When you stamp aluminum, it gets a thin oxide layer on top. This layer keeps water and air away from the metal. If the layer gets scratched, it fixes itself. This helps your parts last longer, even in hard places. Some aluminum alloys are even better at stopping rust. The extra elements in the alloy make the oxide layer stronger. Most of the time, you do not need extra coatings. This saves you both time and money.
Tip: Use aluminum stamping if you need parts that can handle wet, chemical, or outdoor places.
Cost Efficiency
Aluminum stamping helps you save money when making lots of parts. You can use different ways to cut costs:
| Strategy | Impact on Cost Savings |
|---|---|
| Optimizing tooling | Makes production faster and lowers costs |
| Reducing material waste | Uses less material and saves money |
| Implementing automation | Makes more parts and needs fewer workers |
These methods help you spend less to make your parts. You can give better prices to your customers. This makes customers happy and they will buy again. Lower costs help you beat other companies. You can share your savings with your customers. Happy customers come back to buy more.
Note: Aluminum stamping is a good way to save money when making many parts.
Design Flexibility
You can shape aluminum into many different forms by stamping. This gives you more choices for your designs. You can make simple or tricky shapes, add holes, or make patterns. Stamping is good for making lots of parts fast. But if you change the design, you might need new tools.
| Method | Design Flexibility |
|---|---|
| Metal Spinning | Very flexible; easy to change shapes or sizes |
| Metal Stamping | Not as flexible; changes need new tools |
Stamping has some limits, but you still get many good things from using aluminum. You can make parts that are strong, light, and do not rust in many shapes. This helps you make parts for many different uses.
Tip: Pick aluminum stamping if you want fast, good, and flexible designs.
Challenges
When you do aluminum stamping, you will face some problems. It is important to know these challenges. This helps you make better parts and waste less material.
Material Cracking
Material cracking is a common problem in aluminum stamping. Cracks can happen if you bend or stretch the metal too much. You might see cracks if the aluminum does not stamp well. Cracks also show up if the sheet is not the same thickness everywhere. Other reasons are rough surfaces, high resistance when feeding, or the die is not set up right. Sometimes, cracks come from too much pulling force or not enough oil.
Main causes of material cracking:
- The aluminum does not stamp well
- The sheet is not the same thickness
- The surface is rough or dirty
- There is too much resistance when feeding
- The sheet is not in the right place
- The die is not set up right
- There is not enough oil or grease
Tip: Always test your aluminum before stamping. Use good sheets and add enough oil to help stop cracks.
Die Wear
Die wear is another big problem in aluminum stamping. Dies shape the metal, but they get worn out over time. Friction, heat, and hard metals make dies wear out faster. When dies wear down, your parts are not as exact. The surface may look bad. Sometimes, dies can even break or change shape.
How die wear affects stamping:
- Aluminum parts are not as exact
- The surface looks rough or uneven
- You need to change tools more often
You can slow down die wear by using enough oil. Pick strong die materials and keep your dies clean and in good shape.
Accuracy Issues
Accuracy problems can happen in aluminum stamping. You want every part to match your plan, but things can go wrong. Tools can wear out, or the die design may not be good. Springback can change the shape after bending. Sometimes, the aluminum is not right for stamping.
Ways to improve accuracy:
- Work with your supplier to pick the best aluminum
- Keep your dies sharp and in good shape
- Use good dies and check them often
- Bend parts a little more to fix springback
- Use quality checks and new tools like computer software
Note: Fixing these aluminum stamping problems helps you make better parts every time.
Solutions
Process Optimization
You can make aluminum stamping faster by improving the process. Simulation tools help you see stress and fatigue in sheets. You can test designs before stamping them. This saves time and helps you make fewer mistakes. Engineers use virtual tests to change designs quickly. You waste less material and save money. Progressive die stamping does many steps at once. Fine blanking gives smooth and exact cuts. Automation and robots help stamp aluminum with better accuracy. These machines work fast and make fewer errors. You can pick the best metal for your job. This helps you get strong parts and control costs.
- Simulation tools show stress and help improve strength.
- Better designs use less aluminum and cost less.
- Progressive die stamping makes production faster.
- Fine blanking gives clean cuts for precise stamping.
- Automation and robots make stamping more accurate and reduce mistakes.
Tip: Use new stamping methods and machines to get better results and save money.
Tooling Improvements
Tooling improvements help you stamp aluminum with fewer problems. Good tools last longer and keep your stamping line working. You get better quality and save money. The table below shows how better tools help your aluminum stamping process:
| Benefit | Description |
|---|---|
| Extended Die Life | Tools wear out less, so you stamp more aluminum before replacing them. |
| Consistent Part Quality | You get accurate aluminum shapes every time, with less scrap. |
| Reduced Downtime | Fewer breakdowns mean your stamping line keeps moving. |
| Cost Savings | You avoid expensive repairs and replacements. |
| Improved Efficiency | Stamping lines run smoothly and reliably. |
| Optimized Tooling Performance | Better alignment and clean cuts for precise aluminum stamping. |
Note: Keep your tools clean and check them often. This helps you stamp aluminum with fewer problems.
Quality Control
Quality control makes sure your aluminum stamping meets your standards. You check sizes and surfaces often. This helps you find mistakes early. Quality control systems also help you lower waste and protect the environment. You can use sensors and cameras to watch your stamping process. These tools catch errors fast. You can fix problems before they get worse. Good quality control means your aluminum stamping stays strong and reliable.
- Check aluminum sizes and surfaces often.
- Use sensors and cameras for quick error detection.
- Quality control systems help you lower waste and improve sustainability.
Tip: Strong quality checks help you make safe and reliable aluminum stamping products.
Aluminum stamping changes aluminum sheets into strong and light parts. These parts can be used in many different things. You learned that using good stamping steps and smart methods helps make better products. Picking the right alloy is important too. You can use these tips to make your own designs better. Aluminum stamping lets you quickly and easily make parts for cars, electronics, and other items.
FAQ
What is the minimum thickness you can stamp with aluminum?
You can stamp aluminum sheets down to 0.2 mm thick. If the sheet is thinner, it might tear or wrinkle. Always check your machine and die before you start.
How do you prevent cracks during aluminum stamping?
Use the right alloy and keep the sheet clean. Make sure to add enough lubricant. Change the die and press settings if needed. Try stamping small samples first.
Can you recycle aluminum stamped parts?
Yes, you can recycle all aluminum stamped parts. Aluminum stays strong after recycling. Recycling saves energy and helps the planet.
What surface finishes work best for aluminum stamped parts?
You can use anodizing, powder coating, or painting. These finishes stop rust and make parts look better. Choose the finish that fits your product best.
