You should know about ASTM B366 if you use nickel alloy fittings. This standard gives the rules for making nickel and nickel alloy fittings in factories. It covers fittings made without seams or with welded seams.
| Specification | Description |
|---|---|
| ASTM B366 | Standard Specification for Factory-Made Wrought Nickel and Nickel Alloy Fittings |
ASTM B366 is important because it makes sure fittings are high quality. Many industries use these fittings because they work well in hot and harsh places.
| Why It Matters | Importance |
|---|---|
| Quality Control | Makes sure fittings are safe and last a long time. |
Key Takeaways
- ASTM B366 gives rules for nickel alloy fittings. These rules help make sure the fittings are safe and last long in tough places.
- The standard talks about different butt weld fittings. These include elbows, tees, and reducers. These parts help make piping connections strong.
- Picking the right nickel alloy grade, like Inconel or Hastelloy, helps stop rust and makes the fittings stronger. This helps them work well for a long time.
- Following ASTM B366 lowers the chance of leaks and breaks. This keeps people safe and helps machines work better in factories.
- Always check that fittings follow ASTM B366 rules. Look for Mill Test Certificates and do the needed checks.
ASTM B366 Scope and Purpose
ASTM B366 gives rules for making nickel alloy fittings. These rules help make sure fittings are safe and strong. You use this standard to check if fittings meet quality needs. The main goal is to get fittings that work in tough places. These places might have heat, pressure, or chemicals.
Covered Fittings and Alloys
ASTM B366 lists many butt weld fittings. Some are elbows, tees, reducers, bends, caps, crosses, lap-joint stub ends, plugs, bushings, and nipples. It covers both long and short radius elbows. It also covers returns and reducing outlet tees and crosses. You also see straight tees, straight crosses, and lap joint stub ends.
- Types of butt weld fittings covered:
- 90° & 45° elbows
- Tees
- Reducers
- 180° bends
- Caps
- Crosses
- Lap-joint stub ends
- Plugs
- Bushings
- Nipples

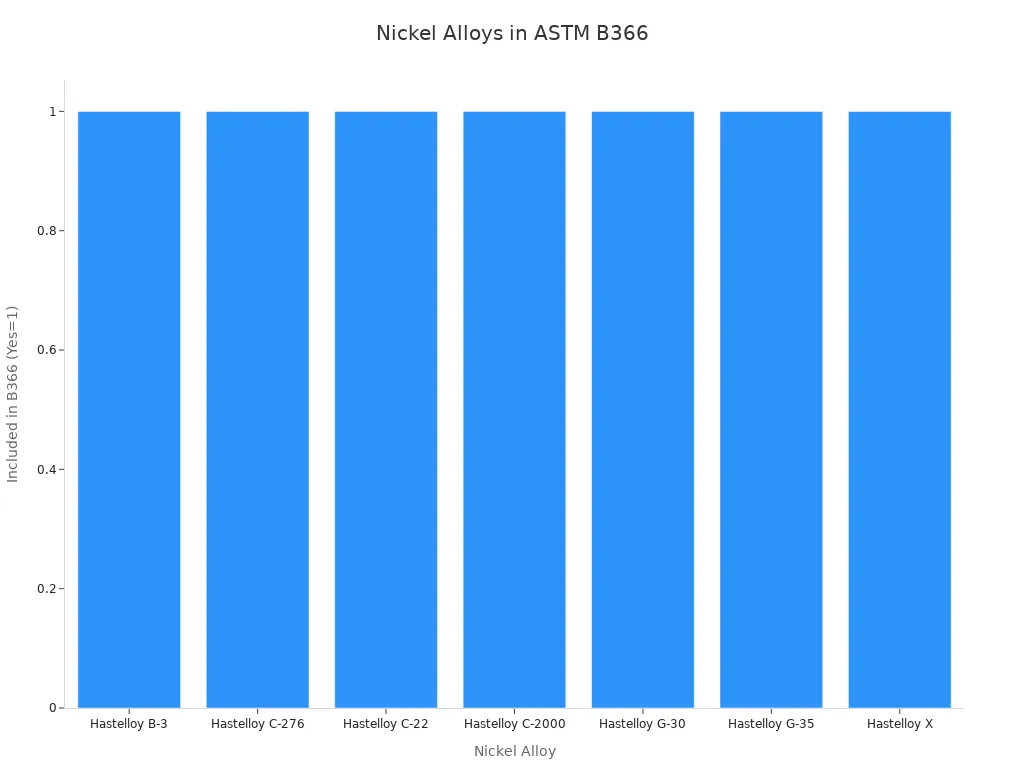

You can use many nickel alloys with ASTM B366. Some common ones are Inconel, Monel, and Hastelloy. Grades like UNS N04400, UNS N10276, UNS N06022, UNS N10665, UNS N08020, UNS N02200, and UNS N02201 are included. For example, you can use Hastelloy X for butt weld fittings.
| Nickel Alloy | Plates | Bars | Seamless Pipe | Welded Pipe | Fittings | Forgings/Flanges/Valves |
|---|---|---|---|---|---|---|
| Hastelloy B-3 | SB333/B333 | SB335/B335 | SB622/B622 | SB619/B619, SB626/B626 | SB366/B366 | SB564/B564 |
| Hastelloy C-276 | SB575/B575 | SB574/B574 | SB622/B622 | SB619/B619, SB626/B626 | SB366/B366 | SB564/B564 |
| Hastelloy C-22 | SB575/B575 | SB574/B574 | SB622/B622 | SB619/B619, SB626/B626 | SB366/B366 | SB564/B564 |
| Hastelloy C-2000 | SB575/B575 | SB574/B574 | SB622/B622 | SB619/B619, SB626/B626 | SB366/B366 | SB564/B564 |
| Hastelloy G-30 | SB582/B582 | SB581/B581 | SB622/B622 | SB619/B619, SB626/B626 | SB366/B366 | SB564/B564 |
| Hastelloy G-35 | B575 | B574 | B622 | B619/B619, B626/B626 | B366 | B462 |
| Hastelloy X | SB435/B435, AMS 5536 | SB572/B572, AMS 5754 | SB622/B622 | SB619/B619 | B366 | AMS 5754 |
ASTM B366 explains how to make butt weld fittings. You can use seamless, welded, or forged ways. The standard tells how to weld the fittings. It also says what tests you need to check quality.
| Objective | Description |
|---|---|
| Chemical Composition | Specifies the required chemical elements and their permissible limits. |
| Mechanical Properties | Defines the necessary mechanical properties, such as tensile strength, yield strength, and elongation. |
| Manufacturing Processes | Outlines acceptable manufacturing processes like forming and welding. |
| Testing Requirements | Includes requirements for non-destructive testing and pressure testing. |
Industrial Applications
ASTM B366 butt weld fittings are used in many industries. These fittings work well where you need strength and corrosion resistance. They also handle heat and pressure. Here are some common uses:
| Application | Industry | Typical Use |
|---|---|---|
| Chemical Processing | Chemical Industry | Piping systems for chemicals |
| Marine Environments | Marine Industry | Seawater systems, shipbuilding |
| Food Processing | Food Industry | Food-grade pipes and fittings |
| Power Generation | Energy Sector | Heat exchangers, condensers |
| Aerospace | Aerospace Industry | Aircraft fuel and hydraulic systems |
| Pharmaceuticals | Pharmaceutical Industry | Processing of pharmaceuticals |
You often see these fittings in chemical plants, power stations, ships, and airplanes. They help move fluids safely. They work even when fluids are hot, under pressure, or can cause rust.
Tip: Pick ASTM B366 butt weld fittings when you need strong, safe, and long-lasting connections in tough places.
ASTM B366 makes sure your butt weld fittings can handle high pressure, high temperature, and harsh chemicals. For example, Inconel 625 fittings resist corrosion, even in seawater or acid. These fittings stay strong at temperatures up to 2000°F. They also resist pitting, crevice corrosion, and damage from heating and cooling.
| Property | Description |
|---|---|
| Corrosion Resistance | Inconel 625 offers exceptional resistance to corrosion in various environments, including marine and acidic conditions. |
| High-Temperature Stability | These fittings maintain strength and oxidation resistance at temperatures from cryogenic to over 2000°F (1093°C). |
| Strength and Durability | Inconel 625 fittings possess superior mechanical strength and toughness, able to withstand high pressure and stress. |
| Resistance to Pitting and Crevice Corrosion | High molybdenum content provides excellent resistance to pitting and crevice corrosion, especially in seawater and acidic environments. |
| Fatigue and Creep Resistance | Demonstrates excellent resistance to creep and fatigue, suitable for applications with thermal cycling or fluctuating pressures. |
You can trust ASTM B366 butt weld fittings to keep your systems safe and working, even in the hardest jobs.
ASTM B366 Requirements
Material Grades and Properties
You need to know which material grades work best for nickel alloy fittings. ASTM B366 lists many grades, and each one has special features. Some grades give you better corrosion resistance. Others offer higher mechanical properties. You should pick the right grade for your job.
| Material Type | UNS | Standard |
|---|---|---|
| Pipe or Tube | N08020 | ASTM B464, B468, B729 |
| Plate, Sheet, or Strip | N08020 | ASTM B463 |
| Bar or Forging | N08020 | ASTM B472, B473, B462 |
You see grades like N08020, N06625, and N10276 in many industries. These grades help your fittings last longer. They also keep your system safe. When you choose a grade, you look at the chemical makeup and mechanical properties. Some grades resist acids and saltwater. Others stay strong at high temperatures.
Note: Always check the material grades before you buy nickel alloy fittings. The right grade gives you better performance and safety.
ASTM B366 also uses special designations to show which material you get. For example, WPNCMC-GR.1 means you have Cladded Inconel 625. This grade works well in places with strong chemicals and high heat.
| Designation | Material Type | UNS Number |
|---|---|---|
| ASTM B366 WPNC | Cladded Inconel 600 | UNS N06600 |
| ASTM B366 WPNCMC | Cladded Inconel 625 | UNS N06625 |
| ASTM B366 WPN | Cladded Incoloy 800 | UNS N08800 |
| ASTM B366 WPHC276 | Cladded Hastelloy C276 | UNS N10276 |
| ASTM B366 WPM | Cladded Monel 400 | UNS N04400 |
You see these designations on product labels. They help you pick the right fitting for your needs.
Manufacturing and Testing
ASTM B366 tells you how to make nickel alloy fittings. You use forging, hot working, or cold working. These methods shape the metal and make it strong. You also weld the fittings to join pieces together. The weld must be clean and smooth. You test the weld to make sure it does not leak.
| Manufacturing Process | Description |
|---|---|
| Forging | You shape metal by pressing or hammering it. |
| Hot Working | You bend and form metal at high temperatures. |
| Cold Working | You shape metal at room temperature for extra strength. |
You need to test each fitting before you use it. ASTM B366 asks for tests like pressure tests and non-destructive tests. These tests check if the fitting can handle stress and pressure. You also look at the welds to make sure they are strong.
- The dimension tables in ASTM B366 show you the sizes for each fitting.
- Pressure ratings tell you how much force the fitting can take before it fails.
- You use these tables to pick the right fitting for your system.
If you follow these rules, your nickel alloy fittings will work well in tough places. You get better corrosion resistance and strong welds. You also meet safety standards.
Tip: Always check the dimension tables and pressure ratings before you install a fitting. This helps you avoid leaks and failures.
ASTM B366 makes sure you get fittings that last. You see clear rules for material grades, weld quality, and testing. You also see special codes like WPNCMC-GR.1. These codes help you choose the right fitting for your job.
Nickel Alloy Fittings Types
Buttweld, Socket Weld, Threaded
ASTM B366 has three main types of nickel alloy fittings. Each type connects pipes in its own way. You need to pick the right one for your job.
- Buttweld Fittings: These fittings join pipes by welding their ends. They make strong and tight connections. You use them when you want no leaks. Some common buttweld fittings are elbows, tees, reducers, crosses, caps, and stub ends. For example: Inconel Buttweld Fittings, Inconel Elbow, Inconel Tee, Inconel Reducer, Inconel Cross, Inconel Cap, Inconel Stub End.
- Socket Weld Fittings: You put the pipe into a small hole in the fitting. Then you weld it. This type is good for small pipes and high pressure.
- Threaded Fittings: These fittings have threads that screw onto pipes. You do not need to weld them. They are easy to put on and take off. You should use them for low pressure.
Tip: Check if your system needs a weld or a thread. Welded joints are stronger and seal better.
Forged vs. Wrought Fittings
You can choose forged or wrought nickel alloy fittings. Each kind has its own good points and best uses.
| Type | Advantages | Disadvantages |
|---|---|---|
| Forged Fittings | Great for high pressure and heat. Very strong and tough, so they work well in hard jobs. | Cost more because they need special tools. Not as many choices, so they can be hard to find. |
| Wrought Fittings | Good price for low or medium pressure. Easy to bend and install, so they fit many jobs. | Not as strong as forged fittings. Do not use for jobs with lots of stress. |
Forged fittings are very strong and have even grain inside. They do not rust or wear out fast. You can trust them for hard work. They also have exact sizes, which helps when you weld them.
Wrought fittings bend easily and do not break. They are simple to weld, so you can install them fast. If you want to save money and do not need super strength, wrought fittings are a good choice.
Note: Pick the fitting type that matches your system. Forged fittings are best for heavy jobs. Wrought fittings are good for easy welds and flexible use.
Always think about corrosion resistance when you choose fittings. Nickel alloys help your system last longer, even in tough places.
Compliance and Sourcing
Importance of ASTM B366 Compliance
You must make sure your fittings follow astm b366. This standard helps you build safe piping systems. Fittings that meet the rules can handle high pressure and heat. ASTM B366 gives the right chemical mix and strength for each fitting. This keeps your system working, even in hard places. If you follow the rules, you lower the chance of leaks or breaks. You also keep people and equipment safe.
If you use fittings that do not follow the rules, you face many problems:
| Risk Type | Description |
|---|---|
| Leaks | Fittings that do not follow the rules can leak fluids. This can be dangerous and cause problems at work. |
| Contamination | Bad materials can put dirt or other things in your system. This can hurt the quality and safety of your product. |
| Pressure Loss | Weak fittings can make you lose pressure. This makes your system work less well and less safely. |
| Catastrophic Downtime | Broken fittings can stop your system for a long time. This can hurt your work and cost you money. |
Tip: Always check if fittings follow the rules before you buy or use them.
Identifying and Sourcing Fittings
When you look for nickel alloy fittings, check if they meet the right rules. Ask for papers that show they follow the standard. You should see Mill Test Certificates (MTCs) that show what is in the metal and how strong it is. Non-destructive testing (NDT) reports help you know the fitting is safe and strong. Third-party inspection (TPI) gives you even more trust.
| Certification Type | Purpose |
|---|---|
| Mill Test Certificates (MTCs) | These papers show what is in the metal and how strong it is. They come from the maker. |
| Non-Destructive Testing (NDT) | These tests check the fitting without breaking it. They use special ways to look for problems. |
| Third-Party Inspection (TPI) | These checks are done by trusted groups. They make sure the fitting follows the rules. |
You should also ask suppliers about these things:
| Requirement | Description |
|---|---|
| Quantities | How many fittings you need. |
| Description | What kind of fitting you want and any special size. |
| Alloy | The alloy or UNS number you need. |
| Heat Treatment | What kind of heat treatment you want if you have a choice. |
| WP Class | The WP fitting class (S, W, WX or WU). |
| Inspection | Any checks you want at the factory. |
| Material Analysis | If you want to check the material for your own tests. |
| Test Reports | If you need test reports. |
| Supplementary | Any extra things you want. |
Some suppliers, like Pacific Steel Overseas, sell fittings that follow astm b366. They have things like Inconel pipe fittings and flanges. You can trust these suppliers if you want good and safe products.
Note: Always ask for papers and test reports when you buy fittings. This helps you stay safe and avoid problems.
When you pick nickel alloy fittings that meet ASTM B366, you get many good things. These fittings last a long time and work well. They also help save money over time. Many places use them, like ships, planes, and chemical plants. Nickel alloys are also used in new things, like 3D printing and electric cars. If you follow ASTM B366, your system is safer and better protected. Always make sure the fittings meet the rules before you buy or use them.
FAQ
What does ASTM B366 cover?
ASTM B366 is about nickel and nickel alloy fittings made in factories. This standard helps you check if fittings are strong and safe. It makes sure fittings work well in hard places, like where it is hot or there are chemicals.
How do you identify ASTM B366 compliant fittings?
You need to look for special marks on the fitting. You should also ask your supplier for Mill Test Certificates (MTCs). These papers tell you the alloy grade and test results. They show if the fitting follows ASTM B366 rules.
Why should you choose nickel alloy fittings?
Nickel alloy fittings do not rust easily. They can handle heat and pressure. This means they last longer and keep systems safe. You see these fittings in chemical plants, power plants, and on ships.
Can you use ASTM B366 fittings for high-pressure systems?
Yes, you can use these fittings for high pressure. ASTM B366 fittings work in hot and high-pressure places. Always check the pressure rating in the tables before you put them in.
