Comprehensive Guide to Bolt Torque Patterns and Tightening Sequences for Flanges

You need to know why bolt torque patterns matter when using a flange. If you tighten bolts in the wrong order, the flange joint may not work well. Bad bolting can make flanges loose or not line up right. Mechanical vibration can cause leaks or even break equipment. You should always use the right tightening order to stop leaks and keep bolts strong. Bolt torque patterns are very important, especially when you look at safety problems in oil and gas work:

Cause of Incident	Implication
Bad bolting practice	Makes flanges loose or not lined up
Mechanical vibration	Can cause leaks or break equipment
Incorrect torque application	Makes empty spaces and can hurt flanges

You will see flanges work better if you use the right bolt torque patterns. This step is needed to stop leaks and keep your system working well.

Key Takeaways

• Always use the right bolt tightening order. This helps stop leaks and keeps the flange strong.
• Tighten bolts in a criss-cross way. This spreads pressure evenly and helps the seal work better.
• Check flanges and gaskets before you tighten them. This stops damage and makes sure the seal is good.

What is Bolt Torque Pattern?

Before you work with flanges, you need to know what a bolt torque pattern is. A bolt torque pattern means the order and way you tighten bolts. This pattern keeps the connection safe and strong. Mechanical engineering rules say a bolt torque pattern has a tightening order, torque value, and tightening method. You use a bolt torque pattern to make sure bolts hold the flange together the same way. If you do not use the right bolt torque pattern, leaks or weak spots can happen in the flange.

When you use a bolt torque pattern, you spread the force to all bolts. You do not want one bolt to have too much force. A bolt torque pattern helps stop problems like bolt fatigue or gasket damage. You should always use a bolt torque pattern to keep the flange sealed and safe. If you skip the bolt torque pattern, the connection might fail. You can see how a bolt torque pattern works by following the steps. You start with one bolt, then go to another in a set order. You keep doing this until all bolts have the right torque.

Tip: Always look at the bolt torque pattern in your flange manual before you tighten bolts. This step helps you avoid mistakes and keeps your system safe.

The main jobs of a bolt torque pattern in flange assembly are:

Function	Description
Uniform Load Distribution	Makes sure all bolts share the load, so no bolt is too tight or too loose.
Sealing Performance	Keeps the seal good and stops leaks in flanges and other connections.
Service Life Extension	Lowers bolt fatigue and stress, so connections last longer.
Safety Enhancement	Keeps load-bearing structures stable and lowers accident risk.

You use a bolt torque pattern every time you want a strong and leak-free flange. Bolt torque patterns help you work safely and keep your equipment working longer.

Why is Bolt Tightening Sequence So Important?

Uniform Load and Gasket Integrity

It is important to tighten bolts in the right order. This helps keep flange connections strong. The gasket sits flat between the flanges when you use the correct sequence. This keeps the seal tight and stops leaks from happening. If you do not follow good bolting steps, the gasket or flange can get damaged.

• The tightening sequence spreads force to all bolts.
• The gasket or seal gets pressed evenly on the flange face.
• Tightening bolts next to each other first can hurt the gasket and cause uneven pressure.
• If you use the wrong pattern, the flange may not line up. This can make it bulge or damage equipment.

You should always use good bolting steps to control stress in the flange joint. Even pressure keeps the gasket safe and helps your system last longer. The gasket needs the same pressure everywhere, so you must tighten each bolt with care.

Risks of Improper Tightening

If you do not use good bolting steps, you can have big problems. Many failures in oil and gas, manufacturing, and power plants happen because bolts were not tightened right. Look at the table below to see how much bad tightening can cost:

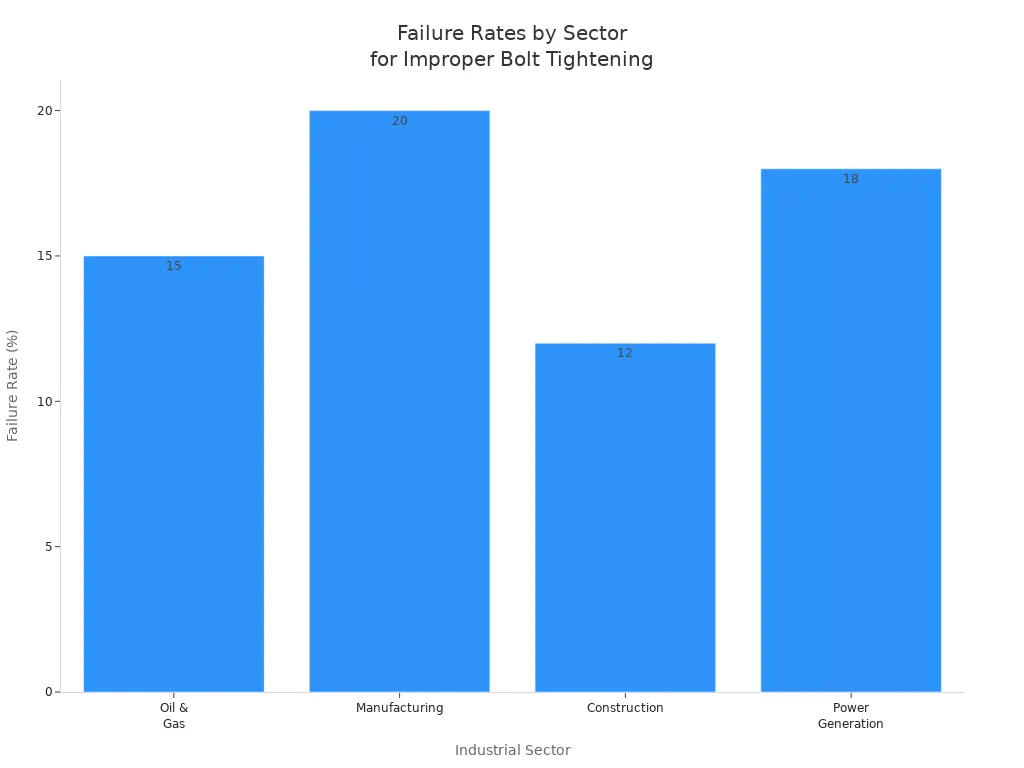

Sector	Failure Rate	Average Cost per Incident	Primary Impact
Oil & Gas	15% of pipeline events	$100,000+	Extended downtime
Manufacturing	20% of line halts	$25,000/hour	Production loss
Construction	12% of incidents	$50,000 average	Safety risks
Power Generation	18% of bolt issues	$200,000+	Grid stability

If bolts are not tight enough, leaks can happen and fines can be high. For example, one event in Texas cost over a million dollars because bolts were too loose. If bolts are too tight, they can break and cracks can form faster. You can stop these problems by using bolt torque patterns and following good bolting steps.

Pre-Tightening Checks

Flange and Gasket Inspection

You must check the flange and gasket before tightening bolts. Look for any damage, rust, or if things do not line up. These problems can make the seal weak and cause leaks. Scratches or holes on the flange face make the gasket work less well. If you find any problems, change the part to keep the seal strong. Hot and cold changes can also hurt gasket materials, so look for signs of this. When you put in the gasket, always use a new one and center it between the flanges. This step follows the right way to install a gasket and helps stop the flange faces from bending.

Common Defects	Description
Flange surface damage	Damaged, rusty, or not lined up flanges can make the seal weak and cause leaks.
Surface irregularities	Scratched or pitted flange faces make the gasket work less well and leave empty spaces.
Chemical attack	Strong liquids can slowly break down gasket materials that do not match.
Vibration and mechanical shock	Lots of shaking can make bolts loose or hurt the sealing surface.

Tip: Always use a new gasket and check its size before putting it in.

Bolt and Nut Inspection

You need to look at bolts and nuts closely before you start tightening. Make sure the bolt material is right and look for cracks or rust. Check that the bolt holes line up and washers are in the right place. At least one full thread should stick out past the nut after you tighten it. Make the bolts snug before you do the final tightening. Use the right torque steps and check that the torque is correct. Tighten bolts in a cross-pattern to spread the force evenly. Write down your inspection for quality checks.

1. Make sure the bolt material and papers are correct.
2. Look for cracks, rust, or other damage.
3. Check that holes line up and washers are in place.
4. Make sure threads go past the nut.
5. Tighten bolts until they are snug before the last step.
6. Use the right way to tighten and check the torque.
7. Tighten bolts in the right order.
8. Finish by checking everything and writing it down.

Alignment and Lubrication

Good installation starts with lining up the parts right. If things are not lined up, extra pressure can build under the bolt head and cause bending. This makes the clamp weaker and can let the joint move or break. Always line up the flange parts as the rules say. Lubrication is important too. If there is not enough, friction goes up and bolt loads are not even. Using enough lubricant helps bolts tighten the same and stops sealing problems. You should put lubricant on threads and nut faces to help the flange joint work well.

• Bad alignment puts more stress and can make things break.
• Lubrication helps bolts tighten evenly and keeps them from coming loose.
• Both alignment and lubrication help keep the seal and stop the flange faces from bending.

Types of Bolt Torque Patterns

Common Bolt Torque Patterns

You will find several bolt torque patterns used to tighten flange bolts. Each pattern helps you spread the load and keep the seal strong. Using the right pattern can stop leaks and make your flange last longer. Here are the most common bolt torque patterns:

• Criss-Cross Pattern: You tighten bolts in a star or X shape. Start with one bolt, then move to the bolt directly across from it. This pattern works best for round flanges and helps prevent leaks. Most companies use this pattern because it gives even pressure.
• Diagonal Pattern: You tighten bolts in a diagonal order, moving from one side to the other. This pattern also spreads the load well and is good for square or rectangular flanges.
• Staggered Pattern: You tighten bolts in a zigzag order. This pattern helps when you have many bolts and want to avoid putting too much force in one spot.
• Circular Pattern: You tighten bolts one after another in a circle. This pattern is not the best for sealing, but you might use it for low-pressure flanges.
• Sequential Pattern: You tighten bolts in a set order, one after the other. This pattern is simple but does not always give the best seal.

Tip: For most flange jobs, you should use the criss-cross pattern with three tightening passes—30%, 60%, and 100% of the final torque. Repeat the last pass until all bolts feel tight and do not turn anymore.

Pattern	Best Use Case	Benefit
Criss-Cross	Round flanges	Even load, best seal
Diagonal	Square/rectangular	Good load spread
Staggered	Large bolt groups	Avoids stress in one area
Circular	Low-pressure flanges	Fast, but less even
Sequential	Simple jobs	Easy, but less sealing

You should always follow your company’s bolt torque patterns for each flange. This step helps you avoid leaks and keeps your equipment safe.

Applications of Bolt Torque Patterns

Bolt torque patterns are used in many jobs. These patterns help keep things safe and strong. When you work with piping, you must use the right way to tighten bolts. This stops leaks and keeps pressure steady. You also see bolt torque patterns in engines, building work, and airplanes.

Here are some ways bolt torque patterns are used:

• Piping systems for water, oil, or gas need the right pattern. This keeps flanges sealed and stops leaks.
• Engines in cars or planes use criss-cross tightening. This gives even pressure and keeps the gasket safe.
• Heavy machines or frames use staggered patterns. This helps with high forces and keeps bolts from breaking.

Tip: Always pick the bolt torque pattern that fits your job. This helps you avoid trouble and keeps your equipment working longer.

The table below shows where bolt torque patterns are used:

Bolt Pattern	Applications
Staggered patterns	Good for parts that get high forces, like car frames.
Criss-cross tightening	Used in engines, cars, planes, and other jobs needing even load.

Bolt torque patterns help every bolt share the load. This stops leaks, broken bolts, and damaged gaskets. When you use the right pattern, your pipes and machines stay safe.

Advantages and Disadvantages of Bolt Torque Patterns

When you use bolt torque patterns, your flange connections work better. These patterns help flanges last longer. They give you many good things, but there are also some limits.

Advantages:

• Every bolt gets the same clamping force. This helps the flange seal tight.
• Leaks are less likely, and the flange does not bend.
• The stress is balanced, so the gasket stays flat and works well.

If you use the criss-cross pattern on high-pressure flanges, you follow safe steps:

1. Tighten all nuts by hand in the right order.
2. Pre-tighten to about half the needed torque using a cross pattern.
3. Finish by tightening to full torque in the same cross pattern.

Tip: Number the bolts around the flange. Start with 30% torque for the first pass, then finish with 100% torque. This helps you get the best seal.

Disadvantages:

Using sequential bolt torque patterns can have some problems. The stress might not spread out evenly. The gasket can get damaged. Friction can make it hard to get the right tightness. This can cause uneven pressure and damage the seal. Joints may leak. Too much stress in one spot can bend or warp the flange. If the gasket is not pressed evenly, the seal does not work well. This makes leaks more likely.

You should always choose the right bolt torque patterns for your job. This helps you avoid trouble and keeps your equipment safe.

Flange Bolt Torque Sequence

Numbering and Sequence

You need to number the bolts before you start the torque sequence. This step helps you follow the bolt tightening sequence and keeps you from missing any bolts. Numbering starts at any bolt and continues clockwise around the flange. For example, if you have a 4-bolt flange, you number them 1 to 4. If you have an 8-bolt flange, you number them 1 to 8. According to ASME B16.5, flanges always have an even number of bolt holes, such as 4, 8, 12, or 16. These bolt holes sit evenly around the flange.

Numbering makes the torque sequence easy to follow. You can use a marker or a tag to label each bolt. This step helps you keep track of which bolt you tightened and which one comes next. You should always use the specified method of bolt tightening for your flange.

Here is a table showing the numbering for different flange sizes:

Flange Size	Number of Bolts	Numbering Example
Small	4	1, 2, 3, 4
Medium	8	1, 2, 3, 4, 5, 6, 7, 8
Large	12	1, 2, …, 12
Extra Large	16	1, 2, …, 16

Tip: Always start with bolt number 1 and follow the criss-cross pattern for the torque sequence. This step helps you get even pressure on the gasket.

Incremental Passes

You should use incremental passes when you tighten bolts. This method means you tighten each bolt in steps, not all at once. You start with 30% of the final torque, then go to 60%, and finish with 100%. This torque sequence helps you spread the load across the gasket. You avoid uneven compression and lower the risk of leaks. Incremental torque passes make sure the gasket seats properly against the flange.

When you use incremental passes, you follow the criss-cross pattern. You tighten bolt number 1, then move to the bolt directly across from it. You keep going in this pattern until you finish the first pass. You repeat the process for the second and third passes. This method helps you avoid crosstalk, which means one bolt affects the tightness of another.

Here are step-by-step instructions for the torque sequence using the criss-cross pattern and incremental passes:

1. Number all bolts around the flange.
2. Tighten each bolt to 30% of the final torque using the criss-cross pattern.
3. Repeat the torque sequence, tightening each bolt to 60% of the final torque.
4. Finish by tightening each bolt to 100% of the final torque.
5. Check all bolts again in the same pattern to make sure none have loosened.

You can use this method for any flange size. The torque sequence stays the same, but the number of bolts changes. Here are examples for different flange sizes:

4-Bolt Flange

• Number bolts 1 to 4.
• Tighten in this order: 1, 3, 2, 4.
• Use three passes: 30%, 60%, 100%.

8-Bolt Flange

• Number bolts 1 to 8.
• Tighten in this order: 1, 5, 3, 7, 2, 6, 4, 8.
• Use three passes: 30%, 60%, 100%.

12-Bolt Flange

• Number bolts 1 to 12.
• Tighten in this order: 1, 7, 4, 10, 2, 8, 5, 11, 3, 9, 6, 12.
• Use three passes: 30%, 60%, 100%.

16-Bolt Flange

• Number bolts 1 to 16.
• Tighten in this order: 1, 9, 5, 13, 3, 11, 7, 15, 2, 10, 6, 14, 4, 12, 8, 16.
• Use three passes: 30%, 60%, 100%.

Note: Always use a calibrated torque wrench for each pass. This step helps you follow the torque sequence and keeps the flange safe.

Incremental torque passes improve the reliability of flange connections. You get even load distribution across the gasket. You prevent uneven compression and lower the risk of leaks. Systematic tightening helps the gasket seat properly and keeps your flange strong.

You should always follow the flange bolt torque sequence for every job. This step helps you avoid mistakes and keeps your equipment working longer.

Bolt Tightening Sequence Tools and Values

Torque Tables

You need to use appropriate torque values when tightening bolts on a flange. These values depend on the bolt size and the stress level. Using the right numbers helps you avoid leaks and keeps the connection safe. The table below shows common torque values for different bolt diameters and stress levels. Always check your flange manual for the exact numbers.

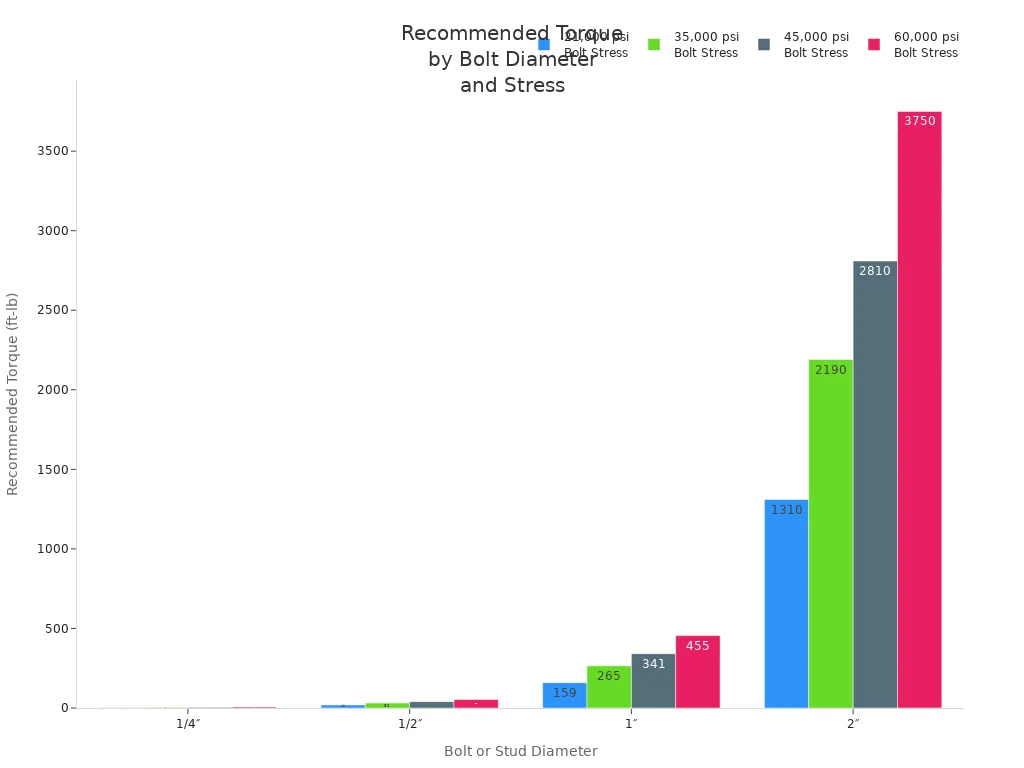

Bolt or Stud Diameter	21,000 Bolt Stress	35,000 Bolt Stress	45,000 Bolt Stress	60,000 Bolt Stress
1/4″	2	3	4	6
1/2″	19	31	40	53
1″	159	265	341	455
2″	1310	2190	2810	3750

You can also see how torque changes with bolt size and stress in the chart below.

Tip: Always use appropriate torque values for your bolts. This step keeps the gasket safe and the seal strong.

Tool Selection

You need the right tools to get the best results from bolt torque patterns. A torque wrench helps you apply the correct force to each bolt. Other tools can help you check and measure torque more accurately.

• Torque wrenches let you tighten bolts to the right value.
• Digital torque meters and rotary torque sensors show you the exact force you use.
• Tabletop torque testers and torque analyzers help you check your tools.
• Joint simulators let you practice tightening in real conditions.

You should calibrate your torque wrench every 5,000 cycles or every 6 to 12 months. If you drop your tool or use it a lot, check it sooner. Calibration keeps your readings correct and your flange safe.

Note: Using the right tools and checking them often helps you follow appropriate torque values and keeps your tightening process reliable.

Mistakes and Troubleshooting

Uneven Loading

Uneven loading can happen when you tighten bolts on a flange. This often happens if you skip steps or use the wrong order. Uneven loading may cause leaks or break the gasket. Sometimes, bolts can even snap. You can find this problem by looking for stretched bolts or bolts that are not tight. Rust or parts that do not line up can also be signs.

Here are some mistakes people make when tightening bolts:

Mistake	Explanation
Neglecting Pre-Tightening Inspection	Skipping checks can hide problems that make the seal weak.
Improper Bolt Tightening Sequence	Not using the right order can put too much stress in one spot and hurt the gasket.
Over-tightening	Too much force can stretch bolts and hurt the gasket, which can make leaks.
Under-tightening	Not enough force lets fluid leak out of the joint.
Using Inappropriate Tools	The wrong tool can give the wrong force and make the joint fail.
Ignoring Manufacturer Recommendations	Not following the rules can make the joint unsafe.

To fix uneven loading, do these things:

1. Check that both flanges are clean and flat. Use a straight edge to look.
2. Put washers under bolt heads or nuts to spread out the force.
3. Use a star or cross-pattern to tighten bolts.
4. Tighten bolts in steps: first 30%, then 60%, then 100% of the final force.
5. Finish by going around in a circle to check all bolts.

Tip: Always use the right bolt torque pattern. This helps stop uneven loading and keeps your flange sealed.

Gasket Damage

Gasket damage can stop your flange from sealing right. This can happen if you pick the wrong gasket, tighten bolts too much, not enough, or unevenly. Heat and chemicals can also hurt the gasket.

Some reasons gaskets get damaged are:

• Picking the wrong gasket for the job
• Not installing it right, like tightening too much or not evenly
• Damage from heat or chemicals

You can stop gasket damage by picking the right gasket, installing it the right way, and checking it often. Always look at the gasket before you use it. Change it if you see any damage or wear.

Note: Tighten bolts carefully and pick the right gasket. This helps stop leaks and keeps your system safe.

Best Practices and Standards

Industry Guidelines

You should always follow industry guidelines when working with flanges. The ASME PCC-1 standard sets the benchmark for safe and reliable bolted joint assembly. This standard tells you to focus on controlling gasket stress, not just torque. Appendix O in ASME PCC-1 helps you choose the right bolt stress for a good seal. You can use a step-by-step tightening sequence to get the best results:

1. Tighten bolts to 20% to 30% of the target torque in a cross pattern.
2. Increase to 50% of the target torque, keeping the same pattern.
3. Tighten all bolts to 100% of the target torque.
4. Repeat at 100% to verify every bolt is correct.
5. Do a final check to make sure all bolts meet the target torque.

Following these steps helps you get even gasket compression and keeps your flange safe. You lower the risk of leaks and make your equipment last longer.

Here are some best practices you should follow:

Best Practice	Description
Proper Installation	Assemble all parts correctly to stop leaks and failures.
Cleaning and Inspection	Make sure flange surfaces are clean and free from damage.
Use of Appropriate Tools	Use the right tools to get the correct torque and alignment.
Documentation	Write down your work to improve safety and reliability.

Note: The right gasket material is important. Too little stress can cause leaks. Too much can damage the parts.

Training and Documentation

You need the right training to use bolt torque patterns safely. Many companies offer online courses and hands-on classes. For example, the “Torque Tightening – Best Practice Guidance” course teaches you the basics, gives you quizzes, and awards a certificate when you pass. Another option is “Basic Bolter Training,” which lasts 1.5 days and covers safe torquing, bolt patterns, and bolt grades. You get a certificate when you finish.

Good documentation is also key. You should record every step, from inspection to final torque checks. This helps you find problems and keeps your work safe and reliable.

You make things safer and stop leaks by using bolt torque patterns. Tightening bolts in a set order gives even pressure. This helps your equipment work well. Good steps keep the gasket safe and help your system last longer. Always follow the rules and learn new ways to do your job better.

FAQ

What happens if you skip the bolt tightening sequence?

You risk leaks, gasket damage, or even flange failure. Always follow the correct sequence to keep your connection safe and strong.

How often should you calibrate your torque wrench?

You should calibrate your torque wrench every 5,000 uses or at least once a year. This keeps your readings accurate.

Can you reuse old gaskets when tightening flanges?

• You should never reuse old gaskets.
• Always use a new gasket for each flange assembly to ensure a proper seal.
