BSW and BSF thread standards set the rules for screw threads used in engineering and manufacturing. BSW, or British Standard Whitworth, uses a coarse thread, while BSF, or British Standard Fine, features a finer pitch. These differences affect strength, fit, and precision. Understanding each standard helps technical users avoid compatibility issues and select the right fastener for their projects. Choosing the correct thread type ensures safety, reliability, and proper function in mechanical assemblies.
Key Takeaways
- BSW threads feature a coarse pitch, making them ideal for heavy-duty applications where strength is crucial.
- BSF threads have a finer pitch, allowing for precise adjustments and better performance in high-stress environments.
- Understanding the differences between BSW and BSF threads helps prevent compatibility issues in engineering and restoration projects.
- Always check the thread type before mixing fasteners to avoid damaging components and ensure safety.
- Use thread pitch gauges and calipers to accurately identify BSW and BSF threads for proper selection.
What is BSW Thread?
The British Standard Whitworth (BSW) thread stands as one of the earliest standardized screw thread forms. Joseph Whitworth introduced this system in 1841 to bring consistency to fastener manufacturing across Britain. BSW threads use a 55-degree angle between the flanks, with rounded roots and crests. This unique profile helps distribute stress evenly, which reduces the risk of cracks and failures in mechanical joints.
BSW threads feature a coarse pitch, meaning the threads are spaced farther apart compared to fine-thread systems. This design makes BSW threads ideal for applications where strength and durability matter more than precision. Heavy machinery, construction, and early automotive engineering often relied on BSW fasteners for their robust performance.
Note: BSW threads have largely been replaced by Unified and Metric standards in modern engineering. However, they remain important in restoration projects and industries that maintain legacy equipment.

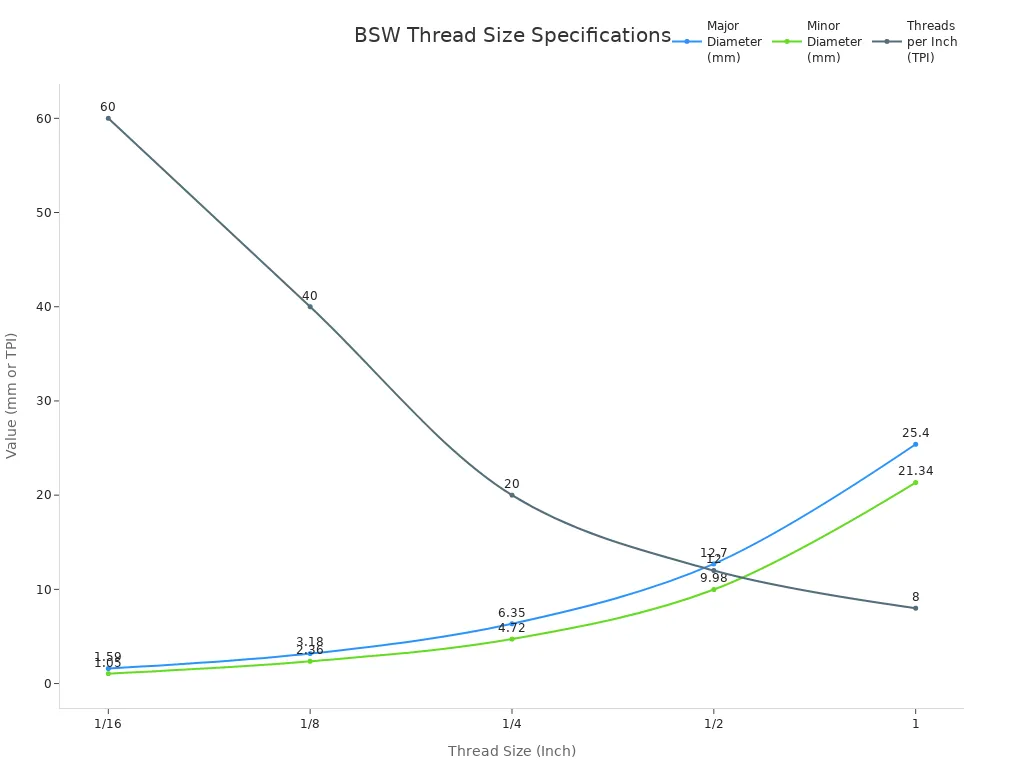

The technical specifications for BSW threads appear in British Standards documentation. The table below lists common BSW thread sizes, showing their threads per inch (TPI), major and minor diameters, and recommended drill sizes:
| Size (Inch) | Threads per Inch (TPI) | Major Diameter (mm) | Minor Diameter (mm) | Drill Size (Inch) | Tapped Hole (Inch) |
|---|---|---|---|---|---|
| 1/16 | 60 | 1.59 | 1.05 | 1.99 | 1.15 |
| 1/8 | 40 | 3.18 | 2.36 | 3.57 | 2.60 |
| 1/4 | 20 | 6.35 | 4.72 | 6.75 | 5.00 |
| 1/2 | 12 | 12.70 | 9.98 | 13.49 | 10.80 |
| 1 | 8 | 25.40 | 21.34 | 26.99 | 22.50 |
BSW and BSF thread standards both use the 55-degree thread angle, but BSW’s coarse pitch sets it apart. Engineers choose BSW threads when they need reliable fastening in heavy-duty settings. Understanding these threads helps users select the right fastener for legacy equipment and ensures compatibility in restoration work.
What is British Standard Fine (BSF)?
British Standard Fine (BSF) threads represent a key development in the history of fastener technology. Engineers introduced BSF in 1908 to address the need for a finer thread than the coarse-pitch BSW system. Rookes Crompton and George Field led the creation of this standard, which quickly became popular in British engineering.
BSF threads use the same 55-degree thread angle as BSW, but they feature a finer pitch. This means the threads are closer together, which allows for more precise adjustment and a tighter fit. The finer pitch also helps distribute loads more evenly along the fastener, which can improve strength in certain applications.
BSF threads found widespread use in steel bolts and nuts, especially in British cars and machinery. Many classic vehicles and industrial machines from the early to mid-20th century relied on BSF fasteners for their reliability and precision. The finer thread made BSF ideal for applications where vibration or movement could loosen a coarse thread.
Tip: When restoring vintage British cars or maintaining older machinery, always check if the fasteners use BSF threads. Using the wrong thread type can damage components or cause safety issues.
The table below summarizes the main features and uses of BSF threads:
| Feature/Application | Description |
|---|---|
| Thread Type | British Standard Fine (BSF) |
| Pitch | Fine-pitch alternative to British Standard Whitworth (BSW) |
| Angle | 55 degree thread form |
| Usage | Commonly used on steel bolts and nuts in British cars and machinery |
| Historical Context | Developed in 1908 by Rookes Crompton and George Field |
| Transition | Preceded by Unified American threads and later Metric threads in new products |
BSW and BSF thread standards both played important roles in British engineering. Today, BSF threads remain relevant for restoration projects and for maintaining legacy equipment. Understanding the differences between these standards helps engineers and hobbyists select the right fastener for each job.
BSW and BSF Thread Standards
History and Development
The story of BSW and BSF thread standards begins in the early days of industrial Britain. In 1841, Joseph Whitworth introduced the first standard thread to solve confusion in the engineering industry. Before this, manufacturers used different thread forms, which made repairs and assembly difficult. About fifty years later, the rise of the motor car created new demands. Engineers needed a finer thread because steel had improved in strength. This led to the creation of the British Standard Fine thread.
| Year | Event Description |
|---|---|
| 1841 | Joseph Whitworth introduced the first standard thread to avoid confusion in Britain’s engineering industry. |
| 50 years later | The advent of the motor car necessitated a finer thread due to advancements in tensile strength of steel. |
The introduction of these standards changed manufacturing in the United Kingdom. Factories could now produce bolts and nuts that fit together, no matter where they were made. This improvement increased compatibility and made repairs easier. BSW and BSF thread standards also helped streamline production and adapt to new materials.
Standardization and Profile
Both BSW and BSF thread standards follow rules set by official documents. The most important is BS 84:1956. This standard defines the profiles, dimensions, and tolerances for both thread types. It also includes tables for basic sizes and recommended combinations for different uses.
| Standard | Description |
|---|---|
| BS 84:1956 | Defines the profiles of BSW and BSF threads, including dimensions, tolerances, and applications. |
| Tables Included | Basic sizes, limits, and tolerances for B.S.W. and B.S.F. screw threads. |
| Selected Thread Series | Recommended diameter-pitch combinations for applications requiring finer pitches. |
The profile of these threads sets them apart from other systems. Both use a 55-degree thread angle. The roots and crests of BSW threads are rounded, while BSF threads also follow the Whitworth section but with a finer pitch. This shape helps distribute force and reduces the risk of cracks.
| Thread Type | Thread Angle | Root Shape | Crest Shape |
|---|---|---|---|
| BSW | 55 degrees | Rounded | Flat |
| BSF | 55 degrees | Rounded | Flat |
Note: The 55-degree angle and rounded profile are unique features of these British standards. They help improve the strength and durability of fasteners.
Key Features
BSW and BSF thread standards share some features but serve different needs. BSW threads have a coarse pitch, which means the threads are spaced farther apart. This design gives better strength and grip. BSW threads work well in general-purpose applications, such as construction and heavy machinery.
BSF threads use a finer pitch. The threads are closer together, which allows for more precise adjustments. This feature makes BSF threads suitable for the British machine tool industry and other precision tasks.
| Feature | BSW (British Standard Whitworth) | BSF (British Standard Fine) |
|---|---|---|
| Thread Type | Coarse | Fine |
| Angle | 55° | 55° |
| Thread Depth | ~0.64 times the pitch | ~0.64 times the pitch |
| Primary Use | General applications | British machine tool industry |
| Strength and Grip | Better strength and grip | Suitable for finer adjustments |
- BSW threads provide strong connections for heavy-duty work.
- BSF threads offer precision for machine tools and fine adjustments.
- Both standards improve compatibility and interchangeability in engineering.
BSW and BSF thread standards remain important for anyone working with legacy equipment or restoring vintage machinery. Understanding their history, profiles, and key features helps engineers and hobbyists choose the right fastener for every job.
Dimensions
Understanding the dimensions of screw threads helps engineers and technicians select the right fastener for each job. BSW and BSF thread standards each have their own set of measurements that define how the threads fit and perform.
BSW Thread Chart

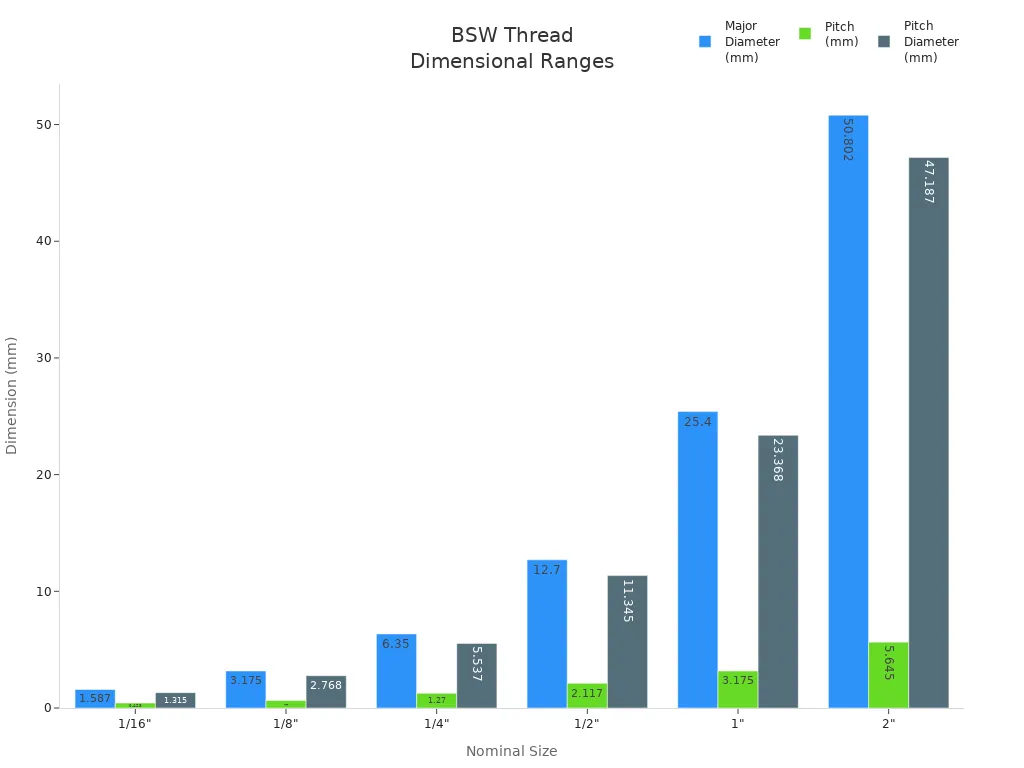

The British Standard Whitworth (BSW) thread uses a coarse pitch and a 55-degree thread angle. The table below shows common BSW thread sizes, including major diameter, pitch, threads per inch, pitch diameter, minor diameter, thread height, and recommended tap drill diameter.
| Nominal Size | Major Diameter (mm) | Pitch (mm) | Threads per inch (tpi) | Pitch Diameter (mm) | Minor Diameter Male Thd. (mm) | Thread Height (mm) | Tap Drill Diameter (mm) |
|---|---|---|---|---|---|---|---|
| 1/16″ | 1.587 | 0.423 | 60 | 1.315 | 1.050 | 0.270 | 1.15 |
| 1/8″ | 3.175 | 0.635 | 40 | 2.768 | 2.362 | 0.406 | 2.50 |
| 1/4″ | 6.350 | 1.270 | 20 | 5.537 | 4.724 | 0.813 | 5.10 |
| 1/2″ | 12.700 | 2.117 | 12 | 11.345 | 9.990 | 1.355 | 10.40 |
| 1″ | 25.400 | 3.175 | 8 | 23.368 | 21.335 | 2.033 | 22.00 |
| 2″ | 50.802 | 5.645 | 4 1/2 | 47.187 | 43.573 | 3.614 | 44.50 |
Engineers often use these charts to match the correct tap drill size with the thread size. This helps ensure a strong and reliable connection.
BSF Thread Chart
British Standard Fine (BSF) threads use the same 55-degree angle as BSW but have a finer pitch. This means the threads are closer together, which allows for more precise adjustments. The table below lists typical BSF thread sizes and their main dimensions.
| Nominal Size | Major Diameter (mm) | Pitch (mm) | Threads per inch (tpi) | Pitch Diameter (mm) | Minor Diameter Male Thd. (mm) | Thread Height (mm) | Tap Drill Diameter (mm) |
|---|---|---|---|---|---|---|---|
| 3/16″ | 4.699 | 0.794 | 32 | 4.318 | 3.886 | 0.318 | 4.00 |
| 1/4″ | 6.350 | 0.794 | 26 | 5.969 | 5.537 | 0.381 | 5.20 |
| 5/16″ | 7.938 | 0.794 | 22 | 7.557 | 7.125 | 0.406 | 6.80 |
| 3/8″ | 9.525 | 0.794 | 20 | 9.144 | 8.712 | 0.406 | 8.10 |
| 1/2″ | 12.700 | 1.058 | 16 | 12.192 | 11.684 | 0.508 | 11.00 |
| 3/4″ | 19.050 | 1.337 | 12 | 18.415 | 17.780 | 0.635 | 17.00 |
BSF threads appear most often in precision machinery and automotive applications. The finer pitch helps prevent loosening from vibration.
BSW and BSF thread standards provide clear guidelines for thread dimensions. These charts help users identify the right fastener for each application and avoid costly mistakes.
Applications
BSW Uses
Engineers have relied on BSW threads for many years in a wide range of fields. These threads first appeared in general mechanical engineering, especially in the United Kingdom and Commonwealth countries. Builders often chose BSW fasteners for their strength and reliability in building structures. The automotive industry also adopted BSW threads for early vehicles, while the aerospace sector used them in some historical designs. Stage lighting professionals continue to use specific BSW sizes, such as ⅜″ and ½″, to suspend lighting equipment safely.
| Application Context | Description |
|---|---|
| General Mechanical Engineering | BSW threads were widely used in general mechanical engineering, particularly in the UK. |
| Building Structures | They were also utilized in building structures, showcasing their strength and reliability. |
| Automotive Industry | BSW threads evolved into applications within the automotive sector. |
| Aerospace Industry | Their use extended to aerospace applications, highlighting their versatility. |
| Stage Lighting | Specific sizes like ⅜″ and ½″ BSW are used for suspending stage lighting in various countries. |
BSW threads remain important for restoration projects and for maintaining legacy equipment.
BSF Uses
BSF threads serve a different set of needs. Classic British motorcycles and cars, such as Triumph, Norton, Rolls-Royce, and Jaguar, often use BSF fasteners. Engineers choose BSF threads for precision fasteners in British-manufactured equipment. The railway and shipbuilding industries rely on BSF threads for legacy systems. Heavy-duty industrial applications benefit from the better thread engagement that BSF provides. Older British aviation designs also feature BSF threads in their components.
| Application | Industry |
|---|---|
| Vintage British motorcycles and cars | Classic vehicles (e.g., Triumph, Norton, Rolls-Royce, Jaguar) |
| Engineering & precision fasteners | British-manufactured equipment |
| Railway & shipbuilding industries | Legacy systems requiring BSF fasteners |
| Heavy-duty industrial applications | Better thread engagement than BSW |
| Aerospace components (historical use) | Older British aviation designs |
Industry Examples
Many industries still use BSW and BSF thread standards today. Marine engineers have found Whitworth threads on Royal Navy gunboats, such as the SS Xantho. British railway companies adopted BSW threads to standardize manufacturing. The Leica Thread-Mount on rangefinder cameras uses Whitworth threads for lens attachment. Meccano construction sets, especially those made by the French Meccano Company, use 5/32 in Whitworth threads as a standard. Garden gates in the UK and Australia often use Whitworth carriage bolts for secure fixing.
| Industry/Application | Example of BSW/BSF Use |
|---|---|
| Marine Engineering | Royal Navy’s Crimean War gunboats used Whitworth threads, as shown in the disassembly of the SS Xantho. |
| Railway Companies | British railway companies adopted BSW for standardization in manufacturing specifications. |
| Photography | Leica Thread-Mount on rangefinder cameras uses Whitworth threads. |
| Meccano Construction | 5/32 in Whitworth threads are the standard for Meccano, still used by the French Meccano Company. |
| Garden Gates | Whitworth carriage bolts are traditionally used for fixing garden gates in the UK and Australia. |
BSW and BSF thread standards continue to play a role in both restoration and specialized modern applications.
Comparison and Interchangeability
Differences in BSW and BSF Thread Standards
BSW and BSF thread standards both use the imperial measurement system and a 55-degree thread angle, but they serve different purposes in engineering. BSW threads have a coarse pitch, which means the threads are spaced farther apart. This design gives BSW fasteners more strength for general use, especially in heavy machinery and construction. BSF threads use a finer pitch, so the threads are closer together. This feature allows for more precise adjustments and makes BSF fasteners suitable for high-stress applications, such as automotive and aerospace work.
The table below highlights the main differences:
| Thread Standard | Thread Pitch | Diameter | Mechanical Performance |
|---|---|---|---|
| BSW | Coarse | Imperial | Standard for general use |
| BSF | Fine | Imperial | Used for high-stress applications |
BSW threads provide better grip in softer materials and resist stripping under heavy loads. BSF threads, with their finer pitch, offer greater holding power in harder materials and allow for more accurate tensioning. Engineers select between these standards based on the required strength, precision, and the type of material involved.
Compatibility with Other Threads
Thread compatibility is a critical factor in engineering and maintenance. BSW and BSF thread standards share some similarities with other thread types, but important differences can cause problems if users attempt to interchange them.
The following table compares BSW, BSPT, and UNC threads:
| Thread Type | Thread Angle | Tapered | Profile Characteristics |
|---|---|---|---|
| BSW | 55° | No | Rounded crest and root |
| BSPT | 55° | Yes | Tapered |
| UNC | 60° | No | Different profile |
- BSW and BSPT both use a 55-degree thread angle, but BSW is straight while BSPT is tapered for pipe fittings.
- UNC threads have a 60-degree angle and a different profile, making them incompatible with BSW and BSF.
- Even when thread pitches seem similar, mismatched fittings can lead to poor engagement or damage.
Compatibility issues often arise when users try to substitute BSW or BSF fasteners with UNC or metric threads. The differences in thread angle and profile can cause cross-threading or weak joints. Fine threads, like those in BSF, increase the risk of cross-threading during assembly. Damaged threads can compromise the strength and safety of the connection, especially in high-stress or high-frequency applications.
The table below summarizes the main limitations and risks:
| Thread Type | Characteristics | Compatibility Issues |
|---|---|---|
| BSW | 55-degree thread angle, general-purpose fastening | Compatibility issues with metric systems, often found in older machinery |
| BSF | Finer pitch, suited for precise adjustments | Same compatibility issues as BSW, used in automotive and aerospace industries |
| BSP | Common in pipe fittings and hydraulic systems | Compatibility issues with metric systems |
⚠️ Tip: Always check the thread type and profile before replacing or mixing fasteners. Using the wrong thread can damage parts and create safety hazards.
BSW and BSF thread standards remain important for legacy equipment and restoration projects. However, users must understand their differences and compatibility limits to ensure safe and reliable assemblies.
BSW and BSF thread standards differ in pitch, application, and precision. Selecting the right thread ensures strong, safe connections and avoids costly failures. Engineers should consider these key points:
- Application needs—coarse or fine threads.
- Industry standards and compatibility.
- Regional preferences.
| Tool | Usage Description |
|---|---|
| Thread Pitch Gauge | Measures thread pitch for accurate identification. |
| Thread Plug Gauge | Checks internal threads for correct fit. |
Careful identification and selection protect equipment and maintain safety.
FAQ
What is the main difference between BSW and BSF threads?
BSW threads have a coarse pitch, while BSF threads use a finer pitch. This difference affects their strength and precision. BSW works best for heavy-duty tasks. BSF fits applications that need more accuracy.
Can BSW and BSF fasteners be used together?
Mixing BSW and BSF fasteners is not recommended. Their pitches differ, so they do not fit together properly. Using the wrong combination can damage threads or cause loose connections.
Are BSW and BSF threads still used today?
Many industries still use BSW and BSF threads for maintaining old equipment or restoring vintage machinery. Modern designs usually use metric or unified threads, but these British standards remain important for legacy systems.
How can someone identify a BSW or BSF thread?
| Tool | Purpose |
|---|---|
| Thread pitch gauge | Measures thread spacing |
| Caliper | Checks major diameter |
A person can use these tools to compare measurements with standard charts and identify the thread type.
