You need to know how to calculate the weight of stainless steel plates and tubes. This helps make shipping safe and building things reliable. If you make mistakes in calculating the weight, it can cost more money. It can also cause problems with shipping and arguments about quality. To find the weight, you must get measurements. These are thickness, width, length, diameter, and density. The formulas below help you find the volume and weight for different shapes:
| Formula Type | Formula |
|---|---|
| Weight Calculation | Weight (kg) = Thickness (mm) × Width (m) × Length (m) × 8.0 |
| Volume of Rectangular | Volume = Length × Width × Thickness |
| Volume of Round Bar | Volume = π × (Diameter ÷ 2) × (Diameter ÷ 2) × Length |
| Volume of Square Tube | Volume = (Width – Wall thickness) × Wall Thickness × 4 × Length |
| Volume of Round Tube | Volume = (Outer Diameter – Wall thickness) × Wall Thickness × π × Length |
You will follow steps one by one and see real examples. The process is simple and not hard to learn.
Key Takeaways
- It is very important to measure things right. Always check the length, width, thickness, and diameter with care so you do not make mistakes.
- Use the right density for your stainless steel grade. Most grades have a density close to 8,000 kg/m³, but you should always check to be sure.
- Follow steps one by one when you do the math. This means you need to measure, use the right formulas, and check your math again.
- Use tables and online calculators to get weight estimates fast. These tools help you save time and make fewer mistakes.
What You Need for Weight Calculation
Essential Measurements
You must get the right measurements before you start. These measurements help you find the correct weight. If you make mistakes, you can get the wrong answer. Engineers use standard measurements to check quality. For square tubes, measure length, width, and height. For plates, measure thickness, width, and length. For round tubes, measure the outer diameter and wall thickness.
| Measurement | Description |
|---|---|
| Length | The total length of the stainless steel square tube. |
| Width | The width of one side of the square tube, measured perpendicular to the length. |
| Height | The height of the square tube, the distance between the two parallel sides, measured perpendicular to both length and width. |
You also need to check thickness and diameter. Manufacturers set limits for these measurements. Small changes in thickness or diameter can change the weight. Cast or powder parts may have lower density because of tiny holes inside. Surface coatings add extra weight, so include them in your math.
Tip: Always use a good ruler or caliper to measure each part. Check your numbers twice to stop mistakes.
Stainless Steel Density
Density shows how heavy something is for its size. Stainless steel has a standard density, but it can change with the grade. Most grades have density close to 8,000 kg/m³. You use this number in your formula to find the weight. Stainless steel density is usually between 7,500 kg/m³ and 8,050 kg/m³. Grades 304 and 316 are common for plates and tubes. These grades have density near 8,000 kg/m³.
| Stainless Steel Grade | Density (kg/m³) |
|---|---|
| 304 | ~7,930–8,000 |
| 316 | ~7,980–8,030 |
| 430 | ~7,700–7,850 |
| 410 | ~7,750–7,800 |
| 2205 | ~7,800–7,850 |
You can see how different grades have different density. The chart below shows the density for popular grades:
If you want to find the weight for a special grade, check its density first. Most projects use the standard value, but always check the grade and density before you begin.
How to Calculate the Weight of Stainless Steel Plates
Plate Weight Formula
You can calculate the weight of a stainless steel plate using a simple formula. This formula uses the plate’s thickness, width, length, and the density of stainless steel. You need to make sure all your measurements use the same unit system. Most people use meters for length, width, and thickness, and kilograms per cubic meter for density.
- Weight (kg) = Width (m) × Length (m) × Thickness (m) × Density (kg/m³)
You can also use inches for your measurements. In that case, the formula looks like this:
- Weight = Width × Length × Thickness × 0.2836 (when all measurements are in inches)
The thickness, width, and length all affect the final weight. If you increase any of these, the plate will weigh more. The density depends on the grade of stainless steel you use. Most grades have a density close to 8,000 kg/m³.
Tip: Always check the density for your specific stainless steel grade before you calculate the weight.
Step-by-Step Process
You can follow these steps to calculate the weight of a stainless steel plate:
- Measure the length, width, and thickness of the plate. Use a ruler or caliper for accuracy.
- Make sure all your measurements use the same unit system. For example, use meters for length, width, and thickness.
- Find the density of your stainless steel grade. You can look this up in a table or ask your supplier.
- Use the formula: Weight = Length × Width × Thickness × Density.
- Multiply the numbers together to get the weight.
- Double-check your math and make sure your units match.
Note: If you use millimeters for thickness, you must convert it to meters before using the formula.
Example Calculation
Let’s look at two examples to see how you can calculate the weight of a stainless steel plate.
- Example 1: 304 Stainless Steel Plate
- Width: 1.5 m
- Length: 6 m
- Thickness: 3 mm (0.003 m)
- Density: 7,930 kg/m³
Weight = 1.5 m × 6 m × 0.003 m × 7,930 kg/m³ = 0.027 m³ × 7,930 kg/m³ = 214.11 kg - Example 2: 410 Stainless Steel Plate
- Width: 1 m
- Length: 2 m
- Thickness: 10 mm (0.01 m)
- Density: 7,750 kg/m³
Weight = 1 m × 2 m × 0.01 m × 7,750 kg/m³ = 0.02 m³ × 7,750 kg/m³ = 155 kg
You can see that changing the thickness, width, or length will change the final weight. Always use the correct density for your stainless steel grade. If you want to calculate the weight for a different size or grade, just plug your numbers into the formula.
Remember: Accurate measurements and the right density help you calculate the weight correctly every time.
How to Calculate the Weight of Stainless Steel Tubes
Tube Weight Formula
You can calculate the weight of a stainless steel tube by using a standard formula. This formula uses the tube’s outer diameter, wall thickness, length, and the density of stainless steel. You need to measure these values carefully because small errors can change the result. The most common formula for round tubes looks like this:
- Weight (kg) = π/4 × (Outer Diameter² − Inner Diameter²) × Length × Density
You can also use a simplified formula for quick estimates:
- Weight (kg/m) = (Outer Diameter (mm) − Wall Thickness (mm)) × Wall Thickness (mm) × 0.0248
The table below shows formulas for different stainless steel shapes. For tubes, focus on the round bar and flat stainless steel formulas:
| Type of Stainless Steel | Calculation Equation | Meaning of Symbol |
|---|---|---|
| Round Stainless Steel Bull rod | W = 0.0062278 × d² | d = diameter in mm |
| Flat Stainless Steel | W = 0.00793 × b × d | b = width in mm, d = thickness in mm |
| Square bar | W = 0.00793 × a² | a = width of the edge in mm |
Note: Always use the correct units for each value. Double-check your measurements before you calculate the weight.
Step-by-Step Process
You can follow these steps to calculate the weight of a stainless steel tube:
- Measure the outer diameter (OD), wall thickness (WT), and length (L) of the tube. Use a caliper for the most accurate results.
- Calculate the inner diameter (ID) by subtracting twice the wall thickness from the outer diameter.
- ID = OD − 2 × WT
- Convert all measurements to meters if you use the standard formula. For the simplified formula, keep measurements in millimeters.
- Find the density of your stainless steel grade. Most grades use a density close to 7,930 kg/m³.
- Use the formula:
- Volume = π/4 × (OD² − ID²) × Length
- Weight = Volume × Density
- Multiply the numbers together to get the weight.
- Check your math and make sure your units match.
The outer diameter, wall thickness, and length all affect the final weight. If you increase any of these, the tube will weigh more. Accurate measurements are important because even small changes can make a big difference in the total weight.
Tip: Always measure twice and write down your numbers before you start to calculate the weight.
Example Calculation
Let’s look at a real-world example to see how you can calculate the weight of a stainless steel tube.
| Parameter | Value |
|---|---|
| Pipe length | 3 m |
| Outer diameter | 0.200 m |
| Wall thickness | 6 mm (0.006 m) |
| Outer radius (rₒ) | 0.100 m |
| Inner radius (rᵢ) | 0.094 m |
| Density (304) | 7,930 kg/m³ |
Step 1: Find the inner radius.
- Inner radius = Outer radius − Wall thickness
- Inner radius = 0.100 m − 0.006 m = 0.094 m
Step 2: Calculate the volume.
- Volume = π × (Outer radius² − Inner radius²) × Length
- Volume = 3.1416 × (0.100² − 0.094²) × 3
- Volume = 3.1416 × (0.01 − 0.008836) × 3
- Volume = 3.1416 × 0.001164 × 3
- Volume ≈ 0.01098 m³
Step 3: Calculate the weight.
- Weight = Volume × Density
- Weight = 0.01098 m³ × 7,930 kg/m³
- Weight ≈ 87.1 kg
You can see that the tube’s outer diameter, wall thickness, and length all play a big role in the final weight. If you want to calculate the weight for a different tube, just change the numbers in the formula.
Remember: Always use the correct density for your stainless steel grade. Accurate measurements help you get the right answer every time.
If you want to use the simplified formula for a quick estimate, try this example:
- Outer diameter: 60 mm
- Wall thickness: 4 mm
- Length: 2 m
- Weight per meter = (60 − 4) × 4 × 0.0248
- Weight per meter = 56 × 4 × 0.0248
- Weight per meter = 224 × 0.0248
- Weight per meter ≈ 5.56 kg/m
- Total weight = 5.56 kg/m × 2 m = 11.12 kg
This method gives you a fast way to calculate the weight when you need a quick answer.
Use these steps and formulas to calculate the weight of any stainless steel tube. Practice with different sizes to get comfortable with the process.
Common Mistakes and Tips
Frequent Errors
Mistakes can happen when you calculate the weight of stainless steel plates and tubes. These mistakes can cause trouble for your project. You should know what to watch out for. The table below lists common errors and explains why they matter:
| Mistake | Explanation |
|---|---|
| Ignoring Decimal Thickness Measurements | If you miss decimal thickness, you might pick the wrong material. This can make your weight calculation wrong. |
| Overlooking Material Tolerances | If you skip tolerances, parts might not fit together. This changes both weight and strength. |
| Selecting the Wrong Gauge for the Project | If you pick the wrong gauge, your project might not work right. The weight and how it works will change. |
| Forgetting to Verify Thickness During Fabrication | If you do not check thickness while making parts, you can end up with the wrong weight. |
Tip: Always check your measurements and tolerances before you start your math.
Practical Advice
You can follow easy steps to get the right weight. These tips help you avoid mistakes and save time.
- Use a digital scale to measure weight. This gives you the best result.
- Measure length, width, and thickness with a digital caliper. You get exact numbers each time.
- Use a weight calculator made for stainless steel square tubes. This tool helps you stop errors.
- Density is important. Make sure you know the density for your stainless steel grade.
- Change all your sizes to the same unit before you do your math. This stops confusion.
- Make sure your units match. If you use millimeters for thickness, use millimeters for other sizes.
- Double-check your numbers before you finish your math.
- Learn the density of stainless steel.
- Know the size of your plate or tube.
- Make sure all your units are the same for your math.
🛠️ If you follow these steps, you can avoid mistakes and get the right weight every time.
Reference Table
You can use reference tables to find the weight of stainless steel plates and tubes quickly. These tables help you save time and avoid mistakes. Many people in the industry use them every day.
Plate Weights
You will find several tables that list the weight of stainless steel plates by thickness and size. These tables use standard sizes and show the weight per square meter. You can check the table below for common plate sizes and their weights:
| Thickness (mm) | Size (mm) | Weight (kg/m²) |
|---|---|---|
| 0.18 | 2000 x 1000 | 2.88 |
| 0.20 | 2000 x 1000 | 3.20 |
| 0.22 | 2000 x 1000 | 3.52 |
| 0.24 | 2000 x 1000 | 3.84 |
| 0.27 | 2000 x 1000 | 4.32 |
| 0.50 | 2500 x 1250 | 4.00 |
| 1.00 | 3000 x 1500 | 8.00 |
| 2.00 | 3000 x 1500 | 16.00 |
| 3.00 | 3000 x 1500 | 24.00 |
| 5.00 | 3000 x 1500 | 40.00 |
You can use these numbers to estimate the total weight for your project. Always check the thickness and size before you choose a plate.

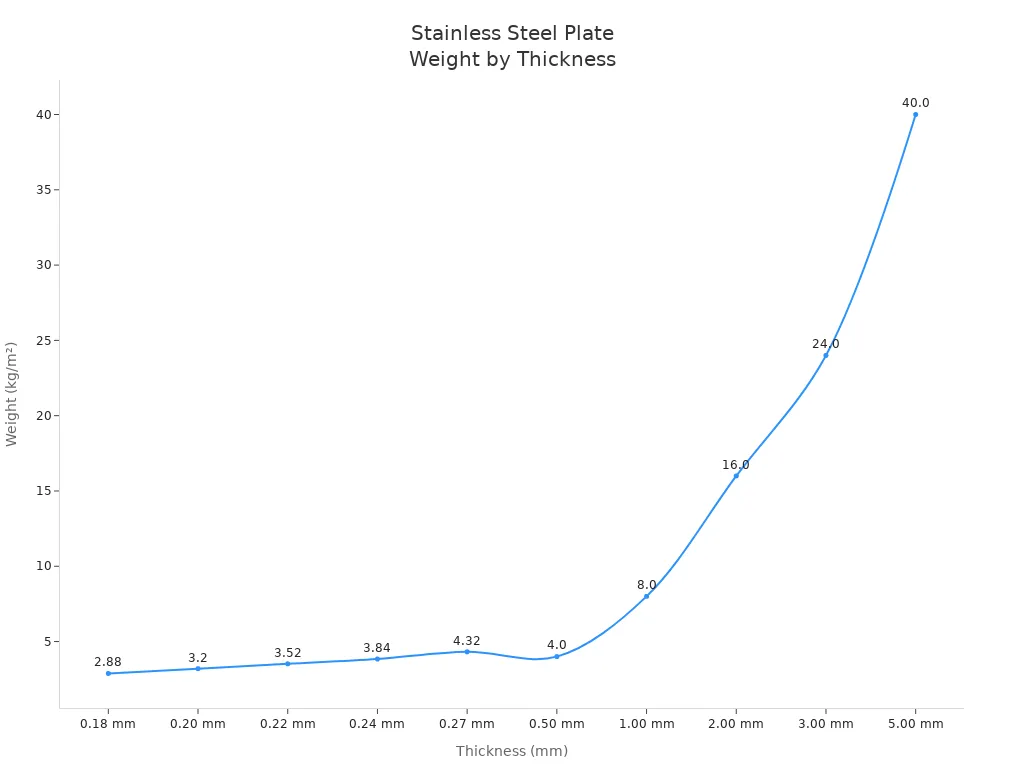

You can also see how the weight changes with thickness in this chart:
Some common reference tables include AISI Steel Code Tables, Metric Metal Stainless Steel Plate charts, and Sheet Metal Thickness Standards. These resources help you find the right information fast.
Tube Weights
You can also use tables to find the weight of stainless steel tubes. These tables list tube sizes, wall thickness, and weight per foot. Here is a sample table for quick reference:
| Tube Dimensions (inches) | Weight (lbs/ft) |
|---|---|
| 1x1x0.065 | 0.613 |
| 1.5×1.5×0.083 | 1.021 |
| 2x2x0.120 | 2.356 |
| 3x3x0.188 | 5.654 |
You can also check standard pipe sizes and wall thickness in this table:
| NPS (inches) | OD (inches) | Schedule | WT (inches) | ID (inches) |
|---|---|---|---|---|
| 1/2 | 0.840 | 40 | 0.109 | 0.622 |
| 1 | 1.315 | 40 | 0.133 | 1.049 |
| 2 | 2.375 | 40 | 0.154 | 2.067 |
| 4 | 4.500 | 40 | 0.237 | 4.026 |
| 6 | 6.625 | 40 | 0.280 | 6.065 |
| 8 | 8.625 | 40 | 0.322 | 8.071 |
| 12 | 12.750 | 40 | 0.375 | 12.000 |
You can use these tables to compare different tube sizes and pick the best one for your needs.

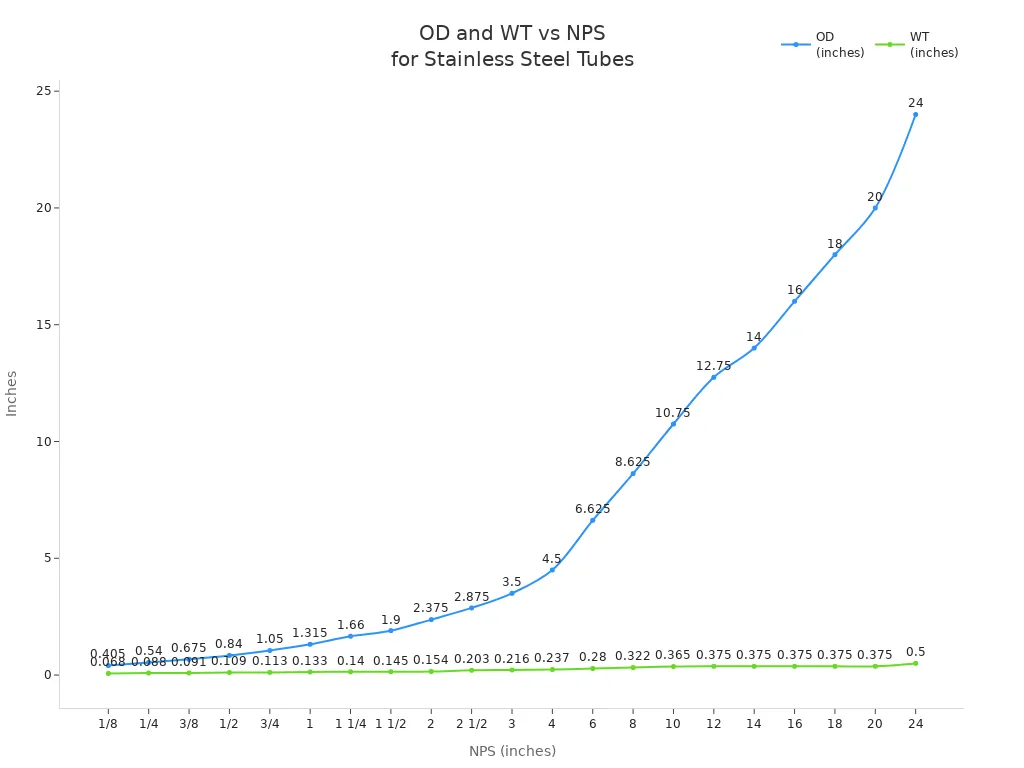

Here is a chart that shows how tube size and wall thickness change with nominal pipe size:
If you want a fast answer, you can use online calculators. These tools let you enter the tube size and get the weight right away.
You can find the weight of stainless steel plates and tubes by doing a few easy steps. First, measure the length, width, thickness, and diameter. Next, use the formulas to figure out the weight using volume and density. Make sure you check the material grade and standard sizes.
The formulas help everyone do this easily. You only need simple measurements. Step-by-step methods make it clear and remove guessing. Example calculations show how to use the formulas.
Quick reference tables and online calculators give fast and correct answers. They help you save time and stop mistakes.
| Advantage | Description |
|---|---|
| Speed and Efficiency | Get answers fast without doing math by hand. |
| Precision | Avoid errors with built-in density values. |
| Accessibility | Use on any device, great for work outside. |
Do you have questions or want to share your story? Please leave a comment below!
FAQ
How do you convert millimeters to meters for weight calculations?
You change millimeters to meters by dividing by 1,000. For example, 5 mm divided by 1,000 is 0.005 m. This makes sure you use the right units in your math.
Can you use online calculators for stainless steel weight?
You can use online calculators to find the weight. These tools let you type in your measurements and get the answer fast. Always check that the calculator uses the correct density for your stainless steel grade.
What happens if you use the wrong density?
Using the wrong density gives you the wrong weight. This can cause trouble with shipping, prices, or fitting parts together.
Do surface coatings affect the weight?
Surface coatings make the item heavier. You should measure the coating thickness and add it to your numbers. This helps you get the total weight right.
