The density of stainless steel 316L is about 7,980 kg/m³. This feature is important when picking and using materials. Knowing the density helps understand how the material acts under pressure. For example:
- The shape and density of 3D-printed stainless steel 316L affect its strength.
- Tiny holes inside can make tests and simulations less accurate.
- The built shape gives results closer to real-life behavior than the planned shape.
Knowing the density helps you guess performance and pick materials better.
Key Takeaways
- Stainless steel 316L has a density of about 7,980 kg/m³. This helps us understand its strength and how it works.
- Density shows how materials act under pressure. It is important for picking the right materials for projects.
- Temperature changes 316L’s density. Heat makes it less dense, and cold makes it denser. This matters in extreme weather.
- Making methods like Selective Laser Melting can cause flaws. These flaws lower density and weaken the final product.
- Stainless steel 316L is strong and resists rust. It is great for marine, medical, and power industries.
Understanding the Density of Stainless Steel
What is Density?
Density means how much mass fits in a certain space. It is a basic property in material science. People measure it in grams per cubic centimeter (g/cm³) or kilograms per cubic meter (kg/m³). The formula to find density is:
[ \rho = \dfrac{m}{V} ]
Here, (\rho) is density, (m) is mass, and (V) is volume. Different grades of stainless steel have different densities. For example, stainless steel 316L has a density of about 7.98 g/cm³. This is a bit more than grade 430, which is 7.7 g/cm³. Below is a table showing the density of various grades:

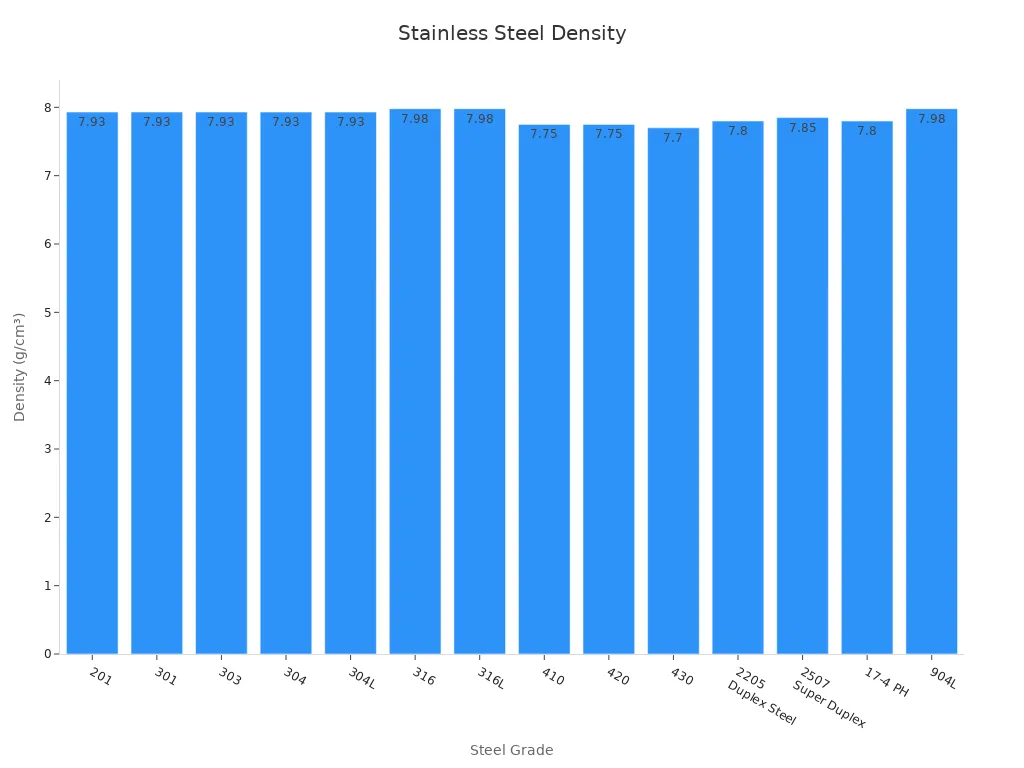

| Stainless Steel Grade | Density (g/cm³) |
|---|---|
| 201 | 7.93 |
| 301 | 7.93 |
| 303 | 7.93 |
| 304 | 7.93 |
| 304L | 7.93 |
| 316 | 7.98 |
| 316L | 7.98 |
| 410 | 7.75 |
| 420 | 7.75 |
| 430 | 7.7 |
| 2205 (Duplex Steel) | 7.8 |
| 2507 (Super Duplex) | 7.85 |
| 17-4 PH | 7.8 |
| 904L | 7.98 |
Why Density Matters in Material Science
The density of stainless steel is very important in material science. It affects the weight, strength, and how well the material works. Higher density often means stronger and tougher materials. These are good for heavy-duty uses. Lower density materials are better for lightweight designs.
Density also changes how materials act in different situations. For example:
- Composition: Adding nickel makes density higher, but holes lower it.
- Temperature: Hotter materials have lower density, while pressure increases it.
- Applications: Machine learning uses density to predict material behaviors.
Knowing about density helps you pick the right material. Whether you need something light or strong, density is a key detail to think about.
Density of Stainless Steel 316L
Exact Value and Units of Measurement
Stainless steel 316L has a density of about 7,980 kg/m³. This can also be written as 8.0 g/cm³ or 0.289 lb/in³. Density shows how much mass fits into a certain space. It is important for knowing how the material will act in different uses. For example, when making strong or light parts, density helps you calculate weight and strength correctly.
The density of 316L stays steady under normal conditions. But heat or pressure can change it a little. Engineers use this exact value to make sure designs are safe and work well. Whether you use metric or imperial units, knowing the density helps you pick the right material.
Comparison with Other Stainless Steel Grades
The density of 316L is slightly higher than some other grades. For instance, grades 304 and 304L have a density of 7.93 g/cm³. Grade 430 is even lighter, with a density of 7.7 g/cm³. These differences come from the mix of metals like nickel and molybdenum in each grade.
Studies have compared how different grades are made and their density. One study looked at how selective laser melting (SLM) affects density and structure. It used 47 tests and image analysis to check strength and density. The study found that SLM-made parts had more defects, like tiny holes, which changed their density and strength. This shows how making methods affect material properties.
Here’s a quick look at the study:
| Aspect | Description |
|---|---|
| Study Focus | How SLM changes structure and material properties |
| Statistical Methods | Tensile tests and image analysis to check density and strength |
| Sample Size | 47 tests to gather enough data |
| Key Findings | Defects like pores lower density and strength |
Knowing these differences helps you pick the best stainless steel for your needs. If you need strong and rust-resistant material, 316L is a good choice. For lighter projects, grade 430 might work better.
Factors That Change the Density of Stainless Steel 316L
How Composition Affects Density
The mix of metals in 316L changes its density. This grade includes iron, chromium, nickel, and molybdenum. Each metal affects the density differently. Nickel and molybdenum make it heavier because they weigh more. Small amounts of carbon don’t change the density much.
The balance of these metals also changes how 316L works. More nickel makes it resist rust better but adds weight. Molybdenum makes it stronger and stops pitting but increases density. Knowing this balance helps pick the right material for your needs.
How Temperature Changes Density
Heat and cold can change 316L’s density. When heated, it expands, making the density lower. When cooled, it shrinks, making the density higher. This is important for industries like aerospace or chemical plants.
For example, in hot places, lower density can weaken the material. Engineers choose 316L because it stays stable in heat. Knowing how heat changes density helps ensure the material works well in tough conditions.
How Manufacturing Affects Density
How 316L is made changes its density a lot. Methods like Selective Laser Melting (SLM) can create tiny holes, lowering density. The size of metal powder grains used in SLM matters. Small grains fill gaps between big ones, making it denser.
Other factors like laser speed and layer thickness also matter. Slower lasers and thinner layers make denser parts. Studies show high energy levels, over 65 J/mm³, create dense parts above 99.73%. But wrong energy levels can cause defects, making parts weaker.
By adjusting how 316L is made, you can get the right density. This ensures the material works as needed for your project.
Importance of the Density of Stainless Steel 316L
Impact on Weight and Design
The density of stainless steel 316L affects weight and design. It helps calculate structure weight accurately for safety. In bridges or buildings, density spreads weight evenly. This stops stress buildup and prevents damage.
A study on diabetic shoe insoles shows density’s role in weight spread. It found that insole density changes energy absorption and pressure. Engineers used computer models to test how density affects pressure. This proves density impacts design and performance.
Effect on Cost Choices
The density of stainless steel affects its cost. Heavier materials need more raw material, raising costs. Stainless steel 316L balances strength and weight, making it affordable. For lighter designs, grades like 430 save money with lower density.
Making methods also change density and cost. Processes like laser melting make denser parts but cost more. Knowing how density links to cost helps you plan within your budget.
Role in Performance and Use
The density of stainless steel 316L improves its strength and durability. This makes it great for tough jobs like marine or chemical uses. Its density also resists rust and stress.
Density affects energy use too. In aerospace, higher density may use more fuel. But 316L’s strength often outweighs this issue. By thinking about density, you can pick materials that fit your needs.
Applications of Stainless Steel 316L
Industries That Use Stainless Steel 316L
Stainless steel 316L is used in many industries. Its density, rust resistance, and strength make it valuable. Below is a table showing industries, uses, and benefits of 316L:
| Industry | Examples of Use | Benefits of 316L Stainless Steel |
|---|---|---|
| Pharmaceutical, Medical & Food | Surgical tools, implants, mixing tanks, food equipment | Safe for the body, easy to clean, rust-resistant, FDA-approved |
| Marine | Boat parts, pumps, valves, seawater filters, offshore rigs | Resists salt damage, lasts long in seawater, low upkeep |
| Power Generation | Nuclear reactors, turbines, heat exchangers, pressure tanks | Handles heat well, resists rust, stays strong under stress |
These industries depend on 316L’s density for good performance. For example, its high density makes it strong enough for nuclear reactors or offshore rigs.
Other fields also use 316L often. Planes use it for exhaust parts and sensors. Medical devices use it because it’s safe for the body. Green energy projects, like hydrogen pipes and water plants, rely on its rust resistance and strength.
How Density Affects Real-World Uses
The density of stainless steel 316L affects how it works in real life. Its high density makes it strong and long-lasting. In marine areas, it resists saltwater damage. This lowers repair costs and helps parts like pumps last longer.
In engineering, density affects how materials behave. Studies show that 316L’s density changes its strength. For example, parts made vertically are 60% stronger than horizontal ones. This shows how density impacts 316L’s toughness in real use.
New technologies also benefit from 316L’s density. It’s used in making computer chips and water plants. Its density helps it stay strong under high pressure. By knowing how density works, you can choose 316L for tough and reliable jobs.
The density of stainless steel 316L is very important. It helps decide weight, cost, and how it performs. This property shows how the material will act in different uses. For example, comparing aluminum (2.7 g/cm³) and steel (7.85 g/cm³) shows how density matters for choosing materials:
| Material | Density (g/cm³) | Where It’s Used |
|---|---|---|
| Aluminum | 2.7 | Light designs |
| Steel | 7.85 | Strong and balanced structures |
Knowing the density of stainless steel 316L helps you choose better. It ensures good results in engineering and design work.
FAQ
1. Why is the density of stainless steel 316L important?
The density of stainless steel 316L helps measure weight and strength. It ensures safe designs for machines and structures. Knowing the density helps pick the right material for jobs. It balances cost, durability, and performance.
2. Does temperature affect the density of stainless steel 316L?
Yes, temperature changes the density of 316L. Heat makes it expand, lowering its density. Cold makes it shrink, raising the density. This is important in industries like aerospace and chemical plants. These places deal with extreme heat or cold.
3. How does 316L compare to other stainless steel grades in density?
Stainless steel 316L has a density of 7.98 g/cm³. This is slightly higher than grades like 304 (7.93 g/cm³) or 430 (7.7 g/cm³). The difference comes from its mix of metals. Nickel and molybdenum make it heavier but resist rust better.
4. Can manufacturing processes change the density of 316L?
Yes, how 316L is made can change its density. Methods like Selective Laser Melting (SLM) may create tiny holes. These holes lower the density. Adjusting laser speed and energy can make denser, stronger materials.
5. What industries benefit most from stainless steel 316L?
Marine, medical, and power industries use 316L often. Its density gives it strength and rust resistance. For example, it handles saltwater in marine jobs. It also works well under high pressure in nuclear reactors, staying safe and strong.
Tip: Always think about material density when designing for weight or stress.
