When you look at Class 300 vs Class 600 flanges, you notice big differences. They can handle different amounts of pressure, and their designs are not the same. You use them in different places, making it important to pick the right flange. It is not just about making it fit; the right flange keeps your system safe and helps you follow the rules. Most companies use Class 300 for medium pressure jobs, while they use Class 600 for high-pressure jobs like oil and gas. The table below shows how each type is used:
| Flange Class | Pressure Rating | Typical Applications | Industry Usage |
|---|---|---|---|
| Class 300 | Medium Pressure | Chemical, Petrochemical | Versatile and cost-effective choice |
| Class 600 | High Pressure | Oil & Gas, Power Generation | Critical for safety in high-pressure systems |
You keep your equipment safe when you pick the right class, whether it’s Class 300 vs Class 600 flanges, and you also follow safety rules.
Key Takeaways
- Class 300 flanges work well for medium pressure. Class 600 flanges are made for high pressure jobs. Pick the flange that fits your system’s pressure.
- Always look at the pressure and temperature ratings first. This keeps your system safe. It also helps stop leaks in your pipes.
- Class 600 flanges have thicker bodies. They also use more bolts than Class 300 flanges. This makes them stronger for high-pressure work.
- Use ASME B16.5 standards when picking flanges. These rules help you choose the right type, size, and material.
- Using the wrong flange class can cause leaks. It can also make your system fail. Always match the flange class to your needs.
What Does Class 300 Flange Mean?
When you work with piping, you see “Class 300 flange” a lot. This flange connects pipes, valves, and other equipment together. It is special because it handles medium pressure. You find it in places like chemical plants and refineries. The American Society of Mechanical Engineers (ASME) makes the rules for these flanges. These rules help keep your system safe and working well.
A Class 300 flange has some important things to know. You can look at the table below to see the main features:
| Characteristic | Description |
|---|---|
| Pressure Rating | Works for medium pressure systems, usually 150 to 300 psi. |
| Materials | Made from things like carbon steel and stainless steel. |
| Sealing Performance | Built to seal well and stop leaks. |
| Installation and Maintenance | Has standard sizes for easy setup and swapping parts. |
You might ask how much pressure a Class 300 flange can take. The answer changes with the temperature of your system. When the temperature goes up, the pressure rating goes down. The table below shows how working pressure changes at different temperatures:
| Temperature (°C) | Working Pressure (bar) |
|---|---|
| Class | 300 |
| -29 – 38 | 51.7 |
| 50 | 51.7 |
| 100 | 51.5 |
| 150 | 50.2 |
| 200 | 48.6 |
| 250 | 46.3 |
| 300 | 42.9 |
| 400 | 57.0 |
| 600 | 85.7 |
| 900 | 129 |
| 1500 | 214 |
| 2500 | 357 |
Tip: Always check the temperature and pressure before picking a flange. This helps you stop leaks and problems in your system.

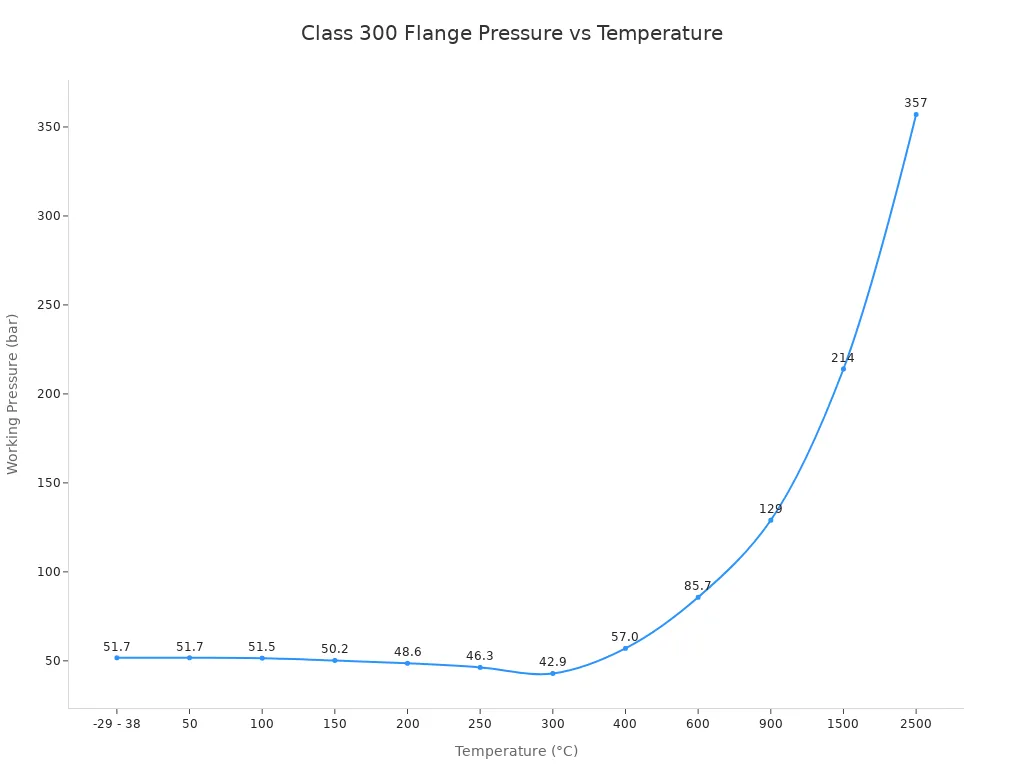

You can also see how working pressure changes with temperature in the chart below:
A Class 300 flange gives you good strength and saves money. It seals well and is easy to install. Picking the right flange helps your system work safely and smoothly.
What Does Class 600 Flange Mean?
When you see a Class 600 flange, you know it is built for tough jobs. This type of flange can handle much higher pressure than a Class 300 flange. You often find it in places where safety matters most, like oil refineries, power plants, and gas pipelines. These places need strong connections that will not fail under stress.
A Class 600 flange follows strict rules set by the American Society of Mechanical Engineers (ASME). These rules make sure the flange can work safely at high pressures and different temperatures. You can trust this flange to keep your system sealed, even when things get hot or the pressure rises.
Here are some key facts about Class 600 flanges:
- Handles high-pressure systems, usually up to 1,480 psi at room temperature.
- Made from strong materials like carbon steel, stainless steel, or alloy steel.
- Has thicker walls and more bolts than lower class flanges.
- Used in critical systems where leaks could be dangerous.
Note: Always check the pressure and temperature ratings before you pick a Class 600 flange. This helps you avoid accidents and keeps your system safe.
You can see the main features of a Class 600 flange in the table below:
| Feature | Description |
|---|---|
| Pressure Rating | Up to 1,480 psi (at 38°C/100°F) |
| Common Materials | Carbon steel, stainless steel, alloy |
| Typical Use | Oil & gas, power plants, high-pressure lines |
| Design | Thicker, more bolts, heavy-duty |
When you choose a Class 600 flange, you get extra strength and safety. You also meet industry standards. This makes it a smart choice for high-pressure jobs.
Pressure Rating and ASME Standards
What Is Pressure Rating?
When you pick a flange, you need to know its pressure rating. This tells you the most pressure the flange can take safely. It depends on the temperature and the material used. The pressure rating is also called flange class or flange class rating. These words mean the same thing. The class rating is a number, but it does not show units like psi or bar. It helps you compare flanges.
You should always look at the pressure rating before picking a flange. Here is why it is important:
- The pressure rating shows the most pressure a flange can take at certain temperatures.
- It keeps your piping system safe and stops leaks or breaks.
- It matters in places like oil and gas, chemical plants, and power stations.
- The right flange pressure rating helps your system work in real life.
The pressure rating changes with both temperature and the flange material. If the temperature goes up, the pressure rating goes down. Stronger materials can take more pressure.
| Pressure Rating | Number of Bolt Holes | Bolt Hole Diameter (mm) |
| Class 150 | 12 | 25.4 |
| Class 300 | 16 | 28.6 |
| Class 400 | 16 | 34.9 |
| Class 600 | 20 | 34.9 |
| Class 900 | 20 | 38.1 |
| Class 1500 | 16 | 54 |
| Class 2500 | 12 | 73 |
ASME B16.5 Overview
The ASME B16.5 standard gives rules for flange pressure rating, size, and materials. This standard helps you pick the right flange for your job. It covers many things, like:
| Nominal Pipe Size | Outside Diameter | Min. Thickness | Diameter of Raised Face | Number of Holes |
|---|---|---|---|---|
| ½ | 3.50 | 0.38 | 1.38 | 4 |
| ¾ | 3.88 | 0.44 | 1.69 | 4 |
| 1 | 4.25 | 0.50 | 2.00 | 4 |
| 1¼ | 4.62 | 0.56 | 2.50 | 4 |
| 1½ | 5.00 | 0.62 | 2.88 | 4 |
You can see how the outside diameter changes for different pipe sizes in the chart below:
ASME B16.5 also explains how temperature and material change the pressure rating. For example:
- If the temperature goes up, the pressure rating goes down.
- Different materials have different strengths when hot.
- A flange made from a strong material can take more pressure, even when it is hot.
Tip: Always check the ASME B16.5 standard for the right pressure class, material, and temperature limits before you pick a flange. This helps you keep your system safe and working well.
Class 300 vs Class 600 Flanges
Design Differences
When you compare class 300 vs class 600 flanges, you notice clear design differences. These differences help each flange handle different pressure levels. A class 600 flange has a thicker body and more bolts than a class 300 flange. This extra thickness and bolt count give it the strength to handle higher pressure. You can see the main design features in the table below:
| Feature | Class 300 Flanges | Class 600 Flanges |
|---|---|---|
| Thickness | Thinner | Thicker |
| Bolt Configuration | Fewer bolts | More bolts |
| Pressure Rating | Lower | Higher |
A class 300 flange works well for medium pressure systems. You use a class 600 flange when you need extra safety and strength. The extra bolts and thicker design help prevent leaks, even when the pressure rises.
Dimensional Comparison
Dimensions play a big role in how these flanges fit into your piping system. For the same pipe size, a class 600 flange usually has a larger outer diameter than a class 300 flange. This larger size helps it handle more pressure. Here is a quick look at how the outer diameters compare for a common pipe size:
| Pipe Size | Class 300 Outer Diameter | Class 600 Outer Diameter |
|---|---|---|
| 2 inch | Smaller | Larger |
You need to check the dimensions before you choose a flange. If you pick the wrong size, your system might not fit together. Always match the flange size to your pipe and pressure needs.
Pressure Rating Comparison
Pressure rating is one of the most important differences between class 300 vs class 600 flanges. A class 300 flange handles lower pressure, while a class 600 flange can take much higher pressure. This difference comes from the design and thickness of each flange. You must always check the pressure rating before you install a flange. Using the wrong pressure rating can cause leaks or even system failure.
- Class 300 flanges work for medium pressure jobs.
- Class 600 flanges are built for high-pressure systems.
If your system runs at high pressure, you need the extra strength of a class 600 flange. This choice keeps your equipment safe and helps you follow industry rules.
Weight and Cost
Weight and cost also change when you move from class 300 vs class 600 flanges. A class 600 flange weighs more because it is thicker and larger. This extra weight means it costs more to buy and install. You can see the weight difference for the same pipe size in the table below:
| Nominal Pipe Size | Class | Weight (lbs) |
|---|---|---|
| 12 | 300 | 520.7 |
| 12 | 600 | 673.1 |
| 24 | 300 | 914.4 |
| 24 | 600 | 1168.4 |
You pay more for a class 600 flange, but you get extra safety for high-pressure jobs. If your system does not need high pressure, a class 300 flange saves money and is easier to handle.
Material Considerations
Material considerations affect how long your flange lasts and how well it works. The right material helps your flange handle pressure, temperature, and corrosion. For example, carbon steel works for many jobs, but stainless steel gives better corrosion resistance. Alloy steel handles even higher pressure and temperature. You can see how different materials compare in the table below:

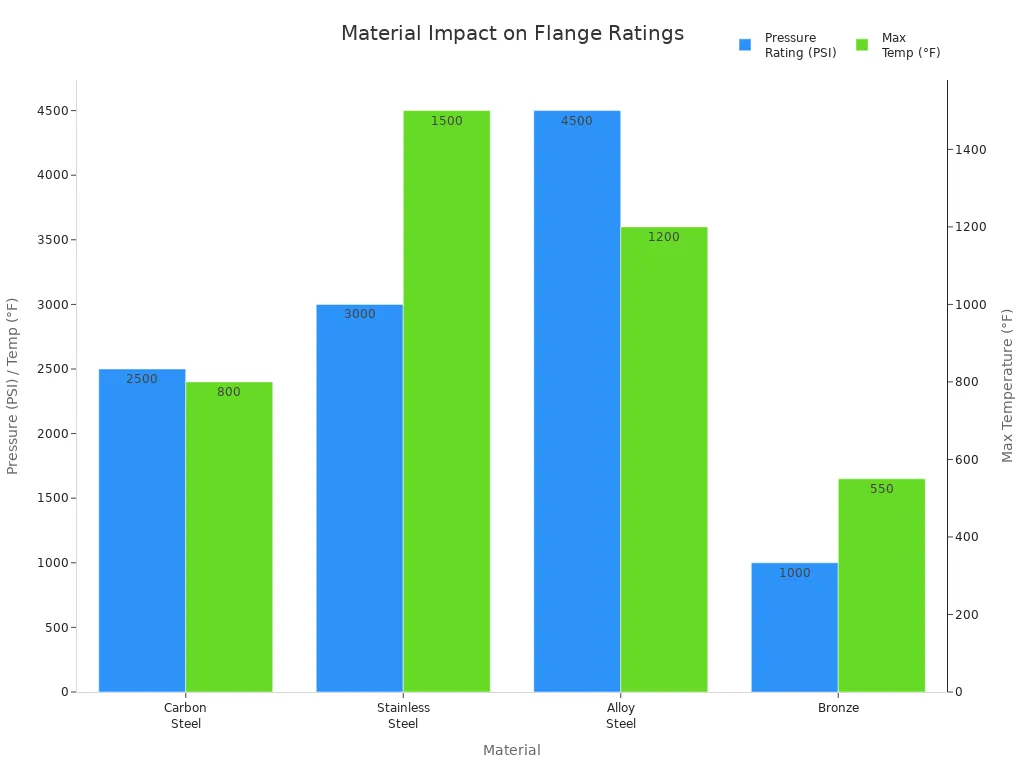

| Material | Pressure Rating (PSI) | Temperature Range (°F) | Corrosion Resistance |
|---|---|---|---|
| Carbon Steel | Up to 2500 | -20 to 800 | Moderate |
| Stainless Steel | Up to 3000 | -325 to 1500 | Excellent |
| Alloy Steel | Up to 4500 | -50 to 1200 | Very Good |
| Bronze | Up to 1000 | -65 to 550 | Good |
When you choose the right material, you make your class 300 vs class 600 flanges last longer. Good material choices help your system run safely, even when the pressure or temperature changes. Always think about material considerations before you pick a flange.
Tip: Always match the flange class, pressure rating, and material to your system’s needs. This keeps your equipment safe and helps you avoid costly repairs.
Applications of Class 300 Flange and Class 600 Flange
When you pick a flange, you should know where it works best. The jobs for class 300 flange and class 600 flange depend on how much pressure your system has. Safety is also important. Each flange is made for certain jobs in different industries.
Class 300 Flange Uses
Class 300 flange is used in places with medium pressure. These flanges are popular because they are strong and not too expensive. You can find them in waterworks and farming. They are also used in ships and boats. Chemical plants and exhaust systems use them too. The table below shows some jobs and industries:
| Application Type | Industry Type |
|---|---|
| High-pressure steam pipelines | Waterworks |
| Oil pipelines | Agriculture |
| Chemical processing pipelines | Exhaust |
| Marine | |
| HVAC | |
| Mining | |
| Energy | |
| Power Generation | |
| Oil | |
| Lumber |
Class 300 flange is also found in heating and cooling systems. Mining and power plants use them as well. These places do not always need the highest pressure. They still need strong parts. Picking the right material helps the flange last longer.
Tip: Always check the pressure and temperature before you choose a flange. This keeps your system safe and working well.
Class 600 Flange Uses
Class 600 flange is used for higher pressure jobs. These flanges are made for tough systems like oil and gas pipelines. Power plants and energy centers use them too. You see them in places where leaks are very risky. Class 600 flange gives extra safety for important jobs.
Some common uses for class 600 flange are:
- Oil and gas transmission lines
- High-pressure steam systems
- Power generation plants
- Chemical processing under high pressure
You pick class 600 flange when your system needs to handle more pressure than class 300 can. This helps stop leaks and keeps your equipment safe.
Interchangeability and Selection Criteria
Are They Interchangeable?
You might think about swapping a Class 300 flange with a Class 600 flange. Most of the time, you should not do this. These flanges are made for different pressures and have different shapes and sizes. If you mix them, you could get leaks or even safety problems. The table below shows what can go wrong if you try to switch these flanges:
| Risk/Limitations | Description |
|---|---|
| Pressure Ratings | The lower-rated flange (Class 300) sets the safe working pressure. If you use Class 600 pressure, the joint can fail. |
| Gasket Compatibility | Gaskets for Class 300 may not seal well with Class 600, leading to leaks. |
| Mechanical Integrity | Differences in thickness and face height can cause uneven gasket compression. |
| Compliance Issues | Mixing classes can break ASME rules and project requirements. |
| Misalignment Risks | Bolt circles may not match, causing misalignment and extra strain. |
- If you use flanges that do not match, the gasket may not seal right and leaks can happen.
- A Class 600 flange is heavier and can put too much weight on a Class 300 flange.
- You might need special bolts, which makes fixing things harder.
- If the bolt holes do not line up, it can make the joint weak.
Note: Always use the same flange class to keep your system safe and follow ASME rules.
How to Choose
You need to pick the right flange for your job. First, check how much pressure and heat your system will have. Class 600 flanges work for higher pressure and heat than Class 300. The ASME B16.5 standard helps you know which class you need. It lists pressure classes from 150 to 2500, and each one has its own pressure and temperature limits.
When you pick a flange, remember these things:
- Check the pressure and temperature your system will have.
- Make sure the flange fits your pipe and the bolt holes line up.
- Pick the right material for what flows in your pipes and where you use it.
- Follow ASME and project rules to stay safe and do things right.
If your system has high pressure, use a Class 600 flange. For medium pressure, a Class 300 flange is usually enough. Always use the right class so you do not get leaks and your equipment stays safe.
You need to know the main differences between Class 300 and Class 600 flanges before you choose. The table below shows how they compare:
| Feature | Class 300 | Class 600 |
|---|---|---|
| Maximum Pressure | Up to 570 psi | Up to 1150 psi |
| Typical Application | Low-pressure piping | High-pressure pipeline |
| Flange Thickness | Thinner | Thicker for more strength |
| Bolt Hole Size | Smaller | Larger |
Always follow ASME standards to keep your system safe. Use this checklist when you select a flange:
- Check your system’s pressure and temperature.
- Pick the right flange type for your job.
- Use ASME B16.5 tables for pressure class.
- Match flange size to your pipe.
- Choose the best material for your fluid and temperature.
- Double-check your design to avoid mistakes.
If you pick the wrong flange, you risk leaks, system failures, and legal problems. Always match the flange class to your system’s needs.
FAQ
What is the main difference between Class 300 and Class 600 flanges?
You will see that Class 600 flanges handle higher pressure than Class 300 flanges. Class 600 flanges have thicker bodies and more bolts. This design gives them extra strength for tough jobs.
Can you use a Class 600 flange instead of a Class 300 flange?
You can use a Class 600 flange in place of a Class 300 flange if the size and bolt pattern match. However, you should never use a Class 300 flange where a Class 600 is needed.
Tip: Always check ASME B16.5 tables before swapping flange classes.
How do temperature changes affect flange pressure ratings?
When temperature rises, the pressure rating of your flange drops. You must always check both temperature and pressure before choosing a flange. This helps you avoid leaks and system failures.
Which industries use Class 300 and Class 600 flanges the most?
| Flange Class | Common Industries |
|---|---|
| Class 300 | Chemical, HVAC, Water |
| Class 600 | Oil & Gas, Power Plants |
You will find Class 300 flanges in medium-pressure systems. Class 600 flanges work best in high-pressure, high-risk jobs.
