Duplex stainless steel combines austenite and ferrite phases in its microstructure, delivering a unique balance of strength and corrosion resistance. This dual-phase design enables duplex alloys to outperform many traditional stainless materials in harsh environments. Industries such as oil and gas, chemical, and marine sectors benefit from the superior efficiency, durability, and cost-effectiveness of duplex stainless solutions. In 2023, the duplex stainless market reached USD 3.51 billion, with growth driven by enhanced mechanical properties and lifecycle savings. Duplex Stainless Steel: Grades offer tailored solutions for demanding applications.
Key Takeaways
- Duplex stainless steel combines two phases, austenite and ferrite, to deliver high strength and excellent corrosion resistance.
- There are four main duplex grades—lean, standard, super, and hyper—each suited for different environments and strength needs.
- Duplex stainless steel offers twice the strength of common stainless steels and resists corrosion better, especially in harsh chloride-rich settings.
- This steel is widely used in oil and gas, chemical, and marine industries for equipment like pipelines, tanks, and heat exchangers.
- Welding duplex stainless steel requires careful control to keep its properties, and choosing the right grade depends on the specific application demands.
What is Duplex Stainless Steel?
Duplex stainless steel stands out as a unique family of alloys that blend two distinct metallurgical phases: austenite and ferrite. This dual-phase structure gives duplex alloys a remarkable combination of mechanical strength and corrosion resistance. Engineers often select duplex stainless for environments where traditional stainless grades may fail or require frequent maintenance.
The characteristics of duplex stainless steel come from its balanced microstructure. Typically, the alloy contains about 50% austenite and 50% ferrite. This balance allows duplex stainless to outperform both austenitic and ferritic stainless steels in many demanding applications. The dual-phase design not only increases yield and tensile strength but also enhances resistance to stress corrosion cracking and pitting.
Note: Duplex stainless steel achieves optimal performance when the austenite content remains around 35%. Excessive austenite, often caused by high nickel content during welding, can reduce both strength and corrosion resistance.
The following table highlights how the dual-phase structure influences key properties in common duplex stainless grades:
| Property / Material Condition | 2205 (35-40% Austenite) | 2209 (Higher Austenite) | 2509 (Highest Austenite) |
|---|---|---|---|
| Tensile Strength | High, meets specs | Near yield limit | Below required strength |
| Yield Strength | Stable, high | Slightly reduced | Lower than required |
| Elongation | Good ductility | Improved with annealing | Good, but lower strength |
| Impact Toughness (-46°C) | Improved, balanced | Slightly higher | Higher, but microstructure critical |
| Corrosion Resistance | Best, less segregation | Moderate, phase balance | Lower, excessive segregation |
Duplex stainless steel offers a unique set of properties. These include high strength, excellent corrosion resistance, and good toughness at low temperatures. The alloy’s microstructure also limits grain boundary precipitation, which further improves its durability in aggressive environments. Many industries rely on duplex stainless for its ability to deliver long-term performance with reduced maintenance.
A Brief History of Duplex Stainless Steel
Duplex stainless steel began its journey in the 1930s. Metallurgists first combined the properties of austenitic and ferritic stainless steels, aiming to create an alloy with both strength and corrosion resistance. This innovation marked a turning point in the development of stainless materials. Early duplex grades offered a unique balance, but production methods limited their widespread use.
The 1950s brought a major breakthrough. The introduction of the argon-oxygen decarburization (AOD) process allowed manufacturers to control the chemical composition more precisely. This process reduced impurities and improved the quality of duplex stainless steel. As a result, engineers could produce alloys with better consistency and performance. The AOD process set the stage for further advancements in duplex technology.
By the 1980s, the industry saw the rise of super duplex stainless steels. Researchers increased the levels of molybdenum and nitrogen in the alloy. These changes boosted both corrosion resistance and mechanical strength. Super duplex grades quickly gained popularity in demanding environments. Offshore oil rigs, chemical plants, and desalination facilities began to rely on these advanced materials for their durability and efficiency.
Duplex stainless steel evolved through three key stages: increasing molybdenum content, adding nitrogen, and then raising both elements together. Each stage improved the alloy’s ability to withstand harsh conditions.
Today, duplex stainless steel stands as a vital material in many industries. Its history reflects a pattern of innovation and adaptation. Engineers continue to refine its composition and processing methods, ensuring that duplex alloys meet the ever-changing demands of modern applications. The journey from early development to widespread adoption highlights the alloy’s unique value in challenging environments.
Duplex Stainless Steel: Grades
Duplex stainless steel: grades fall into four main categories: lean, standard, super, and hyper. Each group offers a unique combination of strength, corrosion resistance, and alloy composition. Engineers select duplex grades based on the demands of their application, such as exposure to chlorides, mechanical load, or fabrication requirements.
Lean Grades
Lean duplex grades provide a cost-effective solution for many industrial applications. These grades, such as LDX 2101, contain lower amounts of nickel and molybdenum but higher nitrogen and manganese. This composition maintains the essential duplex microstructure while reducing material costs. Lean duplex grades deliver yield strength that exceeds standard austenitic stainless steels and offer corrosion resistance similar to Type 316L.
| Grade | Chromium (%) | Nickel (%) | Molybdenum (%) | Nitrogen (%) | PREN Range | Yield Strength (MPa) |
|---|---|---|---|---|---|---|
| LDX 2101 | 21.5 | 1.5 | 0.3 | 0.22 | 22–27 | 450–550 |
Lean duplex grades excel in applications like water treatment, storage tanks, and pulp and paper equipment. Their moderate corrosion resistance and high mechanical strength make them suitable for less aggressive environments. Processing lean duplex is less demanding, which helps reduce fabrication costs.
Tip: Lean duplex grades offer a practical alternative when high nickel prices impact project budgets.
Duplex 2205 Standard Grades
Standard duplex grades represent the most widely used group in the duplex family. Duplex 2205 stands as the benchmark for this category. These grades typically contain 21–25% chromium, 2–3% molybdenum, and 0.15–0.25% nitrogen. The balanced microstructure, with roughly equal ferrite and austenite, provides twice the strength of common austenitic stainless steels and superior resistance to chloride-induced corrosion.
| Metric/Element | Typical Range or Value |
|---|---|
| Microstructure | Balanced 50:50 ferrite and austenite |
| Chromium (Cr) | 22% to 27% |
| Nickel (Ni) | 2% to 8% |
| Molybdenum (Mo) | 0.3% to 5% |
| Nitrogen (N) | 0.2% to 0.4% |
| Yield Strength | 550 to 690 MPa |
| PREN | 28 to 38 |
Duplex 2205 offers a minimum yield strength of 65 ksi and tensile strength of 95 ksi, with elongation around 25%. These properties enable thinner, lighter designs without sacrificing durability. Standard duplex stainless steels are common in valve, tanks, piping, process vessels, and structural components. They perform well in environments where both strength and corrosion resistance are critical.
- Duplex grades in this group resist pitting and stress corrosion cracking better than standard austenitic or ferritic stainless.
- Welding requires attention to heat input and cooling rates to preserve the duplex structure.
Duplex 2507 Super Grades
Super duplex grades push the boundaries of corrosion resistance and mechanical strength. These grades, such as duplex 2507, contain higher levels of chromium (up to 25%), molybdenum (up to 4%), and nitrogen. The PREN for super duplex stainless steels exceeds 40, indicating exceptional resistance to pitting and crevice corrosion in harsh chloride-rich environments.
| Grade | PREN Range | 0.2% Proof Strength (MPa) | Corrosion Resistance | Processing Challenges |
|---|---|---|---|---|
| 2507 | 38–45 | ~550 | Superior, even in seawater | Requires careful processing to avoid intermetallics |
Super duplex stainless steels like duplex 2507 deliver tensile strengths of 700–800 MPa and yield strengths of 450–550 MPa. These grades are essential for offshore platforms, desalination plants, and chemical processing facilities. The high alloy content ensures outstanding performance in aggressive environments, but fabrication requires strict control to prevent intermetallic phase formation.
Note: Super duplex stainless grades demand rapid cooling after welding to maintain their superior properties.
Hyper Grades
Hyper duplex grades represent the latest advancement in duplex technology. These grades feature even higher chromium, molybdenum, and nitrogen content, resulting in PREN values above 45. Hyper duplex grades provide the highest corrosion resistance and mechanical strength among all duplex grades.
| Property / Metric | Numerical Data / Description | Application / Context |
|---|---|---|
| Yield Strength | 450 to 550 MPa | Enables thinner, lighter designs |
| PREN | Over 45 | Extreme resistance to pitting in chloride environments |
| Corrosion Fatigue Resistance | Highest among duplex grades | Critical for marine, oil & gas, and chemical sectors |
| Stress Corrosion Cracking (SCC) Resistance | Enhanced due to alloying and microstructure | Vital for harsh industrial applications |
Hyper duplex grades excel in the most demanding environments, such as deepwater oil and gas, subsea equipment, and highly corrosive chemical processing. Research shows that powder metallurgy hyper duplex grades achieve superior corrosion fatigue resistance and maintain high strength after heat treatment. However, these grades present the greatest processing challenges, requiring precise control during fabrication to avoid detrimental phases.
Comparing Duplex Stainless Steel: Grades
The following table summarizes key differences among the four main duplex grades:
| Grade Group | PREN Range | Yield Strength (MPa) | Corrosion Resistance | Processing Complexity | Example Grades |
|---|---|---|---|---|---|
| Lean | 22–27 | > Standard austenitic | Moderate | Low | LDX 2101 |
| Standard | 28–38 | ~450 | Good | Moderate | 2205 |
| Super | 38–45 | ~550 | Superior | High | 2507 |
| Hyper | >45 | > Super duplex | Highest | Very High | Zeron 100, SAF 3207 HD |
- Lean duplex grades offer cost savings and moderate corrosion resistance.
- Standard duplex grades like duplex 2205 provide a balance of strength and corrosion resistance for most industrial needs.
- Super duplex stainless steels, including duplex 2507, deliver enhanced performance for aggressive environments.
- Hyper duplex grades set the benchmark for extreme corrosion resistance and strength but require advanced processing.
Engineers should match the duplex grade to the specific demands of the application, considering both performance and fabrication requirements.
Duplex Stainless Steel Chemical Composition
Main Elements
The composition of duplex stainless steel relies on a careful balance of several key elements. Chromium, molybdenum, and nickel serve as the primary alloying elements. Chromium increases corrosion resistance and stabilizes the ferritic phase. Molybdenum further boosts resistance to pitting and crevice corrosion, especially in chloride-rich environments. Nickel stabilizes the austenitic phase, improving ductility and toughness. Nitrogen strengthens the alloy and enhances resistance to localized corrosion. Other elements, such as manganese, silicon, and carbon, play supporting roles by refining the microstructure and improving weldability.
The Schaeffler–DeLong phase diagram and equivalent formulas help engineers predict the phase balance in duplex stainless steel. These models use nickel equivalent (Ni_eq) and chromium equivalent (Cr_eq) values to guide alloy design. For example, chromium and molybdenum enrich the ferritic phase, while nickel and nitrogen favor the austenitic phase. The Cr/Ni ratio and heat treatment conditions determine the final microstructure.
Typical Ranges

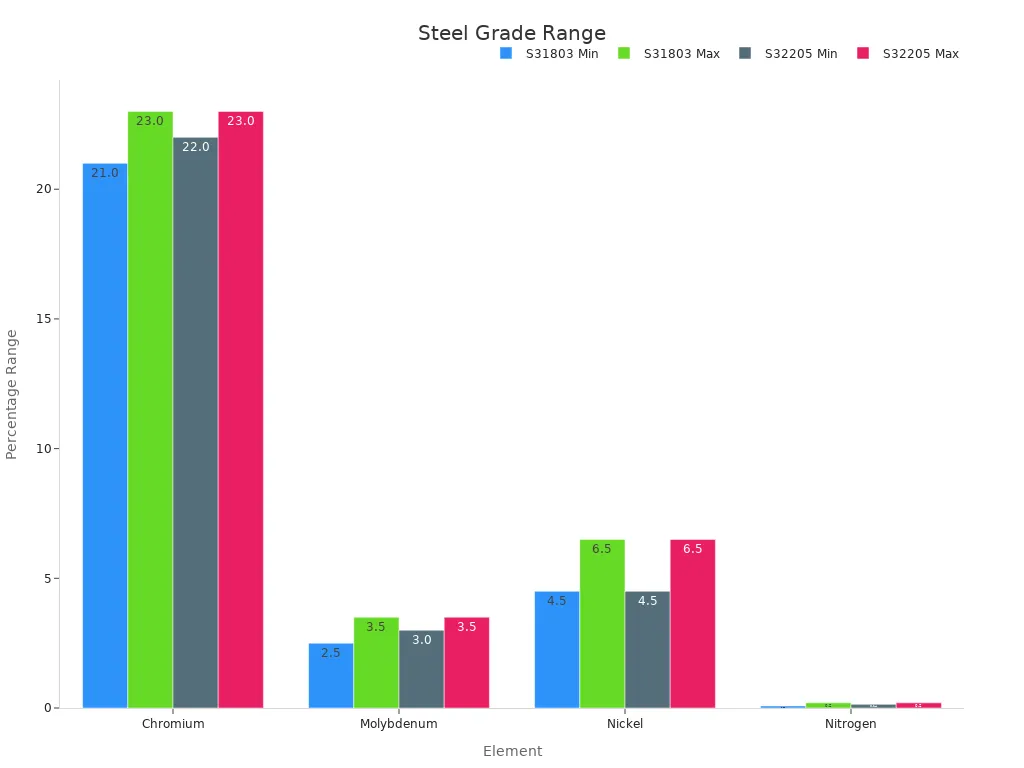

Manufacturers classify duplex stainless steel grades based on their chemical composition. The table below summarizes the typical ranges for key elements in two widely used grades, 2205 (S31803 and S32205):
| Element | 2205 (S31803) Min | 2205 (S31803) Max | 2205 (S32205) Min | 2205 (S32205) Max |
|---|---|---|---|---|
| Carbon (C) | – | 0.030% | – | 0.030% |
| Manganese (Mn) | – | 2.00% | – | 2.00% |
| Silicon (Si) | – | 1.00% | – | 1.00% |
| Phosphorus (P) | – | 0.030% | – | 0.030% |
| Sulfur (S) | – | 0.020% | – | 0.020% |
| Chromium (Cr) | 21.0% | 23.0% | 22.0% | 23.0% |
| Molybdenum (Mo) | 2.5% | 3.5% | 3.0% | 3.5% |
| Nickel (Ni) | 4.5% | 6.5% | 4.5% | 6.5% |
| Nitrogen (N) | 0.08% | 0.20% | 0.14% | 0.20% |
The composition of duplex stainless steel determines its mechanical and corrosion-resistant properties. Engineers use the following guidelines to understand the role of each element:
- Chromium and molybdenum increase corrosion resistance and stabilize the ferritic phase.
- Nickel and nitrogen promote the austenitic phase, improving toughness and ductility.
- The balance between these elements controls the phase ratio, which affects strength and corrosion resistance.
- Heat treatment and cooling rates influence how these elements distribute between ferrite and austenite.
- The Cr/Ni ratio and nitrogen content help prevent unwanted phases during welding and fabrication.
- Small amounts of carbon, manganese, and silicon refine the microstructure and support weldability.
A precise composition ensures that duplex stainless steel meets the demands of challenging environments. By adjusting the levels of chromium, molybdenum, nickel, and nitrogen, manufacturers can tailor the alloy for specific applications.
Duplex Stainless Steel Properties
Mechanical
Duplex stainless steel offers a unique combination of high strength and toughness. Engineers often select duplex grades for applications that demand reliable mechanical properties. Tensile strength for duplex stainless steel, such as grade 2205, typically ranges from 620 MPa to 770 MPa. Proof stress values fall between 450 MPa and 550 MPa, while elongation averages around 25%. These properties mean duplex stainless steel can provide up to twice the strength of austenitic stainless steels and better toughness than ferritic types.
- Room temperature tensile tests on duplex stainless steel bars confirm robust yield and tensile strength, supporting use in reinforced concrete and structural applications.
- Nanoindentation studies show ferrite in duplex stainless steel is about 12% harder than austenite, but both phases contribute to overall strength.
- Duplex stainless steel maintains mechanical properties at elevated temperatures, though strength and modulus decrease gradually with heat.
| Property | Duplex Stainless Steel (2205, UR52N+) | Austenitic Stainless Steel (304) | Ferritic Stainless Steel (430) |
|---|---|---|---|
| Tensile Strength (MPa) | 620–770 | 520–750 | 450–600 |
| Proof Stress (MPa) | 450–550 | 210–310 | 280–350 |
| Elongation (%) | ~25 | 40–55 | 20–30 |
Corrosion Resistance
Duplex stainless steel stands out for its excellent corrosion resistance properties. The dual-phase microstructure and high levels of chromium, molybdenum, and nitrogen deliver good resistance to pitting and crevice corrosion resistance, especially in chloride-rich and sulphide environments. Super duplex grades, such as UR52N+, offer even higher resistance, making them suitable for seawater and aggressive chemical processing.
- Electrochemical tests show that duplex stainless steel, like UNS S31803, achieves higher pitting potential and corrosion potential than lean duplex grades.
- Critical pitting temperature (CPT) tests confirm that a balanced austenite-ferrite structure increases pitting and crevice corrosion resistance.
- Heat treatment that optimizes phase balance further improves corrosion resistance.
- Duplex stainless steel demonstrates strong stress corrosion cracking resistance, outperforming austenitic grades in many industrial settings.
| Parameter / Condition | Duplex Stainless Steel (UNS S31803) | Lean Duplex (UNS S32304) |
|---|---|---|
| Pitting Potential (E_p) | Higher | Lower |
| Corrosion Potential (E_corr) | Higher | Lower |
| CPT (°C) | Higher | Lower |
Duplex stainless steel provides excellent corrosion resistance and good resistance to pitting, making it a top choice for harsh environments.
Physical
Duplex stainless steel displays physical properties that support its use in demanding applications. Density typically ranges from 7.7 to 7.85 g/cm³. The modulus of elasticity is about 200 GPa, and thermal conductivity falls between 14 and 19 W/m·K at 100°C. Duplex stainless steel is magnetic, unlike austenitic grades, and has a lower thermal expansion coefficient (about 13.5–13.7 x 10⁻⁶ m/m·K), which reduces distortion during temperature changes.
| Physical Property | Duplex Stainless Steel (S32760) | Austenitic Stainless Steel (304) |
|---|---|---|
| Density (g/cm³) | 7.81 | 8.00 |
| Young’s Modulus (GPa) | 199 | 193 |
| Thermal Conductivity (W/m·K, 20°C) | 14.2 | 16.2 |
| Thermal Expansion (10⁻⁶ m/m·K) | 11.1 | 16.0 |
| Specific Heat (J/kg·K) | 475 | 500 |
Duplex stainless steel’s combination of mechanical strength, corrosion resistance, and stable physical properties sets it apart from other stainless steel types. These properties make duplex stainless steel a preferred material for engineers who require both durability and performance in challenging environments.
Duplex Stainless Steel Applications
Industrial Uses
Duplex stainless steel finds widespread use in industries that demand high corrosion resistance and mechanical strength. Oil and gas companies rely on duplex grades for offshore platforms, subsea pipelines, and pressure vessels. These applications require materials that withstand aggressive chloride environments and high mechanical loads. Chemical processing plants use duplex stainless steel for tanks, reactors, and heat exchangers. The alloy’s resistance to pitting and crevice corrosion ensures long service life in contact with acids and salts.
Marine construction benefits from duplex stainless steel in shipbuilding, desalination plants, and harbor infrastructure. The alloy’s high pitting resistance equivalent number (PREN) and superior cyclic durability make it ideal for structures exposed to seawater. Studies show that grade 2205 delivers yield strength between 450–550 MPa and tensile strength up to 800 MPa. This strength, combined with corrosion resistance, supports safer and lighter designs.
- Common applications include:
- Pressure vessels and storage tanks
- Heat exchangers and tubing
- Valves and pumps in chemical and petrochemical plants
- Marine fasteners, propeller shafts, and seawater piping
Duplex stainless steel demonstrates 30.5% higher yield stress than austenitic stainless steel and absorbs more seismic energy, making it suitable for structural applications in earthquake-prone regions.
Grade Selection
Selecting the right duplex grades depends on the specific requirements of each application. Standard duplex grades, such as 2205, serve well in most industrial environments due to their balanced corrosion resistance and mechanical properties. For more aggressive conditions, super duplex and hyper duplex grades offer enhanced resistance to localized corrosion and higher strength.
The table below links major industries to recommended grades and highlights key selection criteria:
| Industry | Recommended Grades | Key Selection Criteria |
|---|---|---|
| Oil & Gas | 2205, 2507, SAF 2707 HD | Chloride resistance, strength |
| Chemical Processing | 2205, S31803 | Acid resistance, weldability |
| Marine | 2507, S32707 | Pitting resistance, fatigue strength |
| Desalination | 2507, Zeron 100 | Crevice corrosion resistance, durability |
Applications for standard duplex grades include pressure vessels, heat exchangers, and piping systems. Engineers choose duplex stainless steel for its proven performance in resisting corrosion, reducing maintenance, and extending equipment life. The alloy’s versatility and reliability make it a preferred choice for demanding industrial applications.
Advantages and Limitations of Duplex Stainless Steel
Duplex stainless steel stands out in the industry for its unique balance of strength and corrosion resistance. Engineers often compare the advantages of duplex stainless steel to those of austenitic and ferritic stainless grades. The table below highlights how duplex stainless steel grades perform against other types:
| Steel Type | PREN Range | Key Advantages | Limitations and Considerations |
|---|---|---|---|
| Lean Duplex Stainless Steel (LDSS) | ~26 | Moderate pitting corrosion resistance; balanced microstructure (~50% ferrite, 50% austenite) | Lower corrosion resistance compared to higher duplex grades; limited nitrogen solubility; longer exposure to critical temperatures tolerated |
| Standard Duplex Stainless Steel (DSS 22% Cr) | ~30-35 | Improved corrosion resistance and strength over conventional stainless steels | Shorter allowable exposure to critical temperature ranges (30-60 min); welding joints may have 50%-80% corrosion resistance of base metal |
| Super Duplex Stainless Steel (SDSS) | ~40-45 | High pitting corrosion resistance; high strength; nitrogen-enhanced microstructure stability | Technological challenges in heat treatment; nitrogen solubility limits; risk of harmful secondary phase precipitation if improperly cooled |
| Hyper Duplex Stainless Steel (HDSS) | >45 | Highest corrosion resistance among duplex steels; excellent strength and ductility | Reduced nitrogen content due to metallurgical processing limits; very short allowable exposure to critical temperature (5-10 min); welding sensitivity |
PREN (Pitting Resistance Equivalent Number) helps engineers compare pitting corrosion resistance across stainless steel grades.
Benefits
Duplex stainless steel offers several advantages that make it a preferred choice in demanding environments:
- High mechanical strength allows for lighter, thinner structures without sacrificing safety.
- Superior corrosion resistance, especially in chloride-rich and marine settings, extends equipment life.
- The dual-phase microstructure provides a balance of ductility and toughness.
- Nitrogen addition improves corrosion resistance and reduces reliance on expensive nickel, making duplex stainless steel more cost-effective.
- Grain refinement and microstructural control further enhance wear resistance and mechanical properties.
- Cold rolling and advanced processing techniques increase the formation of protective oxide films, boosting corrosion resistance.
- These advantages of duplex stainless steel support its use in pollution control, chemical vessels, and offshore oil and gas industries.
Drawbacks
Despite its many advantages, duplex stainless steel also presents some limitations:
- Welding requires precise control of heat input and cooling rates to maintain the optimal ferrite-austenite balance.
- Improper welding can reduce corrosion resistance in joints to 50%-80% of the base metal, increasing the risk of stress corrosion cracking.
- Excess ferrite or austenite in welds can lower toughness and increase embrittlement, especially at low temperatures.
- The formation of intermetallic phases during slow cooling or improper heat treatment can degrade both mechanical and corrosion properties.
- Welded duplex stainless steel often shows lower ductility and toughness than the base metal, especially under cyclic loading.
- Specialized post-weld treatments and filler materials may be necessary, adding complexity and cost.
Engineers must carefully consider these drawbacks when selecting duplex stainless steel for critical applications.
Duplex stainless steel delivers a unique combination of strength and corrosion resistance through its dual-phase structure. Engineers can select from lean, standard, super, and hyper grades to match specific application demands. Key benefits and considerations include:
- Higher strength, often double that of austenitic stainless steels
- Superior corrosion resistance compared to grades 304 and 316
- Good resistance to stress corrosion cracking
- Magnetic properties for easy identification
- Specialized fabrication and machining requirements
Selecting the right grade requires careful evaluation of project needs and consultation with material experts.
FAQ
What makes duplex stainless steel different from austenitic or ferritic stainless steels?
Duplex stainless steel contains both austenite and ferrite phases. This dual-phase structure gives it higher strength and better corrosion resistance than austenitic or ferritic grades. Engineers often choose duplex alloys for demanding environments.
Can duplex stainless steel be welded easily?
Welding duplex stainless steel requires careful control of heat input and cooling rates. Proper technique preserves the balance between ferrite and austenite. Using recommended filler materials helps prevent loss of corrosion resistance in welded joints.
Where is duplex stainless steel most commonly used?
Engineers use duplex stainless steel in oil and gas, chemical processing, and marine industries. Common applications include pressure vessels, heat exchangers, pipelines, and seawater systems. Its strength and corrosion resistance make it ideal for harsh environments.
How does the cost of duplex stainless steel compare to other stainless steels?
Duplex stainless steel often costs less than high-alloy austenitic grades due to lower nickel content. Its higher strength allows for thinner sections, reducing material usage and overall project costs.
What are the main limitations of duplex stainless steel?
Duplex stainless steel can lose toughness at very low temperatures. Improper welding may reduce corrosion resistance. Fabrication requires skilled personnel and strict process control to avoid unwanted phases and maintain performance.
