Hastelloy Alloy G-30 stands as a nickel-chromium-iron superalloy engineered for demanding chemical processing applications. Its high chromium and nickel content delivers outstanding corrosion resistance, especially against oxidizing acids. Industries rely on hastelloy in the fabrication of equipment exposed to corrosive environments and aggressive chemical streams. The alloy’s composition supports a wide range of applications, from phosphoric acid production to metal pickling.
| Element | Typical Range (%) |
|---|---|
| Nickel (Ni) | Remainder |
| Chromium (Cr) | 21 – 23.5 |
| Iron (Fe) | 18 – 21 |
| Molybdenum (Mo) | 5.5 – 7.5 |
| Cobalt (Co) | ≤2.5 |
| Niobium (Nb) | 1.75 – 2.5 |
The Hastelloy Alloy G-30: Composition ensures mechanical durability and reliability in critical applications.
Key Takeaways
- Hastelloy Alloy G-30 is a nickel-based superalloy designed to resist strong oxidizing acids like nitric and phosphoric acid, making it ideal for harsh chemical environments.
- Its unique mix of elements such as chromium, molybdenum, and cobalt gives it excellent corrosion resistance, high strength, and toughness even at high temperatures up to 540ºC (1000ºF).
- The alloy is versatile and available in many forms like plates, bars, tubes, and fittings, allowing easy fabrication and welding without losing its protective properties.
- Industries widely use Hastelloy G-30 in chemical processing, metal pickling, fertilizer production, and marine applications where durability and long service life are critical.
- Compared to other Hastelloy grades, G-30 offers superior resistance to oxidizing acids and maintains weld integrity, making it a trusted choice for demanding industrial uses.
What is Hastelloy Alloy G-30?
Hastelloy G-30 represents a specialized member of the hastelloy family, designed for environments where aggressive corrosion poses a significant challenge. As a nickel-based alloy, hastelloy g30 stands out due to its advanced composition and performance in chemical processing. Engineers and manufacturers select this alloy when they require materials that maintain integrity under exposure to highly oxidizing acids.
Hastelloy g30 evolved from earlier hastelloy grades, such as G-3, by increasing chromium content and introducing elements like tungsten and cobalt. These changes result in a material that resists attack from sulfuric, nitric-hydrochloric, and nitric-hydrofluoric acids. The alloy also demonstrates superior resistance to chloride-induced cracking, a common failure mode in stainless steel equipment.
Note: The unique composition of hastelloy g30 includes approximately 43% nickel, 30% chromium, 15% iron, 5.5% molybdenum, 5% cobalt, 2.5% tungsten, 2% copper, and 1.5% manganese. Small amounts of niobium, silicon, and carbon further enhance its properties.
Key characteristics that define hastelloy g30:
- Exceptional resistance to oxidizing acids, including phosphoric acid, which is vital for agricultural and fertilizer industries.
- High mechanical strength and toughness at elevated temperatures.
- Superior resistance to pitting, crevice corrosion, and stress corrosion cracking.
- Reliable performance in harsh chemical environments where other hastelloy grades may not suffice.
Hastelloy g30 offers versatility in form, available as plates, bars, tubes, and fittings. Its balanced composition ensures durability and longevity in demanding service conditions. Industries such as chemical processing, metal pickling, and fertilizer production rely on hastelloy g30 for critical components. The alloy’s proven track record makes it a preferred choice when safety and reliability cannot be compromised.
Hastelloy Alloy G-30: Chemical Composition
Key Elements
Hastelloy alloy g-30: composition features a carefully balanced mix of metals. This unique blend gives g30 its outstanding corrosion resistance and mechanical strength. The main elements in the chemical composition include nickel, chromium, iron, cobalt, molybdenum, tungsten, manganese, and niobium or tantalum. Each element appears in specific proportions to optimize performance in harsh environments.

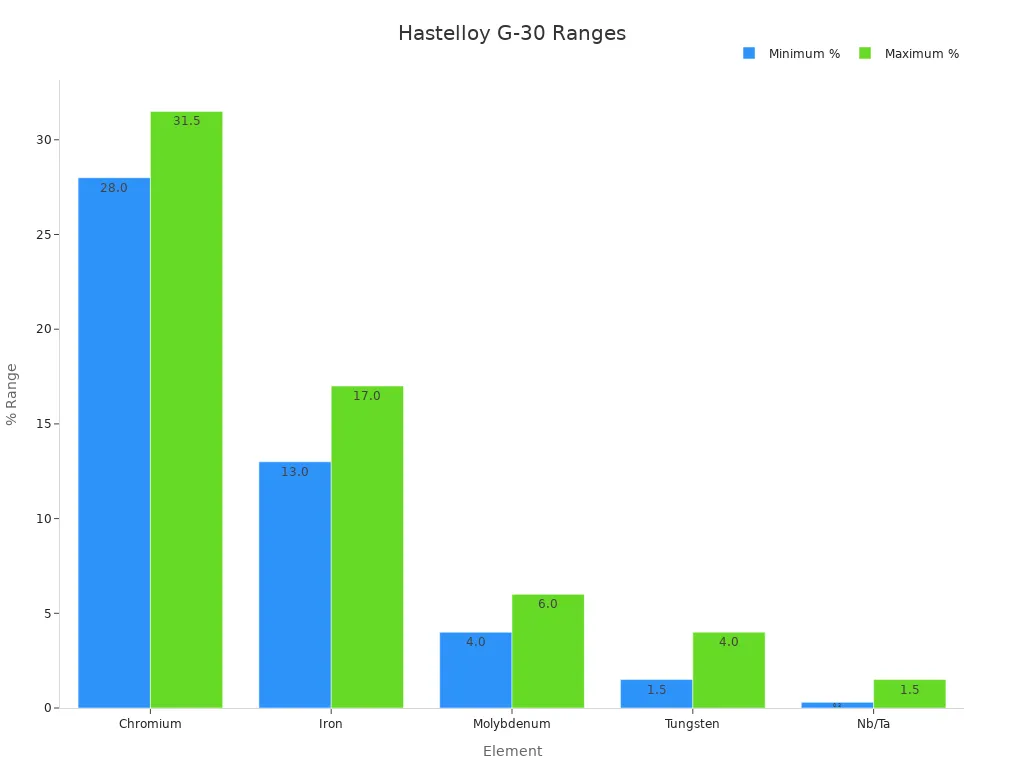

The following table shows the typical percentage ranges for each key element in hastelloy g30:
| Element | Typical Percentage Range (%) |
|---|---|
| Nickel (Ni) | Balance (implied) |
| Chromium (Cr) | 28.0 – 31.5 |
| Iron (Fe) | 13.0 – 17.0 |
| Cobalt (Co) | Up to 5.0 |
| Molybdenum (Mo) | 4.0 – 6.0 |
| Tungsten (W) | 1.5 – 4.0 |
| Manganese (Mn) | ≤ 1.5 |
| Niobium/Tantalum (Nb/Ta) | 0.3 – 1.5 |
Nickel forms the base of the alloy and makes up the largest portion of the composition. Chromium and iron follow as the next most significant elements. The presence of cobalt, molybdenum, tungsten, manganese, and niobium or tantalum further enhances the alloy’s properties.
Element Roles
Each element in hastelloy alloy g-30: composition serves a specific function. Together, they create a material that stands up to aggressive chemical environments and resists corrosion.
- Nickel (Ni): Nickel provides the foundation for the alloy. It ensures stability and toughness, especially at high temperatures. Nickel also helps g30 resist many forms of corrosion.
- Chromium (Cr): Chromium plays a key role in corrosion resistance. It forms a passive oxide layer on the surface, which protects the alloy from oxidizing acids like nitric and phosphoric acid.
- Iron (Fe): Iron increases the alloy’s strength and helps balance the composition. It also improves the cost-effectiveness of hastelloy g30.
- Cobalt (Co): Cobalt boosts mechanical strength and helps the alloy maintain its structure under stress. It also improves resistance to certain types of corrosion.
- Molybdenum (Mo): Molybdenum enhances resistance to pitting and crevice corrosion. It is especially important in environments with chlorides or reducing acids.
- Tungsten (W): Tungsten works with molybdenum to further increase resistance to localized corrosion. It also adds to the overall strength of the alloy.
- Manganese (Mn): Manganese helps with deoxidation during the melting process. It also improves the alloy’s workability and toughness.
- Niobium/Tantalum (Nb/Ta): These elements stabilize the alloy’s structure. They prevent grain boundary corrosion and improve resistance to intergranular attack.
Note: The precise chemical composition of hastelloy alloy g-30 ensures that each element supports the others. This synergy results in a material that performs reliably in the most demanding chemical processing applications.
The combination of these elements gives hastelloy g30 its reputation for durability and long service life. The alloy’s chemical composition allows it to withstand a wide range of corrosive agents, making it a top choice for industries that require both strength and corrosion resistance.
Hastelloy G-30 Standards
Manufacturers and engineers rely on strict standards to ensure the quality and performance of Hastelloy G-30. These standards cover everything from chemical composition to corrosion resistance. They help guarantee that each batch of material meets the requirements for demanding industrial applications.
The following table highlights key certifications and specifications for Hastelloy G-30, especially in powder form for additive manufacturing:
| Certification Type | Standard / Specification | Description |
|---|---|---|
| Powder Quality Standards | ASTM B213 | Particle size distribution control (15-45 μm) |
| ASTM E1131 | Oxygen and nitrogen content analysis (O ≤ 0.04%, N ≤ 0.02%) | |
| ASTM E45 | Chemical composition analysis conforming to AMS 7268 | |
| ASTM B833 | Apparent density and flow rate measurements | |
| AMS 2241 | Composition verification (Ni balance, Cr 22.7%, W 13%) | |
| AMS 7268 | Chemical composition conformity | |
| AMS 2403 | Contamination testing meeting cleanliness standards | |
| Corrosion Resistance Certifications | ASTM G28A | Acidic sulfuric and nitric acid corrosion testing, excellent resistance |
| ASTM G48A | Ferric chloride and hydrochloric acid boiling test, no attack | |
| NACE TM-01-77 | Sulfide stress cracking resistance in H2S-saturated brine | |
| ISO 15156 / NACE MR0175 / MR0103 | Sour service resistance certification for Level III H2S service |
Note: These certifications confirm the chemical integrity, corrosion resistance, and overall quality of Hastelloy G-30. They play a vital role in ensuring the alloy performs reliably in harsh environments.
Hastelloy G-30 pipes and tubes also comply with recognized industry standards such as ASTM B622, ASTM B619, ASTM B626, and ASTM B575. Their corresponding ASME standards (SB622, SB619, SB626, SB575) further validate the material’s suitability for critical service. The manufacturing process follows ISO 9001:2015, which ensures rigorous quality management and consistent product performance.
Engineers can trust that components made from Hastelloy G-30 meet strict requirements for mechanical strength and corrosion resistance. Batch testing according to these standards helps maintain high quality and reliability in every application.
Hastelloy G30 Properties
Mechanical Strength
Hastelloy g30 delivers impressive mechanical properties that make it a preferred material in harsh industrial environments. The alloy exhibits high tensile strength, with values reaching up to 1096 MPa after proper heat treatment. Its yield strength remains strong, typically around 1000 MPa, which allows components to withstand significant stress without permanent deformation. G30 maintains excellent elongation, often exceeding 40%, which means it can absorb energy and deform before breaking. This combination of strength and ductility ensures reliable performance in demanding applications.
The toughness of hastelloy g30 stands out, especially at high temperatures. The alloy resists cracking and maintains structural integrity even when exposed to thermal cycling or mechanical shock. Its hardness supports resistance to wear and abrasion, which is essential for equipment exposed to aggressive chemicals. Engineers value these mechanical properties because they translate into longer service life and reduced maintenance costs.
Hastelloy g30 also offers good weldability. Fabricators can join plates, bars, tubes, and fittings using standard welding techniques without sacrificing mechanical properties. This versatility in form and fabrication supports a wide range of industrial uses.
Temperature Resistance
Hastelloy g30 demonstrates outstanding high-temperature resistance, making it suitable for environments where both heat and corrosion present challenges. The alloy’s high chromium content enhances oxidation resistance, while molybdenum and tungsten improve resistance to pitting and crevice corrosion. G30 maintains stable mechanical properties and a uniform microstructure, even under high pressure and high-temperature conditions.
The alloy’s high-temperature performance is evident in its ability to retain strength and toughness above 540ºC (1000ºF). It has a melting point of 1371ºC (2500ºF), which allows it to operate safely in processes involving extreme heat. After annealing at 1177ºC, hastelloy g30 can restore its corrosion resistance and mechanical properties through rapid cooling. This process ensures the alloy remains reliable in high-temperature chemical, petroleum, and energy applications.

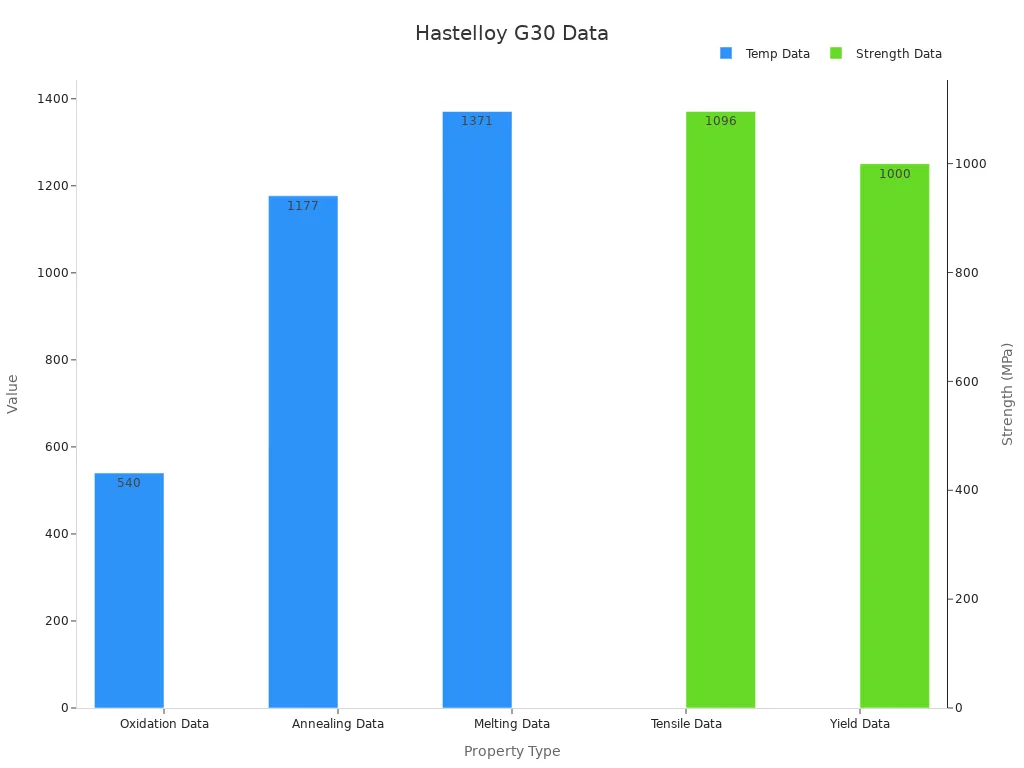

The following table summarizes key high-temperature properties of hastelloy g30:
| Property | Value |
|---|---|
| Melting Point | 1371ºC (2500ºF) |
| Tensile Strength (1177ºC) | 1096 MPa |
| Yield Strength (1177ºC) | 1000 MPa |
| Service Temperature | Up to 540ºC (1000ºF) and above |
| Creep Resistance | Excellent |
G30’s high-temperature resistance ensures that equipment maintains its shape and function, even during prolonged exposure to heat. This property is critical for reactors, heat exchangers, and piping systems in chemical processing plants.
Note: The alloy’s ability to resist oxidation and maintain mechanical properties at elevated temperatures sets it apart from many other nickel-based alloys.
Physical Characteristics
Hastelloy g30 displays a set of physical properties that contribute to its performance in corrosive and high-temperature environments. The alloy has a density of approximately 8.22 g/cm³, which provides a balance between strength and weight. Its thermal expansion rate remains moderate, reducing the risk of distortion or cracking during rapid temperature changes.
The physical properties of g30 include high thermal conductivity, which helps dissipate heat efficiently. This characteristic supports stable operation in heat exchangers and reactors. The alloy’s electrical resistivity is also favorable, making it suitable for applications where electrical insulation is important.
G30’s surface finish remains smooth and resistant to scaling, even after exposure to high temperatures. This feature helps prevent the buildup of corrosive deposits and supports easy cleaning. The alloy’s form availability—plates, bars, tubes, and custom fittings—gives engineers flexibility in design and fabrication.
Tip: When selecting materials for equipment exposed to both chemical attack and high temperatures, consider the physical properties of hastelloy g30 to ensure optimal performance and longevity.
Corrosion Resistance of Hastelloy Alloy G-30
Acid Environments
Hastelloy G-30 demonstrates exceptional corrosion resistance in a wide range of acid environments. Chemical processing plants often use this alloy for equipment exposed to nitric acid, phosphoric acid, and other oxidizing acids. The high chromium content in G30 forms a stable oxide layer on the surface, which provides strong oxidation resistance. This protective barrier prevents aggressive acids from attacking the metal beneath.
In nitric acid service, G30 outperforms many other nickel-based and iron-based alloys. The alloy resists both uniform and localized corrosion, even at elevated temperatures. Phosphoric acid production also benefits from the corrosion protection properties of Hastelloy G-30. The alloy maintains its integrity in wet-process phosphoric acid, where impurities can accelerate corrosion in less resistant materials. Chemical manufacturers select G30 for its ability to withstand mixed acid streams and high-temperature conditions without significant loss of mechanical properties.
Tip: For applications involving strong oxidizing acids, engineers often choose Hastelloy G-30 due to its reliable corrosion resistance and long service life.
Pitting and Crevice Resistance
Pitting and crevice corrosion present serious challenges in chloride-rich and high-temperature environments. Hastelloy G-30 addresses these issues through its unique combination of chromium and molybdenum. These elements work together to enhance the alloy’s resistance to localized corrosion, even when exposed to aggressive chlorides.
Empirical studies show that G30 forms a robust chromium oxide layer, which protects against pitting and crevice attack. Compared to 316 stainless steel, which suffers from oxide scale spallation, and Inconel 600, which experiences significant pitting, Hastelloy G-30 offers superior corrosion resistance. The alloy’s performance matches or exceeds that of other nickel alloys like Inconel 625 and Hastelloy C-276 in many aggressive environments.
- Hastelloy G-30 contains high levels of chromium and molybdenum, which improve resistance to pitting and crevice corrosion.
- Nickel-based alloys with more molybdenum generally show better localized corrosion resistance.
- Iron content in nickel-iron-chromium alloys does not enhance corrosion resistance but may affect other properties.
- The alloy’s oxidation resistance remains strong, even at high temperatures.
Hastelloy G-30 stands out as a resistant material for critical chemical processing equipment. Its corrosion resistance and oxidation resistance make it a preferred choice for industries that demand reliable performance in harsh, high-temperature, and corrosive environments.
Fabrication and Welding of Hastelloy G-30
Processing Methods
Hastelloy G-30 offers excellent versatility in fabrication. Manufacturers can obtain this alloy in a wide range of forms, which supports many industrial applications. The alloy is available as plates, sheets, strips, billets, bars, wires, pipes, tubes, and covered electrodes. These forms meet the requirements of several ASTM standards, such as ASTM B622 for seamless pipe and tube, ASTM B619 and B626 for welded pipe and tube, and ASTM B582 for plate, sheet, and strip.
Engineers often choose cold working as the preferred forming method. Cold working helps maintain the alloy’s strength and ductility. The alloy’s good formability allows fabricators to shape it into complex components without significant risk of cracking. This flexibility makes Hastelloy G-30 suitable for use in chemical processing, fertilizer production, and petrochemical industries.
Tip: Always follow recommended guidelines for forming and machining to preserve the alloy’s corrosion resistance and mechanical properties.
Welding Techniques
Hastelloy G-30 demonstrates strong weldability, which is essential for assembling equipment in harsh environments. Common welding methods include gas tungsten arc welding (GTAW), gas metal arc welding (GMAW), and shielded metal arc welding (SMAW). These techniques allow for reliable joints that retain the alloy’s corrosion resistance and mechanical strength.
Welding filler metals and electrodes should match the alloy’s composition. Standards such as AWS A5.14 ERNiCrMo-11 and AWS A5.11 ENiCrMo-11 provide suitable options. Welders often find that Hastelloy G-30 behaves similarly to Hastelloy G-3 during fabrication. Both alloys require careful control of heat input and interpass temperature to prevent grain growth and maintain optimal properties.
- Use low heat input to reduce the risk of sensitization.
- Clean surfaces thoroughly before welding to avoid contamination.
- Apply post-weld cleaning to restore corrosion resistance.
Note: Proper welding practices ensure that Hastelloy G-30 components deliver long service life in aggressive chemical environments.
Applications of Hastelloy Alloy G-30
Chemical Processing
Hastelloy Alloy G-30 finds its major applications in the chemical processing industry. Companies select this alloy for equipment exposed to aggressive acids and mixed chemical streams. The alloy’s high nickel, chromium, and molybdenum content ensures reliable performance in wet phosphoric acid processes, even at elevated temperatures and varying P2O5 concentrations. Chemical plants use G-30 for reactors, heat exchanger tubing, and piping systems that handle nitric, sulfuric, and phosphoric acids. The alloy’s resistance to stress corrosion cracking and ease of fabrication make it a dependable choice for critical applications. Fertilizer production facilities rely on G-30 for evaporator tubes and process vessels, where durability and corrosion resistance are essential.
Note: The alloy’s application range extends to pollution control equipment, where it withstands harsh oxidizing acid environments.
Metal Pickling
Metal pickling operations require materials that can resist strong acid mixtures and oxidizing solutions. Hastelloy Alloy G-30 stands out in these applications due to its superior corrosion resistance. Pickling lines use this alloy for tanks, heating coils, and piping exposed to hydrochloric, sulfuric, and nitric acid solutions. The alloy outperforms stainless steel in these environments, maintaining structural integrity and reducing maintenance needs. Its high chromium content protects against localized attack, making it ideal for mixed acid pickling services. Facilities processing petrochemicals also benefit from G-30’s reliability in acid cleaning and regeneration systems.
Other Uses
The applications of Hastelloy Alloy G-30 reach beyond chemical and metal processing. The alloy serves in the marine industry, where saltwater and oxidizing agents present constant challenges. Marine hardware, pumps, and valves made from G-30 resist pitting and crevice corrosion. The alloy also appears in turbines and heat exchangers, where high temperatures and corrosive gases demand robust materials. Food and pharmaceutical industries use G-30 for process equipment that must remain free from contamination and corrosion. Its versatility supports a wide application range, including pollution control, marine environments, and turbines for energy systems.
| Industry | Typical Applications |
|---|---|
| Chemical Processing | Reactors, heat exchangers, piping |
| Fertilizer | P2O5 evaporator tubes, process vessels |
| Metal Pickling | Tanks, coils, acid piping |
| Marine | Pumps, valves, hardware |
| Energy | Turbines, heat exchangers |
| Food/Pharma | Process equipment, piping |
Tip: Selecting Hastelloy Alloy G-30 for demanding applications ensures long service life and reduced downtime in harsh environments.
Hastelloy Grades Comparison
G-30 vs Other Grades
Hastelloy Alloy G-30 stands out among nickel-based alloys for its unique balance of corrosion resistance and mechanical properties. When compared to grades like Hastelloy C-276 and G-35, G-30 offers superior performance in environments with strong oxidizing acids. C-276, known for its versatility, performs well in both oxidizing and reducing acids but does not match G-30’s resistance in commercial phosphoric acid or mixed acid streams. G-35, a newer grade, improves on G-30’s resistance to certain phosphoric acid mixtures but may not provide the same mechanical strength.
The following table highlights key mechanical properties for G-30:
| Property | Minimum Value |
|---|---|
| Ultimate Tensile Strength | 85 KSI (586 MPa) |
| Yield Strength (0.2% offset) | 35 KSI (241 MPa) |
| Elongation | 30% |
G-30’s high chromium and nickel content help it resist grain boundary corrosion, especially in welded zones. This feature makes it a preferred choice for equipment that requires frequent welding or operates in aggressive acid environments. C-276, while excellent in many corrosive settings, can be more susceptible to localized corrosion in certain oxidizing acids. G-35, with its enhanced resistance to wet-process phosphoric acid, may be chosen for fertilizer production but often at the expense of some mechanical properties.
Selection Considerations
Engineers must consider several factors when selecting between Hastelloy grades. Corrosion remains the most critical factor. G-30 excels in resisting corrosion from nitric, sulfuric, and phosphoric acids, as well as mixed acid streams. Its ability to withstand grain boundary corrosion in heat-affected zones also supports reliable weldability. C-276 offers broader resistance to both oxidizing and reducing acids, making it suitable for general chemical processing. G-35 targets environments with high concentrations of phosphoric acid but may not perform as well in mixed acid or high-temperature service.
Mechanical properties, such as tensile strength and elongation, play a role in the decision. G-30 provides a strong combination of strength and ductility, supporting long service life in harsh conditions. Weldability and resistance to stress corrosion cracking also influence material selection. G-30’s composition allows it to maintain corrosion resistance after welding, reducing the risk of failure in critical applications.
Tip: Select G-30 for equipment exposed to aggressive oxidizing acids or where weld integrity is vital. Choose C-276 for broader chemical resistance, and G-35 for specialized phosphoric acid service.
Hastelloy Alloy G-30 stands out in critical environments due to its unique composition and superior corrosion resistance. Engineers select this alloy for applications where aggressive acids threaten equipment integrity. Its mechanical properties support demanding applications in chemical processing, metal pickling, and other harsh settings. G-30 maintains performance across a wide range of applications, including reactors, piping, and heat exchangers. When evaluating materials for new applications, experts recommend G-30 for its proven reliability. Consult materials specialists to match alloy selection with specific applications.
- Key benefits for applications:
- Long service life
- Consistent performance
- Reduced maintenance
FAQ
What makes Hastelloy G-30 different from other nickel alloys?
Hastelloy G-30 contains higher chromium and nickel levels. This composition gives it superior resistance to oxidizing acids. The alloy also maintains strength and toughness in harsh chemical environments.
Can engineers weld Hastelloy G-30 easily?
Yes. Engineers can weld Hastelloy G-30 using standard methods like GTAW, GMAW, and SMAW. The alloy retains its corrosion resistance and mechanical properties after welding when proper procedures are followed.
Where do industries use Hastelloy G-30 most often?
Industries use Hastelloy G-30 in chemical processing, fertilizer production, and metal pickling. The alloy performs well in equipment exposed to strong acids and high temperatures.
How does Hastelloy G-30 handle high temperatures?
Hastelloy G-30 maintains its mechanical strength and corrosion resistance at temperatures up to 540ºC (1000ºF). The alloy resists oxidation and remains stable during thermal cycling.
Is Hastelloy G-30 available in different product forms?
Manufacturers supply Hastelloy G-30 as plates, bars, tubes, pipes, and fittings. This variety allows engineers to select the best form for each application.
