Hastelloy X alloy belongs to the family of nickel-based superalloys, featuring a distinct composition of nickel, chromium, iron, and molybdenum. Engineers value this hastelloy alloy for its remarkable high-temperature strength and oxidation resistance. The alloy’s composition ensures reliable performance under extreme heat, which sets it apart from other hastelloy grades. Industries rely on hastelloy x alloy in demanding applications, including aerospace, chemical processing, and power generation, where superior durability is crucial. Technical studies confirm that optimized heat treatments improve both ductility and strength, making this hastelloy alloy ideal for gas turbines. Market data shows a steady rise in demand for hastelloy x alloy, fueled by growth in sectors that require advanced nickel-based superalloy solutions. The table below summarizes current market trends:
| Category | Details |
|---|---|
| Strengths | High corrosion resistance, excellent thermal stability, high temperature resistance |
| Weaknesses | High cost, difficult to work with, low ductility |
| Opportunities | Growing demand in aerospace and automotive industries, increasing demand from oil & gas |
| Threats | Stiff competition from other alloys, high price volatility |
A deep understanding of Hastelloy Alloy X: Composition, properties, and performance helps technical professionals and buyers make informed decisions about hastelloy alloy selection.
Key Takeaways
- Hastelloy X is a nickel-based superalloy known for its high strength and excellent resistance to heat and corrosion up to 2200°F.
- Its unique mix of nickel, chromium, iron, and molybdenum gives it durability in extreme environments like aerospace, chemical processing, and power generation.
- The alloy offers strong mechanical properties, including high tensile strength and good ductility, making it reliable under stress and thermal cycling.
- Hastelloy X is weldable and available in many product forms, with advanced manufacturing methods improving its quality and performance.
- While costly, Hastelloy X provides superior performance in harsh conditions, making it a top choice for critical high-temperature and corrosive applications.
What is Hastelloy X?
Hastelloy X alloy stands out as a premier member of the hastelloy family. Engineers and metallurgists recognize hastelloy x alloy as a nickel-based superalloy with a unique blend of strength and versatility. The alloy’s composition includes nickel as the base element, with significant additions of chromium, iron, and molybdenum. These elements work together to deliver exceptional performance in extreme environments.
Hastelloy x alloy meets rigorous industry standards such as ASTM B435, AMS 5536, and ASME SB 435. These standards confirm its status as a high-performance hastelloy alloy. The alloy resists oxidation up to 2200°F, making it a top choice for high-temperature service. Molybdenum in the hastelloy x alloy matrix provides solid-solution strengthening, which improves both durability and fabrication. Nickel stabilizes the crystal structure, while chromium and iron boost oxidation resistance and high-temperature strength.
Note: The unique composition of hastelloy x alloy allows it to maintain mechanical integrity even under severe thermal cycling and corrosive atmospheres.
The following table summarizes the key elements and physical properties of hastelloy x alloy:
| Property | Value/Range |
|---|---|
| Nickel (Ni) | Balance |
| Chromium (Cr) | 20.5–23.0% |
| Iron (Fe) | 17.0–20.0% |
| Molybdenum (Mo) | 8.0–10.0% |
| Density | ~8.22 g/cm³ |
| Modulus of Elasticity | ~205 GPa |
| Max Service Temp | Up to 2200°F (1204°C) |
Hastelloy x alloy demonstrates high yield and tensile strength, even after exposure to elevated temperatures. The alloy also resists stress-corrosion cracking, carburization, and nitriding. These features make hastelloy x alloy a preferred material for demanding applications such as gas turbines, jet engines, and industrial furnaces. The hastelloy alloy family, especially hastelloy x alloy, continues to set the benchmark for performance in the nickel-based superalloy category.
Hastelloy x alloy’s reputation comes from its proven track record in critical industries. The alloy’s combination of strength, oxidation resistance, and fabricability ensures reliable service where other materials may fail. As a result, hastelloy x alloy remains a cornerstone in the world of advanced hastelloy alloys.
Hastelloy Alloy X: Chemical composition
Main Elements
Hastelloy x alloy contains a carefully balanced mix of metals. The main elements in the composition include nickel, chromium, iron, molybdenum, and cobalt. Each element plays a specific role in the performance of this hastelloy alloy. Nickel forms the base of the alloy, while chromium and iron add strength and resistance to oxidation. Molybdenum and cobalt further enhance the mechanical properties and stability of the hastelloy x alloy. The composition also includes small amounts of manganese, silicon, and carbon, which help fine-tune the alloy’s characteristics.
The unique combination of these elements gives hastelloy x alloy its reputation for high-temperature strength and corrosion resistance.
Percentage Breakdown
The composition of hastelloy x alloy follows strict industry standards. The table below shows the typical percentage breakdown for each main element found in the alloy:
| Element | Approximate Weight % |
|---|---|
| Nickel (Ni) | ~47% (balance) |
| Chromium (Cr) | 20.5–23.0% |
| Iron (Fe) | 17.0–20.0% |
| Molybdenum (Mo) | 8.0–10.0% |
| Cobalt (Co) | Up to 1.0% |
| Others (Mn, Si, C) | <1% total |
This precise composition ensures that hastelloy x alloy meets the demanding requirements of high-temperature and corrosive environments. The balance of nickel, chromium, iron, and molybdenum in the composition sets hastelloy x alloy apart from other hastelloy grades.
Role of Each Element
Each element in the hastelloy alloy x: composition contributes to the alloy’s outstanding performance. The table below summarizes the function of each main element:
| Element | Role in Enhancing Hastelloy X Performance |
|---|---|
| Nickel (Ni) | Provides corrosion resistance and ductility, essential for durability in harsh environments. |
| Chromium (Cr) | Contributes oxidation resistance, protecting the alloy at high temperatures. |
| Iron (Fe) | Adds hardening effect and helps reduce cost without compromising performance. |
| Molybdenum (Mo) | Enhances strength and stiffness, improving mechanical properties under stress. |
| Cobalt (Co) | Controls grain structure, which influences overall alloy stability and performance. |
| Others (Mn, Si, C) | Present as residual traces, with minor effects on properties. |
Nickel serves as the backbone of the hastelloy x alloy, providing a stable matrix and excellent corrosion resistance. Chromium increases the alloy’s ability to withstand oxidation, especially at elevated temperatures. Iron adds hardness and helps control the overall cost of the hastelloy alloy x: composition. Molybdenum boosts strength and stiffness, making the alloy suitable for high-stress applications. Cobalt fine-tunes the grain structure, which improves the stability and performance of the hastelloy x alloy during thermal cycling. The trace elements, including manganese, silicon, and carbon, have minor but important effects on the final properties of the composition.
Engineers select hastelloy x alloy for its reliable performance, which comes directly from the careful balance of elements in its composition.
The unique hastelloy alloy x: composition allows the alloy to maintain its mechanical integrity and resist corrosion in the most demanding environments. This combination of elements ensures that hastelloy x alloy remains a top choice for industries that require advanced materials.
Hastelloy X Properties
Physical Properties
Hastelloy x alloy displays a unique set of physical properties that make it a preferred choice in demanding industries. The alloy has a density of approximately 8.22 g/cm³, which provides a solid foundation for its high strength and durability. Engineers recognize hastelloy x alloy as a non-magnetic material, even after exposure to elevated temperatures. This non-magnetic nature proves valuable in applications where magnetic interference must be minimized.
The alloy’s physical properties include excellent corrosion resistance and high-temperature oxidation resistance. These features allow hastelloy x alloy to maintain its integrity in both oxidizing and reducing environments. The alloy’s surface forms a stable oxide layer, which protects it from further degradation. This characteristic is essential for a high-temperature oxidation-resistant alloy used in gas turbines and chemical reactors.
The combination of high temperature capabilities and corrosion resistance in reducing environments ensures that hastelloy x alloy performs reliably in harsh service conditions.
A summary of key physical properties appears below:
| Property | Value/Description |
|---|---|
| Density | ~8.22 g/cm³ |
| Magnetic Behavior | Non-magnetic |
| Corrosion Resistance | Excellent in oxidizing/reducing environments |
| Oxidation Resistance | Outstanding at high temperatures |
| Surface Stability | Forms protective oxide layer |
Mechanical Properties
Hastelloy x alloy stands out for its high temperature strength and mechanical reliability. Laboratory tests show that the alloy achieves a yield strength of 445 MPa, which surpasses many stainless steels. The ultimate tensile strength reaches 823.9 MPa, confirming its high strength and load-bearing capacity. The alloy maintains good ductility, with uniform elongation measured at 56.5%. This balance of strength and ductility supports its use in high temperature mechanical properties applications.
The alloy’s mechanical properties also include excellent corrosion resistance and resistance to stress-corrosion cracking. Studies confirm that hastelloy x alloy resists cracking under stress in corrosive environments, making it suitable for petrochemical and power generation sectors. The hardness of the alloy, measured at 262.7 HV, provides additional wear resistance.
- Key mechanical properties of hastelloy x alloy:
- High temperature strength: Maintains mechanical integrity up to 2200°F (1204°C)
- Yield strength: 445 MPa
- Ultimate tensile strength: 823.9 MPa
- Uniform elongation: 56.5%
- Hardness: 262.7 HV
- Elastic modulus: 203.8 GPa
- Excellent corrosion resistance and stress-corrosion cracking resistance
A comparative table highlights these properties:
| Mechanical Property | Value | Description |
|---|---|---|
| Tensile Strength | 755–823.9 MPa | Maximum stress before breaking |
| Yield Strength | 385–445 MPa | Stress at which plastic deformation begins |
| Elastic Modulus | 203.8–205 GPa | Stiffness of the alloy |
| Uniform Elongation | 56.5% | Ductility under tension |
| Hardness | 262.7 HV | Surface wear resistance |
| Stress-Corrosion Cracking Resistance | Excellent | Reliable in harsh, corrosive environments |
Researchers have observed that microstructural control, such as through hot isostatic pressing or solution heat treatment, can further optimize the alloy’s mechanical performance and corrosion resistance. These treatments reduce microcracks and improve the uniformity of the alloy, enhancing both strength and oxidation resistance.
Thermal Properties
Hastelloy x alloy demonstrates superior thermal properties, which support its use in high-temperature environments. The alloy retains its high temperature strength and ductility after exposure to elevated temperatures. Technical studies show that solution heat treatment at 1100°C increases stress rupture life and improves ductility by promoting dynamic recrystallization and controlling carbide size. This microstructural evolution leads to enhanced plastic deformation ability and longer service life under thermal stress.
The alloy’s oxidation resistance remains outstanding at temperatures up to 2200°F (1204°C). Experimental investigations reveal that the formation of dense Cr2O3 particles on the surface hinders oxygen diffusion, reducing oxidation rates and protecting the underlying metal. The alloy’s high-temperature corrosion resistance ensures reliable performance in both isothermal and cyclic thermal conditions.
After high-temperature exposure, hastelloy x alloy maintains its non-magnetic nature and exhibits improved ductility, especially when processed with optimized heat treatments.
A summary of thermal properties is provided below:
| Thermal Property | Value/Observation |
|---|---|
| Maximum Service Temperature | Up to 2200°F (1204°C) |
| Oxidation Resistance | Excellent, forms protective oxide scales |
| Ductility After Heat Exposure | Improved with proper heat treatment |
| Non-Magnetic Behavior | Maintained after high-temperature use |
| High-Temperature Capabilities | Reliable in cyclic and isothermal service |
Hastelloy x alloy’s combination of high temperature strength, oxidation resistance, and excellent corrosion resistance makes it a leading choice for high-temperature applications. The alloy’s physical properties, mechanical reliability, and thermal stability ensure long-term performance in the most challenging environments.
Hastelloy X Applications
Aerospace
Aerospace engineers rely on hastelloy x alloy for critical applications in gas turbine engines. The alloy serves as an inner liner material in turbine engine cases, shielding vital components from direct combustion flame exposure. This role highlights the alloy’s high-temperature strength and oxidation resistance. Manufacturers select hastelloy x alloy for gas turbine hot section parts, including combustor cans and transition ducts. These applications of hastelloy alloy ensure reliable operation under severe thermal cycling. Technical literature confirms that hastelloy alloys, such as hastelloy x alloy, play a key part in advanced aerospace gas turbine technology. The alloy’s ability to maintain integrity under extreme heat cycles reduces maintenance and improves engine efficiency.
Chemical Processing
The chemical processing industry values hastelloy x alloy for its outstanding corrosion resistance. Process vessels, heat exchangers, and reactor linings often use this alloy. The applications of hastelloy alloy in chemical processing include handling aggressive chemicals and high-temperature reactions. The alloy’s resistance to both oxidizing and reducing environments makes it suitable for a wide range of chemical processing applications. Engineers choose hastelloy x alloy to extend equipment life and minimize downtime.
Power Generation
Power generation systems demand materials that withstand high temperatures and corrosive atmospheres. Hastelloy x alloy finds use in turbine blades, combustion chambers, and transition ducts. Industrial reports show that over 1,200 metric tons of hastelloy alloys have been installed in renewable energy plants, including geothermal and biomass systems. Nuclear power facilities use hastelloy x alloy for nuclear fuel element cladding and other critical components. The alloy’s corrosion resistance and thermal stability support reliable, long-term operation in these extreme environment applications.
- Key power generation applications:
- Turbine blades
- Combustion chambers
- Transition ducts
- Nuclear fuel element cladding
Other Applications
Engineers use hastelloy x alloy in a variety of other demanding applications. The alloy appears in industrial furnaces, heat-treating equipment, and high-temperature fasteners. Its corrosion resistance and mechanical strength make it suitable for marine and underwater power cable sheathing. The broad range of applications of hastelloy alloy demonstrates its versatility and value in industries that require advanced materials.
Tip: Selecting hastelloy x alloy ensures performance and reliability in the most challenging applications.
Hastelloy X alloy vs. Other Alloys
Inconel Comparison
Hastelloy X and Inconel alloys both serve in high-temperature environments, but each offers distinct advantages. Hastelloy X provides excellent oxidation resistance and maintains strength up to 1200°C (2200°F). Inconel 625 and Inconel 718, on the other hand, deliver superior high-temperature strength and are often more cost-effective for certain applications. Industry experts note that Inconel alloys excel in aerospace and power generation due to their thermal stability and mechanical properties. Hastelloy X stands out for its durability in corrosive environments, making it a preferred choice for chemical and nuclear industries. Both alloys require specialized processing, but hastelloy offers slightly better weldability and machinability.
| Alloy | Oxidation Resistance | Fabricability | Cost |
|---|---|---|---|
| Hastelloy X | Excellent | Good | High |
| Inconel 625 | Good | Excellent | Medium |
| Inconel 718 | Medium | Fair | Medium |
Note: The cost-to-performance ratio depends on the application. Hastelloy X is more cost-effective in corrosive settings, while Inconel alloys excel in high-stress, high-temperature roles.
Other Hastelloy Grades
Within the hastelloy family, each grade targets specific challenges. Hastelloy X is optimized for high-temperature oxidation resistance. Grades like Hastelloy C-276 and C-2000 focus on severe aqueous corrosion, making them suitable for chemical processing involving aggressive acids. While Hastelloy X performs best in hot, oxidizing atmospheres, other grades offer broader resistance to a range of corrosive chemicals. Selection depends on the operating environment and required properties.
Advantages and Limitations
Hastelloy X offers several strengths:
- Excellent high-temperature strength and oxidation resistance
- Good weldability and machinability
- Reliable performance in thermal cycling and corrosive environments
However, users should consider some limitations:
- Higher cost compared to stainless steels and some Inconel alloys
- Lower fabricability than Inconel 625
- Susceptibility to embrittlement at lower temperatures
- Requires careful handling and processing
This balance of properties makes hastelloy X a leading choice for aerospace, industrial furnaces, and petrochemical equipment, where extreme heat and oxidation resistance are critical.
Hastelloy X Forms and Fabrication

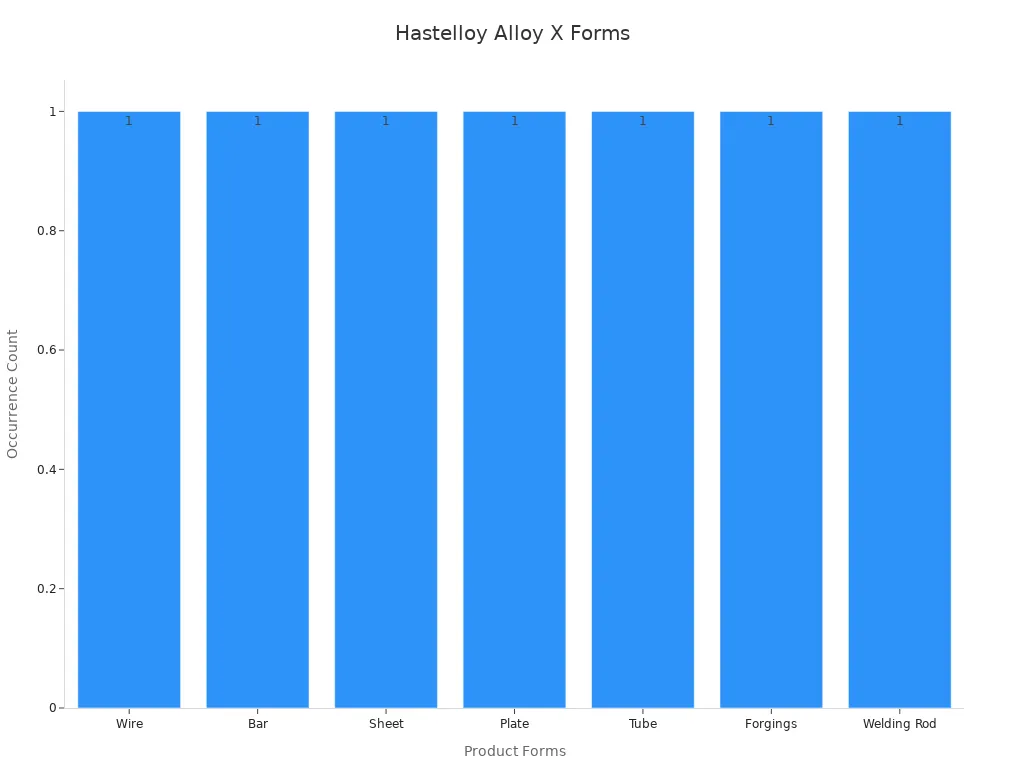

Product Forms
Manufacturers supply Hastelloy X in a wide range of product forms to meet diverse engineering needs. Common forms include sheet, plate, pipe, tube, wire, bar, strip, coil, forgings, and fasteners. These options allow engineers to select the most suitable form for each application, from gas turbine components to chemical processing equipment. The following table summarizes the available product forms from leading suppliers:
| Product Forms Available |
|---|
| Pipe |
| Tube |
| Sheet |
| Strip |
| Plate |
| Round Bar |
| Flat Bar |
| Forging Stock |
| Hexagon |
| Wire |
| Extruded |
| Coil |
| Fasteners |
| Welding Rod |
Additive Manufacturing Processes
Additive manufacturing processes have expanded the possibilities for Hastelloy X fabrication. Techniques such as laser powder bed fusion and directed energy deposition enable the production of complex geometries with high precision. Researchers have studied the effects of build direction and composition on mechanical properties, finding that horizontally built parts often achieve higher yield strength, while vertical builds offer greater ductility. Hot isostatic pressing plays a critical role in post-processing, removing micro-cracks and pores to enhance part integrity. Studies also highlight the importance of optimizing process parameters to control microstructure and minimize defects. Both laser powder bed fusion and directed energy deposition support rapid prototyping and small-batch production, making them valuable for aerospace and energy applications.
Fabrication and Supply
Hastelloy X demonstrates excellent weldability using TIG, MIG, and resistance welding methods. The alloy can be hot worked at approximately 2150°F (1177°C) and cold worked by rolling, bending, or drawing. Intermediate annealing is recommended after severe deformation to restore ductility. Industry standards such as ASTM B435, ASME SB435, and AMS 5536 guide fabrication and ensure consistent quality. Quality control and testing protocols include dimensional checks, self-inspection during production, and finished product verification. Non-destructive testing methods help detect internal flaws without damaging the material. Hot isostatic pressing further improves mechanical properties and reliability. Suppliers provide detailed test reports and offer third-party verification to meet customer requirements.
Tip: Consistent quality control and testing, combined with advanced additive manufacturing processes, ensure that Hastelloy X components meet the highest industry standards.
Hastelloy Alloy X combines a unique balance of nickel, chromium, iron, and molybdenum, delivering high strength and oxidation resistance up to 2200°F. Its microstructure, reinforced by phases like Cr7C3 and Mo2C, supports durability in extreme environments. The table below highlights key features:
| Feature | Value |
|---|---|
| High-Temp Strength | Maintains integrity at 2200°F |
| Corrosion Resistance | Excellent in harsh conditions |
| Typical Applications | Jet engines, turbines, furnaces |
Selecting this alloy requires careful review of technical data and supplier reputation to ensure optimal performance.
FAQ
What is the maximum temperature Hastelloy X can withstand?
Hastelloy X maintains strength and oxidation resistance up to 2200°F (1204°C). This property makes it suitable for high-temperature applications in aerospace, power generation, and chemical processing.
Is Hastelloy X easy to weld and fabricate?
Engineers find Hastelloy X weldable using TIG, MIG, and resistance welding. The alloy also allows hot and cold forming. Intermediate annealing restores ductility after severe deformation.
How does Hastelloy X resist corrosion?
The alloy forms a stable oxide layer on its surface. This layer protects against oxidation and corrosion in both oxidizing and reducing environments. The high chromium and molybdenum content enhances this resistance.
What are the main industries using Hastelloy X?
Aerospace, chemical processing, and power generation industries use Hastelloy X. The alloy also appears in industrial furnaces, nuclear reactors, and marine applications due to its durability and high-temperature performance.
