Incoloy alloy 020, also known as alloy 020, stands out as a nickel-iron-chromium alloy designed for demanding high corrosion environments. Its composition includes significant amounts of nickel, iron, chromium, copper, and molybdenum, with small additions of niobium. The table below shows the typical incoloy alloy 020: composition:
| Element | Approximate Composition (%) |
|---|---|
| Iron (Fe) | ~35 |
| Chromium (Cr) | 19 – 21 |
| Copper (Cu) | 3 – 4 |
| Nickel (Ni) | 32 – 38 |
| Molybdenum (Mo) | 2 – 3 |
| Carbon (C) | <0.07 |
| Sulfur (S) | <0.035 |
This unique incoloy alloy 020: composition gives the alloy exceptional corrosion resistance in acid and high corrosion environments. Incoloy alloy 020 maintains mechanical strength at elevated temperatures, making it a preferred incoloy alloy for critical process equipment in the chemical, petrochemical, and power industries. Engineers rely on incoloy alloy 020 for pumps, valves, and piping where corrosion and strength matter most.
Key Takeaways
- Incoloy Alloy 020 is a nickel-iron-chromium alloy designed to resist strong corrosion, especially in acidic and harsh chemical environments.
- Its unique mix of elements like nickel, chromium, copper, and molybdenum gives it excellent strength and protection against rust and damage at high temperatures.
- The alloy performs well in industries such as chemical processing, oil and gas, marine, and power generation, where durability and corrosion resistance are critical.
- Compared to stainless steels and similar alloys, Incoloy 020 offers superior resistance to acids like sulfuric acid and better mechanical strength.
- Fabricators can easily weld and form Incoloy 020, making it a versatile and cost-effective choice for building reliable, long-lasting equipment.
What is Incoloy Alloy 020?
Incoloy alloy 020 represents a specialized material engineered for environments where corrosion poses a significant threat. This alloy features a nickel-iron-chromium matrix, which forms the foundation of its performance. Nickel, present in substantial amounts, stabilizes the austenitic structure and delivers resistance to both corrosion and high temperatures. Iron, the second major component, helps reduce the overall nickel content, making the alloy more cost-effective while still contributing to strength.
Chromium stands out as the primary element responsible for corrosion and oxidation resistance. It also strengthens the incoloy alloy through solid solution mechanisms. Molybdenum, another key ingredient, enhances the alloy’s ability to withstand reducing environments and adds further strength. Copper, present in notable quantities, increases resistance to sulfuric acid, making incoloy alloy 020 a preferred choice for chemical processing. Niobium, though present in smaller amounts, improves strength through both solid solution and precipitation strengthening.
The unique composition of incoloy alloy 020 allows it to balance corrosion resistance, mechanical strength, and cost. This balance makes the alloy suitable for demanding industrial applications. Engineers often select incoloy alloy 020 for equipment exposed to aggressive chemicals, such as pumps, valves, and piping systems. The alloy’s design ensures reliable performance in environments where other materials might fail.
Note: Incoloy alloy 020’s combination of nickel, iron, chromium, molybdenum, copper, and niobium creates a material that resists a wide range of corrosive agents. This resistance, paired with mechanical durability, defines its value in industry.
Incoloy alloy 020 stands apart from standard stainless steels and other incoloy alloys due to its optimized composition. The careful selection and proportion of each element ensure that alloy 020 delivers both performance and cost efficiency. As a result, industries that require robust, corrosion-resistant materials frequently turn to incoloy alloy 020 for critical applications.
Incoloy Alloy 020: Chemical Composition
Main Elements
Alloy 020 belongs to the family of incoloy alloys, which are known for their high nickel content and robust corrosion resistance. The main elements in incoloy alloy 020: composition include nickel, iron, chromium, copper, and molybdenum. Nickel forms the backbone of the alloy, providing a stable austenitic structure and enhancing corrosion resistance. Iron serves as the balance, making up the remainder of the alloy and contributing to mechanical strength. Chromium, present in significant amounts, enables the formation of a protective oxide layer that shields the alloy from aggressive environments. Copper and molybdenum further boost the alloy’s ability to withstand harsh chemicals, especially sulfuric acid. Niobium and tantalum, though present in smaller quantities, play a crucial role in stabilizing the alloy and improving its resistance to localized corrosion.
Incoloy alloy 020 stands out due to its carefully balanced composition, which allows it to perform reliably in environments where many other alloys fail.

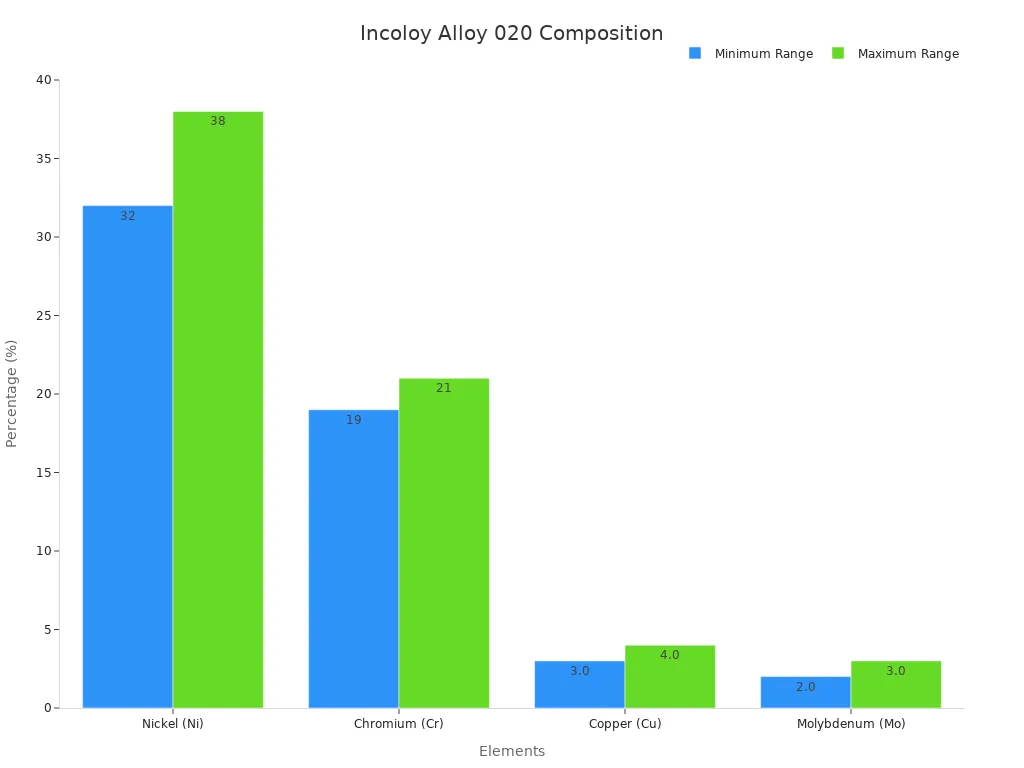

Composition Table
The table below presents the typical chemical composition of incoloy alloy 020. These values reflect the ranges found in recent metallurgical analyses and align with major industry standards such as ASTM and ASME.
| Element | Composition Range (%) |
|---|---|
| Nickel (Ni) | 32.00 – 38.00 |
| Chromium (Cr) | 19.00 – 21.00 |
| Copper (Cu) | 3.00 – 4.00 |
| Molybdenum (Mo) | 2.00 – 3.00 |
| Manganese (Mn) | Up to 2.00 |
| Niobium + Tantalum (Nb + Ta) | (8 x C) – 1.00 |
| Silicon (Si) | Up to 1.00 |
| Carbon (C) | Up to 0.07 |
| Phosphorus (P) | Up to 0.045 |
| Sulfur (S) | Up to 0.035 |
| Iron (Fe) | Remainder |
Role of Each Element
Each element in incoloy alloy 020: composition serves a specific function that enhances the alloy’s performance in corrosive environments:
- Nickel (Ni):
Nickel content ranges from 32% to 38%. This high nickel content stabilizes the austenitic structure and provides excellent corrosion resistance, especially in reducing and acidic environments. Nickel also improves the alloy’s resistance to stress corrosion cracking. - Iron (Fe):
Iron acts as the base element, making up the balance of the alloy. It supports the overall structure and helps control cost without sacrificing mechanical properties. - Chromium (Cr):
Chromium content, between 19% and 21%, enables the formation of a dense, protective oxide film on the alloy’s surface. This film is essential for stainless behavior and shields the alloy from oxidation and many corrosive agents. - Copper (Cu):
Copper, present at 3% to 4%, significantly increases resistance to sulfuric acid and other aggressive chemicals. It also helps prevent localized corrosion such as pitting and crevice corrosion. - Molybdenum (Mo):
Molybdenum, at 2% to 3%, enhances resistance to pitting and crevice corrosion. It also improves the alloy’s performance in reducing environments. - Niobium (Nb) and Tantalum (Ta):
These elements, present up to 1%, stabilize the alloy by preventing the formation of harmful carbides. They also contribute to strength and resistance to intergranular corrosion. - Other Elements (Mn, Si, C, P, S):
Manganese, silicon, carbon, phosphorus, and sulfur are controlled to low levels. These elements help refine the microstructure and suppress the formation of inclusions that could initiate corrosion.
Metallurgical studies show that chromium forms a protective oxide scale, which is vital for corrosion resistance. Molybdenum and niobium influence the formation of oxide scales and help suppress localized corrosion. Copper’s presence further boosts the alloy’s ability to withstand sulfuric acid. The combination of these elements ensures that incoloy alloy 020 maintains stability and resists a wide range of corrosive agents, even in the most demanding chemical processing environments.
The synergy between high nickel content, chromium, copper, and molybdenum makes incoloy alloy 020 a top choice for applications where both corrosion resistance and mechanical strength are critical.
Properties of Incoloy Alloy 020
Corrosion Resistance
Incoloy alloy 020 delivers outstanding corrosion resistance in a wide range of aggressive environments. The alloy’s unique composition provides high corrosion resistance against sulfuric acid, chlorides, phosphoric acid, and nitric acid. Engineers often select incoloy for process equipment exposed to these harsh chemicals. The high nickel content, combined with chromium and molybdenum, forms a protective barrier that shields the alloy from chemical attack.
This alloy resists pitting, crevice corrosion, and stress corrosion cracking, even in environments where many stainless steels fail. The copper content further enhances resistance to aqueous corrosion, especially in sulfuric acid solutions. Incoloy alloy 020 maintains its excellent corrosion resistance in both oxidizing and reducing conditions. This makes it a preferred choice for chemical processing, petrochemical, and power generation industries.
Tip: Incoloy’s high corrosion resistance helps extend equipment life and reduce maintenance costs in demanding applications.
The properties of incoloy alloy 020 ensure reliable performance in environments with fluctuating chemical concentrations and temperatures. This alloy’s resistance to corrosion remains stable even when exposed to high chloride levels or mixed acid solutions. As a result, incoloy offers a dependable solution for critical process systems.
Mechanical Strength
Incoloy alloy 020 exhibits high strength and excellent mechanical properties, making it suitable for high-stress industrial applications. The alloy’s high-strength characteristics allow it to withstand significant loads without permanent deformation. Incoloy’s mechanical properties include impressive yield strength, tensile strength, and ductility.
The following table summarizes key mechanical benchmarks for incoloy alloy 020 at standard laboratory conditions:
| Property | Value (Imperial) | Value (Metric) | Description |
|---|---|---|---|
| Yield Strength (0.2% offset) | 45,000 psi | 300 MPa | Indicates the stress at which the alloy begins to deform plastically |
| Tensile Strength | 90,000 psi | 620 MPa | Maximum stress the alloy can withstand while being stretched or pulled |
| Elongation | 40% | N/A | Measure of ductility, showing the alloy’s ability to stretch before breaking |
These values demonstrate the high-strength and ductility of incoloy. The alloy’s high strength ensures structural integrity under pressure, while its ductility allows it to absorb energy and resist cracking. Incoloy’s excellent mechanical properties make it a high-strength alloy that performs well in both static and dynamic loading conditions.
Engineers value incoloy for its ability to maintain mechanical properties after fabrication processes such as welding or forming. The alloy’s high-strength and ductility help prevent brittle failure, even in challenging environments. Incoloy alloy 020’s mechanical properties support its use in pumps, valves, heat exchangers, and other critical components.
High Temperature Performance
Incoloy alloy 020 offers reliable high temperature resistance, which is essential for equipment operating in elevated temperature environments. The alloy maintains its high strength and corrosion resistance at temperatures up to 500°C (932°F). Incoloy’s high temperature corrosion resistance protects against oxidation and scaling, even during prolonged exposure to heat.
The properties of incoloy alloy 020 include stable mechanical performance and ductility at high temperatures. The alloy resists thermal fatigue and maintains its shape under thermal cycling. Incoloy’s high-strength and high temperature resistance allow it to perform in heat exchangers, reactors, and process piping where both strength and corrosion resistance are critical.
Note: Incoloy’s high temperature resistance ensures long-term reliability in power plants, chemical processing, and oil and gas facilities.
Incoloy alloy 020’s combination of high-strength, excellent mechanical properties, and high temperature corrosion resistance sets it apart from many other alloys. The alloy’s ductility remains high, even after exposure to elevated temperatures, which helps prevent cracking and failure. These properties make incoloy a trusted material for demanding industrial applications.
Applications of Incoloy Alloy 020
Chemical Processing
Incoloy Alloy 020 finds extensive use in chemical processing industries. Its corrosion resistance in environments containing sulfuric acid, chlorides, nitric acid, and phosphoric acid makes it a preferred material for critical equipment. Companies use this alloy to manufacture mixing tanks, heat exchangers, process piping, pickling equipment, pumps, valves, fasteners, and fittings. These applications help ensure safe and reliable operation in the production of gasoline, solvents, explosives, and both inorganic and organic chemicals. The alloy’s fabrication capabilities, including welding and hot working, support its use in complex process systems.
Incoloy Alloy 020’s ability to withstand aggressive chemicals extends equipment life and reduces maintenance costs in chemical plants.
Oil and Gas
The oil and gas sector relies on Incoloy Alloy 020 for its resistance to chloride-induced corrosion and stress corrosion cracking. Engineers select this alloy for process piping, valves, and heat exchangers exposed to sour gas, brine, and other corrosive fluids. Its mechanical strength and durability under pressure make it suitable for offshore platforms and refineries. The alloy’s performance in harsh environments supports safe and efficient extraction, transport, and processing of hydrocarbons.
Marine and Power
Marine and power generation industries demand materials that resist both acidic and chloride-rich environments. Incoloy Alloy 020 meets these requirements with low corrosion rates in hydrochloric and sulfuric acids, as shown in recent performance tests.
| Performance Metric / Test | Description / Result |
|---|---|
| Corrosion Rates in 5% Hydrochloric Acid (50°C) | Low corrosion rates, excellent for marine piping and exchangers |
| Corrosion Rates in 95% Sulfuric Acid (50°C) | Robust performance in acidic power plant conditions |
| ASTM G48 CCT & CPT Values | High resistance to localized corrosion and stress-corrosion cracking |
| Boiling 42% Magnesium Chloride Test | Resists chloride stress cracking, critical for marine applications |
These metrics confirm the alloy’s suitability for condensers, piping, and exchangers in ships and power plants.
Other Uses
Industries such as pharmaceuticals and food processing also benefit from the versatility of Incoloy Alloy 020. Manufacturers use the alloy for food handling equipment, reactors, and sanitary fittings. Its mechanical properties, including a tensile strength of 90 ksi and elongation of 40%, ensure reliability in demanding applications. The alloy’s ability to be formed, welded, and polished allows for a wide range of applications for alloy 020, from sheets and coils to bars and fittings.
Incoloy Alloy 020 vs. Other Alloys
Incoloy Alloy 020 vs. Inconel 825
Engineers often compare alloy 020 and Inconel 825 when selecting materials for harsh chemical environments. Both alloys contain high levels of nickel, iron, and chromium. However, alloy 020 features more copper and molybdenum. This difference gives alloy 020 better resistance to sulfuric acid and certain reducing acids. Inconel 825, on the other hand, performs well in oxidizing acids and offers strong resistance to stress corrosion cracking. The table below highlights key differences:
| Property | Alloy 020 | Inconel 825 |
|---|---|---|
| Nickel Content (%) | 32–38 | 38–46 |
| Copper Content (%) | 3–4 | 1.5–3 |
| Molybdenum Content (%) | 2–3 | 2.5–3.5 |
| Best Resistance | Sulfuric Acid | Nitric/Phosphoric |
| Typical Use | Chemical Processing | Nuclear, Pollution |
Tip: Alloy 020 stands out in sulfuric acid service, while Inconel 825 suits mixed acid and nuclear applications.
Alloy 020 vs. Stainless Steels
Alloy 020 offers much higher corrosion resistance than standard stainless steels. Stainless steels like 304 and 316 contain less nickel and lack copper. This makes them less effective in strong acids and chloride-rich environments. Alloy 020 resists pitting, crevice corrosion, and stress corrosion cracking where stainless steels often fail. Many industries choose alloy 020 for process piping, tanks, and valves exposed to aggressive chemicals.
- Stainless steels work well for mild environments.
- Alloy 020 provides reliable performance in severe chemical conditions.
Unique Advantages
Alloy 020 delivers a unique blend of properties that set it apart from other alloys. Its high nickel and copper content ensures excellent resistance to sulfuric acid and chloride attack. The alloy maintains strength at elevated temperatures and resists localized corrosion. Fabricators can weld and form alloy 020 with ease, which supports complex equipment designs. Many engineers select alloy 020 when they need a material that combines corrosion resistance, mechanical strength, and cost efficiency.
Note: Alloy 020 often becomes the first choice for critical chemical processing equipment due to its proven reliability and versatility.
Incoloy Alloy 020 combines a unique composition with outstanding properties. Its high-strength and high strength design supports reliable performance in harsh chemical and high-temperature environments. The alloy’s mechanical properties help prevent failure in critical equipment.
- Engineers choose this material when they need high-strength alloys with proven corrosion resistance.
- Buyers select it for applications where properties like durability and stability matter most.
Incoloy Alloy 020 stands out as a smart choice for demanding industries.
FAQ
What industries use Incoloy Alloy 020 most often?
Chemical processing, oil and gas, marine, and power generation industries rely on Incoloy Alloy 020. These sectors value its corrosion resistance and mechanical strength for equipment like heat exchangers, tanks, and piping.
Can fabricators weld Incoloy Alloy 020 easily?
Yes. Fabricators can weld Incoloy Alloy 020 using standard techniques. The alloy resists weld cracking and maintains its corrosion resistance after welding.
Tip: Use matching filler metals for best results.
How does Incoloy Alloy 020 perform in high-chloride environments?
Incoloy Alloy 020 resists pitting and crevice corrosion in high-chloride settings. Its nickel, chromium, and molybdenum content protect against chloride attack.
- Suitable for marine and chemical applications.
Is Incoloy Alloy 020 suitable for food or pharmaceutical use?
Yes. Manufacturers use Incoloy Alloy 020 for food processing and pharmaceutical equipment. The alloy’s corrosion resistance and cleanability meet industry standards for hygiene and safety.
What maintenance does Incoloy Alloy 020 require?
Routine inspection and cleaning help maintain performance. The alloy’s corrosion resistance reduces the need for frequent repairs.
Note: Regular monitoring ensures long service life in harsh environments.
