Incoloy Alloy 800 stands out among nickel-iron-chromium alloys for its exceptional performance in high-temperature and corrosive environments. This alloy, with a composition of 30–35% nickel, 19–23% chromium, and a balance of iron, resists oxidation and maintains mechanical stability under extreme conditions. The presence of aluminum and titanium further enhances its durability. Industries trust incoloy 800 for critical applications, including steam reforming and power generation, due to its robust structure and reliable corrosion resistance.
Incoloy Alloy 800: Composition delivers a unique solution for demanding industrial processes, offering longevity where standard materials fail.
Key Takeaways
- Incoloy Alloy 800 contains nickel, chromium, and iron, which give it strong resistance to heat and corrosion.
- The alloy keeps its strength and shape even at high temperatures up to 1100°F (593°C), making it reliable for tough industrial uses.
- It is easy to machine, weld, and form using common methods, which helps manufacturers create durable parts efficiently.
- Incoloy 800 is widely used in power plants, chemical processing, and heat exchangers because it lasts long and resists damage from harsh environments.
- When buying Incoloy 800, choose trusted suppliers, check product quality carefully, and focus on value to ensure the best results.
What Is Incoloy 800 Alloy?
Overview
Incoloy 800 belongs to the family of nickel-iron-chromium alloys designed for excellent performance in high-temperature and corrosive environments. Engineers often select incoloy 800 for its ability to maintain strength and stability when exposed to elevated temperatures. The alloy contains a balanced composition of nickel, iron, and chromium, which gives it unique properties. Incoloy alloy 800 stands out for its resistance to oxidation and carburization, making it a preferred choice in industries such as power generation and chemical processing.
The following table summarizes the key performance data for incoloy 800:
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | ~32 |
| Iron (Fe) | ~46 |
| Chromium (Cr) | ~21 |
Incoloy 800h and incoloy 800ht are two popular variants. Both offer enhanced creep and rupture strength, which makes them suitable for even more demanding applications. Incoloy 800 tube products are widely used in heat exchangers due to their durability and resistance to corrosion.
Key Features
Incoloy 800 offers several features that distinguish it from other alloys. These features make it a reliable material for challenging industrial environments:
- Maintains mechanical strength at temperatures up to 1100°F (593°C).
- Provides excellent resistance to oxidation and corrosion, even in acidic and sulfur-rich atmospheres.
- Delivers stable microstructure during long-term exposure to high heat.
- Offers good weldability and formability, which simplifies fabrication.
The chart below compares the strength and hardness of incoloy 800 with other alloys:
Incoloy 800h and incoloy 800ht provide higher strength and improved performance in extreme conditions. These alloys retain their properties even after prolonged exposure to high temperatures. Incoloy alloy 800, with its balanced composition, offers a cost-effective solution compared to other high-nickel alloys.
Incoloy products, including incoloy 800 tube, continue to serve critical roles in industries that demand reliability and longevity. The combination of high-temperature strength, corrosion resistance, and mechanical stability makes incoloy 800 a trusted choice for engineers worldwide.
Incoloy Alloy 800: Chemical Composition
Main Elements
Incoloy alloy 800: composition features a carefully balanced mix of elements that give the alloy its unique properties. The chemical composition of incoloy 800 includes nickel, chromium, iron, and copper as the main elements. Manufacturers also add small amounts of other elements, such as aluminum, titanium, and carbon, to further enhance performance.
The table below shows the typical percentage ranges for the main elements in incoloy alloy 800:
| Element | Typical Percentage Range (%) |
|---|---|
| Nickel (Ni) | 30.0 – 35.0 |
| Chromium (Cr) | 19.0 – 23.0 |
| Iron (Fe) | Minimum 39.5 (balance) |
| Copper (Cu) | Up to 0.75 |
The precise chemical composition of incoloy alloy 800 ensures consistent performance in demanding environments. Each element plays a specific role in the alloy’s overall behavior.
Role of Elements
The incoloy alloy 800: composition relies on the synergy between its main elements. Each element in the chemical composition contributes to the alloy’s strength, stability, and resistance to harsh conditions.
- Nickel (Ni): Nickel forms the backbone of incoloy 800. It provides excellent resistance to oxidation and corrosion, especially at high temperatures. Nickel also helps the alloy maintain its structure during long-term exposure to heat.
- Chromium (Cr): Chromium increases the alloy’s ability to resist oxidation and scaling. It forms a protective layer on the surface, which shields the material from corrosive gases and acids.
- Iron (Fe): Iron acts as the base metal in the composition. It gives the alloy its mechanical strength and supports the formation of a stable microstructure.
- Copper (Cu): Copper, present in small amounts, improves resistance to certain acids and helps prevent stress corrosion cracking.
Incoloy alloy 800: composition also includes trace elements like aluminum and titanium. These elements enhance the alloy’s resistance to carburization and improve its mechanical properties at elevated temperatures.
The chemical composition of incoloy 800 allows it to perform reliably in environments where standard steels would fail. The unique blend of elements in the composition makes incoloy a preferred choice for industries that require both strength and corrosion resistance.
Engineers select incoloy alloy 800 for its proven chemical composition, which delivers a balance of durability, stability, and resistance to aggressive chemicals.
Incoloy Alloy 800 Properties
High-Temperature Strength
Incoloy 800 demonstrates high strength and excellent resistance in high-temperature environments. The alloy maintains its austenitic structure and mechanical stability even after long exposure to elevated temperatures. In the annealed condition, incoloy 800 achieves a tensile strength of around 600 MPa and a yield strength of approximately 275 MPa. These properties allow engineers to use incoloy 800 in applications where other materials would lose integrity. Small punch creep tests on incoloy 800h confirm its ability to resist deformation under stress at temperatures as high as 923 K. The alloy’s high-temperature strength supports its use in power generation and chemical processing, where reliability is critical.
Incoloy 800h and incoloy 800ht offer enhanced performance for extreme service conditions, retaining strength and resisting creep over long periods.
Corrosion Resistance
The properties of incoloy 800 include superior corrosion resistance in a wide range of aggressive environments. The alloy’s balanced composition of nickel, chromium, and iron provides excellent resistance to corrosion from acids, sulfur compounds, and oxidizing agents. Incoloy 800 forms a stable oxide layer that protects against further attack, even in high-temperature environments. This excellent high-temperature corrosion resistance makes incoloy 800 a preferred choice for heat exchangers, furnace components, and petrochemical equipment. Incoloy 800h and incoloy 800ht also deliver superior corrosion resistance, especially in environments where both oxidation and carburization are concerns.
- Incoloy 800’s properties ensure long service life in harsh industrial settings.
- The alloy’s superior corrosion resistance reduces maintenance and downtime.
Mechanical Stability
Incoloy 800 provides high structural strength and mechanical stability under both thermal and mechanical stress. Cyclic fatigue and creep-fatigue tests show that the alloy stabilizes peak stress after a few hundred cycles at 550°C and 650°C. At 760°C, incoloy 800h exhibits rapid initial hardening, followed by gradual hardening until failure. The table below summarizes key mechanical stability metrics:
| Metric | Test Type | Temperatures (°C) | Observations / Values |
|---|---|---|---|
| Stabilized Peak Stress | Strain-controlled cyclic test | 550, 650, 760 | Peak stress stabilizes after a few hundred cycles at lower temps; cyclic hardening at 760°C before failure |
| Fatigue Life | Cyclic fatigue | 550, 650, 760 | Fatigue life shorter at higher temps; stress drops more abrupt at 650 & 760°C |
| Stress Relaxation Rate | Creep-fatigue test | 550, 650, 760 | Low relaxation at 550°C; higher at 760°C |
These properties make incoloy 800 suitable for demanding applications where both corrosion resistance and mechanical stability are essential.
Fabrication and Workability
Machining
Engineers find that Incoloy Alloy 800 offers machining characteristics similar to stainless steel. The alloy responds well to standard cutting and shaping techniques. Researchers have studied its machining performance using various parameters, such as cutting speed, feed rate, and lubrication methods. Results show that high-pressure coolant delivery reduces cutting forces and tool wear. Near dry machining and minimum quantity lubrication lower cutting forces by 4% to 9% compared to dry machining. Surface roughness improves by up to 10% under these conditions. Tool wear mechanisms include adhesion, abrasion, and diffusion, with heat at the tool-chip interface affecting tool life. Operators notice that chip formation and surface quality depend on lubrication and cutting speed.
- Cutting forces and tool wear decrease with high-pressure coolant.
- Surface finish improves with near dry or minimum quantity lubrication.
- Tool life extends when operators control heat and use proper lubrication.
Welding

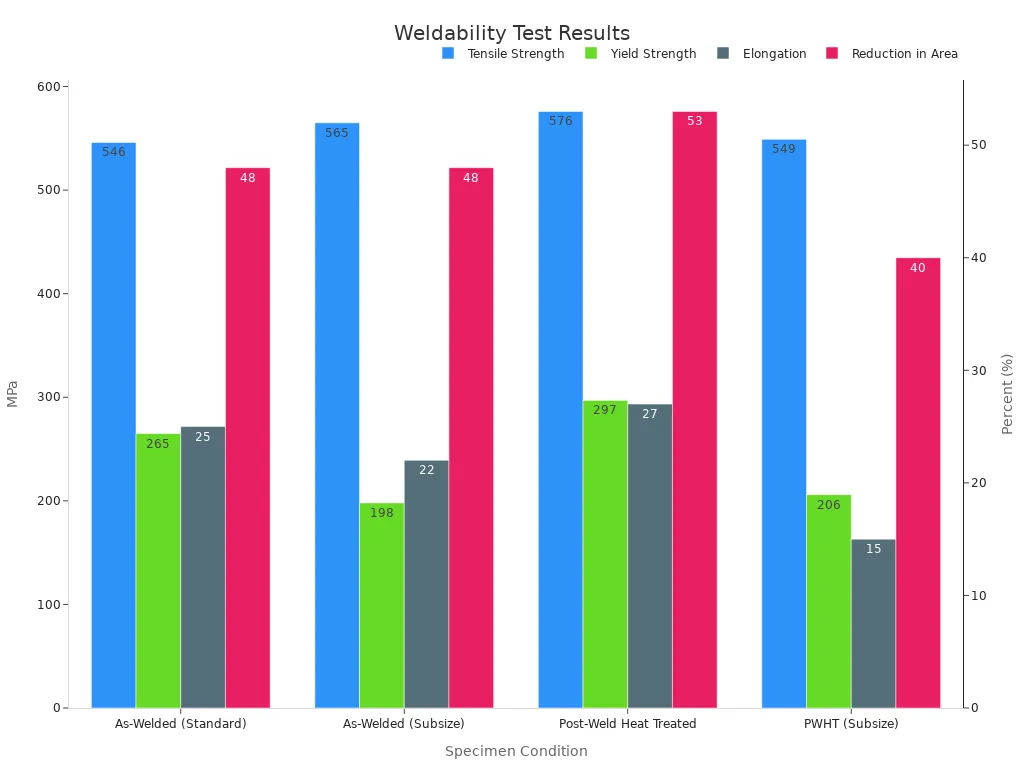

Incoloy Alloy 800 demonstrates high weldability, making it suitable for a wide range of joining processes. Conventional welding methods, such as TIG and MIG, produce strong and reliable joints. Rotary friction weld tests show that as-welded samples have good tensile strength and elongation. Post-weld heat treatment further improves mechanical properties, shifting failure from the weld metal to the base metal. The following table summarizes key welding performance data:
| Specimen Condition | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Reduction in Area (%) |
|---|---|---|---|---|
| As-Welded (Standard) | 546 ± 6 | 265 ± 4 | 25 ± 2 | 48 ± 4 |
| Post-Weld Heat Treated | 576 ± 5 | 297 ± 5 | 27 ± 3 | 53 ± 3 |
Post-weld heat treatment reduces hardness variation and enhances weld performance. Welded joints meet industry standards for toughness and reliability, even in demanding boiler service.
Forming
Manufacturers can form Incoloy Alloy 800 using standard hot and cold working techniques. The alloy’s flexibility allows shaping into tubes, sheets, and complex components without significant loss of properties. The fabrication process includes steps such as alloy design, melting, rolling, and heat treatment. Quality control ensures that each product meets strict industry standards. Incoloy’s mechanical properties and ease of fabrication make it a preferred material for high-temperature and corrosive environments.
Tip: Incoloy Alloy 800 can be machined, welded, and formed using the same methods as stainless steel, supporting efficient and reliable manufacturing.
Incoloy Alloy 800 Applications
Incoloy 800 serves a wide variety of applications across multiple industries, thanks to its excellent resistance to oxidation, high-temperature strength, and outstanding corrosion performance. The alloy’s unique properties make it a material of choice for environments where standard steels fail. Below, the primary applications of incoloy 800 are organized by sector, highlighting how its characteristics deliver real-world benefits.
Power Generation
Power generation facilities rely on incoloy 800 for critical components exposed to extreme heat and stress. The alloy’s excellent resistance to oxidation ensures long-term durability in boiler tubes, superheater elements, and nuclear steam generator tubing. Incoloy 800 tube products maintain mechanical integrity under high-temperature applications, supporting safe and efficient energy production.
A predictive model for Young’s modulus of Alloy 800H during creep demonstrated over 95% accuracy when compared to experimental data, with a mean absolute percentage error of only 1.59%. This high level of agreement confirms the alloy’s mechanical reliability under prolonged high-temperature creep conditions. Additionally, irradiation studies using 3 MeV Cu+ ions revealed that incoloy 800h retains its strength and microstructural stability even after exposure to significant radiation doses. Nanoindentation tests showed increased yield stress, while transmission electron microscopy confirmed the alloy’s resistance to plastic degradation.
Incoloy 800 tube products provide excellent resistance to oxidation and maintain strength in the demanding environments of power plants, ensuring reliable operation and reduced maintenance.
Chemical Processing
Chemical and petrochemical processing industries demand materials that can withstand aggressive chemicals and fluctuating temperatures. Incoloy 800 offers excellent resistance to oxidation, carburization, and sulfidation, making it ideal for reactors, piping systems in oil refineries, and heat treating equipment. The alloy’s performance in chemical processing environments is supported by statistical evidence: corrosion rates remain below 1 µm/year at elevated pH and 25 °C, indicating minimal material loss under standard conditions.
Experimental immersion tests revealed that significant corrosion only occurs under highly acidic conditions (pH 1) at 85 °C, where pitting may develop. Scanning electron microscopy and X-ray photoelectron spectroscopy identified pitting nucleation at TiN inclusions and instability of the Cr2O3 passive layer at low pH and high temperature. Importantly, no dealloying was detected across the tested pH range, confirming the alloy’s microstructural stability. Incoloy 800 tube components deliver consistent performance in reactors, distillation columns, and other chemical and petrochemical processing equipment.
- Incoloy 800 tube resists aggressive acids and sulfur compounds.
- The alloy’s excellent resistance to oxidation and carburization ensures long service life in chemical plants.
- Incoloy 800 supports safe operation in environments where corrosion and high temperatures threaten lesser materials.
Heat Exchangers
Heat exchangers require materials that can withstand both thermal cycling and corrosive fluids. Incoloy 800 tube products excel in these roles, offering excellent resistance to oxidation and stress corrosion cracking. Metallurgical failure analysis has shown that stress corrosion cracking can initiate from chloride-induced pitting, emphasizing the importance of water chemistry control in service environments. Accelerated electrochemical tests confirm that higher chloride concentrations increase susceptibility to stress corrosion cracking, but incoloy 800 tube maintains its integrity when proper controls are in place.
- Metallurgical studies confirm that cracks propagate transgranularly in chloride environments, relevant to heat exchanger tube performance.
- Water chemistry, including impurity levels, significantly influences corrosion behavior and pitting susceptibility.
- High-temperature corrosion studies reveal that incoloy 800 tube resists oxidation and sulfidation in gas environments, supporting its use in heat exchangers for power plants and chemical facilities.
| Temperature (°F/°C) | Tensile Strength (ksi/MPa) | Yield Strength (ksi/MPa) | Elongation (%) | Reduction of Area (%) |
|---|---|---|---|---|
| 85 / 30 | 85 / 586 | 37 / 255 | 47 | 68 |
| 1000 / 538 | 54 / 372 | 25 / 172 | 44 | 65 |
| 1500 / 815 | 23 / 159 | 10 / 69 | 38 | 60 |
These mechanical properties confirm that incoloy 800 tube retains strength and ductility at the elevated temperatures typical of heat exchanger operation.
Incoloy 800 tube provides excellent resistance to oxidation and corrosion, making it a preferred choice for heat exchangers in demanding industrial settings.
Other Uses
Engineers deploy incoloy 800 and its variants, such as incoloy 800h and incoloy 800ht, in a broad spectrum of high-temperature applications beyond power generation and chemical processing. The alloy’s excellent resistance to oxidation, carburization, and sulfidation supports its use in furnace components, gaskets, forged thermowells, and structural parts exposed to thermal cycling. Incoloy 800 tube finds application in piping systems in oil refineries, where it withstands both high temperatures and corrosive media.
The table below summarizes key industry-specific performance metrics for incoloy 800 and its variants:
| Metric | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
|---|---|---|---|
| Max Temperature (°C/°F) | 1,200 / 2,192 | 1,200 / 2,192 | 1,200 / 2,192 |
| Corrosion Resistance | Excellent (oxidation, carburization, sulfidation) | Enhanced (controlled carbon) | Optimized (increased nickel) |
| Creep Resistance | Excellent | Improved | Optimized |
| Typical Applications | Chemical and petrochemical processing, power generation, heat exchangers, gaskets, pipes, sheets/plates, flushing rings | Same as Incoloy 800 | Same as Incoloy 800 |
Incoloy 800 tube also plays a vital role in nuclear steam generator tubing, where its excellent resistance to oxidation and mechanical stability ensure safe, long-term operation. The alloy’s fabricability and weldability allow for custom solutions in a range of industrial settings.
Incoloy 800’s combination of high-temperature strength, excellent resistance to oxidation, and corrosion resistance enables its use in a wide variety of applications where reliability and longevity are essential.
How to purchase the Alloy 800 From Supplier?
Purchasing Alloy 800 requires careful planning and a clear understanding of the market. Buyers should begin by identifying reputable suppliers with a proven track record. Recent import shipment data shows 7,098 shipments involving 1,122 buyers and 934 suppliers between October 2022 and September 2024. This volume highlights a robust and active global market for Alloy 800.
When evaluating suppliers, consider the following factors:
- Customer satisfaction ratings remain high, with an average of 4.7 out of 5 from over 21,000 customers.
- India leads with 224 suppliers, followed by China (155), the United States (86), Italy (84), and the United Kingdom (52).
- Vendor analysis dashboards, such as those offered by Volza, allow buyers to review exporter activity, pricing trends, and direct contact information for decision-makers.
- Price analysis tools help buyers identify cost-effective suppliers and optimal pricing bands, supporting better procurement decisions.
- Monitoring exclusive supply contracts and competitor activities helps maintain a strong market position and prevents contract breaches.
Buyers should request detailed product specifications and certifications before finalizing any purchase. Comparing technical data sheets ensures that the material meets project requirements. Many successful procurement teams use dashboards to track supplier performance, shipment frequency, and pricing history. These tools help buyers avoid common pitfalls and secure reliable supply chains.
Pricing strategy plays a crucial role in procurement. Experts recommend focusing on value rather than simply seeking the lowest price. This approach leads to better long-term outcomes and aligns with specific business needs. Choosing the right incoloy 800 products involves balancing technical requirements, supplier reliability, and total cost of ownership.
Tip: Establish clear communication with suppliers and request samples or small trial orders before committing to large purchases. This practice helps verify quality and build trust.
Incoloy Alloy 800 stands out in industrial settings that demand both high-temperature strength and corrosion resistance. Its nickel and chromium content enables the alloy to maintain stability up to 593°C, resisting deformation and scaling. Creep tests confirm long-term mechanical reliability, while corrosion studies show a protective chromium oxide layer forms in harsh environments. Engineers value this alloy for its proven performance in power plants, chemical processing, and nuclear reactors.
Incoloy Alloy 800 delivers a rare combination of durability, versatility, and safety—making it a smart choice for critical applications.
FAQ
What industries use Incoloy Alloy 800 most often?
Power generation, chemical processing, petrochemical, and heat exchanger manufacturing rely on Incoloy Alloy 800. Engineers select this alloy for its high-temperature strength and corrosion resistance in demanding industrial environments.
Can Incoloy Alloy 800 be welded easily?
Yes. Fabricators find Incoloy Alloy 800 easy to weld using standard techniques like TIG and MIG. Post-weld heat treatment improves joint strength and durability.
How does Incoloy Alloy 800 resist corrosion?
The alloy forms a stable chromium oxide layer on its surface. This layer protects against oxidation, acids, and sulfur compounds, ensuring long service life in harsh environments.
What forms are available for Incoloy Alloy 800?
Manufacturers supply Incoloy Alloy 800 as tubes, pipes, sheets, plates, bars, and fittings. Custom shapes and sizes are available for specific industrial applications.
Tip: Always request material certifications from suppliers to confirm alloy composition and quality.
