Incoloy 800H stands out as a high-performance nickel-iron-chromium alloy engineered for demanding environments. This alloy features enhanced carbon content, which promotes carbide formation and boosts strength at elevated temperatures. The table below highlights how carbon supports these improvements:
| Aspect | High-Temperature Strength in 800H |
|---|---|
| Carbide Formation | Titanium and chromium carbides precipitate, increasing strength and resistance |
| Microstructure | Larger grains and second phase precipitates improve creep resistance |
Industries choose incoloy 800h for its superior resistance to oxidation and corrosion, especially in high-temperature applications. The alloy’s unique combination of strength and stability makes it a preferred material among super alloys. Incoloy 800h offers properties that set it apart from other incoloy grades, making it essential for critical applications where resistance and strength matter most. Incoloy Alloy 800H: Composition ensures reliable performance in the harshest environments.
Key Takeaways
- Incoloy 800H contains a balanced mix of nickel, chromium, iron, carbon, aluminum, and titanium that boosts strength and corrosion resistance at high temperatures.
- The alloy resists oxidation, sulfidation, and carburization, making it ideal for harsh environments like petrochemical plants and power generation.
- Incoloy 800H maintains strong mechanical properties and stability even after long exposure to heat, supporting reliable performance above 1100°F (593°C).
- Strict industry standards ensure consistent quality and help engineers select the right Incoloy 800 variant for specific high-temperature applications.
- Its excellent weldability and machinability allow efficient fabrication of complex parts, expanding its use in aerospace, industrial processing, and offshore oil and gas sectors.
Incoloy Alloy 800H: Chemical Composition
Elemental Makeup
Incoloy alloy 800H: composition defines its performance in high-temperature and corrosive environments. The alloy contains a carefully balanced mix of elements that deliver both strength and durability. The chemical composition of incoloy alloy 800h includes a high percentage of nickel, chromium, and iron, with controlled additions of carbon, aluminum, and titanium. These elements work together to create a robust alloy structure.

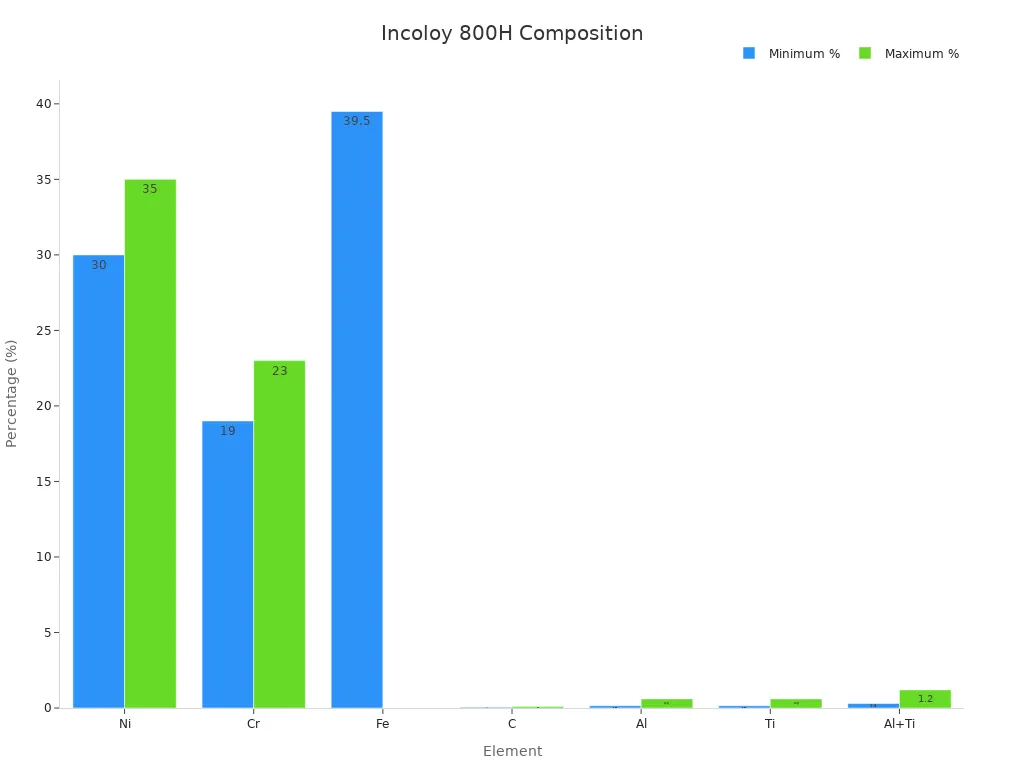

The table below outlines the typical elemental makeup for incoloy alloy 800h:
| Element | Typical Percentage Range (%) |
|---|---|
| Iron (Fe) | ≥ 39.5 |
| Nickel (Ni) | 30.0 – 35.0 |
| Chromium (Cr) | 19.0 – 23.0 |
| Carbon (C) | 0.05 – 0.10 |
| Manganese (Mn) | Up to 1.50 |
| Phosphorus (P) | Up to 0.045 |
| Sulfur (S) | Up to 0.015 |
| Silicon (Si) | Up to 1.0 |
| Aluminum (Al) | 0.15 – 0.60 |
| Titanium (Ti) | 0.15 – 0.60 |
| Aluminum + Titanium | 0.30 – 1.20 |
This chemical composition ensures that incoloy alloy 800h meets strict industry standards for high-temperature strength and corrosion resistance. Laboratory analysis confirms that the alloy’s nickel and chromium content provides a stable austenitic structure, while iron serves as the base metal. The precise control of minor elements like manganese, phosphorus, sulfur, and silicon further enhances the alloy’s workability and resistance to environmental attack.
Note: Published studies have confirmed the nominal composition of incoloy alloy 800h as Fe-31.8Ni-22.2Cr-0.09C-0.43Al-0.38Ti (wt.%). Researchers have used advanced techniques such as scanning electron microscopy and X-ray diffraction to analyze the microstructure and mechanical properties during high-temperature testing.
Role of Carbon, Aluminum, and Titanium
The unique properties of incoloy alloy 800h: composition stem from the controlled levels of carbon, aluminum, and titanium. Each element plays a critical role in the alloy’s high-temperature performance.
- Carbon:
The carbon content in incoloy alloy 800h ranges from 0.05% to 0.10%. This controlled addition promotes the formation of carbides, especially at grain boundaries. These carbides strengthen the alloy and improve its resistance to creep and rupture at temperatures above 600°C. Compared to standard incoloy 800, the higher carbon in 800h delivers superior mechanical stability during prolonged exposure to heat. - Aluminum and Titanium:
Both aluminum and titanium appear in the alloy at 0.15% to 0.60%. These elements combine to form stable intermetallic compounds, which further reinforce the alloy’s microstructure. The presence of aluminum and titanium enhances resistance to oxidation and carburization, especially in aggressive industrial atmospheres. Their combined effect also supports the precipitation of gamma prime (γ’) phases, which increase the alloy’s yield strength and long-term toughness.
The table below summarizes the impact of these elements on high-temperature performance:
| Alloy | Carbon (%) | Aluminum (%) | Titanium (%) | High-Temperature Performance Impact |
|---|---|---|---|---|
| Incoloy 800 | Up to 0.10 | 0.15 – 0.60 | 0.15 – 0.60 | Baseline performance up to 600°C |
| Incoloy 800H | 0.05–0.10 | 0.15 – 0.60 | 0.15 – 0.60 | Improved strength and creep resistance above 600°C |
| Incoloy 800HT | 0.06–0.10 | 0.25 – 0.60 | 0.25 – 0.60 | Enhanced yield strength and creep resistance above 700°C |
Researchers have demonstrated that the microstructure of incoloy alloy 800h evolves during high-temperature service. Studies show that the volume fraction of precipitates increases with time under stress, which directly correlates with improved mechanical properties such as Young’s modulus and creep resistance. Advanced analysis techniques, including nanoindentation and X-ray diffraction, have provided quantitative data linking the alloy’s composition to its performance.
- Key findings from published research include:
- The relationship between dislocation density and mechanical strength.
- The effect of precipitate fraction on long-term durability.
- The influence of heat treatment on microstructural stability.
Incoloy Alloy 800H Standards
Manufacturers and engineers rely on strict standards to ensure the consistent quality and performance of incoloy alloy 800. These standards define the chemical composition, mechanical properties, and testing methods for each product form. By following these guidelines, producers guarantee that incoloy alloy 800 meets the demands of high-temperature and corrosive environments.
Multiple international and industry organizations have established detailed requirements for incoloy alloy 800. The following table highlights the main standards that apply to different product forms:
| Product Form | Applicable Standards |
|---|---|
| Rod, Bar, Wire, Forgings | ASTM B408, ASTM B564, ASME SB408, ASME SB564, ASME Code Cases 1325 & 1949, ISO 9723/9724/9725, BS 3076NA15, BS 3075NA15, SEW 470, VdTÜV 412 & 434, DIN 17460, EN 10095 |
| Plate, Sheet, Strip | ASTM A240/A480, ASTM B409/B906, ASME SA240/SA480, ASME SB409/SB906, ASME Code Cases 1325 & 2339, BS 3072NA15, BS 3073NA15, SEW 470, VdTÜV 412 & 434, DIN 17460, EN 10028-7 & EN 10095 |
| Pipe & Tube | ASTM B163, ASTM B407/B829, ASTM B514/B775, ASTM B515/B751, ASME SB163, ASME SB407/SB829, ASME SB514/SB775, ASME SB515/SB751, ASME Code Cases 1325 & 1983, BS 3074NA15, SEW 470, VdTÜV 412 & 434, ISO 6207, DIN 17459 |
| Fittings | ASTM B366, ASME SB366 |
These standards specify the required ranges for elements such as nickel, chromium, iron, carbon, aluminum, and titanium. For example, incoloy alloy 800 pipe and tube must contain 30-35% nickel, 19-23% chromium, and a minimum of 39.5% iron. The standards also set limits for carbon, aluminum, and titanium to ensure optimal high-temperature strength.
Adhering to these standards allows users to select incoloy alloy 800 with confidence for critical applications. The standards also help engineers compare incoloy 800 with other alloys, ensuring the right material for each project.
ASTM, ASME, ISO, and European standards all play a role in validating the chemical composition and performance of incoloy alloy 800. These organizations regularly update their requirements to reflect advances in metallurgy and industry needs. By referencing these standards, companies maintain compliance and deliver reliable products for power generation, petrochemical, and industrial processing sectors.
Properties of Incoloy 800H
Physical and Mechanical
Incoloy 800H displays a unique combination of physical and mechanical properties that make it a preferred alloy for high-temperature service. The alloy has a density of approximately 7.94 g/cm³ and a melting point in the range of 1357–1385°C. These values ensure that the alloy maintains its structural integrity even in extreme environments. The alloy’s non-magnetic nature allows it to perform reliably in applications where magnetic interference must be minimized.
The mechanical properties of Incoloy 800H include high tensile and yield strength, as well as excellent elongation. At room temperature, the alloy typically achieves a tensile strength of about 596 MPa (86.5 ksi). This strength remains high even as temperatures increase, which is critical for components exposed to thermal stress. The alloy also demonstrates good impact strength at both room and cryogenic temperatures, making it versatile for a range of industrial uses.
| Property | Value/Range |
|---|---|
| Density | 7.94 g/cm³ |
| Melting Point | 1357–1385°C |
| Tensile Strength | ~596 MPa (86.5 ksi) at room temp |
| Yield Strength | ~275 MPa (40 ksi) at room temp |
| Elongation | 35–45% |
| Magnetic Properties | Non-magnetic |
The alloy’s weldability stands out as a significant advantage. Engineers can join Incoloy 800H using standard welding techniques, which supports efficient fabrication and heat treatment. The alloy’s composition also allows for easy machining and forming, further enhancing its suitability for complex components.
Comparative studies show that Incoloy 800H and its variants outperform similar alloys like Incoloy 825 in high-temperature mechanical properties. For example, while Incoloy 825 offers higher room temperature strength, Incoloy 800H maintains superior creep-rupture strength and temperature tolerance, making it more reliable for demanding thermal applications.
| Property | Incoloy 800 (800H/800HT) | Incoloy 825 |
|---|---|---|
| Tensile Strength | ~86.5 ksi (596 MPa) at room temp; maintains high strength at elevated temps | ~104.5 ksi (720 MPa) at room temp; can be enhanced by cold work |
| Creep-Rupture Strength | High up to ~1500°F (816°C); 800H/800HT variants have even higher strength | Suitable up to ~1000°F (540°C); less suitable for critical creep-rupture applications |
| Impact Strength | Good at room and cryogenic temps | Good at room and cryogenic temps |
| Temperature Tolerance | Suitable for service up to ~1500°F (816°C) | Generally used up to ~1000°F (540°C) |
Thermal Stability
Thermal stability defines the long-term performance of Incoloy 800H in high-temperature environments. The alloy resists deformation and maintains its mechanical properties even after prolonged exposure to elevated temperatures. This stability results from the precise balance of alloying elements and the effectiveness of fabrication and heat treatment processes.
Researchers have used advanced scanning electron microscopy and deep learning to track the evolution of nano-Ti(C,N) precipitates during creep. These studies reveal that the precipitates play a critical role in maintaining creep resistance. The microstructure of the alloy evolves in a predictable way, which helps preserve its strength and durability. This quantitative evidence supports the use of Incoloy 800H in applications where thermal cycling and long-term heat exposure are common.
The alloy’s resistance to thermal cycling means it can withstand repeated heating and cooling without significant loss of properties. This makes it ideal for use in heat exchangers, furnace components, and other equipment that faces fluctuating temperatures. The alloy’s stability also reduces the risk of thermal fatigue, which can lead to premature failure in less robust materials.
Note: The stability of Incoloy 800H under prolonged high-temperature conditions forms the foundation for predictive models that assess creep damage and service life.
Creep and Rupture Strength
Creep and rupture strength are critical properties for alloys used in high-temperature service. Incoloy 800H excels in these areas due to its optimized composition and advanced heat treatment. The alloy resists deformation under constant load at elevated temperatures, which extends the service life of components in power generation, petrochemical, and industrial processing.
- Extensive creep tests on Incoloy 800H have been conducted at temperatures from 500°C to 760°C, with lifetimes reaching up to 30,000 hours.
- Researchers observed microstructural changes such as M23C6 and γ′ phase precipitations, which influence creep behavior.
- Creep strain rates and rupture lifetimes were measured and analyzed to quantify performance.
- Models like Monkman-Grant and Larson-Miller relationships relate stress, temperature, and lifetime, though they have limitations for long-term predictions.
- Physically-based fracture models combine necking and intergranular cavitation damage mechanisms, validated by experimental data.
- Data from multiple batches confirm the reliability of these models.
- Higher Ti + Al content increases creep resistance by promoting γ′ precipitation.
- The combined modeling approach accurately predicts creep lifetime and fracture behavior under industrial stress and temperature conditions.
The alloy’s strength at high temperatures makes it suitable for service up to 816°C (1500°F). Incoloy 800H maintains its mechanical integrity even after thousands of hours under load, which is essential for critical applications. The alloy’s weldability ensures that joints retain their strength and do not become weak points during long-term operation.
Incoloy 800H’s properties result from careful control of composition, fabrication and heat treatment, and microstructural evolution. These factors work together to deliver an alloy that meets the highest standards for strength, durability, and reliability in extreme environments.
Corrosion and Oxidation Resistance
High-Temperature Environments
Incoloy Alloy 800H demonstrates outstanding corrosion and oxidation resistance in high-temperature environments. Engineers often select this alloy for refinery furnaces, heat exchangers, and other equipment exposed to aggressive atmospheres. The alloy forms a stable oxide layer on its surface, which protects the underlying metal from further attack. This protective barrier remains effective even when temperatures rise above 600°C.
Corrosion resistance tests in refinery furnace conditions have produced valuable data. Incoloy 800H shows a corrosion rate of about 0.15 mm per year (6.0 mpy). Stainless steels such as 310 and 309 display higher rates, at 0.23 mm/year and 2.15 mm/year, respectively. These results highlight the superior high-temperature corrosion resistance of Incoloy 800H. The alloy’s good corrosion resistance ensures long service life and reduces maintenance costs.
Researchers have also tested Incoloy 800H in impure helium environments. They measured mass gain per unit surface area before and after exposure. The results show that the alloy resists oxidation and corrosion even under varying carbon monoxide pressures and elevated temperatures. This performance makes Incoloy 800H a reliable choice for demanding industrial applications.
Tip: Regular inspection and proper maintenance can further extend the lifespan of components made from Incoloy 800H in harsh environments.
Resistance to Sulfidation and Carburization
Incoloy Alloy 800H provides excellent resistance to sulfidation and carburization. Sulfidation occurs when sulfur compounds in the environment react with metals, leading to rapid degradation. Carburization involves the absorption of carbon, which can weaken the alloy’s structure. Incoloy 800H’s balanced composition, including chromium, nickel, and controlled additions of aluminum and titanium, helps prevent these forms of corrosion.
The alloy’s oxidation resistance plays a key role in blocking the penetration of sulfur and carbon. The protective oxide layer acts as a barrier, reducing the risk of sulfidation and carburization. This resistance allows Incoloy 800H to maintain its mechanical properties and structural integrity, even in environments with high sulfur or carbon activity.
Industrial users value the alloy’s resistance because it supports safe and efficient operation in petrochemical plants, power generation facilities, and other sectors. The combination of high-temperature corrosion resistance, oxidation resistance, and good corrosion resistance makes Incoloy 800H a preferred material for critical components.
Incoloy Alloy 800H Applications
Petrochemical and Power Generation
Engineers rely on Incoloy Alloy 800H for critical applications in petrochemical and power generation industries. The alloy’s strength and resistance to corrosion make it ideal for furnace components, superheater and reheater tubing, and heat exchangers. Operators in oil and gas exploration select this alloy for its ability to withstand aggressive environments and high pressures. Power plants use it in steam generators and boiler tubes, where applications requiring resistance to thermal cycling and oxidation are essential. The alloy’s performance in these sectors ensures long service life and reduced maintenance costs.
Industrial Processing
Industrial processing facilities benefit from the unique properties of Incoloy Alloy 800H. The alloy’s machinability and wear resistance support efficient manufacturing of complex parts. Recent studies show that optimizing turning and milling parameters, such as feed rate and cooling methods, can significantly improve surface finish and tool life. For example, using Minimum Quantity Lubrication (MQL) with cryogenic cooling improved surface roughness by 30%. These advances help industries achieve sustainable manufacturing goals. Chemical processing plants value the alloy’s enhanced grain boundary structure, which increases resistance to creep and embrittlement during prolonged service. Oil and gas exploration operations also use this alloy for chemical injection equipment and liners, where corrosion and wear resistance are crucial.
Note: The alloy’s high-temperature strength and oxidation resistance make it challenging to machine, but advanced modeling and process optimization have improved efficiency in aerospace and power generation applications.
Other Uses
Incoloy Alloy 800H serves a wide range of alternative applications beyond traditional sectors. The alloy’s high tensile and yield strength, combined with excellent fatigue and wear resistance, make it suitable for engine components, gears, valves, and fasteners. Offshore oil and gas exploration relies on this alloy for drilling pipes and tubes, where exposure to seawater and corrosive chemicals demands superior resistance. The alloy also finds use in electrical resistance heating elements, vacuum pump system piping, and EMI shielding. Irradiation studies highlight its suitability for advanced nuclear energy systems, such as molten salt reactors, due to its low irradiation-induced hardening and stable microstructure at elevated temperatures.
| Application Area | Example Uses |
|---|---|
| Oil and Gas Exploration | Drilling pipes, liners, chemical injection equipment |
| Aerospace | Engine parts, fasteners, EMI shielding |
| Power Generation | Superheater tubing, boiler tubes |
| Chemical Processing | Heat exchangers, reactor vessels |
| Other Industrial Uses | Heating elements, vacuum piping, discharge electrodes |
Incoloy 800H vs Incoloy Alloy 800 and 800HT
Key Differences
Engineers often compare incoloy alloy 800, 800h, and incoloy 800ht when selecting materials for high-temperature service. Each alloy offers unique features that suit different industrial needs. The main differences appear in carbon content, grain size, mechanical strength, and temperature limits. Incoloy alloy 800 provides higher yield and tensile strength at room temperature, but 800h and incoloy 800ht excel in long-term high-temperature performance.
The table below highlights key comparative metrics:
| Property / Feature | Incoloy 800 | 800H | Incoloy 800HT |
|---|---|---|---|
| Carbon Content | Up to 0.10% | Controlled 0.05–0.10% | 0.06–0.10% |
| Grain Size | No specific control | ASTM No. 5 or coarser | ASTM No. 5 or coarser |
| Yield Strength (Room Temp) | 205 MPa | 170 MPa | 170 MPa |
| Tensile Strength (Room Temp) | 520 MPa | 450 MPa | 450 MPa |
| Creep/Rupture Strength | Moderate | Superior | Highest |
| Max Service Temp | Up to 1100°F (593°C) | Above 1100°F (593°C) | Up to 1500°F (816°C) |
| Aluminum + Titanium | 0.30–1.20% | 0.30–1.20% | 0.85–1.20% |
| Typical Applications | Furnace parts, heating sheaths | Chemical cracking, power plant tubing | Ethylene pyrolysis, pressure vessels |
Incoloy 800ht stands out for its higher aluminum and titanium content, which further improves stress rupture resistance and stability at extreme temperatures. Weldability and post-weld treatment also affect performance. For example, ERNiCr-3 filler metal provides strong welds with good toughness, while ERNiCrMo-3 filler increases tensile strength but reduces impact toughness.
Selection Guide
Selecting the right alloy depends on service temperature, mechanical requirements, and application environment. Technical documents recommend incoloy alloy 800 for moderate high-temperature use up to 1100°F. For applications above 1100°F, 800h and incoloy 800ht offer better creep and rupture resistance. Incoloy 800ht, with its enhanced aluminum and titanium, performs best in the most demanding conditions, such as ethylene pyrolysis and high-pressure vessels.
When engineers need superior long-term stability and resistance to deformation, they choose 800h or incoloy 800ht. Post-weld heat treatment can further improve mechanical properties and reduce residual stress in welded joints. Datasheets and technical specifications provide detailed guidance for each alloy, helping users match material properties to project needs.
Tip: Always review the latest datasheets and consult with material specialists before finalizing alloy selection for critical high-temperature applications.
Incoloy Alloy 800H delivers exceptional high-temperature strength and corrosion resistance, making it a trusted choice for critical industrial environments. Studies confirm its long-term durability, with stable oxide layers and uniform corrosion patterns even in harsh molten salt conditions. Compared to similar alloys, Incoloy 800H offers longer service life and lower maintenance costs in furnace and petrochemical applications. Engineers should select this alloy for operations above 1100°F and always consult technical data to match material properties with project requirements.
FAQ
What makes Incoloy Alloy 800H different from standard Incoloy 800?
Incoloy Alloy 800H contains higher carbon and controlled grain size. These changes improve its strength and creep resistance at high temperatures. Engineers select 800H for applications above 1100°F where standard 800 may not perform as well.
Can Incoloy 800H be welded easily?
Yes, Incoloy 800H offers good weldability. Fabricators use standard welding techniques. They often choose matching filler metals to maintain corrosion resistance and mechanical strength in the welded joints.
What industries use Incoloy Alloy 800H most often?
Power generation, petrochemical, and chemical processing industries rely on Incoloy 800H. The alloy’s high-temperature strength and corrosion resistance make it ideal for heat exchangers, furnace parts, and superheater tubing.
How does Incoloy 800H resist corrosion?
The alloy forms a stable oxide layer on its surface. This layer protects the metal from oxidation, sulfidation, and carburization. Chromium and nickel in the alloy play key roles in this protective behavior.
Is Incoloy 800H suitable for cryogenic applications?
Incoloy 800H maintains good impact strength at low temperatures. However, engineers usually select it for high-temperature service. For extreme cryogenic conditions, they may consider other alloys designed specifically for low-temperature performance.
