Incoloy Alloy A-286: Composition highlights this high-performance material designed for demanding environments. This Incoloy alloy A-286 contains iron, nickel, and chromium, with additions of molybdenum and titanium. Engineers often select this alloy because it resists surface degradation and fatigue cracking. The A-286 alloy maintains its mechanical strength at temperatures up to 1300°F (700°C). Its surface stability and fatigue life make it ideal for aerospace, power generation, and automotive parts. This Incoloy alloy also resists surface oxidation up to 1500°F (815°C), supporting reliable performance. The age-hardenable property of this alloy increases surface fatigue strength for critical components.

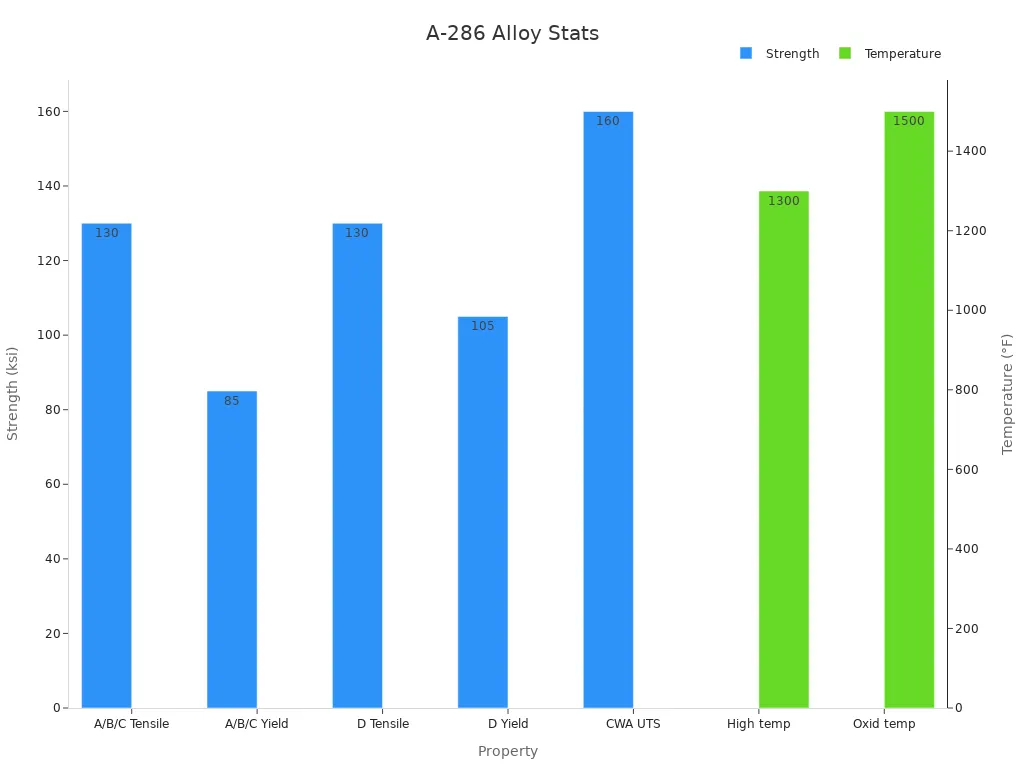

| Property / Condition | Value / Range |
|---|---|
| High strength temperature range | Room temperature up to ~1300°F (700°C) |
| Oxidation resistance temperature | Up to 1500°F (815°C) |
| Heat Treatment Classes A, B, C | Min tensile strength: 130 ksi |
| Min yield strength: 85 ksi | |
| Heat Treatment Class D | Min tensile strength: 130 ksi |
| Min yield strength: 105 ksi | |
| Cold worked and aged condition | Min ultimate tensile strength: 160 ksi |
Incoloy Alloy A-286: Composition results in impressive surface fatigue resistance and long-term reliability. The unique composition creates a balance of surface protection and fatigue strength, which is critical for high-stress applications. The alloy’s surface properties and fatigue resistance set it apart within the Incoloy series.
Key Takeaways
- Incoloy Alloy A-286 combines iron, nickel, chromium, and other elements to deliver high strength and excellent resistance to heat and corrosion.
- This alloy maintains its strength and surface stability at temperatures up to 1300°F, making it ideal for aerospace, power generation, and automotive parts.
- Its unique composition and age-hardening process give it superior fatigue resistance, helping parts last longer under repeated stress.
- Incoloy Alloy A-286 meets strict industry standards, ensuring reliable performance in critical applications like turbine blades and fasteners.
- Good workability and corrosion resistance make this alloy a practical and cost-effective choice for harsh environments requiring durability and high performance.
What is Incoloy Alloy A-286?
Incoloy a286 alloy stands out as a high-strength, iron-based superalloy. Engineers designed this incoloy alloy to perform in environments where both heat and fatigue present major challenges. The a286 alloy contains a unique blend of nickel, chromium, and iron, which gives it remarkable resistance to fatigue and surface degradation. This incoloy alloy maintains its strength and stability even when exposed to temperatures up to 1300°F (700°C).
Note: Incoloy a286 alloy offers a rare combination of high strength, oxidation resistance, and fatigue durability, making it a preferred choice for demanding industries.
The incoloy a286 alloy belongs to the family of incoloy alloys known for their ability to withstand harsh conditions. This alloy resists fatigue cracking, which often occurs in parts that experience repeated stress cycles. The a286 alloy’s microstructure, enhanced by age-hardening, helps prevent fatigue failures over long service periods.
Key characteristics of incoloy a286 alloy include:
- High tensile and yield strength at elevated temperatures
- Excellent resistance to oxidation and corrosion
- Superior fatigue resistance, especially in cyclic loading environments
- Good formability and weldability for complex parts
Industries such as aerospace, automotive, and power generation rely on incoloy a286 alloy for components like turbine blades, fasteners, and springs. These parts must endure both high temperatures and constant fatigue loading. The alloy’s ability to resist fatigue ensures longer service life and greater reliability.
Incoloy Alloy A-286: Chemical Composition
Elements
Incoloy alloy a-286: composition features a carefully balanced blend of elements that deliver outstanding surface and fatigue properties. The chemical composition of this incoloy alloy includes iron as the base, with significant additions of nickel, chromium, and other strengthening elements. Each element in the composition plays a specific role in enhancing the alloy’s surface stability, fatigue resistance, and high-temperature performance.
The table below summarizes the typical percentage range for each main element in the incoloy alloy a-286: composition:
| Element | Typical Percentage Range (wt%) |
|---|---|
| Carbon (C) | Up to 0.08 |
| Manganese (Mn) | Up to 2.00 |
| Phosphorus (P) | Up to 0.025 |
| Sulfur (S) | Up to 0.025 |
| Silicon (Si) | Up to 1.00 |
| Chromium (Cr) | 13.5 – 16.0 |
| Nickel (Ni) | 24.0 – 27.0 |
| Molybdenum (Mo) | 1.0 – 1.5 |
| Titanium (Ti) | 1.9 – 2.35 |
| Vanadium (V) | 0.1 – 0.5 |
| Aluminum (Al) | Up to 0.35 |
| Boron (B) | 0.003 – 0.010 |
| Iron (Fe) | Balance |
This precise chemical composition gives incoloy alloy a-286 its unique combination of surface protection, fatigue strength, and high-temperature stability. The alloy’s composition ensures that it meets the demanding requirements of aerospace, power generation, and automotive applications.
Element Roles
Each element in the incoloy alloy a-286: composition contributes to the alloy’s exceptional properties. The synergy between these elements results in superior surface performance, fatigue resistance, and mechanical strength.
- Iron (Fe): Iron forms the base of the alloy. It provides structural integrity and supports the other alloying elements.
- Nickel (Ni): Nickel, present at 24–27%, delivers excellent corrosion and oxidation resistance. It helps the alloy maintain surface stability at high temperatures and supports fatigue resistance under cyclic loading.
- Chromium (Cr): Chromium, at 13.5–16%, enhances surface oxidation resistance. It forms a protective oxide layer that shields the alloy from harsh environments and prevents surface degradation.
- Molybdenum (Mo): Molybdenum increases strength and improves resistance to pitting and crevice corrosion. It also helps maintain surface integrity in aggressive conditions.
- Titanium (Ti) and Aluminum (Al): Titanium (1.9–2.35%) and aluminum (up to 0.35%) act as precipitation strengthening elements. They form fine particles during heat treatment, which block dislocation movement and significantly increase tensile strength. This process enhances both surface and fatigue properties.
- Vanadium (V): Vanadium (0.1–0.5%) contributes to both solid solution and precipitation strengthening. It boosts overall strength and supports the alloy’s fatigue resistance.
- Boron (B): Boron, though present in small amounts (0.003–0.010%), increases durability and inhibits the formation of harmful phases. It helps maintain surface quality and extends the alloy’s service life.
- Carbon (C), Manganese (Mn), Silicon (Si), Phosphorus (P), Sulfur (S): These elements appear in minor amounts. Carbon increases strength but must be controlled to avoid brittleness. Manganese and silicon improve workability and deoxidation. Phosphorus and sulfur are kept low to prevent negative effects on surface and fatigue properties.
Note: The combination of nickel and chromium in the incoloy alloy a-286: composition provides corrosion and oxidation resistance up to 1300°F (700°C). Titanium and aluminum, through precipitation hardening, deliver high strength without sacrificing surface stability. Vanadium and boron further enhance fatigue resistance and durability.
The chemical composition of incoloy alloy a-286 allows for age-hardening treatments. These treatments increase both yield and ultimate tensile strength while maintaining corrosion resistance. The result is an alloy with balanced surface protection, fatigue strength, and high-temperature performance. Engineers rely on this composition for critical components that must withstand repeated stress and harsh environments.
Incoloy Alloy A-286 Standards
Engineers and manufacturers rely on strict standards to ensure the quality and performance of incoloy alloy A-286. These standards define the chemical composition, mechanical properties, and testing methods for the alloy. They help guarantee that each batch of incoloy meets the requirements for demanding applications.
Several international and industry-specific standards govern incoloy alloy A-286. ASTM A453 sets the guidelines for bolts, studs, and other fasteners made from this alloy. AMS 5525 covers sheet, strip, and plate forms, specifying the necessary properties for aerospace and high-temperature service. ISO 15156 addresses the use of incoloy in oil and gas environments, focusing on resistance to cracking and corrosion under extreme conditions.
| Standard | Application Area | Focus |
|---|---|---|
| ASTM A453 | Fasteners | Mechanical properties, composition |
| AMS 5525 | Aerospace, Power Gen | Sheet, strip, plate requirements |
| ISO 15156 | Oil & Gas | Corrosion, cracking resistance |
These standards play a vital role in industries such as aerospace, power generation, and oil and gas. They ensure that incoloy alloy components perform reliably in high-stress and high-temperature environments. Manufacturers must follow these standards to maintain safety and consistency.
Note: Adhering to these standards allows engineers to trust incoloy alloy A-286 for critical parts where failure is not an option.
Incoloy alloy A-286 stands out because it meets or exceeds the requirements set by these organizations. This compliance supports its reputation as a dependable alloy for extreme environments. Companies select incoloy for its proven track record and the assurance that comes from standardized production and testing.
Properties of Incoloy Alloy A-286
Mechanical Properties
Incoloy alloy A-286 demonstrates a unique combination of mechanical properties that make it suitable for demanding environments. The alloy delivers high tensile strength, excellent ductility, and notable hardness, all of which contribute to its outstanding surface properties and fatigue life. Engineers value these properties for applications where both strength and durability are critical.
| Property / Test Aspect | Values / Observations |
|---|---|
| Initial Surface Hardness | 320 HV |
| Hardness after Boriding | 1498–1961 HV (depending on temperature and time) |
| Boride Layer Thickness | 20–130 μm (varies with boriding conditions) |
| Tensile Strength Improvement (Heat Treatment) | 55 MPa increase observed for aging at 710 °C for 5 h compared to longer/higher temperature aging |
| Microstructural Changes | γ’ phase transforms to η phase at ~730 °C causing strength decline; precipitates like TiC and eta phases influence fracture behavior |
| Wear Resistance | Improved after boriding, with best results at 850–950 °C for 6 h; wear resistance not strictly proportional to hardness increase |
| Fracture Behavior | Brittle intergranular fracture linked to eta-phase formation during prolonged aging |
The mechanical properties of incoloy alloy A-286 depend on heat treatment and surface condition. Aging at 710°C for 5 hours increases ultimate tensile strength by 55 MPa compared to longer or higher temperature treatments. However, prolonged aging can cause the formation of brittle eta phases, which reduce strength and lead to intergranular fracture. The alloy’s initial surface hardness measures around 320 HV, but boriding can increase this value to as high as 1961 HV, depending on process parameters. These enhancements in surface properties and fatigue life are essential for components exposed to repeated stress cycles.
| Property | Typical Range (Metric) | Typical Range (Imperial) |
|---|---|---|
| Tensile Strength | 620 – 750 MPa | 90 – 110 ksi |
| Yield Strength | 310 – 450 MPa | 45 – 65 ksi |
| Elongation | 30% – 40% | 30% – 40% |
| Hardness (Rockwell B) | 85 – 95 HRB | 85 – 95 HRB |
| Impact Strength (Charpy V-notch at -196 °C) | 30 J | 22 ft-lbf |
The alloy’s high yield and tensile strength, combined with good elongation, provide a balance between toughness and ductility. These mechanical properties ensure that incoloy alloy A-286 maintains its surface integrity and fatigue resistance even under severe loading conditions. The alloy’s microstructure, especially after age-hardening, supports long-term performance in high-stress environments.
Tip: Optimizing heat treatment and surface finishing processes can further improve the surface properties and fatigue life of incoloy alloy A-286, making it ideal for critical aerospace and power generation components.
Corrosion and Oxidation Resistance
Incoloy alloy A-286 offers excellent corrosion resistance and oxidation resistance, especially at elevated temperatures. The alloy’s chemical composition, which includes chromium, nickel, molybdenum, and titanium, plays a key role in protecting the surface from aggressive environments. These elements form stable oxide layers that shield the alloy from high temperature corrosion and chemical attack.
- Incoloy alloy A-286 maintains strength and oxidation resistance up to about 700°C, making it suitable for gas turbine and aircraft components.
- The alloy’s corrosion resistance extends to environments containing chlorides, nitric acid, and sea water, though localized corrosion may occur in chloride-rich conditions.
- The surface properties and fatigue life of the alloy remain stable even when exposed to thermal cycling and corrosive atmospheres.
- The alloy’s use in offshore oil and gas fasteners, as well as marine engineering, confirms its durability against high temperature corrosion and oxidation.
- Physical properties such as thermal conductivity and linear expansion remain consistent up to 900°C, supporting reliable performance in fluctuating thermal environments.
| Environment | Resistance Level | Notes |
|---|---|---|
| Chlorides (3-10%) | Good | Risk of pitting corrosion |
| Nitric Acid (10-50%) | Excellent | Highly resistant |
| Sea Water | Good | Risk of localized corrosion |
The alloy’s corrosion resistance and oxidation resistance make it a preferred choice for components that must withstand both heat and chemical exposure. The surface remains protected, ensuring long-term performance and reducing the risk of fatigue failures.
Note: The combination of high surface stability and fatigue resistance allows incoloy alloy A-286 to outperform many standard stainless steels in high temperature corrosion environments.
High-Temperature Performance
Incoloy alloy A-286 excels in high-temperature performance, maintaining its mechanical properties and surface integrity under extreme conditions. The alloy supports continuous service up to 700°C (1292°F) and can tolerate short-term exposure up to 800°C (1472°F). The scaling temperature reaches 900°C (1652°F), though oxidation risk increases above this point.
| Property | Temperature (°C) | Temperature (°F) | Remarks |
|---|---|---|---|
| Max Continuous Service | 700 | 1292 | Suitable for long-term exposure |
| Max Intermittent Service | 800 | 1472 | Short-term exposure only |
| Scaling Temperature | 900 | 1652 | Risk of oxidation above this |
| Creep Strength Considerations | 600 | 1112 | Creep resistance declines |
The alloy’s high-temperature performance is further supported by its resistance to creep, which is the tendency of a material to deform permanently under constant stress at elevated temperatures. The surface properties and fatigue life of incoloy alloy A-286 remain reliable even after prolonged exposure to heat. The alloy’s effectiveness in high-temperature applications, such as turbine blades and combustion chambers, is well documented. Comparative testing shows that incoloy alloy A-286 outperforms many stainless steels in both strength and oxidation resistance at elevated temperatures.
Experimental studies reveal that machining parameters also influence the surface properties and fatigue life of the alloy. Surface roughness, yield strength, and fracture toughness all play a role in determining the alloy’s performance in high-temperature environments. Optimizing manufacturing processes can further enhance the surface and fatigue characteristics, ensuring maximum reliability.
Workability
Incoloy alloy A-286 offers good workability, making it suitable for complex fabrication and machining processes. The alloy can be formed, welded, and machined using standard techniques, though its high strength and surface hardness may require specialized tooling. The age-hardenable nature of the alloy allows for further enhancement of mechanical properties after fabrication.
- The alloy’s surface properties and fatigue life benefit from proper heat treatment and finishing.
- Machining parameters, such as cutting speed and tool geometry, affect the surface integrity and fatigue resistance of finished parts.
- The alloy’s ductility and toughness support forming and welding operations without compromising surface quality.
- Age-hardening treatments increase both yield and tensile strength, further improving the surface and fatigue performance of the alloy.
Note: Manufacturers should optimize fabrication and machining processes to preserve the surface properties and fatigue life of incoloy alloy A-286, especially for critical aerospace and power generation components.
The combination of excellent mechanical properties, corrosion resistance, high-temperature performance, and workability makes incoloy alloy A-286 a top choice for demanding applications. Its balanced surface properties and fatigue life ensure long-term reliability in harsh environments.
Incoloy Alloy A-286 Applications
Incoloy alloy A-286 serves a wide range of applications that demand superior surface stability, fatigue resistance, and high performance. Engineers select this alloy for its unique combination of high strength, corrosion resistance, and reliable surface properties. The following sections highlight the main application areas and explain why incoloy alloy A-286 remains a preferred choice.
Aerospace
Aerospace engineers rely on incoloy alloy A-286 for critical components exposed to extreme surface stress and fatigue. Turbine blades, afterburner parts, and fasteners in gas turbine jet engines must withstand high temperatures and repeated loading cycles. The alloy’s surface stability and fatigue resistance ensure long service life in these demanding environments. Its corrosion resistance protects components from oxidation and chemical attack during flight. Incoloy alloy A-286 maintains mechanical performance at elevated temperatures, making it ideal for high temperature application in aerospace engines.
Power Generation
Power generation facilities use incoloy alloy A-286 in gas turbine jet engines, steam turbines, and heat exchangers. The alloy’s surface properties and fatigue strength support reliable operation under thermal cycling and high-pressure conditions. Incoloy alloy A-286 resists surface degradation from oxidation and corrosion, even when exposed to aggressive gases and fluctuating temperatures. Its performance in power generation applications helps prevent fatigue failures and extends equipment lifespan.
Automotive
Automotive manufacturers choose incoloy alloy A-286 for exhaust valves, turbocharger components, and springs. These parts face constant surface fatigue and high temperatures. The alloy’s fatigue resistance and surface stability ensure consistent performance in engines and exhaust systems. Incoloy alloy A-286 offers a balance of strength, corrosion resistance, and cost-effectiveness, making it suitable for high-performance vehicles.
Fasteners and Industrial Uses
Incoloy alloy A-286 fasteners, such as socket head cap screws, deliver high surface hardness and fatigue strength. Industrial sectors use these fasteners in chemical processing, oil and gas, and marine environments. The alloy’s corrosion resistance and surface durability make it a reliable choice for critical joints and assemblies. In cold worked condition, these fasteners achieve a minimum tensile strength of 160 ksi and a minimum yield strength of 120 ksi, meeting the requirements for high-strength applications.

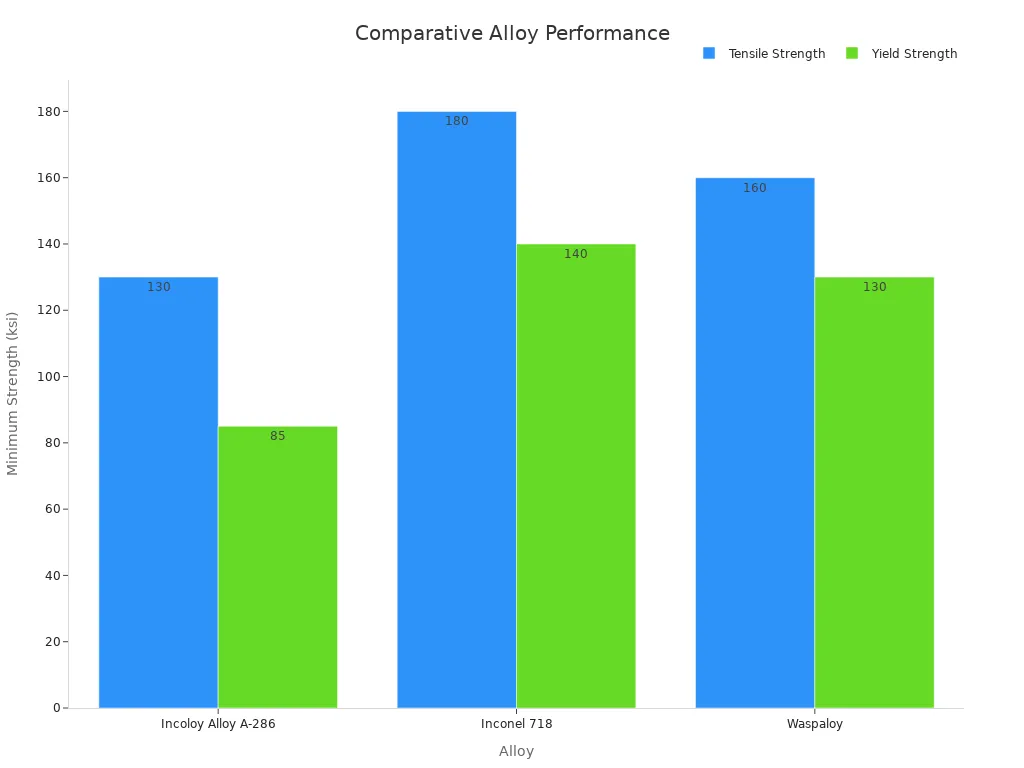

| Property/Feature | Incoloy Alloy A-286 | Inconel 718 | Waspaloy |
|---|---|---|---|
| Tensile Strength (ksi) | Minimum 130 | Minimum 180 | Minimum 160 |
| Yield Strength (ksi) | Minimum 85 | Minimum 140 | Minimum 130 |
| Cold Worked Tensile Strength (fasteners) | Up to 160 (socket head cap screws) | Comparable (Inconel 718 fasteners available) | N/A |
| Cold Worked Yield Strength (fasteners) | Up to 120 | Comparable | N/A |
| Temperature Performance | Maintains strength and creep resistance up to 1800°F (982°C) | Good high temperature strength | Excellent creep resistance |
| Creep Resistance | Excellent | Good | Excellent |
| Economic and Availability Advantages | More economical and readily available in fastener forms | Higher strength but higher cost and lead time | Primarily aerospace use |
Incoloy alloy A-286 stands out for its surface fatigue resistance, mechanical performance, and economic advantages. Its availability and cost-effectiveness make it a practical solution for industries that require both high surface durability and fatigue strength.
Incoloy Alloy A-286 vs 253MA Stainless Steel
Engineers often compare incoloy alloy A-286 with 253MA stainless steel when selecting materials for high-temperature applications. Both alloys deliver strong surface protection, but their performance and fatigue resistance differ in key ways.
| Property | Incoloy Alloy A-286 | 253MA Stainless Steel |
|---|---|---|
| Base Elements | Iron-Nickel-Chromium | Iron-Chromium-Nickel |
| Max Service Temp (°F) | 1300 | 2000 |
| Surface Oxidation Limit | 1500 | 2000 |
| Fatigue Resistance | Excellent | Moderate |
| Surface Hardness | High | Moderate |
| Corrosion Resistance | High | Good |
| Age-Hardenable | Yes | No |
Incoloy alloy A-286 contains nickel and titanium, which boost surface stability and fatigue strength. This alloy resists surface degradation and maintains performance under repeated stress. 253MA stainless steel uses rare earth elements to improve surface oxidation resistance at higher temperatures, but it does not match the fatigue performance of incoloy.
- Incoloy alloy A-286 excels in surface fatigue resistance. Engineers choose this alloy for turbine blades, fasteners, and springs where surface and fatigue failures can cause critical issues.
- 253MA stainless steel performs well in continuous high-temperature environments. Its surface oxidation resistance stands out, but its fatigue properties do not reach the level of incoloy.
Note: Incoloy alloy A-286 offers a unique balance of surface protection, fatigue strength, and mechanical performance. 253MA stainless steel provides excellent surface oxidation resistance but falls short in fatigue-critical applications.
When selecting between these alloys, engineers must consider the specific surface and fatigue demands of the application. Incoloy delivers superior performance where surface fatigue and mechanical strength are essential. 253MA stainless steel suits applications that require surface oxidation resistance at extreme temperatures but less focus on fatigue.
Incoloy Alloy A-286 stands out for its advanced composition and reliable properties.
- The alloy features a blend of iron, nickel, and chromium, with strengthening from fine grain sizes and precipitation hardening.
- Its properties include high fatigue strength, corrosion resistance, and stability at elevated temperatures.
- Incoloy supports critical applications in aerospace, power generation, and automotive sectors.
- Ongoing research continues to optimize the alloy for harsh environments, ensuring dependable performance where it matters most.
FAQ
What makes Incoloy Alloy A-286 different from standard stainless steel?
Incoloy Alloy A-286 contains higher nickel and titanium content. This composition provides superior strength, fatigue resistance, and stability at elevated temperatures. Standard stainless steels do not match its performance in high-stress, high-temperature environments.
Can Incoloy Alloy A-286 be welded or machined easily?
Incoloy Alloy A-286 offers good weldability and machinability. Specialized tools and procedures help achieve the best results. Age-hardening after fabrication further enhances its mechanical properties.
What industries use Incoloy Alloy A-286 most frequently?
Aerospace, power generation, automotive, and oil and gas industries use this alloy. Engineers select it for turbine blades, fasteners, exhaust valves, and other components that require high strength and resistance to heat and corrosion.
Is Incoloy Alloy A-286 resistant to corrosion in marine environments?
- Incoloy Alloy A-286 resists corrosion in marine and chloride-rich environments.
- Localized corrosion, such as pitting, may occur under severe conditions.
- Proper design and maintenance improve its long-term durability in these settings.
