Selecting the right inconel alloy depends on mechanical strength, corrosion resistance, and temperature performance. The table below highlights the most significant differences between Inconel 625 and 718:
| Property/Parameter | Inconel 625 | Inconel 718 |
|---|---|---|
| Tensile Strength (MPa) | 690–930 | 930–1530 |
| Yield Strength (MPa) | 276 (typical) | 827–1034 |
| Ductility | Up to 42.5% | Lower |
| Temperature Resistance | Up to 980°C | Up to 700°C |
| Corrosion Resistance | Superior in harsh environments | Good, but less effective in acids or chlorides |
Inconel 600 offers reliable performance at high temperatures and moderate corrosion resistance. Engineers should match alloy properties to the demands of each application.
Key Takeaways
- Inconel 600 is ideal for high-temperature applications, offering good oxidation resistance and moderate corrosion resistance, making it suitable for furnace components.
- Inconel 625 excels in harsh environments, providing superior corrosion resistance, especially in marine and chemical applications, ensuring long service life.
- Inconel 718 stands out for its high strength and toughness, making it the preferred choice for aerospace and oilfield tools that require load-bearing capabilities.
- When selecting an Inconel alloy, consider the specific environmental challenges, such as temperature limits and corrosion risks, to ensure optimal performance.
- Consulting material experts can help avoid common mistakes in alloy selection, ensuring safety, reliability, and cost-effectiveness in engineering projects.
Overview
Key Differences
Inconel alloys have evolved since the 1940s, when Wiggin Alloys first developed them to meet the growing need for materials that could withstand high temperatures and resist corrosion. This innovation led to the creation of several grades, including Inconel 600, 625, and 718. Each grade serves a unique purpose in industries such as aerospace, marine engineering, and chemical processing.
The mechanical strengths of these alloys differ, especially under high-temperature conditions. The table below highlights how each grade performs:
| Inconel Grade | High-Temperature Strength | Additional Properties |
|---|---|---|
| Inconel 600 | Good resistance to oxidation and carburization | Ideal for furnace components and chemical processing equipment |
| Inconel 625 | N/A | N/A |
| Inconel 718 | Superior high-temperature strength (min 185 ksi UTS) | Ideal for high strength, corrosive applications such as gas turbine engines and aerospace |
Inconel 718 stands out for its superior strength at elevated temperatures. Inconel 600 offers reliable resistance to oxidation and carburization, making it suitable for furnace parts. Inconel 625 is not listed in this table, but it is known for excellent corrosion resistance and flexibility in harsh environments.
Similarities
All three inconel alloys share important characteristics that make them valuable in demanding settings. Their corrosion resistance sets them apart from other materials, such as SS316L. The following points summarize their shared strengths:
- Inconel 625 and Inconel 718 significantly enhance the corrosion resistance of SS316L in high-stress and corrosive environments.
- The incorporation of inconel alloys leads to improved mechanical properties and corrosion resistance compared to SS316L.
- Inconel 718 exhibits strong resistance to high temperatures, corrosion, and oxidation, making it ideal for applications requiring durability in aggressive settings.
Engineers often choose inconel alloys for their ability to maintain performance in extreme conditions. These materials help extend the lifespan of equipment and reduce maintenance costs.
Inconel 600
Composition
Inconel 600 stands out for its unique chemical composition. This alloy contains a high percentage of nickel, along with chromium and iron. The typical composition, based on ASTM standards, appears in the table below:
| Element | Weight Percentage (wt. %) |
|---|---|
| Nickel (Ni) | 72.0% min |
| Chromium (Cr) | 14.0 – 17.0% |
| Iron (Fe) | 6.0 – 10.0% |
| Carbon (C) | 0.15% max |
| Manganese (Mn) | 1.0% max |
| Silicon (Si) | 0.50% max |
| Sulfur (S) | 0.015% max |
| Copper (Cu) | 0.50% max |
The high nickel content gives inconel 600 its excellent resistance to oxidation and corrosion. Chromium further improves its ability to withstand high temperatures by forming a stable passivation film. This combination makes the alloy suitable for harsh environments.
Properties

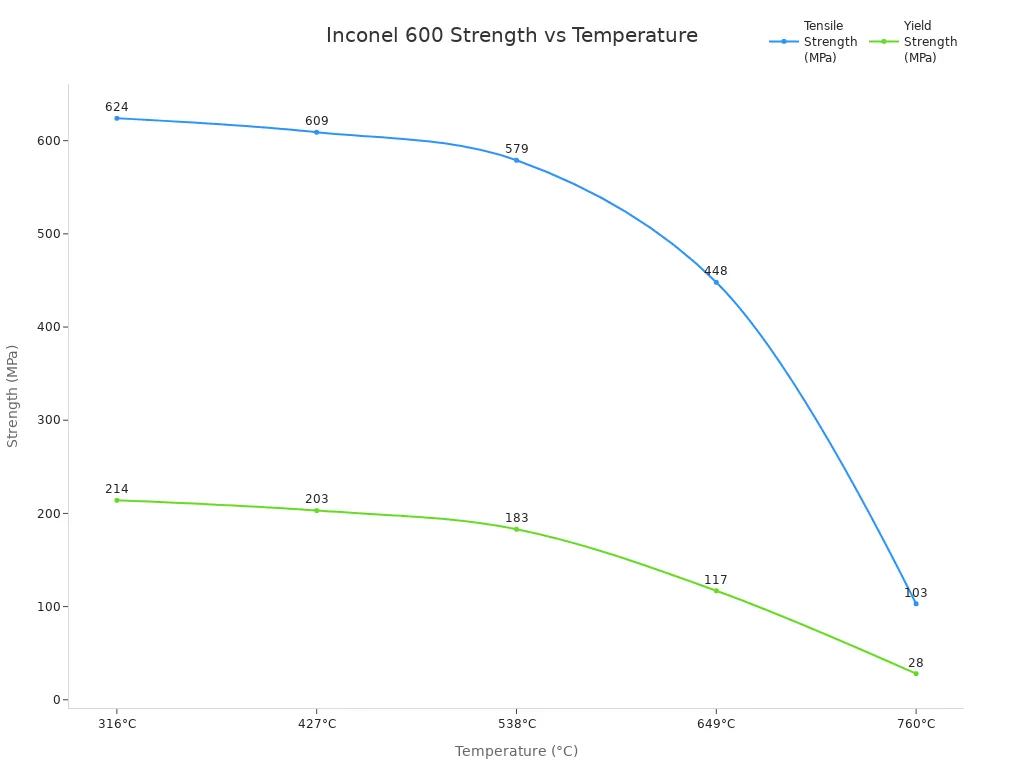

Inconel 600 offers a balance of mechanical strength and corrosion resistance. Its properties remain stable even at elevated temperatures. The table below shows how its tensile and yield strength change with temperature:
| Temperature (°F) | Temperature (°C) | Tensile Strength (ksi) | Tensile Strength (MPa) | 0.2% Yield Strength (ksi) | 0.2% Yield Strength (MPa) | % Elongation in 2″ |
|---|---|---|---|---|---|---|
| 600 | 316 | 90.5 | 624 | 31.0 | 214 | 31.0 |
| 800 | 427 | 88.5 | 609 | 29.5 | 203 | 29.5 |
| 1000 | 538 | 84.0 | 579 | 26.5 | 183 | 26.5 |
| 1200 | 649 | 65.0 | 448 | 17.0 | 117 | 9.0 |
| 1400 | 760 | 15.0 | 103 | 4.0 | 28 | 4.0 |
Inconel’s nickel-chromium-rich composition provides outstanding corrosion and oxidation resistance, making it suitable for harsh environments, including marine and chemical processing applications.
Inconel 600 resists many corrosive media, both organic and inorganic. It performs well in alkaline solutions and can resist chloride-ion stress-corrosion cracking under certain conditions. However, its oxidation resistance is not as strong as alloys with higher chromium content, such as inconel 625.
Applications
Engineers use inconel 600 in many demanding settings. Its corrosion resistance and stability at high temperatures make it a popular choice in the chemical processing industry. Common applications include:
- Reactors and processing equipment exposed to harsh chemicals
- Pipes, valves, and pumps in chemical plants
- Equipment for producing acids, organic compounds, and alcohols
- Components in environments with high temperatures and corrosive substances
Inconel 600’s cost is lower than some other high-performance alloys, such as inconel 718, making it a practical option for many industrial uses.
Inconel 625
Composition
Inconel 625, also known as alloy 625, contains a unique blend of elements that give it outstanding performance in harsh environments. The standard chemical composition appears in the table below:
| Element | Weight % |
|---|---|
| Nickel (Ni) | 58.0 min |
| Chromium (Cr) | 20.0 – 23.0 |
| Molybdenum (Mo) | 8.0 – 10.0 |
| Niobium (Nb) + Tantalum (Ta) | 3.15 – 4.15 |
| Iron (Fe) | 5.0 max |
| Carbon (C) | 0.10 max |
Chromium in inconel 625 helps resist oxidizing chemicals. Nickel and molybdenum protect against pitting and crevice corrosion. Niobium stabilizes the alloy during welding, which prevents intergranular corrosion. The high nickel content also blocks chloride-induced stress corrosion cracking. These features make inconel 625 a top choice for aggressive environments.
Properties
Alloy 625 stands out for its strength and durability. The table below shows its mechanical properties:
| Property | Range |
|---|---|
| Tensile Strength | 790 to 910 MPa (120 to 130 x 10³ psi) |
| Elongation at Break | 33 to 34 % |
The inconel 625 yield strength allows it to handle high loads without permanent deformation. Its resistance to both oxidation and corrosion remains strong even at elevated temperatures. Engineers often select inconel 625 for marine environments because it outperforms inconel 600 and 718 in resisting seawater corrosion. The table below compares these alloys:
| Alloy | Composition (Nickel, Chromium, Molybdenum, Niobium) | Features |
|---|---|---|
| Inconel 625 | Nickel (58%), Chromium (20-23%), Molybdenum (8-10%), Niobium (3.15-4.15%) | Outstanding strength and toughness, excellent resistance to corrosion and oxidation, used in aerospace, marine, and chemical processing industries. |
| Inconel 600 | Nickel (76%), Chromium (15-17%), Iron (balance) | Good oxidation and corrosion resistance at high temperatures. |
| Inconel 718 | Nickel (50-55%), Chromium (17-21%), Iron (balance), Molybdenum (2.8-3.3%), Niobium (4.75-5.5%) | High strength and corrosion resistance at elevated temperatures, used extensively in aerospace, gas turbine engines, and oil & gas industries. |
Inconel 625 offers a rare combination of high strength, flexibility, and corrosion resistance, making it reliable for critical operations.
Applications
Many industries rely on inconel 625 for its high corrosion resistance and mechanical strength. The table below lists common applications:
| Industry/Field | Application Examples |
|---|---|
| Aerospace | Jet engine exhausts |
| Oil and Gas | Oil and gas extraction |
| Marine | Seawater equipment |
| Chemical Processing | Chemical plant equipment |
| Environmental | Flare stacks |
Although inconel 625 costs more than stainless steel 316, it offers a much longer service life and lower maintenance costs. The chart below compares the total cost of ownership for both materials:
Engineers choose alloy 625 when they need a material that can withstand extreme conditions and reduce downtime. Its unique properties make it a preferred option for demanding applications.
Inconel 718
Composition
Inconel alloy 718 contains a balanced mix of elements that give it unique strength and durability. The main elements include nickel, chromium, iron, and smaller amounts of molybdenum, niobium, and titanium. The table below shows the typical chemical composition according to AMS specifications:
| Element | Percentage Range |
|---|---|
| Nickel (Ni) | 50.0 – 55.0% |
| Iron (Fe) | Balance |
| Chromium (Cr) | 17.00 – 21.00% |
| Molybdenum (Mo) | 2.80 – 3.30% |
| Niobium (Nb) + Tantalum (Ta) | 4.75 – 5.50% |
| Titanium (Ti) | 0.65 – 1.15% |
| Aluminum (Al) | 0.20 – 0.80% |
| Carbon (C) | 0.08% max |
| Manganese (Mn) | 0.35% max |
| Silicon (Si) | 0.35% max |
| Sulfur (S) | 0.015% max |
| Phosphorus (P) | 0.015% max |
| Copper (Cu) | 0.30% max |
| Boron (B) | 0.006% max |
Niobium and titanium play a key role in the precipitation hardening process. Niobium forms tiny particles during heat treatment, which increases the strength of inconel 718. Titanium works with niobium to improve resistance to stress corrosion cracking and oxidation.
Properties
Alloy 718 stands out for its high strength and toughness, even at elevated temperatures. The unique combination of elements allows the formation of special precipitates, such as the γ” (Ni₃Nb) phase, which boosts high-temperature strength. During aging heat treatment, the material is held at specific temperatures to create finely dispersed γ′ and γ″ particles. These particles cause lattice deformation, making the alloy much stronger.
| Property | Value |
|---|---|
| Yield Strength | 827 MPa |
| Fatigue Strength | 420 MPa |
Inconel 718 also offers excellent weldability and resists corrosion in harsh environments. Engineers often choose this alloy for its reliable performance in demanding conditions.
Note: The precipitation hardening process gives inconel 718 its outstanding mechanical properties, making it a top choice for high-stress applications.
Applications
Alloy 718 finds use in many industries because of its strength and corrosion resistance. In aerospace, inconel 718 is highly suitable for load-bearing parts, such as turbine discs and jet engine components. The table below compares its performance to other inconel grades:
| Alloy | High-Temperature Strength | Weldability | Corrosion Resistance | Suitability for Aerospace Applications |
|---|---|---|---|---|
| Inconel 718 | Superior | Excellent | Exceptional | Highly suitable for load-bearing applications |
| Inconel 600 | Moderate | Good | Good | Less suitable for high-stress applications |
| Inconel 625 | Moderate | Good | Better than 600 | Suitable for marine and chemical environments |
In the oil and gas industry, alloy 718 is used for:
- Downhole tools
- Packers and hangers
- Flow control devices
- Subsea valves and wellhead components
- Drill tools and valve bodies
These applications benefit from the alloy’s ability to withstand extreme pressure and corrosive fluids. Inconel 718 also appears in power generation and chemical processing equipment, where reliability and long service life are essential.
Inconel 600 vs 625 vs 718
Chemical Composition Comparison
Engineers often compare inconel 600, inconel 625, and inconel 718 to select the best alloy for demanding environments. Each grade contains a unique blend of elements that influences its resistance and strength.
| Alloy | Nickel (%) | Chromium (%) | Molybdenum (%) | Niobium (%) | Iron (%) | Other Elements |
|---|---|---|---|---|---|---|
| inconel 600 | 72 min | 14-17 | — | — | 6-10 | Carbon, Mn, Si, S, Cu |
| inconel 625 | 58 min | 20-23 | 8-10 | 3.15-4.15 | ≤5 | C, Ta |
| inconel 718 | 50-55 | 17-21 | 2.8-3.3 | 4.75-5.5 | balance | Ti, Al, Mn, Si, S, P, Cu, B |
The high nickel content in inconel 600 provides strong oxidation and carburization resistance. Inconel 625 adds molybdenum and niobium, which boost corrosion resistance and high strength. Inconel 718 uses titanium and niobium for precipitation hardening, resulting in excellent mechanical properties and high strength.
Strength Comparison
Strength plays a key role in alloy selection. Inconel 600 offers moderate high strength, while inconel 625 and inconel 718 excel in demanding applications.
- inconel 600: Delivers reliable strength at elevated temperatures. Tensile strength ranges from 624 MPa at 316°C to 103 MPa at 760°C.
- inconel 625: Provides high strength, with tensile values between 790 and 910 MPa. The alloy maintains strength in marine and chemical environments.
- inconel 718: Achieves the highest strength among these grades. Yield strength reaches 827 MPa, and tensile strength can exceed 1530 MPa after heat treatment.
Engineers choose inconel 625 vs 718 for applications that require high strength and resistance to extreme conditions. Inconel 718 stands out for aerospace and turbine components due to its precipitation hardening process.
Corrosion Resistance
Corrosion resistance determines how well an alloy performs in aggressive environments. All three inconel grades resist corrosion, but their effectiveness varies.
- inconel 600: Resists oxidation and carburization. Performs well in alkaline solutions and moderate corrosive settings.
- inconel 625: Excels in corrosion resistance, especially in seawater, acids, and chloride-rich environments. Molybdenum and niobium enhance its resistance to pitting and crevice corrosion.
- inconel 718: Offers good corrosion resistance, but less effective than inconel 625 in acidic or marine conditions. The alloy resists oxidation and carburization at high temperatures.
| Alloy | Corrosion Resistance | Oxidation Resistance | Carburization Resistance |
|---|---|---|---|
| inconel 600 | Moderate | High | High |
| inconel 625 | Superior | High | Moderate |
| inconel 718 | Good | High | Moderate |
Inconel 625 vs 718: Inconel 625 provides better corrosion resistance in marine and chemical processing environments. Inconel 718 offers high strength and good resistance, but inconel 625 remains the preferred choice for severe corrosion.
Best Uses
Selecting the right inconel grade depends on the application’s requirements for strength, corrosion resistance, and high temperature resistance.
- inconel 600: Suits furnace components, chemical processing equipment, and reactors. The alloy’s oxidation and carburization resistance make it reliable for high-temperature operations.
- inconel 625: Fits marine equipment, oil and gas extraction, and chemical plants. The alloy’s corrosion resistance and high strength ensure long service life in harsh environments.
- inconel 718: Serves aerospace, gas turbine engines, and oilfield tools. The alloy’s excellent mechanical properties and high strength support load-bearing and high-stress applications.
Engineers often compare inconel 625 vs 718 when selecting materials for aerospace and turbine components. Inconel 718 provides high strength and good resistance, but inconel 625 offers superior corrosion resistance in marine and chemical settings.
Recommended alloys for high-temperature aerospace applications include:
- HAYNES® 230®: Delivers exceptional high temperature resistance and oxidation resistance, ideal for aerospace.
- HAYNES® 188: Offers superior oxidation resistance and high strength up to 2000°F (1095°C), widely used in aircraft turbine engines.
Tip: Always match the alloy’s resistance, strength, and corrosion resistance to the specific environment. Inconel 625 vs 718 comparisons help engineers choose the best grade for each application.
Comparison Table
Properties
The table below shows how Inconel 600, 625, and 718 compare in composition, mechanical strength, and corrosion resistance. Each alloy has unique features that help engineers choose the right material for specific needs.
| Alloy | Composition Highlights | Mechanical Strength (MPa) | Corrosion Resistance | Temperature Limit (°C) |
|---|---|---|---|---|
| 600 | Nickel (72%), Chromium (14-17%) | 624–103 | Moderate | Up to 1175 |
| 625 | Nickel (58%), Chromium (20-23%), Molybdenum (8-10%), Niobium (3-4%) | 790–910 | Superior in harsh settings | Up to 980 |
| 718 | Nickel (50-55%), Chromium (17-21%), Niobium (4.75-5.5%), Titanium (0.65-1.15%) | 930–1530 | Good, less effective in acids | Up to 700 |
Engineers use this table to compare the properties of each inconel alloy before making a selection.
Applications
Each inconel grade serves different industries and tasks. The following list highlights common applications for these alloys:
- Inconel 600: Used in furnace components, chemical reactors, and heat exchangers.
- Inconel 625: Selected for marine equipment, oil and gas extraction, and chemical plant piping.
- Inconel 718: Preferred for aerospace turbine engines, high-stress oilfield tools, and power generation parts.
These applications show how each alloy meets the demands of specific environments. Engineers match the alloy to the job based on strength, corrosion resistance, and temperature needs.
Choosing the Right Alloy
Selection Guide
Selecting the right alloy helps engineers ensure safety, performance, and cost-effectiveness. Each inconel grade fits specific needs. The following guide helps match the alloy to the application:
- Identify the Main Challenge
Engineers first decide if the main concern is high temperature, corrosion, or mechanical strength.- For high temperatures above 700°C, Inconel 600 works well in furnace parts and heat exchangers.
- For severe corrosion, especially in marine or chemical environments, Inconel 625 offers the best protection.
- For high mechanical strength and load-bearing parts, Inconel 718 stands out, especially in aerospace and oilfield tools.
- Check the Temperature Range
Each alloy has a maximum service temperature.AlloyMax Service Temperature (°C)Best Use Case600Up to 1175High-temp, moderate corrosion625Up to 980Corrosive, marine, chemical718Up to 700High strength, aerospace - Consider the Environment
- Inconel 625 resists acids, chlorides, and seawater.
- Inconel 600 handles oxidation and carburization.
- Inconel 718 resists stress and fatigue in harsh, high-pressure settings.
- Evaluate Cost and Availability
Some alloys cost more but last longer. Inconel 625 and 718 often cost more than 600, but they reduce maintenance and replacement needs.
Tip: Engineers should always match the alloy’s strengths to the environment and stresses of the application. This approach prevents early failure and saves money over time.
Common Mistakes
Engineers sometimes make errors when choosing an alloy. These mistakes can lead to equipment failure or extra costs. The list below highlights common pitfalls and ways to avoid them:
- Ignoring the Real Operating Environment
Some engineers select an alloy based only on temperature or strength. They forget about corrosion from chemicals or seawater. Always consider all environmental factors. - Over-Specifying the Alloy
Choosing a higher-grade inconel than needed increases costs. For example, using Inconel 718 for simple furnace parts wastes resources. Select the grade that matches the actual demands. - Underestimating Fabrication Needs
Some alloys require special welding or forming techniques. Inconel 718, for example, needs precise heat treatment. Failing to plan for this can cause delays or defects. - Not Consulting Material Experts
Material selection can be complex. Skipping expert advice may result in poor choices. Engineers should consult with metallurgists or suppliers for critical projects.
Note: Avoiding these mistakes helps ensure safety, reliability, and cost savings in every project.
Inconel 600, 625, and 718 each offer unique strengths. Inconel 600 provides solid performance at high temperatures. Inconel 625 stands out for corrosion resistance. Inconel 718 delivers the highest strength.
- Engineers should match alloy properties to the job’s demands.
- For complex projects, consulting a materials expert ensures the best choice.
Careful alloy selection improves safety, performance, and cost savings in every application.
FAQ
What industries commonly use Inconel alloys?
Engineers select Inconel alloys for aerospace, marine, and chemical processing industries. Nuclear power plants also rely on these materials for their durability and resistance to extreme environments.
How does tensile strength affect alloy selection?
Tensile strength measures how much force an alloy can withstand before breaking. Engineers choose alloys with higher tensile strength for applications that require load-bearing capacity and long-term reliability.
Why is Inconel 625 preferred in chemical processing?
Inconel 625 resists corrosion from acids and harsh chemicals. Chemical processing plants use this alloy for equipment that faces aggressive substances and high temperatures.
What makes Inconel 718 suitable for nuclear applications?
Inconel 718 offers high strength and stability under radiation. Nuclear engineers value its resistance to stress and its consistent inconel 718 density, which supports safe reactor operation.
Can Inconel alloys handle extreme environments?
Engineers trust Inconel alloys in environments with high heat, pressure, and corrosive chemicals. Chemical processing and nuclear industries depend on these materials for reliable performance.
