When it comes to Material Selection for gas turbines, you face tough choices. Gas turbines operate under extremely harsh conditions, with turbine inlets reaching temperatures as high as 3,600° F and air exiting the compressor hitting 500° F. Approximately 42% of issues in these machines stem from turbine blade problems, often resulting from poor material selection. Inconel 718 and Inconel X-750 are the top inconel alloys recommended for manufacturing these components. They are capable of withstanding very high temperatures and significant stress. By utilizing Inconel 718 and Inconel X-750, you ensure that gas turbines function effectively, maintain their strength, and perform at optimal levels.
Key Takeaways
- Inconel 718 and Inconel X-750 are very important for gas turbines. They can handle very high heat and stress.
- Picking the right material is very important. Inconel 718 does not rust easily. Inconel X-750 works well in very hot places.
- Knowing what each alloy can do helps people choose better parts. This makes the turbine work better and last longer.
- Inconel 718 is great for important parts like blades and discs. Inconel X-750 is best for springs and fasteners that must stay strong in heat.
- Choosing the right material can stop breakdowns and lower repair costs. This helps gas turbines run safely and well.
What is Gas Turbine and Components?
You can find gas turbines in many places. They are used in power plants and airplanes. These machines change fuel into mechanical energy. You see them in jet engines and ships too. Gas turbines work by squeezing air, mixing it with fuel, and burning it. This makes hot gases. The gases spin the turbine. The spinning turbine moves a generator or helps an airplane fly.
A gas turbine has three main parts. Each part is important for how well the machine works. Look at the table below to see what each part does and what materials are used:
| Component | Function | Typical Materials |
|---|---|---|
| Compressor | Raises the air pressure before it goes into the combustion chamber. | Nickel-based superalloys |
| Combustion Chamber | Mixes fuel and air, then burns it to make hot gases. | Various coatings for high-temperature applications |
| Turbine | Takes energy from the hot gases and turns it into work. | Advanced IGT blading in single crystal Ni-based superalloys, MCrAlY coatings |
Tip: It is important to know what materials are used in each part. Nickel-based superalloys like Inconel 718 and X-750 are very strong and can handle heat. These alloys help the compressor and turbine last longer in tough conditions. Engineers use special coatings on the combustion chamber to stop damage from heat.
The materials you pick matter a lot for gas turbines. Good materials make the machine last longer and work better. If you know what each part does and what it needs, you can make smart choices when building or fixing turbines.
Material Selection Criteria
When picking materials for gas turbines, you must think about many things. Gas turbines need alloys that stay strong at high temperatures. They also need to fight off rust and last a long time. You should check if the material can handle stress and heat over time. These things help the turbine work safely and well.
- Here are the main things to look at:
- High temperature strength
- Fatigue capability
- Creep resistance
- Corrosion resistance
- Thermal stability
- Low thermal expansion
- Weight and cost
- Overall performance

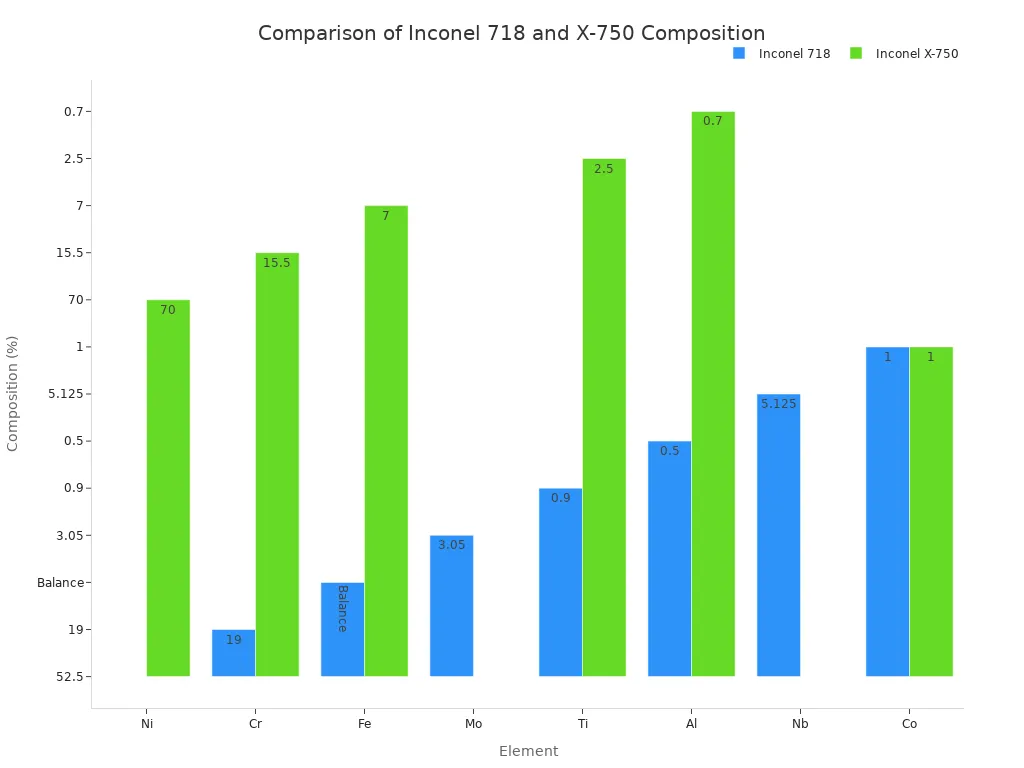

Inconel 718 vs. Inconel X-750 Chemical Contents
Inconel 718 and inconel x-750 have different chemical makeups. Both are nickel-based superalloys, but each has special elements. Inconel 718 has more chromium and molybdenum. This helps it fight rust and stay strong in heat. Inconel x-750 has more nickel and titanium. This makes it good for certain superalloy uses.
| Element | Inconel 718 | Inconel X-750 |
|---|---|---|
| Ni | 50-55% | 70% minimum |
| Cr | 17-21% | 14-17% |
| Fe | Bal. | 5-9% |
| Mo | 2.8-3.3% | – |
| Ti | 0.65-1.15% | 2.25-2.75% |
| Al | 0.2-0.8% | 0.4-1% |
| Nb | 4.75-5.5% | – |
| Co | 1% max | 1% max |
Temperature Resistance
You need alloys that do not break in high heat. Inconel 718 and inconel x-750 both work well in hot places. Inconel 718 is strong up to 1300°F. Inconel x-750 can take even more heat for longer. This makes both good for turbine blades and other hot parts.
Strength and Fatigue
Gas turbines shake and spin a lot. You want superalloys like inconel 718 and inconel x-750 because they do not get weak from stress. Inconel 718 is very strong and does not break easily. It is great for important spinning parts.
Corrosion and Oxidation
Rust and oxidation can hurt turbine parts fast. Inconel 718 is better at fighting rust and oxidation than inconel x-750. Molybdenum and more chromium in inconel 718 help protect it. Inconel x-750 is good, but not as strong as inconel 718 in tough places.
| Alloy | Corrosion Resistance | Oxidation Resistance | Additional Elements |
|---|---|---|---|
| Inconel 718 | Superior | Better | Molybdenum |
| Inconel X-750 | Inferior | Lesser | None |
Note: Both inconel 718 and inconel x-750 must follow strict rules like AMS 5596, ASTM B670, and ISO 9001. This makes sure they are safe and work well every time.
Inconel 718 Properties
Mechanical Strength
You use inconel 718 when you need strong turbine parts. This alloy is tough at room temperature and when it gets hot. Inconel 718 has high tensile and yield strength. This means it can hold heavy loads and take a lot of stress. The table below shows how inconel 718 works in different conditions:
| Condition | Young’s Modulus (GPa) | Yield Strength (MPa) | Ultimate Tensile Strength (MPa) | Ductility (%) |
|---|---|---|---|---|
| Room Temperature | 105.2 | 427.7 | 787.4 | 36.2 |
| DA 700 °C | N/A | 1029.0 | 1263.1 | 18.6 |
| Peak Aging (700 °C) | N/A | 1066.5 – 1408.5 | N/A | 19.6 – 23.7 |
Inconel 718 stays strong even at 700 °C. This makes it great for important turbine parts that get very hot and stressed.
Oxidation and Corrosion Resistance
Inconel 718 does a great job fighting rust and oxidation. It has a lot of nickel and chromium. These help make a layer that protects the metal. Molybdenum and niobium help stop pitting and crevice corrosion. Inconel 718 keeps its surface safe during heating and cooling. The table below compares inconel 718 to other superalloys:
| Attribute | Inconel 718 | Other Superalloys |
|---|---|---|
| Oxidation Resistance | Excellent, forms protective oxide | Varies, generally lower |
| Corrosion Resistance | Superior in aggressive environments | Generally less effective |
| Temperature Performance | Up to ~980°C, practical service ~650°C | Varies, often lower limits |
Tip: Pick inconel 718 for turbine parts in tough places. Its resistance to rust and oxidation helps stop damage and makes parts last longer.
Gas Turbine Applications
Inconel 718 is used in many gas turbine parts. Engineers pick this alloy for shafts, sheets, blades, and discs. These parts must handle a lot of heat and stress. Inconel 718 helps these parts work better and last longer. It is good for turbine blades, exhaust systems, and combustion chambers. Its thermal stability makes it perfect for aerospace turbines and rocket engines.
| Component Type | Application |
|---|---|
| Shafts | Critical rotating parts |
| Sheets | Critical rotating parts |
| Blades | Critical rotating parts |
| Discs | Critical rotating parts |
- Takes the heat from jet engines
- Makes performance better
- Helps important parts last longer
You can count on inconel 718 to be strong and reliable. This alloy helps turbines work safely, well, and for a long time.
Inconel X-750 Features
Creep Resistance
Gas turbines get very hot and run for a long time. You need parts that do not change shape. Inconel x-750 is great at stopping creep. This means it does not stretch much in heat. The alloy keeps its strength and shape under stress. You can trust it for important turbine parts. When used above 700°C, it stays strong. It does not break or weaken easily. This makes it a good choice for parts that must last.
Note: Creep resistance stops sudden breaks in blades and fasteners. Inconel x-750 keeps your machines safe and working well.
High-Temperature Performance
Gas turbines work in very high heat. Inconel x-750 can handle up to 980°C. This is hotter than inconel 718 can take. Inconel x-750 stays strong and stable in heat. It keeps its good properties even in the hottest spots. The alloy does not rust or lose strength fast.
- Inconel x-750 works up to 980°C.
- The alloy stays stable when it gets hot.
- You can use it in gas turbines and nuclear reactors.
Typical Uses in Turbines
You find inconel x-750 in many turbine parts. It is used for springs, bolts, and fasteners. These parts must keep their shape and strength in heat. Inconel x-750 is also used in control rods, seals, and exhausts. You pick this alloy for parts that need to last in hot places.
| Turbine Component | Role of Inconel X-750 |
|---|---|
| Springs | Keeps its shape and tension |
| Fasteners | Holds parts together safely |
| Bolts | Does not loosen from heat |
| Seals | Stops leaks in high heat |
| Control rods | Stays strong under stress |
Tip: Using inconel x-750 for springs and fasteners makes turbines safer. The alloy helps your turbine work longer without trouble.
Inconel Alloy Comparison
Inconel 718 vs X-750 Strengths
When you look at inconel 718 and inconel x-750, you see they are both strong. Each inconel alloy has special strengths for gas turbines. You need to check how strong they are, how hot they can get, and how they work in real turbines.
| Property | Inconel 718 | Inconel X-750 |
|---|---|---|
| Yield Strength (MPa) | 970 – 1,380 | 600 – 1,100 |
| Ultimate Tensile Strength (MPa) | 1,270 – 1,380 | 700 – 1,100 |
| Elongation (%) | 15% (min) | 30% (min) |
| Hardness (Rockwell B) | 40-44 | 35-42 |
Inconel 718 is stronger than inconel x-750. You use inconel 718 for blades and discs that get heavy loads. Inconel x-750 can stretch more, so it is good for springs and fasteners.
| Feature | Inconel 718 | Inconel X-750 |
|---|---|---|
| Nickel Content | 50-55% | 70% min |
| Chromium Content | 17-21% | 14-17% |
| Strength | Higher yield and tensile strength | Lower but good strength |
| High-Temperature Use | Up to 1,300°F (700°C) | Up to 1,400°F (760°C) |
| Weldability | Good, requires preheating | Good, generally no preheating |
| Applications | Aerospace, power generation | Turbines, nuclear applications |
Inconel 718 works best up to 700°C. Inconel x-750 can go up to 760°C. If you need parts for the hottest spots, pick inconel x-750. Inconel 718 is easier to weld and does not crack as much after welding. This makes repairs easier and helps turbines last longer.
| Alloy | Maximum Operating Temperature | Strength Characteristics | Applications |
|---|---|---|---|
| Inconel 718 | Up to 700°C | Excellent strength and fatigue resistance | Turbine blades and discs |
| Inconel X-750 | Up to 1000°C | High-temperature stability, less strength at lower temps | Turbine shroud rings, exhaust valves |
Note: Inconel 718 works well in water vapor. It has less friction and wear, so turbines run better. Power plants using inconel 718 have fewer repairs and work more efficiently. This alloy lasts longer and breaks down less often.
- Inconel 718 forms a protective layer that lowers friction and wear. This makes turbines more reliable.
- Inconel x-750 stays stable in high heat, so it is good for shroud rings, exhaust valves, and springs.
Block Quote:
Inconel x-750 can break in a brittle way. This happens along certain lines inside the metal during tests. These breaks often start where twin or martensite platelets meet.
Selection for Gas Turbine Components
You must pick the right inconel alloy for each part. Engineers look at how hot, how much stress, and how easy it is to fix before choosing.
| Property | Inconel 718 | Inconel X-750 |
|---|---|---|
| Weldability | Good welding characteristics | Good mechanical properties |
| Resistance to Cracking | Strong resistance to cracking after welding | More susceptible to intergranular stress corrosion cracking due to lack of molybdenum |
| Suitability for Turbine Maintenance | Generally more favorable for applications requiring weldability and repairability | Can withstand service but less favorable due to susceptibility to cracking |
Use inconel 718 for blades, discs, and shafts. These parts need to be strong and easy to fix. Inconel 718 is good for repairs and helps turbines last longer.
Inconel x-750 is best for springs, fasteners, and shroud rings. These parts need to stay strong in high heat. Inconel x-750 gives you heat resistance and flexibility, but you must watch for cracks and brittle breaks.
Tip: Match the right inconel alloy to each part. You get fewer breakdowns and save money when you use inconel 718 for strong, repairable parts and inconel x-750 for very hot areas.
Block Quote:
SLMed inconel 718 is made layer by layer. High stress during making can cause cracks. You can lower this stress by changing cooling and using heat treatments. These steps make turbine parts stronger.
- How you make inconel 718 changes how strong it is. Low plasticity burnishing makes it even tougher, so parts last longer.
- You should think about grain size, misorientation, and leftover stress when picking inconel 718 for important jobs.
You make better choices when you know what each inconel alloy can do. Pick inconel 718 for strength and repairs, and inconel x-750 for high heat. This helps turbines work better and last longer.
You count on Inconel 718 and X-750 to make gas turbines strong. These alloys are tough and do not rust easily. They also stay stable when they get hot. This is why they are used for blades, rotors, and fasteners. Sometimes, small cracks and hard spots can form. Careful cutting and special heat steps help stop these problems. Using recycled materials helps the planet and makes things greener.
| Alloy | Key Properties | Applications in Gas Turbines |
|---|---|---|
| Inconel 718 | Oxidation resistance, creep strength, thermal stability | Turbine blades, transition ducts, combustion liners |
| Inconel X-750 | High strength, corrosion resistance, thermal stability | Turbine blades, rotors, gas turbine parts |
Tip: Picking Inconel 718 or X-750 helps turbines work better. These alloys make power plants and airplanes safer and more reliable.
FAQ
What makes Inconel 718 a good choice for turbine blades?
You get high strength and excellent resistance to heat and corrosion with Inconel 718. This alloy keeps its shape and performance in tough conditions. Engineers trust it for critical turbine blades.
Can you weld Inconel X-750 easily?
You can weld Inconel X-750, but you must watch for cracks. Preheating helps reduce stress. You should follow strict welding procedures to keep parts strong and safe.
Tip: Always use recommended heat treatments after welding Inconel X-750.
How do Inconel 718 and X-750 handle high temperatures?
Both alloys work well in hot environments. Inconel 718 stays strong up to 700°C. Inconel X-750 performs up to 980°C. You should pick the alloy that matches your temperature needs.
| Alloy | Max Temp (°C) |
|---|---|
| Inconel 718 | 700 |
| Inconel X-750 | 980 |
Where do you use Inconel X-750 in gas turbines?
You find Inconel X-750 in springs, fasteners, and shroud rings. These parts need to stay strong and flexible in high heat. This alloy helps your turbine run safely and reliably.
- Springs
- Fasteners
- Shroud rings
