Inconel Alloy 600: Composition highlights a nickel-chromium-iron base that creates a solid solution strengthened alloy. This alloy 600 shows impressive durability, resisting corrosion and heat in extreme environments. At least 50% nickel and 10–20% chromium make the alloy stable from −423 °F to 1300 °F. Alloy 600 maintains strength and toughness, with uses in aerospace, nuclear, and chemical processing. The alloy’s nonmagnetic nature and high yield strength help it perform in furnace components or reactor water systems. Alloy 600 stands out where reliability and resistance matter most.
Key Takeaways
- Inconel Alloy 600 is a strong nickel-chromium-iron alloy that resists heat and corrosion in extreme environments.
- The alloy keeps its strength and shape at very high and very low temperatures, making it reliable for tough jobs.
- It is easy to weld and shape with proper techniques, which helps in making complex parts for many industries.
- Inconel Alloy 600 is widely used in chemical plants, power generation, aerospace, and nuclear reactors due to its durability.
- Choosing this alloy can improve safety, reduce maintenance, and extend the life of equipment in harsh conditions.
What is Inconel Alloy 600?
Inconel Alloy 600 stands out as a nickel-chromium-iron alloy designed for demanding environments. This alloy 600 contains at least 72% nickel plus cobalt, 14–17% chromium, and 6–10% iron. Small amounts of carbon, manganese, sulfur, silicon, and copper complete its chemical makeup. The high nickel content gives alloy 600 strong resistance to many corrosive substances, both organic and inorganic. This resistance makes the alloy a popular choice in industries where durability and reliability matter.
Alloy 600 keeps its austenitic structure, which means it stays ductile and tough even under stress. The alloy resists stress corrosion cracking, especially in chloride-rich environments. It also withstands carburizing, nitriding, and thermal fatigue. These features allow alloy 600 to perform well in both reducing and oxidizing conditions. The alloy does not harden by precipitation but gains strength through cold working. When annealed, alloy 600 shows moderate yield strength and high elongation, making it easy to form and shape.
Note: Alloy 600 can be hot or cold formed. Hot working usually takes place between 1600°F and 2250°F. Annealing at 1850°F for 15 minutes improves grain structure and boosts corrosion resistance.
The table below summarizes key characteristics of alloy 600:
| Characteristic | Details |
|---|---|
| Chemical Composition | Nickel + Cobalt: ≥72%, Chromium: 14–17%, Iron: 6–10% |
| Physical Properties | Density: 8.47 g/cm³, Modulus of Elasticity: 214 GPa |
| Mechanical Properties | Yield Strength: 317–1496 MPa, Ultimate Tensile Strength: 772–1613 MPa |
| Corrosion Resistance | Excellent in oxidizing and reducing environments |
| Strengthening Mechanism | Cold work (not precipitation hardenable) |
| Typical Applications | Chemical processing, heat treating, aeronautical, electronic, nuclear |
Alloy 600 finds use in chemical processing, heat treating, and power generation. Engineers also select this alloy for aeronautical and nuclear applications. The unique blend of strength, ductility, and corrosion resistance ensures alloy 600 remains a trusted material for extreme conditions.
Inconel Alloy 600: Chemical Composition
Elemental Breakdown of Alloy 600
Inconel alloy 600: composition centers on a blend of nickel, chromium, and iron. This alloy contains a high nickel content, which gives it outstanding resistance to many corrosive environments. Nickel, combined with cobalt, makes up at least 72% of the total mass. Chromium ranges from 14% to 17%. Iron falls between 6% and 10%. These three elements form the backbone of the alloy and provide its unique properties.
Small amounts of other elements also play important roles. Carbon, manganese, silicon, sulfur, and copper each appear in minor quantities. Carbon stays below 0.15%, which helps maintain ductility and toughness. Manganese and silicon both remain under 1% and 0.5%, respectively. Sulfur and copper are present in even smaller amounts, with sulfur not exceeding 0.015% and copper limited to 0.5%. Each element in the chemical composition supports the alloy’s stability and performance.
The high nickel content in inconel alloy 600: composition ensures excellent resistance to both organic and inorganic corrosive agents. Chromium adds further protection, especially in oxidizing conditions. Iron helps balance the structure and supports mechanical strength.
Typical Composition Table
Engineers and material scientists often refer to detailed tables to verify the chemical composition of inconel alloy 600. These tables show the minimum and maximum percentages for each element. The following table summarizes the typical elemental breakdown:
| Element | Percentage Range |
|---|---|
| Nickel (Ni + Co) | Minimum 72.0% |
| Chromium (Cr) | 14.0% – 17.0% |
| Iron (Fe) | 6.0% – 10.0% |
| Carbon (C) | Maximum 0.15% |
| Manganese (Mn) | Maximum 1.00% |
| Sulfur (S) | Maximum 0.015% |
| Silicon (Si) | Maximum 0.50% |
| Copper (Cu) | Maximum 0.50% |
This table highlights the strict limits set for each element in inconel alloy 600: composition. The high nickel content stands out as the defining feature. Chromium and iron follow as the next most significant elements. The remaining elements appear in much smaller amounts but still influence the alloy’s behavior.
A visual chart can help readers understand the maximum allowable percentages for each element in the alloy. The following bar chart displays these values:
Alloy 600’s chemical composition gives it the ability to withstand harsh environments. The combination of nickel, chromium, and iron creates a material that resists oxidation, scaling, and many forms of chemical attack. This makes inconel alloy 600: composition a top choice for industries that demand reliability and strength.
Inconel Alloy 600 Properties and Resistance
Physical Properties
Inconel Alloy 600 displays a set of physical properties that make it suitable for demanding environments. The alloy has a density of 8.47 g/cm³, which gives it a solid and stable structure. Its melting point ranges from 1355°C to 1413°C, allowing it to withstand high temperatures without losing integrity. The specific heat of 444 J/kg·K helps the alloy absorb and distribute heat efficiently.
The coefficient of thermal expansion is 13.3 µm/m·K, which means the alloy expands at a predictable rate when exposed to heat. Thermal conductivity stands at 14.9 W/m·K, supporting the transfer of heat through the material. Electrical resistivity is measured at 1.7% IACS, indicating moderate resistance to electrical flow. The magnetic permeability is close to unity (1.010), so the alloy remains nonmagnetic even in strong magnetic fields. The Curie temperature is -124°C, which confirms its nonmagnetic nature at room temperature and above.
| Physical Property | Value | Units |
|---|---|---|
| Density | 8.47 | g/cm³ |
| Melting Point/Range | 1355 – 1413 | °C |
| Specific Heat | 444 | J/kg·K |
| Coefficient of Thermal Expansion | 13.3 | µm/m·K |
| Thermal Conductivity | 14.9 | W/m·K |
| Electrical Resistivity | 1.7 | % IACS |
| Magnetic Permeability | 1.010 | (dimensionless) |
| Curie Temperature | -124 | °C |
These physical properties enable Inconel Alloy 600 to perform reliably in applications where heat, electrical currents, and magnetic fields are present. The alloy’s resistance to deformation and its predictable expansion rate help engineers design components that maintain their shape and function under stress.
Mechanical Properties
Inconel Alloy 600 offers a balance of strength and ductility. At room temperature, the ultimate tensile strength reaches 655 MPa (95,000 psi), while the yield strength is 310 MPa (45,000 psi). The alloy can stretch up to 45% before breaking, which shows its excellent ductility. When exposed to elevated temperatures, such as 550°C, the ultimate tensile strength drops to 550 MPa (79,800 psi), and the yield strength decreases to 180 MPa (26,100 psi). Elongation at break remains high at 42%, even at these temperatures.
| Property | Value (Metric) | Value (Imperial) | Condition |
|---|---|---|---|
| Ultimate Tensile Strength | 655 MPa | 95,000 psi | Annealed, room temperature |
| Yield Strength | 310 MPa | 45,000 psi | Annealed, room temperature |
| Elongation at Break | 45% | 45% | Annealed, room temperature |
| Ultimate Tensile Strength (Elevated) | 550 MPa | 79,800 psi | Annealed, 550°C |
| Yield Strength (Elevated) | 180 MPa | 26,100 psi | Annealed, 550°C |
| Elongation at Break (Elevated) | 42% | 42% | Annealed, 550°C |
Another set of measurements at 68°F (20°C) shows a yield strength of 240 MPa (35,000 psi) and an ultimate tensile strength of 550 MPa (80,000 psi), with elongation in 2 inches at 30%. These values confirm the alloy’s ability to maintain mechanical properties across a range of temperatures.
The mechanical properties of Inconel Alloy 600 allow it to resist deformation and cracking under load. The alloy’s strength and ductility make it a reliable choice for parts that must endure both static and dynamic forces. Its resistance to creep and fatigue at high temperatures further extends its service life in harsh environments.
Corrosion Resistance
Inconel Alloy 600 is well known for its resistance to corrosion in a wide range of environments. The high nickel content provides strong resistance to both organic and inorganic acids. Chromium enhances the alloy’s resistance to oxidation and scaling, especially at elevated temperatures. Iron supports the overall structure and helps maintain mechanical strength.
Researchers have studied the corrosion behavior of Inconel Alloy 600 under different conditions. Studies show that the alloy resists fretting wear and corrosion in water, even when chloride concentrations and pH values change. When compared to similar alloys, Inconel 600 demonstrates superior wear resistance under fretting conditions at room temperature. Analysis of pit growth kinetics in chloride-containing solutions reveals that the alloy forms a stable passive film, which protects against localized corrosion.
Extensive research in nuclear power environments confirms the alloy’s resistance to corrosion and stress corrosion cracking. Scientists have examined oxide film growth, passive film behavior, and the initiation of stress corrosion cracking under simulated reactor conditions. These studies validate the use of Inconel Alloy 600 in steam generator pipes and other critical components where resistance to corrosion is essential.
Note: The combination of nickel, chromium, and iron in Inconel Alloy 600 provides a unique balance of resistance to corrosion, mechanical strength, and durability. This makes the alloy a preferred material for industries that demand long-term performance in aggressive environments.
High-Temperature Resistance
Inconel Alloy 600 stands out for its high temperature resistance. This alloy keeps its structure and strength even when exposed to extreme heat. Many engineers choose it for parts that must work in furnaces, reactors, and other hot environments. The alloy does not lose its shape or crack easily, which makes it reliable for long-term use.
Researchers have tested Inconel Alloy 600 in real industrial settings. They measured thermal contact resistance between Inconel 600 and carbon/carbon materials at high temperatures. The results show that the alloy maintains thermal stability and steady performance. These tests prove that Inconel 600 can handle the stress and heat found in many factories and power plants.
Another group of scientists used high-temperature X-ray diffraction to study the alloy. They heated samples from room temperature up to 1200 K. The tests measured how much the alloy expanded and if it changed shape. The results showed that Inconel Alloy 600 keeps its structure and does not deform, even at very high temperatures. This property supports its use in places where elevated temperature resistance is critical.
The alloy’s ability to resist scaling and oxidation also helps it last longer. When exposed to air or gases at high temperatures, many metals form scales or rust. Inconel Alloy 600 forms a thin, stable layer that protects it from further damage. This layer stops corrosion and keeps the metal strong.
Tip: Inconel Alloy 600 works well in both reducing and oxidizing environments. This means it can handle many types of heat and chemical exposure without breaking down.
Engineers often use this alloy in heat exchangers, gas turbine parts, and steam generator tubes. These parts must survive both high heat and sudden temperature changes. Inconel Alloy 600’s resistance to cracking and warping makes it a top choice for these jobs.
The combination of high temperature resistance and corrosion protection sets Inconel Alloy 600 apart from many other metals. Its performance in harsh conditions helps industries run safely and efficiently.
Fabrication and Processing of Inconel Alloy 600
Machining Guidelines
Machining Inconel Alloy 600 requires careful planning. The alloy’s strength and toughness make it more challenging to machine than standard steels. Operators often use carbide or high-speed steel tools for best results. Slow cutting speeds and heavy feeds help reduce tool wear. Coolants play a key role in controlling heat during machining. Many shops use water-based coolants to keep temperatures low and prevent work hardening. Surface treatments like sand blasting or rolling may follow machining to meet specific application needs. Quality control checks, such as ultrasonic or liquid penetrant testing, ensure that machined parts meet industry standards.
Welding Considerations
Welding stands out as a preferred joining method for Inconel Alloy 600. The alloy shows excellent weldability, which means it can be joined using standard welding techniques. Gas tungsten arc welding (GTAW), gas metal arc welding (GMAW), and shielded metal arc welding (SMAW) all work well with this material. Welded pipes, fittings, and forged components are common product forms. During welding, operators must control heat input to avoid cracking or distortion. Pre-cleaning the surfaces removes contaminants that could affect weld quality. Post-weld inspections, such as radiography or magnetic particle testing, confirm the integrity of the joints. Industry standards like ASTM B168 and ASME SB168 guide the welding process and ensure compatibility.
Tip: Always follow recommended welding procedures and perform thorough inspections to maintain high-quality joints.
Heat Treatment
Heat treatment forms an important part of fabrication and heat treatment processes for Inconel Alloy 600. Annealing at 1850°F (1010°C) for about 15 minutes improves grain structure and boosts corrosion resistance. After heat treatment, rapid cooling in air or water helps lock in the desired properties. This process enhances ductility and prepares the alloy for further fabrication steps. Metallurgical tests, such as microstructure analysis, verify that the heat treatment achieved the correct results. The alloy’s ability to withstand temperatures up to 1100°C supports its use in demanding environments.
Inconel Alloy 600 Applications
Chemical Processing Industry Applications
Inconel Alloy 600 plays a vital role in chemical process industry applications. Engineers select this alloy for equipment that must resist strong acids, alkalis, and other corrosive chemicals. Reactors, heat exchangers, and piping systems often use this material because it does not break down when exposed to harsh substances. The alloy’s high nickel and chromium content helps it form a protective layer, which shields the metal from attack. This property allows companies to run their processes safely and with fewer shutdowns for repairs. Many plants rely on Inconel Alloy 600 to keep their systems running smoothly, even when temperatures and pressures rise.
Power Generation Applications
Power generation facilities demand materials that can handle extreme heat and stress. Inconel Alloy 600 meets these needs with its high tensile strength of about 95,000 psi and yield strength near 45,000 psi. The alloy stretches up to 40% before breaking, which means it can absorb shocks and vibrations without cracking. It keeps its shape and strength at temperatures up to 2000°F (1093°C). This makes it ideal for boilers, heat exchangers, turbine parts, and furnace components. The alloy also resists corrosion from steam and chemicals, which increases the lifespan of power plant equipment. Operators find that Inconel Alloy 600’s good weldability and ease of fabrication help them build complex systems. Nuclear reactors use this alloy in steam generators and control rod mechanisms, where safety and reliability matter most.
Tip: Using Inconel Alloy 600 in power generation applications can improve system efficiency and reduce maintenance costs over time.
Aerospace and Aviation Applications
The aerospace industry applications for Inconel Alloy 600 focus on parts that must survive high heat and stress. This alloy keeps its strength at temperatures up to 1,177°C (2,150°F), which is higher than many other metals. It resists pitting, crevice corrosion, and stress corrosion cracking, making it suitable for jet engines and gas turbines. Engineers use Inconel Alloy 600 for turbine discs, blades, combustion chambers, and exhaust systems. These parts must not fail, as they are critical to flight safety. Advanced manufacturing methods, such as precision casting and additive manufacturing, help create complex shapes for these components. Surface treatments like polishing and coatings boost corrosion resistance and improve performance. Maintenance teams use non-destructive testing to check for wear, helping to extend the service life of aerospace components. Many case studies show that this alloy improves fuel efficiency and reduces maintenance needs, supporting both commercial and military aircraft.
Other Notable Applications
Inconel Alloy 600 serves many industries that demand both strength and resistance to harsh conditions. Beyond its well-known roles in chemical processing, power generation, and aerospace, this alloy finds use in several other fields. The petrochemical sector relies on Inconel Alloy 600 for heat exchangers, furnace components, and piping systems. These parts must handle high temperatures and corrosive chemicals every day. The alloy’s stability and strength help prevent failures in these critical environments.
The medical field also benefits from Inconel Alloy 600. Manufacturers use it to make implantable devices, dental fixtures, and medical instruments. The alloy resists corrosion and oxidation, even when exposed to bodily fluids. This durability ensures that medical devices remain safe and effective over time.
Environmental technology companies choose Inconel Alloy 600 for desalination plants, waste incineration systems, and acid gas removal units. These applications require materials that can survive both high heat and aggressive chemicals. The alloy’s performance in these settings helps protect equipment and reduce maintenance needs.
Cryogenic engineers use Inconel Alloy 600 to build storage and transportation vessels for liquefied gases. The alloy keeps its strength and toughness at extremely low temperatures, making it ideal for these demanding tasks.

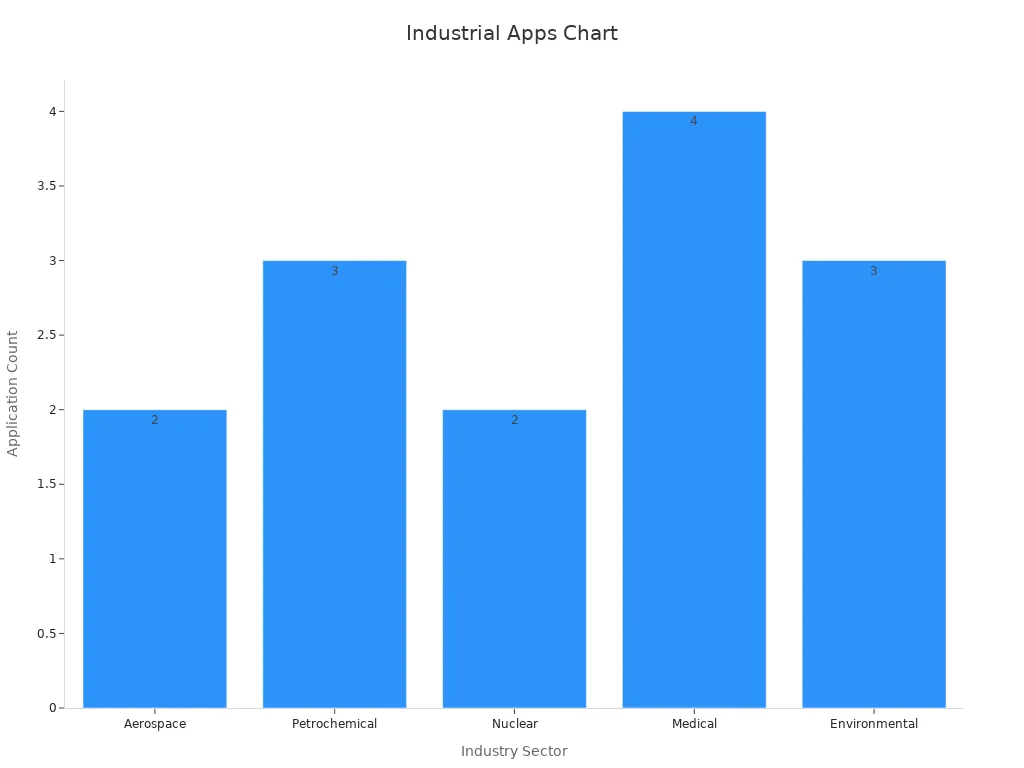

The table below highlights several industry sectors and their typical applications for Inconel Alloy 600:
| Industry Sector | Application Examples | Performance Attributes Demonstrated |
|---|---|---|
| Petrochemical | Heat exchangers, furnace components, piping systems | High-temperature stability, corrosion resistance, high strength |
| Medical | Implantable devices, medical instrumentation, dental fixtures, X-ray equipment | Corrosion resistance, oxidation resistance, durability in harsh bodily fluids |
| Environmental | Desalination plants, waste incineration systems, acid gas removal systems | High-temperature stability, corrosion resistance |
| Cryogenics | Storage and transportation vessels for liquefied gases | Strength and toughness at extremely low temperatures |
| Nuclear | Reactors, nuclear power plant components | Corrosion resistance, high-temperature stability, radiation resistance |
In the heat-treat industry applications, Inconel Alloy 600 provides reliable performance for retorts, muffles, and conveyor belts. These parts must retain their strength at high temperatures, which makes the alloy a trusted choice. The wide range of applications across industries shows the versatility and value of Inconel Alloy 600.
Inconel Alloy 600 Vs. Alloy 625
Engineers often compare Inconel Alloy 600 and Alloy 625 when selecting materials for tough environments. Both alloys belong to the Inconel family, but they show important differences in composition, strength, and performance.
Alloy 600 contains more nickel, while Alloy 625 includes extra elements like molybdenum and niobium. These additions give Alloy 625 higher strength and better corrosion resistance. The table below summarizes the main differences:
| Feature | Inconel Alloy 600 | Inconel Alloy 625 |
|---|---|---|
| Nickel Content | Higher (72-76%) | Lower (58-63%) |
| Chromium Content | Moderate (14-17%) | Higher (20-23%) |
| Molybdenum/Niobium | None | Present (Mo 8-10%, Nb 3-4%) |
| Yield Strength (MPa) | Lower (200-310) | Higher (280-345) |
| Ultimate Tensile Strength (MPa) | Lower (450-700) | Higher (700-1200) |
| Temperature Stability | Up to 1093°C (static high-temp use) | Up to 982°C (better in cyclic temp environments) |
| Corrosion Resistance | Good, but susceptible to sulfur and chloride stress corrosion cracking | Superior, especially in chloride-rich and cyclic temperature environments |
| Weldability | Challenging, requires special techniques | Easier, less prone to cracking |
| Cost | Lower | Higher, but fabrication ease may offset costs |
| Typical Applications | Furnace components, nuclear power plants, heat exchangers | Aerospace, chemical processing, marine, oil & gas |
Alloy 600 works well in static high-temperature settings, such as furnace parts and nuclear power plants. Its high nickel content helps it resist many types of corrosion, but it can struggle with sulfur or chloride-rich environments. Alloy 625, with its added molybdenum and niobium, stands out in places where both strength and corrosion resistance matter most. This alloy performs better in marine, chemical, and oil and gas industries.
Tip: Alloy 625’s easier weldability and higher strength make it a top choice for complex or critical components, even though it costs more.
When cost is a major concern and the environment is less aggressive, Alloy 600 offers a reliable solution. For projects facing severe corrosion or demanding mechanical loads, Alloy 625 provides extra protection and longer service life. Selecting the right alloy depends on the specific needs of each application.
Inconel Alloy 600 offers a unique blend of strength, corrosion resistance, and versatility. Many industries trust this alloy for extreme environments.
- Airframe, furnace, and chemical plants use it for its stability and durability.
- Studies show that using biodegradable oils in machining improves precision and safety.
- Brass electrodes with canola oil create accurate micro-impressions, which helps produce reliable parts.
Engineers should consider Inconel Alloy 600 for projects that demand long-lasting performance and sustainability.
FAQ
What makes Inconel Alloy 600 different from stainless steel?
Inconel Alloy 600 contains more nickel than stainless steel. This gives it better resistance to heat and corrosion. Stainless steel works well in many settings, but Alloy 600 performs better in extreme environments.
Can Inconel Alloy 600 be welded easily?
Engineers can weld Inconel Alloy 600 using standard methods like GTAW or GMAW. They must control heat input and clean surfaces before welding. Proper technique prevents cracking and ensures strong joints.
Is Inconel Alloy 600 magnetic?
No, Inconel Alloy 600 is nonmagnetic. Its structure stays stable even in strong magnetic fields. This property makes it useful in electrical and electronic applications.
Where do industries use Inconel Alloy 600 most often?
Industries use Inconel Alloy 600 in chemical plants, power generation, aerospace, and nuclear reactors. The alloy resists heat and corrosion, so it works well in harsh environments.
Tip: Always check the specific requirements of your project before choosing an alloy.
