Inconel 718 and X-750 are top picks for Jet Engine Hot Sections. Engineers choose these nickel-based superalloys because they can handle creep, fatigue, and corrosion at very high temperatures. Materials in this engine part must work well under a lot of stress and heat. Nickel-based alloys like Inconel 718 and X-750 give the strength and toughness needed to keep turbine blades and exhaust systems safe and working well.
Key Takeaways
- Inconel 718 and X-750 are very important for jet engine hot sections because they can handle very high heat and stress. Inconel 718 is very strong and does not get tired easily, so it is great for important parts like turbine blades and discs. Inconel X-750 is very good at staying stable in high heat and does not rust easily, so it works well for parts that face tough conditions. Picking the right alloy is very important for safety and how well jet engines work, and people must think about cost and how long the parts will last. Both alloys need to be studied carefully to make sure they work their best in hard aerospace jobs.
Jet Engine Hot Sections
Extreme Conditions
Jet engine hot sections work in very tough places. They face fast temperature changes and heavy forces. The heat in these parts can get extremely high. For example:
- High pressure turbine inlet temperatures can reach nearly 3,600° F (2,000° C).
- Exhaust gas temperatures in the jet pipe are around 1,000° F (550° C).
- Air leaving the high pressure compressor is about 500° F (260° C).
- The combustion chamber heats air that is already between 200 and 550 °C.
- The temperature rise needed from burning fuel is about 650 to 1150 °C.
These tough conditions really test the materials. Jet engines need strong alloys like inconel to keep working safely. Inconel alloys do not bend or break easily, even in high heat. Gas turbine engines also use these alloys because they face the same hard conditions.
Material Demands
Jet engine hot sections need more than just heat resistance. They must also stand up to force and chemicals. The table below shows the main stresses these materials face:
| Type of Stress | Description |
|---|---|
| Mechanical Stress | Comes from heat changes and strong forces from high-pressure gases. |
| Chemical Stress | Happens when coatings react with things like CMAS, which can damage them. |
| Residual Stress | Forms when melted CMAS gets into coatings, causing small cracks and layers to peel. |
| Thermal Loading | Caused by temperature changes inside the coating, which can weaken the material. |
| Coefficient Mismatch | Happens when different parts expand at different rates from the heat. |
Jet engine hot sections often use inconel superalloys because they fight off these stresses. Inconel has nickel, chromium, and metals like tungsten and molybdenum. These help inconel stand up to heat and rust. Some turbine blades use single crystal metals to avoid weak spots. Inconel lets engineers make cooling channels in blades, so they do not melt in hot spots. Sometimes, ceramics are used because they can take a lot of heat, but they can break under stress. Inconel is still a favorite because it is strong, lasts long, and works well in tough places.
Inconel 718 Properties
Inconel 718 Chemical Composition
Inconel 718 is a nickel-based superalloy. It has a special mix of elements. This mix helps it work well in jet engines. The table below lists the main elements and their amounts:
| Element | Min % | Max % |
|---|---|---|
| Carbon | – | 0.08% |
| Manganese | – | 0.35% |
| Silicon | – | 0.35% |
| Phosphorus | – | 0.015% |
| Sulfur | – | 0.015% |
| Chromium | 17.00% | 21.00% |
| Nickel | 50.00% | 55.00% |
| Molybdenum | 2.80% | 3.30% |
| Columbium (Niobium) | 4.75% | 5.50% |
| Titanium | 0.65% | 1.15% |
| Aluminum | 0.20% | 0.80% |
| Cobalt | – | 1.00% |
| Boron | – | 0.006% |
| Copper | – | 0.30% |
| Lead | – | 0.0005% (5 ppm) |
| Bismuth | – | 0.00003% (0.3 ppm) |
| Iron | remainder | – |
Suppliers check the chemical makeup using ASTM B906 rules. This makes sure the alloy is good for jet engines.
Mechanical Performance
Inconel 718 is strong and tough. Engineers use it for important engine parts. The table below shows how strong it is at room temperature:
| Property | Room Temperature Values |
|---|---|
| Ultimate Tensile Strength (UTS) | 1066.5 MPa to 1408.5 MPa |
| Elongation | 27.5% to 19.6% |
These numbers mean inconel 718 does not crack or bend easily. It helps turbine blades and fasteners work under heavy stress. Its strength stays the same after heating and cooling many times.
Tip: Inconel 718 can stretch a lot before breaking. This helps keep jet engine parts safe.
High Temperature Strength
Inconel 718 stays strong up to 650°C. This is because special phases form inside the alloy. These phases make it better at handling heat. The alloy does not wear out easily in harsh places. This is important for jet engine hot sections.
| Evidence Description | Key Points |
|---|---|
| High mechanical strength at elevated temperatures | Stays strong up to 650°C and does not wear out in tough places. |
| Precipitation of γ’ and γ” phases | These phases help the alloy stay strong, especially near 650°C. |
| Formation of γ” phase | Nb and Ni join to make γ” phase, which gives great strength at high heat. |
Inconel 718 is a top pick for making jet engines. It helps turbine blades and exhaust systems work well under stress.
Inconel X-750 Properties
Inconel X-750 Chemical Composition
Inconel X-750 is a nickel-based superalloy. It is made for high-temperature strength. Its chemical mix helps it work in jet engines. The alloy has a lot of nickel. It also has chromium, iron, titanium, and aluminum. These elements help the alloy stay strong. They also help it resist heat and corrosion.
| X-750 Element | Min | Max |
|---|---|---|
| Nickel (Ni) | 70% | — |
| Chromium (Cr) | 14% | 17% |
| Iron (Fe) | 5% | 9% |
| Titanium (Ti) | 2.25% | 2.75% |
| Aluminum (Al) | 0.4% | 1.0% |
| Silicon (Si) | — | 0.50% |
| Sulfur (S) | — | 0.01% |
| Copper (Cu) | — | 0.50% |
| Carbon (C) | — | 0.08% |
| Cobalt (Co) | — | 1.00% |
This special mix helps inconel X-750 keep its strength. It works well even in very tough places.
Creep Resistance
Inconel X-750 does a great job fighting creep. Creep means a material slowly changes shape under heat and stress. Inconel X-750 does not creep much. This makes it a good pick for engineers.
- The alloy stays strong up to 1500°F (816°C) after heat treatment.
- It works well at high temperatures, up to about 700°C (1290°F).
- Inconel X-750 has high tensile and creep-rupture strength, even with heavy loads.
- The alloy has low creep rates and high stress-rupture strength up to 1500°F (816°C).
Note: Creep resistance helps jet engine parts last longer. It keeps them safe during long flights.
Corrosion and Oxidation
Inconel X-750 fights corrosion and oxidation. These problems often happen in jet engines. The alloy works well with many chemicals. It also stays strong in high heat.
| Characteristic | Detail |
|---|---|
| Corrosion Resistance | Stands up to many industrial chemicals in different conditions. |
| Oxidation Resistance | Gives great oxidation resistance for high-temperature uses. |
| Chloride Stress Corrosion Cracking | Has excellent resistance when fully age-hardened, making it more useful and reliable. |
Engineers use inconel X-750 because it handles tough chemicals and hot gases. This makes it a top choice for important jet engine parts.
Inconel Alloy 718 vs X-750 Comparison
Main Chemical Contents
Both inconel 718 and inconel X-750 are nickel-based superalloys. They have a lot of nickel and chromium. This helps them resist heat and rust. Inconel 718 has tighter rules for bad elements. It also has more chromium and adds molybdenum. Inconel X-750 does not have molybdenum. These changes make inconel 718 stronger and last longer. That is why it is picked for important jobs.
| Element | Inconel 718 | Inconel X-750 |
|---|---|---|
| C | 0.08 max | 0.08 max |
| Mn | 0.35 max | 1.00 max |
| Cr | 17.0 min – 21.0 max | 14.0 min – 17.0 max |
| Ni | 50.0 min – 55.0 max | 70.0 min |
| S | 0.01 max | 0.01 max |
| Al | 0.2 max | 0.40 – 1.0 max |
| Mo | Present | Absent |
Inconel 718 has less manganese and phosphorus. It also has molybdenum, which helps it fight rust and heat. These things make it better for jet engine hot sections.
Performance
Engineers pick inconel 718 because it is stronger. It can stretch more before breaking. This is important for hot and tough jobs. Inconel 718 has higher tensile strength and elongation than inconel X-750.
| Property | Inconel 718 | Inconel X-750 |
|---|---|---|
| Tensile Strength (MPa) | 960 | 910 |
| Yield Strength (MPa) | 550 | 550 |
| Elongation (%) | 30 | 25 |
Inconel 718 works well in both cold and hot places. It is great for parts that get hot and cool many times. Inconel X-750 is good too, but not as strong as inconel 718 in the hardest jobs.
Note: Inconel 718 can stretch more before breaking. This helps keep important parts safe.
High Temperature Limits
Both alloys work well in hot places, but their limits are different. Inconel 718 can be used up to 650–700°C for a long time. With special methods, it can handle up to 750°C for a short time. Inconel X-750 can work up to 1000°C, but it is not as strong as inconel 718 at lower high temperatures.
- Inconel 718 can be used up to 650–700°C for a long time.
- It can handle up to 750°C for a short time.
- Inconel X-750 can be used up to 1000°C.
Engineers must pick the right alloy for each job.
Manufacturability
How these alloys are made changes how good they are. Casting and forging make strong parts with few holes. Selective laser melting, a kind of 3D printing, can make parts with more holes. More holes can make parts weaker. High density is good because it means fewer holes and stronger parts.
- Selective laser melting can make parts less dense than casting.
- Less dense parts can bend or break more easily.
- Heat treatment helps, but density is still important.
- High density means fewer holes and better strength.
Machining and welding are also different for these alloys:
| Feature | Inconel 718 | Inconel X-750 |
|---|---|---|
| General Weldability | Good but requires preheating | Good; usually does not require preheating |
| Post-Weld Heat Treatment | Required to relieve stresses | Not usually required |
Inconel 718 needs preheating and heat treatment after welding. Inconel X-750 is easier to weld and does not need extra steps. This can help when making airplane parts.
Cost
Cost is important when picking a material. Inconel 718 costs more than inconel X-750. The higher price is because it is stronger and works better in heat.
| Inconel Grade | Price Per Pound (USD) | Price Per Kilogram (USD) |
|---|---|---|
| Inconel 718 | $25 – $30 | $55 – $66 |
| Inconel X-750 | $20 – $26 | $44 – $57 |
Engineers must think about both cost and strength when choosing.
Tip: Inconel 718 costs more, but it lasts longer and keeps people safer in hard jobs.
Side-by-Side Summary Table
| Feature | Inconel 718 | Inconel X-750 |
|---|---|---|
| Main Alloying Elements | Ni, Cr, Fe, Mo, Nb | Ni, Cr, Fe, Ti, Al |
| Molybdenum Content | Present | Absent |
| Max Continuous Temp (°C) | 650–700 | Up to 1000 |
| Tensile Strength (MPa) | 960 | 910 |
| Elongation (%) | 30 | 25 |
| Weldability | Good, preheat needed | Good, no preheat needed |
| Cost (USD/kg) | $55–$66 | $44–$57 |
| Best Use | High strength, fatigue, and corrosion resistance in critical applications | High temperature stability, less demanding mechanical loads |
Applications in Jet Engine Hot Sections

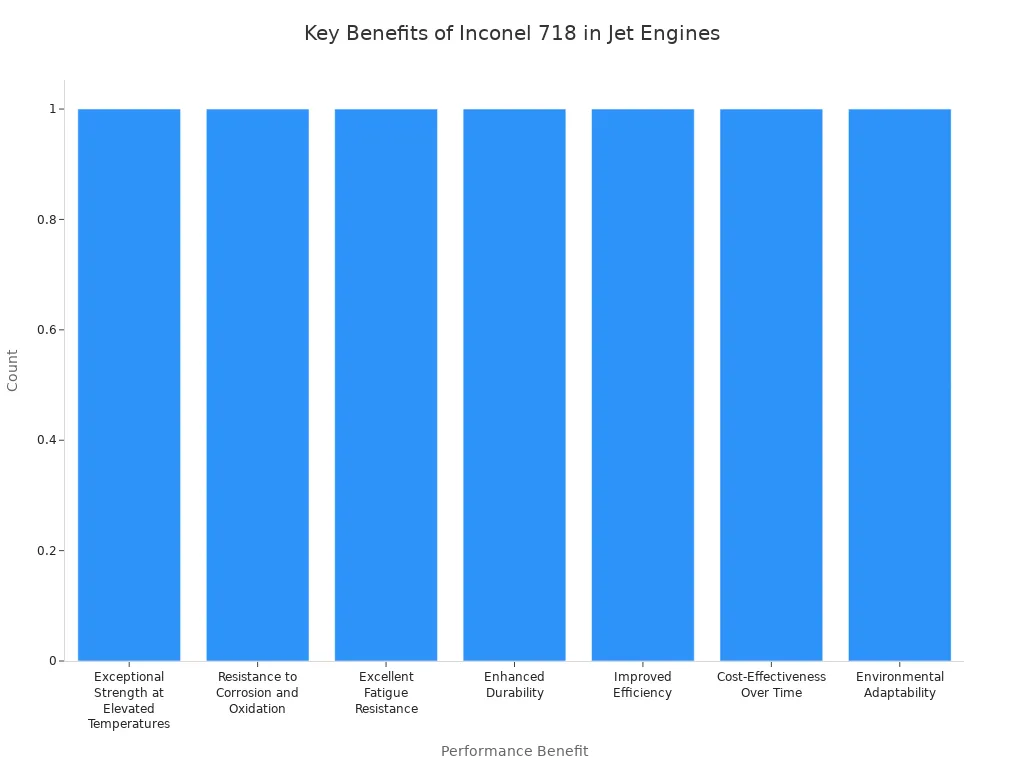

Inconel 718 Uses
Engineers pick inconel 718 for important jet engine parts. This alloy is very strong and lasts a long time. It is used for turbine blades, discs, fasteners, and exhaust systems. These parts need to keep their shape in high heat and stress. Inconel 718 works well up to 700°C. It does not rust or break down from heat. The alloy also fights fatigue, which is when parts get weak from heating and cooling over and over.
| Jet Engine Component | Why Inconel 718 Excels |
|---|---|
| Turbine Blades | Keeps strength and sharp edges in high heat |
| Turbine Discs | Does not bend or crack easily |
| Fasteners | Handles lots of stress without breaking |
| Exhaust Systems | Stops rust and damage from hot air |
| Compressor Rotors | Lasts a long time and works well |
These good points help engines work better and cost less to fix. Inconel 718 is used in many gas and steam turbines. It works well in different places and conditions.
Inconel X-750 Uses
Inconel X-750 is used for jet engine parts that get very hot and stressed for a long time. Engineers use it for springs, bolts, seals, and afterburner parts. This alloy is strong and does not change shape easily. It is great for parts that must work for a long time without failing. Inconel X-750 also works well when temperatures change quickly.
This alloy is used for turbine shroud rings, exhaust valves, and control hardware. It does not break down from heat, so it works well in tough jobs. Engineers like inconel X-750 because it stays strong and lasts a long time in hot engine parts.
Note: Picking the right alloy for each part helps jet engines stay safe and work well.
Material Selection Criteria
Performance Needs
Aerospace engineers want jet engine parts to work well. They pick alloys that are strong and can handle heat. These alloys also need to last a long time. Creep resistance is very important for hot engine parts. Fatigue life matters because heating and cooling can make parts weak. Here are some key things engineers look for:
- Creep resistance helps parts last in hot places.
- Fatigue capability lets parts work longer when used again and again.
- Strength and thermal stability make engines safer and more reliable.
When comparing Inconel 718 and X-750, each has its own best use.
| Alloy | Strength and Creep Resistance | Temperature Resistance | Oxidation Resistance | Application Suitability |
|---|---|---|---|---|
| Inconel 718 | Excellent up to 700°C | Good | Moderate | Structural components under cyclic loading |
| Inconel X-750 | Better above 700°C | Excellent | High | Components exposed to extreme heat and oxidation |
Environmental Factors
Jet engine hot sections face tough environments. Engineers must think about oxidation and corrosion. These problems can hurt engine parts and make them less efficient. Picking the right alloy helps parts stay strong and not rust. Some elements like chromium and titanium help stop corrosion. Protective coatings are also used to keep parts safe from damage. The table below shows what matters most:
| Aspect | Details |
|---|---|
| Alloy Selection | The material picked changes how strong and rust-proof parts are. Sometimes, trade-offs are needed. |
| Effective Elements | Chromium, cerium, lanthanum, platinum, and titanium help alloys fight corrosion. |
| Protective Coatings | There are three types: diffusion, overlay, and thermal barrier coatings. Each protects in a different way. |
Engineers use these ideas to help jet engine parts last longer and work better.
Economic Considerations
Money is important when picking materials for jet engines. Engineers must think about both the first cost and future costs. Nickel alloys like Inconel 718 and X-750 cost more than regular metals. But they work better and last longer, so they are often worth the price. Using these alloys means less fixing and fewer engine stops. Here are some main points:
- The first cost of the material affects how much the project costs.
- Over time, costs include fixing, stopping, and replacing parts.
- Better alloys last longer and need less fixing, which saves money.
Aerospace engineers think about all these things to pick the best material for each job.
Inconel 718 and X-750 both have special uses in jet engines. The table below shows how they are different:
| Property/Characteristic | Inconel 718 | X-750 |
|---|---|---|
| High-Temperature Strength | Retains strength up to 650-700 °C | N/A |
| Wear Behavior | Excellent at high temperatures | N/A |
| Fabrication Challenges | Complex shapes are challenging | N/A |
| Additive Manufacturing | Suitable for L-PBF | N/A |
| Applications | Turbine sections, bearings, aerospace | N/A |
New research found that Inconel 718 gets less slippery as it gets hotter. This makes it a good choice for parts that get very hot. Additive manufacturing helps make tricky shapes and improves how the parts work.
- Heat treatment makes these alloys stronger and helps stop rust.
- Both alloys are still important for turbine blades and combustion chambers as jet engine technology gets better.
Picking the right alloy keeps jet engines safe, working well, and not too expensive.
FAQ
What makes Inconel 718 suitable for jet engine hot sections?
Inconel 718 can handle very high heat and does not rust. It stays strong even when it gets hot and cools many times. Engineers trust it for making turbine blades and discs because it lasts a long time.
How does Inconel X-750 perform under extreme heat?
Inconel X-750 works well in heat up to 1000°C. It does not change shape or get damaged by air. Engineers use it for springs, bolts, and seals in jet engines.
Can both alloys be welded easily?
Inconel 718 needs to be heated before and after welding. Inconel X-750 can be welded without heating first. Both are good for welding in airplanes.
Which alloy costs more for aerospace projects?
| Alloy | Approximate Cost (USD/kg) |
|---|---|
| Inconel 718 | $55–$66 |
| Inconel X-750 | $44–$57 |
Inconel 718 is more expensive because it is stronger and has better features.
