When you read a material test report for ASTM F138 316LVM stainless steel, you need to check some important things. You look for the correct material type and grade. You also make sure the heat code is right. You check the chemical and mechanical properties. The mtr gives you quality assurance details too. Each part helps you see if the material fits your project and follows the rules.
Key steps include:
- Identification
- Specification check
- Property verification
- Heat treatment review
- Traceability
Key Takeaways
- Always check the heat code on the material test report. This code connects the steel to its records and shows it is good quality.
- Look at the material type and grade. Make sure the report says the steel was melted using Vacuum Induction Melting (VIM) for better quality.
- Check the chemical and mechanical properties. Compare the real numbers to the needed limits to make sure the steel is safe and meets the rules.
- Make sure the heat treatment details are correct. Good heat treatment makes the steel better and helps it pass tests.
- Check for certification and traceability. Make sure the report has ASTM marks and matches the steel to prove it is safe and follows the rules.
Material Test Report Basics
A material test report is a paper that shows details about the stainless steel you get. You use this report to see if the steel meets the rules it should follow. For ASTM F138 316LVM, the mtr helps you check the steel’s name, its features, and if it follows the rules for the industry. Certified material test reports help you feel sure the steel fits your project and passes the stainless steel checks.
Identification and Heat Code
When you read a material test report, first look for the heat code or heat number. This code is special for each batch of steel. It connects the steel to its making records. You use the heat code to track where the steel came from and to check if it is good quality. If there is ever a problem, the heat code helps you find out what happened.
Here is a table that explains why the heat code matters for tracking and quality:
| Component | Description |
|---|---|
| Heat Number | Shows the part of the heat made to a certain size and condition at one time. |
| Mechanical Properties | Needed features and real test results from the heat-lot to show it matches the rules. |
| Chemical Composition | Lists needed or limited elements, with heat chemistry samples taken from the melt during making. |
You should always make sure the heat code on your mtr is the same as the marks on the steel.
Material Type and Grade
Next, look at the material type and grade on the report. ASTM F138 316LVM stainless steel must follow strict rules. The report should say the alloy was melted using Vacuum Induction Melting (VIM). After that, the alloy is melted again using Vacuum Arc Remelting (VAR) or Electro-slag Remelting (ESR). These steps help keep the steel clean and high quality.
The report should also show that the steel meets the tensile and yield strength rules for its type, like annealed or cold worked. You should see the right UNS number, which is important for stainless steel checks. It is smart to add the lowest tensile strength or a range in your orders.
- ASTM F138 sets rules for tensile and yield strength for different types.
- Always use the right UNS number when you order.
- Add the lowest tensile strength or a range to your order to be clear.
By checking these things, you make sure the steel fits your needs and follows all the rules.
Chemical and Mechanical Properties
When you look at a material test report for ASTM F138 316LVM stainless steel, you need to check the needed and actual values for chemical and mechanical properties. This helps you know if the steel is safe and follows the rules. You also look at physical properties and see if the steel passed the corrosion and intergranular corrosion tests. These checks show if the steel can resist rust and damage.
Chemical Analysis
First, look at the chemical analysis part of the mtr. This section lists what is inside the steel. You will see how much carbon, chromium, and nickel are in it. ASTM F138 gives the allowed amount for each element. You must make sure the numbers in your report fit these limits.
Here is a table that shows the needed chemical composition for ASTM F138 316LVM stainless steel:
| Element | Composition Range |
|---|---|
| Carbon (C) | ≤0.03 |
| Silicon (Si) | ≤0.75 |
| Manganese (Mn) | ≤2.0 |
| Phosphorus (P) | ≤0.03 |
| Sulfur (S) | ≤0.010 |
| Nickel (Ni) | 13.0-15.0 |
| Chromium (Cr) | 17.0-19.0 |
| Molybdenum (Mo) | 2.25-3.00 |
| Nitrogen (N) | ≤0.10 |
Always compare the real chemical numbers from your report to these limits. If any number is not in the range, the steel does not pass the standard. Low carbon helps stop rust and keeps the steel strong. The vacuum melting process, called “VM” in the grade, takes out bad stuff and makes the steel cleaner. This is important for medical uses because it helps the steel work well in the body and stops rust.
Tip: Always check that the chemical analysis matches what you ordered.
Mechanical Properties
Next, look at the mechanical analysis. This part tells you how strong and bendy the steel is. You will see numbers for tensile strength, yield strength, and elongation. These numbers show how much force the steel can take before it breaks or bends.
Here is a table with the needed mechanical properties for ASTM F138 316LVM stainless steel:
| Condition | Tensile Strength | Yield Strength | Elongation in 4D |
|---|---|---|---|
| Annealed (.063″ and over) | 71.0 ksi (min) | 27.5 ksi (min) | 40% |
| Cold Worked (.063″ to 1.50″) | 125 ksi | 100 ksi | 12% |
| Extra-hard (.063″ to .250″) | 196 ksi | No requirement | No Requirement |

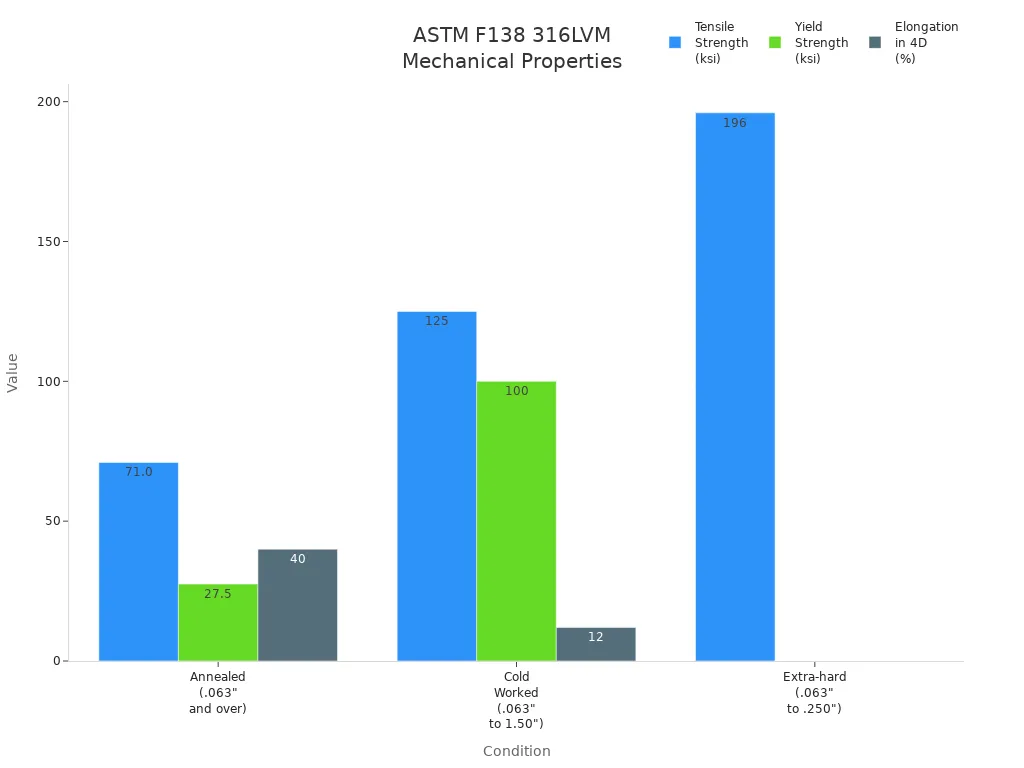

You can also see these numbers in the chart below:
You must check the real results in your mtr against these numbers. If the steel does not meet the lowest numbers, it may not be safe for your project. The mechanical properties also help you know if the steel will pass the corrosion and intergranular corrosion tests. Good numbers mean the steel can resist damage.
Note: The mechanical analysis should show both the needed range and the real test results. This helps you know if the steel is strong enough.
Heat Treatment
The heat treatment part tells you how the steel was heated and cooled. This changes how hard or soft the steel is. The mtr should list the heat treatment steps and the temperatures used.
Here is a table with common heat treatment processes for ASTM F138 316LVM stainless steel:
| Heat Treatment Process | Temperature Range (°C) |
|---|---|
| Hot Forging | 900 – 1150 |
| Annealing | 1050 – 1120 |
You may also see more details about the heat treatment cycle:
| Heat Treatment (HT) | Cycle Description |
|---|---|
| HT1 | 500 °C + 1 h + furnace cooling |
| HT2 | 800 °C + 1 h + furnace cooling |
| HT3 | 1100 °C + 1 h + furnace cooling |
You should check that the heat treatment matches what ASTM F138 asks for. The right heat treatment helps the steel get the best properties. It also helps the steel pass the corrosion and intergranular corrosion tests, which are important for medical and high-quality uses.
Remember: Vacuum melting, low carbon, and good heat treatment make 316LVM stainless steel safe for implants and other important uses.
Mill Test Reports and Compliance
Standards and Certification
When you look at mill test reports for ASTM F138 316LVM stainless steel, you need to see if the steel meets the right rules. The report should say the steel is certified for surgical implants. Certified mill test reports always list ASTM F138 and sometimes ASME rules. These reports show the steel is safe for medical use.
You should find these things in every mill test report:
- Product Description
- Heat Number or Heat Lots
- Mechanical and Physical Properties
- Chemical Properties
- Any Extra Details for Your Order
Mill test reports prove the steel follows ASTM rules in a few ways. You can see these ways in the table below:
| Step | Description | Importance |
|---|---|---|
| 1 | Testing materials often | Makes sure the steel always meets rules |
| 2 | Writing down purity levels | Shows the steel is good quality |
| 3 | Testing by others | Proves the steel fits ASTM F138 rules |
You should always look for ASTM certification. Check for results from other testers and make sure the supplier gives real mill test certificates. You need to see inspection papers and signed certificates on the mtr. These things show the steel passed all checks.
Tip: Always ask for the mtr and check for ASTM marks before you take any steel.
Traceability and Red Flags
Traceability lets you follow the steel from the mill to your project. Each piece of stainless steel 316LVM has a number marked near one end. This number matches the heat code on the mill test report. You can use this number to track where the steel came from and its quality.
You should also look for these traceability items:
- Manufacturer Test Certificate that follows EN 10204 3.1 B
- Lab Test Certificate from a government lab
- Details from third-party checks
If you see missing info, unclear signatures, or heat numbers that do not match, you should ask questions. These are warning signs. You must make sure the mill test report matches the material test report and inspection papers. Always check that the paperwork is complete and the numbers match the steel.
Note: Good traceability keeps your project safe and helps you follow all ASTM and ASME rules.
You need to look at every material test report closely. Careful checking helps you make sure the mtr follows the rules. This is very important for safety in medical and industrial jobs. Before you say yes to any material, use a checklist. Check for identification, property details, and traceability.
- If you take material without checking, you might pick the wrong one. This can lead to safety problems or expensive errors.
If you see anything confusing or details that do not match, ask someone who knows more for help.
FAQ
What is the heat code on a material test report?
The heat code is a special number. You use it to track the steel back to its batch at the mill. This helps you check quality and trace problems if they happen.
Why does ASTM F138 require vacuum melting?
Vacuum melting removes unwanted gases and impurities. You get cleaner steel. This makes the steel safer for medical use and helps it resist rust.
How do you know if the material test report is real?
Check for the heat code, ASTM F138 mark, and signed certificates. Make sure the numbers match the steel. If you see missing or unclear details, ask your supplier.
What should you do if the chemical values do not match ASTM F138?
If the chemical values fall outside the allowed range, do not use the steel. It does not meet the standard. You should contact your supplier right away.
Can you use a material test report for other grades of stainless steel?
No. Each grade has its own rules and limits. You must use the correct report for the grade you order. Always check the grade and UNS number on your report.
