Monel 400 vs. Monel K-500 Comprehensive Comparison Guide

Monel 400 vs Monel K500 differ in several key aspects, including mechanical properties, chemical composition, and corrosion resistance. Monel 400 is primarily composed of nickel and copper, while Monel K500 includes added aluminum and titanium, which enhance its strength. Due to this unique alloy mix and heat treatment, Monel K500 is harder and can withstand greater stress. Both Monel 400 and Monel K500 offer excellent resistance to corrosion, making them ideal for harsh environments. According to reports like the Monel Market Report 2025, these alloys are widely used in marine, oil, and chemical industries. Choosing between Monel 400 vs Monel K500 depends on factors such as required strength, application environment, and cost.

Key Takeaways

• Monel 400 is a strong nickel-copper alloy. It does not rust easily. You can bend it and shape it without trouble. It is easy to weld. This makes it good for use in ships and chemical plants.
• Monel K-500 has aluminum and titanium added. These make it stronger and harder. It gets even tougher after special heat treatment. It is great for tough jobs like oil drilling and pump parts.
• Both alloys do not rust in seawater or acids. Monel 400 is better at stopping stress cracks. Monel K-500 is stronger but can crack if not handled right.
• Monel 400 is easier and cheaper to use. It works well for parts that need repairs or have tricky shapes. Monel K-500 needs special welding and heat treatment. This makes it cost more and take longer to make.
• Pick the right alloy for your project. Think about how strong it needs to be, where it will be used, and your budget. Use Monel 400 if you need flexibility and rust resistance. Use Monel K-500 if you need the most strength and long life.

Monel 400 vs Monel K-500: Alloy Overview

What is Monel 400 Alloy?

Monel 400 is a nickel-copper alloy. It is very tough and does not rust easily. Engineers pick Monel 400 for harsh places like the ocean or chemical plants. Monel 400 has mostly nickel and copper. It also has a little iron, manganese, silicon, and carbon. The ‘Monel 400 vs Monel K-500: Key Differences’ paper says Monel 400 stays strong and bendy even when it is cold. It is easy to weld and shape. That is why people use it for boat parts, chemical machines, and oil tools.

Monel 400, or alloy 400, follows strict rules like ASME and ASTM. This makes it safe for tough jobs.

Property Category	Details / Typical Ranges
Chemical Composition	Nickel: 63% – 70%, Copper: 28% – 34%, Iron: up to 2.5%, Manganese: up to 2%, Silicon: up to 0.5%, Carbon: up to 0.3%, Sulfur: up to 0.024%
Mechanical Properties	Tensile Strength: 517 – 827 MPa, Yield Strength: 172 – 690 MPa, Elongation: 20% – 60%, Hardness: Rockwell B 60 – 100
Physical Properties	Density: ~8.80 g/cm³, Melting Point: 2370°F – 2460°F (1300°C – 1350°C), Maintains strength up to 1000°F (538°C)

Monel 400 is part of the nickel-copper alloy group. It is strong and does not rust. Many companies use alloy 400 in salty water, acids, and bases.

What is Monel K-500 Alloy?

Monel K-500 is like Monel 400 but has some aluminum and titanium. These extra metals make Monel K-500 much stronger and harder. Monel K-500 can go through a special process called precipitation hardening. This makes it even tougher. Books say Monel K-500 does not rust like Monel 400. But it is much stronger. Monel K-500 is good for places with lots of pressure, like oil wells, pump parts, and special tools.

Monel K-500 has about 30% copper and almost the same nickel as Monel 400. When it is heated, it forms tiny bits called γ’ precipitates. These make alloy k500 very strong. Tests show Monel K-500 does not break easily and can handle shaking. But it is harder to cut or shape because it is so tough. Monel K-500 works well in sour-gas places. But it might crack more from stress than Monel 400.

Monel K-500 is special because it is strong, does not rust, and lasts long in hard jobs.

Monel 400 vs Monel K-500: Chemical Composition

Elemental Comparison Table

Monel alloys are special because of what they are made of. Both monel 400 and monel k-500 have a lot of nickel and copper. Monel k-500 has extra things added that change how it acts. The table below shows what is different in each alloy and how these changes matter.

Alloy	Nickel (%)	Copper (%)	Aluminum (%)	Titanium (%)	Other Elements
Monel 400	≥63	28-34	—	—	Iron, Manganese, Carbon, Sulfur, Silicon
Monel K-500	≥63	27-33	2.3-3.15	0.35-0.85	Iron, Manganese, Carbon, Sulfur, Silicon

Note: Monel k-500 has aluminum and titanium. These let it go through age hardening, which makes it stronger.

Key Alloying Elements and Their Effects

Nickel is the main part of both monel 400 and monel k-500. Nickel helps the alloys fight rust and keeps them strong. Copper works with nickel to stop oxidation and helps electricity move. In alloy 400, nickel and copper together make it tough and bendy, even when it is very cold.

Monel k-500 is different because it has aluminum and titanium. These let it go through precipitation hardening. This makes the alloy stronger, harder, and tougher. Monel k-500 can handle more pulling and shaking than alloy 400. Small amounts of iron, manganese, carbon, sulfur, and silicon help control how pure the alloy is and make it work better.

Engineers use monel 400 when they need something strong and rust-proof for the sea or chemicals. They pick monel k-500 when they need even more strength, like in places with lots of pressure. Both alloys work well in tough places, but monel k-500’s mix of metals makes it even better for hard jobs.

Monel 400 vs Monel K-500: Mechanical and Physical Properties

Strength, Hardness, and Toughness

Monel alloys are known for being strong. Monel 400 is both strong and bendy. This makes it good for tough jobs. Its tensile strength is about 550 MPa. The yield strength is close to 240 MPa. It can stretch up to 48% before breaking. Monel K-500 is even stronger. It has special metals and goes through a hardening process. After this, its yield strength is at least 585 MPa. Its tensile strength is 895 MPa or more. It can still stretch over 20%. Tests show coatings on monel k-500 help it resist breaking. These coatings make it harder and tougher. They also cut down on wear by up to 59%. Because of these features, monel k-500 is great for high-pressure jobs.

Density, Melting Point, and Thermal Conductivity

Monel 400 and monel k-500 have similar weights and melting points. Both have a density of about 8.8 g/cm³. Their melting points are between 1300°C and 1350°C. Monel 400 has a thermal conductivity of about 21.8 W/m-K. Monel k-500 is about the same. These features help both alloys work well in hot or cold places. They keep their strength even when it is very hot or cold.

Property	Monel 400	Monel K-500
Density (g/cm³)	8.83	8.83
Melting Point (°C)	1300-1350	1300-1350
Thermal Conductivity (W/m-K)	21.8	~21.8

Magnetic and Electrical Properties

Monel alloys have special magnetic and electrical traits. Monel 400 can be magnetic. This depends on how it is made and used. Its Curie temperature is between 20°F and 50°F. Its electrical resistance is 5.47 × 10⁻⁵ ohm-cm. Monel k-500 is not magnetic, even after hardening. This makes it good for use in places where magnetism is a problem. It is used for things like bearings and shafts. Both alloys work well in many temperatures. This helps them in important jobs.

• Monel 400: Can be magnetic, conducts electricity well.
• Monel k-500: Not magnetic, very strong, resists fatigue.

Monel 400 vs Monel K-500: Purity

Purity is very important for how well nickel-copper alloys work. Both Monel 400 and Monel K-500 are very pure. But they have small differences in the amount of impurities. Makers watch elements like sulfur and manganese during production. These impurities can change how strong the alloy is. They also affect how bendy it is and how well it resists rust.

If you compare impurity levels, you can see the difference:

Element	Monel 400 Maximum Content	Monel K-500 Maximum Content
Sulfur (S)	0.024%	0.010%
Manganese (Mn)	2.00%	1.50%

Monel K-500 always has less sulfur and manganese than Monel 400. This happens because Monel K-500 is made with better refining steps. Having fewer impurities makes the alloy stronger. For example, less sulfur helps stop cracks when making parts. Less manganese makes the alloy tougher. It also helps it not stretch too much under heavy loads.

Note: Monel K-500’s higher purity makes it great for tough jobs where you need it to last a long time.

Engineers pick Monel K-500 for important jobs that need extra strength. Its high purity means there are fewer weak spots in the metal. This helps it work better in places with lots of pressure or heat. Monel 400 is still very pure but has a bit more impurities. It works well for many uses but may not be as reliable as Monel K-500 in the hardest situations.

Monel 400 vs Monel K-500: Corrosion Resistance

General Corrosion Resistance in Various Environments

Monel 400 and Monel K-500 both do a great job fighting rust in tough places. Engineers pick these alloys because they do not get damaged by seawater. Monel 400 is very good for things used in the ocean. It does not rust in saltwater or brine, so it is used for ship parts and gear on oil rigs. Monel K-500 also works well in seawater. Its extra strength helps it last longer where there is a lot of pressure.

Both alloys can handle acids. Monel 400 does not get ruined by sulfuric or hydrofluoric acids, even when the acids are strong. Monel K-500 is just as good with acids and is even better in sour gas and oilfield places. In chemical factories, both alloys stop rust from acids and bases. This makes them good for pumps, valves, and heat exchangers.

Tip: If you need metal for saltwater or acid, Monel 400 and Monel K-500 both protect against rust for a long time.

Environment	Monel 400 Performance	Monel K-500 Performance
Seawater	Excellent	Excellent
Acidic Environments	Excellent	Excellent
Alkaline Solutions	Good	Good
Industrial Atmosphere	Good	Good

Stress Corrosion Cracking and High-Temperature Performance

Stress corrosion cracking can break many metals, but Monel alloys are tough against it. Monel 400 almost never cracks from stress, even in the ocean or chemical plants. Monel K-500 is very strong, but it can sometimes crack from stress if the place is really tough or has a lot of force.

Both alloys keep fighting rust when it gets hot. Monel 400 stays strong and does not rust up to 1000°F (538°C). Monel K-500 also does well in heat. Its strength helps it work for parts that get hot and have lots of pressure.

• Monel 400: Best if you want steady rust protection and little risk of cracking from stress.
• Monel K-500: Best if you need more strength, but watch out for stress cracks in really hard jobs.

Note: Always look at where you will use the alloy. Both Monel 400 and Monel K-500 are good at stopping rust, but each one is better for different jobs.

Monel 400 vs Monel K-500: Heat Treatment and Strengthening

Solid Solution Strengthening in Monel 400

Monel 400 gets its strength from solid solution strengthening. Nickel and copper atoms mix together in one phase. This makes the structure strong and even. Copper atoms fit between nickel atoms. This stops the metal layers from sliding. Because of this, Monel 400 is tough and bendy.

Manufacturers do not use heat to make Monel 400 stronger. The alloy’s atom arrangement gives it strength. Cold working, like rolling or drawing, can make it stronger. This changes the metal’s shape without heat. It makes Monel 400 harder and stronger. It still resists rust well.

Note: You cannot make Monel 400 harder with heat. Only cold working makes it stronger.

Precipitation Hardening in Monel K-500

Monel K-500 gets stronger with precipitation hardening. This is also called age hardening. The alloy is heated to a set temperature, then cooled. When heated, aluminum and titanium form tiny particles. These particles stop the metal from moving inside. This makes the alloy much harder and stronger.

The steps for hardening Monel K-500 are:

1. Solution annealing: Heat the alloy to mix all elements.
2. Quenching: Cool the alloy fast to lock atoms in place.
3. Aging: Heat again at a lower temperature to make particles.

This process gives Monel K-500 high strength. It stays tough and resists rust after hardening. Engineers use Monel K-500 for parts that face high stress.

Tip: Precipitation hardening makes Monel K-500 much stronger than Monel 400. This is important for hard jobs.

Monel 400 vs Monel K-500: Fabrication, Weldability, and Maintenance

Fabrication and Repair Considerations

Monel 400 and Monel K-500 are both easy to work with, but they act differently when making things. Monel 400 is easier to cut, bend, and fix. Many people pick Monel 400 for parts that need to be shaped or changed. It works well with both cold and hot tools. Monel 400 does not get hard fast when you shape it. This means workers can make tricky shapes without much trouble.

Monel K-500 is harder to work with. It is stronger and harder than Monel 400. This makes it tough to cut and shape. Tools wear out faster when used on Monel K-500. Workers need special machines and must go slow to avoid damage. Fixing Monel K-500 takes more time and skill.

Tip: If you need to fix parts often or make tricky shapes, Monel 400 is usually easier to use.

Property	Monel 400	Monel K-500
Machinability	Good	Fair to Poor
Formability	Excellent	Moderate
Repair Ease	High	Moderate to Low

Welding and Post-Weld Treatment

Welding Monel 400 is simple. You can use many common welding methods like GTAW and SMAW. Welders use Monel filler metals to make strong welds. Monel 400 does not crack much when welded. This makes it good for new parts and repairs.

Monel K-500 needs more care when welding. Its high strength and age hardening can cause cracks if not careful. Welders should use low heat and not cool it too fast. Preheating and heating after welding help stop cracks. Using the right filler metal makes the weld better.

Note: Always clean the metal before welding. Take off oil, dirt, and oxides to stop weld problems.

Both alloys need regular checks after welding. Look for cracks or weak spots to keep them working well. Cleaning after welding and heat treatment, if needed, help Monel 400 and Monel K-500 stay strong and fight rust.

Monel 400 vs Monel K-500: Applications

Typical Applications for Monel 400

Monel 400 is used in many fields because it fights rust and is tough. Engineers pick Monel 400 for things used in the sea, like valves, pump shafts, and propeller shafts. It works well in chemical plants because it does not get damaged by acids or alkalis. People also use Monel 400 in heat exchangers, fuel tanks, and pipes. It stays strong in both hot and cold places, so it is good for jobs that need tough metal. Many companies use Monel 400 for oil and gas tools, especially where there are harsh chemicals and saltwater.

Typical Applications for Monel K-500

Monel K-500 is used where things need to be extra strong and hard. Makers use it for fasteners, springs, and pump parts in oil and gas drilling. Monel K-500 gets even stronger after a special hardening process, so it is great for tough jobs. In marine work, Monel K-500 is found in shafts, propeller blades, and pump parts that go underwater. One study showed bolts made from Monel K-500 broke because they were not heated right, so it is important to process them carefully. Another study found that Monel K-500 parts made with new methods were stronger and stretched more, so they work well in the sea and offshore.

A test on Monel K-500 bolts in salty water showed that small pits caused cracks inside and across the bolts. This means you must control rust and heat-treat the metal right to make sure it works well in hard jobs.

Application Suitability and Industry Preferences

People pick Monel 400 when they want metal that fights rust and is easy to shape. Marine, chemical, and oil companies like Monel 400 because it works well in places with lots of rust. Monel K-500 is chosen for jobs that need very strong and tough metal, especially where there is a lot of pressure. Makers of fasteners, pumps, and offshore tools like Monel K-500 for hard jobs. The best alloy depends on what the job needs, how much rust it must fight, and how much stress it will face.

Monel 400 vs Monel K-500: Standards and Product Forms

International Standards and Equivalent Grades

Monel 400 and Monel K-500 both follow strict international standards. These standards help engineers and manufacturers ensure quality and consistency. Each alloy has its own ASTM standard and unique UNS number. Monel 400 uses ASTM B127 and B164, while Monel K-500 follows ASTM B865. These standards set the rules for chemical makeup, strength, and other key properties.

Many countries use their own names for these alloys. For example, Monel 400 is also called Werkstoff Nr: 2.4360 in Germany and NW 4400 in Japan. Monel K-500 is known as Werkstoff Nr: 2.4375. The table below shows the main standards and grades for both alloys:

Property / Standard	Monel 400	Monel K-500
ASTM Standard	B127, B164	B865
UNS Number	N04400	N05500
Equivalent International Grades	Werkstoff Nr: 2.4360, GOST: МНЖМц 28-2,5-1,5, AFNOR: NU-30M, JIS: NW 4400, BS: NA 13, EN: NiCu30Fe	Werkstoff Nr: 2.4375

Tip: Always check the standard and grade before choosing an alloy for a project. This ensures the material meets all safety and performance needs.

Available Product Forms

Manufacturers offer Monel 400 and Monel K-500 in many shapes and sizes. This helps engineers pick the right form for each job. Monel 400 comes as pipe, tube, sheet, plate, bar, forging, fitting, and wire. Each form follows a specific ASTM standard. For example, seamless pipe uses ASTM B165, while sheet and plate use ASTM B127.

Monel K-500 is also available in many forms. These include round bar, flat bar, tube, strip, sheet, plate, forgings, wire, and hexagon. Each product form meets standards like QQ-N-286, BS, DIN, and ISO. The table below lists the main product forms for both alloys:

Product Form	Monel 400 (ASTM Spec)	Monel K-500 (Standards)
Pipe (Seamless)	B165	–
Pipe (Welded)	B725	–
Tube (Seamless)	B163	BS3074NA18, DIN 17751
Sheet / Plate	B127	BS3072NA18, QQ-N-286
Bar	B164	QQ-N-286, SAE AMS 4676
Forging	B564	ASTM B865, BS3075NA18
Fitting	B366	–
Wire	–	QQ-N-286, DIN 17752-54
Hexagon	–	Included in stocked forms

Note: The wide range of product forms makes Monel alloys flexible for many industries, from marine to oil and gas.

Monel 400 vs Monel K-500: Pricing and Availability

Cost Comparison

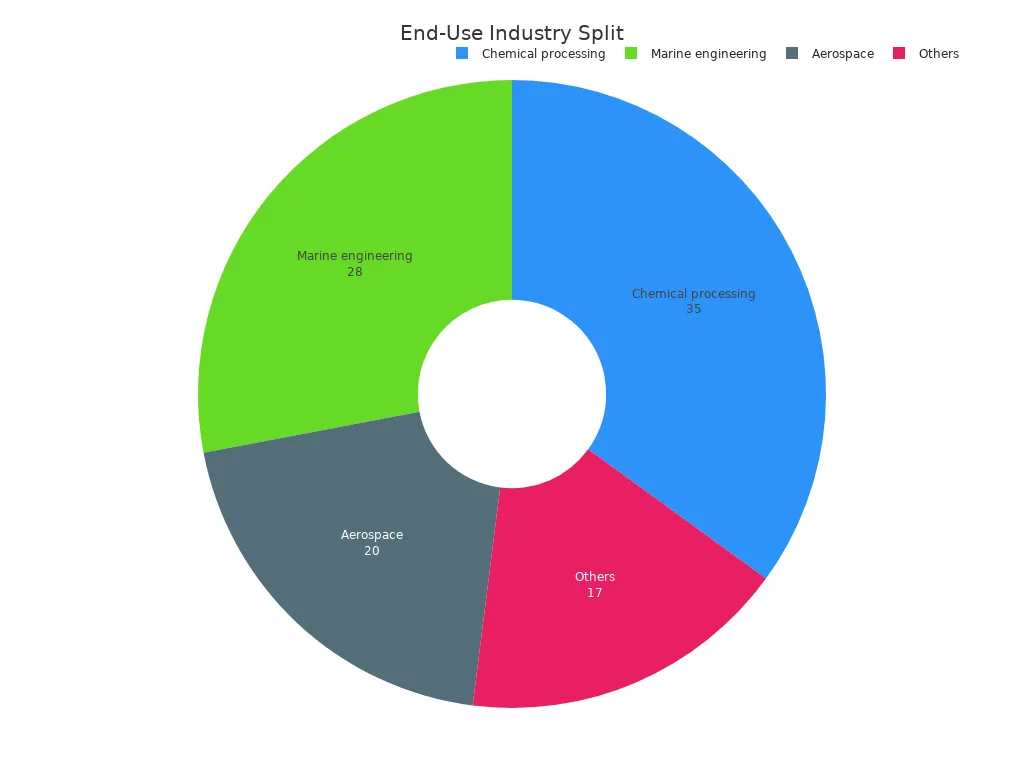

Monel 400 and Monel K-500 are expensive alloys. Their prices change a lot because nickel is costly and wanted worldwide. Monel K-500 usually costs more than Monel 400. This is because Monel K-500 needs extra steps to make it strong. It also uses more metals in its mix. In December 2024, the price in Germany was $39,963 for one metric ton. Prices can go up or down by 15% every three months. This is mostly because nickel prices change often.

The table below gives important market facts for Monel alloys:

Aspect	Details
Market Revenue (2024)	USD 3.56 Billion
Projected Revenue (2033)	USD 5.12 Billion
CAGR (2026-2033)	4.9%
Price Example	Germany: 39,963 USD/MT (December 2024)
Price Volatility	15% quarterly swings in Germany linked to nickel prices
Product Types Covered	Monel 400, Monel K-500, Monel R-405, Monel 404
Applications	Aerospace, Marine Engineering, Oil & Gas, Chemical Processing, Nuclear Power Plants

Monel 400 is often picked when people want to save money. It is good for stopping rust. Monel K-500 costs more but is stronger. It is worth the price for hard jobs.

Market Availability and Supply Chain Considerations

Monel alloys are easy to find in many countries. North America makes and uses the most Monel. Europe and Asia-Pacific also use a lot because their industries are growing. Europe uses about 25–30% of all Monel, which is worth $400 million each year.

Getting Monel 400 and Monel K-500 can be tricky sometimes. Problems like not enough workers, world events, or too much nickel can slow things down. These problems can also make prices change and deliveries late. New ideas like AI, robots, and green factories help make supply better. Big companies spend money on new tech to keep up with demand in chemical plants, ships, and planes.

Note: Buyers should watch prices and check if suppliers are reliable before buying a lot.

Monel 400 vs Monel K-500: Selection Guide

Performance and Application Requirements

Choosing between Monel 400 and Monel K-500 depends on what the project needs. Engineers look at how strong the alloys are and how well they fight rust. They also think about where the metal will be used. Monel 400 is tough and can bend without breaking. It is a good pick for jobs that need to handle hits or work in very cold places. This alloy keeps its strength even when it gets really cold. That is why people use it in ships and chemical plants.

Monel K-500 is different because it is much stronger and harder. It has aluminum and titanium, which make it even tougher. A special process called precipitation hardening makes Monel K-500 even stronger. This means it can handle more pulling, shaking, and cutting forces. Monel K-500 is great for things like pump shafts, bolts, and oil tools. These parts need to be strong and not rust.

The table below shows the main things to think about when picking Monel 400 or Monel K-500:

Criteria	Monel 400	Monel K-500
Chemical Composition	Ni: 63-72%, Cu: 28-34%, Fe: 0-2.5%, Mn: 0-2.0%, C: 0-0.3%, Si: 0-0.5%, S: 0-0.024%	Ni: 63-70.4%, Cu: 27-33%, Fe: 0-2.0%, Mn: 0-1.5%, C: 0-0.18%, Si: 0-0.5%, S: 0-0.010%, Al: 2.3-3.2%, Ti: 0.35-0.85%
Tensile Strength (MPa)	540-780	640-1100
Yield Strength (MPa)	210-590	310-880
Elongation at Break (%)	20-40	25-36
Fatigue Strength (MPa)	230-290	260-560
Shear Strength (MPa)	370-490	430-700
Density (g/cm³)	8.9	8.7
Melting Point (°C)	Solidus: 1300-1320, Liquidus: 1350	Solidus: 1300-1320, Liquidus: 1350
Thermal Conductivity (W/m-K)	23	18
Electrical Conductivity (% IACS)	3.3-3.4	3.1-3.2
Cost Range	Approx. £235-£264 (6.35mm bar)	Approx. £40-£71 (5mm bar single), up to £155 (pack of 10)
Applications	High toughness, flexibility, corrosion resistance	High strength, hardness, high-stress corrosive environments
Fabrication	Easier cold working, good weldability	Requires heat treatment, specialized welding (preheat 150-260°C, post-weld heat treatment)
Corrosion Resistance	Excellent, better for stress corrosion cracking	Excellent, better for high-stress corrosive settings
Magnetic Properties	Can be magnetic or non-magnetic	Generally non-magnetic

Tests show Monel K-500 is stronger than Monel 400 because of its hardening process. This makes Monel K-500 a good choice for hard jobs like drilling in the ocean or making strong valves. Monel 400 is still a top pick when you need metal that bends and does not break in cold weather.

Both alloys do a good job fighting rust in many places. Monel 400 is best if you want to stop cracks from stress, which is important for ships and chemical plants. Monel K-500 is better for places with lots of pressure and rust, like oil fields.

Tip: Always pick the monel alloy that matches the job’s needs for strength and rust protection.

Cost, Maintenance, and Fabrication Factors

Price, repairs, and how easy it is to make things matter when picking Monel 400 or Monel K-500. Monel 400 usually costs less and is easier to shape. It is simple to weld and bend, so it works well for parts that need fixing or have tricky shapes. Taking care of Monel 400 is easy because it stays strong and does not rust much.

Monel K-500 is stronger but needs special care. It must go through hardening and needs to be heated before and after welding. This makes it harder and more expensive to make things with Monel K-500. Special welding steps help keep Monel K-500 strong after it is put together. People may need to check Monel K-500 parts more often, especially if they are used in tough places, to make sure they do not crack from stress.

The table below shows the main numbers for cost and making things:

Property	Monel 400 Range / Value	Monel K-500 Range / Value
Tensile Strength	310 to 880 MPa	540 to 780 MPa
Yield Strength	170 MPa	About 690 MPa
Fatigue Strength	230 to 290 MPa	260 to 560 MPa
Shear Strength	370 to 490 MPa	430 to 700 MPa
Hardness (Brinell)	Lower, known for toughness	Up to 262, due to precipitation hardening
Temperature Performance	Excellent at low temperatures	Maintains strength up to ~480°C
Cost Range	Lower initial cost	Higher due to alloying and processing
Fabrication	Easier cold working, good weldability	Requires heat treatment, specialized welding

Monel 400 is best for jobs where saving money and easy repairs are important. It is used for ship parts, chemical machines, and pipes. Monel K-500 costs more and is harder to work with, but it is best for jobs that need very strong metal. These jobs include oil drilling tools, strong springs, and bolts that face lots of rust.

Note: Always think about the total cost, including making and fixing parts, before picking Monel 400 or Monel K-500 for important jobs.

Monel 400 and Monel K-500 are not the same in how strong or tough they are. Monel 400 is tougher and easier to weld. Monel K-500 is stronger and harder because it has aluminum and titanium. Both alloys do not rust in seawater or chemicals. The table below shows how they are different:

Property	Monel 400	Monel K-500
Strength	Moderate	High
Toughness	High	Moderate
Weldability	Excellent	Requires care
Hardness	Lower	Higher

If you need metal that is easy to shape and tough, pick Monel 400. If you need metal for heavy loads or lots of strength, Monel K-500 is better. Always choose the alloy that fits what your project needs. This helps you get the best results.

FAQ

What is the main difference between Monel 400 and Monel K-500?

Monel 400 has nickel and copper. Monel K-500 also has aluminum and titanium. These extra metals make Monel K-500 stronger and harder. Monel 400 bends more easily and is simpler to shape.

Can Monel 400 and Monel K-500 be welded easily?

Monel 400 is easy to weld with normal tools. Monel K-500 needs special care when welding. Heating before and after welding helps stop cracks in Monel K-500.

Which industries use Monel 400 and Monel K-500 most often?

Both alloys are used in marine, chemical, and oil work. Monel 400 is found in pumps, valves, and pipes. Monel K-500 is best for strong parts like shafts, bolts, and drilling tools.

Is Monel K-500 more expensive than Monel 400?

Yes. Monel K-500 costs more because it has extra metals and needs more work to make. The higher price is because it is stronger and lasts longer.

How do Monel alloys resist corrosion?

Both alloys do not rust in seawater, acids, or harsh chemicals. Monel 400 is very good at stopping cracks from stress. Monel K-500 is stronger in tough places but needs careful work to keep it from cracking.
