Monel alloys belong to a family of nickel-copper alloys that show outstanding strength and corrosion resistance. The typical composition includes about 65-70% nickel with copper, and small amounts of iron and manganese. This unique blend allows Monel to withstand harsh chemicals, acids, alkalis, and seawater. Many industries value Monel alloys for their durability and reliability. Recent global trends highlight strong demand across marine, aerospace, and food processing sectors.
Global Market Snapshot
Aspect Detail Market Size 2024 USD 6,221.51 Million Projected 2030 Value USD 9,008.15 Million (CAGR 4.14%) Top Drivers Marine, food & beverage, and chemical industries; Asia Pacific leads in production
Key Takeaways
- Monel alloys are strong nickel-copper materials known for excellent corrosion resistance in harsh environments like seawater and acids.
- Different Monel grades, such as 400, R-405, K-500, and 502, offer varied strength, machinability, and corrosion resistance for specific uses.
- Monel alloys come in many forms including pipes, bars, sheets, and wires, making them versatile for marine, chemical, aerospace, and consumer products.
- Monel maintains strength and toughness across wide temperature ranges, including very low and high temperatures.
- The alloys are non-magnetic and fire resistant, making them ideal for sensitive electronics and safety-critical applications.
- Monel R-405 improves machinability with added sulfur, helping manufacturers produce complex parts efficiently.
- While Monel costs more than stainless steel, its durability and low maintenance often save money over time.
- Choosing the right Monel grade depends on the environment, mechanical needs, magnetic requirements, and budget to ensure optimal performance.
The History and Development of Monel Alloys
Invention and Early Milestones
Robert Crooks Stanley and the 1905 Discovery
In 1905, Robert Crooks Stanley, a metallurgist at the International Nickel Company, made a significant discovery. He found that a natural nickel-copper ore from Sudbury, Canada, could create a new type of alloy. This material showed remarkable resistance to corrosion and high strength. Stanley’s work led to the first production of monel, which quickly gained attention for its unique properties.
Patent, Trademark, and Naming Origins
The International Nickel Company patented the new alloy in 1906. They named it “Monel” after Ambrose Monell, a company executive. The spelling changed by dropping one “l” to meet trademark rules. Monel became one of the first registered alloy trademarks in the world. This early branding helped monel stand out in the growing metals market.
Evolution of Monel Applications
Early Industrial and Everyday Uses
Monel alloys entered the market during a period of rapid industrial growth. Factories used monel for pump parts, valves, and piping because it resisted acids and seawater. Shipbuilders chose monel for propeller shafts and marine fittings. Even everyday items, such as kitchen sinks and musical instruments, began to feature monel. Its strength and corrosion resistance made it a popular choice.
Did you know?
Monel rivets held airplane frames together in the early days of aviation. Their high tensile strength—up to 125,000 psi—helped them withstand the heat and pressure inside combustion chambers, outperforming many stainless steels.
Expansion into Modern Engineering Fields
As technology advanced, monel alloys found new roles in demanding industries. Aerospace engineers used monel for jet engine parts and fasteners. The oil and gas sector relied on monel for pipelines and processing equipment. Chemical plants valued monel for its durability in harsh environments. The electronics industry adopted monel wire for connectors and components that needed both strength and corrosion resistance.
The global demand for monel alloys continues to grow. The following table shows key market statistics:
| Metric/Aspect | Value/Description |
|---|---|
| Global Market Size (2025) | $1.5 billion USD |
| Projected CAGR (2025-2033) | 6% |
| Largest Alloy Market Share | Monel 400 (~40%) |
| Key Industrial Sectors | Aerospace, Oil & Gas, Chemical Processing |
| Regional Market Leaders | North America, Europe |
| Fastest Growing Region | Asia-Pacific (notably China and India) |
| Monel Wire Market Size (2025) | ~$800 million USD |
| Monel Wire CAGR (2025-2033) | ~5% |
| Monel Wire Key Application Sectors | Medical, Automotive, Electronics, Processing Industries |
| End-User Market Share Breakdown | Aerospace (30%), Oil & Gas (25%), Chemical Processing (20%), Others (25%) |

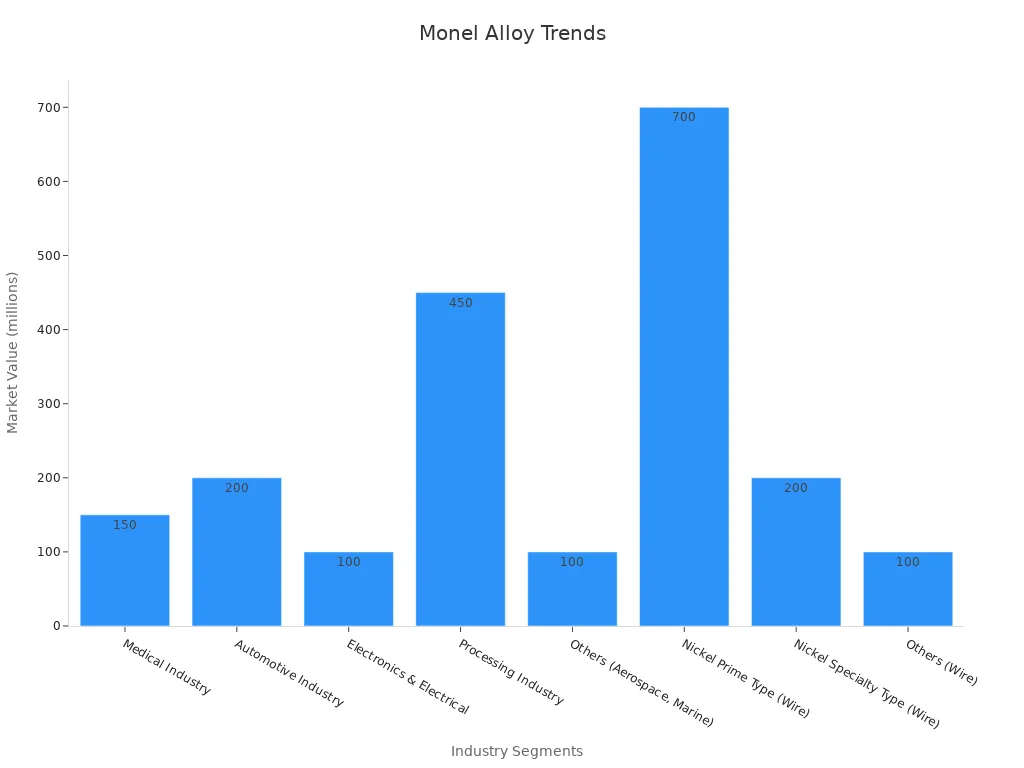

Monel wire also plays a vital role in several industries. The next table highlights its market value by segment:
| Segment Type | Estimated Market Value (2025) | Key Drivers/Notes |
|---|---|---|
| Medical Industry | $150 million | Biocompatibility and corrosion resistance in implants |
| Automotive Industry | $200 million | High-performance engine components and exhaust systems |
| Electronics & Electrical | $100 million | High-reliability connectors and electrical components |
| Processing Industry | $450 million | Chemical processing equipment requiring corrosion resistance |
| Others (Aerospace, Marine) | $100 million | Specialized applications |
| Nickel Prime Type (Wire) | $700 million | Cost-effective, majority production |
| Nickel Specialty Type (Wire) | $200 million | Enhanced properties for extreme conditions |
| Others (Wire) | $100 million | Niche/custom alloys |
Monel alloys have evolved from early industrial uses to become essential in modern engineering. Their unique combination of strength, corrosion resistance, and versatility ensures their continued importance in industries worldwide.
Monel Alloys Composition and Alloying Elements
Core Elements in Monel Alloys
Nickel: Structure and Corrosion Resistance
Nickel forms the backbone of monel alloys. Most grades contain at least 63% nickel. This high nickel content stabilizes the austenitic structure, which gives monel its toughness and flexibility. Nickel also makes monel a corrosion resistant nickel alloy. It protects the metal from acids, alkalis, and seawater. Nickel’s presence ensures that monel alloys perform well in harsh environments.
Copper: Oxidation Resistance and Conductivity
Copper is the second most important element in the composition of monel alloys. The copper content usually ranges from 27% to 34%. Copper improves oxidation resistance and helps monel resist attack from many chemicals. It also increases electrical and thermal conductivity. This makes monel useful in electrical and marine applications.
Iron and Manganese: Supporting Roles
Iron and manganese appear in smaller amounts, usually less than 2.5% each. Iron adds strength and helps control the microstructure. Manganese improves hot working and helps remove impurities during melting. Both elements support the main properties of monel without changing its corrosion resistance.
Strengthening and Special Additions
Aluminum and Titanium: Precipitation Hardening
Some monel alloys, such as Monel K-500, include aluminum and titanium. These elements make the alloy stronger through a process called precipitation hardening. Monel K-500 contains about 2.3% to 3.15% aluminum and 0.35% to 0.85% titanium. These additions increase tensile strength and hardness. Monel K-500 can reach tensile strengths from 695 to 1310 MPa, much higher than standard monel grades.
Sulfur and Silicon: Machinability and Other Effects
Sulfur and silicon are present in very small amounts. Sulfur, especially in Monel R-405, improves machinability. This makes it easier to cut and shape the alloy. Silicon helps remove oxygen during melting and can slightly improve strength. Both elements must be controlled to avoid negative effects on corrosion resistance.
Typical Chemical Compositions of Monel Alloys
Ranges for Major Grades
The chemical composition of monel alloys varies by grade. The table below shows typical ranges for key elements in popular monel grades:
| Element | Monel 400 (wt %) | Monel R-405 (wt %) | Monel K-500 (wt %) |
|---|---|---|---|
| Nickel | ≥ 63 | ≥ 63 | ≥ 63 |
| Copper | 28 – 34 | 28 – 34 | 27 – 33 |
| Manganese | ≤ 2 | ≤ 2 | ≤ 1.5 |
| Iron | ≤ 2.5 | ≤ 2.5 | ≤ 2 |
| Sulfur | ≤ 0.024 | 0.025 – 0.060 | ≤ 0.01 |
| Silicon | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 |
| Aluminum | 0 | 0 | 2.3 – 3.15 |
| Titanium | 0 | 0 | 0.35 – 0.85 |
Comparison with Stainless Steel and Copper-Nickel Alloys
Monel alloys differ from stainless steel and copper-nickel alloys in both composition and performance. Stainless steel contains more chromium and less nickel. Copper-nickel alloys have higher copper and lower nickel. Monel’s unique blend of nickel and copper gives it better resistance to many chemicals and seawater.
Monel alloys stand out because of their balanced composition. This balance supports their use in demanding environments where other alloys may fail.
Types and Grades of Monel Alloys
Monel comes in several types and grades, each designed for specific uses. These grades offer different mechanical properties and chemical resistance. Engineers select the right grade based on the demands of their projects.
Monel 400 Alloy
Monel 400 stands as the most widely used grade among all monel types. This alloy contains mainly nickel and copper, with small amounts of iron, manganese, silicon, carbon, and sulfur. Monel 400 offers excellent resistance to corrosion in many environments, including seawater and acids. It also provides good mechanical strength and toughness over a wide temperature range.
The following table shows the typical composition of Monel 400:
| Element | Content (%) |
|---|---|
| Nickel (Ni) | Remainder |
| Copper (Cu) | 28 – 34 |
| Iron (Fe) | ≤ 2.5 |
| Manganese (Mn) | ≤ 2 |
| Silicon (Si) | ≤ 0.5 |
| Carbon (C) | ≤ 0.3 |
| Sulphur (S) | 0.024 |
Mechanical and chemical tests confirm the performance of Monel 400. The alloy shows a tensile strength between 517 and 620 MPa and a yield strength from 172 to 345 MPa. Its modulus of elasticity is 179 GPa, and it has a Poisson’s ratio of 0.32. The alloy also demonstrates a low corrosion rate in saltwater, making it ideal for marine applications.
| Mechanical Property | Metric Range | Unit |
|---|---|---|
| Tensile Strength (annealed) | 517 – 620 | MPa |
| Yield Strength | 172 – 345 | MPa |
| Modulus of Elasticity | 179 | GPa |
| Poisson’s Ratio | 0.32 | – |
Note: Monel 400 maintains its strength and ductility even at subzero temperatures. This property makes it suitable for cryogenic equipment.
Monel R-405 Alloy
Monel R-405 is a special grade developed for improved machinability. This alloy contains the same basic elements as Monel 400 but has a higher sulfur content. The extra sulfur forms tiny sulfide inclusions, which act as chip breakers during machining. This feature allows manufacturers to produce complex parts more efficiently.
Monel R-405 retains the corrosion resistance and mechanical strength of Monel 400. It is often used for automatic screw machine stock, valve parts, and fasteners. The improved machinability does not reduce its performance in harsh environments.
- Typical uses for Monel R-405 include:
- Pump and valve components
- Shafts and fittings
- Fasteners for marine and chemical equipment
Monel K-500 Alloy
Monel K-500 represents an advanced grade that combines the corrosion resistance of Monel 400 with greater strength and hardness. This alloy contains added aluminum and titanium. These elements allow the alloy to undergo age hardening, which increases its mechanical properties.
Standardized tests show that Monel K-500, after a three-step age hardening process, achieves a yield strength of at least 585 MPa and an ultimate tensile strength of at least 895 MPa. The alloy also maintains ductility above 20%. Tests at room temperature and at 77 K (cryogenic temperature) reveal that Monel K-500 not only becomes stronger but also shows increased ductility at low temperatures. This behavior is unusual for structural materials.
The Hall-Petch relationship explains the increase in yield strength. Grain size refinement, supported by the formula σ_gs = σ_0 + k / √d, plays a key role in the alloy’s improved performance.
💡 Monel K-500 is often chosen for high-stress applications, such as oil well tools, pump shafts, and marine propeller shafts, where both strength and corrosion resistance are critical.
Monel 502 Alloy
Monel 502 alloy belongs to the family of nickel-copper alloys. This grade contains a higher percentage of nickel than Monel 400. Manufacturers designed Monel 502 for use in specialized applications that require both strength and resistance to corrosion. The alloy contains about 70% nickel and 30% copper, with trace amounts of iron and manganese.
Monel 502 stands out because of its excellent resistance to both acids and alkalis. It performs well in environments where other alloys may fail. This grade also maintains its mechanical properties at high temperatures. Engineers often select Monel 502 for components that face aggressive chemical exposure.
Key features of Monel 502 include:
- High resistance to corrosion in acidic and alkaline environments
- Good mechanical strength at elevated temperatures
- Stability in both oxidizing and reducing conditions
Note: Monel 502 is less common than Monel 400 or K-500. However, it remains valuable for niche applications in chemical processing and marine engineering.
Typical uses for Monel 502 include:
- Pump and valve parts
- Heat exchanger tubes
- Fasteners and fittings for chemical plants
The alloy’s unique composition allows it to deliver reliable performance in demanding settings.
Product Forms and Availability
Monel alloys come in a wide range of product forms. This flexibility allows engineers to choose the best shape and size for each project. Manufacturers produce Monel alloys using advanced processes to ensure consistent quality.
Pipes, Tubes, Bars, Sheets, Wires, and Custom Shapes
Monel alloys are available in many standard and custom forms. The most common product types include:
- Pipes and Tubes: Used for transporting corrosive fluids in chemical plants and marine systems. Pipes and tubes come in various diameters and wall thicknesses.
- Bars: Used for making shafts, fasteners, and machine parts. Bars can be round, square, or hexagonal.
- Sheets and Plates: Used for fabricating tanks, vessels, and structural components. Sheets offer flexibility for cutting and forming.
- Wires: Used in electrical applications, springs, and musical instruments. Monel wire provides both strength and corrosion resistance.
- Custom Shapes: Manufacturers can produce custom profiles, forgings, and castings to meet specific design needs.
| Product Form | Typical Applications | Available Sizes/Shapes |
|---|---|---|
| Pipe/Tube | Chemical piping, heat exchangers | Seamless, welded, various diameters |
| Bar | Shafts, bolts, pump parts | Round, square, hex, custom |
| Sheet/Plate | Tanks, marine panels, covers | Thin sheets to thick plates |
| Wire | Springs, cables, electronics | Various gauges and coils |
| Custom Shapes | Specialized fittings, forgings | As per design requirements |
Engineers can request Monel alloys in specific sizes and shapes to match their project requirements. This adaptability makes Monel a preferred choice for many industries.
Monel’s wide range of product forms ensures that it meets the needs of diverse applications, from large industrial systems to precision components.
Chemical, Physical, and Mechanical Properties of Monel Alloys
Monel alloys display a unique combination of chemical, physical, and mechanical properties. These characteristics make them suitable for demanding industrial applications. Understanding these properties helps engineers select the right alloy for each environment.
Chemical Properties
Corrosion Resistance in Harsh Environments
Monel alloys show high corrosion resistance in a wide range of harsh environments. The nickel-copper blend forms a stable structure that resists attack from many chemicals. This resistance stands out in both natural and industrial settings. Laboratory tests confirm that Monel performs well in aggressive conditions. For example:
- Cyclic voltammetry tests on Monel electrodes in CO₂-saturated methanol reveal strong catalytic activity and stable electrochemical behavior.
- Onset potentials for cathodic currents in CO₂-saturated methanol measure around -0.14 V, with Monel showing larger cathodic current slopes than in N₂-purged conditions.
- Hydrogen formation efficiency under nitrogen reaches about 98%, showing effective reduction processes.
These results highlight Monel’s ability to maintain its properties even when exposed to corrosive chemicals.
Resistance to Acids, Alkalis, and Seawater
Monel alloys resist attack from acids, alkalis, and seawater better than many other metals. Corrosion resistance tests show that Monel outperforms stainless steels in acidic environments such as hydrofluoric acid. This high corrosion resistance makes Monel a preferred choice for marine and chemical processing industries. The alloy’s structure prevents rapid breakdown, even in saltwater or strong chemical solutions. Welding studies also show that Monel requires specific filler materials to avoid porosity, which reflects its unique chemical interactions during fabrication.
Physical Properties
Density and Melting Point
The physical properties of Monel include a moderate density and a high melting point. These features support its use in structural and high-temperature applications. The table below shows typical values:
| Property | Value (Imperial) | Value (Metric) | Temperature Condition |
|---|---|---|---|
| Density | 0.319 lbs/in³ | 8.8 g/cm³ | N/A |
| Thermal Conductivity | 14.0 BTU/hr/ft²/ft/°F | 24.1 W/m·K | 212 °F (100 °C) |
Monel alloys melt at temperatures between 1300°C and 1350°C (2370°F to 2460°F), which allows them to retain strength in high-heat environments.
Electrical and Thermal Conductivity
Monel alloys conduct electricity and heat better than many stainless steels. The copper content increases both electrical and thermal conductivity. This property supports their use in electrical connectors, heat exchangers, and marine equipment. The thermal conductivity of Monel at 100°C is about 24.1 W/m·K, which helps transfer heat efficiently in industrial systems.
Magnetic Behavior and Curie Temperature
Monel alloys are generally non-magnetic at room temperature. This property makes them valuable for applications where magnetic interference must be avoided, such as in sensitive electronic devices or marine navigation equipment. The Curie temperature, which marks the point where a material becomes magnetic, is higher than typical operating temperatures for Monel. As a result, Monel remains non-magnetic in most service conditions.
Mechanical Properties
Tensile and Yield Strength
The mechanical properties of Monel include high tensile and yield strength. These values depend on the alloy grade and processing method. Standardized tests provide the following figures for Monel 400 in the annealed condition:
| Mechanical Property | Value (Annealed Condition) |
|---|---|
| Tensile Strength | At least 480 MPa (70 ksi) |
| Yield Strength (0.2% offset) | At least 170 MPa (25 ksi) |
| Yield Strength (Cold-worked) | Exceeds 345 MPa (50 ksi) |
| Elongation (2 in.) | At least 30% |
| Modulus of Elasticity | Approximately 179 GPa (26 million psi) |
| Hardness (Rockwell B scale) | Up to 95 HRB |
These mechanical properties of Monel ensure reliable performance in high-stress environments.
Elongation, Toughness, and Fatigue Resistance
Monel alloys show excellent elongation and toughness. The elongation value of at least 30% means the alloy can stretch without breaking. This property helps Monel absorb shock and vibration. The toughness of Monel remains high even at low temperatures, making it suitable for cryogenic equipment. Fatigue resistance is another key property. Monel withstands repeated loading cycles, which is important for moving parts and structural components.
Crack and Fire Resistance
Monel alloys resist cracking under stress and exposure to harsh chemicals. The stable microstructure prevents the formation of brittle phases. This property reduces the risk of sudden failure in critical applications. Monel also shows strong fire resistance. The alloy does not ignite easily and maintains its properties at elevated temperatures. These features make Monel a safe choice for environments where fire and chemical exposure are concerns.
🔎 Monel alloys combine high corrosion resistance, reliable mechanical properties, and stable physical properties. These qualities explain their widespread use in marine, chemical, and aerospace industries.
Properties Tables by Monel Grade
Mechanical Properties Comparison
Engineers often compare the mechanical properties of different Monel grades to select the best material for each application. These properties include tensile strength, yield strength, elongation, and hardness. The following table shows a side-by-side comparison of the main Monel grades and related weld zones. The data highlights how each grade performs during tensile testing at various stages.

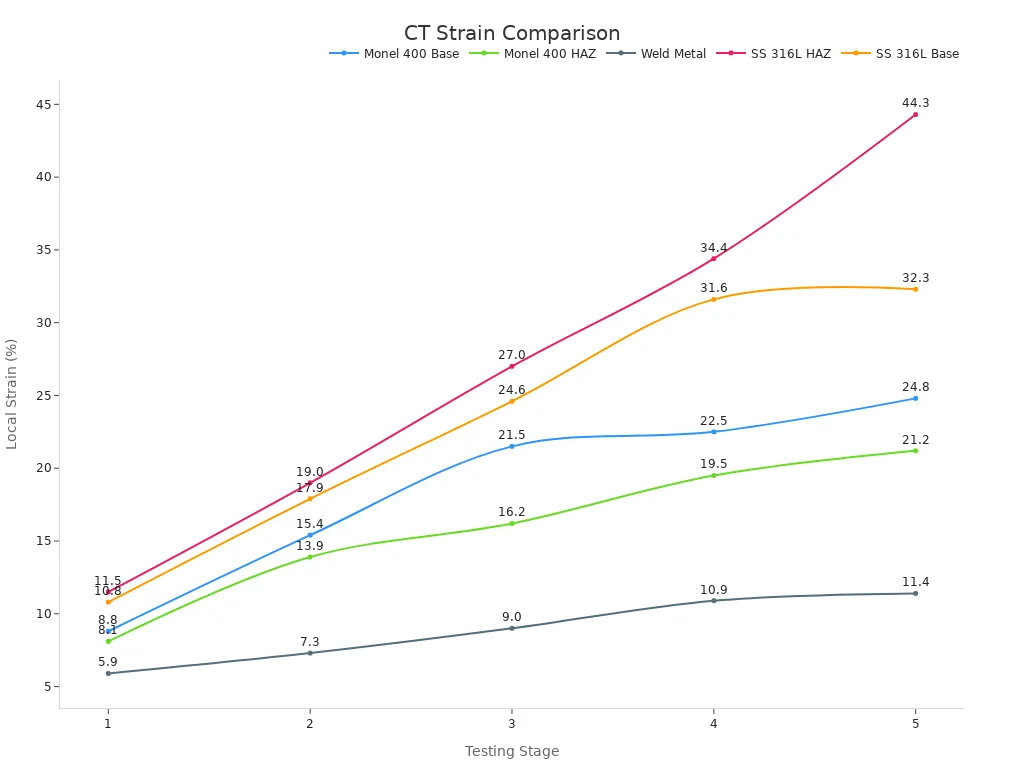

| Stage | Monel 400 Base | Monel 400 HAZ | Weld Metal | SS 316L HAZ | SS 316L Base |
|---|---|---|---|---|---|
| 1 | 8.8% | 8.1% | 5.9% | 11.5% | 10.8% |
| 2 | 15.4% | 13.9% | 7.3% | 19.0% | 17.9% |
| 3 | 21.5% | 16.2% | 9.0% | 27.0% | 24.6% |
| 4 | 22.5% | 19.5% | 10.9% | 34.4% | 31.6% |
| 5 | 24.8% | 21.2% | 11.4% | 44.3% | 32.3% |
Note: The table above shows local strain (%) values at five stages of tensile testing for cryo-treated specimens. Monel 400 base consistently shows higher strain than its heat-affected zone (HAZ), while weld metal has lower strain due to its higher tensile strength. SS 316L HAZ displays the highest strain, making it the weakest zone and the most likely failure point.
Monel grades like 400 and K-500 offer strong mechanical properties. Monel 400 provides good ductility and toughness, while Monel K-500 delivers higher tensile strength and hardness. The weld metal, although strong, tends to be less ductile than the base metal. These differences help engineers choose the right grade for each job.
Cryo-treated specimens show improved strength and ductility compared to heat-treated and untreated samples. The maximum local strain at necking reaches 44.3% in SS 316L HAZ, while Monel 400 base achieves 24.8%. True stress values for cryo-treated specimens are also higher, confirming better mechanical properties.
Physical Properties Comparison
Physical properties play a key role in how Monel grades perform in real-world conditions. These properties include density, melting point, thermal conductivity, and electrical conductivity. The table below compares the main physical properties of popular Monel grades.
| Property | Monel 400 | Monel K-500 | Monel R-405 |
|---|---|---|---|
| Density (g/cm³) | 8.8 | 8.44 | 8.8 |
| Melting Point (°C) | 1300–1350 | 1280–1345 | 1300–1350 |
| Thermal Conductivity | 24.1 W/m·K | 17.0 W/m·K | 24.1 W/m·K |
| Electrical Resistivity | 0.36 μΩ·m | 0.42 μΩ·m | 0.36 μΩ·m |
| Magnetic Behavior | Non-magnetic | Non-magnetic | Non-magnetic |
- Monel 400 and R-405 share similar density and melting points, while Monel K-500 has slightly lower density due to its alloying elements.
- Monel K-500 shows lower thermal conductivity and higher electrical resistivity than Monel 400, which results from the addition of aluminum and titanium.
- All Monel grades remain non-magnetic at room temperature, making them suitable for sensitive electronic and marine applications.
🧑🔬 Engineers value these physical properties because they ensure Monel grades can handle high temperatures, resist corrosion, and perform reliably in demanding environments.
The combination of mechanical and physical properties makes Monel alloys a top choice for industries that require strength, durability, and resistance to harsh conditions.
Advantages and Limitations of Monel Alloys
Key Advantages of Monel Alloys
Superior Corrosion Resistance
Monel stands out for its excellent corrosion resistance. The nickel-copper blend protects the alloy from acids, alkalis, and seawater. Many industries choose monel for harsh environments where other metals fail. This resistance helps prevent rust and extends the life of equipment.
High Mechanical Strength and Toughness
Monel provides good mechanical strength and toughness. Engineers rely on this alloy for parts that must handle heavy loads or repeated stress. Mechanical testing of Monel alloy/Cu explosively cladded rods shows that the bond between monel and copper remains strong. Fractures occur on the copper side, not at the interface, proving the alloy’s superior strength and bonding quality. These results support the use of monel in demanding construction and engineering projects.
Non-Magnetic and Fire Resistant
Monel remains non-magnetic at room temperature. This property makes it useful for sensitive electronic devices and marine navigation systems. The alloy also resists fire, keeping its structure stable even when exposed to high heat. These features add safety and reliability in critical applications.
Good Machinability (R-405)
Monel R-405 offers improved machinability. The higher sulfur content in this grade allows for easier cutting and shaping. Manufacturers can produce complex parts more efficiently. This advantage saves time and reduces production costs for certain components.
Temperature Stability
Monel maintains its properties across a wide temperature range. The alloy shows resistance to high temperatures, making it suitable for engines, turbines, and heat exchangers. High performance monel alloys do not lose strength or toughness when exposed to extreme heat or cold.
Main Limitations of Monel Alloys
Work Hardening During Machining
Monel tends to harden quickly when machined. This work hardening can make further processing difficult. Special tools and techniques are often needed to shape the alloy without causing damage.
Susceptibility to Pitting and Stress Corrosion
Although monel resists most forms of corrosion, it can suffer from pitting and stress corrosion in certain environments. Chloride-rich solutions may cause small pits or cracks to form over time. Regular inspection helps prevent unexpected failures.
Galvanic Corrosion Risks
When monel contacts other metals, especially in wet conditions, galvanic corrosion can occur. This process may damage the less noble metal. Engineers must select compatible materials and use protective coatings to reduce this risk.
Higher Cost Compared to Stainless Steel
Monel costs more than stainless steel. The higher price comes from the large amount of nickel in the alloy. This limitation means that monel is often reserved for applications where its unique properties are essential.
Comparison with Other Alloys
Monel Alloys vs. Stainless Steel
Monel offers better corrosion resistance in seawater and acidic environments than stainless steel. Stainless steel contains more chromium, which helps resist rust, but monel performs better in certain chemicals. Monel also stays non-magnetic, while some stainless steels become magnetic. However, stainless steel usually costs less and is easier to machine.
Monel Alloys vs. Copper-Nickel Alloys
Copper-nickel alloys contain more copper and less nickel than monel. Monel provides higher strength and better corrosion resistance in many cases. Quantitative assessments show that monel alloy composites have optimized bonding quality and mechanical performance compared to pure copper. In terms of environmental impact, machining monel with advanced lubrication methods, such as nano-based minimum quantity lubrication, reduces carbon emissions compared to dry cutting. This makes monel a more sustainable choice for some manufacturing processes.
Tip: Choosing the right alloy depends on the environment, required strength, and budget. Monel alloys deliver unique advantages for high-stress and corrosive settings.
Applications of Monel Alloys Across Industries
Monel alloys play a vital role in many industries. Their unique properties make them a top choice for challenging environments. The following sections explore how monel supports marine engineering, chemical processing, and aerospace engineering.
Marine Engineering Applications
Monel has a long history in marine engineering. Its resistance to seawater and corrosion makes it ideal for marine applications. Engineers trust monel to deliver reliable performance in harsh ocean conditions.
Propellers, Shafts, Valves, and Cables
Monel serves as a preferred material for propellers and shafts on ships and submarines. The alloy resists corrosion from saltwater, which helps extend the life of these parts. Shipbuilders use monel for valves and pumps that handle seawater. The alloy’s toughness prevents damage from impact and vibration. Marine cables made from monel last longer because they do not rust or break down easily.
- Propellers made from monel keep their shape and strength, even after years in the ocean.
- Shafts and valves crafted from monel resist pitting and cracking.
- Marine cables using monel provide safe and stable connections for navigation and communication.
Water and Fuel Tanks, Basket Strainers
Monel also protects water and fuel tanks on ships. The alloy prevents leaks and contamination by resisting chemical attack. Basket strainers made from monel filter debris from seawater systems. These strainers do not corrode, so they keep working for a long time. Monel’s use in these marine applications helps reduce maintenance costs and downtime.
Tip: Monel’s ability to withstand both fresh and saltwater environments makes it a smart choice for critical marine engineering projects.
Chemical and Petroleum Industry Applications
Monel finds many uses in the chemical industry and petroleum sector. The alloy’s resistance to acids and alkalis supports safe and efficient chemical processing.
Process Vessels, Heat Exchangers, Piping
Chemical plants use monel to build process vessels and heat exchangers. These parts must handle strong acids, alkalis, and high temperatures. Monel’s structure prevents corrosion and keeps the equipment safe. Piping systems made from monel carry chemicals without leaking or breaking down. The alloy’s strength allows it to handle high pressure and flow rates.
- Process vessels made from monel last longer than those made from other metals.
- Heat exchangers using monel transfer heat efficiently and resist scaling.
- Monel piping supports safe chemical processing by preventing leaks and failures.
Crude Oil Towers, Extraction Wells
In the petroleum industry, monel protects crude oil towers and extraction wells. The alloy stands up to sour gas, brine, and other harsh fluids. Monel’s durability reduces the risk of equipment failure and environmental damage. Oil companies use monel for downhole tools and wellhead components. These parts must work deep underground, where conditions are extreme.
Note: Monel’s performance in chemical processing and petroleum extraction helps companies meet safety and environmental standards.
Aerospace and Defense Applications
Monel supports many aerospace and defense applications. The alloy’s strength, non-magnetic nature, and resistance to heat make it valuable for critical parts.
Jet Aircraft Coatings, Space Constructions
Aerospace engineers use monel for jet engine coatings and space structures. The alloy protects parts from heat, pressure, and corrosion. Monel coatings help jet engines run safely at high speeds. Spacecraft builders use monel for frames and panels that must survive extreme conditions.
Monel’s acceptance in aerospace engineering comes from strict quality standards. Suppliers meet certifications such as AS9100D, AMS, ASTM, and military specifications. Companies like Hurricane Aerospace hold ASA-100 Quality Assurance accreditation and comply with FAA Advisory Circular 00-56. They also register under ITAR and DDTC for defense trade controls. All monel parts come with factory certificates and full traceability, meeting Mil-I-45208 standards. These certifications ensure that monel alloys meet the demands of aerospace and defense applications.
Locking Wire and Fasteners
Monel locking wire and fasteners secure critical components in aircraft and defense systems. The alloy’s non-magnetic property prevents interference with sensitive instruments. Monel fasteners resist vibration and temperature changes, which keeps assemblies tight and safe. Defense contractors choose monel for parts that must meet strict military standards. Many suppliers comply with EN 9100:2009, ITAR registration, and AMS standards. These certifications show that monel is reliable for mission-critical aerospace and defense applications.
🛩️ Monel’s proven track record in aerospace and defense comes from its strength, safety, and compliance with global standards.
Electronics and Specialized Equipment Applications
Monel alloys play a crucial role in electronics and specialized equipment. Their unique properties make them valuable for many advanced applications.
Non-Magnetic Components
Engineers often select Monel alloys for non-magnetic components. These alloys do not interfere with sensitive electronic signals. Many devices require materials that remain stable in magnetic fields. Monel provides this stability. For example, manufacturers use Monel in relay bases, switches, and connectors. These parts must not affect the performance of nearby circuits.
Monel also resists corrosion from moisture and chemicals. This resistance helps electronic devices last longer. In some cases, Monel components operate in harsh environments, such as offshore platforms or chemical plants. The alloy’s durability ensures reliable function over time.
Tip: Non-magnetic Monel parts help prevent errors in navigation systems and medical imaging equipment.
Magnetic Field Measuring Devices
Monel alloys support the construction of magnetic field measuring devices. These devices need materials that do not distort magnetic readings. Monel’s non-magnetic nature makes it ideal for sensor housings and probe covers.
Scientists and engineers use Monel in fluxgate magnetometers and Hall effect sensors. These instruments measure magnetic fields in laboratories, submarines, and spacecraft. Monel protects the sensitive parts inside these devices. The alloy’s resistance to corrosion and wear adds to its value.
A table below shows common Monel applications in electronics:
| Application Type | Monel Component Example | Benefit Provided |
|---|---|---|
| Relay and Switch Bases | Non-magnetic contacts | Signal integrity |
| Sensor Housings | Probe covers | Accurate measurements |
| Connectors | Electrical terminals | Corrosion resistance |
Monel’s role in electronics and specialized equipment continues to grow. The alloy supports new technologies that demand both strength and stability.
Everyday and Consumer Product Applications
Monel alloys also appear in many everyday products. Their strength and resistance to corrosion make them a smart choice for consumer goods.
Eyeglass Frames, Kitchen Sinks, Water Heaters
Manufacturers use Monel alloys to produce eyeglass frames. These frames resist sweat and skin oils. They do not rust or tarnish easily. People who wear Monel eyeglasses enjoy comfort and durability.
Kitchen sinks made from Monel last for many years. The alloy stands up to water, cleaning agents, and food acids. Monel sinks keep their shine and do not develop stains. Water heaters with Monel elements resist scale buildup. This resistance helps the heater work efficiently and last longer.
- Eyeglass Frames: Lightweight, hypoallergenic, and corrosion-resistant.
- Kitchen Sinks: Durable, easy to clean, and long-lasting.
- Water Heaters: Efficient heating elements with reduced maintenance needs.
Musical Instruments and Strings
Musicians value Monel alloys for their unique sound and reliability. Guitar and bass strings made from Monel produce a warm, rich tone. These strings last longer than many others because they resist corrosion from sweat and humidity.
Instrument makers also use Monel for trumpet valves, saxophone keys, and other parts. The alloy’s smooth surface allows for fast, precise movement. Monel components help instruments stay in tune and perform well during concerts.
🎵 Monel strings and parts give musicians confidence in their instruments, both on stage and in the studio.
Monel’s presence in consumer products shows its versatility. The alloy meets the needs of both advanced industries and everyday life. Its wide range of applications proves its value across many fields.
Selecting the Right Monel Alloy Grade
Factors to Consider for Monel Alloys
Corrosion Environment and Mechanical Demands
Selecting the right monel alloy starts with understanding the environment where the material will operate. Engineers must check if the alloy will face seawater, acids, or high temperatures. Monel alloys show different levels of corrosion resistance and mechanical strength. For example, monel 400 offers strong protection in seawater, while other grades may perform better in chemical plants. Mechanical demands such as tensile strength and hardness also play a key role. Each application requires a careful match between the alloy’s properties and the working conditions.
Magnetic Requirements
Some industries need non-magnetic materials. Monel alloys remain non-magnetic at room temperature, which makes them useful for electronic devices and marine navigation systems. When choosing a monel grade, engineers should confirm that the alloy will not interfere with sensitive equipment. This property helps prevent errors in measurement and operation.
Machinability and Fabrication Needs
Machinability affects how easily a monel alloy can be shaped into parts. Monel R-405, for example, contains more sulfur to improve machinability. This grade works well for automatic screw machines and complex fittings. Fabrication needs may include welding, forming, or cutting. Each monel grade responds differently to these processes. Engineers should select a grade that matches the production method and final product requirements.
Cost-Benefit Analysis
Cost always matters in material selection. Monel alloys often cost more than stainless steel or copper-nickel alloys. However, their longer service life and lower maintenance can offset the higher price. Engineers should compare the total cost of ownership, not just the initial expense. The right monel grade can save money over time by reducing repairs and replacements.
Tip: Always balance performance needs with budget limits to get the best value from monel alloys.
Guidance for Industry Professionals
Matching Monel Grade to Application
Industry professionals use quantitative criteria to match monel grades to specific applications. The table below shows key properties for several common alloys:
| Alloy Grade | Nickel Content (%) | Other Key Elements (%) | Key Quantitative Performance Criteria | Typical Applications |
|---|---|---|---|---|
| Alloy 400 (Monel) | ~63 | Copper 28-34 | Exceptional corrosion resistance in seawater, mechanical strength, thermal stability | Marine equipment, desalination plants |
| Alloy 600 | 72+ | Chromium 14-17, Iron 6-10 | Excellent oxidation resistance, high temperature strength | Heat treatment equipment, nuclear applications |
| Alloy 625 | 58+ | Chromium 20-23, Molybdenum 8-10 | Superior corrosion resistance, especially in marine environments | Chemical processing, marine environments |
| Alloy 800H/HT | 30-35 | Chromium 19-23, Iron 39.5 min | Enhanced high-temperature strength and thermal stability | Petrochemical furnaces, heat exchangers |
| Alloy X-750 | 70+ | Chromium 14-17, Titanium 2.25-2.75 | High strength, creep resistance at elevated temperatures | Gas turbines, aerospace components |
| Alloy C-276 | 55+ | Molybdenum 15-17, Chromium 14.5-16.5 | Extreme corrosion resistance in aggressive chemical environments | Chemical processing, waste treatment |
Engineers should review these criteria and select the monel grade that meets the demands of their project. For example, marine engineers often choose monel 400 for its seawater resistance, while chemical plants may prefer alloy 625 for its superior corrosion protection.
When to Choose Monel Over Alternatives
Monel alloys work best when the environment is highly corrosive or when non-magnetic properties are needed. If the application involves seawater, acids, or high temperatures, monel often outperforms stainless steel and copper-nickel alloys. When cost is a concern, engineers should consider the long-term savings from reduced maintenance and longer equipment life. Monel becomes the top choice when reliability and safety cannot be compromised.
Copyright and Trademark Notices
Monel is a registered trademark of Special Metals Corporation. All product names, trademarks, and registered trademarks are the property of their respective owners. Use of these names does not imply any affiliation or endorsement.
Monel alloys combine nickel and copper to create materials with outstanding corrosion resistance and strength. Their history shows a steady rise in value across marine, chemical, and aerospace industries. The table below highlights their main benefits and limitations:
| Performance Aspect | Strengths | Weaknesses |
|---|---|---|
| Corrosion Resistance | Superior in harsh environments | — |
| High-Temperature Stability | Reliable at elevated temperatures | — |
| Strength and Hardness | Matches or exceeds many alloys | — |
| Workability | Good weldability and toughness | Work hardening during machining |
| Cost-Effectiveness | Durable, reduces maintenance | Higher initial cost |
| Availability | — | Less common than standard materials |
Selecting the right Monel grade ensures optimal performance in demanding applications.
FAQ
What is The Difference Between Monel 400 and Monel K-500?
Monel 400 vs Monel K500 differ in several key aspects, including mechanical properties, chemical composition, and corrosion resistance. Monel 400 is primarily composed of nickel and copper, while Monel K500 includes added aluminum and titanium, which enhance its strength. Due to this unique alloy mix and heat treatment, Monel K500 is harder and can withstand greater stress. Both Monel 400 and Monel K500 offer excellent resistance to corrosion, making them ideal for harsh environments. According to reports like the Monel Market Report 2025, these alloys are widely used in marine, oil, and chemical industries. Choosing between Monel 400 vs Monel K500 depends on factors such as required strength, application environment, and cost.
What is the main difference between Monel and stainless steel?
Monel contains mostly nickel and copper. Stainless steel contains iron, chromium, and less nickel. Monel resists corrosion better in seawater and acids. Stainless steel costs less and is easier to find.
Can Monel alloys be welded easily?
Monel alloys can be welded using special techniques. Welders often use matching filler metals. Proper cleaning before welding helps prevent defects. Monel welds show strong corrosion resistance.
Where do engineers use Monel alloys most often?
Engineers use Monel in marine, chemical, and aerospace industries. Common products include propeller shafts, valves, heat exchangers, and fasteners. Monel also appears in musical instruments and eyeglass frames.
Is Monel magnetic?
Monel alloys are non-magnetic at room temperature. This property makes them useful for electronic devices and marine navigation equipment. Monel does not interfere with sensitive instruments.
How does Monel handle high temperatures?
Monel keeps its strength and toughness at high temperatures. The alloy works well in engines, turbines, and heat exchangers. Monel does not lose its properties in extreme heat.
What are the main drawbacks of using Monel?
Monel costs more than stainless steel. The alloy hardens quickly during machining. Monel can suffer from pitting in some environments. Engineers must consider these factors before choosing Monel.
How do you maintain Monel equipment?
Clean Monel surfaces with mild soap and water. Avoid harsh chemicals. Inspect equipment regularly for signs of wear or corrosion. Proper care extends the life of Monel products.
