Imagine you order pipes for a job and get the wrong size. This can happen if you read the nominal pipe size wrong. This mistake can slow down your work and cost more money. Accurate Pipe size measurement conversions help you stop these problems. You must follow international standards if your team works in different countries. Use the chart and tips here to make good choices every time.
Key Takeaways
- Getting pipe sizes right stops expensive errors. Always check the size before you buy or put in pipes.
- Use charts and tables to change between nominal sizes, metric, and DN. This helps you pick the correct pipe for your job.
- Know the difference between nominal and actual pipe sizes. Nominal sizes are not exact. Always check the real measurements.
- Wall thickness changes pipe size. Look at the schedule to make sure your pipes can handle the flow and pressure.
- Learn about international standards. This helps you work well with teams from other countries.
Nominal Pipe to Fraction to Decimal to Metric to DN Conversion Chart
You can download the pipe size chart in mm and inches file here:
Pipe Size Measurement Conversions
Conversion Methods
Sometimes you need to change pipe sizes between systems. These systems are NPS, fractional inches, decimal inches, metric, and DN. Each system has its own way to show pipe size. Tables and charts can help you with these conversions.
Here is a table that helps you change between NPS, fractional inches, decimal inches, metric, and DN:
| Nominal Pipe Size (NPS) | Fractional Inches | Decimal Inches | Metric (mm) | Diameter Nominal (DN) |
|---|---|---|---|---|
| NPS 1/2″ | 1/2″ | 0.500 | 12.7 | DN 15 |
| NPS 3/4″ | 3/4″ | 0.750 | 19.05 | DN 20 |
| NPS 1″ | 1″ | 1.000 | 25.4 | DN 25 |
| NPS 1 1/4″ | 1 1/4″ | 1.250 | 31.75 | DN 32 |
| NPS 1 1/2″ | 1 1/2″ | 1.500 | 38.1 | DN 40 |
| NPS 2″ | 2″ | 2.000 | 50.8 | DN 50 |

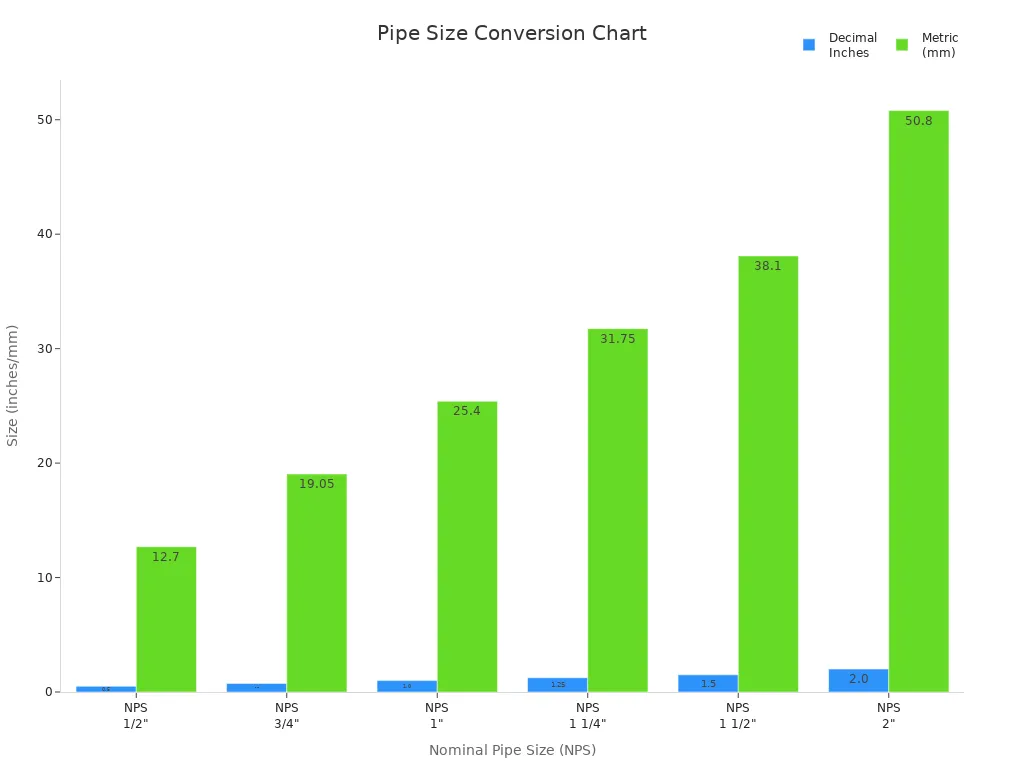

Charts make it easy to compare pipe sizes fast. The chart below shows how decimal inches match with metric millimeters:
To change inches to millimeters, multiply by 25.4. For example, 1 inch is 25.4 millimeters. To get DN, round the metric size to the closest DN number. This helps you match pipes from different systems.
You might need to know the circumference and area of a pipe. Here is a table with these numbers for common sizes:
| Size (inches) | Circumference (inches) | Area (square inches) |
|---|---|---|
| 1/2 | 1.571 | 0.196 |
| 1 | 3.142 | 0.785 |
| 2 | 6.283 | 3.142 |
Use these tables to change pipe sizes quickly and correctly for your projects.
Why Accuracy Matters
It is important to use the right pipe size conversions. This keeps your projects safe and working well. Using the wrong size can cause many problems:
- Pipes that are not the right size use more energy and can break equipment.
- Pipes that are too small can make flow bad and hurt chillers.
- Pipes that are too big can slow water and let bacteria grow.
- Wrong pipe sizes make pumps work harder and cost more money.
If you pick the wrong size, the flow rate changes and your system works worse. Picking the right size helps you avoid problems with how much your system can do and its quality.
| Consequence | Description |
|---|---|
| Safety Hazards | Mistakes can put lives at risk in jobs like aerospace or civil engineering. |
| Financial Losses | Redesigns or recalls can cost a lot of money. |
| Reputation Damage | Big mistakes can hurt a company’s reputation. |
| Legal & Regulatory Issues | Problems with conversions can lead to lawsuits or fines. |
| Environmental Impact | Wrong calculations can hurt nature or waste resources. |
Tip: Always check your pipe size conversions before you order or install pipes. This can save you time, money, and trouble.
Learning these conversions helps you avoid expensive mistakes. Good conversions keep your piping safe, working well, and ready for any job.
Nominal Pipe Size and Terminology
What is Nominal Pipe Size?
You will see nominal pipe size a lot when working with pipes. This is a standard used in North America. It helps people know what size pipe to use for different jobs. The word nominal means the size is not exact. It lets you talk about pipe size without using the real measurement. For example, a 2-inch nominal pipe size does not mean the pipe is 2 inches wide on the outside. A 2-inch pipe is actually 2.375 inches wide on the outside. Standards like ISO 6708, ANSI B36.10, and ANSI B36.19 set these rules. The international term for this is diametre nominal, and it uses millimeters.
You should remember that nominal size and actual size are not the same. The real size can change because of wall thickness or who made the pipe. This can be confusing if you do not check the measurements.
| Aspect | Nominal Pipe Size (NPS) | Actual Pipe Dimensions |
|---|---|---|
| Definition | Standardized designation | Actual measurements of the pipe |
| Measurement Basis | Based on inches | Varies by manufacturer |
| Example | NPS 2 has an OD of 2.375 inches | Actual ID varies with wall thickness |
| Standardization | Used in North America | Varies internationally |
Note: Always check both the nominal and actual sizes before you order or install piping.
Fractional and Decimal Sizes
Pipe sizes can be written as fractions or decimals. Fractional sizes use numbers like 1/2 or 3/4. These are common in plumbing and building work. Decimal sizes use numbers like 0.500 or 0.750. Civil engineers use decimal sizes for more exact work, like measuring how deep something is.
| Measurement Type | Description | Typical Use in Industry |
|---|---|---|
| Fractional | Refers to pipe sizes in inches, commonly used in the Imperial system. | Used for various types of pipes, especially in plumbing and construction. |
| Decimal | A variation that divides feet into tenths, hundredths, and thousands. | Commonly used by civil engineers for precise measurements in utility depth and distance. |
It is important to know how to read both types. This helps you avoid mistakes when you compare or order pipes.
Diametre Nominal (DN)
Diametre nominal, or DN, is used for pipe sizing in Europe and other places that use metric. DN uses millimeters to show about how wide the inside of a pipe is. For example, a DN50 pipe has an inside width close to 50 millimeters, but it is not exact. The real size can change if the wall is thick or thin. If a pipe is marked DN20 and has a wall thickness of 1.5 mm, the inside width will be 22 mm, not 20 mm.
- DN is used a lot in Europe and other places that use metric.
- The DN number helps you compare sizes fast, but always check the real diameter.
You will see both nominal pipe size and diametre nominal on jobs in different countries. Knowing the difference helps you pick the right size and not make costly mistakes.
Pipe Sizes Chart
Understanding pipe sizes helps you avoid mistakes when you select materials for your project. You can use charts to compare the dimensions of pipes and tubes across different systems. These charts show you the relationship between NPS, fractional inches, decimal inches, metric sizes, and DN values. When you use these tools, you make sure your piping matches the needs of your job.
NPS to Fractional and Decimal
You often see pipe sizes listed as NPS (Nominal Pipe Size) in the United States. These sizes also appear as fractions or decimals. The table below shows common NPS sizes with their matching fractional and decimal values. This makes it easy to check the diameter of each pipe.
| NPS (Inch) | Fractional | Decimal (in) |
|---|---|---|
| 1/8″ | 1/8″ | 0.125 |
| 1/4″ | 1/4″ | 0.250 |
| 3/8″ | 3/8″ | 0.375 |
| 1/2″ | 1/2″ | 0.500 |
| 3/4″ | 3/4″ | 0.750 |
| 1″ | 1″ | 1.000 |
| 1 1/4″ | 1 1/4″ | 1.250 |
| 1 1/2″ | 1 1/2″ | 1.500 |
| 2″ | 2″ | 2.000 |
| 2 1/2″ | 2 1/2″ | 2.500 |
| 3″ | 3″ | 3.000 |
| 4″ | 4″ | 4.000 |
| 5″ | 5″ | 5.000 |
| 6″ | 6″ | 6.000 |
| 8″ | 8″ | 8.000 |
| 10″ | 10″ | 10.000 |
| 12″ | 12″ | 12.000 |
| 14″ | 14″ | 14.000 |
| 16″ | 16″ | 16.000 |

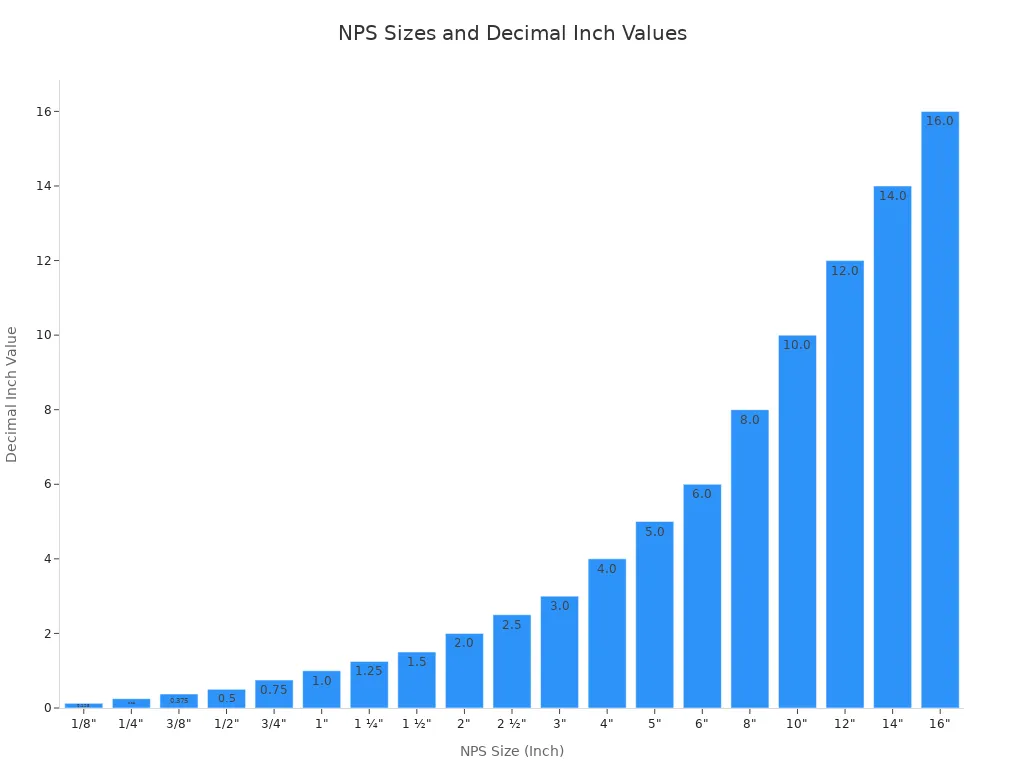

You can also see the relationship in this chart:
Tip: When you compare pipe sizes, always check both the fractional and decimal values. This helps you avoid confusion in your piping work.
NPS to Metric and DN
Many projects use metric measurements or DN (diametre nominal) to describe the dimensions of pipes and tubes. The next table shows how NPS sizes match with metric and DN values. You can use this chart to convert between systems and find the right pipe for your needs.
| NPS | Fractional | Decimal | Metric (mm) | DN |
|---|---|---|---|---|
| 1 | 1/4 | 0.25 | 6.35 | 6 |
| 2 | 1/2 | 0.5 | 12.7 | 15 |
| 3 | 3/4 | 0.75 | 19.05 | 20 |
| 4 | 1 | 1 | 25.4 | 25 |
| 6 | 1 1/2 | 1.5 | 38.1 | 40 |
| 8 | 2 | 2 | 50.8 | 50 |

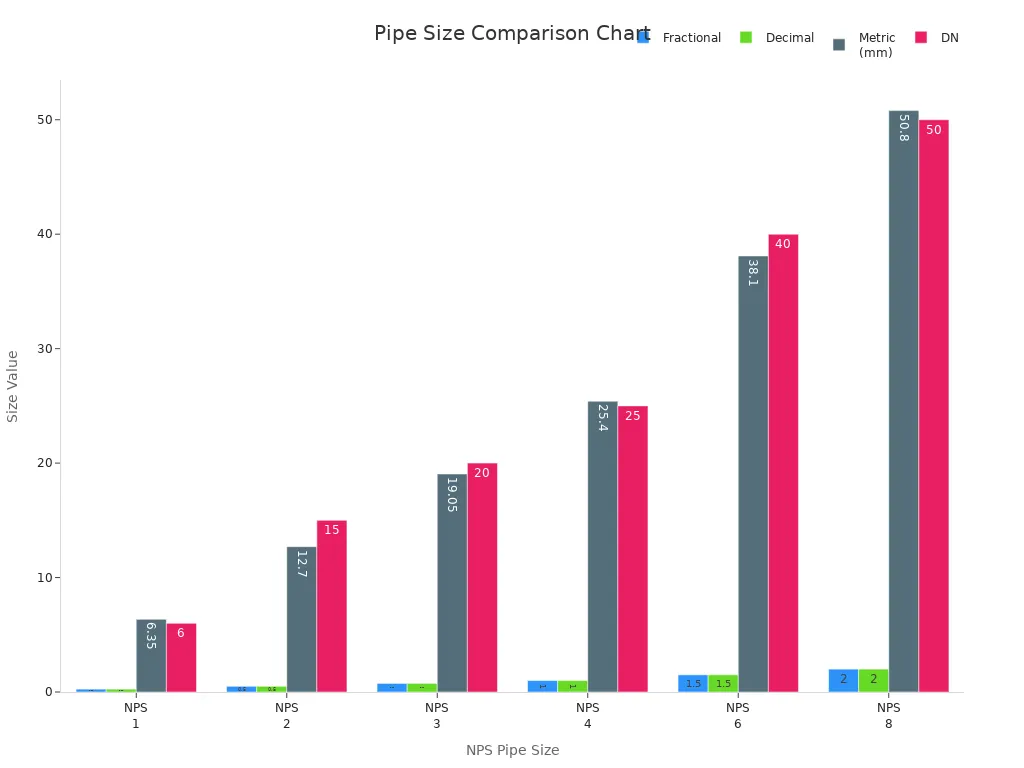

You can also see how these values compare in the grouped bar chart below:
When you work with international teams, you will often need to convert pipe sizes between these systems. Always use a chart to check the diameter and pipe dimensions before you order or install anything. This step helps you match the right pipe to your project and keeps your piping safe and reliable.
Note: Charts like these save you time and help you avoid costly mistakes when you compare the dimensions of pipes and tubes.
Discrepancies in Sizes
Historical Standards
Sometimes, the size on a pipe is not its real size. This started a long time ago. In the 1860s, the Briggs Standards helped fix pipe size problems. Robert Briggs wanted pipes from different companies to fit together. This was very important during the Civil War. These rules later became American Standards. The ASTM A53 Steel Pipe Standard still uses Briggs sizes for pipes from 1/2 inch to 4 inches. Bigger pipes have real sizes closer to what is printed. The nominal pipe size system lets you use pipes made from many materials for different jobs.
- The Briggs Standards are the start of modern pipe sizing.
- ASTM A53 uses these rules for small pipes.
- Bigger pipes have real sizes closer to their nominal sizes.
Pipe Wall Thickness
Wall thickness changes the inside and outside of a pipe. This is called “schedule.” Thicker walls make the inside smaller. This changes how much water or air can go through.
| Pipe Size (NPS) | Schedule | Wall Thickness (inches) | Internal Diameter (ID) Effect |
|---|---|---|---|
| 1.000” | 40 | 0.133 | Smaller ID due to thicker wall |
| 2.000” | 40 | 0.154 | Smaller ID due to thicker wall |
| 1.000” | 80 | 0.179 | Smaller ID due to thicker wall |
| 2.000” | 80 | 0.218 | Smaller ID due to thicker wall |
Note: Always check the schedule when you pick a pipe. Wall thickness changes how much fluid can move.
Manufacturing Variations
Pipes are not always made exactly the same. Standards let pipes be a little bigger or smaller. These small changes are called tolerances. You need to know about tolerances to stop problems in your piping.

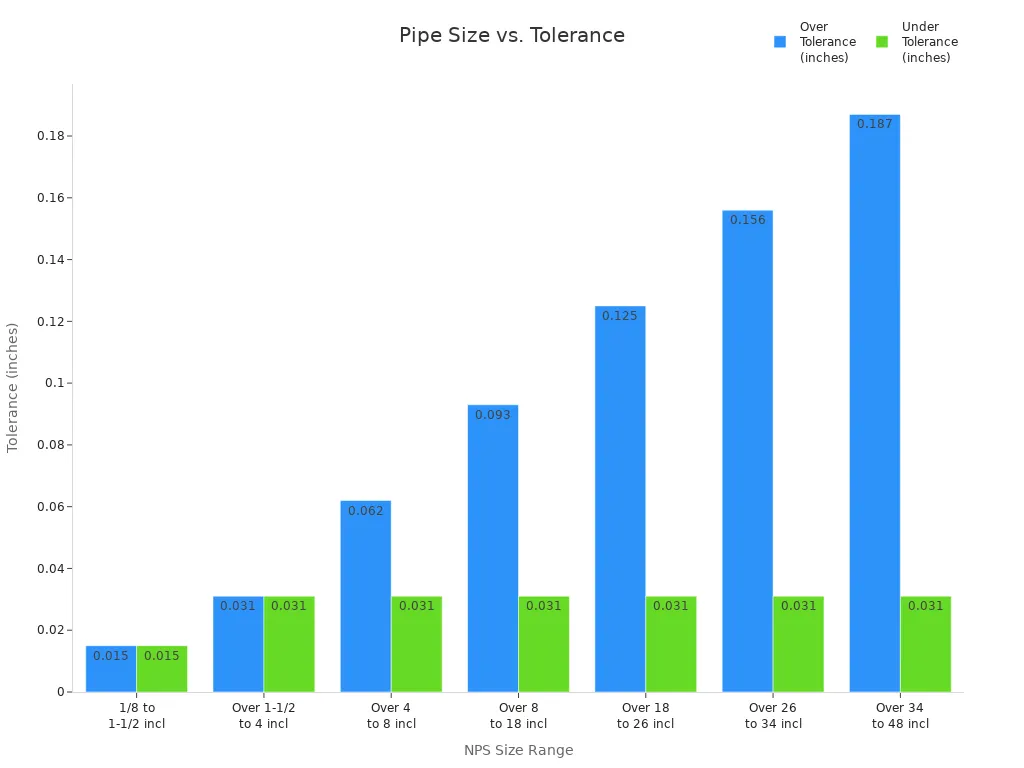

| NPS Size Range | Over (in.) | Under (in.) |
|---|---|---|
| 1/8 to 1-1/2 incl | 0.015 | 0.015 |
| Over 1-1/2 to 4 incl | 0.031 | 0.031 |
| Over 4 to 8 incl | 0.062 | 0.031 |
| Over 8 to 18 incl | 0.093 | 0.031 |
| Over 18 to 26 incl | 0.125 | 0.031 |
| Over 26 to 34 incl | 0.156 | 0.031 |
| Over 34 to 48 incl | 0.187 | 0.031 |
Tip: Tolerances help you plan for small size changes. Always check the details before you order.
Metric vs. Imperial Calculations
Switching between metric and imperial can cause mistakes. You must change measurements carefully. If you use the wrong diameter, your flow and pressure numbers will be wrong. This can make equipment too big or too small. Your piping may not work right.
- Pipe size mistakes can change flow and pressure.
- Wrong math can cost more and cause safety issues.
- You must enter fluid details like speed, density, and temperature right.
Remember: Good measurements and conversions keep your piping safe and working well. Always check your math to stop expensive mistakes.
Importance of Accurate Calculations
Engineering and Standardization
You need to use the right calculations for safe piping. This helps your system work well and not waste energy. When you pick a pipe size, you should follow rules from experts. These rules help you save money and keep things safe. You also want your pipes to last and not break. The table below shows what you should think about when you choose a nominal pipe size:
| Criteria | Description |
|---|---|
| Importance of Line Sizing | Needed for good performance and safety in plants. |
| Economic Analysis | Helps balance cost now and later expenses. |
| Velocity and Pressure Drop | Makes sure flow is right and stops pressure issues. |
| Structural and Mechanical Needs | Checks pipes have support and do not bend. |
You must follow codes and standards for piping. These rules help you work with teams from other places. Standardization makes your job easier and helps you avoid mistakes.
Procurement and Maintenance
When you buy pipes, you want the right size. If you pick the wrong nominal pipe size, you may have delays or pay more. Maintenance teams fix leaks or joints that do not fit if sizes are wrong. You can stop these problems by checking your measurements and using the right calculations.
- Pipes that do not match can slow down installation.
- Leaks can happen if joints do not seal tight.
- Old pipes may need costly fixes if sizes are wrong.
Avoiding Mismatches
You can stop mismatches by using good habits. The table below shows common problems and how to avoid them:
| Cause | Description | Preventive Measure |
|---|---|---|
| Material Incompatibility | Mixing materials can cause rust or damage. | Use the same material types for all pipes. |
| Poor Installation Practices | Bad installation can make pipes break. | Follow rules and test joints for leaks. |
| Pressure Surges | Too much pressure can break fittings. | Use regulators and pick the right fittings. |
| Temperature Failures | Very hot or cold can hurt pipes. | Pick fittings for the temperature and allow for change. |
International Compatibility

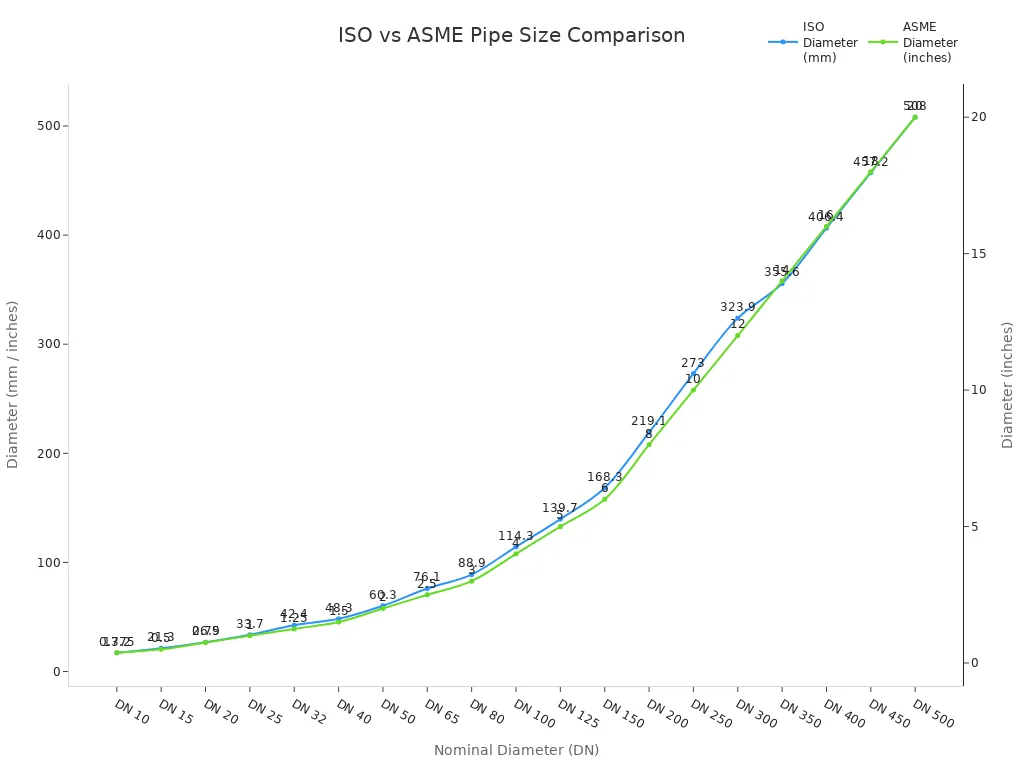

You may work with teams from other countries. International standards like ISO and ASME help you match pipe sizes everywhere. The chart below shows how DN, ISO, and ASME sizes compare:
These standards help your pipes fit and work in any place. They also make things safer and better. When you use the right nominal pipe size and follow global rules, your projects work well.
You should know how to change between nominal pipe size, diametre nominal, and other sizing systems. This helps you pick the right pipe for each job. It also keeps your piping safe. Doing the math right stops expensive mistakes. It makes your project work better. Here are some important things to think about:
| Key Considerations | Description |
|---|---|
| Material Availability | If you can get piping materials nearby, your project can finish faster and cost less. Using a system that is common in your area helps you avoid waiting. |
| Cost Implications | The price of materials and special orders can change your project budget. Knowing the local system can help you save money. |
| Workforce Familiarity | If workers know a certain system, they can install pipes faster and better. Picking a system they know makes the job go smoother. |

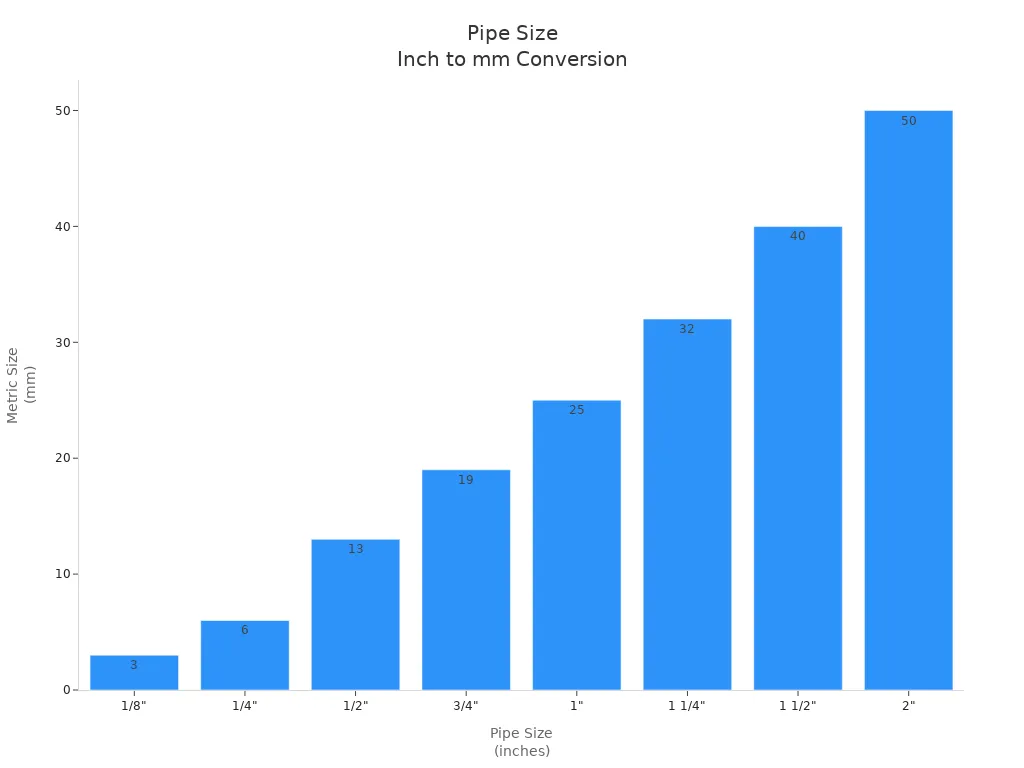

Use the chart below to find pipe sizes fast:
You can do better piping work by using these charts and following the rules. Share this article with your team or look at DIN and ISO standards for more help.
FAQ
What is the difference between nominal pipe size and actual pipe size?
Nominal pipe size is a standard label. It does not match the real outside or inside diameter. You need to check the actual measurements before you choose a pipe for your project.
How do you convert pipe sizes from inches to millimeters?
You multiply the inch value by 25.4 to get millimeters. For example, a 2-inch pipe equals 50.8 millimeters. Always use a chart to confirm the correct size for your piping needs.
Why do pipe schedules matter when selecting a pipe?
Pipe schedules show wall thickness. Thicker walls make the inside diameter smaller. You must pick the right schedule to ensure your piping system handles the pressure and flow you need.
Can you use the same pipe size for different materials?
You cannot always use the same pipe size for every material. Each material has its own standards. Always check the chart and compare the pipe dimensions before you order or install piping.
What problems can happen if you choose the wrong pipe size?
Choosing the wrong pipe size can cause leaks, poor flow, and equipment damage. You may spend more money fixing mistakes. Always measure and check the pipe size before you start your piping project.
