You use pressure ratings to know how much force a flange can take. Each flange class, like Class 150 or Class 2500, has a set pressure and temperature rating. If you pick the wrong flange pressure rating, you could have leaks, breaks, or even total system failures, as shown below:
| Risk Type | Description |
|---|---|
| Leaks | Not understanding ratings can cause leaks and make things unsafe. |
| Ruptures | Wrong pressure ratings can make flanges break under pressure. |
| System Failures | Using parts that do not match can break the whole system. |
You need to pick the right flange for your work. Different jobs need different ratings. For example, power plants and oil rigs need higher ratings than water pipes. You can see how the top pressure changes for each flange class in this chart:
Picking the right rating keeps your system safe and working well.
Key Takeaways
- Pressure ratings show how much force a flange can take. Picking the right rating stops leaks and keeps the system safe.
- Always look at both pressure and temperature ratings before you pick a flange. Hotter temperatures lower the highest pressure a flange can take.
- Each flange class has its own pressure limit. Class 150 flanges work for low-pressure jobs. Class 2500 flanges are for high-pressure systems.
- The material changes the pressure rating. Stainless steel is stronger than carbon steel. It can handle more pressure and fights rust better.
- Use ASME standards when you pick a flange. The newest standards help keep your piping system safe and working well.
What Are Pressure Ratings?
Pressure Ratings Defined
You need to know how much pressure a flange can take before using it. Pressure ratings show the most pressure a flange can hold at a certain temperature. This helps stop leaks or problems. The American Society of Mechanical Engineers, or ASME, makes the rules for these ratings. You will see different pressure classes, like Class 150, 300, 400, 600, 900, 1500, and 2500. Each class has its own pressure and temperature ratings. These ratings change with the material and temperature.

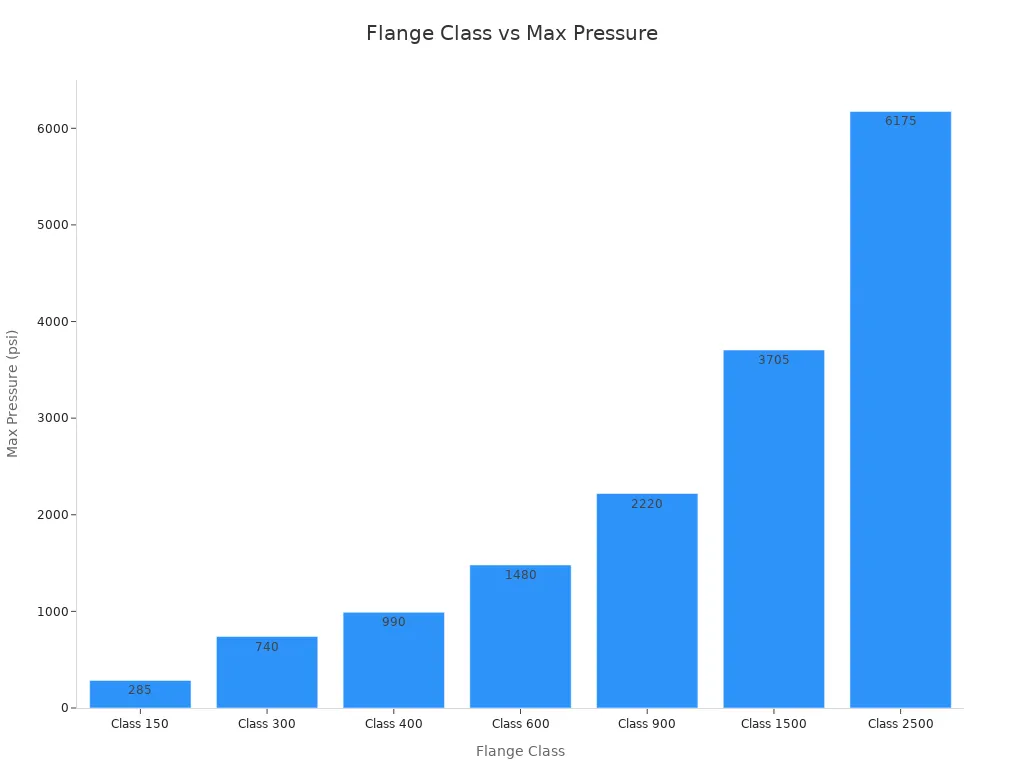

Here is a table that shows how ASME sorts flange pressure ratings for alloy flanges:
| Pressure Class | Maximum Allowable Pressure | Material Type | Temperature | Application |
|---|---|---|---|---|
| 150 | Varies | Alloy | Varies | General |
| 300 | Varies | Alloy | Varies | General |
| 400 | Varies | Alloy | Varies | General |
| 600 | Varies | Alloy | Varies | General |
| 900 | Varies | Alloy | Varies | General |
| 1500 | Varies | Alloy | Varies | General |
| 2500 | Varies | Alloy | Varies | General |
You can find the exact top pressure for each class in the ASME tables. These tables also show how the pressure and temperature ratings change with different materials and temperatures.
Importance in Flange Selection
When you pick a flange, you need to check the pressure rating. This rating tells you if the flange can handle the most pressure in your system. If you choose the wrong rating, you could get leaks or even break your system. The flange class system helps you pick the right flange for your job. For example, a Class 600 flange can take about 1480 psi. A Class 1500 flange can take up to 3705 psi. You also need to think about temperature. Higher temperatures make the top pressure lower. Pressure-temperature ratings help you know these limits.
Tip: Always check both pressure and temperature when picking a flange. Pressure-temperature ratings change with both things.
- The flange class system puts flanges into groups by how much pressure they can take.
- You should think about steady pressure and any sudden jumps in pressure.
- Picking the right flange pressure rating keeps your system safe and working well.
Flange Pressure Rating Classes
ASME B16.5 Flange Classes
You should know the main pressure classes for alloy flanges. ASME B16.5 gives the rules for these classes. Each class tells you the most pressure a flange can take at a certain temperature. The most common classes are 150, 300, 600, 900, 1500, and 2500. You will see these numbers on flanges in many places.

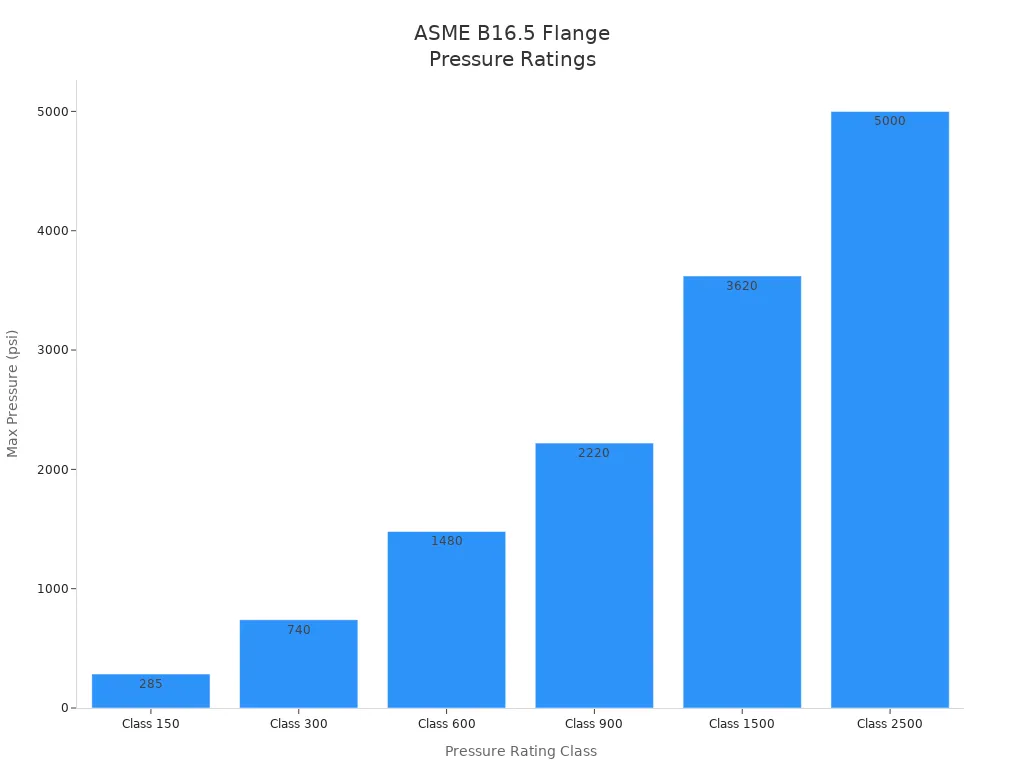

Here is a table that lists the main ASME B16.5 flange classes and their pressure ranges:
| Pressure Rating Class | Pressure Range |
|---|---|
| Class 150 | Up to 285 psi |
| Class 300 | Up to 740 psi |
| Class 600 | Up to 1480 psi |
| Class 900 | Up to 2220 psi |
| Class 1500 | Up to 3620 psi |
| Class 2500 | Up to 5000 psi |
The higher the class number, the more pressure the flange can handle. This helps you pick the right flange for your job. For example, you use a Class 150 flange for water lines with low pressure. You use a Class 2500 flange for steam or oil systems with high pressure.
Note: Titanium flanges do not have normal pressure-temperature ratings in ASME B16.5. You need special math for those.
Class Numbers and Pressure-Temperature
The class number on a flange tells you more than just the top pressure. It also shows what temperature the flange can take. When the temperature goes up, the flange can take less pressure. This is because metals get weaker when they get hot.
“The Pressure Class is a guide and a number with no units. It helps show the pressure and temperature a flange or valve can handle. The numbers tell you the range where the valve can work, based on the fluid’s temperature and the material used. These limits change as the temperature changes. If the temperature goes up, the material gets weaker, so the pressure limit goes down.”
You always need to check the pressure-temperature ratings for your flange. These ratings show the safe limits for both pressure and temperature. For example, a Class 600 flange can take 1480 psi at room temperature, but much less at 800°F. You can find these numbers in the ASME tables.
- Pressure ratings change with the flange’s material.
- The flange’s size also changes the top pressure.
- Gasket type and flange thickness can change the rating.
Here is a quick list of what changes flange pressure rating:
- Material (like steel or stainless steel)
- Size (bigger flanges usually have lower ratings)
- Temperature (higher temperatures mean lower top pressure)
- Flange thickness
- Gasket type
Reading Flange Markings
You will see markings on every flange. These markings tell you the flange class, size, material, and sometimes the standard. Reading these markings helps you know if the flange fits your system.
Here is a table to help you understand the markings:
| System | Example Markings | Meaning |
|---|---|---|
| PN | PN10, PN16, PN25, PN40, PN100 | Pressure ratings in bar (e.g., PN40 = 40 bar) |
| Class | Class 150, 300, 600, 900, 1500, 2500 | Pressure ratings in psi (e.g., Class 600 = 600 psi) |
If you see “Class 600” on a flange, it means the flange is made for a top pressure of 600 psi at a set temperature. Always check the rating tables to make sure the flange matches your system’s pressure and temperature.
Pressure rating tables help you pick the right flange class. These tables show the most pressure each flange can take at different temperatures. You can use these tables to make sure your flange will work safely. If your system has high pressure or temperature, pick a flange class that is higher than your system’s top. This gives you a safety margin.
Tip: Always use the rating tables and markings together. This helps you avoid mistakes and keeps your system safe.
Factors Affecting Flange Pressure Ratings
Material and Alloy Type
It is important to know what material your flange is made of. The material decides how much pressure the flange can handle. Some materials are better at handling high pressure and corrosion. Carbon steel is used a lot because it is strong and not expensive. Stainless steel is good for places with water or chemicals. Nickel alloys and duplex steel are even stronger and fight corrosion better, but they cost more money. Titanium and aluminum flanges are light and do not rust easily. They are not good for jobs with very high pressure.
| Material Type | Common Grades | Advantages | Limitations |
|---|---|---|---|
| Carbon Steel | ASTM A105, A36 | Good strength, low cost | Poor corrosion resistance |
| Stainless Steel | 304L, 316L | Great corrosion resistance | Higher cost |
| Cast Iron | Class 125, 250 | Low cost, stiff | Limited maximum pressure |
| Nickel Alloys | Inconel, Hastelloy | High stability, corrosion resistance | Very high cost |
| Duplex Steel | 2205, 2507 | High yield strength, corrosion resistance | More expensive |
| Aluminum | 6061-T6 | Lightweight, decent corrosion resistance | Not for high maximum pressure |
| Titanium | Grade 2, 5 | High strength, corrosion resistance | Expensive, hard to machine |
Tip: Make sure the flange material matches your system’s needs for pressure and rating.
Temperature Impact
Temperature changes how much pressure a flange can take. When it gets hotter, the flange cannot hold as much pressure. Metals get weaker when they are hot. You should always check the pressure-temperature rating for your flange. For example, Inconel and Hastelloy flanges work well when it is cool. Their pressure rating drops when the temperature reaches 500°C.
| Alloy Type | Example Grade | Pressure Rating at Room Temperature | Pressure Rating at 500°C (932°F) |
|---|---|---|---|
| Inconel | Inconel 600 | High | Much lower |
| Hastelloy | Hastelloy C-276 | Good strength | Drops as temperature rises |
Note: Always look at the pressure-temperature ratings before you put a flange in a hot system.
Flange Size and Dimensions
The size and shape of a flange change how much pressure it can handle. Bigger flanges usually have lower pressure ratings. The type of flange, the facing, and the pipe schedule also matter. You need to check the flange class and the pressure-temperature rating for every size.
| Specification Type | Description |
|---|---|
| Size Nominal Pipe Size | Flange size (NPS), not always matching inside diameter |
| Pressure Class | Shows pressure-temperature rating, covered by ASME B16.5 |
| Type | Weld Neck, Slip On, and other types for different jobs |
| Facing | Contact surface for gasket, defined by ASME B16.5 and B16.47 |
| Pipe Schedule | For non-standard flanges, bore matches pipe |
| Standard | Uniform specs from ASTM or ASME |
| Material | Trade names or UNS numbers for flange material |
Tip: Always check the flange size and type before you pick a rating for pressure.
Standards and Codes
You need to follow standards and codes to make sure your flange pressure ratings are right. ASME B16.5 gives the rules for flange class, material groups, and pressure-temperature ratings. Other standards help flanges from different companies fit together. There are seven main pressure classes in these rules. They help you choose the right rating for your job.
| Standard/Code | Description |
|---|---|
| ASME B16.5 | Sets pressure classes, material groups, and pressure-temperature ratings |
| Pressure-integrity standards | Give minimum performance for components |
| Dimensional standards | Make sure parts from different suppliers fit together |
| Material groups | Cover many alloy and steel types |
| Pressure classes | Seven classes: 2500, 1500, 900, 600, 400, 300, 150 |
Always use the newest standards to keep your flange pressure rating safe and reliable.
Selecting the Right Flange Pressure Rating
Assessing System Requirements
Before you pick a flange, you need to know what your system needs. This helps stop leaks, breaks, or big problems. Think about these things:
- Operating pressure: Find out the pressure your pipeline has every day. The flange must hold this without leaking.
- Design pressure: Think about the highest pressure your system could reach. Pick a flange that can handle this, not just the normal pressure.
- Emergency situations: Sometimes, pressure can go up fast. Choose a flange with a higher rating than your system’s top pressure. This gives you extra safety.
- The pressure rating shows the most pressure a flange can take before it leaks or breaks. Always pick a flange with a rating above your system’s highest pressure.
You also need to check the temperature, the fluid type, and the place where the flange will be used. These things change how much pressure the flange can handle. If you skip this, you might pick the wrong flange class for your job.
Step-by-Step Selection
You can use easy steps to pick the right flange pressure rating. This helps you match the flange to your needs and keeps your system safe.
- Find the highest temperature and pressure for your system. Write these numbers down.
- Pick the flange material. Look at the list of 44 material groups. Make sure the material can handle your system’s highest temperature.
- Use the ASME tables for pressure-temperature ratings. Start with Class 150. Move right until you find a flange class that meets or beats your system’s highest pressure at your highest temperature.
- Check the flange size and type. Bigger flanges often have lower top pressure ratings. Make sure the flange fits your pipe and gasket.
- Look at the markings on the flange. Make sure the class, material, and size are right for your needs.
- Review the basics of pressure ratings. Make sure the flange can handle both steady and sudden pressure changes.
- If your job needs high pressure, pick a flange class with extra safety.
Tip: Always use the newest ASME tables for picking pressure-temperature ratings. This keeps your system safe and follows the rules.
Application and Environmental Factors
You need to think about more than just pressure and temperature. The job and the place also matter. Here is a table to help you see what is important:
| Factor | Description |
|---|---|
| Type of Media | If the fluid is corrosive, pick a flange material that resists corrosion. |
| Pressure and Temperature | High-pressure jobs and high heat need special flange types, like weld neck flanges. |
| Material Compatibility | The flange must match the fluid. This keeps your system safe and working well. |
| Compliance with Standards | Always follow the rules for flange pressure ratings and safety. |
Some jobs and choices need special care. For example, oil and gas jobs with high pressure need flanges with high top pressure ratings. Water systems may use lower classes, but chemical plants need flanges that resist both pressure and corrosion.
You should always match the flange to your system’s needs. Look at the job and what you need for your work. If you work in a tough place, pick a flange with a higher rating and better material. This keeps your system safe and working for a long time.
Note: Never forget about the pressure-temperature ratings or the place. Both can change the most pressure your flange can handle.
Common Flange Pressure Rating Mistakes
Misreading Class Numbers
Some people think the class number means the highest pressure in psi. This is not correct. The class number is just a label. It does not show the real pressure. Many people mix up pressure class and pressure rating. You need to look at the pressure-temperature tables to know the true maximum pressure for your flange. Here are some mistakes people make:
- Mixing up pressure class and pressure rating. The class number does not mean the highest pressure.
- Believing the class rating is a unit. It is only a number, not a pressure amount.
- Not remembering that material and temperature change the highest pressure a flange can take.
If you get the class number wrong, you might choose a flange that cannot hold the pressure in your system.
Overlooking Temperature or Material
You always need to think about both temperature and material when picking a flange. The pressure rating depends on how strong the material is at different temperatures. If you forget about temperature, you could pick a flange that breaks when used. Different materials act differently when they get hot. This changes the highest pressure the flange can take. Always check the pressure-temperature ratings before you decide.
- Pressure ratings depend on how strong the material is at certain temperatures.
- Forgetting about temperature can make a flange break under high pressure.
- Each material acts differently when heated, changing the highest pressure.
Ignoring Standards
You must follow standards when picking a flange rating. Not following standards can cause big problems. The table below shows what can happen if you skip this step:
| Consequence | Description |
|---|---|
| Leaks | Using too much pressure can make the gasket fail or bend, causing leaks. |
| Flange Failure | Going past the pressure rating can make the flange break or burst, which can ruin the piping system. |
| System Downtime | Any break means you need repairs or new parts, which stops work and costs money. |
You should always use the newest standards and follow good ways to install and take care of flanges. This keeps your flange safe and helps you avoid expensive mistakes. Good installation and care also help your system last longer.
You need to know flange pressure rating to keep things safe. Always look at the rating, material, and size before you pick a flange. Experts say you should check the material type, temperature, and size. This helps make sure the flange can take the most pressure. If your job is hard, ask an expert or check the newest standards. Picking the right rating helps stop leaks and makes fixing things easier. The table below shows how using the right flange rating gives real benefits:
| Benefit | Description |
|---|---|
| Leak Prevention | Flange rating stops leaks by making a tight fit. |
| Pressure Handling | The right flange rating lets you handle high pressure safely. |
| Ease of Maintenance | Flange rating makes repairs and checks quick and easy. |
FAQ
What does “Class 150” or “Class 2500” mean on a flange?
You see these numbers to show the pressure rating group. Higher class numbers mean the flange can handle more pressure. Always check the ASME tables for exact limits.
Can you use a higher class flange for a low-pressure job?
Yes, you can. A higher class flange works for lower pressures. You may spend more money than needed, though. Pick the right class for your job to save costs.
How do temperature changes affect flange pressure ratings?
When temperature rises, the flange gets weaker. The pressure rating drops. Always check the pressure-temperature chart before you choose a flange for hot systems.
Why do you need to match flange material with the fluid?
Some fluids cause rust or damage. If you pick the wrong material, the flange may fail. Always match the flange material to the fluid for safety and long life.
Where can you find the correct pressure rating for your flange?
You find the correct pressure rating in the ASME B16.5 tables. These tables show the safe limits for each class, material, and temperature.
