You often face tough choices when selecting materials for harsh environments. The role of tungsten in Hastelloy C-276 stands out because it significantly boosts both strength and corrosion resistance. You will find tungsten at about 3% of the alloy, as shown below:
| Element | Percentage |
|---|---|
| Tungsten | 3.0-4.5 |
This element helps the alloy outperform many other nickel-based alloys in mechanical performance and durability. When you understand each element’s role, you can make smarter decisions for your applications.
Key Takeaways
- Tungsten enhances the strength of Hastelloy C-276, making it more reliable in harsh environments.
- The presence of tungsten improves corrosion resistance, protecting against damage from acids and chemicals.
- Understanding the composition of Hastelloy C-276, including tungsten, helps you make informed material choices.
- Hastelloy C-276 performs well at high temperatures, thanks to tungsten’s solid solution strengthening.
- Always check for tungsten content in Hastelloy grades to ensure optimal performance in demanding applications.
Role of Tungsten
Solid Solution Strengthening
You need strong materials when you work in harsh environments. The role of tungsten in hastelloy grades like hastelloy c276 is to boost mechanical strength through solid solution strengthening. When you add tungsten to these high-performance alloys, you get several important benefits:
- Tungsten suppresses the formation of brittle precipitates. This means the alloy stays tough and does not crack easily.
- It helps keep other alloying elements in solid solution. This makes the mechanical properties more stable over time.
You will notice that hastelloy grades with tungsten, such as hastelloy c-22 and hastelloy c-276, show better mechanical performance than grades without it. The role of tungsten is clear: it makes the alloy stronger and more reliable. You can count on these high temperature alloys to handle stress and pressure without losing their shape or strength. This is why engineers choose hastelloy grades for demanding jobs.
When you select a superalloy for your project, always consider the role of tungsten. It gives you the mechanical edge you need for tough applications.
Corrosion Resistance
Corrosion can destroy equipment and cause safety risks. The role of tungsten in hastelloy grades is to improve corrosion resistance, especially in corrosive conditions. You will see this benefit in both localized and crevice corrosion protection. Tungsten works with the critical role of chromium to make hastelloy c276 and other grades some of the best corrosion-resistant alloys available.
Here is how tungsten helps boost corrosion resistance in hastelloy grades:
- Tungsten increases resistance to oxidation, so the alloy does not rust easily.
- It enhances resistance to nitridation, which protects the alloy from nitrogen-rich environments.
- Tungsten improves resistance to carburization, so carbon does not weaken the alloy.
- It provides better resistance to halogenation, which is important in chemical processing.
- Tungsten supports resistance to stress corrosion cracking, making the alloy last longer.
You will find that hastelloy c22, hastelloy x, and other grades with tungsten offer excellent corrosion protection. These high performance nickel alloys stand up to acids, salts, and other harsh chemicals. When you need corrosion-resistant alloys for chemical plants or nuclear power, the role of tungsten becomes even more important.
Tip: Always check the composition of hastelloy grades before you choose. The right amount of tungsten can make a big difference in both mechanical and corrosion resistance.
Hastelloy C-276 Composition
Nickel, Molybdenum, Chromium, Tungsten
You need to understand the composition of hastelloy c-276 before you choose it for your project. This grade belongs to the family of nickel-based alloys, which means nickel forms the largest part of its composition. Nickel gives the alloy its base structure and helps it resist corrosion in many environments. Molybdenum and chromium are also major elements in hastelloy grades. Molybdenum increases strength and improves corrosion resistance, especially against acids. Chromium adds another layer of corrosion protection, making the alloy stable in oxidizing conditions.
Tungsten stands out in the hastelloy composition. You will find it at a level between 3.0% and 4.5%. This amount may seem small, but tungsten plays a big role in the performance of hastelloy grades. The table below shows the standard composition ranges for the main elements in hastelloy c276:
| Element | Min | Max |
|---|---|---|
| Nickel | Balance | Balance |
| Chromium | 14.50 | 16.50 |
| Molybdenum | 15.00 | 17.00 |
| Tungsten | 3.00 | 4.50 |

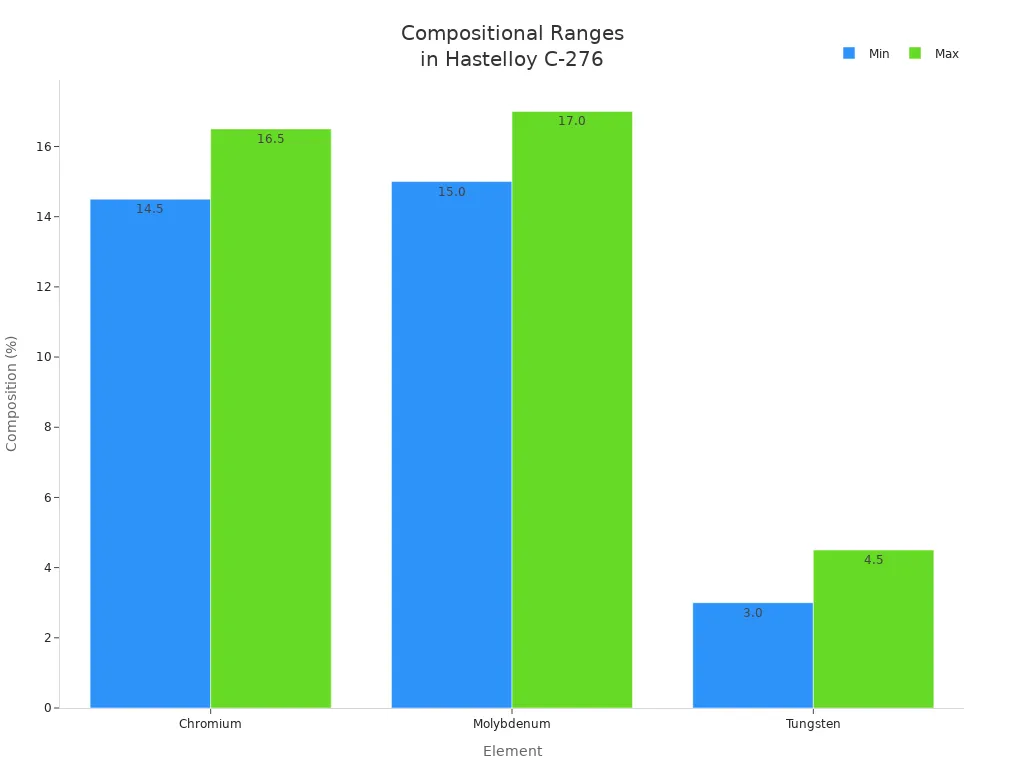

You can see that nickel dominates the composition, but molybdenum, chromium, and tungsten each have a precise range. These elements work together to give hastelloy grades their unique properties. The chart below helps you compare the proportions of these key elements:

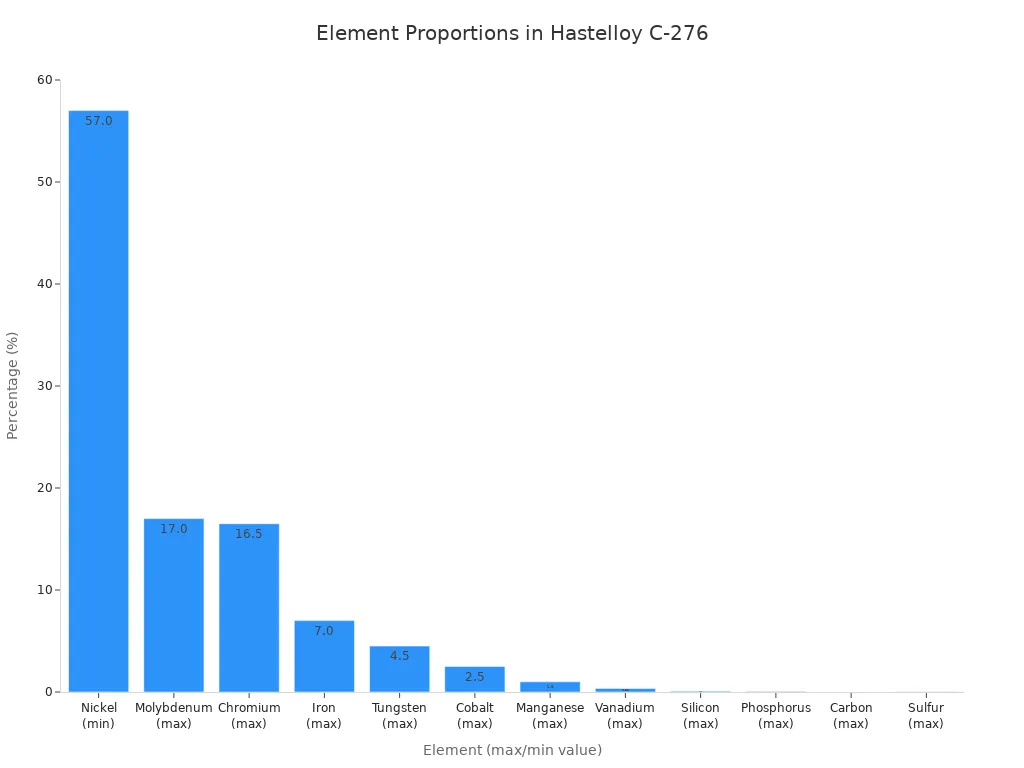

When you look at the full hastelloy composition, you notice other elements like iron, cobalt, and manganese. Each one has a strict limit to keep the alloy balanced. Here is a more detailed table:
| Element | Percentage |
|---|---|
| Nickel (Ni) | 57.0 min |
| Molybdenum (Mo) | 15.0 – 17.0 |
| Chromium (Cr) | 14.5 – 16.5 |
| Iron (Fe) | 4.0 – 7.0 |
| Tungsten (W) | 3.0 – 4.5 |
| Cobalt (Co) | 2.5 max |
| Manganese (Mn) | 1.0 max |
| Vanadium (V) | 0.35 max |
| Silicon (Si) | 0.08 max |
| Phosphorus (P) | 0.04 max |
| Carbon (C) | 0.01 max |
| Sulfur (S) | 0.03 max |
Note: International standards set the minimum and maximum tungsten content in hastelloy grades to ensure consistent performance.
Impact of Composition on Properties
The composition of hastelloy grades directly affects how they perform in real-world applications. You will see that the balance of nickel, molybdenum, chromium, and tungsten gives hastelloy c276 its famous corrosion resistance. Nickel acts as the backbone, keeping the alloy stable in both acidic and basic environments. Molybdenum and chromium work together to block many types of corrosion, including pitting and crevice corrosion.
Tungsten makes a big difference in the hastelloy composition. Even though it is present in smaller amounts, tungsten boosts the strength of the alloy and helps it resist localized corrosion. You will notice that grades with tungsten handle aggressive chemicals and high temperatures better than those without it. This makes hastelloy grades a top choice for chemical plants, nuclear power, and other demanding industries.
The composition also affects how you can shape and weld hastelloy grades. You can forge and roll hastelloy c276, but you must control the temperature carefully. The alloy is more sensitive to strain than austenitic stainless steels. You need to work within a narrow temperature range, usually between 1600 and 2250°F, to keep the mechanical properties strong.
When you think about the full lifecycle of hastelloy grades, the complex composition can make recycling more difficult. The mix of elements, especially tungsten, can lead to contamination during recycling. This affects the sustainability of the alloy and its role in a circular economy.
Tip: Always review the full hastelloy composition before you select a grade. The right mix of nickel, molybdenum, chromium, and tungsten ensures you get the best corrosion resistance and mechanical strength for your needs.
Property Enhancements
High-Temperature Strength
You need materials that stay strong at high temperatures. Hastelloy alloys deliver excellent performance in these conditions. Tungsten plays a key role in boosting the strength of hastelloy, especially when you expose the alloy to high temperatures above 600°C. The atomic radius of tungsten is 10%-13% larger than nickel, cobalt, and iron. This causes the crystals in the alloy to expand, making the structure more stable. You get solid solution strengthening, which means the alloy resists deformation and creep even when the heat rises.
Here is a table showing how tungsten affects the properties of hastelloy at high temperatures:
| Property | Effect on Hastelloy C-276 |
|---|---|
| Atomic Radius | Larger atomic radius expands alloy crystals |
| Solid Solution Strengthening | Increases strength at high temperatures |
| Stacking Fault Energy | Reduces stacking fault energy, improves durability |
You can rely on hastelloy alloys for equipment that faces extreme heat. The combination of nickel, molybdenum, chromium, and tungsten gives you a material that keeps its shape and resists cracking. You see this advantage in power plants, chemical reactors, and heat exchangers. When you choose hastelloy, you get alloys that maintain their mechanical properties and corrosion resistance even during long-term exposure to high temperatures.
Tip: For applications where high temperatures and mechanical stress are constant, hastelloy alloys with tungsten offer the best performance.
Chemical Stability
You want your equipment to last in harsh chemical environments. Hastelloy alloys provide outstanding chemical stability, thanks to their unique composition. Tungsten is a key element that helps hastelloy resist corrosion in both acidic and oxidizing conditions. Studies show that adding tungsten to hastelloy C-276 improves resistance to pitting and crevice corrosion, especially when chloride ions are present. You see better protection against both oxidizing and reducing acids.
Tungsten also helps hastelloy alloys resist stress corrosion cracking. The alloy stands up to aggressive chemicals, including sulfuric acid, hydrochloric acid, and seawater. You get reliable performance in chemical processing, nuclear power, and other industries where corrosion is a major concern.
- Hastelloy alloys resist pitting and stress corrosion cracking.
- You get long-lasting corrosion resistance in tough environments.
- The chemical stability of hastelloy means less maintenance and fewer failures.
Note: Always check the chemical stability of your chosen hastelloy grade. Tungsten makes a big difference in how the alloy performs against corrosion and high temperatures.
Applications
Nuclear Power
You face demanding conditions in nuclear power systems. You need materials that can handle radiation, high temperatures, and pressure. Hastelloy gives you a reliable solution for these challenges. The alloy maintains its structure even when exposed to intense radiation. You see this advantage in reactor components and waste processing systems. Tungsten in hastelloy helps the alloy resist damage from radiation and keeps its mechanical properties stable. You can trust hastelloy to deliver consistent performance in environments where safety is critical.
You should consider hastelloy for nuclear power because it resists stress corrosion cracking and pitting. The alloy stands up to oxidizing salts and wet chlorine gas. This means your equipment lasts longer and needs less maintenance.
Hastelloy also finds use in aerospace applications related to nuclear propulsion. You benefit from the alloy’s ability to withstand extreme conditions without losing strength. When you select hastelloy, you choose a material that supports both safety and durability in nuclear power.
Chemical Processing
You work with strong acids and oxidizing agents in chemical plants. Hastelloy gives you the protection you need. The alloy’s composition, including tungsten, nickel, chromium, and molybdenum, provides excellent corrosion resistance. You see this in equipment like reactors, heat exchangers, and piping systems. Hastelloy outperforms other alloys when you need resistance to pitting and crevice corrosion.
Here is a table comparing hastelloy to other alloys in chemical processing:
| Property | Hastelloy C-276 | Other Alloys |
|---|---|---|
| Corrosion Resistance | Excellent | Varies |
| Resistance to Pitting | High | Moderate |
| Resistance to Crevice Corrosion | High | Low |
| Suitable for Strong Acids | Yes | No |
| Suitable for Oxidizing Agents | Yes | No |
You notice that hastelloy stands out in aerospace chemical processing equipment. The alloy’s high performance means you can use it in systems that handle chlorine dioxide, hypochlorite, and other aggressive chemicals. You get reliable results and longer service life. When you choose hastelloy, you invest in equipment that delivers top performance in the most demanding chemical environments.
Tip: Always check the composition of your alloy before you select it for chemical processing. Hastelloy with tungsten gives you the edge in both corrosion resistance and mechanical strength.
You see how tungsten makes hastelloy c276 a strong and reliable alloy. It boosts thermal strength, supports metallurgical stability, and improves corrosion resistance, especially in harsh acids. The table below highlights tungsten’s role in hastelloy c-276:
| Element | Role in Hastelloy C-276 |
|---|---|
| Tungsten | Enhances thermal strength, stability, and resistance to pitting and crevice corrosion |
When you need the right material choice for chemical processing or nuclear power, hastelloy c276 stands out. You get excellent performance in environments with high corrosion. Choose hastelloy c276 when you want your equipment to last.
FAQ
What does tungsten do in Hastelloy C-276?
Tungsten increases strength and corrosion resistance. You get better performance in high temperatures and harsh chemicals.
Tip: Always check for tungsten when you need durability.
Can you weld Hastelloy C-276 easily?
You can weld Hastelloy C-276 with standard techniques. You must control heat input to avoid cracking.
- Use low heat
- Clean surfaces
- Choose matching filler metals
Is Hastelloy C-276 safe for use in acids?
You can use Hastelloy C-276 in strong acids. The alloy resists pitting and crevice corrosion.
| Acid Type | Suitability |
|---|---|
| Sulfuric Acid | Excellent |
| Hydrochloric | Excellent |
| Nitric | Good |
How does tungsten compare to molybdenum in alloys?
Tungsten gives you higher strength at extreme temperatures. Molybdenum improves corrosion resistance.
Note: Both elements work together to make Hastelloy C-276 strong and reliable.
