You face many challenges when selecting inconel 718 sheet and strip for critical projects. Inconel 718 stands out as a precipitation-hardened superalloy, trusted by the aerospace industry for its strength and reliability. This inconel alloy meets strict aerospace material specification standards. You often see inconel 718 compared to AMS 5540 because both superalloy grades resist extreme environments. Inconel 718 delivers high performance, and you must verify every inconel sheet and strip meets the right 718 requirements.
Key Takeaways
- SAE AMS 5596 defines the requirements for Inconel 718, ensuring it meets aerospace standards for strength and reliability.
- Always verify the thickness and width of Inconel 718 sheet and strip before ordering to avoid costly mistakes.
- Inconel 718 offers excellent corrosion resistance and high-temperature performance, making it ideal for aerospace applications.
- Check the chemical composition and mechanical properties of Inconel 718 to ensure compliance with AMS 5596 standards.
- Choose the right heat treatment process for Inconel 718 to unlock its full potential and enhance performance.
SAE AMS 5596 Overview
Specification Scope
You need to understand the scope of SAE AMS 5596 before you select inconel 718 for your next aerospace project. SAE AMS 5596 defines the requirements for corrosion and heat-resistant nickel alloys. You find these alloys in several forms, such as sheet, strip, foil, and plate. The specification covers materials with a thickness of 1.00 inch (25.4 mm) or less. This means you can use inconel 718 in many aerospace components that demand high performance and reliability.
You often work with inconel 718 sheet and strip because these forms offer flexibility for fabrication and design. The specification sets clear limits for thickness and width, so you can choose the right material for your application. The table below shows the acceptable ranges for inconel 718 sheet and strip, as well as related forms:
| Form | Thickness Range | Width Range |
|---|---|---|
| Inconel 718 sheet | 0.1 to 5 mm | 0.5 to 1 m |
| Alloy 718 plate | 2.5 to 100 mm | 0.5 to 2 m |
| ASTM B670 UNS N07718 coil | 0.1 to 5 mm | 0.5 to 1.2 m |
| Alloy Inconel 718 strips | 0.05 to 3 mm | 5 to 200 mm |
Tip: Always check the thickness and width of inconel 718 sheet and strip before you order. This helps you avoid costly mistakes and ensures your material meets aerospace standards.
Importance for Inconel 718
You rely on SAE AMS 5596 when you need inconel 718 that performs in demanding aerospace environments. The specification guarantees that inconel 718 sheet and strip meet strict requirements for strength, creep resistance, and oxidation resistance. These properties are essential for aerospace components that face high temperatures and corrosive conditions.
The table below highlights why SAE AMS 5596 is critical for inconel 718 in aerospace applications:
| Specification | Description |
|---|---|
| Strength | High strength suitable for aerospace applications |
| Creep Resistance | Effective up to 1300°F |
| Oxidation Resistance | Effective up to 1800°F |
You see inconel 718 used in jet engine parts, turbine blades, and other aerospace hardware. The alloy resists deformation and maintains its properties even when exposed to extreme heat. You can trust inconel 718 sheet and strip that meet AMS 5596 to deliver consistent performance and reliability.
You must verify that every batch of inconel 718 meets the AMS 5596 requirements. This step protects your project and ensures compliance with aerospace regulations. You avoid unexpected failures and keep your components safe in service.
Inconel 718 Properties
Mechanical Strength
You depend on inconel 718 for its outstanding strength in demanding environments. This high-strength nickel-based alloy delivers reliable performance in aerospace and turbine applications. You see inconel 718 outperform other inconel grades, such as inconel 625, when you need high-temperature strength and hardness. The alloy resists creep rupture up to 1,300°F, so you can trust it in turbine blades and jet engine parts.

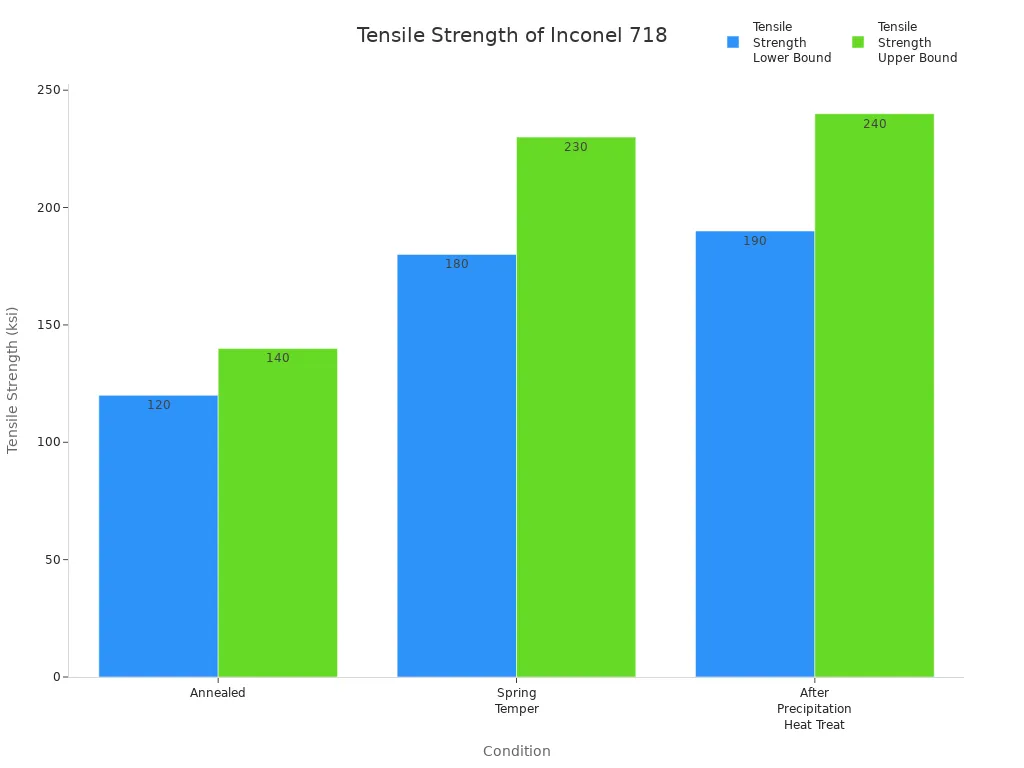

Here is a table showing typical strength values for inconel 718 sheet and strip under SAE AMS 5596:
| Condition | Heat Treatment | Tensile Strength | Suggested Operating Conditions |
|---|---|---|---|
| Annealed | 1800°F (980°C) | 120 – 140 ksi (830-965 MPa) | -330°F to 1200°F (-200°C to 650°C) |
| Spring Temper | – | 180 – 230 ksi (1240 – 1585 MPa) | -330°F to 1200°F (-200°C to 650°C) |
| After Precipitation Heat Treat | Per AMS 5596 | 190 – 240 ksi (1310 – 1655 MPa) | -330°F to 1200°F (-200°C to 650°C) |
You notice inconel 718 can be precipitation hardened without post-weld cracking. This property helps you maintain strength and formability after fabrication. You rely on these high-performance properties when you need consistent results in turbine components.
- Inconel 718 provides better strength and hardness at high temperatures than inconel 625.
- You choose inconel 718 for aerospace and turbine applications because of its mechanical strength.
Corrosion Resistance
You select inconel 718 for its excellent resistance to corrosion in harsh environments. The alloy resists oxidation up to 1,800°F, so you can use it in turbine blades and aerospace hardware exposed to corrosive gases. Inconel 718 sheet and strip offer corrosion resistance ratings that support strength and creep resistance up to 1,300°F. You avoid failures caused by corrosion when you choose inconel 718 for critical applications.
You benefit from inconel 718’s ability to resist corrosion in both acidic and alkaline conditions. This resistance protects your components from damage and extends their service life. You see inconel 718 used in turbine engines, chemical processing, and marine environments where corrosion resistance is essential.
Temperature Performance
You rely on inconel 718 for high-temperature performance in extreme conditions. The alloy operates safely from -330°F to 1,200°F, making it ideal for turbine and aerospace applications. You trust inconel 718 to maintain strength and resistance at elevated temperatures. The high-temperature strength of inconel 718 supports reliable performance in jet engines and turbines.
Prolonged exposure to high temperatures can affect the properties of inconel 718. You may see degradation due to changes in the alloy’s microstructure, such as coarsening of strengthening phases and precipitation of Cr-rich phases. You need to monitor your components for stability when they operate in high-temperature service for extended periods.
Tip: Always verify the heat treatment and operating conditions for inconel 718 sheet and strip. This step ensures you get the best performance and resistance for your turbine and aerospace projects.
AMS 5596 Requirements
Chemical Composition
You must pay close attention to the chemical composition when you select inconel 718 sheet for aerospace or high-performance projects. The composition of this alloy controls its strength, corrosion resistance, and ability to withstand high temperatures. SAE AMS 5596 sets strict limits for the main elements in inconel 718. You can see the required ranges for nickel, chromium, and niobium in the table below:
| Element | Minimum (%) | Maximum (%) |
|---|---|---|
| Ni | 50 | 55 |
| Cr | 17 | 21 |
| Nb | 4.75 | 5.50 |
You also need to watch for trace elements and impurities in the alloy. Even small amounts of sulfur, phosphorus, silicon, or manganese can affect the performance of inconel 718 sheet and strip. The table below shows the typical impurity limits:
| Alloy | Typical Sulfur (%) | Typical Phosphorus (%) | Other Notable Impurities (%) |
|---|---|---|---|
| Inconel 718 | ≤ 0.015 | ≤ 0.015 | Si ≤ 0.35, Mn ≤ 0.35 |
Note: Lower impurity levels help inconel 718 resist cracking and keep its strength under stress.
You should always verify the chemical composition of each batch. This step ensures your sheet and strip meet the AMS 5596 requirements and deliver the expected corrosion resistance and mechanical properties.
Mechanical Properties
You rely on inconel 718 for its outstanding mechanical properties. SAE AMS 5596 sets clear benchmarks for strength and ductility. You can find the required values in the table below:
| Property | Value |
|---|---|
| Yield Strength (0.2% Offset) | 550 MPa |
| Tensile Strength | 910 MPa |
| Elongation | Min 25% |
These values mean your inconel 718 sheet will hold up under heavy loads and resist deformation. The alloy’s high elongation helps prevent cracking during forming or service. You can compare AMS 5596 to other standards for inconel 718, such as AMS 5662 and AMS 5663. AMS 5596 focuses on strength and creep resistance at high temperatures. AMS 5662 covers solution-annealed material, while AMS 5663 is for aged-hardened material with even higher tensile strength. ASTM B637 outlines requirements for strength, hardness, and stress-rupture resistance in high-temperature service.
- AMS 5596 gives you strength and creep resistance at high temperatures.
- AMS 5662 and AMS 5663 offer similar properties for different forms of inconel 718.
- ASTM B637 covers mechanical properties for high-temperature applications.
You should always check the mechanical properties of your sheet and strip to make sure they meet the AMS 5596 standard.
Heat Treatment
You must follow the correct heat treatment process to unlock the full potential of inconel 718 sheet. SAE AMS 5596 describes several heat treatment methods that improve the alloy’s microstructure and performance. The table below summarizes the main processes:
| Heat Treatment Process | Description | Effects on Material Properties |
|---|---|---|
| Standard Heat Treatment (SHT) | 1095°C × 1 h/air cooling + 955°C × 1 h/air cooling + 720°C × 8 h/furnace cooling + 620°C × 8 h/air cooling | Homogenizes microstructure, increases precipitate amount |
| Hot Isostatic Pressing (HIP) | 130 MPa at 1170°C for 4 h | Eliminates microporosity |
| HIP + Solution Treatment + Aging (HIP + STA) | HIP followed by 955°C × 1 h/air cooling + 720°C × 8 h/furnace cooling + 620°C × 8 h/air cooling | Improves strength and fatigue life |
| HIP + Direct Aging (HIP + DA) | HIP followed by 720°C × 8 h/furnace cooling + 620°C × 8 h/air cooling | Enhances mechanical performance |
You should choose the heat treatment that matches your application. Standard heat treatment gives you a balanced combination of strength and corrosion resistance. HIP processes help remove tiny pores in the alloy, making your sheet and strip even stronger and more reliable.
Tip: Always confirm the heat treatment history with your supplier. This step ensures your inconel 718 sheet meets the AMS 5596 requirements for strength and durability.
Sheet and Strip Dimensions
You need to select the right dimensions for your inconel 718 sheet and strip. AMS 5596 covers material up to 1.00 inch (25.4 mm) thick. You can find sheet in thicknesses from 0.1 mm to 5 mm and strip in even thinner gauges. The width of sheet usually ranges from 0.5 m to 1 m, while strip can be as narrow as 5 mm.
- Sheet: 0.1 mm to 5 mm thick, 0.5 m to 1 m wide
- Strip: 0.05 mm to 3 mm thick, 5 mm to 200 mm wide
You should always check the thickness and width before you order. This step helps you avoid costly mistakes and ensures your material fits your design. The right dimensions also help you get the best performance from your inconel 718 alloy in demanding environments.
Remember: Proper dimensions, correct chemical composition, and the right heat treatment all work together to give you the strength, corrosion resistance, and reliability you expect from inconel 718 sheet and strip.
AMS 5596 vs AMS 5540
Key Differences
You often compare AMS 5596 and ams 5540 when you select inconel for demanding projects. Both standards cover inconel alloys, but they have important differences. AMS 5596 focuses on inconel 718 sheet and strip. You use it when you need high strength and good creep resistance at elevated temperatures. AMS 5540 covers a different inconel alloy, not 718. You find that ams 5540 is known for its excellent heat and corrosion resistance. This makes it a top choice for extreme environments.
Here is a table to help you see the main differences:
| Specification | Alloy Type | Main Focus | Strength at High Temp | Corrosion Resistance | Typical Forms |
|---|---|---|---|---|---|
| AMS 5596 | Inconel 718 | Strength, creep resistance | Very High | High | Sheet, strip |
| AMS 5540 | Inconel (other) | Heat, corrosion resistance | High | Very High | Sheet, strip, plate |
Note: AMS 5596 always refers to inconel 718, while ams 5540 covers other inconel grades.
Application Selection
You choose between AMS 5596 and ams 5540 based on your project needs. If you need inconel 718 for jet engines or turbine blades, AMS 5596 gives you the right properties. You get high strength and stability at temperatures up to 1300°F. AMS 5540 works best when you need inconel with top-level heat and corrosion resistance. You see ams 5540 used in chemical plants, marine parts, and furnace components. These environments demand materials that resist both heat and harsh chemicals.
- Use AMS 5596 for inconel 718 in aerospace and turbine applications.
- Pick ams 5540 when you need inconel for extreme heat and corrosion.
You make better choices when you understand these differences. You match the right inconel standard to your applications and avoid costly mistakes.
Sourcing Inconel 718 Material
Compliance Verification
You need to verify that every inconel 718 sheet meets SAE AMS 5596 requirements before you use it in your applications. Start by checking the chemical composition, heat treatment, and mechanical properties. Always ask for certification from your supplier. This certification should include detailed records of the manufacturing process. Look for documentation that lists chemical compositions, heat treatment cycles, and results from mechanical property tests. These records help you confirm that the inconel 718 sheet and strip will deliver the expected corrosion resistance, strength, and excellent weldability. You protect your project by making sure each batch of inconel meets the strict standards set by AMS 5596.
Supplier Selection
Choosing the right supplier for inconel 718 sheet is critical. You want a supplier who understands the importance of compliance and quality. Use the following criteria to evaluate suppliers:
| Criteria | Description |
|---|---|
| Chemical Composition | Must meet specific alloying elements as per AMS 5596, including nickel, chromium, molybdenum, etc. |
| Mechanical Properties | Must exhibit defined yield strength and hardness values, such as 120 KSI yield strength and Rockwell hardness of 40. |
| Testing and Certification | Requires thorough chemical analyses, mechanical testing, and heat treatment verification. |
You should also check that the inconel 718 sheet contains the right amounts of key elements:
- Nickel: 52.5%
- Chromium: 19%
- Molybdenum: 3%
- Niobium: 5.1%
- Titanium and Aluminium: significant quantities
A reliable supplier will provide full traceability for each inconel 718 sheet and strip. They will also support you with technical data and answer questions about weldability or welding procedures.
Common Issues
You may face several challenges when sourcing inconel 718 sheet. Sometimes, you find material that does not meet the required chemical composition or mechanical properties. This can lead to poor corrosion resistance or reduced weldability. You might also encounter issues with incomplete documentation or missing heat treatment records. These problems can delay your project and increase costs. Always inspect the inconel 718 sheet for surface defects and verify that the supplier follows proper handling and storage practices. If you plan to use welding in your process, confirm that the sheet offers excellent weldability and supports your fabrication needs. By staying alert to these common issues, you ensure that your inconel 718 sheet and strip will perform reliably in demanding applications.
Using Inconel 718 Sheet and Strip
Fabrication
You work with inconel 718 sheet when you need strong and reliable parts. This alloy allows you to use many fabrication methods. You can cut, bend, and weld inconel sheet with standard tools. You often see inconel used in aerospace and turbine applications because it keeps its shape and strength after forming. You may use laser cutting or waterjet cutting for precise shapes. You can also stamp or press inconel sheet to create complex parts.
You should follow best practices during fabrication. Use sharp tools to avoid rough edges. Clean the surface before welding to prevent contamination. You may need to preheat the inconel sheet for some welding processes. You can use gas tungsten arc welding (GTAW) or electron beam welding for joining inconel 718. You should always check the finished parts for cracks or defects. This step helps you ensure the sheet meets the requirements for your applications.
Tip: Always use protective equipment when working with inconel. This helps you avoid injury and keeps your workspace safe.
Handling
You must handle inconel 718 sheet and strip with care to prevent damage. You should avoid creating dust when moving or cutting inconel. If dust forms, make sure the area has good ventilation. You need to store inconel sheet in a cool, dry place. This protects the alloy from moisture and contamination. You should keep the sheet away from chemicals and other metals that may cause corrosion.
- Avoid creating dust during handling.
- Ensure adequate ventilation if dust is present.
- Store inconel sheet in a cool, dry area.
You should use clean gloves when touching inconel sheet. This prevents oils or dirt from your hands from contaminating the surface. You can use padded racks or containers to move inconel strip safely. You should inspect the sheet for scratches or dents before using it in your applications. Careful handling helps you maintain the quality and performance of inconel 718.
You rely on AMS 5596 to ensure your Inconel 718 sheet and strip meet strict standards. You use these specifications to select materials for aerospace components. You check chemical composition, mechanical properties, and heat treatment before you approve components for your project. You know that high-quality components improve safety and performance. You review supplier documentation to confirm compliance for all components. You ask material experts for advice when you face challenges with components. You inspect every batch to avoid problems with components in service. You trust AMS 5596 to help you source reliable components for demanding environments.
FAQ
What does AMS 5596 cover for Inconel 718 sheet and strip?
AMS 5596 sets requirements for chemical composition, mechanical properties, heat treatment, and dimensions. You use it to make sure your Inconel 718 sheet and strip meet aerospace standards.
How do you verify AMS 5596 compliance?
You ask your supplier for certification documents. These records show chemical analysis, heat treatment, and mechanical test results. You check these details before you use the material.
Can you weld Inconel 718 sheet that meets AMS 5596?
Yes, you can weld Inconel 718 sheet. The alloy resists cracking after welding. You use proper cleaning and welding techniques to keep strength and corrosion resistance.
What are common mistakes when ordering Inconel 718 sheet?
Many people forget to check thickness, width, or heat treatment history. You should always review specifications and supplier documents before you place an order.
