When comparing Schedule 40 vs Schedule 80 pipes, you’ll notice variations in wall thickness, strength, and durability. These distinctions influence the optimal applications for each type of pipe. Selecting the appropriate pipe is crucial for ensuring your projects remain safe, function effectively, and are cost-efficient. Utilizing the incorrect pipe can lead to costly complications or hazardous situations. By understanding the differences between Schedule 40 vs Schedule 80 pipes, you can make an informed choice that best suits your requirements.
Key Takeaways
- Schedule 40 pipes weigh less and cost less. They work well for low-pressure jobs like home plumbing.
- Schedule 80 pipes have thicker walls. They can handle more pressure, so they are good for industrial work.
- Pick the right pipe based on your project needs. Think about pressure, temperature, and the fluid it will carry.
- Always look at the pipe’s labels for wall thickness and pressure limits. This helps keep things safe and efficient.
- Think about future costs. Spending more on Schedule 80 pipes now can save repair money later in high-pressure areas.
What is a Pipe Schedule?
Definition and Importance of Pipe Schedule
A pipe schedule is a system that shows pipe wall thickness. It helps decide how much pressure a pipe can handle. The word “schedule” is followed by a number, like 40 or 80. This number tells you how thick the pipe walls are. Bigger numbers mean thicker walls. This system keeps things consistent for different industries. It makes picking the right pipe for your job easier.
Knowing about pipe schedules is important for safety and efficiency. For example, schedule 40 pipes work well for low-pressure systems. Schedule 80 pipes are better for high-pressure systems. Picking the wrong pipe can cause it to break. This might lead to expensive fixes or dangerous problems.
How Pipe Schedule Relates to Wall Thickness and Pressure Ratings
The pipe schedule changes the wall thickness and pressure strength. Higher schedules, like 80, have thicker walls than lower ones, like 40. Thicker walls help pipes handle more pressure. Here’s a table to explain:
| Schedule Number | Wall Thickness | Pressure Rating |
|---|---|---|
| SCH 40 | Thinner walls | Lower capacity |
| SCH 80 | Thicker walls | Higher capacity |
| SCH 160 | Thickest walls | Highest capacity |
Groups like ASTM, ASME, and API set rules for pipe thickness and pressure. These rules keep pipes safe and high-quality. They are used in homes and big industries.
Nominal Pipe Size (NPS) and Its Role in Pipe Scheduling
Nominal Pipe Size (NPS) is a system for pipe diameters. It makes choosing pipes easier by using standard sizes. For example, NPS shows how wall thickness changes between schedule 40 and 80. The outer size stays the same, but the walls get thicker. This is useful in places with high pressure or harsh chemicals. NPS helps engineers pick pipes that fit their project needs.
Key Differences Between Schedule 40 vs Schedule 80 Pipes
Wall Thickness and Inner Diameter
The main difference is wall thickness and inner diameter. Schedule 80 pipes have thicker walls than schedule 40 pipes. This makes them better for high-pressure uses. For example, a 1-inch schedule 40 pipe has walls 0.133 inches thick. A 1-inch schedule 80 pipe has walls 0.179 inches thick. Thicker walls mean schedule 80 pipes can handle more pressure. However, their smaller inner diameter slightly reduces fluid flow.

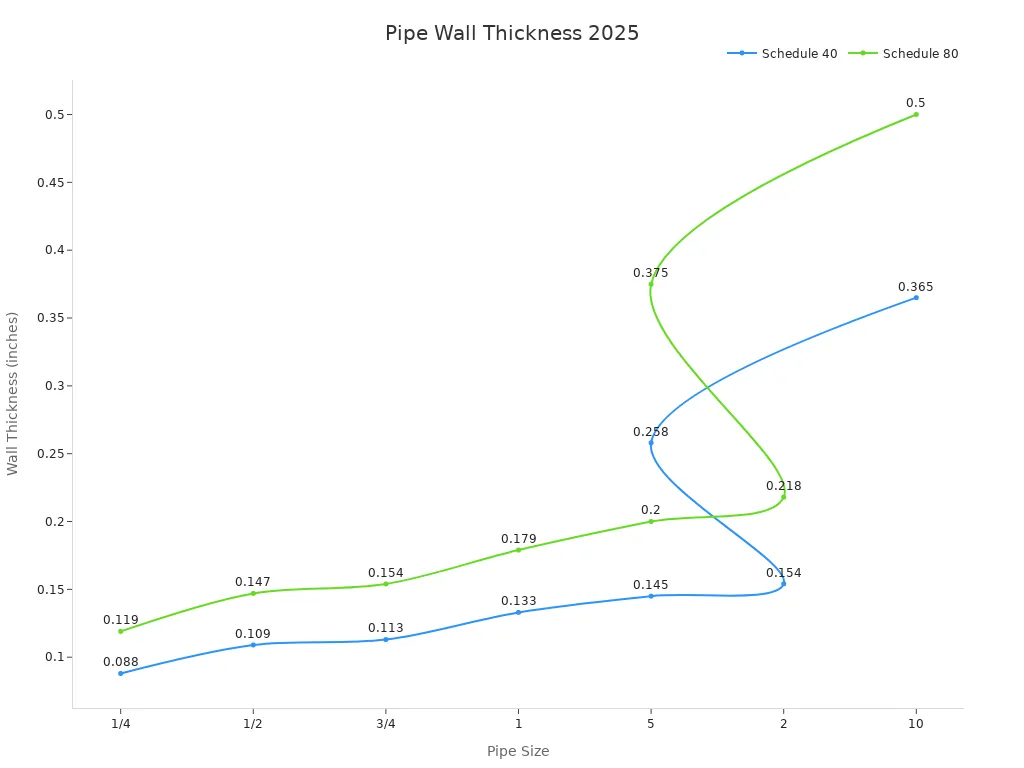

Here’s a simple comparison of wall thickness for various sizes:
| Schedule | Wall Thickness (inches) |
|---|---|
| 40 | 1/4″ – 0.088 |
| 1/2″ – 0.109 | |
| 3/4″ – 0.113 | |
| 1″ – 0.133 | |
| 5″ – 0.145 | |
| 2″ – 0.154 | |
| 5″ – 0.258 | |
| 10″ – 0.365 | |
| 80 | 1/4″ – 0.119 |
| 1/2″ – 0.147 | |
| 3/4″ – 0.154 | |
| 1″ – 0.179 | |
| 5″ – 0.200 | |
| 2″ – 0.218 | |
| 5″ – 0.375 | |
| 10″ – 0.500 |
Thicker walls directly affect how pipes perform in different tasks.
Pressure Ratings and Strength
Pressure rating shows how much pressure a pipe can handle. Schedule 80 pipes have thicker walls, so they hold more pressure. For example, schedule 40 pipes handle up to 1,000 PSI. Schedule 80 pipes can handle even more, making them great for high-pressure systems.
| Pipe Type | Wall Thickness (inches) | Pressure Rating (PSI) | Application Type |
|---|---|---|---|
| Schedule 40 | 0.109 | Up to 1,000 | Low-pressure applications |
| Schedule 80 | 0.154 | Higher than 1,000 | High-pressure applications |
This extra strength makes schedule 80 pipes ideal for industries needing safety.
Durability
Durability is another big difference between these pipes. Schedule 80 pipes have thicker walls, so they resist damage better. They last longer in tough places like chemical plants or outdoors. Schedule 40 pipes are lighter and cheaper but wear out faster in harsh conditions.
When picking between schedule 40 and 80 pipes, think about your project needs. Consider pressure, durability, and the environment where the pipes will be used.
Weight and Material Usage
When looking at schedule 40 and schedule 80 pipes, weight and materials matter. Schedule 80 pipes have thicker walls, so they weigh more than schedule 40 pipes. This extra weight comes from using more material to make the thicker walls. For example, a 1-inch schedule 80 pipe is heavier than a 1-inch schedule 40 pipe because of its thicker walls.
The heavier weight of schedule 80 pipes means more material is needed to make them. This can make moving and installing them harder, especially for big projects. On the other hand, schedule 40 pipes are lighter because their walls are thinner. They are easier to carry and install, making them great for jobs like home plumbing or watering systems.
Cost Comparison
The price difference between schedule 40 and schedule 80 pipes is important. Schedule 80 pipes cost more because they have thicker walls and can handle more pressure. The extra material used to make them raises production costs, which makes them pricier for buyers.
Here’s a simple comparison of features and costs:
| Feature | Schedule 40 PVC Pipe | Schedule 80 PVC Pipe |
|---|---|---|
| Wall Thickness | Thinner | Thicker |
| Pressure Rating | Lower | Higher |
| Cost | Cheaper | More expensive |
If your project doesn’t need strong or high-pressure pipes, schedule 40 pipes can save money. But for high-pressure or tough environments, spending more on schedule 80 pipes is worth it.
Color and Identification
It’s easy to tell schedule 40 and schedule 80 pipes apart by their colors. Most schedule 40 pipes are white, while schedule 80 pipes are gray. This color difference helps you quickly know which pipe to use.
Manufacturers also print details like wall thickness and pressure ratings on the pipes. This helps you check if the pipe is right for your project. Always read these markings to avoid mistakes that could cause safety or performance problems.
Applications of Schedule 40 and Schedule 80 Pipes
Common Uses for Schedule 40 Pipes
Schedule 40 pipes are used in homes and small industries. They are affordable and work well for many tasks. These pipes are often found in plumbing for drainage and sewage. They resist rust, making them last longer. For irrigation, their light weight makes them easy to install. In HVAC systems, they are used for air ducts and vents. They also protect electrical wires and cables in homes and factories.
One example is their use in reducing radon gas in homes. In La Prairie, Quebec, these pipes helped lower radon exposure. Their strength and chemical resistance make them great for gardens and underground watering systems.
Common Uses for Schedule 80 Pipes
Schedule 80 pipes are made for tough and high-pressure jobs. Their thick walls make them strong and long-lasting. They are used in industries like chemical plants and water treatment. These pipes handle high pressure without breaking. For example, they are used in water plants to manage strong water flow safely.
More industries now use Schedule 80 pipes for their strength. Factories and chemical plants rely on them for hard tasks. They also help save water by stopping leaks in water systems. This makes them useful for both homes and industries.
Environmental and Industrial Factors
The use of Schedule 40 and 80 pipes depends on the job. Cities and eco-friendly projects often need Schedule 40 pipes. These pipes are light and resist chemicals, making them good for farming and building.
Schedule 80 pipes are needed for jobs with high pressure and tough conditions. They are used in chemical plants and water treatment facilities. As safety becomes more important, these pipes are in higher demand. Whether for homes or big industries, knowing their uses helps you choose wisely.
How to Choose Between Schedule 40 and Schedule 80 Pipes
Looking at Project Needs (Pressure, Temperature, Fluid Type)
To pick the right pipe, check your project’s needs. Think about pressure, temperature, and the fluid the pipe will carry. Schedule 40 pipes work for medium-pressure jobs. Schedule 80 pipes are better for high-pressure tasks. The strength and pressure limits of each pipe help you decide:
| Pipe Type | Use Type | Strength Level (HDS) | Pressure Limit |
|---|---|---|---|
| Schedule 40 | Medium-pressure jobs | Lower strength | Good for regular use |
| Schedule 80 | High-pressure systems | Higher strength | Built for tough conditions |
Temperature and fluid type are also important. Pipes for hot water, steam, or refrigerants need special insulation. These rules make sure pipes work well under normal conditions:
| Requirement Type | Details |
|---|---|
| Temperature | Fluid temperatures are listed in Table 120.3-A. |
| Fluid Type | Includes refrigerant, steam, hot water, and brine systems. |
| Insulation Needs | Minimum insulation amounts are set for cooling and heating systems. |
| Measurement Standard | Insulation quality is tested using ASTM C335 at specific temperatures. |
Knowing these details helps you match the pipe to your project.
Comparing Cost and Performance
Cost and performance matter when choosing pipes. Schedule 40 pipes cost less because they use less material. They are good for jobs that don’t need high pressure or extra strength. Schedule 80 pipes are stronger and handle more pressure but cost more. They are better for heavy-duty projects.
Think about long-term costs too. Schedule 40 pipes save money upfront but may need more repairs later. Schedule 80 pipes last longer and need less fixing, saving money over time. Comparing these factors helps you get the best value.
Thinking About Durability and Repairs
Durability is key for tough jobs or long-lasting projects. Schedule 80 pipes are stronger because of their thick walls. They resist damage and wear better than schedule 40 pipes. This makes them great for chemical plants and water treatment jobs. For easier tasks, schedule 40 pipes might be enough.
Repair needs differ too. Schedule 80 pipes need fewer fixes because they are sturdier. Schedule 40 pipes may need more care in hard conditions. Knowing how durable each pipe is helps you choose the right one for your project.
Evaluating Environmental Factors
When picking between Schedule 40 and Schedule 80 pipes, think about the environment. Things like temperature, chemicals, and sunlight can affect how long pipes last.
1. Temperature Extremes
Pipes in very hot or cold places need to handle changes. Schedule 80 pipes are better for heat because their walls are thicker. They don’t crack or bend as easily as Schedule 40 pipes. In freezing weather, check if the pipes can resist frost.
2. Chemical Exposure
If pipes will carry harsh liquids or face chemicals, strength matters. Schedule 80 pipes are tougher against chemical damage due to their thick walls. For example, they work well in chemical plants or water treatment areas.
Tip: Always check if the pipe material works with the chemicals it will carry. Use charts from manufacturers to help you decide.
3. UV Resistance and Outdoor Use
For outdoor use, sunlight can weaken pipes over time. Both Schedule 40 and Schedule 80 pipes can be used outside, but adding UV-resistant coatings helps them last longer.
4. Environmental Regulations
Some areas have rules about what pipes you can use. Green projects often prefer recyclable materials. PVC pipes, used for both Schedule 40 and Schedule 80, are recyclable and meet eco-friendly standards.
By thinking about these factors, you can pick pipes that fit your project and the environment.
Comparison Table: Schedule 40 vs Schedule 80 Pipes
Wall Thickness
The wall thickness is a big difference between Schedule 40 and Schedule 80 pipes. Schedule 80 pipes have thicker walls, making them stronger for high-pressure jobs. For example, a 2-inch Schedule 40 pipe has walls 0.154 inches thick. A 2-inch Schedule 80 pipe has walls 0.218 inches thick. This extra thickness helps Schedule 80 pipes handle tough tasks like chemical or industrial work. Meanwhile, Schedule 40 pipes are lighter and cheaper, making them great for home plumbing or watering systems.
| Feature | Schedule 40 | Schedule 80 |
|---|---|---|
| Wall Thickness | 0.154” (2” nominal) | 0.218” (2” nominal) |
Pressure Ratings
Pressure rating shows how much pressure a pipe can take. Schedule 80 pipes have thicker walls, so they handle more pressure than Schedule 40 pipes. For example, a Schedule 40 pipe can take up to 280 PSI. A Schedule 80 pipe can handle up to 400 PSI. This makes Schedule 80 pipes better for high-pressure systems like factories or chemical plants. Schedule 40 pipes work well for lower-pressure jobs, like home water systems.
| Feature | Schedule 40 | Schedule 80 |
|---|---|---|
| Pressure Rating | Up to 280 PSI | Up to 400 PSI |
Durability
Durability is another important difference. The thicker walls of Schedule 80 pipes make them stronger and last longer. They are better for tough places like chemical plants or outdoor areas. Schedule 40 pipes are less strong but still good for easier jobs. They are lighter and cost less, which is helpful for projects that don’t need extreme strength.
Tip: Use Schedule 80 pipes for projects with chemicals or high-pressure fluids. They are safer and last longer.
Cost
When picking between Schedule 40 and Schedule 80 pipes, cost matters. Schedule 80 pipes cost more because their walls are thicker. They can handle higher pressure, which makes them stronger. Making these pipes uses more material, so they are pricier. If your project needs pipes for tough jobs, spending extra on Schedule 80 pipes is worth it.
Schedule 40 pipes are cheaper. Their thinner walls use less material, which lowers the price. They work well for low-pressure tasks like home plumbing or watering systems. For example, if you need pipes for simple jobs, Schedule 40 pipes save money and still work fine.
Think about long-term costs too. Schedule 40 pipes cost less upfront but might need more repairs later. Schedule 80 pipes last longer and need fewer fixes, saving money over time. Comparing short-term and long-term costs helps you pick the best pipe.
Tip: Check your project needs before buying pipes. Spending more now on stronger pipes can save money later.
Applications
The uses of Schedule 40 and Schedule 80 pipes depend on their strength. Schedule 40 pipes are great for homes and small jobs. They are light and cheap, making them good for plumbing, watering, and air systems.
Schedule 80 pipes are made for harder jobs. Their thick walls make them strong for factories and high-pressure systems. They are used in chemical plants and water treatment places. These pipes stay safe and work well in tough conditions.
Knowing where each pipe works best helps you choose wisely. Whether for home repairs or big projects, picking the right pipe keeps things safe and efficient.
Formula for Pipe Schedule
Understanding the Variables
The pipe schedule formula shows how wall thickness, size, and pressure connect. The formula is:
Pipe Schedule (SCH) = (1,000 × P / S) + 1
Here’s what the parts mean:
- P: Pressure inside the pipe (measured in PSI).
- S: Stress the pipe material can handle (measured in PSI). This depends on the material, like PVC or steel.
- 1,000: A fixed number used in the formula.
This formula helps make sure the pipe can handle the pressure safely. If the pressure (P) goes up, the pipe schedule also increases. Higher schedules, like Schedule 80, have thicker walls to handle more pressure.
Tip: Check the pipe material details from the manufacturer to find the right stress (S) value.
Example Calculation
Here’s an example for a steel pipe:
- Pressure inside (P) = 500 PSI
- Stress for steel (S) = 20,000 PSI
Use the formula:
Pipe Schedule (SCH) = (1,000 × P / S) + 1
Put in the numbers:
Pipe Schedule (SCH) = (1,000 × 500 / 20,000) + 1
Pipe Schedule (SCH) = (500,000 / 20,000) + 1
Pipe Schedule (SCH) = 25 + 1
Pipe Schedule (SCH) = 26
The pipe schedule is about 26. Since schedules are standard, round up to Schedule 30.
Note: Use this formula to pick the right pipe schedule. Always check industry rules to confirm your choice.
Knowing this formula helps you choose the best pipe schedule for your project.
Steel Pipe Schedule Chart (ANSI B36.10 & B36.19)
Understanding Pipe Schedule (SCH)
The pipe schedule (SCH) system helps you understand the relationship between wall thickness, pressure capacity, and pipe size. It is a standardized method used globally, especially in industries like construction, plumbing, and manufacturing. The American National Standards Institute (ANSI) defines these schedules under standards B36.10 and B36.19, which cover carbon steel and stainless steel pipes, respectively.
When you see a schedule number, such as 40 or 80, it tells you how thick the pipe walls are. Thicker walls mean the pipe can handle higher pressure. For example, Schedule 40 pipes have thinner walls and are suitable for low to medium-pressure applications. On the other hand, Schedule 80 pipes have thicker walls, making them ideal for high-pressure systems. This system ensures you can select the right pipe for your project without confusion.
Tip: Always check the pipe schedule when working on projects involving high-pressure fluids or gases. It ensures safety and efficiency.
Example Chart (Unit in Inches)
To help you visualize the differences between Schedule 40 and Schedule 80 pipes, here’s a detailed chart. It includes pipe size, outer diameter (OD), inner diameter (ID), wall thickness, and estimated weight per foot. This information is crucial when choosing pipes for specific applications.
| Pipe Size | OD | ID | Schedules | Wall | Est. LBS per Ft |
|---|---|---|---|---|---|
| 1/2″ | 0.84 | 0.674 | 40, STD | 0.109 | 0.851 |
| 1/2″ | 0.546 | 80, XS | 0.147 | 1.088 | |
| 1″ | 1.315 | 1.049 | 40, STD | 0.133 | 1.314 |
| 1″ | 0.933 | 80, XS | 0.179 | 1.569 | |
| 2″ | 2.375 | 2.067 | 40, STD | 0.154 | 2.568 |
| 2″ | 2.067 | 80, XS | 0.179 | 3.068 | |
| 3″ | 3.500 | 3.068 | 40, STD | 0.154 | 3.568 |
| 3″ | 3.068 | 80, XS | 0.179 | 4.068 | |
| 4″ | 4.500 | 4.026 | 40, STD | 0.154 | 4.568 |
| 4″ | 4.026 | 80, XS | 0.179 | 5.068 | |
| 6″ | 6.625 | 6.065 | 40, STD | 0.154 | 6.568 |
| 6″ | 6.065 | 80, XS | 0.179 | 7.068 | |
| 8″ | 8.625 | 8.065 | 40, STD | 0.154 | 8.568 |
| 8″ | 8.065 | 80, XS | 0.179 | 9.068 | |
| 10″ | 10.750 | 10.250 | 40, STD | 0.154 | 10.568 |
| 10″ | 10.250 | 80, XS | 0.179 | 11.068 | |
| 12″ | 12.750 | 12.250 | 40, STD | 0.154 | 12.568 |
| 12″ | 12.250 | 80, XS | 0.179 | 13.068 | |
| 14″ | 14.750 | 14.250 | 40, STD | 0.154 | 14.568 |
| 14″ | 14.250 | 80, XS | 0.179 | 15.068 | |
| 16″ | 16.750 | 16.250 | 40, STD | 0.154 | 16.568 |
| 16″ | 16.250 | 80, XS | 0.179 | 17.068 | |
| 18″ | 18.750 | 18.250 | 40, STD | 0.154 | 18.568 |
| 18″ | 18.250 | 80, XS | 0.179 | 19.068 | |
| 20″ | 20.000 | 19.564 | 40, STD | 0.218 | 48.05 |

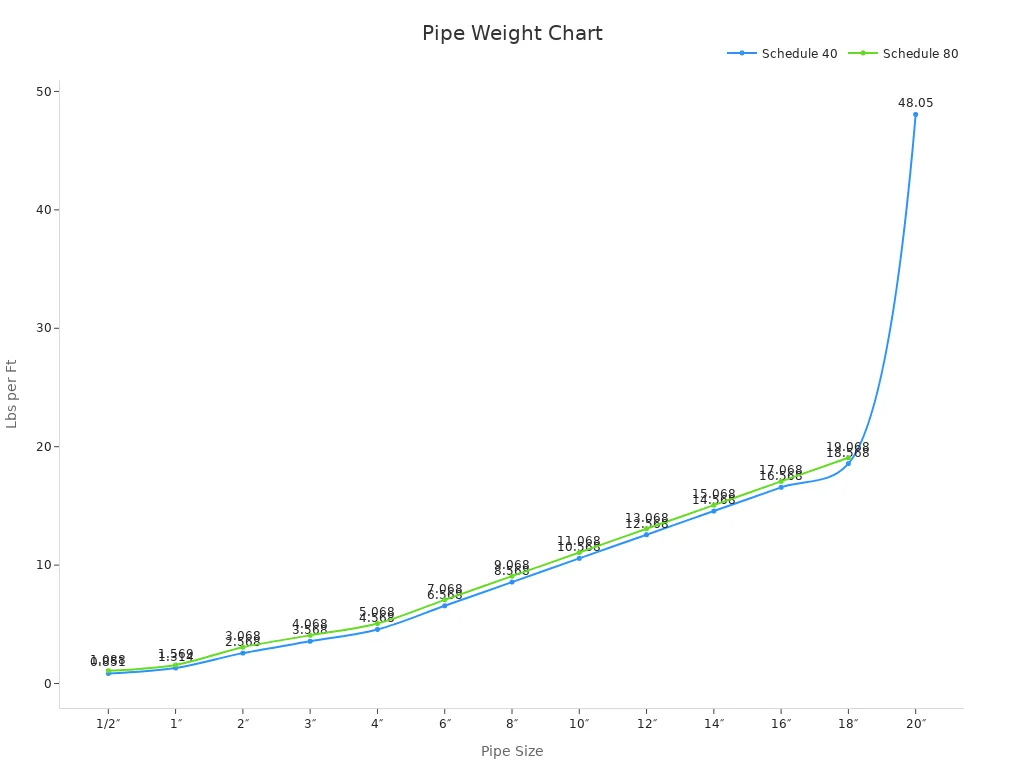

For a visual comparison, here’s a chart showing the weight per foot for Schedule 40 and Schedule 80 pipes across various sizes:
This chart highlights how the weight increases with wall thickness, especially for Schedule 80 pipes. Use this information to plan for transportation and installation needs.
Note: Always consult ANSI standards and manufacturer specifications for precise measurements and compatibility.
In Conclusion
Picking between schedule 40 and schedule 80 pipes depends on your project. Each pipe type has its own benefits. Schedule 40 pipes are light, cheaper, and good for low-pressure jobs like home plumbing or watering systems. Schedule 80 pipes are stronger and last longer, making them better for high-pressure places like factories or chemical plants.
Think about pressure, strength, and the environment before choosing. For example, if your project deals with chemicals or very hot or cold conditions, schedule 80 pipes are safer. But for easier tasks, schedule 40 pipes save money and still work well.
Knowing the differences in wall thickness, pressure strength, and materials helps you choose wisely. Spending more now on the right pipe can save repair costs later. Also, check the markings on pipes to make sure they fit your needs.
Tip: Always follow industry rules and manufacturer advice to pick the right pipe. This keeps your project safe and efficient.
By thinking about what your project needs, you can pick a pipe that balances cost, strength, and safety. Whether you go with schedule 40 or schedule 80 pipes, choosing wisely will help your project succeed.
FAQs
What is stronger, Schedule 40 or Schedule 80 steel pipe?
Schedule 80 steel pipes are stronger than Schedule 40 pipes. They have thicker walls, which handle more pressure and resist damage better. For example, Schedule 80 pipes are used in factories where strength is very important. On the other hand, Schedule 40 pipes are lighter and made for easier jobs. If your project needs to handle high pressure or tough conditions, pick Schedule 80 pipes for their extra strength.
Tip: Always check the pipe’s pressure rating and wall thickness before choosing.
What is Schedule 40 steel pipe used for?
Schedule 40 steel pipes are great for homes and small businesses. Their thinner walls make them perfect for plumbing, watering, and low-pressure systems. These pipes are often used to carry water, air, or safe liquids. They are light, so they’re easy to install and save time. If your project doesn’t need to handle high pressure, Schedule 40 pipes are a smart and affordable choice.
What is Schedule 80 pipe used for?
Schedule 80 pipes are made for tough and heavy-duty jobs. Their thick walls make them good for high-pressure systems like chemical plants, water treatment, and big machines. They can also handle strong chemicals and extreme heat or cold. This makes them reliable for hard tasks. If your project needs strong and long-lasting pipes, Schedule 80 is the best choice.
Note: Always think about your project’s needs, like pressure, temperature, and fluid type, when picking between Schedule 40 and Schedule 80 pipes.
Sch 40 vs Sch 80 pressure rating?
The pressure rating is a key difference between Schedule 40 and Schedule 80 pipes. It shows how much pressure a pipe can handle safely. Schedule 80 pipes have thicker walls, so they can take more pressure than Schedule 40 pipes. This makes them better for tough jobs.
For instance, a 1-inch Schedule 40 pipe can handle about 450 PSI. A 1-inch Schedule 80 pipe can take up to 630 PSI. As pipe size grows, this difference becomes even bigger. The extra strength of Schedule 80 pipes makes them perfect for high-pressure tasks like factories, chemical plants, and water systems.
Here’s a simple table comparing pressure ratings:
| Pipe Size (inches) | Schedule 40 Pressure Rating (PSI) | Schedule 80 Pressure Rating (PSI) |
|---|---|---|
| 1/2″ | 600 | 850 |
| 1″ | 450 | 630 |
| 2″ | 280 | 400 |
When picking a pipe, think about how much pressure your project needs. Schedule 40 pipes are cheaper and work well for low-pressure jobs. For high-pressure systems, Schedule 80 pipes are stronger and safer.
Tip: Always check the pipe’s pressure rating from the manufacturer. This ensures it’s safe for your project.
Picking between Schedule 40 and Schedule 80 pipes depends on your project. Schedule 40 pipes are light, cheaper, and good for low-pressure jobs. On the other hand, Schedule 80 pipes have thicker walls, handle more pressure, and last longer in tough places.
Tip: Think about pressure, temperature, and fluid type before choosing. This keeps your project safe and reliable.
Knowing these differences helps you pick the right pipe. A smart choice saves money, avoids problems, and makes your project successful.
FAQs
1. How can you tell Schedule 40 and Schedule 80 pipes apart?
You can tell them apart by their color and labels. Schedule 40 pipes are usually white, while Schedule 80 pipes are gray. Important details like wall thickness and pressure ratings are printed on the pipes. Always read these labels before using them.
Tip: Check the printed info to ensure the pipe fits your project.
2. Are Schedule 40 pipes good for high-pressure systems?
Schedule 40 pipes are best for low or medium-pressure jobs. They are not strong enough for high-pressure tasks. For stronger needs, pick Schedule 80 pipes. Their thicker walls handle more pressure and resist damage better.
3. Is it worth paying more for Schedule 80 pipes?
Schedule 80 pipes cost more because they are thicker and stronger. They last longer and need fewer repairs, saving money over time. If your project needs safety and durability, spending more on Schedule 80 pipes is a smart choice.
4. What materials are used to make Schedule 40 and Schedule 80 pipes?
Both types are made from PVC or steel. PVC pipes resist rust and chemicals, while steel pipes are stronger. Pick the material based on your project’s needs and the type of fluid being carried.
Note: Use PVC for chemical resistance and steel for heavy-duty jobs.
5. Can Schedule 40 and Schedule 80 pipes be recycled?
Yes, both types can be recycled. PVC pipes are eco-friendly and work well in green projects. Steel pipes are also recyclable, making them a good choice for sustainable uses.
Reminder: Recycling helps protect the environment and reduces waste.
