Choosing the right type of CNC Machining with Aluminum 6061 is very important for achieving optimal results. Each type affects how hard, strong, and easy to shape the material is. Aluminum 6061 is popular because it is strong, resists rust, and is lightweight. It is easy to work with, making it great for precise and fast CNC machining. This makes it perfect for use in airplanes, cars, and factories.
Here’s how it compares to other materials:
| Material | Easy to Machine | Strength (MPa) | Weight (g/cm³) | Heat Transfer (W/m-K) | Price ($/kg) | Best Use |
|---|---|---|---|---|---|---|
| 6061 Aluminum (T6) | Very Good | 310 | 2.7 | 167 | 4-5 | Exact parts, frames |
| 7075 Aluminum (T6) | Okay | 570 | 2.81 | 130 | 8-10 | Strong airplane parts |
| Mild Steel | Bad | 400-500 | 7.85 | 50 | 1-2 | Strong structures |
| Stainless Steel | Bad | 600-800 | 8.0 | 16 | 3-5 | Rust-proof parts |
Knowing about types and heat treatment helps you get the most out of CNC Machining with Aluminum 6061. Picking the right one lets you make strong and long-lasting projects.
Key Takeaways
- Picking the right type of Aluminum 6061 is important for strong and accurate CNC machining results.
- 6061-T651 works well for detailed designs because it is easier to machine and bends less than 6061-T6.
- Aluminum 6061 is light, doesn’t rust, and is simple to shape, making it great for planes and cars.
- Using the right tools and coolants, like coated carbide or MQL, improves surface smoothness and makes tools last longer.
- Knowing how aluminum types differ helps you choose the best one for your project.
Why Aluminum 6061 is Great for CNC Machining
Important Features of Aluminum 6061

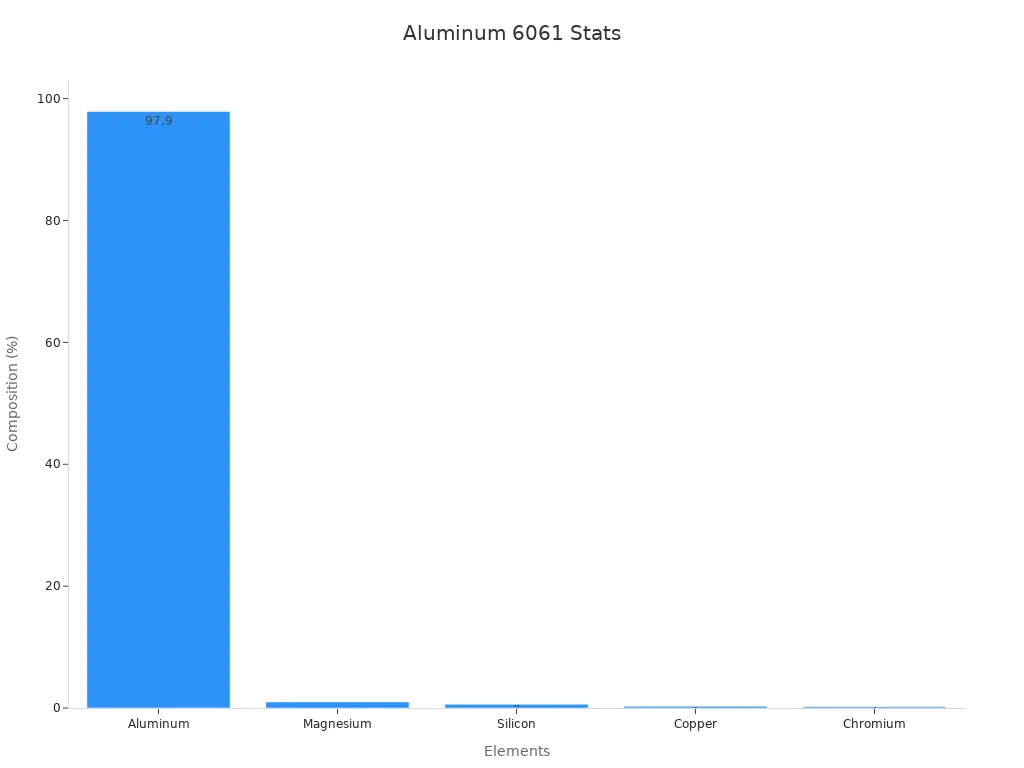

Aluminum 6061 is strong, rust-resistant, and easy to shape. It is made of 97.9% aluminum, with magnesium and silicon added. These extra elements make it tougher and better for many uses. Its density is 2.7 g/cm³, so it is lightweight. The tensile strength of 310 MPa makes it durable and long-lasting.
It also handles heat well, with thermal conductivity of 167 W/mK. This helps prevent overheating during machining. Its Brinell hardness of 95 gives it a good mix of toughness and flexibility. These features make Aluminum 6061 a top choice for industries needing strong and precise materials.
Benefits in CNC Machining
Aluminum 6061 has many benefits for CNC machining projects. It is easy to cut and shape while staying strong. This makes it great for parts that need exact measurements, like airplane or car parts.
It resists rust, so it lasts a long time, even in tough conditions. Its light weight and strength make it perfect for things like bike frames or boat parts. It is also good for projects where reducing weight is important.
Another benefit is that it can have different finishes, like anodizing or powder coating. These finishes make it look better and last longer. Plus, Aluminum 6061 can be recycled, making it a smart and eco-friendly choice for engineers.
Comparing Aluminum 6061 with Other Alloys
6061 vs 6063: Strength vs Extrudability

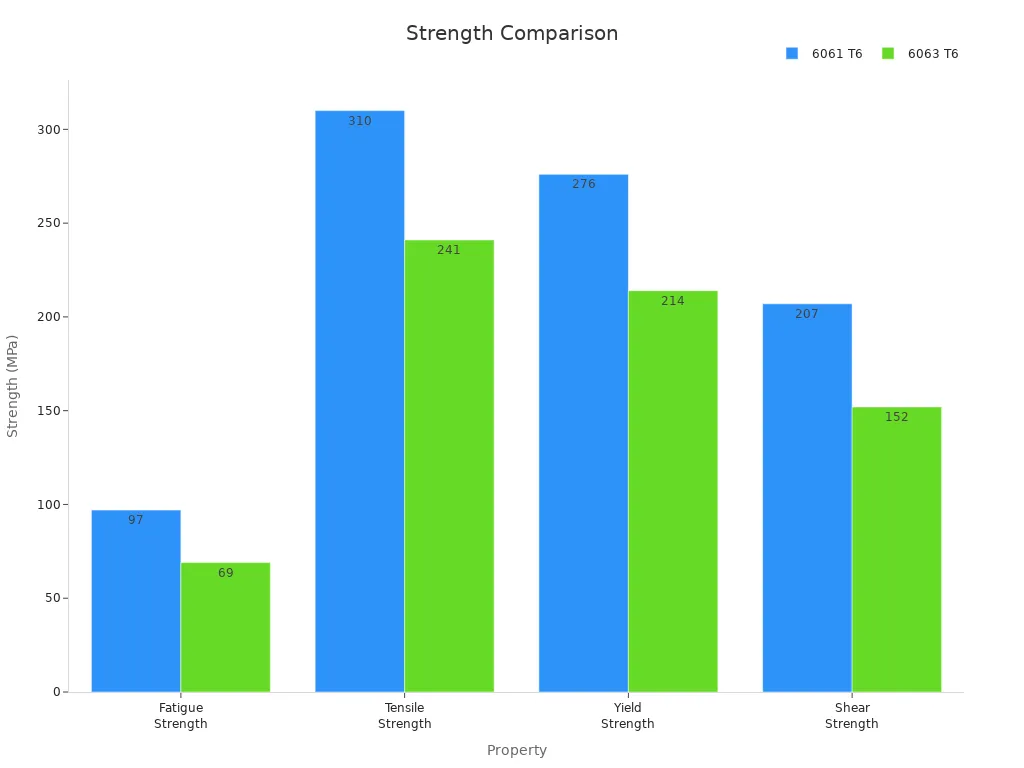

6061 aluminum is stronger than 6063. It has a tensile strength of 310 MPa and yield strength of 276 MPa. This makes it great for strong parts like airplane and building components. 6063, however, is easier to shape into detailed designs. It works well for things like window frames and tubes.
6061 is better at handling repeated stress with a fatigue strength of 97 MPa. Its Brinell hardness of 95 also adds toughness. But 6063 stretches more before breaking (15%) and handles heat better (200 W/m-K). This makes 6063 good for heat-sensitive projects.
6061 vs 7075: Workability vs Structural Strength
6061 aluminum is easier to use than 7075. You can weld, cut, and shape 6061 more easily. This makes it good for many types of projects. 7075 is much stronger, so it’s used for airplane frames and military tools.
6061 costs less and is simpler to work with. 7075 has more zinc and copper, which can cause cracks when welding. If you need easy manufacturing, pick 6061. For very strong and lightweight parts, like in airplanes, choose 7075.
6061 vs 2024: Corrosion Resistance vs Fatigue Resistance
6061 aluminum resists rust better than 2024. It works well in wet places or near saltwater. It also lasts longer in changing temperatures and pH levels. This makes it perfect for boats and outdoor structures.
2024 is better at handling repeated stress. It’s often used for airplane wings and parts that bend a lot. If you need something to last in tough weather, pick 6061. For parts that face constant stress, 2024 is the better choice.
6061 vs 7050: Lightweight or High Strength?
When picking between Aluminum 6061 and Aluminum 7050, think about what your project needs more: lightness or strength. Both are great for airplanes but have different uses.
Aluminum 6061 is known for being lightweight. It resists rust well and is easy to shape. This makes it perfect for airplane parts like wings or the body. You can cut, weld, and shape it easily, which saves time during production. Its density of 2.7 g/cm³ keeps it light but still strong. This is why it’s a favorite for projects where weight matters most.
Aluminum 7050, however, is much stronger. It has a high strength-to-weight ratio, making it great for tough parts like wing covers or military planes. It can handle heavy stress and pressure, so it works well in hard conditions. Even though it’s heavier than 6061, its strength makes it the best choice for projects needing maximum durability.
Here’s a simple comparison:
| Alloy | Lightweight Benefit | High Strength Feature |
|---|---|---|
| Aluminum 6061 | Rust-resistant and easy to shape, great for airplane parts. | N/A |
| Aluminum 7050 | N/A | Very strong, ideal for military and high-stress parts. |
Key Points:
- Aluminum 6061: Pick this for lightweight designs that resist rust and are easy to make.
- Aluminum 7050: Choose this for strong parts that handle stress, especially in airplanes.
By knowing what each alloy does best, you can pick the right one for your project.
Differences Between 6061-T6 and 6061-T651 Tempers
Properties of 6061-T6
6061-T6 is a common choice for aluminum machining. It goes through heat treatment and aging to improve its strength. This temper is strong and resists rust, making it great for lightweight and durable parts. However, the heat process can leave stresses in the material. These stresses might cause small distortions when machining complex shapes.
Here’s a simple look at its properties:
| Property | Value |
|---|---|
| Tensile Strength | 45,000 psi |
| Yield Strength | 40,000 psi |
| Modulus of Elasticity | 68.9 GPa (10,000 ksi) |
| Thermal Conductivity | 1160 BTU-in/hr-ft²-°F |
| Shear Modulus | 26 GPa (3770 ksi) |
| Ultimate Tensile Strength | 310 MPa (45,000 psi) |
| Yield Strength (MPa) | 276 MPa (40,000 psi) |
6061-T6 is easy to machine but may need extra work for smooth finishes. Its mix of strength and rust resistance makes it popular for aerospace and car industries.
Characteristics of 6061-T651
6061-T651 is like 6061-T6 but with less stress. After heat treatment and aging, it is stretched to remove leftover stresses. This makes it easier to machine and better for precise designs.
Here’s how 6061-T651 compares to 6061-T6:
| Temper | Machinability Description | Tool Life Description | Surface Finish Description |
|---|---|---|---|
| 6061-T6 | Good machinability but may distort during complex machining. | Increased tool wear due to residual stresses. | May require extra effort for a smooth finish due to potential distortion. |
| 6061-T651 | Enhanced machinability with reduced distortion risk, ideal for complex shapes. | Longer tool life due to reduced residual stresses. | Better control over surface finish, reliable for precision applications. |
| 6061-T6511 | Best machinability, minimal distortion, optimal for strict tolerances. | Optimal cutting conditions extend tool life, efficient for long runs. | Excels in producing superior surface finishes, reducing machining-induced imperfections. |
6061-T651 gives better surface finishes and longer tool life. It’s a top pick for CNC machining when precision is key. Its lower distortion risk ensures accurate results for detailed designs.
Choosing the Right Temper for CNC Machining
The right temper depends on your project’s needs. For general use, 6061-T6 is strong and rust-resistant. It’s good for parts that don’t need high precision. For detailed designs or tight tolerances, 6061-T651 is better. It’s easier to machine and has less distortion.
Think about these factors when choosing:
- Machining Needs: 6061-T651 is best for detailed shapes and smooth finishes.
- Tool Life: 6061-T651 reduces stress, helping tools last longer.
- Rust Resistance: Both tempers resist rust, working well in wet or chemical areas.
- Cost: 6061-T6 costs less, but 6061-T651’s benefits may be worth it for precise work.
Tip: Match the temper to your project. For tight designs and easy machining, 6061-T651 saves time and effort.
By knowing these differences, you can choose the best temper for your CNC machining project and get great results.
The Impact of Heat Treatment on Aluminum 6061
How Heat Treatment Improves Aluminum
Heat treatment helps aluminum 6061 work better. It makes it stronger, easier to machine, and less likely to rust. This is done by heating and cooling it carefully. For example, heating it to 350°C and aging for six hours increases its strength. Yield strength can go up to 383 MPa, and tensile strength can reach 528 MPa. These changes make it great for tough jobs like airplane and car parts.
During T6 heat treatment, tiny structures called β″ precipitates form. These improve how well the metal handles repeated stress. Magnesium in the aluminum also helps make it stronger. Together, these changes make heat-treated aluminum 6061 last longer and stay strong under pressure.
Changes in Strength and Hardness
Heat treatment makes aluminum 6061 harder and stronger. The T6 temper boosts yield strength and hardness but makes it less bendable. Here’s a simple comparison:
| Treatment Type | Strength (MPa) | Hardness (HV) |
|---|---|---|
| Before Heat Treatment | ~200 | ~60 |
| After T6 Treatment | ~310 | ~95 |
Heating to higher temperatures, like 540°C, makes the metal more flexible. But if heated too much, it can become brittle. Following the right steps ensures the metal is strong and easy to work with.
Better Rust Resistance and Shape Stability
Heat treatment also helps aluminum 6061 resist rust. Changing the grain structure during heating makes it better at handling tough environments. Adding thin Ti-based films during treatment creates a protective layer. This layer stops rust and keeps the metal safe.
Heat treatment reduces stress inside the metal. This prevents bending or warping during machining. It helps keep the final product accurate and stable, even in hard conditions.
| Study Title | Findings | Rust Resistance Notes |
|---|---|---|
| Study on Corrosion Resistance of 6061Al and SiC3D/6061Al Composite | Found rod-like shapes in grain boundaries. | Messy grain edges are more likely to rust. |
| Improved Rust Resistance of Aluminum 6061 Using Ti-Based Films | Ti-Ni film worked best. | Protective layer stops rust and improves durability. |
By learning how heat treatment changes aluminum 6061, you can make it perfect for your project.
Best Practices for 6061 Aluminum Machining
Picking the Right Tools and Coolants
Choosing the correct tools is key for machining 6061 aluminum. Tools made from coated carbide or PCD (polycrystalline diamond) work best. Coated carbide tools last longer and give smoother surfaces. PCD tools are great for dry cutting and offer excellent results. Here’s a simple comparison:
| Tool Type | Surface Smoothness | Tool Life | Cutting Type |
|---|---|---|---|
| Coated Carbide | Smoother | Longer | Dry |
| Uncoated Carbide | Rougher | Shorter | Dry |
| PCD | Best | N/A | Dry |

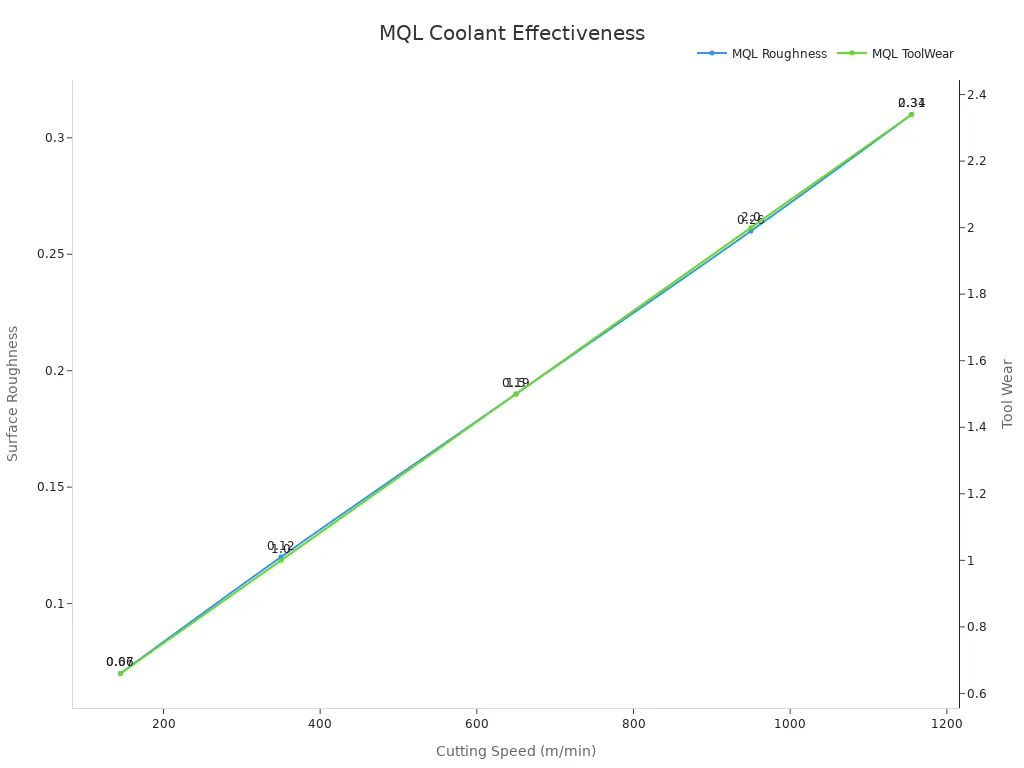

Coolants are also important for machining aluminum. Flood coolant helps prevent overheating and extends tool life. MQL (Minimum Quantity Lubrication) with vegetable oil improves surface quality and reduces tool wear. Studies show MQL lowers cutting force and stops built-up edges.
Tip: Use flood coolant for general tasks. Use MQL for precise work.
Ways to Get a Better Surface Finish
A smooth surface is important when machining 6061 aluminum. Techniques like abrasive flow machining and magnetic-assisted finishing can help. Abrasive flow machining uses silicon carbide particles to smooth surfaces to 200–500 nm. Magnetic-assisted finishing can make surfaces even smoother, down to 200–400 nm. Here’s a comparison:
| Technique | Surface Smoothness (Ra) | Key Factors |
|---|---|---|
| Abrasive Flow Machining | 200–500 nm | Particle size, flow speed |
| Magnetic-Assisted Abrasive Finishing | 200–400 nm | Magnetic strength, finishing time |
| Elastic Bonded Tool Finishing | 710 nm (from 960 nm) | Diamond grain size, bonding type |
Other methods, like hydrodynamic cavitation, improve surface finish by controlling fluid flow and pressure. These techniques reduce heat and make surfaces more accurate.
Note: Pick a method based on your project’s needs and smoothness goals.
Fixing Common Machining Problems
Machining 6061 aluminum can cause issues like bending, tool wear, and rough surfaces. Adjusting machining settings can solve these problems. For example, higher spindle speeds make surfaces smoother. Slower feed rates reduce burrs. Studies show good tools and coolants lower tool wear and improve results.
Built-up edges (BUE) are a common problem. They harm surface quality and shorten tool life. Using MQL with vegetable oil reduces BUE and improves cutting. Regular quality checks help avoid defects and ensure good results.
Tip: Check tools often and adjust settings to avoid problems and get accurate results.
Picking the right temper for CNC machining with aluminum 6061 helps your project be strong, precise, and long-lasting. Both 6061-T6 and 6061-T651 are great options, but they have differences. For instance, while their strength and hardness are the same, 6061-T651 is easier to machine and less likely to warp. This makes it better for detailed designs. Here’s a simple comparison:
| Property | 6061-T6 | 6061-T651 |
|---|---|---|
| Yield Strength | 276 MPa | 276 MPa |
| Tensile Strength | 310 MPa | 310 MPa |
| Hardness (Brinell) | 93 | 93 |
| Machinability | Okay | Very Good |
| Weldability | Good | Very Good |
For general projects, 6061-T6 is a good choice because it costs less. For detailed work, 6061-T651 is better since it reduces stress and helps tools last longer. Always pick the temper that fits your project’s needs for the best outcome.
Tip: Think about machinability, weldability, and surface finish when choosing a temper. This helps your aluminum parts work well and look good.
FAQ
What is the difference between 6061-T6 and 6061-T651 tempers?
6061-T6 is heat-treated and aged to boost strength. 6061-T651 goes through extra stretching to remove stress. This makes 6061-T651 better for precise machining. It reduces bending and gives smoother surfaces.
Tip: Pick 6061-T651 for detailed designs and exact measurements.
Can you weld Aluminum 6061?
Yes, Aluminum 6061 can be welded. But its strength drops in heated areas. Using filler alloys like 4045 or 5356 helps make stronger welds. Heat treatment after welding can also restore some strength.
How do you prevent tool wear when machining 6061 aluminum?
Use coated carbide or PCD tools to last longer. Apply flood coolant or MQL to lower heat and friction. Check tools often and replace them if worn out.
Note: Good lubrication helps tools last and improves surface quality.
Is Aluminum 6061 suitable for outdoor applications?
Yes, Aluminum 6061 resists rust, making it great for outdoors. Its oxide layer protects it from corrosion. Adding anodizing or coatings can make it even tougher.
What is the best way to achieve a smooth surface finish on 6061 aluminum?
Use methods like abrasive flow or magnetic-assisted finishing for smooth results. Adjust spindle speed and feed rate to avoid burrs. High-quality tools and coolants also improve the finish.
Pro Tip: Magnetic-assisted finishing can make surfaces as smooth as 200–400 nm.
