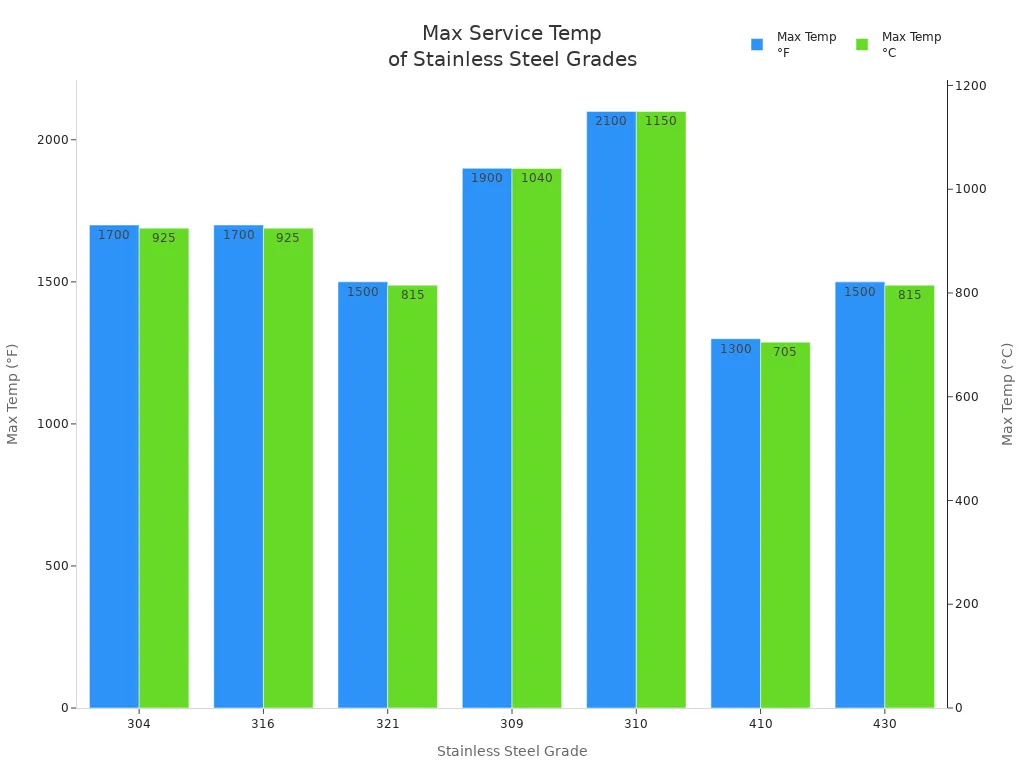

When you work in places with high heat, selecting the right stainless steel grade is crucial for ensuring safety and enhancing the longevity of machines. The stainless steel high temperature performance varies among different grades, which is why it’s important to know their maximum safe temperatures:
| Grade | 304 | 309 | 310 | 316 | 321 | 410 | 416 | 420 | 430 |
| Intermittent (°C) | 870 | 1000 | 1050 | 870 | 870 | 815 | 760 | 735 | 870 |
| Continuous (°C) | 925 | 1095 | 1150 | 925 | 925 | 705 | 675 | 620 | 815 |
The grade you choose impacts the strength, safety, and cost of your project. Each stainless steel grade is optimized for different high temperature performance, with some excelling in corrosion resistance and durability. Selecting the appropriate grade helps prevent machinery failures and can lead to significant cost savings.
Key Takeaways
- Picking the correct stainless steel grade keeps machines safe and working longer in hot places. Grades such as 310 and 446 work well in very high heat. Grades like 304 and 316 are good for medium heat in food and marine jobs. Knowing the highest temperature a grade can handle stops machines from breaking and saves money on repairs. Think about how well the grade fights rust and how strong it is before you choose. Make sure the stainless steel grade fits your job needs for best results and to save money.
Top Grades and Temperature Limits
Maximum Service Temperatures

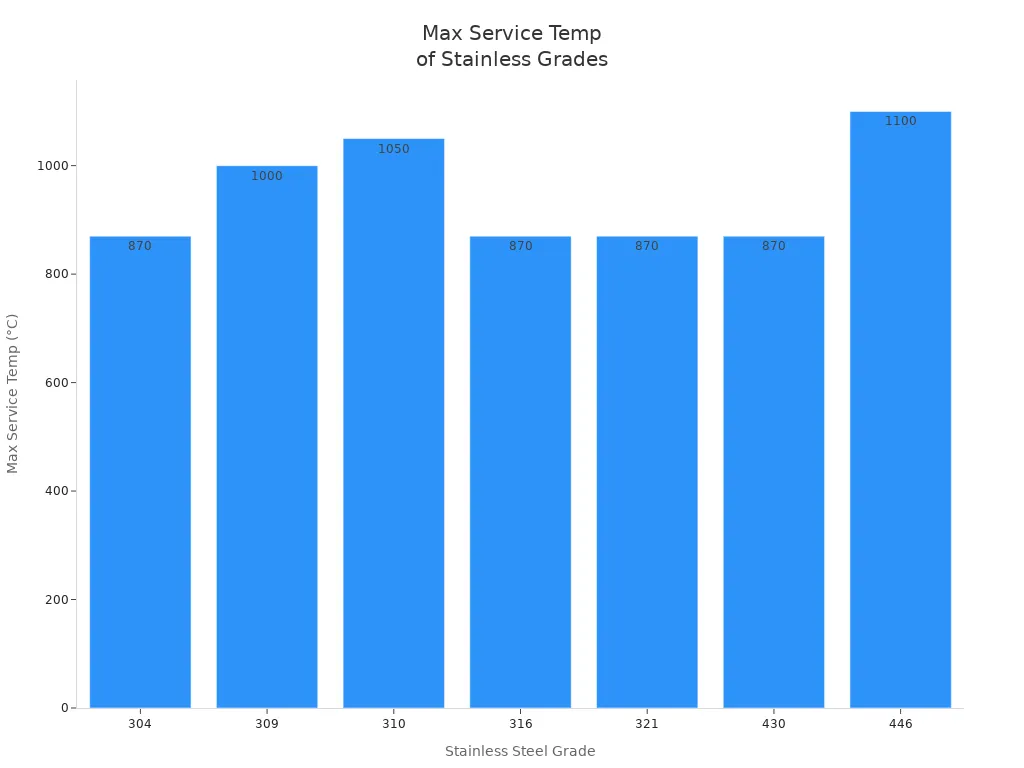

When picking stainless steel for hot jobs, you must know how much heat each grade can take. Every grade has a top temperature it can handle. If you use it above this, the steel might get weak or break. The table below lists the main stainless steel grades and their highest safe temperatures:
| Grade | Main Alloying Elements (%) | Max. Service Temp. oC | Source | ||
| AISI | EN | Cr | Others | ||
| Ferritic types | |||||
| 405 | 1.4002 | 12 | 0.2 Al | 815 | ASM |
| . | 1.4724 | 12 | 1.0 Al | 850 | EN 10095 |
| 430 | 1.4016 | 17 | . | 870 | ASM |
| . | 1.4742 | 17 | 1.0 Al | 1000 | EN 10095 |
| 446 | 1.4749 | 26 | 0.15-0.20 C, 0.2 N | 1100 | EN 10095 |
| Austenitic types | |||||
| 304 | 1.4301 | 18 | 8 Ni | 870 | ASM |
| 321 | 1.4541 | 18 | 9 Ni | 870 | ASM |
| . | 1.4878 | 18 | 9 Ni | 850 | EN 10095 |
| 316 | 1.4401 | 17 | 11 Ni, 2 Mo | 870 | ASM |
| 309 | 1.4833 | 22 | 12 Ni | 1000 | EN 10095 |
| 310 | 1.4845 | 25 | 20 Ni | 1050 | EN 10095 |
| . | 1.4835 | 20 | 10 Ni, 1.5 Si, 0.15 N, 0.04 Ce | 1150 | EN 10095 |
| 330 | 1.4886 | 18 | 34 Ni, 1.0 Si | 1100 | EN 10095 |
Grades like 310 and 309 can handle very high heat. These are used in kilns, burners, and other hot machines. Grades 304 and 316 are used for food and marine jobs, but they cannot take as much heat.
Why Temperature Limits Matter
You need to watch temperature limits when picking stainless steel. If you go over the limit, you can have big problems:
- Stainless steel parts often work in hot and high-pressure places.
- Using them above their safe temperature can make them weak or break.
- Things like oxidation, scaling, and carbide precipitation can happen if you pick the wrong grade.
- Some grades stay strong in heat, but others may get weak or rust.
Picking the right grade makes your equipment last longer and keeps it from rusting. It also helps your machines work well when it gets hot.
Knowing how stainless steel works in heat helps you stop expensive problems and keeps your workplace safe. Always choose the grade that fits your job and where you will use it.
Stainless Steel High Temperature Performance
Knowing about stainless steel high temperature performance helps you pick the right material. Each grade acts differently when it gets hot for a long time. Some grades stay strong and do not rust. Others might get weak or bend. You should learn how each type works to keep your machines safe.
Austenitic Grades
Austenitic stainless steels are used a lot for hot jobs. Many industries use these grades because they do not rust and stay strong in heat. Grades like 304, 310, and 316 are common.
- 304 and 316 can handle heat up to 870°C (1600°F). They are good for food factories, chemical plants, and ships.
- 310 can take even more heat, up to 1150°C (2100°F). It has more chromium and nickel, so it fights oxidation better. You see 310 in kilns, furnaces, and burners.
- 321 is another austenitic grade. It has titanium, which helps it stay strong when hot. This grade is used in jet engines and exhaust pipes.
Austenitic grades do not get brittle when cold. They also do not form flaky layers when heated. This makes them good for many hot jobs.
Tip: If you want stainless steel high temperature performance and good rust protection, look at austenitic grades first.
Ferritic and Martensitic Grades
Ferritic and martensitic stainless steels have other benefits for hot work. Ferritic grades like 430 and 446 move heat well and do not change size much. This means they do not grow or shrink a lot when hot or cold. Ferritic grades keep their shape and strength in heat.
- Ferritic grades fight oxidation and scaling. Grade 446 can take heat up to 1100°C (2000°F). Ferritic stainless steel is used in furnace parts and heat exchangers.
- Martensitic grades are not used much for hot jobs. They can get hard and break when heated. But you might use them for turbine blades or knives where sharpness and some heat resistance are needed.
Ferritic stainless steels do not do well in cold. They can break if they get too cold. But they stay steady in heat, so they are used in many factories.
Note: Ferritic grades give you steady shape and less growth in heat, but they may not fight rust as well as austenitic grades.
Performance Table

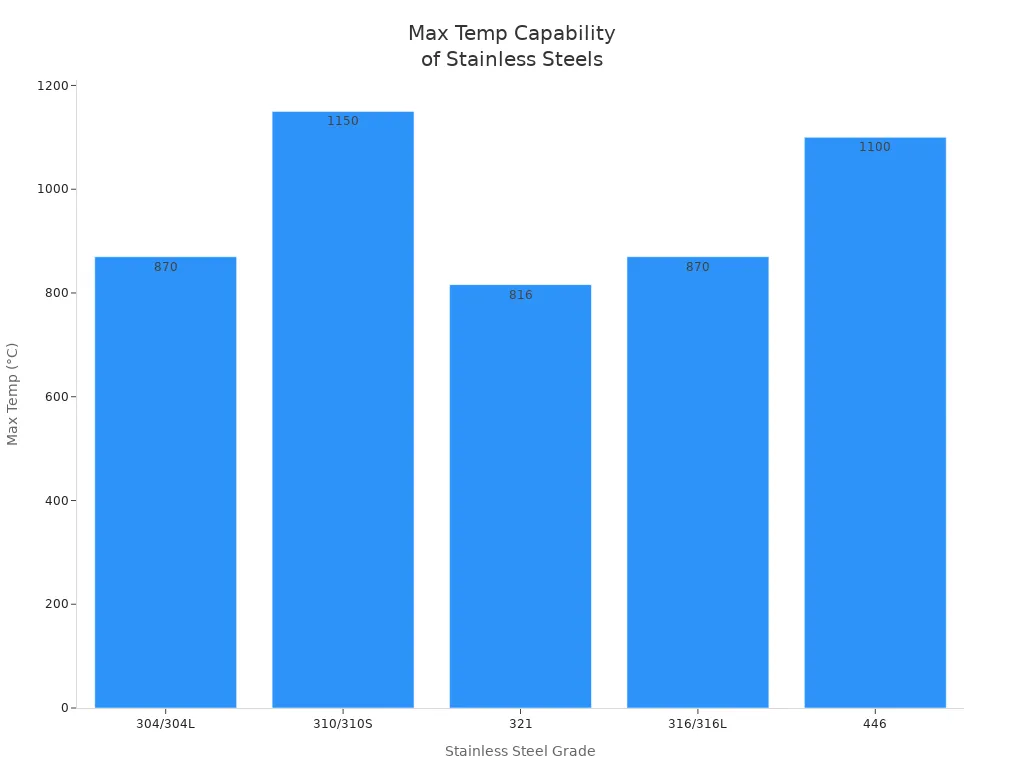

You can check the main grades in the table below. The table shows top temperatures, oxidation resistance, and common uses. It helps you pick the best grade for stainless steel high temperature performance.
| Stainless Steel Grade | Maximum Temperature (°C) | Oxidation Resistance | Typical Uses |
|---|---|---|---|
| 304/304L | 870 | Good | Food processing, kitchen equipment |
| 310/310S | 1150 | Excellent | Kilns, burners, furnace parts |
| 316/316L | 870 | Very Good | Marine, chemical processing |
| 321 | 816 | Good | Jet engines, exhaust systems |
| 446 | 1100 | Excellent | Furnace parts, heat exchangers |
| 430 | 815 | Moderate | Automotive trim, heat-resistant parts |
You can see that 310 and 446 have the best stainless steel high temperature performance. They fight oxidation and scaling even in very hot places. Grades like 304 and 316 are good for most jobs but may not last in super high heat.
Remember: Always pick the grade that matches your job’s heat and place. This keeps your machines safe and working longer.
Why do Austenitic Stainless Steels Have High Working Temperatures?
You may ask why austenitic stainless steels work well in heat. The reason is their special structure and what they are made of. These steels stay strong and do not rust, even in hot places for a long time.
Austenitic stainless steels have a lot of nickel and chromium. Nickel helps the steel stay tough and keep its shape when it gets hot. Chromium makes a thin layer on the outside. This layer stops oxygen from touching the metal below. That keeps the steel from rusting or getting flaky. Nitrogen is sometimes added too. It works with chromium to stop bad carbides from forming. This helps the steel stay strong and bendy, even after many years in heat.
Tip: The right amounts of nickel, chromium, and nitrogen help austenitic stainless steels last long and handle heat.
These steels have some great properties:
- Superaustenitic stainless steels are stronger than regular ones.
- They get tougher when you bend or shape them cold.
- More chromium, molybdenum, and nitrogen make them stronger in heat.
- They act like nickel-based alloys when hot, so special tools are needed to work with them.
These things show why austenitic grades are best for high heat jobs. You see them in furnaces, kilns, and chemical plants where it is always hot and things can rust. If you pick austenitic stainless steel, your machines will last longer, not rust, and stay safe.
Selection Factors
Temperature and Environment
When picking stainless steel for hot jobs, think about more than heat. The air and things around your machines can change how the steel works. Here are some things to watch out for:
- Thermal Expansion: Steel gets bigger when it heats up. This can push on joints and make leaks.
- Thermal Fatigue: Heating and cooling again and again can bend steel.
- Thermal Creep: Staying hot for a long time can stretch steel out.
- Thermal Corrosion: High heat can change chemical reactions and cause new rust.
- Stress Rupture: All these problems together can make steel break fast.
You also need to check the air and stuff around your machines. Salty air, chemicals, or wet places can make rust happen faster. The table below shows how different things in the air can change how long steel lasts and how well it works:
| Environmental Factor | Impact on Longevity and Performance |
|---|---|
| Exposure to Corrosive Elements | Faster rust and shorter lifespan |
| Temperature Fluctuations | Can cause cracks or make steel brittle |
| Humidity Levels | Raises the risk of pitting and local rust |
| Climate Conditions | May require special care or cleaning |
Oxidation and Corrosion Resistance
Stainless steel fights rust by making a thin oxide layer. This layer keeps the metal safe. Chromium in the steel helps make this shield. In hot places with lots of oxygen, the layer gets even stronger. If the layer stays smooth, your steel will last longer.
- A thick oxide layer is important for hot jobs.
- More chromium gives better protection.
- Grades like 309S, 321, 316, 317L, 434, and 444 are good at fighting rust and oxidation.
Tip: For jobs with lots of heat and water, pick a grade with high chromium and extra things like titanium or molybdenum.
Mechanical Properties and Cost

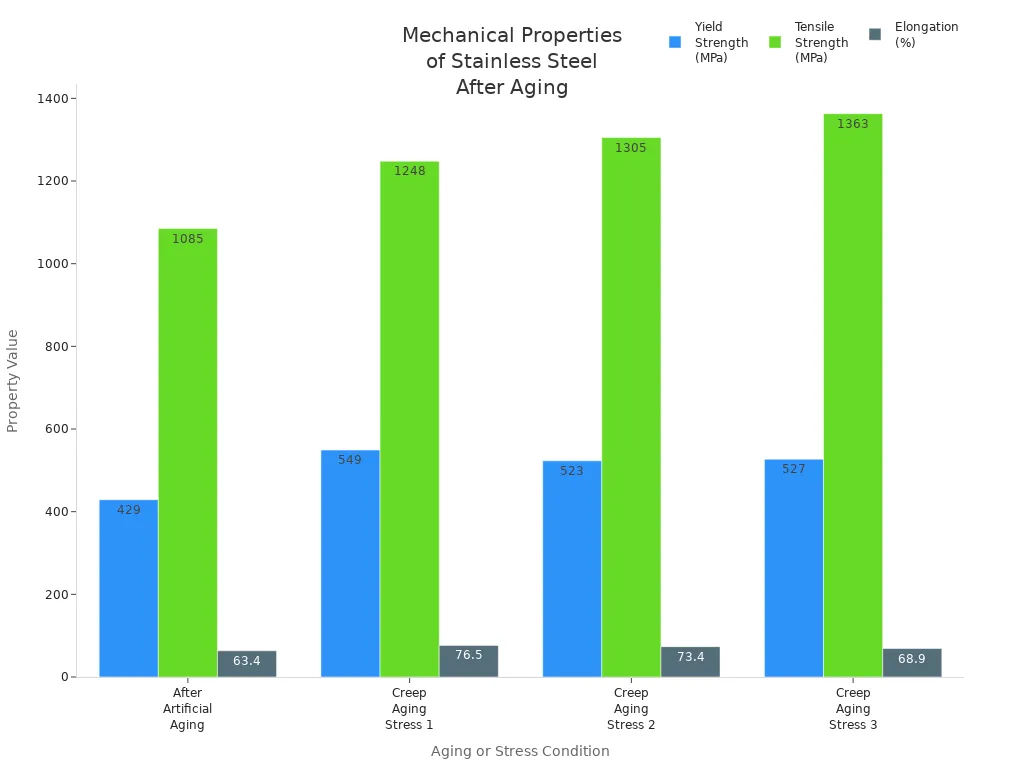

You want steel that stays strong and bends without breaking when hot. Look at things like yield strength and tensile strength. These show how much force steel can take before it bends or snaps. The chart below shows how steel strength changes with heat and stress:
Cost is important too. Austenitic grades (like 304 and 316) cost more because they have more nickel. Ferritic grades (like 430 and 434) are cheaper but may not last as long in tough places.
| Stainless Steel Grade | Cost Characteristics |
|---|---|
| 300 Series | Higher cost, better for harsh environments |
| 400 Series | Lower cost, good for less demanding jobs |
| 316 | 30-40% more expensive than 304, but better in tough spots |
Application Scenarios

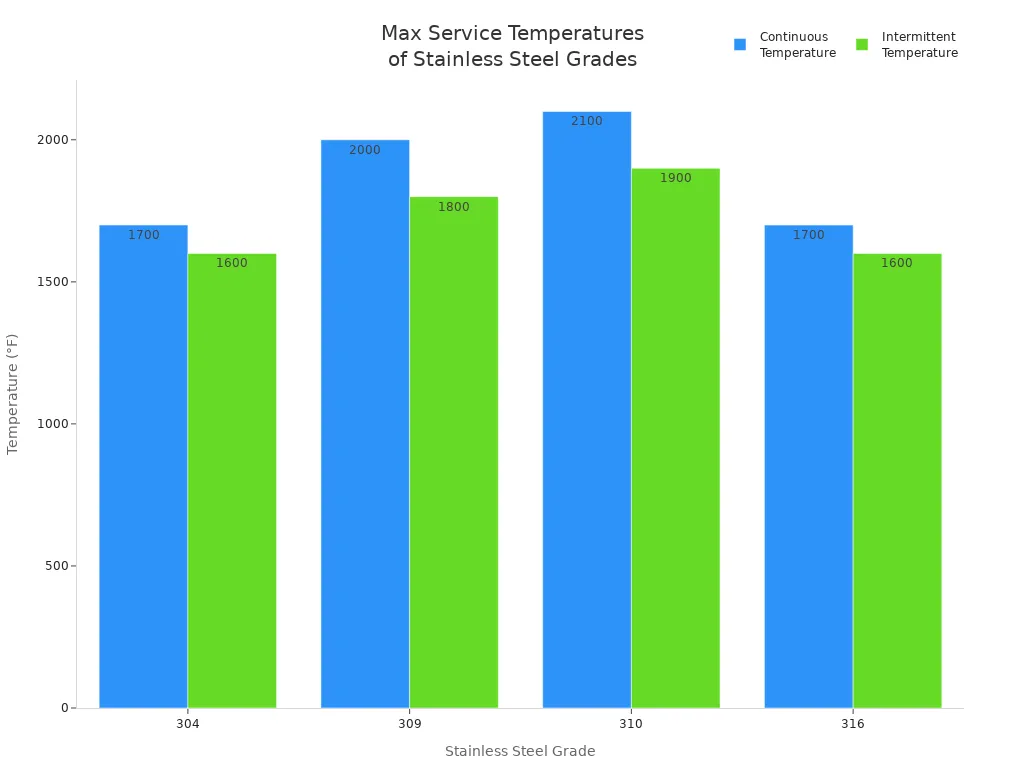

You need to pick the right grade for your job. Here are some real-life examples:
| Stainless Steel Grade | Continuous Temp (°F) | Intermittent Temp (°F) | Typical Use |
|---|---|---|---|
| 304 | 1,700 | 1,600 | Food equipment, piping |
| 309 | 2,000 | 1,800 | Furnace parts, kilns |
| 310 | 2,100 | 1,900 | Burners, heat exchangers |
| 316 | 1,700 | 1,600 | Marine, chemical plants |
To get the best mix of price and how well it works, check the air, the heat, and how long the steel will be hot. Pick a grade that fits your job, not just your wallet.
Recommendations and Checklist
Grade Recommendations
You want your machines to last and be safe in heat. Picking the right stainless steel grade is very important. Here are some good choices for different jobs:
- For extreme heat (over 1000°C): Pick 310 or 446. These grades can take the most heat and do not rust easily.
- For most industrial jobs (up to 870°C): 304 and 316 are good. You find these in food factories, chemical plants, and on ships.
- For furnace parts and heat exchangers: 309 and 310 are strong. They keep their shape and strength when it gets very hot.
- For jobs needing extra corrosion resistance: 316 and 321 are smart picks. 321 is also used in exhaust pipes and jet engines.
Tip: Always pick the grade that matches your job’s heat and place. This helps your machines last longer and saves money.
Selection Checklist
You should check a few things before picking a stainless steel grade for hot jobs. Use this checklist to help you choose:
| Criteria | Description |
|---|---|
| Corrosion Resistance | Make sure the steel can handle tough places and not rust. |
| Mechanical Properties | Check if the steel stays strong and tough in your heat. |
| Chemical Composition | Look at what chemicals or dirt the steel will touch. |
| Microstructure | How the steel is built inside changes how it works in heat. |
| Specific Grades | Some grades are better for heat. Pick the one that fits your job. |
You can use this short list to remember what to check:
- Corrosion resistance
- Mechanical properties at your heat level
- Chemicals in the area
- How the steel is built inside
- Grades made for hot jobs
Remember: The right grade keeps your machines safe and strong. Always check these things before you choose.
How to Choose the Right Stainless Steel for High-Temperature Applications?
Choosing the right stainless steel for high-temperature jobs can feel tricky. You want your equipment to last and stay safe. You can follow a simple process to make the best choice.
- Check corrosion resistance.
You need to know how much rust or chemical damage your steel will face. If your workplace has lots of moisture or chemicals, pick a grade with high chromium or molybdenum. These elements help the steel fight rust. - Look at strength needs.
High heat can make steel weaker. You should check how strong the steel stays when it gets hot. Some grades keep their shape and strength better than others. If your machine faces heavy loads, pick a grade with good mechanical properties. - Find grades with good headability.
Headability means how well you can shape or form the steel. If you need to bend or mold the steel, choose a grade that works well for forming. Some grades are easier to shape without cracking. - Check if the alloy is available.
You want to make sure you can get the grade you pick. Some special alloys may be hard to find or cost more. Always check with suppliers before you decide.
Tip: Always match the grade to your job’s needs. Think about the heat, the chemicals, and how you will use the steel.
Here is a quick table to help you compare:
| Step | What to Ask Yourself |
|---|---|
| Corrosion Resistance | Will the steel face water or chemicals? |
| Strength | Does the steel need to hold heavy loads? |
| Headability | Will you shape or bend the steel? |
| Availability | Can you buy the grade easily? |
You can use this process for any high-temperature job. If you follow these steps, you will pick a grade that lasts longer and keeps your machines safe. 😊
You can make things safer and stronger in hot places by picking the right stainless steel grade. Grades like 309 and 310 are good for furnace tubes and burner parts. They do not rust easily and stay strong when it is very hot. Always choose a grade that fits your job. The table below can help you decide:
| Characteristic | Description |
|---|---|
| Alloy Composition | Changes how well it fights rust and how strong it is |
| Chromium Content | More chromium makes the steel last longer |
| Mechanical Properties | These change with each grade and how it is heated |
- Clean stainless steel often so it does not get stained.
- Look at ASTM and EN rules to know the grade.
- Use austenitic grades for hard jobs with lots of stress.
Tip: Check tables and rules before you pick your grade. 😊
FAQ
What is the best stainless steel grade for extreme heat?
Pick grade 310 or 446 for very hot places. These grades work well above 1000°C. They do not lose strength in high heat. They also fight oxidation in hot spots.
How do you know if a grade is right for your application?
Look at the highest temperature the grade can take. Check if it resists rust. Use this table to help you compare:
| Grade — Max Temp (°C) — Best Use | | 310 — 1150 — Kilns, burners | | 316 — 870 — Marine, chemical plants | | 304 — 870 — Food equipment |
Can stainless steel rust at high temperatures?
Yes, some grades can rust if they touch water or chemicals. Pick grades with lots of chromium or molybdenum for better safety.
Tip: Clean your machines often so they do not rust or get flaky.
Why do some grades cost more than others?
Grades with more nickel or special metals cost extra. You pay more for better heat strength and longer life. Ferritic grades are cheaper than austenitic grades.
- Austenitic grades: Cost more, work better in tough jobs
- Ferritic grades: Cost less, good for jobs with mild heat
