Nickel alloys vs stainless steel differ significantly in their resistance to damage and overall performance. Stainless steel contains at least 10.5% chromium, which provides strong rust resistance and durability. However, nickel alloys outperform stainless steel in environments with high heat or aggressive chemicals. While nickel alloys offer superior damage resistance and enhanced strength in extreme conditions, they come at a higher cost. Stainless steel is suitable for most applications, but nickel alloys are preferred for more demanding jobs. Understanding the differences between nickel alloys vs stainless steel helps you choose the right material to balance strength, corrosion protection, and cost for your specific needs.
- Both nickel alloys and stainless steel help extend the life and maintain the strength of materials in harsh environments and high temperatures.
- Stainless steel is more affordable and still offers excellent rust protection in many industrial settings.
| Properties | Monel | Inconel | Incoloy | Hastelloy | Stainless Steel |
|---|---|---|---|---|---|
| Main Composition | Nickel Copper | Nickel Chromium | Nickel Chromium Iron | Nickel Chromium Molybdenum | Iron Chromium |
| Operating Temperature | Room Temperature | High Temperature | High Temperature | High Temperature | Room Temperature |
| Corrosion Resistance (Score) | 8 | 9 | 7.5 | 10 | 6 |
| Mechanical Properties (MPa) | 480 ~ 1000 | 550 ~ 1276 | 450 ~ 1035 | 586 ~ 690 | 380 ~ 1310 |
| Price (USD per kg) | $30+ | $32+ | $16+ | $40+ | $1.2+ |
Key Takeaways
- Nickel alloys have more nickel than stainless steel. This makes them stronger. They also resist heat and corrosion better in hard places.
- Stainless steel protects against rust and is strong. It costs less, so it is good for most daily factory jobs.
- Nickel alloys work well at very high heat, up to 800 °C. Stainless steel works best when it is under 750 °C.
- Nickel alloys fight corrosion better than stainless steel. This is true in places with acid, salt, or lots of chemicals.
- You should pick the right material for your job. Think about strength, corrosion resistance, heat, and cost. This helps keep things safe and working for a long time.
Chemical Composition and Nickel Alloy Structure
Nickel alloys such as Monel, Inconel, Incoloy, and Hastelloy typically have a high nickel content—often exceeding 30% and sometimes reaching over 70%. In contrast, stainless steels generally contain less than 30% nickel, and certain types like ferritic and martensitic stainless steels may be entirely nickel-free.
Both stainless steels and nickel alloys usually contain around 20% chromium, a key element that provides excellent corrosion resistance in both material types.
Molybdenum is also commonly used to enhance corrosion resistance. While it may be present in both stainless steels and nickel alloys, nickel alloys generally contain higher amounts of molybdenum.
Elemental Breakdown: Nickel Alloys vs Stainless Steel
Stainless steel and nickel alloy have different chemical makeups. Stainless steel always has at least 10.5% chromium. This chromium makes a thin layer that protects the metal. Most stainless steel types, like 304 and 316, have 8-14% nickel. Nickel helps keep the steel tough and stops it from being magnetic. It also helps the steel fight rust. Stainless steel is mostly made of iron. Other elements like molybdenum, manganese, and titanium are sometimes added to make it stronger or better for certain jobs.
Nickel alloy has much more nickel than stainless steel. For example, Monel 400 has at least 63% nickel. Inconel 625 has about 58% nickel. These alloys can also have copper, chromium, molybdenum, cobalt, and iron. The high nickel makes nickel alloy very strong against heat and rust. This is important in tough places. The table below shows what is in some common stainless steel grades:
| Grade | Chromium (%) | Nickel (%) | Molybdenum (%) | Carbon (%) | Other Elements |
|---|---|---|---|---|---|
| 304 | 18-20 | 8-10.5 | N/A | 0.08 | Manganese, Phosphorous, Sulfur, Silicon, Iron balance |
| 316 | 16-18 | 10-14 | 2-3 | 0.08 | Molybdenum, Iron balance |
| 321 | 17-19 | 9-12 | N/A | 0.08 | Titanium, Iron balance |
Nickel alloys have even more nickel, as you can see in the chart below:
Impact of Composition on Resistance and Performance
What is inside stainless steel and nickel alloy changes how they work. Stainless steel uses chromium to stop rust. Nickel makes it tougher and easier to bend. Adding molybdenum or titanium helps stop tiny holes and cracks from forming. Nickel alloy, with lots of nickel, works well in very hard places. Molybdenum and chromium help it stand up to acids, saltwater, and heat.
- More nickel in an alloy helps it fight rust better, especially in tough places.
- Alloys with lots of nickel, like Fe-45% Ni, have better surfaces and rust less.
- Stainless steel with some nickel costs less and still works well for many jobs.
- Nickel alloy is made to be very strong and is best for chemical plants, ships, and hot places.
Note: What is inside each material decides where it works best. Picking the right alloy helps things last longer and keeps people safe.
Operating Temperature Resistance
High-Temperature Capabilities of Nickel Alloys
Nickel alloy works very well in hot places. These alloys stay strong and do not rust, even in extreme heat. Many machines, like gas turbines and chemical reactors, use nickel alloy because it lasts a long time. Nickel alloy can work at temperatures up to 780 °C. Some types can even go above 800 °C. In tests with coal-fired flue gas, nickel alloy such as Nimonic 263 and Inconel 617 do not rust easily. They also keep their shape when it gets very hot.

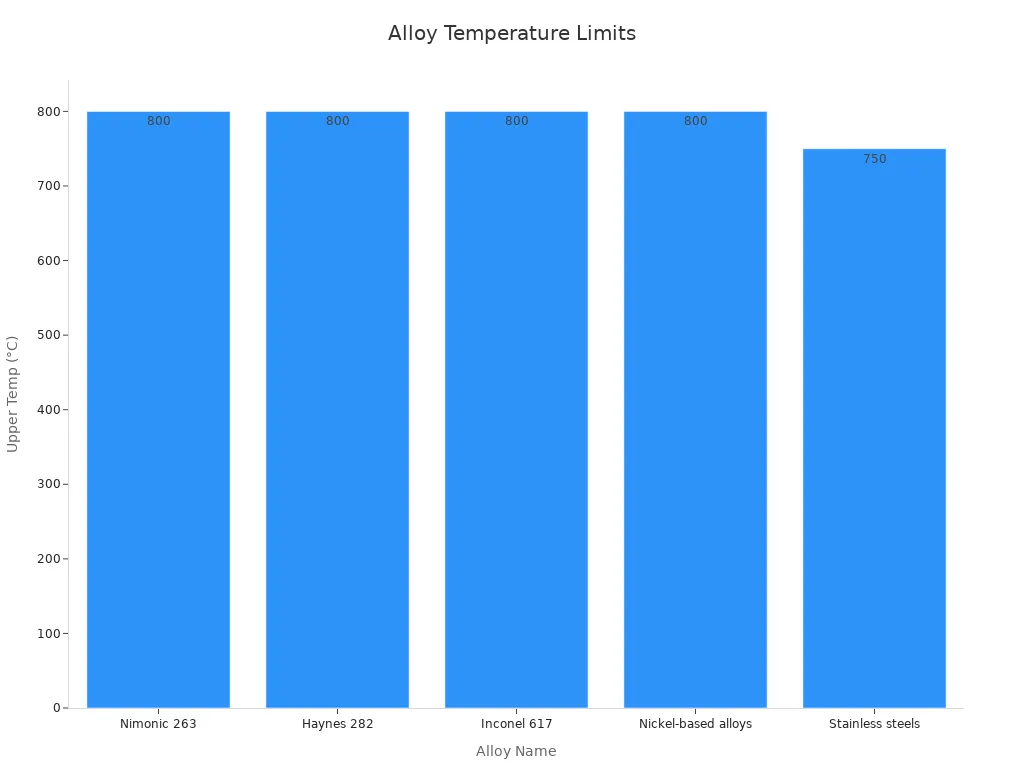

| Alloy / Condition | Temperature Range (°C) | Corrosion Behavior and Damage Profile |
|---|---|---|
| Nimonic 263 | 700–800 | Strong corrosion resistance; best against molten sulfate corrosion and sulfur diffusion. |
| Haynes 282 | 700–800 | Corrosion damage varies with temperature. |
| Inconel 617 | 700–800 | Internal attack increases with temperature; more severe at 900 °C. |
| Nickel-based alloys | 700–800 | Corrosion peaks near 740 °C, lowest near 780 °C. |
| Stainless steels | 600–750 | Suffer Type-II hot corrosion in sulfur-rich environments. |
Nickel alloy is also strong when it is hot. It can handle a lot of pulling force, up to 1,250 MPa. Even at 1,093 °C, it does not stretch out too much. After heating, these alloys keep their small grain structure. This helps them last longer in hot jobs. Nickel alloy does not break easily and does not rust from air. That is why many tough industries use it.
Room Temperature and General Use for Stainless Steel
Stainless steel works best at room temperature or in warm places. Most types, like 304 and 316, are good up to 600–750 °C. In this range, stainless steel does not rust and stays strong. But if it gets hotter, stainless steel can get damaged, especially if there is a lot of sulfur. This means it cannot be used everywhere that is very hot.
Tests show stainless steel is strong at room temperature. When pulled, it stretches and breaks in a way that engineers can predict. This makes stainless steel a good choice for building things, food factories, and medical tools. Stainless steel is also cheaper for jobs that do not need to handle very high heat.
Tip: If you need something for over 750 °C, nickel alloy is better than stainless steel. It protects better and lasts longer.
Corrosion Resistance Comparison
Corrosion Resistance Scores: Nickel Alloys vs Stainless Steel
Corrosion resistance is very important when picking materials for factories. Stainless steel protects well in many places, but nickel alloy does even better in the harshest spots. Engineers use corrosion resistance scores to compare these materials. The table below shows how each one does:

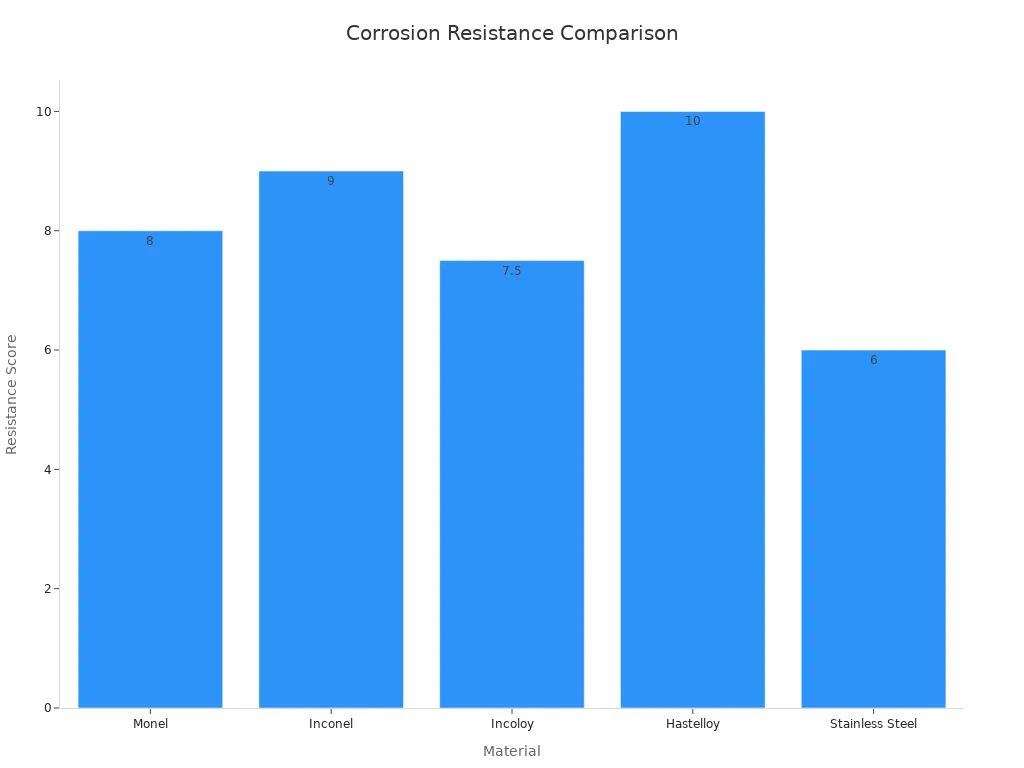

| Material | Corrosion Resistance Score |
|---|---|
| Monel | 8 |
| Inconel | 9 |
| Incoloy | 7.5 |
| Hastelloy | 10 |
| Stainless Steel | 6 |
Nickel alloy types like Hastelloy and Inconel get higher scores than stainless steel. These numbers show how well each material stands up to acids, saltwater, and strong chemicals. Stainless steel, with a score of 6, works fine in less harsh places. Nickel alloy, with scores from 7.5 to 10, keeps equipment safe in the toughest spots.
Nickel alloys are great because they have lots of nickel and molybdenum. Nickel fights rust better than iron, which is what stainless steel is mostly made of. Molybdenum helps stop acids from causing damage and keeps small holes from forming. Stainless steel uses chromium to make a shield, but nickel alloy uses more elements to work even better. In places with strong acids or seawater, nickel alloy lasts longer and needs less fixing.
Note: You should pick your material based on how much corrosion resistance you need. Nickel alloy is best for very tough places, but stainless steel saves money for easier jobs.
Role of Alloying Elements in Corrosion Resistance
What is inside each material decides how well it fights rust. Stainless steel uses chromium as its main shield. Chromium makes a thin layer on top that blocks water and air, stopping rust. Adding molybdenum and nickel to stainless steel makes this layer stronger and helps fight off saltwater.
Nickel alloy mixes many elements to protect against rust in the hardest places. Chromium in nickel alloy also makes a shield, but molybdenum and tungsten make it even stronger. These elements help stop small holes and cracks that can ruin machines in chemical plants. Silicon in nickel alloy forms a special layer that protects even more when rust is likely.
Some alloys have aluminum, titanium, or niobium. Aluminum cuts down on bad spots that can start rust. Titanium and niobium help welded stainless steel keep its rust protection after parts are joined. Copper, found in some materials, makes a layer that protects things outside.
- Chromium: Makes a strong layer to stop rust.
- Nickel: Makes the shield better and helps fight acids.
- Molybdenum: Stops small holes and cracks from forming.
- Tungsten: Makes the alloy stronger for really tough places.
- Silicon: Builds a layer that protects when rust is likely.
- Aluminum: Cuts down on bad spots and helps make light, rust-proof alloys.
- Titanium/Niobium: Keep welded parts strong against rust.
Nickel alloy is the best in places with lots of rust and damage. Stainless steel is still used a lot, but nickel alloy protects better in places with strong acids, heat, or saltwater. The right mix of elements in each material gives the best rust protection for every job.
Mechanical Properties and Performance
Strength and Toughness Across Temperature Ranges
Mechanical properties like strength and toughness change with temperature. Nickel alloys work well in both cold and hot places. Tests on nickel alloy steel 1.5662+QT640 show that toughness and impact energy go down as it gets colder. But these alloys still meet important safety rules. Thicker plates are tougher and can take in more energy. This helps them work better in hard jobs.
| Property | Plate Thickness | Temperature (°C) | Observations |
|---|---|---|---|
| Fracture Toughness (KJc) | 15 mm | -150 to 780 | KJc gets lower when it is colder; numbers go from about 347 to 780 MPa√m. |
| 25 mm | -150 to 804 | 25 mm plates have higher KJc than 15 mm; for example, 483 MPa√m at -150 °C. | |
| Impact Energy (Charpy V) | 15 mm | Room temp to -196 | Energy taken in drops as it gets colder; 261 J at room temp, 178 J at -196 °C. |
| 25 mm | Room temp to -196 | 25 mm plates take in more energy than 15 mm; 285 J at room temp, 238 J at -196 °C. | |
| Yield Strength (fy) | 15 mm | RT to -160 | Yield strength goes up as it gets colder; 696 MPa at room temp, 798 MPa at -160 °C. |
Stainless steel also stays strong over many temperatures. But it can get less tough when it is very cold. Both materials get stronger as it gets colder. Nickel alloys keep their strength better when it is hot.
Note: Nickel alloys are best when you need strength at very high or low temperatures.
Performance of Nickel Alloy and Stainless Steel Grades
Different grades of nickel alloys and stainless steel have their own strengths. Tests show stainless steel grades like 302, 304, and 305 have yield strengths around 25,000-30,000 psi. Their tensile strengths are about 70,000-75,000 psi. These grades also stay tough, even in very cold places.
Nickel alloys are stronger and bend better at high temperatures. Some tests show differences in how much these alloys can bend. But there is no clear winner. Sometimes, leftover stress in the metal can change test results. Engineers need to think about this when they test.
- Stainless steel grades work well in normal places and stay strong after welding.
- Nickel alloys are best for hot and harsh places, like chemical plants and turbines.
- Both materials are reliable, but nickel alloys stay stable when temperatures change fast.
Tip: Always pick a material with the right strength for your job.
Applications
Industrial and Commercial Applications
Nickel alloys and stainless steel are important in many industries. Engineers pick these materials because they are strong and do not rust easily. They also work well in tough places. Nickel alloys are used in aerospace, cars, and energy jobs. Airplane engines and rockets need nickel alloys because they can handle high heat. Gas turbines also use nickel alloys since they do not rust. In cars, nickel alloys are found in exhaust valves and turbochargers. These parts get very hot and need to last a long time.
Chemical plants use both nickel alloys and stainless steel. Reactors and pipes must deal with acids and saltwater. Nickel alloys like Inconel, Monel, and Hastelloy protect better in these places. Stainless steel is used when saving money is important and the chemicals are not as strong.
Stainless steel is used a lot in building things. Builders use it for bridges and big buildings. It is also used in water treatment plants. The Stonecutters Bridge Towers and Helix Pedestrian Bridge show how tough stainless steel is. It does not rust and lasts a long time. In offices and malls, stainless steel is used for floors and cool designs. The Luxembourg Chamber of Commerce and New Beijing Poly Plaza use stainless steel for these reasons.
The oil and gas industry uses nickel alloys for platforms in the sea. These places need materials that do not rust from seawater. Power plants, even nuclear ones, use nickel alloys because they stay strong when hot.
| Sector | Nickel Alloy Applications | Stainless Steel Applications |
|---|---|---|
| Aerospace | Jet engines, rocket propulsion | Structural supports |
| Automotive | Exhaust valves, turbochargers | Body panels, plating |
| Chemical | Reactors, heat exchangers, piping | Tanks, piping, structural components |
| Construction | Specialized fasteners, supports | Bridges, floors, facades |
| Energy & Power | Nuclear plant components | Turbine housings, piping |
| Oil & Gas | Offshore platforms, marine propellers | Accommodation modules |
Tip: Picking the right material for factories or chemical plants keeps things safe and working for a long time.
Cost Comparison
When picking a material, cost is very important. Nickel alloys and stainless steel do not cost the same. Each one has its own money issues for big jobs.
Nickel alloys are usually more expensive than stainless steel. They cost more because they have lots of nickel and are harder to make. Stainless steel uses cheaper materials. This makes it a better deal for most jobs. But you should not only look at the price per pound.
The table below shows the main cost points for copper-nickel alloys and stainless steel:
| Cost Aspect | Copper-Nickel Alloys | Stainless Steel |
|---|---|---|
| Material Costs | 10% cheaper for small pipes, but up to 24% more expensive for large diameters | More stable pricing; sometimes higher upfront but predictable |
| Installation Costs | Higher due to specialized labor and techniques | Lower, thanks to easier installation and less specialized labor |
| Maintenance Costs | Minimal, thanks to excellent corrosion resistance in marine environments | Low, but requires periodic cleaning to prevent staining |
Nickel alloys need workers with special skills to put them in. These alloys do not get bigger much when hot, so workers need special tools and training. This makes labor cost more. Stainless steel is easier to install. Most workers already know how to use it, so it saves time and money.
How much you spend later also matters. Nickel alloys do not rust much, even in salty or chemical places. This means you do not have to fix or replace them often. Stainless steel also lasts a long time, but you need to clean it often to keep it shiny and stop stains.
💡 If your project is in a tough place, nickel alloys might save money in the long run, even if they cost more at first. Stainless steel is still the best pick for most jobs and smaller budgets.
You have to think about both the first cost and the money you save later. Project leaders should look at buying, putting in, and taking care of the material before they choose.
Nickel alloys are great at stopping rust and staying strong when hot. This makes them good for tough jobs. Stainless steel also fights rust but costs less, so it works for many uses. If you coat stainless steel, it can stop rust even better and save money compared to superalloys. You should pick your material based on where it will be used, how much rust protection you need, and how much you can spend. The table below shows how nickel alloys and stainless steel compare for common uses:
| Feature | Nickel Alloys | Stainless Steel |
|---|---|---|
| Corrosion Resistance | Superior | Good |
| High-Temp Performance | Excellent | Moderate |
| Cost | High | Lower |
| Applications | Extreme environments | General use |
FAQ
What industries use nickel alloys the most?
Nickel alloys are used in many big industries. These include aerospace, chemical plants, power plants, and ships. These places need materials that can handle heat and rust. Engineers pick nickel alloys for jet engines, reactors, and oil platforms in the ocean.
How does stainless steel compare to nickel alloys in cost?
Stainless steel is usually cheaper than nickel alloys. The table below shows a simple cost comparison:
| Material | Typical Cost Level |
|---|---|
| Stainless Steel | Lower |
| Nickel Alloys | Higher |
Stainless steel is good for most budgets. Nickel alloys are better for very important or risky jobs.
Can stainless steel handle saltwater environments?
Stainless steel does not rust easily in many places. But saltwater can still cause small holes and rust after a while. Nickel alloys, especially with molybdenum, work better in the ocean or near the coast.
Are nickel alloys magnetic?
Most nickel alloys do not stick to magnets. Stainless steel can be magnetic or not, depending on its type. For example, 304 stainless steel is usually not magnetic. But 430 stainless steel is magnetic.
