A threaded hole creates internal threads in a material, allowing a bolt or screw to fasten components together securely. The pitch diameter and class of fit directly influence the strength and reliability of a threaded hole in mechanical assemblies. Industries rely on threaded holes for non-permanent joints, enabling maintenance and upgrades in products with millions of fasteners. Precision inspection ensures each threaded hole meets strict tolerances, supporting safety and performance across automotive, aerospace, and medical sectors.
Key Takeaways
- Threaded holes create internal threads that securely hold screws or bolts, enabling strong, removable joints in many materials.
- Different types of threaded holes—blind, through, and deep—serve specific design needs and affect manufacturing methods and strength.
- Common thread standards include metric and imperial, which ensure parts fit together worldwide and simplify manufacturing and maintenance.
- Manufacturing methods like tapping, milling, rolling, and lathe cutting each offer unique benefits for thread quality, strength, and production volume.
- Material choice, thread size, depth, and hole position critically impact the strength and durability of threaded holes in assemblies.
- Standard threaded holes offer cost savings and easy sourcing, while custom threads provide tailored solutions but increase complexity and cost.
- Proper fastener matching, torque control, lubrication, and corrosion resistance improve the reliability and lifespan of threaded connections.
- Advanced CNC technology enhances precision, efficiency, and flexibility in creating threaded holes, supporting both mass production and custom parts.
Threaded Hole Overview
Definition
A threaded hole is a cylindrical cavity in a material that contains internal threads. These threads allow screws or bolts to engage securely, forming a strong mechanical connection. Threaded holes appear in metals, plastics, and composites, supporting a wide range of assembly needs. Engineers design these holes to match specific fastener types, ensuring compatibility and reliability in mechanical systems.
Features
Threaded holes offer several important features that make them essential in engineering and manufacturing:
- Versatility: Threaded holes accommodate various fastener types, including bolts, screws, and threaded inserts.
- Precision: Manufacturers create these holes with tight tolerances to ensure proper fit and function.
- Strength: The internal threads distribute load evenly, increasing the joint’s strength and resistance to loosening.
- Customization: Designers can specify thread pitch, diameter, and depth to suit different applications.
- Surface Integrity: Processes like thread rolling improve surface finish and mechanical properties, reducing the risk of cracks or surface scratches. Rolled threads also minimize material waste and energy consumption, making them an economical choice for many industries.
- Fatigue Resistance: Experimental studies show that half-threaded holes in locking plates can increase fatigue life while maintaining screw stability. Partial threading may also ease screw removal and improve mechanical reliability without compromising structural stiffness.
Tip: Selecting the right thread type and manufacturing process can enhance the performance and longevity of threaded holes in demanding environments.
Uses
Threaded holes serve as critical components in countless products and structures. Their uses span many industries and applications:
- Mechanical Assemblies: Threaded holes join machine parts, frames, and enclosures, allowing for easy disassembly and maintenance.
- Automotive and Aerospace: These industries rely on threaded holes for safety-critical joints, where proper clamping force and torque are essential to prevent fastener loosening.
- Medical Devices: Implants and surgical tools use threaded holes for secure, adjustable connections. Studies highlight the importance of thread design and notch sensitivity in implant performance.
- Construction and Electronics: Threaded holes anchor fixtures, panels, and circuit boards, supporting both structural and functional requirements.
- Threaded Components: Many products, from furniture to heavy machinery, depend on threaded holes for reliable assembly and serviceability.
Comparative studies demonstrate that different thread types offer distinct advantages depending on the application. The table below summarizes key performance differences among common thread designs:
| Thread Type | Pullout Strength | Lateral Migration Resistance | Fixation Stability (Craniocaudal Loading) | Fixation Stability (Torsional Loading) |
|---|---|---|---|---|
| Triangle Thread | Superior pullout strength | Moderate | Superior to buttress, similar to square | Superior fixation stability |
| Square Thread | Moderate | Highest | Superior to buttress, similar to triangle | Requires larger force and more cycles to displace |
| Buttress Thread | Lowest | Lowest | Inferior to triangle and square | Inferior fixation stability |
Manufacturing statistics confirm the need for a thorough understanding of threaded holes. The global fasteners market continues to grow, driven by increased production in automotive, machinery, and durable goods. Factors such as material selection, thread geometry, and surface finish directly affect the quality and reliability of threaded holes. Improper tightening or poor manufacturing practices can lead to service failures, highlighting the importance of precise design and process control.
What is a Threaded Hole?
A threaded hole refers to a cylindrical opening in a material that contains internal threads. These threads allow fasteners, such as screws or bolts, to engage securely with the material. Engineers design threaded holes to create strong, removable joints in mechanical assemblies. The process of forming these holes involves cutting or forming spiral grooves inside the cavity, which match the threads on the fastener.
Threaded holes serve as a foundation for many mechanical connections. They appear in metals, plastics, and composite materials. Manufacturers often use them in parts that require frequent assembly and disassembly. The ability to reuse these holes without damaging the surrounding material makes them valuable in maintenance-heavy industries.
Note: Properly designed threaded holes improve the reliability and safety of mechanical systems. Incorrect dimensions or poor thread quality can lead to joint failure.
There are several key characteristics that define a threaded hole:
- Thread Geometry: The shape and size of the threads determine how well the fastener fits. Common thread profiles include metric and imperial standards.
- Hole Depth: Some threaded holes extend completely through the material, while others stop partway, creating a blind hole.
- Material Compatibility: The strength of the threads depends on both the material of the hole and the fastener. Harder materials provide better wear resistance.
Threaded holes differ from plain holes in several ways. Plain holes only provide a passage for fasteners or shafts, while threaded holes actively grip the fastener. This grip allows the joint to resist loosening from vibration or load changes.
The creation of threaded holes requires careful planning. Engineers must consider the size and location of each hole to avoid weakening the part. They also select the appropriate thread type based on the application. For example, fine threads offer better adjustment, while coarse threads provide greater strength in softer materials.
A comparison table highlights the differences between plain and threaded holes:
| Feature | Plain Hole | Threaded Hole |
|---|---|---|
| Internal Threads | No | Yes |
| Fastener Grip | None | High |
| Reusability | Limited | High |
| Application | Shafts, pins | Screws, bolts |
Threaded holes play a vital role in modern engineering. Their versatility and strength make them essential in automotive, aerospace, electronics, and construction industries. By understanding the basics of a threaded hole, designers and technicians can ensure reliable and safe assemblies.
Types of Threaded Holes
Engineers use several types of threaded holes to meet different design and assembly needs. Each type offers unique features and serves specific applications. Understanding the types of threaded holes helps designers select the best option for strength, accessibility, and manufacturing efficiency.
Blind Holes
Blind holes do not pass completely through the material. The bottom of the hole remains enclosed, which prevents the fastener from exiting the opposite side. Blind holes often appear in parts where a visible exit would weaken the structure or affect appearance.
Flat Bottom
A flat bottom blind hole has a base that is perpendicular to the axis of the hole. This design provides a consistent seating surface for the fastener. Flat bottom holes work well in applications where precise depth control is important. Machinists often use them in components that require maximum thread engagement without breaking through the material.
Cone Bottom
A cone bottom blind hole features a tapered base. The conical shape results from using a standard drill bit, which leaves a pointed end. Cone bottom holes are easier to manufacture but offer less thread engagement at the tip. Designers use them when full thread depth is not critical or when manufacturing speed is a priority.
Note: Blind holes require careful depth control. Over-tapping can weaken the part or cause the fastener to break through.
Through Holes
Through holes extend completely through the material. These holes allow a fastener to pass from one side to the other, making assembly and disassembly easier. Through holes are common in parts that need to be joined with nuts or require access from both sides.
Single-Side Threading
Single-side threading means that only one end of the through hole contains threads. The opposite end remains smooth. This type is useful when a bolt must enter from one side and thread into the part, while the other side allows for clearance or a nut.
Double-Side Threading
Double-side threading involves cutting threads from both ends of the through hole. This approach increases flexibility, as fasteners can engage from either side. Double-side threading is helpful in symmetrical assemblies or when access is limited.
Tip: Always specify the threading direction and depth in technical drawings to avoid confusion during manufacturing.
Deep Holes
Deep holes have a length much greater than their diameter. Creating threads in deep holes presents challenges, such as tool deflection and chip removal. Deep threaded holes appear in applications that require long fasteners or high-strength joints, such as engine blocks or heavy machinery.
Engineers must consider special notation for deep holes. They often indicate the thread depth and hole diameter separately to ensure proper manufacturing.
| Type of Hole | Typical Use | Special Design Note |
|---|---|---|
| Blind (Flat) | Precision assemblies | Specify depth and bottom type |
| Blind (Cone) | Fast production, less critical fit | Note reduced thread engagement |
| Through (Single) | Bolt entry from one side | Indicate which side is threaded |
| Through (Double) | Flexible assembly | Specify thread depth on both ends |
| Deep | High-strength, long fasteners | Detail thread depth and diameter |
The types of threaded holes play a key role in mechanical design. Selecting the right type improves assembly strength, reduces manufacturing errors, and ensures reliable performance.
Thread Types and Standards
Metric
Metric threads represent the most widely adopted standard for threaded holes and fasteners worldwide. The International Organization for Standardization (ISO) governs these threads, which use the ‘M’ prefix to indicate nominal diameter in millimeters. For example, an M8 × 1.25 thread has an 8 mm diameter and a 1.25 mm pitch. Engineers select metric threads for their consistency, global compatibility, and straightforward sizing system.
Metric threads come in both coarse and fine pitch variants. Coarse threads offer greater strength and faster assembly, while fine threads provide better adjustment and hold in thin-walled materials. The ISO metric thread form uses a 60° thread angle and a base-to-height ratio of approximately 1:1.732. Tolerance classes, such as 6g or 7g, define the fit and precision required for each application. These standards ensure that threaded components produced in different countries will fit together without modification.
Tip: Metric threads simplify international trade and manufacturing by providing a universal system for threaded fasteners and holes.
Imperial
Imperial threads, also known as inch-based threads, remain common in the United States, Canada, and Great Britain. The Unified Thread Standard (UTS), managed by ANSI/ASME, defines the main imperial thread forms, including UNC (Unified National Coarse) and UNF (Unified National Fine). UTS threads use threads per inch (TPI) as the primary measurement, with a standard 60° thread angle.
British Standard Threads, such as BSW (British Standard Whitworth), BSPP (British Standard Pipe Parallel), and BSPT (British Standard Pipe Tapered), also fall under the imperial system. Joseph Whitworth developed the original Whitworth thread, which uses a 55° angle and a unique base-to-height ratio. These threads appear in legacy equipment, pipe fittings, and industries with long-standing imperial practices.
Imperial thread standards include three tolerance classes to accommodate different assembly and precision needs. This flexibility allows engineers to choose the right fit for each application, from loose-fitting pipe threads to high-precision machine screws.
| Aspect | Metric Threads (ISO) | Imperial Threads (ANSI/ASME, British Standards) |
|---|---|---|
| Governing Standards | ISO metric threads (e.g., M10 × 1.5) | ANSI/ASME B1.1 (UNC, UNF), BSW, BSPP, BSPT |
| Unit of Measurement | Millimeters (pitch in mm) | Threads per inch (TPI) |
| Thread Angle | 60° (ISO standard) | 60° (UTS), 55° (Whitworth) |
| Application Regions | Worldwide | USA, Canada, Great Britain |
| Tolerance Classes | ISO-defined (e.g., 6g, 7g) | Three classes for UTS; British classes for BSW |
Other Standards
Several specialized thread standards exist for unique applications. For example, British Standard Pipe threads (BSPP and BSPT) are essential for plumbing and hydraulic systems. These threads ensure leak-tight connections in pressurized environments. Some industries use custom thread forms to meet specific performance or safety requirements.
Threaded hole standards also address inspection and measurement. Go/no-go gauges and indicating thread gauges verify that threaded holes meet dimensional and functional criteria. Advanced tools, such as CNC coordinate measuring machines, provide detailed inspection for critical applications.
- Metric and imperial thread standards differ in measurement units, thread form, angle, tolerance, and strength.
- ISO standards harmonize inch and metric threads, promoting global compatibility.
- Engineers select thread standards based on geographic location, industry requirements, and the need for interchangeability.
Note: Standardization of threaded holes and fasteners ensures that parts from different manufacturers will assemble correctly, reducing errors and improving reliability.
Standardization
Standardization plays a critical role in the world of threaded holes and fasteners. Engineers and manufacturers rely on established standards to ensure that parts fit together, function safely, and meet quality expectations. Without standardization, even small differences in thread size or shape could lead to assembly failures, safety risks, or costly delays.
Several organizations set and maintain thread standards. The International Organization for Standardization (ISO) leads the way for metric threads. The American National Standards Institute (ANSI) and the American Society of Mechanical Engineers (ASME) oversee standards for imperial threads in the United States. The British Standards Institution (BSI) manages thread standards in the United Kingdom. These groups publish detailed guidelines that cover thread dimensions, tolerances, materials, and testing methods.
Note: Standardization ensures that a bolt made in one country will fit a threaded hole made in another, as long as both follow the same standard.
Engineers use these standards to guide every step of the design and manufacturing process. They select thread types, pitches, and classes of fit based on the requirements of each application. Standardized thread callouts on technical drawings help machinists and quality inspectors understand exactly what is needed. This reduces errors and speeds up production.
Key benefits of standardization include:
- Interchangeability: Parts from different suppliers can work together without modification.
- Quality Control: Manufacturers can use standard gauges and inspection tools to check threads.
- Safety: Standard threads reduce the risk of failure in critical assemblies.
- Cost Savings: Standard parts are easier to source and replace, lowering inventory costs.
- Global Trade: Companies can sell products worldwide when they follow international standards.
A comparison of major standard organizations:
| Organization | Region | Main Focus |
|---|---|---|
| ISO | International | Metric threads, fasteners |
| ANSI/ASME | United States | Imperial threads, UTS |
| BSI | United Kingdom | Whitworth, BSP threads |
Standardization also supports innovation. When engineers know that basic components will fit and function as expected, they can focus on solving new problems or improving designs. Standard threads make it easier to repair or upgrade equipment, even years after the original parts were made.
How to Create a Threaded Hole?
Creating a threaded hole involves several manufacturing methods, each with unique advantages and challenges. Engineers select the best approach based on material, production volume, and required thread quality. The most common methods include thread tapping, thread milling, and thread rolling. Each method shapes the internal threads differently, affecting strength, precision, and efficiency.
Tapping
Thread tapping remains the most widely used method for producing threaded holes. This process uses a tool called a tap to cut threads inside a pre-drilled hole. Tapping works well for both small-scale and high-volume production. It provides reliable results in metals, plastics, and composites.
Hand Tap
Hand tapping uses a manually operated tap and wrench. Operators align the tap with the drilled hole and turn it by hand, cutting threads as the tool advances. Hand tapping suits low-volume work, repairs, and prototypes. It allows for careful control, especially in delicate or hard-to-reach areas.
Step-by-step process for hand tapping:
- Drill a pilot hole to the correct diameter.
- Secure the workpiece to prevent movement.
- Insert the hand tap into the hole and apply gentle pressure.
- Turn the tap slowly, backing off every few turns to clear chips.
- Remove the tap and inspect the threads for quality.
Hand tapping offers simplicity and low cost. However, it can lead to tool breakage in hard materials and struggles with chip removal in blind holes.
Machine Tap
Machine tapping uses powered equipment, such as a drill press or CNC machine, to drive the tap. This method increases speed and consistency, making it ideal for production lines. Machine tapping reduces operator fatigue and delivers uniform thread quality.
Operators must select the correct tap type and speed for the material. Machine tapping works best with through holes or shallow blind holes, where chip evacuation is easier.
Tap Types
Taps come in several designs, each suited for specific tasks:
- Taper Tap: Starts threads gradually, reducing cutting force. Best for starting new holes.
- Plug Tap: Cuts threads deeper, used after a taper tap.
- Bottoming Tap: Finishes threads to the bottom of blind holes.
Spiral flute taps help remove chips from blind holes, while straight flute taps work well in through holes. Engineers choose tap types based on hole depth, material, and thread profile.
Tip: Always use lubrication during tapping to reduce friction and prevent tool wear.
Summary of Pros and Cons of Thread Tapping:
| Method | Advantages | Disadvantages |
|---|---|---|
| Thread Tapping | Simple, low-cost, works with many materials, suitable for small batches | Risk of tool breakage in hard materials; chip removal issues in blind holes |
Milling
Thread milling uses a rotating cutting tool to create threads inside a hole. This method requires CNC equipment and precise programming. Thread milling offers high accuracy and flexibility, making it popular for complex parts and high-precision applications.
Step-by-step process for thread milling:
- Program the CNC machine with the desired thread profile and tool path.
- Select a thread milling cutter that matches the thread size.
- Secure the workpiece and set up the machine.
- The milling tool rotates and follows a helical path, cutting threads into the hole.
- Inspect the finished threads for accuracy.
Thread milling provides excellent chip control and works well in both blind and through holes. It allows for easy adjustment of thread size and pitch by changing the program, not the tool. This flexibility reduces tooling costs for varied production runs.
Experimental studies comparing thread tapping and thread milling show that while tapping is faster for pure threading, thread milling becomes more efficient when considering the entire process. Thread milling eliminates the need for a separate pilot hole, reducing total machining time. It also requires a shallower hole for the same thread depth and uses smaller, more versatile tools.
| Aspect | Drill Thread Milling (DTM) | Tapping |
|---|---|---|
| Machining Time (thread only) | Longer than tapping | Less than 1 second (faster) |
| Machining Time (including pilot hole) | 2.7 times faster than tapping (no pilot hole needed) | Requires pilot hole creation (slower overall) |
| Hole Depth Required | Shallower hole required for same thread depth | Deeper pilot hole required |
| Tool Geometry | Smaller, versatile for different thread sizes | Larger, fixed size per thread type |
| Machining Forces | Recorded 3-axis forces; periodic components causing chatter vibrations observed | Lower chatter, but higher force peaks during tapping |
| Thread Quality | Comparable to tapping; requires tool offset in some materials to pass gauge test | Standard thread quality, well-established process |
Thread milling excels in high-precision work and safety-critical parts. However, it requires investment in CNC machinery and skilled programming, making it less cost-effective for small batches.
Rolling
Thread rolling forms threads by plastically deforming the material rather than cutting it. This process uses hardened dies to press the thread shape into the hole wall. Thread rolling produces strong, fatigue-resistant threads with excellent surface finish.
Step-by-step process for thread rolling:
- Select a ductile material suitable for plastic deformation.
- Drill a hole slightly smaller than the final thread size.
- Use a thread rolling tool or die to press the threads into the hole.
- Inspect the threads for uniformity and strength.
Thread rolling creates no chips, making it cleaner and more efficient for high-volume production. The process strengthens the material around the threads, improving fatigue life. However, thread rolling only works with ductile materials and is not suitable for brittle or hard materials. It also struggles with blind holes, as the dies require space to exit the hole.
| Method | Advantages | Disadvantages |
|---|---|---|
| Thread Rolling | Produces strong, fatigue-resistant threads; no chips; efficient | Limited to ductile materials; unsuitable for blind holes or brittle materials |
Note: Thread rolling is ideal for automotive, aerospace, and medical device manufacturing, where thread strength and reliability are critical.
Lathe Cutting
Lathe cutting creates internal threads by rotating the workpiece while a stationary cutting tool shapes the threads. Machinists often use this method for large or custom threaded holes that require high precision. The process works well for both external and internal threads, but it excels in producing unique or oversized threads that standard taps or dies cannot achieve.
Step-by-step process for lathe cutting:
- Secure the workpiece in the lathe chuck.
- Drill a pilot hole to the required diameter.
- Select a single-point threading tool and set the correct thread pitch.
- Align the tool with the hole axis.
- Engage the lathe and advance the tool to cut the threads gradually.
- Inspect the threads for accuracy and finish.
Lathe cutting offers several advantages:
- High precision for custom threads.
- Flexibility for different thread profiles and pitches.
- Ability to handle large diameters and deep holes.
However, this method requires skilled operators and specialized equipment. It also takes more time than thread milling or thread rolling for standard sizes.
| Method | Advantages | Disadvantages |
|---|---|---|
| Lathe Cutting | Customization, precision, versatility | Requires skill, slower for standard sizes |
Tip: Lathe cutting suits prototypes, repair work, and applications where standard tools cannot reach or fit.
Inserts
Threaded inserts provide a way to reinforce or repair threaded holes, especially in soft or damaged materials. Manufacturers use inserts to create durable threads in materials like aluminum, plastic, or wood. These components also restore stripped threads in metal parts.
Types of threaded inserts:
- Helical inserts: Wire coils that form strong internal threads.
- Solid inserts: Metal sleeves with pre-formed threads.
- Self-tapping inserts: Inserts that cut their own threads during installation.
Installation process:
- Drill or clean the existing hole.
- Tap the hole if required.
- Screw or press the insert into place.
- Verify the fit with a matching fastener.
Threaded inserts offer several benefits:
- Increase thread strength in weak materials.
- Allow repeated assembly and disassembly without wear.
- Repair damaged or stripped threads quickly.
Inserts work well in applications where frequent maintenance occurs or where vibration might loosen standard threads. They also provide a cost-effective solution for extending the life of expensive components.
Note: Always select the correct insert type and size for the material and application to ensure reliable performance.
3D Printing
3D printing, also known as additive manufacturing, enables the creation of threaded holes directly within printed parts. Designers can model threads in CAD software and print them as part of the component. This approach works best for prototypes, custom parts, or low-volume production.
Methods for creating threaded holes with 3D printing:
- Direct printing: Print the threads as part of the model. This method suits larger threads and low-stress applications.
- Post-processing: Drill and tap the hole after printing. This technique improves thread accuracy and strength.
- Insert installation: Embed threaded inserts during or after printing for enhanced durability.
3D printing offers several advantages:
- Rapid prototyping with integrated threads.
- Complex geometries that traditional machining cannot achieve.
- Reduced material waste compared to thread cutting or thread rolling.
However, printed threads may lack the strength of those produced by thread milling or thread rolling. For high-load or critical applications, engineers often combine 3D printing with inserts or post-processing.
| Method | Advantages | Disadvantages |
|---|---|---|
| 3D Printing Threads | Fast, flexible, complex shapes | Lower strength, limited precision |
Alert: Always test printed threads for fit and strength before using them in load-bearing assemblies.
Design Considerations
Material
Material selection stands as a primary factor in threaded hole performance. Engineers must match the material properties to the application’s mechanical demands. Hard metals like steel or titanium provide excellent wear resistance and strength, making them suitable for high-stress environments. Softer materials, such as aluminum or plastics, require additional attention to prevent thread stripping or deformation.
- Axial load-bearing capacity tests on threaded holes in thin-section 6082-T6 aluminum alloy show that friction drilling with thread forming increases load capacity by up to 35% compared to conventional twist drilling and tapping.
- Thread stripping analyses reveal that longer thread engagement lengths, created by friction drilling’s bushing formation, significantly improve resistance to thread stripping under axial loads.
- Microstructural and hardness evaluations indicate work hardening near the thread area, with hardness increasing from 111HV in the parent metal to 125HV, affecting mechanical performance.
- Statistical significance testing (two-factor ANOVA) confirms that differences in drilling and threading methods have a significant effect (p-value = 0.003) on failure loads, highlighting the importance of thread size, design, and material processing.
- Reliability-based Factors of Safety (FoS) ranging from 3.61 to 4.38 were developed for friction-drilled, thread-formed joints, providing design guidance to avoid thread stripping failures.
- Comparative analysis highlights that conventional twist drilling limits thread engagement length to the section thickness, which can be insufficient for thin materials, making material selection and thread size critical design considerations.
Engineers often use threaded inserts to reinforce threads in soft materials. This approach extends the service life of the joint and allows repeated assembly without damaging the base material.
Tip: Always consider the compatibility between the fastener and the base material to maximize joint reliability.
Thread Size
Thread size directly influences the strength and durability of a threaded connection. Larger threads distribute load over a greater area, reducing the risk of stripping or failure. Smaller threads suit compact assemblies but may not withstand high forces. The choice of thread size depends on the material thickness, expected loads, and available space.
- Longer thread engagement lengths, achieved through advanced drilling methods, significantly increase resistance to thread stripping.
- Conventional twist drilling restricts thread engagement to the thickness of the material, which can limit strength in thin sections.
- Statistical analyses confirm that thread size and engagement length play a crucial role in the failure loads of threaded joints.
Selecting the correct thread size ensures that the fastener can handle the required loads without compromising the integrity of the assembly. Engineers should reference industry standards and consider the effects of manufacturing processes on final thread dimensions.
Depth
Depth of the threaded hole determines how much of the fastener engages with the material. Deeper threads provide greater holding power and improve resistance to pull-out forces. However, excessive depth can weaken the surrounding structure or complicate manufacturing. In thin materials, engineers must balance thread depth with available thickness to avoid breakthrough or reduced strength.
Designers specify minimum and maximum thread depths based on application requirements and material properties. For blind holes, precise depth control prevents damage to the part or fastener. Through holes allow for full thread engagement but may require additional support, such as nuts or washers, to maintain joint stability.
Proper depth selection forms a key part of considerations for threading. It ensures the joint meets safety and performance standards while optimizing manufacturing efficiency.
Position
The position of a threaded hole plays a critical role in the overall strength and reliability of a mechanical assembly. Engineers must carefully select the location of each hole to avoid weakening the part or causing interference with other features. Proper positioning ensures that the fastener can apply the required clamping force without damaging the surrounding material.
Incorrect placement often leads to reduced load capacity or even catastrophic failure. For example, holes placed too close to the edge of a component may cause the material to crack or deform under stress. When holes are too close together, the threads may overlap, which reduces the effectiveness of each connection. Engineers use industry guidelines and simulation tools to determine the optimal spacing between holes and from the edge of the part.
A well-thought-out design considers not only the immediate function of the threaded hole but also the long-term durability of the assembly. The following factors influence the ideal position:
- Edge Distance: Maintain a minimum distance from the edge to prevent material failure. Most standards recommend at least 1.5 times the hole diameter as a safe margin.
- Spacing Between Holes: Ensure enough space between adjacent holes to preserve the integrity of the threads. Crowded holes can lead to cross-threading or reduced holding power.
- Alignment with Load Paths: Place holes along the primary load paths to maximize joint strength. Misaligned holes may introduce unwanted stresses or bending moments.
- Accessibility: Position holes where tools can easily reach them during assembly and maintenance. Poor access increases the risk of improper installation or damage.
Tip: Use CAD software to visualize the assembly and check for potential conflicts before finalizing the design.
Engineers often rely on geometric dimensioning and tolerancing (GD&T) to specify the exact position of threaded holes on technical drawings. GD&T symbols communicate the allowable variation in location, which helps machinists achieve precise placement during manufacturing. Accurate positioning reduces the risk of assembly errors and ensures that all parts fit together as intended.
Standard vs. Custom
Engineers often face a choice between standard and custom threaded holes during the design process. This decision affects manufacturing speed, cost, and long-term reliability. Understanding the differences helps teams select the best option for each application.
Standard Threaded Holes
Standard threaded holes follow established industry specifications. These include ISO, ANSI, and other recognized standards. Manufacturers produce standard fasteners and tools in large quantities, making them widely available and cost-effective.
Advantages of Standard Threaded Holes:
- Easy sourcing of fasteners and tools
- Lower production costs due to mass manufacturing
- Simplified quality control and inspection
- High interchangeability between parts from different suppliers
Disadvantages:
- Limited flexibility in size, pitch, or thread profile
- May not fit unique or highly specialized applications
Custom Threaded Holes
Custom threaded holes use non-standard dimensions, pitches, or thread forms. Engineers specify these when standard options do not meet the requirements of a particular project. Custom threads often appear in specialized machinery, legacy equipment, or products with unique performance needs.
Advantages of Custom Threaded Holes:
- Tailored fit for unique assemblies
- Ability to optimize strength, sealing, or other properties
- Solutions for legacy or proprietary systems
Disadvantages:
- Higher manufacturing costs due to special tooling
- Longer lead times for production and replacement parts
- Increased risk of assembly errors if documentation is unclear
- Limited availability of compatible fasteners
| Feature | Standard Threaded Holes | Custom Threaded Holes |
|---|---|---|
| Availability | High | Low |
| Cost | Low | High |
| Interchangeability | Yes | No |
| Lead Time | Short | Long |
| Flexibility | Limited | High |
| Quality Control | Simplified | Complex |
Tip: Choose standard threaded holes whenever possible. They reduce costs and simplify maintenance. Select custom threads only when the application demands unique features that standards cannot provide.
Engineers should document all custom features clearly in technical drawings. This practice prevents confusion during manufacturing and assembly. Teams must also consider the long-term impact. Custom threads can complicate repairs and sourcing of replacement parts years after production.
A thoughtful approach to this decision supports efficient manufacturing and reliable product performance. The right choice depends on the specific needs of the project and the goals of the overall design.
Threaded Holes vs. Tapped Holes
Definitions
Threaded holes and tapped holes often appear together in technical discussions, but they have distinct meanings. A threaded hole refers to any hole with internal threads, regardless of how those threads are produced. This category includes holes created by cutting, forming, rolling, or additive manufacturing. Engineers use threaded holes to accept screws or bolts, ensuring a secure connection.
Tapped holes represent a specific subset of threaded holes. The term “tapped” describes the process of cutting threads into a pre-drilled hole using a tool called a tap. All tapped holes are threaded holes, but not all threaded holes are tapped. Some threads form through rolling or other methods. Understanding this distinction helps engineers select the right process for each application.
Process
The process for creating threaded holes varies based on the chosen method. Tapped holes require a tap, which cuts threads into the material. Operators can perform tapping by hand or with machines. This method works well for most metals and plastics, offering reliable results for standard applications.
Other methods, such as thread rolling or thread milling, also produce threaded holes. Thread rolling forms threads by deforming the material, which increases strength and improves fatigue resistance. Thread milling uses a rotating cutter to carve threads, providing flexibility in thread size and pitch. Each process has unique requirements for tools, machines, and operator skill.
- Tapping requires precise feedrate control to match the thread pitch. Any mismatch can damage the threads or the tap.
- Thread milling allows more flexible programming and can correct out-of-tolerance holes.
- Tapping tools are specific to thread size and material, while thread mills can create multiple thread sizes with the same pitch.
- Thread milling needs advanced CNC machines, but tapping can be done on simpler equipment.
Note: Proper hole preparation and process selection are critical for achieving high-quality threads and maintaining structural integrity.
Strength
Strength remains a key factor when comparing threaded holes and tapped holes. The method used to create the threads directly affects the joint’s ability to withstand load and maintain structural integrity. Tapped holes, produced by cutting, generally provide consistent strength across a range of materials and hole sizes. However, the strength of tapped threads can decrease if the hole is oversized or if the material is too soft.
Formed threads, created by rolling, show different behavior. These threads rely on the material’s ability to deform and work harden. When the hole size matches the nominal value, formed threads offer high strength. If the hole becomes oversized, the strength drops sharply because the threads become hollow and weak.

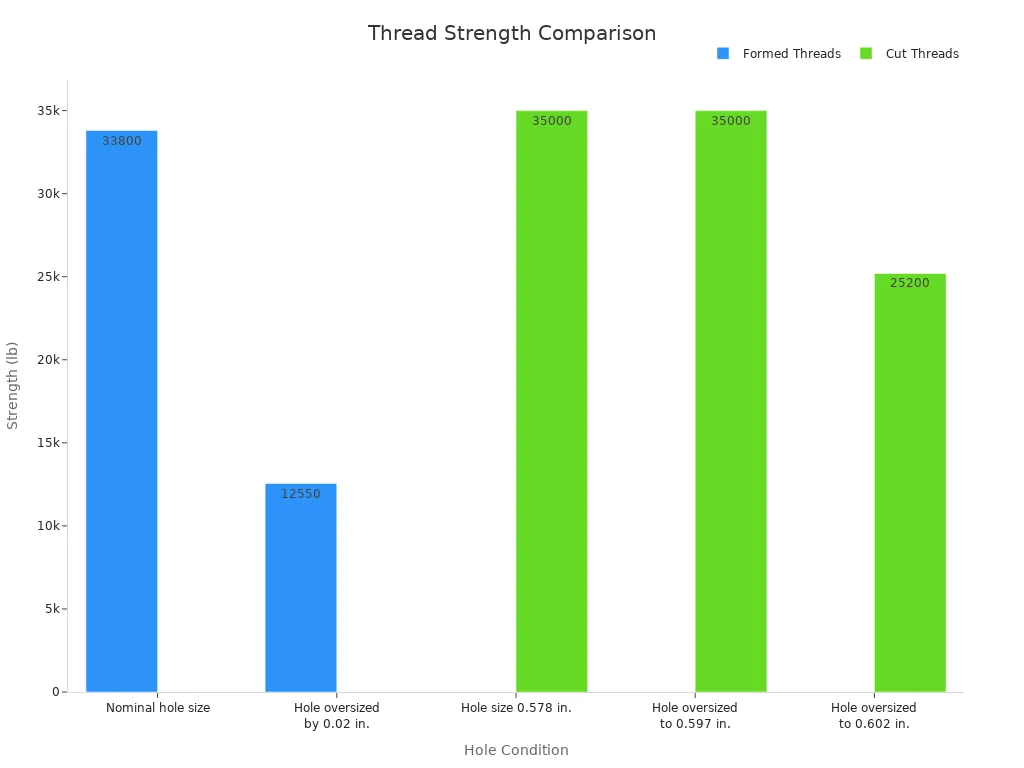

The table below compares the strength of formed and cut threads under different hole size conditions:
| Thread Type | Hole Size Condition | Strength (lb) | Strength Retention (%) | Notes |
|---|---|---|---|---|
| Formed Threads | Nominal hole size | ~33,800 | 100% | Baseline strength (approximate from context) |
| Formed Threads | Hole oversized by 0.02 in. | 12,550 | 33% | 67% strength lost due to oversizing; threads become hollow and weak |
| Cut Threads | Hole size 0.578 in. | >35,000 | 100% | Baseline strength |
| Cut Threads | Hole oversized to 0.597 in. | >35,000 | ~100% | Strength maintained despite oversizing |
| Cut Threads | Hole oversized to 0.602 in. | ~25,200 | 72% | Strength dips below 35,000 lb only after 5.5% oversizing |
This data shows that tapped holes, which use cut threads, maintain their strength even when the hole is slightly oversized. Formed threads lose a significant portion of their strength with minor oversizing. Engineers must consider these differences when designing joints that require high structural integrity. Tapped holes provide a reliable solution for most applications, especially when precise hole sizing cannot be guaranteed.
Cost
Cost plays a significant role when comparing threaded holes and tapped holes in manufacturing. Engineers and production managers often evaluate both direct and indirect expenses before choosing a threading method. Each approach brings its own set of financial considerations.
Threaded holes created by tapping usually involve lower initial tooling costs. Standard taps are widely available and affordable. Operators can use basic equipment, which reduces capital investment. For small batches or repair work, the tapped method remains cost-effective. However, labor costs may rise if the process requires manual effort or frequent tool changes.
Thread milling and thread rolling, two alternative methods for producing threaded holes, often require more advanced machinery. CNC machines and specialized tools increase upfront costs. These methods, though, can reduce cycle times and improve consistency in high-volume production. Over time, the investment in automation and precision equipment can lead to lower per-part costs for large runs.
Material waste also affects overall expenses. Tapped holes generate chips, which can increase cleanup and disposal costs. Thread rolling, on the other hand, forms threads without removing material, making it more efficient for expensive metals. Inserts add another layer of cost, especially when reinforcing soft materials or repairing damaged threads.
The table below summarizes the main cost factors for each method:
| Method | Tooling Cost | Equipment Cost | Labor Cost | Material Waste | Best Use Case |
|---|---|---|---|---|---|
| Tapped | Low | Low | Moderate | Moderate | Small batches, repairs |
| Thread Milling | High | High | Low | Low | High-volume, precision parts |
| Thread Rolling | Moderate | High | Low | Minimal | Mass production, strong threads |
| Inserts | Moderate | Low | Moderate | Low | Repairs, soft materials |
Note: Choosing the right method depends on production volume, material type, and required thread quality. For one-off jobs or prototypes, tapped holes often provide the most economical solution. For large-scale manufacturing, investing in advanced methods can reduce long-term costs.
Flexibility
Flexibility measures how well a threading method adapts to different design requirements, materials, and production scenarios. Engineers value flexible processes because they support rapid changes and customizations.
Tapped holes offer good flexibility for standard applications. Operators can use hand tools or machines to create threads in a wide range of materials. The process works for both blind and through holes. However, tapped holes may struggle with very hard materials or unusual thread profiles. Changing thread size or pitch often requires a new tap, which can slow down production.
Thread milling stands out for its adaptability. A single tool can produce multiple thread sizes and pitches by adjusting the CNC program. This method excels in custom or low-volume production, where design changes happen frequently. Thread milling also handles difficult materials and complex geometries with ease.
Thread rolling provides less flexibility. The process requires specific dies for each thread size and profile. While it delivers strong threads, it suits high-volume runs with consistent specifications. Inserts add flexibility by allowing repairs or upgrades without redesigning the entire part.
A quick comparison of flexibility:
- Tapped holes: Good for standard sizes and materials, limited for custom threads.
- Thread milling: Excellent for varied designs and materials, ideal for prototypes.
- Thread rolling: Best for repetitive, high-volume jobs with fixed requirements.
- Inserts: Useful for repairs and adapting to soft or damaged materials.
Tip: For projects with frequent design changes or a mix of materials, thread milling or inserts provide the highest flexibility. For routine production, tapped holes remain a reliable choice.
Threaded Hole Applications
Automotive
The automotive industry relies heavily on threaded hole applications for assembling vehicles and ensuring long-term reliability. Engineers use threaded holes in engine blocks, transmission housings, chassis frames, and suspension systems. These holes allow for precise fastening of critical components, such as cylinder heads, brackets, and safety systems. Manufacturers demand high-strength, corrosion-resistant threaded components to withstand harsh environments and constant vibration.
Industry reports show that automotive remains the largest end-user of threaded inserts and fasteners. The push for lightweight vehicles drives the adoption of aluminum and composite materials, which require reinforced threads for durability. Companies like Stanley Black & Decker and Alcoa Fastening Systems lead the market by providing advanced solutions for automotive assembly lines. Quality control tools, such as thread plug gages, play a vital role in verifying the dimensions and compatibility of threaded holes, directly impacting vehicle safety and performance.
| Aspect | Details |
|---|---|
| Key Applications | Engine blocks, chassis, suspension, interiors |
| Market Drivers | Lightweighting, durability, safety standards |
| Leading Companies | Stanley Black & Decker, Alcoa Fastening Systems |
Note: Precision in threaded hole manufacturing ensures that vehicles meet strict safety and quality standards.
Electronics
Threaded holes serve as essential features in electronics manufacturing. Designers use them to secure printed circuit boards (PCBs), mount enclosures, and attach heat sinks. These applications require small, precise threads that can handle repeated assembly and disassembly without failure. Electronics manufacturers often select materials like brass or stainless steel for their threaded components to ensure conductivity and corrosion resistance.
Technical studies highlight the importance of proper thread engagement and retention in electronics. Reliable threaded holes prevent loosening under vibration, which is critical for maintaining electrical connections and device integrity. Blind holes are common in electronics to hide fasteners and save space within compact devices. The use of threaded inserts allows for strong, reusable threads in plastic housings, supporting efficient assembly and repair.
- Typical applications: PCB mounting, device enclosures, connectors, and heat sinks
- Key requirements: Precision, miniaturization, and resistance to wear
Tip: Well-designed threaded holes improve assembly speed and reduce the risk of product failure in electronic devices.
Construction
Construction projects depend on threaded holes for structural connections and equipment installation. Builders use them in steel frameworks, concrete anchors, and modular building systems. Threaded holes allow for secure attachment of beams, panels, and fixtures, supporting both temporary and permanent structures.
The demand for durable, corrosion-resistant fastening solutions continues to grow in construction. Technological advancements in materials and manufacturing processes enable the use of threaded holes in challenging environments, such as bridges and high-rise buildings. Construction crews benefit from standardized threaded components, which simplify assembly and maintenance on-site.
| Application Area | Typical Use Cases |
|---|---|
| Steel Structures | Beam connections, column bases |
| Concrete Anchoring | Fastening machinery, safety barriers |
| Modular Systems | Prefabricated panels, scaffolding |
Alert: Proper installation and inspection of threaded holes in construction ensure the safety and longevity of buildings and infrastructure.
Aerospace
The aerospace industry sets some of the highest standards for threaded hole applications. Engineers design aircraft, spacecraft, and satellites with strict requirements for safety, weight, and reliability. Threaded holes play a critical role in assembling and maintaining these complex systems.
Aerospace components often face extreme conditions. High vibration, rapid temperature changes, and exposure to corrosive environments challenge every fastener. Threaded holes must hold up under these stresses to keep aircraft and spacecraft safe and operational.
Key aerospace parts using threaded holes include:
- Fuselage panels and structural frames
- Engine mounts and turbine housings
- Landing gear assemblies
- Avionics racks and electronic enclosures
- Control surfaces and actuator brackets
Manufacturers select materials like titanium, high-strength aluminum alloys, and advanced composites for these parts. These materials reduce weight while maintaining strength. Threaded holes in these materials require precise machining and inspection. Even a small defect can lead to failure in flight.
Note: Aerospace standards, such as AS9100 and NAS (National Aerospace Standards), specify exact tolerances and inspection methods for threaded holes. These standards help ensure every fastener fits perfectly and performs as expected.
Threaded inserts see frequent use in aerospace assemblies. Inserts reinforce threads in soft or thin materials, allowing repeated assembly and disassembly without wear. Helical wire inserts and solid bushings prevent thread stripping and increase fatigue resistance. Engineers often use locking features, such as self-locking inserts or thread-locking compounds, to prevent loosening from vibration.
The table below highlights the importance of threaded holes in aerospace applications:
| Application Area | Typical Function | Key Requirement |
|---|---|---|
| Fuselage Assembly | Joining panels and frames | High strength, low weight |
| Engine Components | Securing mounts and housings | Heat and vibration resistance |
| Avionics | Mounting electronics | Precision, EMI shielding |
| Landing Gear | Fastening structural parts | Fatigue and impact resistance |
Aerospace engineers rely on advanced inspection tools, such as coordinate measuring machines (CMMs) and thread gauges, to verify every threaded hole. Quality control teams document each step to meet regulatory and customer requirements.
Tip: Proper design and inspection of threaded holes help prevent costly failures and ensure the safety of passengers and crew.
Manufacturing Challenges
Stripped Threads
Stripped threads represent a common problem in the manufacturing of threaded holes. This issue occurs when the internal threads lose their shape or become damaged, preventing proper engagement with fasteners. Over-tightening, using mismatched fasteners, or selecting materials that are too soft can all lead to stripped threads. In many cases, repeated assembly and disassembly accelerate wear, especially in softer metals or plastics.
To prevent stripped threads, engineers recommend the following practices:
- Select materials with adequate hardness for the application.
- Use torque-limiting tools to avoid over-tightening.
- Match fastener size and thread pitch to the hole specifications.
- Consider threaded inserts for soft materials or high-cycle assemblies.
When stripped threads occur, repair options include installing a threaded insert or re-tapping the hole to a larger size. These solutions restore function and extend the life of the component.
Seized Threads
Seized threads, also known as galling, happen when the threads of a bolt and a hole fuse together during installation or removal. This problem often arises in stainless steel or aluminum assemblies, where friction and heat cause the metal surfaces to weld. Seized threads can halt production and damage both the fastener and the threaded hole.
Common causes of seized threads include:
- Lack of lubrication during assembly.
- High installation speeds generating excessive heat.
- Using incompatible materials for the bolt and the hole.
To reduce the risk of seizing, manufacturers apply anti-seize compounds or lubricants to the threads. Slower installation speeds and proper material selection also help. If seizing occurs, technicians may need to cut or drill out the fastener, which can damage the hole and require additional repair.
Broken Bolts
Broken bolts present a serious challenge in the maintenance and manufacturing of threaded holes. This failure often results from excessive torque, fatigue, or corrosion. In offshore oil, natural gas, and mining operations, broken bolts frequently occur due to hydrogen-assisted cracking and hydrogen induced cracking. These mechanisms initiate fractures at the thread roots, especially under high stress and corrosive conditions.
Key observations from engineering analyses include:
- Visual inspections by remotely operated vehicles (ROVs) every few days help detect early signs of bolt failure.
- Periodic disassembly and nondestructive testing improve safety but are not always mandatory.
- Galvanized bolts in underground mining environments show a dramatic increase in hydrogen content, raising the risk of cracking.
- Stress concentration at the thread roots and poor material selection contribute to instantaneous fractures.
Practical solutions involve:
- Replacing galvanized bolts with high-strength coated alternatives.
- Optimizing heat treatment and threading sequences during manufacturing.
- Selecting materials that resist embrittlement and cracking.
- Implementing improved inspection protocols and root cause analysis to prevent recurrence.
⚠️ Large-scale recall campaigns and costly repairs highlight the importance of addressing broken bolts in critical assemblies. Manufacturers must prioritize robust design and regular inspection to ensure the reliability of threaded holes.
Deep Holes
Deep holes present unique challenges in threaded hole manufacturing. Engineers often encounter these holes in applications that require long fasteners or high-strength joints, such as engine blocks, hydraulic cylinders, or heavy machinery frames. The depth-to-diameter ratio in these holes can exceed 10:1, which increases the risk of tool deflection, chip accumulation, and thread misalignment.
Common issues with deep holes include:
- Tool Deflection: Long taps or thread mills can bend under pressure. This deflection leads to off-center threads or inconsistent pitch.
- Chip Removal: Chips generated during threading may clog the hole. Poor chip evacuation can cause tool breakage or damage to the threads.
- Thread Quality: Achieving uniform thread depth and pitch becomes difficult as the tool travels deeper. Variations can weaken the joint or cause assembly problems.
- Lubrication: Reaching the bottom of a deep hole with lubricant is challenging. Insufficient lubrication increases friction and tool wear.
Engineers use several strategies to address these challenges:
- Specialized Tools: Manufacturers design extra-long taps, spiral flute taps, or thread mills for deep hole applications. These tools improve chip evacuation and reduce deflection.
- Pecking Technique: Operators advance the tool in short increments, then retract it to clear chips. This method prevents clogging and reduces heat buildup.
- Coolant Delivery: High-pressure coolant systems flush chips from the hole and keep the tool cool. Through-tool coolant delivery targets the cutting edge directly.
- Pilot Holes: Drilling a pilot hole with a slightly larger diameter at the bottom can help guide the tap and improve thread quality.
- Inspection: Engineers use go/no-go gauges or optical inspection to verify thread integrity throughout the hole’s depth.
Tip: Always specify the required thread depth and tolerance on technical drawings. Clear documentation helps machinists select the right tools and methods for deep hole manufacturing.
| Challenge | Cause | Solution |
|---|---|---|
| Tool Deflection | Long unsupported tools | Use rigid tools, reduce speed |
| Chip Accumulation | Poor evacuation | Spiral flute taps, pecking method |
| Thread Variation | Tool misalignment | Pilot holes, precise fixturing |
| Lubrication | Limited access | Through-tool coolant, lubricants |
Deep holes require careful planning and specialized equipment. Successful manufacturing of these features ensures strong, reliable joints in demanding applications.
Best Practices in Manufacturing
Fastener Matching
Selecting the correct fastener for each threaded hole is essential for reliable assemblies. Engineers must consider the material, thread type, and fit to ensure the fastener and hole work together as a system. Proper fastener matching improves load transfer and prevents premature failure. Studies using experimental and simulation methods show that interference-fit conditions, where the fastener is slightly larger than the hole, can significantly increase joint strength. For example, a 0.8% interference-fit provides the highest bearing capacity and delays fiber failure around the hole. This approach also improves fatigue life and optimizes load distribution between adhesive bonds and fasteners.
The “Miller Fastener” design demonstrates these principles in real-world applications. Engineers validated this fastener through static, creep, and cyclic load tests at various temperatures. The design uses a composite laminate with a threaded metal sleeve, which overcomes the limitations of composite threads and ensures effective load transfer. These case studies confirm that careful fastener selection and matching are critical steps in the manufacturing process.
Tip: Always check that the fastener matches the hole’s thread size, pitch, and material for maximum performance.
Torque
Applying the correct torque during assembly ensures that the fastener achieves the right preload without damaging the threads. Too much torque can strip threads or break bolts, while too little torque may cause loosening under load. Quality assurance data highlights the importance of precise torque management. Engineers use load-sensing bolts with integrated sensors to monitor torque and tension in real time. This technology helps prevent over- or under-tightening and supports reliable assembly in critical applications.
The “Hi-Bolt” fastener offers an innovative solution. It features a steel pin inside the bolt shank that moves as the nut is tightened, allowing real-time monitoring of bolt tension. This design ensures the correct torque is applied every time, reducing the risk of assembly errors. Manufacturers who use these advanced fasteners demonstrate best practices in torque management and set a high standard for quality control.
Note: Use calibrated torque wrenches or load-sensing fasteners to achieve consistent results in every assembly.
Lubrication
Lubrication plays a vital role in threaded hole assembly. It reduces friction between the fastener and the threads, making it easier to achieve the correct torque. Proper lubrication also prevents galling, seizing, and wear, especially in stainless steel or aluminum assemblies. Engineers recommend applying a suitable lubricant to both the fastener and the hole before tightening. This practice extends the life of the threads and ensures smooth assembly.
A well-lubricated joint allows for more accurate torque application, as less force is lost to friction. In high-stress or high-temperature environments, specialized lubricants may be necessary to maintain performance. Regular inspection and reapplication of lubricant during maintenance help prevent thread damage and support long-term reliability.
Alert: Never skip lubrication, especially when working with stainless steel or in high-load applications.
Corrosion Resistance
Corrosion resistance stands as a critical factor in the longevity and reliability of threaded holes. Engineers must address corrosion risks during both design and manufacturing. Corrosion can weaken threads, cause fastener seizure, and lead to catastrophic joint failure. Many industries, such as aerospace, automotive, and marine, demand high corrosion resistance due to harsh operating environments.
Several strategies help improve corrosion resistance in threaded holes:
- Material Selection: Stainless steel, titanium, and certain aluminum alloys offer natural resistance to corrosion. Engineers often choose these materials for components exposed to moisture, chemicals, or salt.
- Protective Coatings: Zinc plating, galvanizing, anodizing, and phosphate coatings create a barrier between the metal and the environment. These coatings slow down or prevent the onset of rust and oxidation.
- Sealants and Threadlockers: Applying sealants or anaerobic threadlockers to threads blocks moisture and contaminants. These products also help prevent loosening from vibration.
- Design Modifications: Engineers can design holes with drainage paths or specify closed-end (blind) holes to reduce water ingress. Proper drainage prevents standing water, which accelerates corrosion.
Tip: Always specify corrosion-resistant coatings or materials in technical drawings for parts used outdoors or in corrosive environments.
A comparison of common corrosion protection methods:
| Method | Typical Use Case | Advantages | Limitations |
|---|---|---|---|
| Stainless Steel | Marine, medical, food industry | High resistance, durable | Higher cost |
| Zinc Plating | Automotive, construction | Cost-effective, easy to apply | Limited in saltwater |
| Anodizing | Aluminum parts | Improves hardness, color | Only for aluminum |
| Thread Sealants | Electronics, plumbing | Easy application, reusable | May require reapplication |
Engineers must also consider galvanic corrosion. This occurs when two dissimilar metals contact each other in the presence of an electrolyte, such as water. For example, pairing a stainless steel bolt with an aluminum threaded hole can accelerate corrosion at the interface. To prevent this, select compatible materials or use insulating washers and coatings.
Regular inspection and maintenance further extend the life of threaded holes. Technicians should check for signs of rust, discoloration, or pitting during routine service. Early detection allows for timely repairs and prevents more severe damage.
Alert: Neglecting corrosion protection can lead to seized fasteners, stripped threads, and costly downtime. Always prioritize corrosion resistance in environments with high humidity, chemicals, or salt exposure.
CNC Use
Computer Numerical Control (CNC) technology has transformed the way manufacturers create threaded holes. CNC machines deliver unmatched precision, repeatability, and speed. They allow engineers to automate complex threading operations, reducing human error and ensuring consistent quality across large production runs.
CNC use in threaded hole manufacturing offers several key advantages:
- Precision and Consistency: CNC machines follow programmed instructions with high accuracy. Each threaded hole matches the exact specifications, which is critical for assemblies that demand tight tolerances.
- Efficiency: Automated tool changes and optimized cutting paths reduce cycle times. Operators can produce hundreds or thousands of identical parts with minimal supervision.
- Complex Geometries: CNC equipment handles intricate part designs. It creates threads in hard-to-reach locations, angled surfaces, or deep holes that challenge manual methods.
- Data Integration: Modern CNC systems connect with design software. Engineers can transfer CAD models directly to the machine, minimizing translation errors and streamlining the workflow.
Tip: Always verify CNC programs with a dry run before full production. This practice helps catch programming errors and prevents costly material waste.
CNC manufacturing supports several threading techniques, including tapping, thread milling, and thread rolling. Each method benefits from the machine’s ability to control speed, feed rate, and tool position with precision. For example, thread milling on a CNC machine allows for easy adjustments to thread size or pitch by changing the program, not the hardware. This flexibility proves valuable for custom or low-volume orders.
A comparison of CNC threading methods:
| Method | Best Use Case | Key Benefit |
|---|---|---|
| CNC Tapping | High-volume, standard parts | Fast, reliable |
| CNC Thread Milling | Custom threads, prototypes | Flexible, precise |
| CNC Thread Rolling | Strong threads, ductile materials | Superior fatigue resistance |
CNC machines also improve safety. Automated processes reduce the risk of operator injury from repetitive tasks or tool breakage. Built-in sensors monitor tool wear and part quality, alerting operators to potential issues before they cause defects.
Manufacturers who invest in CNC manufacturing gain a competitive edge. They produce high-quality threaded holes faster and with fewer errors. This technology supports both mass production and rapid prototyping, making it essential for modern engineering teams.
Proper threaded hole design and manufacturing play a vital role in product reliability and safety. Technical reports show that precise measurement and advanced inspection tools help prevent costly errors, especially in automotive and aerospace applications. Expert analyses confirm that digital thread integration and tolerance management improve quality and reduce risks. To achieve the best results, engineers should:
- Select the right creation method for each material and hole type.
- Follow industry standards and inspect holes regularly.
- Consult specialists for complex or mission-critical assemblies.
Regular attention to these practices ensures strong, dependable connections in every project.
FAQ
What is the difference between a tapped hole and a threaded hole?
A tapped hole uses a tap to cut threads inside a drilled hole. A threaded hole refers to any hole with internal threads, regardless of how those threads form. All tapped holes are threaded holes, but not all threaded holes are tapped.
How do engineers prevent stripped threads in soft materials?
Engineers often use threaded inserts in soft materials like aluminum or plastic. These inserts reinforce the threads and allow repeated assembly without damage. Proper torque control and matching fastener size also help prevent stripping.
Why do some designs use blind holes instead of through holes?
Blind holes keep the fastener hidden and maintain the part’s appearance. They also prevent leaks or contamination from passing through the material. Designers choose blind holes when strength and aesthetics matter.
What tools measure the quality of threaded holes?
Technicians use go/no-go gauges, thread plug gauges, and coordinate measuring machines (CMMs) to check thread size, pitch, and alignment. These tools ensure each threaded hole meets strict industry standards.
Can 3D printing create strong threaded holes?
3D printing can produce threaded holes, but printed threads may lack strength for heavy loads. Engineers often add metal inserts or tap the hole after printing to improve durability and performance.
How do manufacturers avoid seized threads?
Manufacturers apply lubricants or anti-seize compounds to threads before assembly. They also select compatible materials and control installation speed. These steps reduce friction and prevent galling, especially in stainless steel or aluminum parts.
What is the best way to repair a damaged threaded hole?
Installing a threaded insert restores strength and function to a damaged hole. The process involves drilling out the old threads, tapping new threads, and placing the insert. This method works for most metals and plastics.
